Sayfa 4-25 - Isuzu EPC

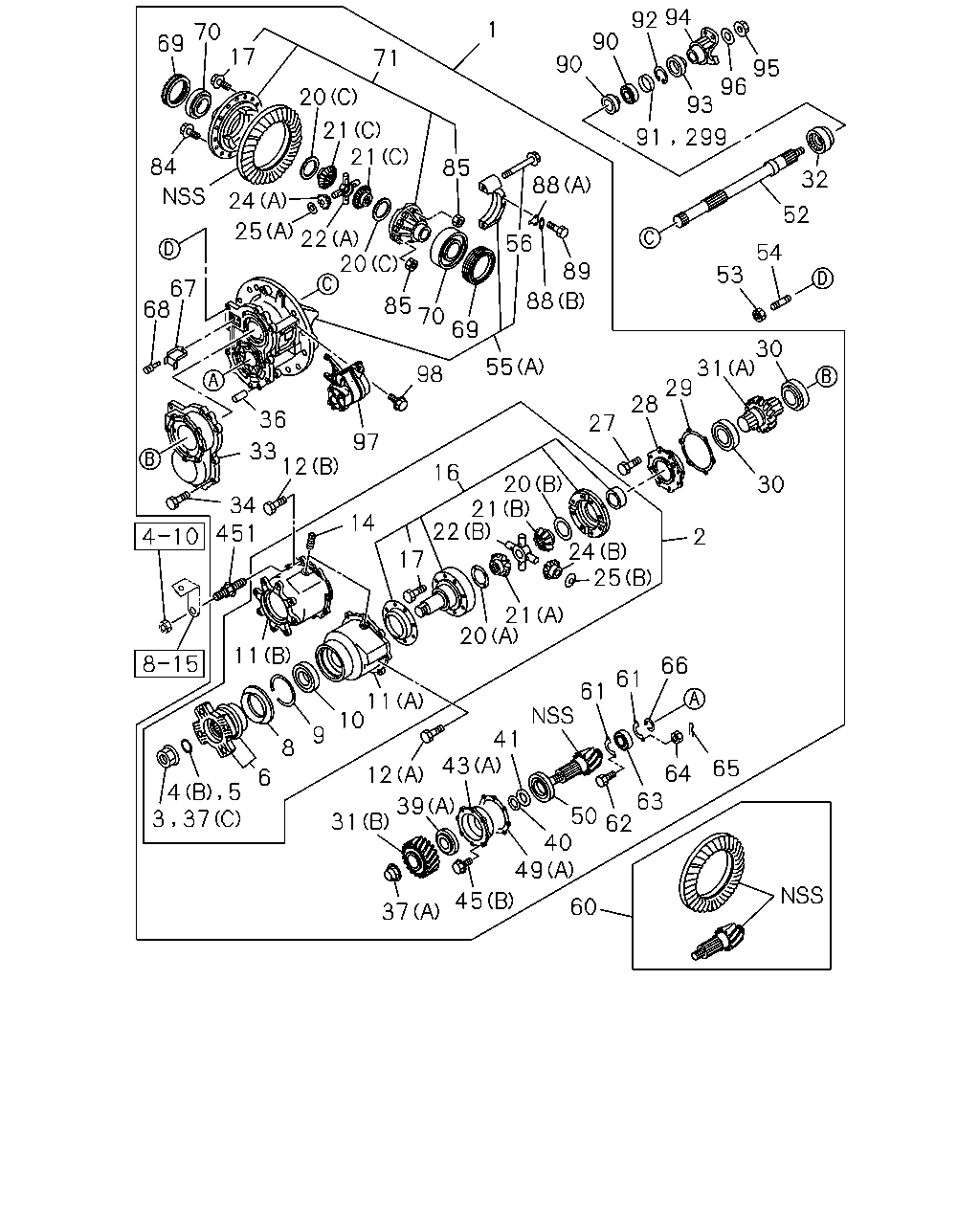

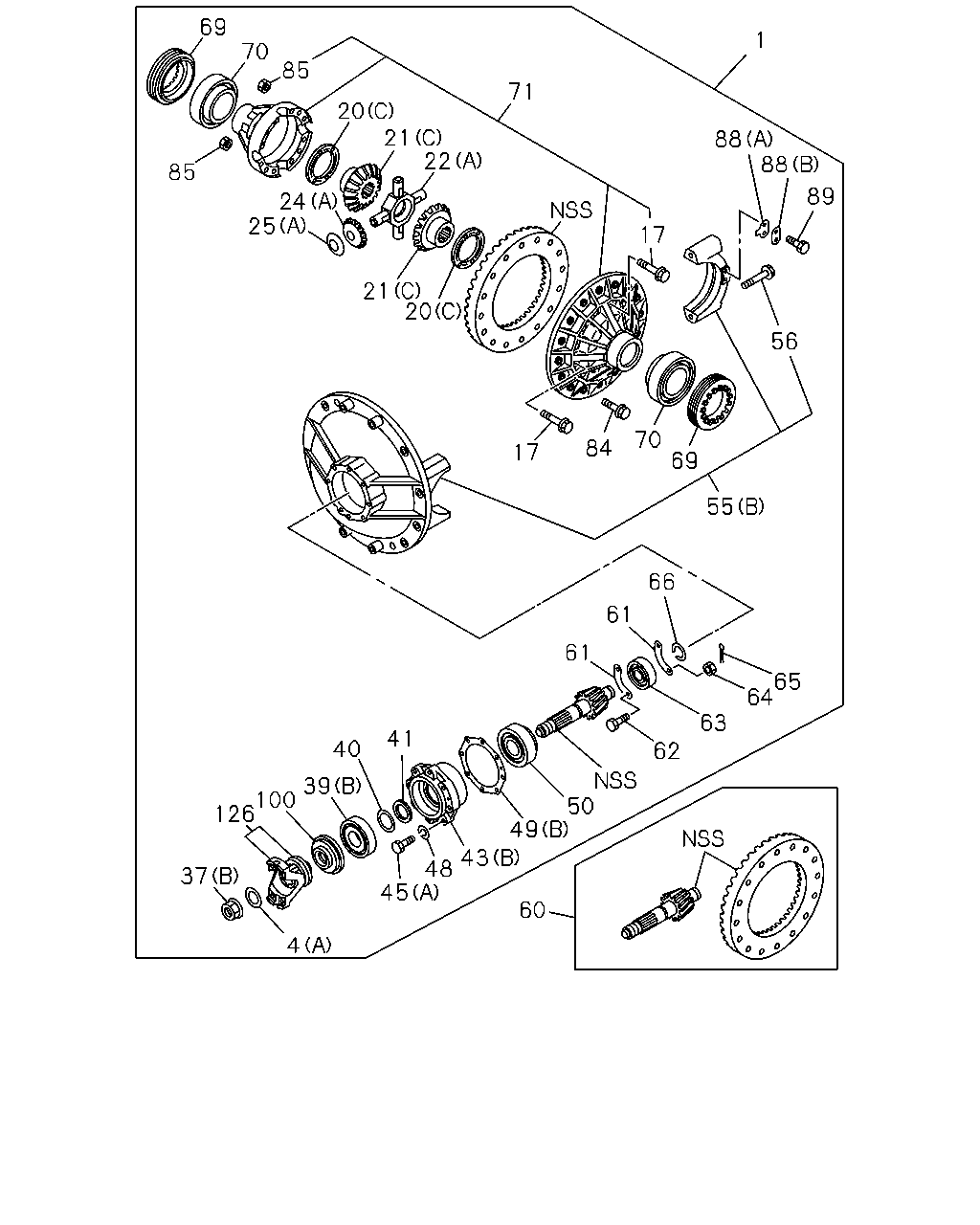

4-25 — REAR FINAL DRIVE (#25898) — 418 parça

69 1 70 85 71 20 21 22 88 88 85 24 25 89 17 21 20 56 70 84 17 69 55 66 61 61 65 64 63 41 40 62 50 49 43 48 45 39 100 126 37 60 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	DRIVE ASM; FINAL,RR REARWARD 39/9	1-41001-800-0	01	1	0302-	●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 39/9	1-41002-719-0	01	1	0302-	●
1	DRIVE ASM; FINAL,RR EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 39/9	1-41002-243-0	01	1	0302-	●
1	DRIVE ASM; FINAL,RR REARWARD 41/9	1-41001-751-0	01	1	0302-		●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 41/9	1-41002-722-0	01	1	0302-		●
1	DRIVE ASM; FINAL,RR EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 41/9	1-41002-155-0	01	1	0302-		●
1	DRIVE ASM; FINAL,RR REARWARD 41/10	1-41002-258-0	01	1	0302-			●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 41/10	1-41002-720-0	01	1	0302-			●
1	DRIVE ASM; FINAL,RR EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 41/10	1-41002-241-0	01	1	0302-			●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 43/11	1-41002-907-0	01	1	0302-				●
1	DRIVE ASM; FINAL,RR EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 43/11	1-41002-431-0	01	1	0302-				●
1	DRIVE ASM; FINAL,RR REARWARD 43/11	1-41002-429-0	01	1	0302-				●
4	GASKET; FLANGE,FINAL PINION BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) ID=57	1-09623-386-0	01	1	0401-	●	●	●	●
4	GASKET; FLANGE,FINAL PINION (A) ID=42	9-09921-116-0	01	1	0302-	●	●	●	●
17	BOLT; DIFF CAGE SETTING M14X75 FLANGE	1-09070-008-0	08	1	0302-	●	●	●	●
17	BOLT; DIFF CAGE SETTING M14X121 FLANGE	1-09044-006-0	08	1	0302-	●	●	●	●
17	BOLT; DIFF CAGE SETTING M14X121 FLANGE	1-09044-006-0	08	1	0302-	●	●	●	●
17	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	04	1	0302-	●	●	●	●
17	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	04	1	0302-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=2.8	1-41562-120-1	AR	1	0302-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=2.9	1-41562-121-1	AR	1	0302-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.0	1-41562-122-1	AR	1	0302-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.1	1-41562-123-1	AR	1	0302-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.2	1-41562-124-1	AR	1	0302-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.3	1-41562-125-1	AR	1	0302-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.4	1-41562-126-1	AR	1	0302-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=2.7	1-41562-127-0	AR	1	0302-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=2.8	1-41562-128-0	AR	1	0302-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=2.9	1-41562-129-0	AR	1	0302-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.0	1-41562-130-0	AR	1	0302-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.1	1-41562-131-0	AR	1	0302-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.2	1-41562-132-0	AR	1	0302-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.3	1-41562-133-0	AR	1	0302-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.4	1-41562-134-0	AR	1	0302-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=2.80	1-41562-169-0	AR	1	0302-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=2.80	1-41562-169-0	AR	1	0302-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=2.90	1-41562-170-0	AR	1	0302-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=2.90	1-41562-170-0	AR	1	0302-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.00	1-41562-171-0	AR	1	0302-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.00	1-41562-171-0	AR	1	0302-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.10	1-41562-172-0	AR	1	0302-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.10	1-41562-172-0	AR	1	0302-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.20	1-41562-173-0	AR	1	0302-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.20	1-41562-173-0	AR	1	0302-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.30	1-41562-174-0	AR	1	0302-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.30	1-41562-174-0	AR	1	0302-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.40	1-41562-175-0	AR	1	0302-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.40	1-41562-175-0	AR	1	0302-	●	●	●	●
21	GEAR; SIDE,DIFF (B) Z=16	1-41561-037-2	01	1	0302-0407	●	●	●	●
21	GEAR; SIDE,DIFF (B) Z=16	1-41561-136-0	01	1	0408-	●	●	●	●
21	GEAR; SIDE,DIFF (C) Z=16	1-41561-076-0	02	1	0302-0405	●	●	●	●
21	GEAR; SIDE,DIFF (C) Z=16	1-41561-076-0	02	1	0302-0405	●	●	●	●
21	GEAR; SIDE,DIFF (C) Z=16	1-41561-123-0	02	1	0406-	●	●	●	●
21	GEAR; SIDE,DIFF (C) Z=16	1-41561-123-0	02	1	0406-	●	●	●	●
21	GEAR; SIDE,DIFF (A) Z=16	1-41561-109-0	01	1	0302-0407	●	●	●	●
21	GEAR; SIDE,DIFF (A) Z=16	1-41561-137-0	01	1	0408-	●	●	●	●
22	SPIDER; DIFF PINION (A) OD=32	1-41521-002-1	01	1	0302-	●	●	●	●
22	SPIDER; DIFF PINION (A) OD=32	1-41521-002-1	01	1	0302-	●	●	●	●
22	SPIDER; DIFF PINION (B)	1-41521-050-2	01	1	0302-	●	●	●	●
24	GEAR; PINION,DIFF (A) Z=10	1-41551-022-0	04	1	0302-0405	●	●	●	●
24	GEAR; PINION,DIFF (A) Z=10	1-41551-022-0	04	1	0302-0405	●	●	●	●
24	GEAR; PINION,DIFF (A) Z=10	1-41551-040-0	04	1	0406-	●	●	●	●
24	GEAR; PINION,DIFF (A) Z=10	1-41551-040-0	04	1	0406-	●	●	●	●
24	GEAR; PINION,DIFF (B) Z=10	1-41551-032-0	04	1	0302-0407	●	●	●	●
24	GEAR; PINION,DIFF (B) Z=10	1-41551-042-0	04	1	0408-	●	●	●	●
25	WASHER; THRUST,PINION (A) T=1.6	1-41552-001-0	04	1	0302-	●	●	●	●
25	WASHER; THRUST,PINION (A) T=1.6	1-41552-001-0	04	1	0302-	●	●	●	●
25	WASHER; THRUST,PINION (B) ID=29 OD=60	1-41562-119-0	04	1	0302-	●	●	●	●
37	NUT; DRIVING PINION BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M46 FLANGE	1-09449-071-0	01	1	0401-	●	●	●	●
37	NUT; DRIVING PINION (B) M39 FLANGE	1-09449-056-2	01	1	0302-	●	●	●	●
37	NUT; DRIVING PINION (A) M42	1-09449-061-0	01	1	0302-	●	●	●	●
39	BEARING; FINAL PINION (B) NSK	1-09812-086-0	01	1	0302-	●	●	●	●
39	BEARING; FINAL PINION (A) KOYO	1-09812-218-0	01	1	0302-	●	●	●	●
39	BEARING; FINAL PINION (B) NTN	9-00093-072-1	01	1	0302-	●	●	●	●
39	BEARING; FINAL PINION (B) KOYO	9-00093-206-2	01	1	0302-	●	●	●	●
40	SHIM; FINAL PINION T=3.50	1-41229-106-0	AR	1	0302-	●	●	●	●
40	SHIM; FINAL PINION T=3.50	1-41229-106-0	AR	1	0302-	●	●	●	●
40	SHIM; FINAL PINION T=3.51	1-41229-107-0	AR	1	0302-	●	●	●	●
40	SHIM; FINAL PINION T=3.51	1-41229-107-0	AR	1	0302-	●	●	●	●
40	SHIM; FINAL PINION T=3.52	1-41229-108-0	AR	1	0302-	●	●	●	●
40	SHIM; FINAL PINION T=3.52	1-41229-108-0	AR	1	0302-	●	●	●	●
40	SHIM; FINAL PINION T=3.53	1-41229-109-0	AR	1	0302-	●	●	●	●
40	SHIM; FINAL PINION T=3.53	1-41229-109-0	AR	1	0302-	●	●	●	●
40	SHIM; FINAL PINION T=3.54	1-41229-110-0	AR	1	0302-	●	●	●	●
40	SHIM; FINAL PINION T=3.54	1-41229-110-0	AR	1	0302-	●	●	●	●
40	SHIM; FINAL PINION T=3.55	1-41229-111-0	AR	1	0302-	●	●	●	●
40	SHIM; FINAL PINION T=3.55	1-41229-111-0	AR	1	0302-	●	●	●	●
40	SHIM; FINAL PINION T=3.56	1-41229-112-0	AR	1	0302-	●	●	●	●
40	SHIM; FINAL PINION T=3.56	1-41229-112-0	AR	1	0302-	●	●	●	●
40	SHIM; FINAL PINION T=3.57	1-41229-113-0	AR	1	0302-	●	●	●	●
40	SHIM; FINAL PINION T=3.57	1-41229-113-0	AR	1	0302-	●	●	●	●
40	SHIM; FINAL PINION T=3.58	1-41229-114-0	AR	1	0302-	●	●	●	●
40	SHIM; FINAL PINION T=3.58	1-41229-114-0	AR	1	0302-	●	●	●	●
40	SHIM; FINAL PINION T=3.59	1-41229-115-0	AR	1	0302-	●	●	●	●
40	SHIM; FINAL PINION T=3.59	1-41229-115-0	AR	1	0302-	●	●	●	●
40	SHIM; FINAL PINION T=3.60	1-41229-116-0	AR	1	0302-	●	●	●	●
40	SHIM; FINAL PINION T=3.60	1-41229-116-0	AR	1	0302-	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.600	1-41229-101-0	AR	1	0302-	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.600	1-41229-101-0	AR	1	0302-	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.800	1-41229-102-0	AR	1	0302-	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.800	1-41229-102-0	AR	1	0302-	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.000	1-41229-103-0	AR	1	0302-	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.000	1-41229-103-0	AR	1	0302-	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.200	1-41229-104-0	AR	1	0302-	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.200	1-41229-104-0	AR	1	0302-	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.400	1-41229-105-0	AR	1	0302-	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.400	1-41229-105-0	AR	1	0302-	●	●	●	●
43	CAGE; FINAL PINION (B) T=75	1-41151-005-0	01	1	0302-	●	●	●	●
43	CAGE; FINAL PINION (A)	1-41151-062-0	01	1	0302-	●	●	●	●
45	BOLT; FINAL PINION CAGE (A) M14X50	0-16806-450-0	08	1	0302-	●	●	●	●
45	BOLT; FINAL PINION CAGE (B) M14X40 FLANGE	0-28781-440-0	08	1	0302-	●	●	●	●
48	WASHER; LK,FINAL PINION ID=14.2	9-09150-514-0	08	1	0302-	●	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=1.000	1-41154-009-0	AR	1	0302-	●	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.500	1-41154-010-0	AR	1	0302-	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.30	1-41154-081-0	AR	1	0302-	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.40	1-41154-082-0	AR	1	0302-	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.50	1-41154-083-0	AR	1	0302-	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=1.00	1-41154-084-0	AR	1	0302-	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.300	1-41154-104-0	AR	1	0302-	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.400	1-41154-105-0	AR	1	0302-	●	●	●	●
50	BEARING; FINAL PINION NTN	1-09812-013-0	01	1	0302-	●	●	●	●
50	BEARING; FINAL PINION NTN	1-09812-013-0	01	1	0302-	●	●	●	●
50	BEARING; FINAL PINION KOYO	1-09812-070-1	01	1	0302-	●	●	●	●
50	BEARING; FINAL PINION KOYO	1-09812-070-1	01	1	0302-	●	●	●	●
55	CARRIER; DIFF (B)	1-41110-120-1	01	1	0302-	●	●	●	●
55	CARRIER; DIFF (A)	1-41310-052-0	01	1	0302-	●	●	●	●
56	BOLT; BRG CAP M20X112	1-09070-042-0	04	1	0302-	●	●	●	●
56	BOLT; BRG CAP M20X112	1-09070-042-0	04	1	0302-	●	●	●	●
60	GEAR SET; FINAL DRIVE,RR REARWARD 39/9	1-41210-380-2	01	1	0302-	●
60	GEAR SET; FINAL DRIVE,RR FORWARD 39/9	1-41210-497-0	01	1	0302-	●
60	GEAR SET; FINAL DRIVE,RR REARWARD 41/9	1-41210-542-0	01	1	0302-		●
60	GEAR SET; FINAL DRIVE,RR FORWARD 41/9	1-41210-568-0	01	1	0302-		●
60	GEAR SET; FINAL DRIVE,RR REARWARD 41/10	1-41210-566-0	01	1	0302-			●
60	GEAR SET; FINAL DRIVE,RR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 41/10	1-41210-499-0	01	1	0302-0509			●
60	GEAR SET; FINAL DRIVE,RR EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 41/10	1-41210-567-0	01	1	0302-0509			●
60	GEAR SET; FINAL DRIVE,RR 41/10	1-41210-567-0	01	1	0510-			●
60	GEAR SET; FINAL DRIVE,RR REARWARD 43/11	1-41210-623-0	01	1	0302-				●
60	GEAR SET; FINAL DRIVE,RR FORWARD 43/11	1-41210-624-0	01	1	0302-				●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-015-0	02	1	0302-	●	●	●	●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-015-0	02	1	0302-	●	●	●	●
62	BOLT; RET M8X38 W/PIN HOLE	1-09042-036-0	02	1	0302-	●	●	●	●
62	BOLT; RET M8X38 W/PIN HOLE	1-09042-036-0	02	1	0302-	●	●	●	●
63	BEARING; PINION PILOT KOYO	1-09810-229-2	01	1	0302-	●	●	●	●
63	BEARING; PINION PILOT KOYO	1-09810-229-2	01	1	0302-	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-230-1	01	1	0302-	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-230-1	01	1	0302-	●	●	●	●
64	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	0302-	●	●	●	●
64	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	0302-	●	●	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	0302-	●	●	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	0302-	●	●	●	●
66	RING; SNAP,PILOT BRG OD=42	9-09950-179-0	01	1	0302-	●	●	●	●
66	RING; SNAP,PILOT BRG OD=42	9-09950-179-0	01	1	0302-	●	●	●	●
69	NUT; ADJ,DIFF CAGE M155 H=30	1-41121-002-0	01	1	0302-	●	●	●	●
69	NUT; ADJ,DIFF CAGE M155 H=30	1-41121-002-0	01	1	0302-	●	●	●	●
69	NUT; ADJ,DIFF CAGE M155 H=26	1-41121-001-0	01	1	0302-	●	●	●	●
69	NUT; ADJ,DIFF CAGE M155 H=26	1-41121-001-0	01	1	0302-	●	●	●	●
70	BEARING; DIFF CAGE KOYO ID=92 OD=152 T=40	1-09812-225-0	02	1	0302-	●	●	●	●
70	BEARING; DIFF CAGE KOYO ID=92 OD=152 T=40	1-09812-225-0	02	1	0302-	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-269-0	01	1	0302-	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-269-0	01	1	0302-	●	●	●	●
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	1-09020-167-0	16	1	0302-	●	●	●	●
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	1-09020-167-0	16	1	0302-	●	●	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	12	1	0302-	●	●	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	12	1	0302-	●	●	●	●
88	PLATE; LK,ADJ NUT (A) T=3.2	1-41124-006-0	02	1	0302-	●	●	●	●
88	PLATE; LK,ADJ NUT (A) T=3.2	1-41124-006-0	02	1	0302-	●	●	●	●
88	PLATE; LK,ADJ NUT (B) T=1.0	9-41124-005-0	02	1	0302-	●	●	●	●
88	PLATE; LK,ADJ NUT (B) T=1.0	9-41124-005-0	02	1	0302-	●	●	●	●
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	0302-	●	●	●	●
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	0302-	●	●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-017-0	01	1	0302-	●	●	●	●
126	COUPLING; DRIVING PINION	1-37245-396-0	01	1	0302-	●	●	●	●

92 94 1 70 90 69 17 71 90 95 96 93 20 21 21 91 299 84 85 32 88 24 52 22 20 25 56 54 89 53 67 68 88 85 70 69 30 55 31 29 28 98 36 27 97 33 12 16 20 21 22 24 17 25 30 34 451 14 2 21 20 11 66 61 61 11 10 9 41 8 43 65 64 63 50 62 40 49 12 6 37 39 31 45 60 37 4 5 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	DRIVE ASM; FINAL,RR REARWARD 39/9	1-41001-800-0	01	1	0302-	●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 39/9	1-41002-719-0	01	1	0302-	●
1	DRIVE ASM; FINAL,RR EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 39/9	1-41002-243-0	01	1	0302-	●
1	DRIVE ASM; FINAL,RR REARWARD 41/9	1-41001-751-0	01	1	0302-		●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 41/9	1-41002-722-0	01	1	0302-		●
1	DRIVE ASM; FINAL,RR EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 41/9	1-41002-155-0	01	1	0302-		●
1	DRIVE ASM; FINAL,RR REARWARD 41/10	1-41002-258-0	01	1	0302-			●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 41/10	1-41002-720-0	01	1	0302-			●
1	DRIVE ASM; FINAL,RR EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 41/10	1-41002-241-0	01	1	0302-			●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 43/11	1-41002-907-0	01	1	0302-				●
1	DRIVE ASM; FINAL,RR EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 43/11	1-41002-431-0	01	1	0302-				●
1	DRIVE ASM; FINAL,RR REARWARD 43/11	1-41002-429-0	01	1	0302-				●
2	DIFF ASM; INTER,FINAL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-41320-029-0	01	1	0302-	●	●	●	●
2	DIFF ASM; INTER,FINAL EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-41320-027-0	01	1	0302-	●	●	●	●
3	NUT; INPUT SHAFT M46 FLANGE	1-09449-071-0	01	1	0302-0312	●	●	●	●
3	NUT; INPUT SHAFT EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M46 FLANGE	1-09449-071-0	01	1	0401-	●	●	●	●
4	GASKET; FLANGE,FINAL PINION BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) ID=57	1-09623-386-0	01	1	0401-	●	●	●	●
4	GASKET; FLANGE,FINAL PINION (A) ID=42	9-09921-116-0	01	1	0302-	●	●	●	●
5	GASKET; INPUT SHAFT ID=57	1-09623-386-0	01	1	0302-0312	●	●	●	●
5	GASKET; INPUT SHAFT EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=57	1-09623-386-0	01	1	0401-	●	●	●	●
6	FLANGE ASM; INPUT SHAFT EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-37245-343-0	01	1	0302-	●	●	●	●
8	SEAL; OIL,INPUT SHAFT	1-09625-323-0	01	1	0302-	●	●	●	●
9	RING; SNAP,BRG,INPUT	1-09587-058-0	01	1	0302-	●	●	●	●
10	BEARING; INPUT SHAFT NSK	1-09800-173-0	01	1	0302-	●	●	●	●
11	COVER; INTER AXLE DIFF BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-41323-021-0	01	1	0302-0304	●	●	●	●
11	COVER; INTER AXLE DIFF BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-41323-032-0	01	1	0305-	●	●	●	●
11	COVER; INTER AXLE DIFF EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-41323-023-0	01	1	0302-	●	●	●	●
12	BOLT; COVER TO CASE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M12X35 FLANGE	0-28781-235-0	07	1	0302-	●	●	●	●
12	BOLT; COVER TO CASE EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M12X35 FLANGE	0-28781-235-0	08	1	0302-	●	●	●	●
14	PLUG; FILLER PT1/2	9-09204-521-0	01	1	0302-	●	●	●	●
16	SHAFT ASM; INPUT	1-41340-063-0	01	1	0302-	●	●	●	●
17	BOLT; DIFF CAGE SETTING M14X75 FLANGE	1-09070-008-0	08	1	0302-	●	●	●	●
17	BOLT; DIFF CAGE SETTING M14X121 FLANGE	1-09044-006-0	08	1	0302-	●	●	●	●
17	BOLT; DIFF CAGE SETTING M14X121 FLANGE	1-09044-006-0	08	1	0302-	●	●	●	●
17	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	04	1	0302-	●	●	●	●
17	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	04	1	0302-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=2.8	1-41562-120-1	AR	1	0302-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=2.9	1-41562-121-1	AR	1	0302-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.0	1-41562-122-1	AR	1	0302-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.1	1-41562-123-1	AR	1	0302-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.2	1-41562-124-1	AR	1	0302-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.3	1-41562-125-1	AR	1	0302-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.4	1-41562-126-1	AR	1	0302-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=2.7	1-41562-127-0	AR	1	0302-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=2.8	1-41562-128-0	AR	1	0302-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=2.9	1-41562-129-0	AR	1	0302-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.0	1-41562-130-0	AR	1	0302-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.1	1-41562-131-0	AR	1	0302-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.2	1-41562-132-0	AR	1	0302-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.3	1-41562-133-0	AR	1	0302-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.4	1-41562-134-0	AR	1	0302-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=2.80	1-41562-169-0	AR	1	0302-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=2.80	1-41562-169-0	AR	1	0302-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=2.90	1-41562-170-0	AR	1	0302-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=2.90	1-41562-170-0	AR	1	0302-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.00	1-41562-171-0	AR	1	0302-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.00	1-41562-171-0	AR	1	0302-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.10	1-41562-172-0	AR	1	0302-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.10	1-41562-172-0	AR	1	0302-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.20	1-41562-173-0	AR	1	0302-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.20	1-41562-173-0	AR	1	0302-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.30	1-41562-174-0	AR	1	0302-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.30	1-41562-174-0	AR	1	0302-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.40	1-41562-175-0	AR	1	0302-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.40	1-41562-175-0	AR	1	0302-	●	●	●	●
21	GEAR; SIDE,DIFF (B) Z=16	1-41561-037-2	01	1	0302-0407	●	●	●	●
21	GEAR; SIDE,DIFF (B) Z=16	1-41561-136-0	01	1	0408-	●	●	●	●
21	GEAR; SIDE,DIFF (C) Z=16	1-41561-076-0	02	1	0302-0405	●	●	●	●
21	GEAR; SIDE,DIFF (C) Z=16	1-41561-076-0	02	1	0302-0405	●	●	●	●
21	GEAR; SIDE,DIFF (C) Z=16	1-41561-123-0	02	1	0406-	●	●	●	●
21	GEAR; SIDE,DIFF (C) Z=16	1-41561-123-0	02	1	0406-	●	●	●	●
21	GEAR; SIDE,DIFF (A) Z=16	1-41561-109-0	01	1	0302-0407	●	●	●	●
21	GEAR; SIDE,DIFF (A) Z=16	1-41561-137-0	01	1	0408-	●	●	●	●
22	SPIDER; DIFF PINION (A) OD=32	1-41521-002-1	01	1	0302-	●	●	●	●
22	SPIDER; DIFF PINION (A) OD=32	1-41521-002-1	01	1	0302-	●	●	●	●
22	SPIDER; DIFF PINION (B)	1-41521-050-2	01	1	0302-	●	●	●	●
24	GEAR; PINION,DIFF (A) Z=10	1-41551-022-0	04	1	0302-0405	●	●	●	●
24	GEAR; PINION,DIFF (A) Z=10	1-41551-022-0	04	1	0302-0405	●	●	●	●
24	GEAR; PINION,DIFF (A) Z=10	1-41551-040-0	04	1	0406-	●	●	●	●
24	GEAR; PINION,DIFF (A) Z=10	1-41551-040-0	04	1	0406-	●	●	●	●
24	GEAR; PINION,DIFF (B) Z=10	1-41551-032-0	04	1	0302-0407	●	●	●	●
24	GEAR; PINION,DIFF (B) Z=10	1-41551-042-0	04	1	0408-	●	●	●	●
25	WASHER; THRUST,PINION (A) T=1.6	1-41552-001-0	04	1	0302-	●	●	●	●
25	WASHER; THRUST,PINION (A) T=1.6	1-41552-001-0	04	1	0302-	●	●	●	●
25	WASHER; THRUST,PINION (B) ID=29 OD=60	1-41562-119-0	04	1	0302-	●	●	●	●
27	BOLT; BRG RET M10X25 FLANGE	0-28781-025-0	08	1	0302-	●	●	●	●
28	RETAINER; BRG,DRIVE GEAR	1-41353-015-0	01	1	0302-	●	●	●	●
29	SHIM; BRG RET T=0.30	1-41355-039-0	AR	1	0302-	●	●	●	●
29	SHIM; BRG RET T=0.40	1-41355-040-0	AR	1	0302-	●	●	●	●
29	SHIM; BRG RET T=0.50	1-41355-041-0	AR	1	0302-	●	●	●	●
29	SHIM; BRG RET T=1.00	1-41355-042-0	AR	1	0302-	●	●	●	●
30	BEARING; TAPER ROLLER KOYO	1-09812-215-0	02	1	0302-	●	●	●	●
30	BEARING; TAPER ROLLER NSK	1-09812-216-0	02	1	0302-	●	●	●	●
31	GEAR; DRIVEN,HELICAL (A) Z=31	1-41351-034-0	01	1	0302-	●	●	●	●
31	GEAR; DRIVEN,HELICAL (B) Z=31	1-41352-034-0	01	1	0302-	●	●	●	●
32	SLEEVE; CLU,DIFF LK	1-41356-002-0	01	1	0302-	●	●	●	●
33	CASE; POWER DIVIDER	1-41321-026-1	01	1	0302-	●	●	●	●
34	BOLT; CASE TO CARRIER M12X35 FLANGE	0-28781-235-0	11	1	0302-	●	●	●	●
36	PIN; STRAIGHT OD=14 L=28	9-08161-428-0	02	1	0302-	●	●	●	●
37	NUT; DRIVING PINION BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M46 FLANGE	1-09449-071-0	01	1	0401-	●	●	●	●
37	NUT; DRIVING PINION (B) M39 FLANGE	1-09449-056-2	01	1	0302-	●	●	●	●
37	NUT; DRIVING PINION (A) M42	1-09449-061-0	01	1	0302-	●	●	●	●
39	BEARING; FINAL PINION (B) NSK	1-09812-086-0	01	1	0302-	●	●	●	●
39	BEARING; FINAL PINION (A) KOYO	1-09812-218-0	01	1	0302-	●	●	●	●
39	BEARING; FINAL PINION (B) NTN	9-00093-072-1	01	1	0302-	●	●	●	●
39	BEARING; FINAL PINION (B) KOYO	9-00093-206-2	01	1	0302-	●	●	●	●
40	SHIM; FINAL PINION T=3.50	1-41229-106-0	AR	1	0302-	●	●	●	●
40	SHIM; FINAL PINION T=3.50	1-41229-106-0	AR	1	0302-	●	●	●	●
40	SHIM; FINAL PINION T=3.51	1-41229-107-0	AR	1	0302-	●	●	●	●
40	SHIM; FINAL PINION T=3.51	1-41229-107-0	AR	1	0302-	●	●	●	●
40	SHIM; FINAL PINION T=3.52	1-41229-108-0	AR	1	0302-	●	●	●	●
40	SHIM; FINAL PINION T=3.52	1-41229-108-0	AR	1	0302-	●	●	●	●
40	SHIM; FINAL PINION T=3.53	1-41229-109-0	AR	1	0302-	●	●	●	●
40	SHIM; FINAL PINION T=3.53	1-41229-109-0	AR	1	0302-	●	●	●	●
40	SHIM; FINAL PINION T=3.54	1-41229-110-0	AR	1	0302-	●	●	●	●
40	SHIM; FINAL PINION T=3.54	1-41229-110-0	AR	1	0302-	●	●	●	●
40	SHIM; FINAL PINION T=3.55	1-41229-111-0	AR	1	0302-	●	●	●	●
40	SHIM; FINAL PINION T=3.55	1-41229-111-0	AR	1	0302-	●	●	●	●
40	SHIM; FINAL PINION T=3.56	1-41229-112-0	AR	1	0302-	●	●	●	●
40	SHIM; FINAL PINION T=3.56	1-41229-112-0	AR	1	0302-	●	●	●	●
40	SHIM; FINAL PINION T=3.57	1-41229-113-0	AR	1	0302-	●	●	●	●
40	SHIM; FINAL PINION T=3.57	1-41229-113-0	AR	1	0302-	●	●	●	●
40	SHIM; FINAL PINION T=3.58	1-41229-114-0	AR	1	0302-	●	●	●	●
40	SHIM; FINAL PINION T=3.58	1-41229-114-0	AR	1	0302-	●	●	●	●
40	SHIM; FINAL PINION T=3.59	1-41229-115-0	AR	1	0302-	●	●	●	●
40	SHIM; FINAL PINION T=3.59	1-41229-115-0	AR	1	0302-	●	●	●	●
40	SHIM; FINAL PINION T=3.60	1-41229-116-0	AR	1	0302-	●	●	●	●
40	SHIM; FINAL PINION T=3.60	1-41229-116-0	AR	1	0302-	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.600	1-41229-101-0	AR	1	0302-	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.600	1-41229-101-0	AR	1	0302-	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.800	1-41229-102-0	AR	1	0302-	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.800	1-41229-102-0	AR	1	0302-	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.000	1-41229-103-0	AR	1	0302-	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.000	1-41229-103-0	AR	1	0302-	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.200	1-41229-104-0	AR	1	0302-	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.200	1-41229-104-0	AR	1	0302-	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.400	1-41229-105-0	AR	1	0302-	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.400	1-41229-105-0	AR	1	0302-	●	●	●	●
43	CAGE; FINAL PINION (B) T=75	1-41151-005-0	01	1	0302-	●	●	●	●
43	CAGE; FINAL PINION (A)	1-41151-062-0	01	1	0302-	●	●	●	●
45	BOLT; FINAL PINION CAGE (A) M14X50	0-16806-450-0	08	1	0302-	●	●	●	●
45	BOLT; FINAL PINION CAGE (B) M14X40 FLANGE	0-28781-440-0	08	1	0302-	●	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=1.000	1-41154-009-0	AR	1	0302-	●	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.500	1-41154-010-0	AR	1	0302-	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.30	1-41154-081-0	AR	1	0302-	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.40	1-41154-082-0	AR	1	0302-	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.50	1-41154-083-0	AR	1	0302-	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=1.00	1-41154-084-0	AR	1	0302-	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.300	1-41154-104-0	AR	1	0302-	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.400	1-41154-105-0	AR	1	0302-	●	●	●	●
50	BEARING; FINAL PINION NTN	1-09812-013-0	01	1	0302-	●	●	●	●
50	BEARING; FINAL PINION NTN	1-09812-013-0	01	1	0302-	●	●	●	●
50	BEARING; FINAL PINION KOYO	1-09812-070-1	01	1	0302-	●	●	●	●
50	BEARING; FINAL PINION KOYO	1-09812-070-1	01	1	0302-	●	●	●	●
52	SHAFT; OUTPUT	1-41343-023-0	01	1	0302-	●	●	●	●
53	NUT; FINAL DRIVE SET M16	9-99110-516-0	02	1	0302-	●	●	●	●
54	STUD; FINAL DRIVE SET M16X32 L=56	9-09830-243-0	02	1	0302-	●	●	●	●
55	CARRIER; DIFF (B)	1-41110-120-1	01	1	0302-	●	●	●	●
55	CARRIER; DIFF (A)	1-41310-052-0	01	1	0302-	●	●	●	●
56	BOLT; BRG CAP M20X112	1-09070-042-0	04	1	0302-	●	●	●	●
56	BOLT; BRG CAP M20X112	1-09070-042-0	04	1	0302-	●	●	●	●
60	GEAR SET; FINAL DRIVE,RR REARWARD 39/9	1-41210-380-2	01	1	0302-	●
60	GEAR SET; FINAL DRIVE,RR FORWARD 39/9	1-41210-497-0	01	1	0302-	●
60	GEAR SET; FINAL DRIVE,RR REARWARD 41/9	1-41210-542-0	01	1	0302-		●
60	GEAR SET; FINAL DRIVE,RR FORWARD 41/9	1-41210-568-0	01	1	0302-		●
60	GEAR SET; FINAL DRIVE,RR REARWARD 41/10	1-41210-566-0	01	1	0302-			●
60	GEAR SET; FINAL DRIVE,RR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 41/10	1-41210-499-0	01	1	0302-0509			●
60	GEAR SET; FINAL DRIVE,RR EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 41/10	1-41210-567-0	01	1	0302-0509			●
60	GEAR SET; FINAL DRIVE,RR 41/10	1-41210-567-0	01	1	0510-			●
60	GEAR SET; FINAL DRIVE,RR REARWARD 43/11	1-41210-623-0	01	1	0302-				●
60	GEAR SET; FINAL DRIVE,RR FORWARD 43/11	1-41210-624-0	01	1	0302-				●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-015-0	02	1	0302-	●	●	●	●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-015-0	02	1	0302-	●	●	●	●
62	BOLT; RET M8X38 W/PIN HOLE	1-09042-036-0	02	1	0302-	●	●	●	●
62	BOLT; RET M8X38 W/PIN HOLE	1-09042-036-0	02	1	0302-	●	●	●	●
63	BEARING; PINION PILOT KOYO	1-09810-229-2	01	1	0302-	●	●	●	●
63	BEARING; PINION PILOT KOYO	1-09810-229-2	01	1	0302-	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-230-1	01	1	0302-	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-230-1	01	1	0302-	●	●	●	●
64	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	0302-	●	●	●	●
64	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	0302-	●	●	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	0302-	●	●	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	0302-	●	●	●	●
66	RING; SNAP,PILOT BRG OD=42	9-09950-179-0	01	1	0302-	●	●	●	●
66	RING; SNAP,PILOT BRG OD=42	9-09950-179-0	01	1	0302-	●	●	●	●
67	PICKUP; OIL,CARRIER	1-41129-010-0	01	1	0302-	●	●	●	●
68	BOLT; OIL PICKUP FIX M8X12 FLANGE	8-94479-696-1	02	1	0302-	●	●	●	●
69	NUT; ADJ,DIFF CAGE M155 H=30	1-41121-002-0	01	1	0302-	●	●	●	●
69	NUT; ADJ,DIFF CAGE M155 H=30	1-41121-002-0	01	1	0302-	●	●	●	●
69	NUT; ADJ,DIFF CAGE M155 H=26	1-41121-001-0	01	1	0302-	●	●	●	●
69	NUT; ADJ,DIFF CAGE M155 H=26	1-41121-001-0	01	1	0302-	●	●	●	●
70	BEARING; DIFF CAGE KOYO ID=92 OD=152 T=40	1-09812-225-0	02	1	0302-	●	●	●	●
70	BEARING; DIFF CAGE KOYO ID=92 OD=152 T=40	1-09812-225-0	02	1	0302-	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-269-0	01	1	0302-	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-269-0	01	1	0302-	●	●	●	●
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	1-09020-167-0	16	1	0302-	●	●	●	●
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	1-09020-167-0	16	1	0302-	●	●	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	12	1	0302-	●	●	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	12	1	0302-	●	●	●	●
88	PLATE; LK,ADJ NUT (A) T=3.2	1-41124-006-0	02	1	0302-	●	●	●	●
88	PLATE; LK,ADJ NUT (A) T=3.2	1-41124-006-0	02	1	0302-	●	●	●	●
88	PLATE; LK,ADJ NUT (B) T=1.0	9-41124-005-0	02	1	0302-	●	●	●	●
88	PLATE; LK,ADJ NUT (B) T=1.0	9-41124-005-0	02	1	0302-	●	●	●	●
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	0302-	●	●	●	●
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	0302-	●	●	●	●
90	BEARING; OUTPUT SHAFT NSK	1-09812-068-0	02	1	0302-	●	●	●	●
90	BEARING; OUTPUT SHAFT KOYO	1-09812-069-0	02	1	0302-	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.60	1-41349-020-0	AR	1	0401-	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.70	1-41349-021-0	AR	1	0401-	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.80	1-41349-022-0	AR	1	0401-	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.90	1-41349-023-0	AR	1	0401-	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.00	1-41349-024-0	AR	1	0401-	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.10	1-41349-025-0	AR	1	0401-	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.20	1-41349-026-0	AR	1	0401-	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.30	1-41349-027-0	AR	1	0401-	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.50	1-41349-091-0	AR	1	0401-	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.40	1-41349-092-0	AR	1	0401-	●	●	●	●
92	RING; SNAP,BRG,OUTPUT SHAFT OD=90.5	9-09180-185-0	01	1	0302-	●	●	●	●
93	SEAL; OIL,OUTPUT SHAFT	1-09625-217-0	01	1	0302-	●	●	●	●
94	FLANGE ASM; OUTPUT SHAFT	1-37245-130-1	01	1	0302-	●	●	●	●
95	NUT; OUTPUT SHAFT M36 FLANGE	1-09449-067-0	01	1	0302-	●	●	●	●
96	GASKET; SHAFT,OUTPUT ID=42	1-09623-387-0	01	1	0302-	●	●	●	●
97	SHIFT UNIT; DIFF LOCK	1-48260-059-1	01	1	0302-	●	●	●	●
98	BOLT; SHIFT UNIT TO CARRIER M10X50 FLANGE	0-28181-050-0	01	1	0302-	●	●	●	●
98	BOLT; SHIFT UNIT TO CARRIER M10X25 FLANGE	0-28781-025-0	03	1	0302-	●	●	●	●
299	SPACER; BRG,OUTPUT SHAFT T=4.60	1-41349-020-0	AR	1	0302-0312	●	●	●	●
299	SPACER; BRG,OUTPUT SHAFT T=4.70	1-41349-021-0	AR	1	0302-0312	●	●	●	●
299	SPACER; BRG,OUTPUT SHAFT T=4.80	1-41349-022-0	AR	1	0302-0312	●	●	●	●
299	SPACER; BRG,OUTPUT SHAFT T=4.90	1-41349-023-0	AR	1	0302-0312	●	●	●	●
299	SPACER; BRG,OUTPUT SHAFT T=5.00	1-41349-024-0	AR	1	0302-0312	●	●	●	●
299	SPACER; BRG,OUTPUT SHAFT T=5.10	1-41349-025-0	AR	1	0302-0312	●	●	●	●
299	SPACER; BRG,OUTPUT SHAFT T=5.20	1-41349-026-0	AR	1	0302-0312	●	●	●	●
299	SPACER; BRG,OUTPUT SHAFT T=5.30	1-41349-027-0	AR	1	0302-0312	●	●	●	●
299	SPACER; BRG,OUTPUT SHAFT T=4.50	1-41349-091-0	AR	1	0302-0312	●	●	●	●
299	SPACER; BRG,OUTPUT SHAFT T=5.40	1-41349-092-0	AR	1	0302-0312	●	●	●	●
451	STUD; COVER TO CASE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M12X20,M12X35 L=66.5	1-09049-031-0	01	1	0302-	●	●	●	●

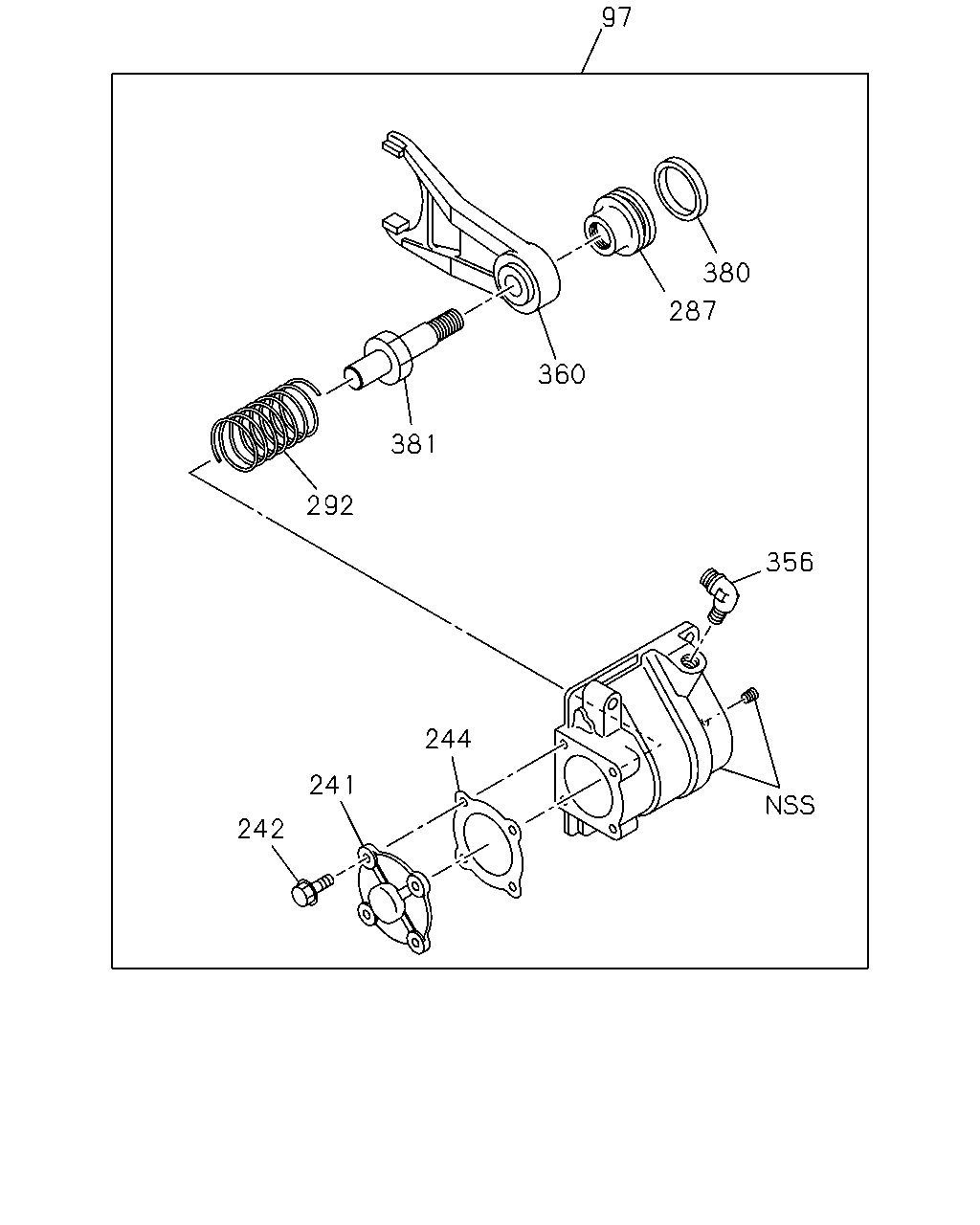

97 380 287 360 381 292 356 244 241 242

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
97	SHIFT UNIT; DIFF LOCK	1-48260-059-1	01	1	0302-	●	●	●	●
241	COVER; SHIFT HSG	1-48266-011-0	01	1	0302-	●	●	●	●
242	BOLT; COVER M8X20	0-20800-820-0	04	1	0302-	●	●	●	●
244	GASKET; COVER	1-48269-062-0	01	1	0302-	●	●	●	●
287	PISTON; SHIFT UNIT	1-48262-012-0	01	1	0302-	●	●	●	●
292	SPRING; PISTON	1-48265-007-0	01	1	0302-	●	●	●	●
356	NIPPLE; SHIFT UNIT M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0302-	●	●	●	●
360	FORK; SHIFT	1-48269-063-0	01	1	0302-	●	●	●	●
380	GASKET; PISTON	1-48269-064-0	01	1	0302-	●	●	●	●
381	ROD; SHIFT	1-48263-005-0	01	1	0302-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
