◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXJ ▶ 10910 - CXJ RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-10 - FRONT AXLE ▶
4-10 — FRONT AXLE (#25895) — 137 parça

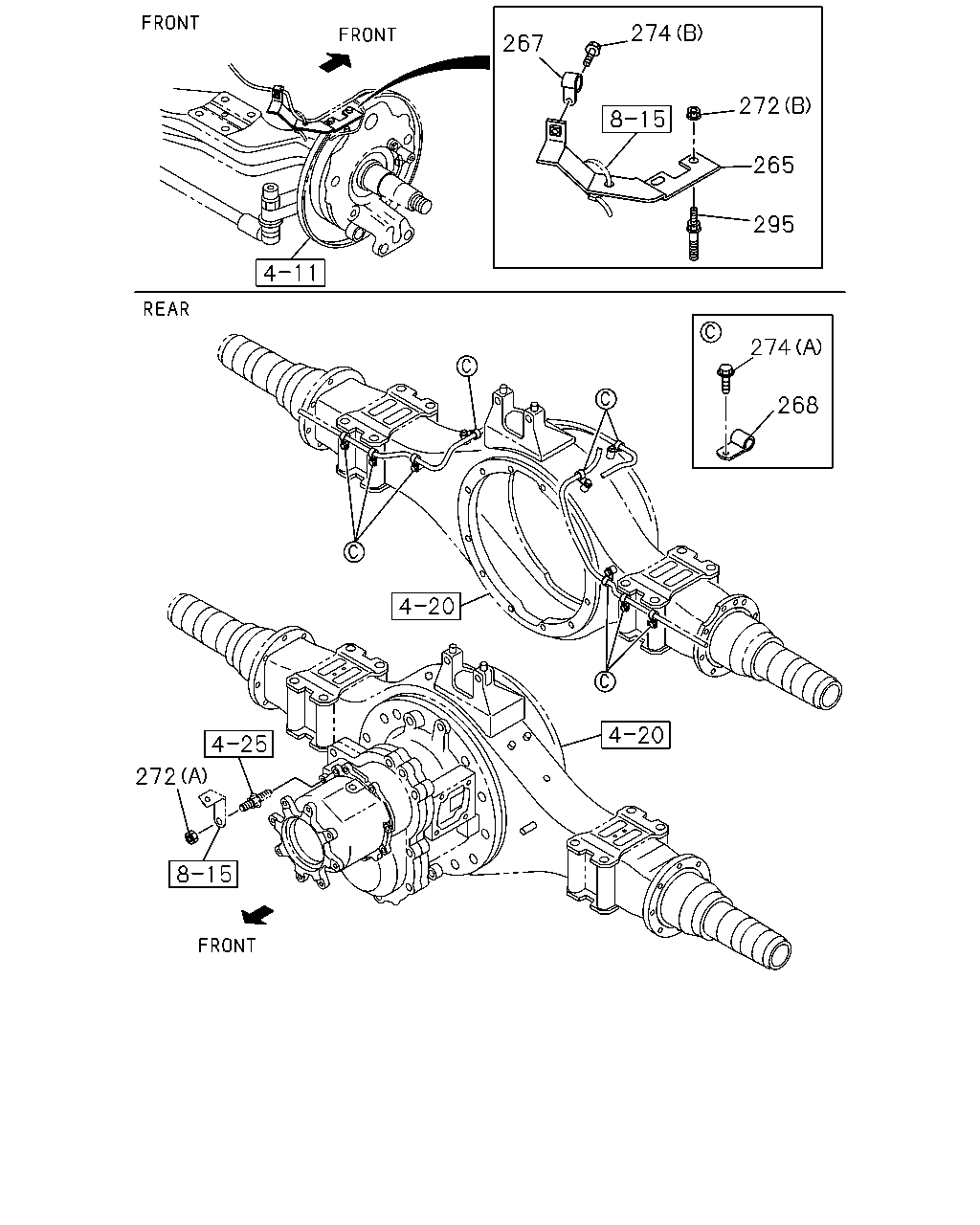

çizim 23230
274 267 272 265 295 274 268 272
BalonParca AdiParca NoAdetTipApplied Date
265 BRACKET; CLIP I BEAM 1-82698-427-0 01 1 0302-
265 BRACKET; CLIP I BEAM 1-82698-426-0 01 1 0302-
267 CLIP; HARNESS
ID=11 L=20 		9-09525-035-0 02 1 0302-
268 CLIP; HARNESS
ID=11 L=20 		9-09525-035-0 09 1 0302-
272 NUT; CLIP
(B) M10 FLANGE 		0-91150-110-0 04 1 0302-
272 NUT; CLIP
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M12 FLANGE 		0-91150-212-0 01 1 0302-
274 BOLT; CLIP
(A) M8X10 FLANGE 		0-28080-810-0 09 1 0302-
274 BOLT; CLIP
(B) M8X16 FLANGE 		0-28080-816-0 02 1 0302-
295 STUD; COVER,KING PIN
M10X20,M10X26 L=56 		1-09049-014-1 04 1 0302-

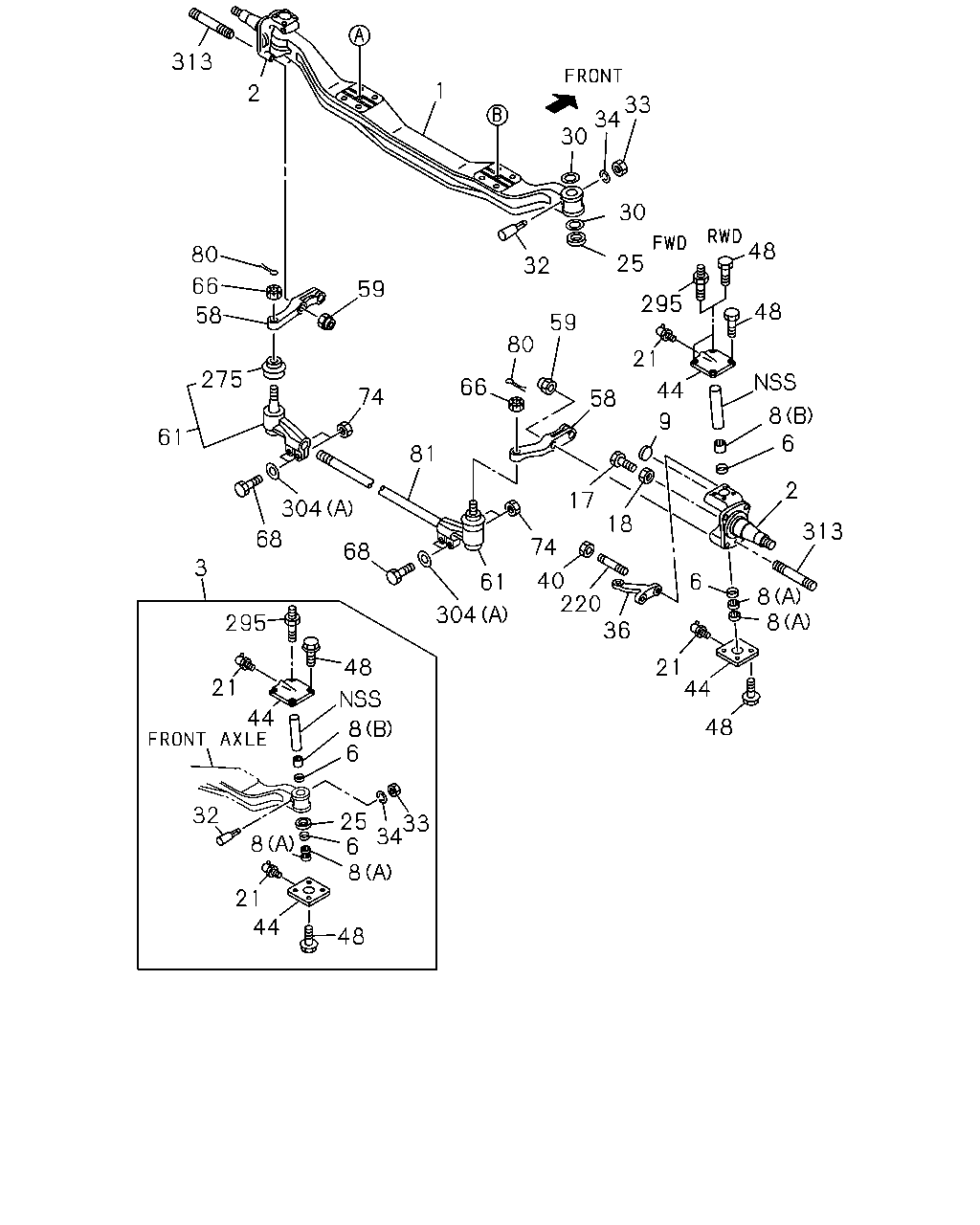

çizim 24741
313 1 2 33 34 30 30 48 25 80 32 66 59 295 48 58 59 80 21 275 66 44 74 58 8 6 9 61 81 2 17 304 18 313 68 74 68 3 40 220 36 6 61 8 8 304 295 48 21 44 21 44 48 8 6 32 34 6 8 8 21 44 48 25 33
BalonParca AdiParca NoAdetTipApplied Date
1 AXLE; FRT 1-43111-097-4 01 1 0302-
1 AXLE; FRT 1-43111-097-4 01 1 0302-
2 KNUCKLE; FRT AXLE 1-43132-101-0 01 1 0302-
2 KNUCKLE; FRT AXLE 1-43132-101-0 01 1 0302-
2 KNUCKLE; FRT AXLE 1-43131-118-0 01 1 0302-
2 KNUCKLE; FRT AXLE 1-43131-118-0 01 1 0302-
3 KING PIN SET 1-87831-111-7 02 1 0302-
3 KING PIN SET 1-87831-111-7 02 1 0302-
6 SEAL; KING PIN 9-09926-024-0 04 1 0302-
6 SEAL; KING PIN 9-09926-024-0 04 1 0302-
8 BEARING; NEEDLE,KING PIN
(A) NTN 		9-00096-242-0 04 1 0302-
8 BEARING; NEEDLE,KING PIN
(A) NTN 		9-00096-242-0 04 1 0302-
8 BEARING; NEEDLE,KING PIN
(B) NTN 		9-00096-243-0 02 1 0302-
8 BEARING; NEEDLE,KING PIN
(B) NTN 		9-00096-243-0 02 1 0302-
9 PLUG; KNUCKLE
OD=22 		1-09600-011-2 02 1 0302-
17 BOLT; STOPPER KNUCKLE
FORWARD M18X43 		1-09009-065-0 02 1 0302-
17 BOLT; STOPPER KNUCKLE
REARWARD M18X53 		1-09009-066-0 02 1 0302-
17 BOLT; STOPPER KNUCKLE
M18X53 		1-09009-066-0 03 1 0304-
17 BOLT; STOPPER KNUCKLE
M18X53 		1-09009-066-0 03 1 0304-
18 NUT; STOPPER BOLT,KNUCKLE
HEXAGON M18 		9-99110-518-0 02 1 0407-
18 NUT; STOPPER BOLT,KNUCKLE
HEXAGON M18 		9-99110-518-0 02 1 0407-
18 NUT; STOPPER BOLT,KNUCKLE
OCTAGON M18 		1-09469-011-0 02 1 0302-0303
18 NUT; STOPPER BOLT,KNUCKLE
OCTAGON M18 		1-09469-011-0 02 1 0302-0303
18 NUT; STOPPER BOLT,KNUCKLE
OCTAGON M18 		1-09469-011-0 03 1 0304-0406
18 NUT; STOPPER BOLT,KNUCKLE
OCTAGON M18 		1-09469-011-0 03 1 0304-0406
18 NUT; STOPPER BOLT,KNUCKLE
OCTAGON M18 		1-09469-011-1 01 1 0407-
18 NUT; STOPPER BOLT,KNUCKLE
OCTAGON M18 		1-09469-011-1 01 1 0407-
21 NIPPLE; GREASE,KING PIN
PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 04 1 0302-
21 NIPPLE; GREASE,KING PIN
PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 04 1 0302-
25 BEARING; THRUST,KING PIN
NSK 		1-09829-043-2 02 1 0302-
25 BEARING; THRUST,KING PIN
NSK 		1-09829-043-2 02 1 0302-
30 WASHER; THRUST,KING PIN
T=4.875 -4.900 		1-43171-185-0 AR 1 0302-
30 WASHER; THRUST,KING PIN
T=4.875 -4.900 		1-43171-185-0 AR 1 0302-
30 WASHER; THRUST,KING PIN
T=4.900 -4.925 		1-43171-186-0 AR 1 0302-
30 WASHER; THRUST,KING PIN
T=4.900 -4.925 		1-43171-186-0 AR 1 0302-
30 WASHER; THRUST,KING PIN
T=4.925 -4.950 		1-43171-187-0 AR 1 0302-
30 WASHER; THRUST,KING PIN
T=4.925 -4.950 		1-43171-187-0 AR 1 0302-
30 WASHER; THRUST,KING PIN
T=4.950 -4.975 		1-43171-188-0 AR 1 0302-
30 WASHER; THRUST,KING PIN
T=4.950 -4.975 		1-43171-188-0 AR 1 0302-
30 WASHER; THRUST,KING PIN
T=4.975 -5.000 		1-43171-189-0 AR 1 0302-
30 WASHER; THRUST,KING PIN
T=4.975 -5.000 		1-43171-189-0 AR 1 0302-
30 WASHER; THRUST,KING PIN
T=5.000 -5.025 		1-43171-190-0 AR 1 0302-
30 WASHER; THRUST,KING PIN
T=5.000 -5.025 		1-43171-190-0 AR 1 0302-
30 WASHER; THRUST,KING PIN
T=5.025 -5.050 		1-43171-191-0 AR 1 0302-
30 WASHER; THRUST,KING PIN
T=5.025 -5.050 		1-43171-191-0 AR 1 0302-
30 WASHER; THRUST,KING PIN
T=5.050 -5.075 		1-43171-192-0 AR 1 0302-
30 WASHER; THRUST,KING PIN
T=5.050 -5.075 		1-43171-192-0 AR 1 0302-
30 WASHER; THRUST,KING PIN
T=5.075 -5.100 		1-43171-193-0 AR 1 0302-
30 WASHER; THRUST,KING PIN
T=5.075 -5.100 		1-43171-193-0 AR 1 0302-
30 WASHER; THRUST,KING PIN
T=5.100 -5.125 		1-43171-194-0 AR 1 0302-
30 WASHER; THRUST,KING PIN
T=5.100 -5.125 		1-43171-194-0 AR 1 0302-
30 WASHER; THRUST,KING PIN
T=5.125 -5.150 		1-43171-195-0 AR 1 0302-
30 WASHER; THRUST,KING PIN
T=5.125 -5.150 		1-43171-195-0 AR 1 0302-
30 WASHER; THRUST,KING PIN
T=5.150 -5.175 		1-43171-196-0 AR 1 0302-
30 WASHER; THRUST,KING PIN
T=5.150 -5.175 		1-43171-196-0 AR 1 0302-
30 WASHER; THRUST,KING PIN
T=5.175 -5.200 		1-43171-197-0 AR 1 0302-
30 WASHER; THRUST,KING PIN
T=5.175 -5.200 		1-43171-197-0 AR 1 0302-
30 WASHER; THRUST,KING PIN
T=5.200 -5.225 		1-43171-198-0 AR 1 0302-
30 WASHER; THRUST,KING PIN
T=5.200 -5.225 		1-43171-198-0 AR 1 0302-
30 WASHER; THRUST,KING PIN
T=5.225 -5.250 		1-43171-199-0 AR 1 0302-
30 WASHER; THRUST,KING PIN
T=5.225 -5.250 		1-43171-199-0 AR 1 0302-
32 BOLT; KEY,KING PIN 1-43116-002-1 02 1 0302-
32 BOLT; KEY,KING PIN 1-43116-002-1 02 1 0302-
33 NUT; KEY BOLT
M10 		9-09110-410-0 02 1 0302-
33 NUT; KEY BOLT
M10 		9-09110-410-0 02 1 0302-
34 WASHER; LK,KEY BOLT
ID=10.2 		9-09150-510-0 02 1 0302-
34 WASHER; LK,KEY BOLT
ID=10.2 		9-09150-510-0 02 1 0302-
36 ARM; KNUCKLE 1-43133-083-3 01 1 0302-
36 ARM; KNUCKLE 1-43133-083-3 01 1 0302-
40 NUT; KNUCKLE ARM
M22 		9-09844-670-1 02 1 0302-
40 NUT; KNUCKLE ARM
M22 		9-09844-670-1 02 1 0302-
44 COVER; KING PIN 1-43175-025-0 04 1 0302-
44 COVER; KING PIN 1-43175-025-0 04 1 0302-
48 BOLT; COVER
M10X25 FLANGE 		0-28781-025-0 28 1 0302-
48 BOLT; COVER
M10X25 FLANGE 		0-28781-025-0 28 1 0302-
58 ARM; TIE ROD 1-43135-049-2 02 1 0302-
58 ARM; TIE ROD 1-43134-049-2 02 1 0302-
59 NUT; TIE ROD ARM
M22 		9-09844-670-1 04 1 0302-
59 NUT; TIE ROD ARM
M22 		9-09844-670-1 04 1 0302-
61 ROD END; TIE ROD 1-43150-857-0 02 1 0302-
61 ROD END; TIE ROD 1-43150-856-0 02 1 0302-
66 NUT; TIE ROD END
M24 SLOTTED 		1-09442-020-0 02 1 0302-
66 NUT; TIE ROD END
M24 SLOTTED 		1-09442-020-0 02 1 0302-
68 BOLT; TIE ROD END
M12X65 		9-91061-265-0 08 1 0302-
68 BOLT; TIE ROD END
M12X65 		9-91061-265-0 04 1 0302-
68 BOLT; TIE ROD END
M12X65 		9-91061-265-0 04 1 0302-
74 NUT; TIE ROD END
M12 		9-99110-512-0 04 1 0302-
74 NUT; TIE ROD END
M12 		9-99110-512-0 04 1 0302-
80 PIN; SPLIT,ROD END
OD=4.6 L=35 		9-08115-035-0 02 1 0302-
80 PIN; SPLIT,ROD END
OD=4.6 L=35 		9-08115-035-0 02 1 0302-
81 ROD; TIE 1-43151-154-0 02 1 0302-
220 STUD; KNUCKLE ARM 1-09300-119-2 02 1 0302-
220 STUD; KNUCKLE ARM 1-09300-119-2 02 1 0302-
275 BOOT; ROD END,TIE 1-43159-107-0 02 1 0302-
275 BOOT; ROD END,TIE 1-43159-107-0 02 1 0302-
295 STUD; COVER,KING PIN
M10X20,M10X26 L=56 		1-09049-014-1 04 1 0302-
304 WASHER; PL
(A) ID=12.5 		9-09164-512-0 04 1 0302-
304 WASHER; PL
(A) ID=12.5 		9-09164-512-0 04 1 0302-
304 WASHER; PL
(B) ID=21 		9-09164-520-0 02 1 0302-
313 STUD; TIE ROD ARM 1-09300-119-2 04 1 0302-
313 STUD; TIE ROD ARM 1-09300-119-2 04 1 0302-

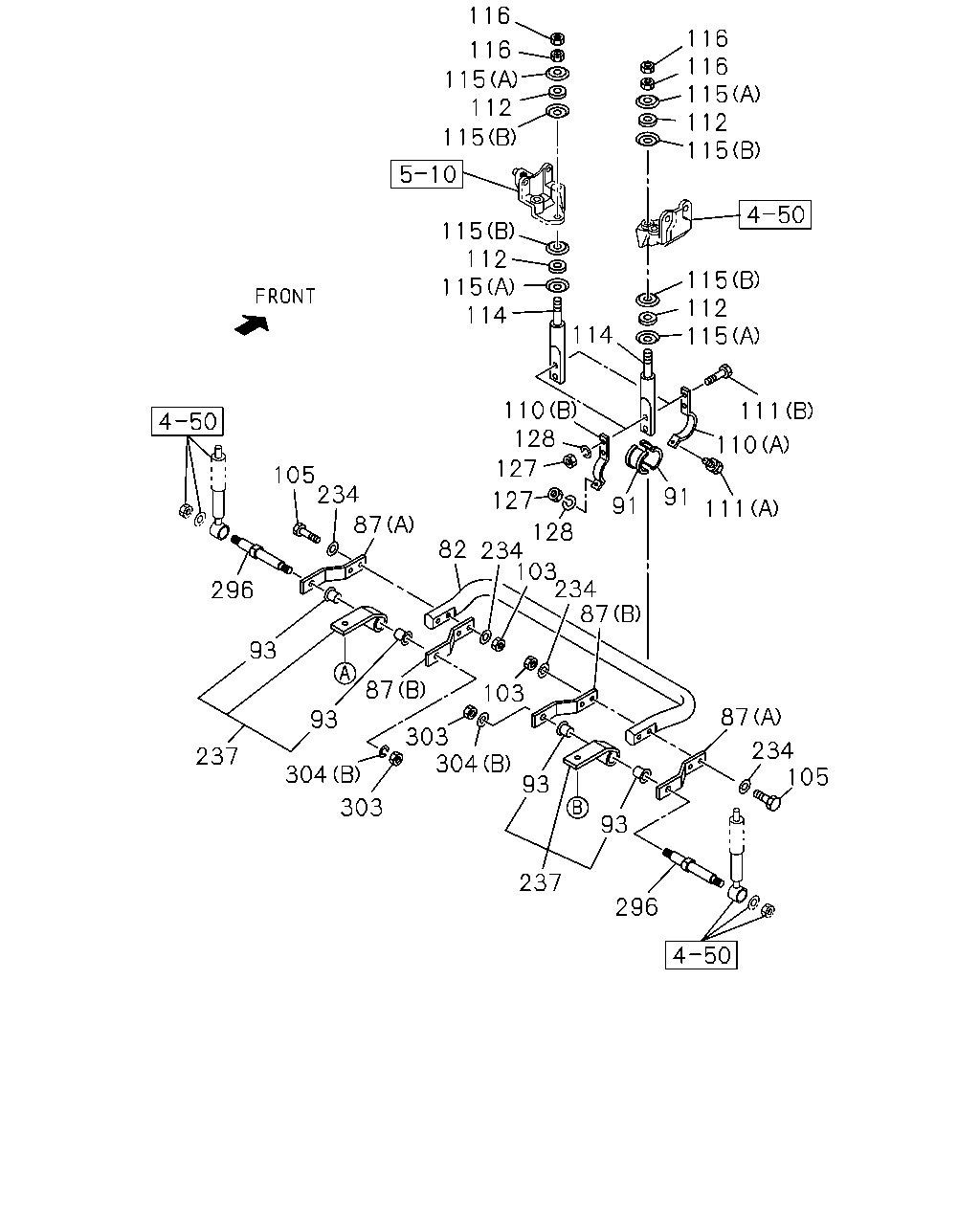

çizim 82124
116 116 116 115 112 115 116 115 112 115 115 112 115 114 115 112 115 114 110 128 111 110 127 105 234 128 91 127 91 111 87 82 234 103 234 87 296 93 87 103 87 93 303 304 234 105 237 304 3 303 93 237 296
BalonParca AdiParca NoAdetTipApplied Date
3 KING PIN SET 1-87831-111-7 02 1 0302-
3 KING PIN SET 1-87831-111-7 02 1 0302-
82 BAR; STAB,FRT SUSP 1-51771-134-0 01 1 0302-
87 BRACKET; STABILIZER
(A) 		1-51781-083-1 02 1 0302-
87 BRACKET; STABILIZER
(B) 		1-51781-084-1 02 1 0302-
91 BUSHING; RUBBER,STAB BAR 1-51779-079-1 04 1 0302-
93 BUSHING; STABILIZER 1-51689-015-1 04 1 0302-
103 NUT; BRKT FIX
M14 		9-99110-514-0 04 1 0302-
105 BOLT; BRKT FIX
M14X70 		9-91066-470-0 04 1 0302-
110 CLAMP; STAB TO ROD
(A) 		1-51789-027-2 02 1 0302-
110 CLAMP; STAB TO ROD
(B) 		1-51789-028-1 02 1 0302-
111 BOLT; CLAMP TO ROD
(A) M12X30 		0-20801-230-0 02 1 0302-
111 BOLT; CLAMP TO ROD
(B) M12X50 		0-20801-250-0 04 1 0302-
112 BUSHING; ROD 9-51631-039-0 04 1 0302-
114 ROD; STAB BAR 1-51773-072-2 02 1 0302-
115 WASHER; CENTER,STAB TO FRAME
(A) ID=16.5 		9-51631-040-0 04 1 0302-
115 WASHER; CENTER,STAB TO FRAME
(B) ID=20.8 		9-51631-041-0 04 1 0302-
116 NUT; LK,STAB TO FRAME
M14 		9-99111-414-0 04 1 0302-
127 NUT; CLAMP
M12 		9-99110-412-0 06 1 0302-
128 WASHER; LK,CLAMP
ID=12.2 		9-09150-512-0 06 1 0302-
234 WASHER; STAB
ID=15 		9-09651-069-0 08 1 0302-
237 SUPPORT; STAB BAR 1-51681-842-0 02 1 0302-
296 PIN; STAB 1-51682-145-2 02 1 0302-
303 NUT; PIN
M20 		9-99110-520-0 02 1 0302-
304 WASHER; PL
(A) ID=12.5 		9-09164-512-0 04 1 0302-
304 WASHER; PL
(A) ID=12.5 		9-09164-512-0 04 1 0302-
304 WASHER; PL
(B) ID=21 		9-09164-520-0 02 1 0302-
