4-01 — PROPELLER SHAFT (#25893) — 57 parça

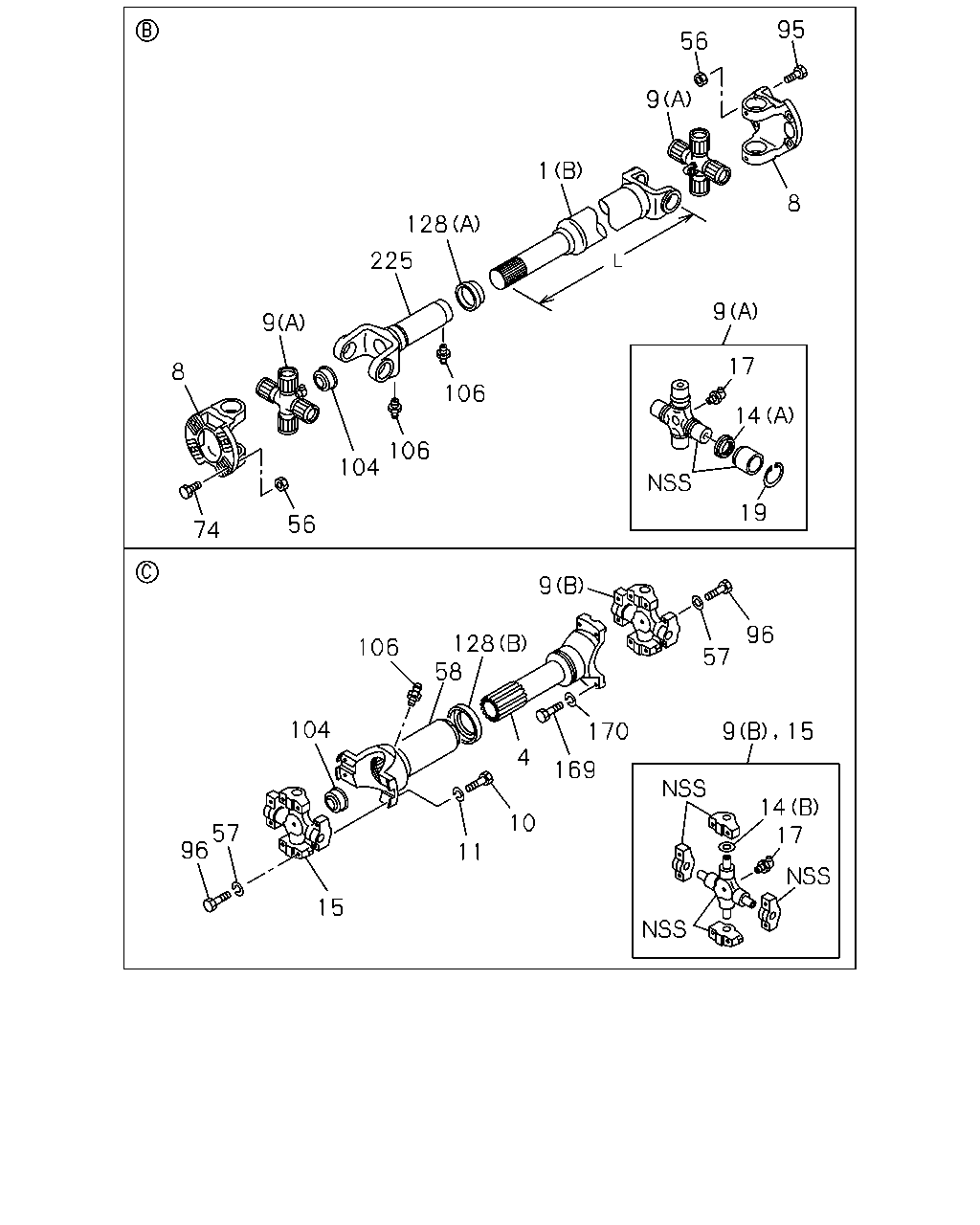

çizim 24699
95 56 9 1 8 128 225 9 17 8 106 14 106 104 19 56 74 9 96 128 58 106 57 104 9 15 170 4 169 14 17 10 57 96 11 15 9
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
(B) L=1270 		1-37125-176-0 01 1 0302-
1 SHAFT; PROP
(A) L=1369 		1-37153-094-0 01 1 0302-
4 SHAFT; PROP
L=406 		1-37171-157-2 01 1 0302-
8 YOKE; FLANGE,PROP SHAFT 1-37211-077-1 01 1 0302-
8 YOKE; FLANGE,PROP SHAFT 1-37211-077-1 02 1 0302-
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 0302-
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 AR 1 0302-
10 BOLT; UJT
M12X45 		9-91066-245-0 04 1 0302-
11 WASHER; LK,UNIVERSAL,PROP SHAFT
ID=12.2 		9-09150-612-0 04 1 0302-
14 COVER; DUST,SPIDER
(A) 		1-37249-133-0 AR 1 0302-
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 0302-
15 UNIVERSAL CENTER 1-37300-100-1 01 1 0302-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 AR 1 0302-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 AR 1 0302-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 AR 1 0302-
56 NUT; YOKE
M14 FLANGE 		1-09440-048-0 08 1 0302-
57 WASHER; LK,YOKE
ID=12.2 		9-09150-612-0 08 1 0302-
58 FLANGE; SPLINED
L=265 		1-37245-317-0 01 1 0302-
74 BOLT; YOKE,TRANS
M14X50 		1-09000-645-0 04 1 0302-
95 BOLT; YOKE,FINAL
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M14X50 		1-09000-645-0 04 1 0302-
96 BOLT; PROP SHAFT
M12X45 		9-91066-245-0 08 1 0302-
104 PLUG; SLEEVE YOKE 1-09600-049-0 01 1 0302-
104 PLUG; SLEEVE YOKE 1-09600-049-0 01 1 0302-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0302-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 02 1 0302-
128 SEAL; SLEEVE
(B) 		1-37247-006-0 01 1 0302-0312
128 SEAL; SLEEVE
(B) 		8-97603-618-0 01 1 0401-
128 SEAL; SLEEVE
(A) 		1-37247-020-0 01 1 0302-
169 BOLT; YOKE,SLEEVE
M12X45 		9-91066-245-0 04 1 0302-
170 WASHER; LK,YOKE,SLEEVE
ID=12.2 		9-09150-612-0 04 1 0302-
225 YOKE; SLEEVE,PROP SHAFT
L=339 		1-37241-140-0 01 1 0302-

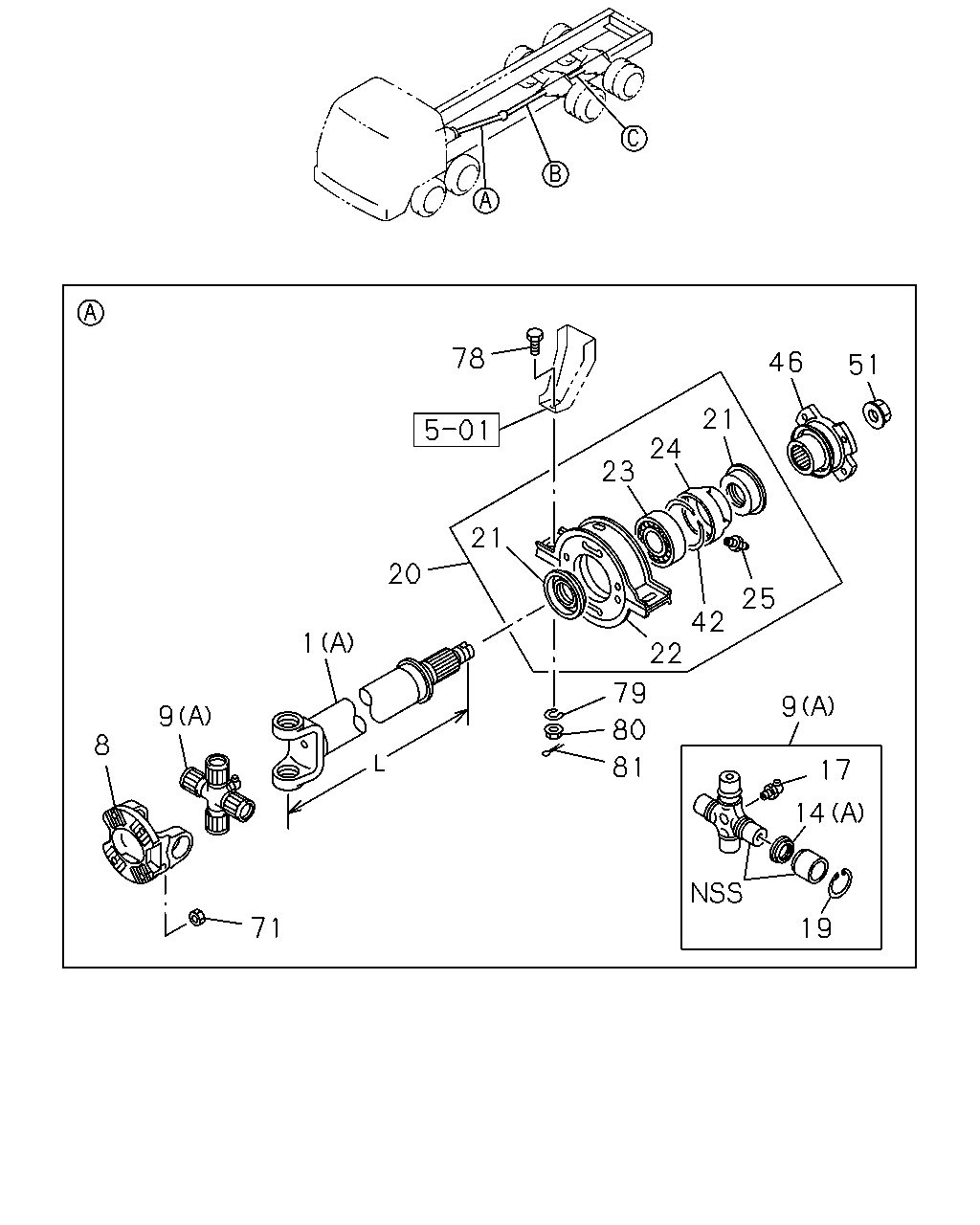

çizim 81561
78 46 51 21 24 23 21 20 25 42 22 1 79 9 9 80 8 81 17 14 71 19
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
(B) L=1270 		1-37125-176-0 01 1 0302-
1 SHAFT; PROP
(A) L=1369 		1-37153-094-0 01 1 0302-
8 YOKE; FLANGE,PROP SHAFT 1-37211-077-1 01 1 0302-
8 YOKE; FLANGE,PROP SHAFT 1-37211-077-1 02 1 0302-
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 0302-
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 AR 1 0302-
14 COVER; DUST,SPIDER
(A) 		1-37249-133-0 AR 1 0302-
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 0302-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 AR 1 0302-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 AR 1 0302-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 AR 1 0302-
20 BEARING ASM; CTR,PROP SHAFT
ID=65 		1-37510-116-0 01 1 0302-
21 SEAL; OIL,CENTER BRG
FRONT OD=114 		1-09625-222-1 01 1 0302-
21 SEAL; OIL,CENTER BRG
REAR OD=106 		1-09625-622-0 01 1 0302-
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-056-0 01 1 0302-
23 BEARING; CENTER,PROP SHAFT 1-09800-210-0 01 1 0302-
24 RETAINER; CENTER BRG,1ST 1-37529-110-0 01 1 0302-
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0302-
42 RING; SNAP,CTR BRG 1-09587-085-0 01 1 0302-
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-349-0 01 1 0302-
51 NUT; FLANGE,SPLINED
M45 FLAMGE 		1-09449-040-0 01 1 0302-
71 NUT; YOKE
M14 FLANGE 		1-09440-048-0 04 1 0302-
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 0302-
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-1 02 1 0302-
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		9-99116-516-0 02 1 0302-
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		9-08114-025-0 02 1 0302-
