Isuzu WW
▶
TRUCKS
▶
CXJ
▶
10910 - CXJ RHD
▶
3 - Brakes, Brake System
▶
3-80 - BRAKE PIPING; TRAILER
▶
3-80 — BRAKE PIPING; TRAILER
(#25891) — 29 parça
◀

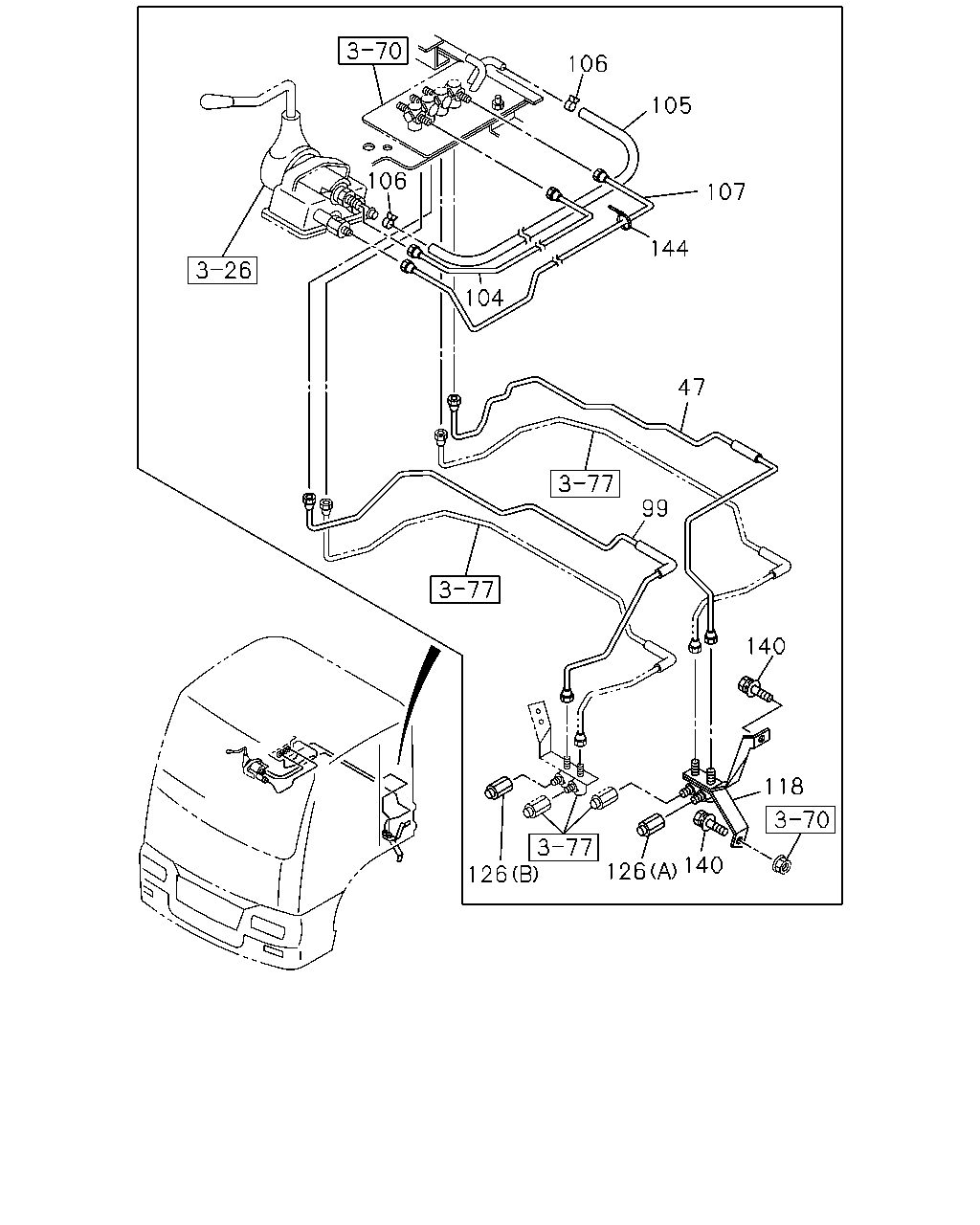

[380A] CAB SIDE (12 parça)

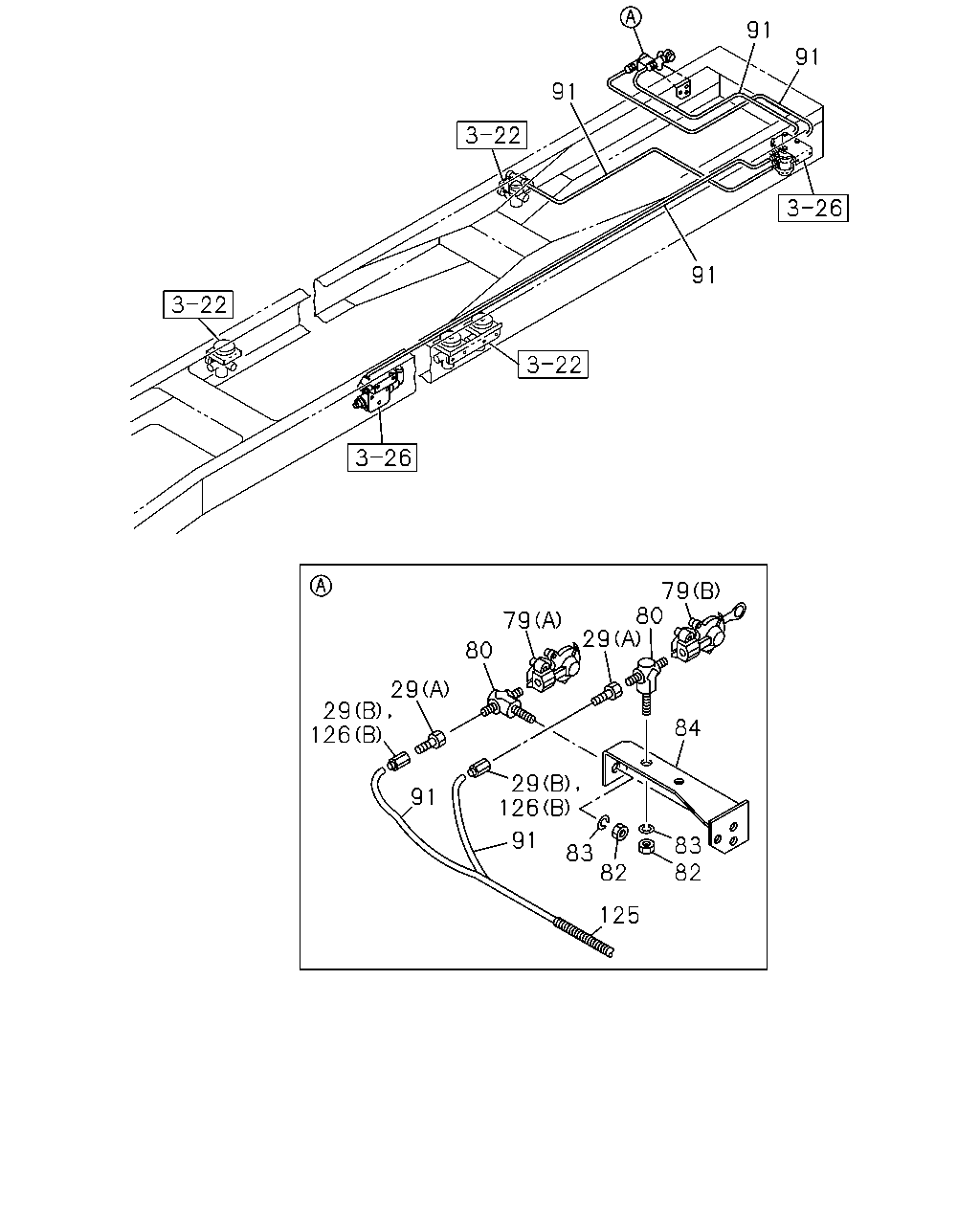

[380A] FRAME SIDE (17 parça)
▶
106
105
106
107
144
104
47
99
140
118
126
140
126
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
47
PIPE; AIR,UNION TO UNION
1-49121-763-2
01
1
0302-
99
PIPE; AIR,JOINT TO JOINT
1-49122-058-1
01
1
0302-
104
PIPE; AIR,JOINT TO PARKING BRK VLV
1-49121-477-0
01
1
0302-
105
PIPE; VINYL,EXH,PARKING BRK VLV
L=400 SERVICED BY L=10000
9-09914-701-0
01
1
0302-
106
CLIP; PIPE
ID=14
8-94238-572-0
02
1
0302-
107
PIPE; AIR,JOINT TO PARKING BRK VLV
1-47495-160-0
01
1
0302-
118
JOINT; AIR PIPE
1-47470-608-1
01
1
0302-
126
CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT
1-09660-874-0
01
1
0302-
126
CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT
1-09660-876-0
01
1
0302-
126
CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT
1-09660-876-0
02
1
0302-0303
140
BOLT; UNION
M8X24.5 W/LK&PL WASHER
8-94279-208-0
02
1
0302-
144
CLIP; BAND
L=140
5-09707-031-1
01
1
0302-
91
91
91
91
79
80
79
29
80
29
29
126
84
29
126
91
91
83
82
83
82
125
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
29
CONNECTOR; COCK
(B) DIN12 & M16 STRAIGHT
1-09660-876-0
02
1
0304-
29
CONNECTOR; COCK
(A)
1-09650-222-1
02
1
0302-
79
COUPLING; AIR,TRAILER
(A) RED
1-47478-466-1
01
1
0302-
79
COUPLING; AIR,TRAILER
(B) YELLOW
1-47478-467-1
01
1
0302-
80
NIPPLE; AIR COUPLING
1-09656-377-1
02
1
0302-
82
NUT; LK,CONNECTOR
M16
9-99111-416-0
02
1
0302-
83
WASHER; LK,CONNECTOR
ID=16.2
9-09150-516-0
02
1
0302-
84
BRACKET; COUPLER
1-47465-883-1
01
1
0302-
91
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
0302-
91
TUBE; NYLON
SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
0302-
91
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
0302-
91
TUBE; NYLON
SERVICED BY L=6000 OD=8
1-87411-008-0
AR
1
0302-
125
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10
1-87411-019-0
AR
1
0302-
125
TUBE; CORRUGATE
SERVICED BY L=2000 ID=25
1-87411-031-0
AR
1
0302-
126
CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT
1-09660-874-0
01
1
0302-
126
CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT
1-09660-876-0
01
1
0302-
126
CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT
1-09660-876-0
02
1
0302-0303
