◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXJ ▶ 10910 - CXJ RHD ▶ 3 - Brakes, Brake System ▶ 3-78 - FIXING PARTS; AIR PIPING ▶
3-78 — FIXING PARTS; AIR PIPING (#25890) — 488 parça

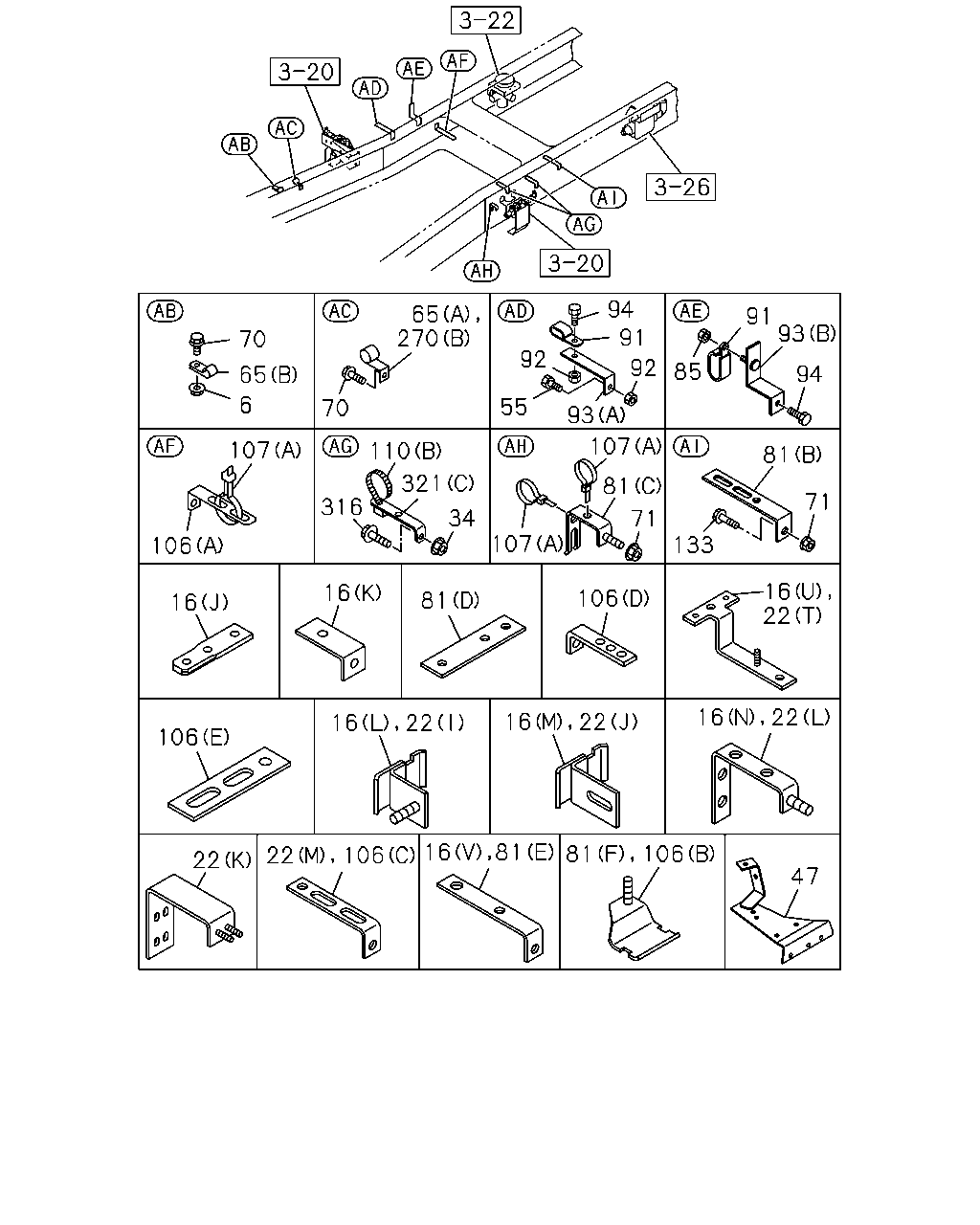

çizim 25038
94 91 65 270 91 93 70 92 92 85 94 65 6 55 70 93 107 107 110 81 321 81 71 316 34 71 107 133 106 16 2 16 106 81 16 106 106 81 22 106 22 47 16 22 16 22 16 22 81 16
BalonParca AdiParca NoAdetTipApplied Date
2 BOLT; CLIP FIX
M8X20 FLANGE 		0-28680-820-0 01 1 0302-
6 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 02 1 0302-
16 BRACKET; PIPE CLIP
(V) L=30 		1-47479-481-0 01 1 0306-
16 BRACKET; PIPE CLIP
(W) 		1-47479-846-0 01 1 0306-
16 BRACKET; PIPE CLIP
(J) L=100 		1-47477-620-1 01 1 0302-
16 BRACKET; PIPE CLIP
(K) L=65 		1-47477-713-0 01 1 0302-
16 BRACKET; PIPE CLIP
(G) 		1-47479-329-0 01 1 0302-0303
16 BRACKET; PIPE CLIP
(G) 		1-47479-329-0 02 1 0304-
16 BRACKET; PIPE CLIP
(H) 		1-47479-333-0 01 1 0302-0303
16 BRACKET; PIPE CLIP
(E) 		1-47479-577-0 01 1 0302-0302
16 BRACKET; PIPE CLIP
(O) 		1-47479-740-0 02 1 0303-0305
16 BRACKET; PIPE CLIP
(O) 		1-47479-740-0 01 1 0306-0309
16 BRACKET; PIPE CLIP
(X) 		1-47479-898-0 01 1 0310-
16 BRACKET; PIPE CLIP
(F) 		1-47479-578-0 01 1 0302-0302
16 BRACKET; PIPE CLIP
(P) 		1-47479-741-0 01 1 0303-0309
16 BRACKET; PIPE CLIP
(C) 		1-47479-590-0 01 1 0302-0302
16 BRACKET; PIPE CLIP
(Q) 		1-47479-742-0 01 1 0303-0305
16 BRACKET; PIPE CLIP
(U) 		1-47479-719-0 01 1 0306-0309
16 BRACKET; PIPE CLIP
(Y) 		1-47479-896-0 01 1 0310-
16 BRACKET; PIPE CLIP
(D) 		1-82569-374-0 02 1 0302-0302
16 BRACKET; PIPE CLIP
(R) 		1-47479-744-0 01 1 0303-0305
16 BRACKET; PIPE CLIP
(Q) 		1-47479-837-0 01 1 0306-
16 BRACKET; PIPE CLIP
(A) 		1-82569-375-0 01 1 0302-0302
16 BRACKET; PIPE CLIP
(S) 		1-47479-745-0 01 1 0303-0305
16 BRACKET; PIPE CLIP
(T) 		1-47479-845-0 02 1 0306-
16 BRACKET; PIPE CLIP
(B) L=100 H=30 		1-47477-645-2 01 1 0302-
16 BRACKET; PIPE CLIP
(I) 		1-47479-381-2 18 1 0302-0303
16 BRACKET; PIPE CLIP
(I) 		1-47479-381-2 14 1 0304-
16 BRACKET; PIPE CLIP
(L) 		1-47479-437-1 04 1 0302-0302
16 BRACKET; PIPE CLIP
(M) 		1-47479-693-0 04 1 0302-0303
16 BRACKET; PIPE CLIP
(M) 		1-47479-693-0 03 1 0304-
16 BRACKET; PIPE CLIP
(N) 		1-47479-580-0 01 1 0302-0304
16 BRACKET; PIPE CLIP
(N) 		1-47479-800-0 01 1 0305-
22 BRACKET; CLIP
(C) 		1-47479-577-0 01 1 0302-0302
22 BRACKET; CLIP
(N) 		1-47479-741-0 01 1 0303-0305
22 BRACKET; CLIP
(T) 		1-47479-719-0 01 1 0306-0309
22 BRACKET; CLIP
(D) 		1-47479-578-0 01 1 0302-0302
22 BRACKET; CLIP
(O) 		1-47479-742-0 02 1 0303-0305
22 BRACKET; CLIP
(H) 		1-47479-381-2 08 1 0306-
22 BRACKET; CLIP
(E) 		1-47479-579-0 01 1 0302-0302
22 BRACKET; CLIP
(P) 		1-47479-744-0 01 1 0303-0305
22 BRACKET; CLIP
(V) 		1-47479-836-0 01 1 0306-
22 BRACKET; CLIP
(B) 		1-47479-590-0 02 1 0302-0302
22 BRACKET; CLIP
(Q) 		1-47479-745-0 01 1 0303-0305
22 BRACKET; CLIP
(U) 		1-47479-838-0 01 1 0306-
22 BRACKET; CLIP
(M) 		1-47479-598-0 03 1 0302-0303
22 BRACKET; CLIP
(M) 		1-47479-598-0 02 1 0304-
22 BRACKET; CLIP
(F) 		1-82569-375-0 01 1 0302-0302
22 BRACKET; CLIP
(R) 		1-47479-746-1 01 1 0303-
22 BRACKET; CLIP
(G) L=100 H=30 		1-47477-645-2 01 1 0302-
22 BRACKET; CLIP
(A) 		1-47479-329-0 02 1 0302-
22 BRACKET; CLIP
(H) 		1-47479-381-2 15 1 0302-0303
22 BRACKET; CLIP
(H) 		1-47479-381-2 09 1 0304-0305
22 BRACKET; CLIP
(H) 		1-47479-381-2 01 1 0306-
22 BRACKET; CLIP
(I) 		1-47479-437-1 05 1 0302-0302
22 BRACKET; CLIP
(J) 		1-47479-693-0 05 1 0302-0303
22 BRACKET; CLIP
(J) 		1-47479-693-0 03 1 0304-
22 BRACKET; CLIP
(K) 		1-47479-542-0 01 1 0302-0302
22 BRACKET; CLIP
(S) 		1-47479-754-0 01 1 0303-
22 BRACKET; CLIP
(L) 		1-47479-580-0 01 1 0302-0304
22 BRACKET; CLIP
(L) 		1-47479-800-0 01 1 0305-
34 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0302-
47 BRACKET; PIPE CLIP 1-47479-325-0 01 1 0302-
55 BOLT; PIPE CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 0302-0302
55 BOLT; PIPE CLIP
M8X20 FLANGE 		0-28680-820-0 02 1 0303-
65 CLIP; AIR PIPE
(A) ID=12 H=24 L=20 		1-09700-605-0 01 1 0302-
65 CLIP; AIR PIPE
(B) ID=13 L=20 		9-09525-235-0 01 1 0302-
70 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28680-825-0 01 1 0302-
70 BOLT; CLIP,AIR PIPE
M8X30 FLANGE 		0-28680-830-0 01 1 0302-
71 NUT; BRKT
M8 FLANGE 		0-91150-108-0 14 1 0302-0303
71 NUT; BRKT
M8 FLANGE 		0-91150-108-0 10 1 0304-0304
71 NUT; BRKT
M8 FLANGE 		0-91150-108-0 11 1 0305-
81 BRACKET; CLIP
(E) L=30 		1-47479-481-0 01 1 0305-
81 BRACKET; CLIP
(A) 		1-47477-483-0 01 1 0302-
81 BRACKET; CLIP
(B) L=100 H=30 		1-47477-645-2 04 1 0302-0303
81 BRACKET; CLIP
(B) L=100 H=30 		1-47477-645-2 02 1 0304-
81 BRACKET; CLIP
(D) L=130 		1-47478-959-0 02 1 0302-
81 BRACKET; CLIP
(C) 		1-47479-381-2 05 1 0302-0303
81 BRACKET; CLIP
(C) 		1-47479-381-2 04 1 0304-
81 BRACKET; CLIP
(E) L=30 		1-47479-481-0 01 1 0302-0303
81 BRACKET; CLIP
(F) 		1-47479-562-0 02 1 0302-0410
81 BRACKET; CLIP
(F) W/STUD M8X20 		1-47471-209-0 02 1 0411-
85 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 04 1 0302-
91 CLIP; AIR PIPE
ID=13X2 L=20 		9-09535-236-0 02 1 0302-
92 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 02 1 0302-0302
92 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 01 1 0303-
93 BRACKET; PIPE CLIP
(B) 		1-47477-235-0 01 1 0302-0302
93 BRACKET; PIPE CLIP
(B) 		1-47476-676-0 01 1 0303-
93 BRACKET; PIPE CLIP
(A) 		1-47479-386-1 01 1 0302-
94 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 0302-
106 BRACKET; TUBE CLIP
(E) 		1-47477-514-3 01 1 0302-
106 BRACKET; TUBE CLIP
(A) L=100 H=30 		1-47477-645-2 07 1 0302-0303
106 BRACKET; TUBE CLIP
(A) L=100 H=30 		1-47477-645-2 03 1 0304-
106 BRACKET; TUBE CLIP
(B) 		1-47479-562-0 02 1 0302-0410
106 BRACKET; TUBE CLIP
(B) W/STUD M8X20 		1-47471-209-0 02 1 0411-
106 BRACKET; TUBE CLIP
(C) 		1-47479-598-0 02 1 0302-0303
106 BRACKET; TUBE CLIP
(C) 		1-47479-598-0 03 1 0304-
106 BRACKET; TUBE CLIP
(D) L=120 H=35 		1-82699-970-0 01 1 0302-
107 CLIP; NYLON TUBE
(B) ID=24 L=27 		1-09700-809-0 01 1 0302-
107 CLIP; NYLON TUBE
(C) ID=31 H=30 L=35 		1-09700-994-0 02 1 0302-
107 CLIP; NYLON TUBE
(D) ID=25 L=50 		1-09701-019-0 01 1 0302-
107 CLIP; NYLON TUBE
(A) L=250 		1-09707-126-0 14 1 0302-0304
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 14 1 0305-
110 CLIP; BAND,NYLON TUBE
(B) L=250 		1-09707-126-0 01 1 0302-0304
110 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 01 1 0305-
110 CLIP; BAND,NYLON TUBE
(A) L=140 		5-09707-031-1 01 1 0302-
133 BOLT; BRKT
M6X10 FLANGE 		0-28080-610-0 01 1 0302-
133 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 01 1 0302-0309
133 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 01 1 0302-
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 11 1 0302-0302
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 16 1 0303-0303
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 13 1 0304-0304
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 14 1 0305-0309
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 12 1 0310-0405
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 10 1 0406-
133 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 03 1 0302-0405
133 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 05 1 0406-
133 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 11 1 0302-0303
133 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 08 1 0304-
270 CLIP; NYLON TUBE
(A) ID=28 L=40 		1-09700-995-1 01 1 0302-
270 CLIP; NYLON TUBE
(A) ID=28 L=32 		1-09701-107-1 02 1 0302-0302
270 CLIP; NYLON TUBE
(A) ID=28 L=32 		1-09701-107-1 01 1 0303-0308
270 CLIP; NYLON TUBE
(B) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0309-
270 CLIP; NYLON TUBE
(B) ID=16 H=25 L=25 		1-09701-162-0 02 1 0302-
316 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 0302-
321 BRACKET; CLIP
(A) 		1-47477-337-1 01 1 0302-
321 BRACKET; CLIP
(B) L=75 		1-47478-328-0 01 1 0302-
321 BRACKET; CLIP
(C) L=59 B=20 		1-47479-048-0 01 1 0302-

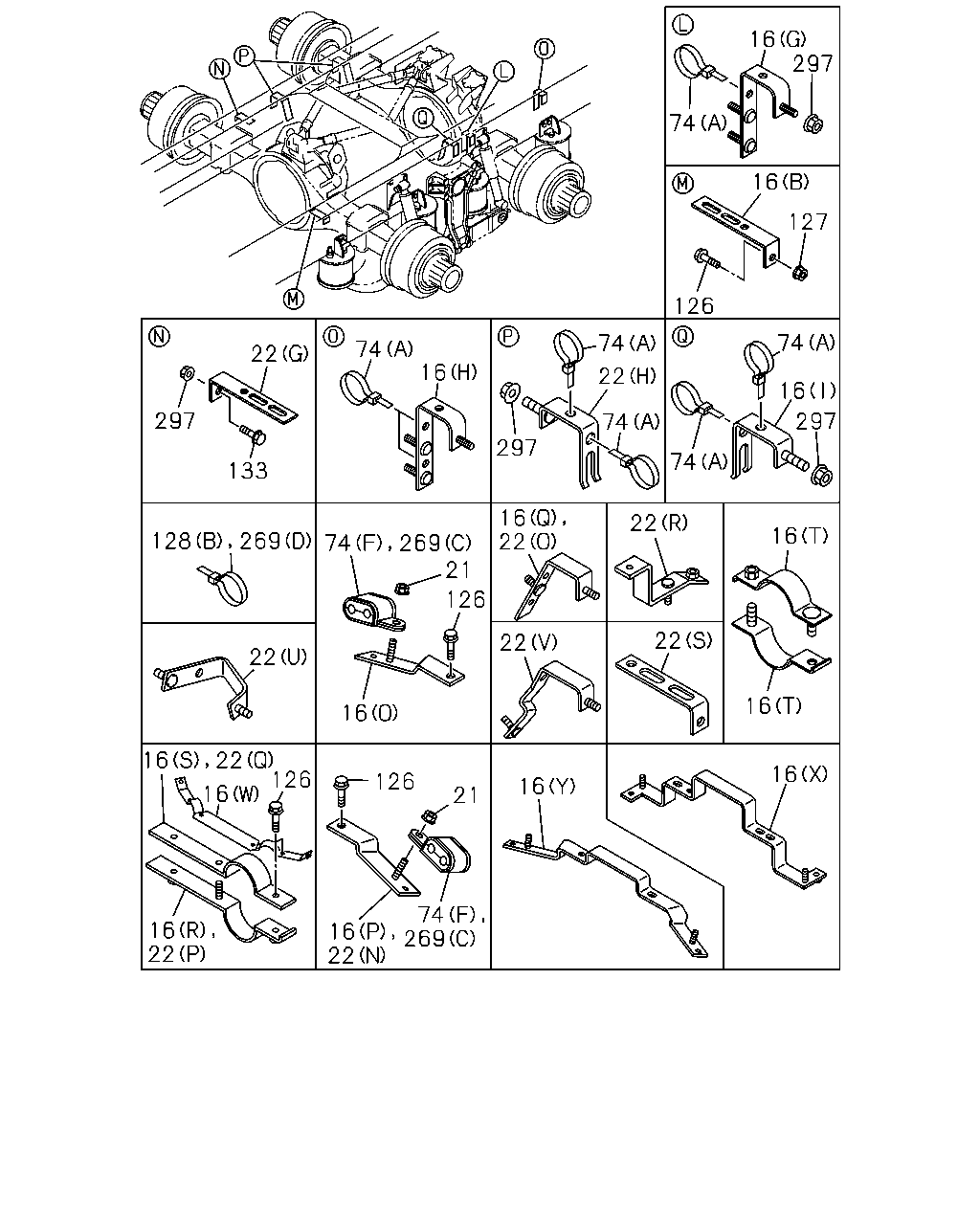

çizim 25040
16 297 74 16 127 126 74 74 74 16 22 22 16 74 297 297 297 74 133 16 22 22 16 21 126 22 22 22 16 16 126 16 126 16 16 21 74 16 269 22 16 22 128 269 74 269 22 16
BalonParca AdiParca NoAdetTipApplied Date
16 BRACKET; PIPE CLIP
(V) L=30 		1-47479-481-0 01 1 0306-
16 BRACKET; PIPE CLIP
(W) 		1-47479-846-0 01 1 0306-
16 BRACKET; PIPE CLIP
(J) L=100 		1-47477-620-1 01 1 0302-
16 BRACKET; PIPE CLIP
(K) L=65 		1-47477-713-0 01 1 0302-
16 BRACKET; PIPE CLIP
(G) 		1-47479-329-0 01 1 0302-0303
16 BRACKET; PIPE CLIP
(G) 		1-47479-329-0 02 1 0304-
16 BRACKET; PIPE CLIP
(H) 		1-47479-333-0 01 1 0302-0303
16 BRACKET; PIPE CLIP
(E) 		1-47479-577-0 01 1 0302-0302
16 BRACKET; PIPE CLIP
(O) 		1-47479-740-0 02 1 0303-0305
16 BRACKET; PIPE CLIP
(O) 		1-47479-740-0 01 1 0306-0309
16 BRACKET; PIPE CLIP
(X) 		1-47479-898-0 01 1 0310-
16 BRACKET; PIPE CLIP
(F) 		1-47479-578-0 01 1 0302-0302
16 BRACKET; PIPE CLIP
(P) 		1-47479-741-0 01 1 0303-0309
16 BRACKET; PIPE CLIP
(C) 		1-47479-590-0 01 1 0302-0302
16 BRACKET; PIPE CLIP
(Q) 		1-47479-742-0 01 1 0303-0305
16 BRACKET; PIPE CLIP
(U) 		1-47479-719-0 01 1 0306-0309
16 BRACKET; PIPE CLIP
(Y) 		1-47479-896-0 01 1 0310-
16 BRACKET; PIPE CLIP
(D) 		1-82569-374-0 02 1 0302-0302
16 BRACKET; PIPE CLIP
(R) 		1-47479-744-0 01 1 0303-0305
16 BRACKET; PIPE CLIP
(Q) 		1-47479-837-0 01 1 0306-
16 BRACKET; PIPE CLIP
(A) 		1-82569-375-0 01 1 0302-0302
16 BRACKET; PIPE CLIP
(S) 		1-47479-745-0 01 1 0303-0305
16 BRACKET; PIPE CLIP
(T) 		1-47479-845-0 02 1 0306-
16 BRACKET; PIPE CLIP
(B) L=100 H=30 		1-47477-645-2 01 1 0302-
16 BRACKET; PIPE CLIP
(I) 		1-47479-381-2 18 1 0302-0303
16 BRACKET; PIPE CLIP
(I) 		1-47479-381-2 14 1 0304-
16 BRACKET; PIPE CLIP
(L) 		1-47479-437-1 04 1 0302-0302
16 BRACKET; PIPE CLIP
(M) 		1-47479-693-0 04 1 0302-0303
16 BRACKET; PIPE CLIP
(M) 		1-47479-693-0 03 1 0304-
16 BRACKET; PIPE CLIP
(N) 		1-47479-580-0 01 1 0302-0304
16 BRACKET; PIPE CLIP
(N) 		1-47479-800-0 01 1 0305-
21 NUT; CLIP
M6 FLANGE 		0-91150-106-0 06 1 0302-0309
21 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0302-0302
21 NUT; CLIP
M8 FLANGE 		0-91150-108-0 05 1 0303-0309
21 NUT; CLIP
M8 FLANGE 		0-91150-108-0 08 1 0310-
22 BRACKET; CLIP
(C) 		1-47479-577-0 01 1 0302-0302
22 BRACKET; CLIP
(N) 		1-47479-741-0 01 1 0303-0305
22 BRACKET; CLIP
(T) 		1-47479-719-0 01 1 0306-0309
22 BRACKET; CLIP
(D) 		1-47479-578-0 01 1 0302-0302
22 BRACKET; CLIP
(O) 		1-47479-742-0 02 1 0303-0305
22 BRACKET; CLIP
(H) 		1-47479-381-2 08 1 0306-
22 BRACKET; CLIP
(E) 		1-47479-579-0 01 1 0302-0302
22 BRACKET; CLIP
(P) 		1-47479-744-0 01 1 0303-0305
22 BRACKET; CLIP
(V) 		1-47479-836-0 01 1 0306-
22 BRACKET; CLIP
(B) 		1-47479-590-0 02 1 0302-0302
22 BRACKET; CLIP
(Q) 		1-47479-745-0 01 1 0303-0305
22 BRACKET; CLIP
(U) 		1-47479-838-0 01 1 0306-
22 BRACKET; CLIP
(M) 		1-47479-598-0 03 1 0302-0303
22 BRACKET; CLIP
(M) 		1-47479-598-0 02 1 0304-
22 BRACKET; CLIP
(F) 		1-82569-375-0 01 1 0302-0302
22 BRACKET; CLIP
(R) 		1-47479-746-1 01 1 0303-
22 BRACKET; CLIP
(G) L=100 H=30 		1-47477-645-2 01 1 0302-
22 BRACKET; CLIP
(A) 		1-47479-329-0 02 1 0302-
22 BRACKET; CLIP
(H) 		1-47479-381-2 15 1 0302-0303
22 BRACKET; CLIP
(H) 		1-47479-381-2 09 1 0304-0305
22 BRACKET; CLIP
(H) 		1-47479-381-2 01 1 0306-
22 BRACKET; CLIP
(I) 		1-47479-437-1 05 1 0302-0302
22 BRACKET; CLIP
(J) 		1-47479-693-0 05 1 0302-0303
22 BRACKET; CLIP
(J) 		1-47479-693-0 03 1 0304-
22 BRACKET; CLIP
(K) 		1-47479-542-0 01 1 0302-0302
22 BRACKET; CLIP
(S) 		1-47479-754-0 01 1 0303-
22 BRACKET; CLIP
(L) 		1-47479-580-0 01 1 0302-0304
22 BRACKET; CLIP
(L) 		1-47479-800-0 01 1 0305-
74 CLIP; NYLON TUBE
(H) ID=8 & 12 		1-09709-312-0 01 1 0305-0505
74 CLIP; NYLON TUBE
(G) ID=45 H=31 L=35 		1-09701-308-0 01 1 0304-
74 CLIP; NYLON TUBE
(D) ID=35 L=33 		1-09700-945-0 02 1 0302-0302
74 CLIP; NYLON TUBE
(B) 		1-09701-174-0 03 1 0302-0302
74 CLIP; NYLON TUBE
(F) 		1-09701-306-0 03 1 0303-
74 CLIP; NYLON TUBE
(C) 		1-09701-175-0 03 1 0302-0302
74 CLIP; NYLON TUBE
(E) ID=35 H=45 L=33 		1-09700-947-0 02 1 0302-0302
74 CLIP; NYLON TUBE
(E) ID=35 H=45 L=33 		1-09700-947-0 04 1 0303-0303
74 CLIP; NYLON TUBE
(E) ID=35 H=45 L=33 		1-09700-947-0 03 1 0304-
74 CLIP; NYLON TUBE
(A) L=250 		1-09707-126-0 35 1 0302-0304
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 35 1 0305-0505
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 36 1 0506-
126 BOLT; CLIP BRKT
M8X12 FLANGE 		0-28080-812-0 03 1 0302-0309
126 BOLT; CLIP BRKT
M8X12 FLANGE 		0-28080-812-0 04 1 0310-
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28680-825-0 04 1 0302-0302
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28680-825-0 08 1 0302-0303
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28680-825-0 07 1 0304-0305
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28680-825-0 08 1 0306-0309
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28680-825-0 07 1 0310-
126 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 0302-
127 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 27 1 0302-0303
127 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 22 1 0304-0305
127 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 23 1 0306-
127 NUT; CLIP BRKT
M8 FLANGE 		0-91150-208-0 02 1 0302-0308
127 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 02 1 0309-0309
127 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 04 1 0310-
128 CLIP; NYLON TUBE
(A) ID=18 L=28 		1-09701-067-0 01 1 0302-
128 CLIP; NYLON TUBE
(B) L=250 		1-09707-126-0 35 1 0302-0304
128 CLIP; NYLON TUBE
(B) L=350 		1-09707-183-0 35 1 0305-0305
128 CLIP; NYLON TUBE
(B) L=350 		1-09707-183-0 36 1 0306-
133 BOLT; BRKT
M6X10 FLANGE 		0-28080-610-0 01 1 0302-
133 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 01 1 0302-0309
133 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 01 1 0302-
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 11 1 0302-0302
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 16 1 0303-0303
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 13 1 0304-0304
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 14 1 0305-0309
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 12 1 0310-0405
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 10 1 0406-
133 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 03 1 0302-0405
133 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 05 1 0406-
133 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 11 1 0302-0303
133 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 08 1 0304-
269 CLIP; BAND,NYLON TUBE
(D) L=350 		1-09707-183-0 04 1 0306-
269 CLIP; BAND,NYLON TUBE
(A) 		1-09701-174-0 07 1 0302-0302
269 CLIP; BAND,NYLON TUBE
(C) 		1-09701-306-0 07 1 0303-
269 CLIP; BAND,NYLON TUBE
(B) 		1-09701-175-0 07 1 0302-0302
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 05 1 0302-
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 25 1 0302-0303
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 22 1 0304-

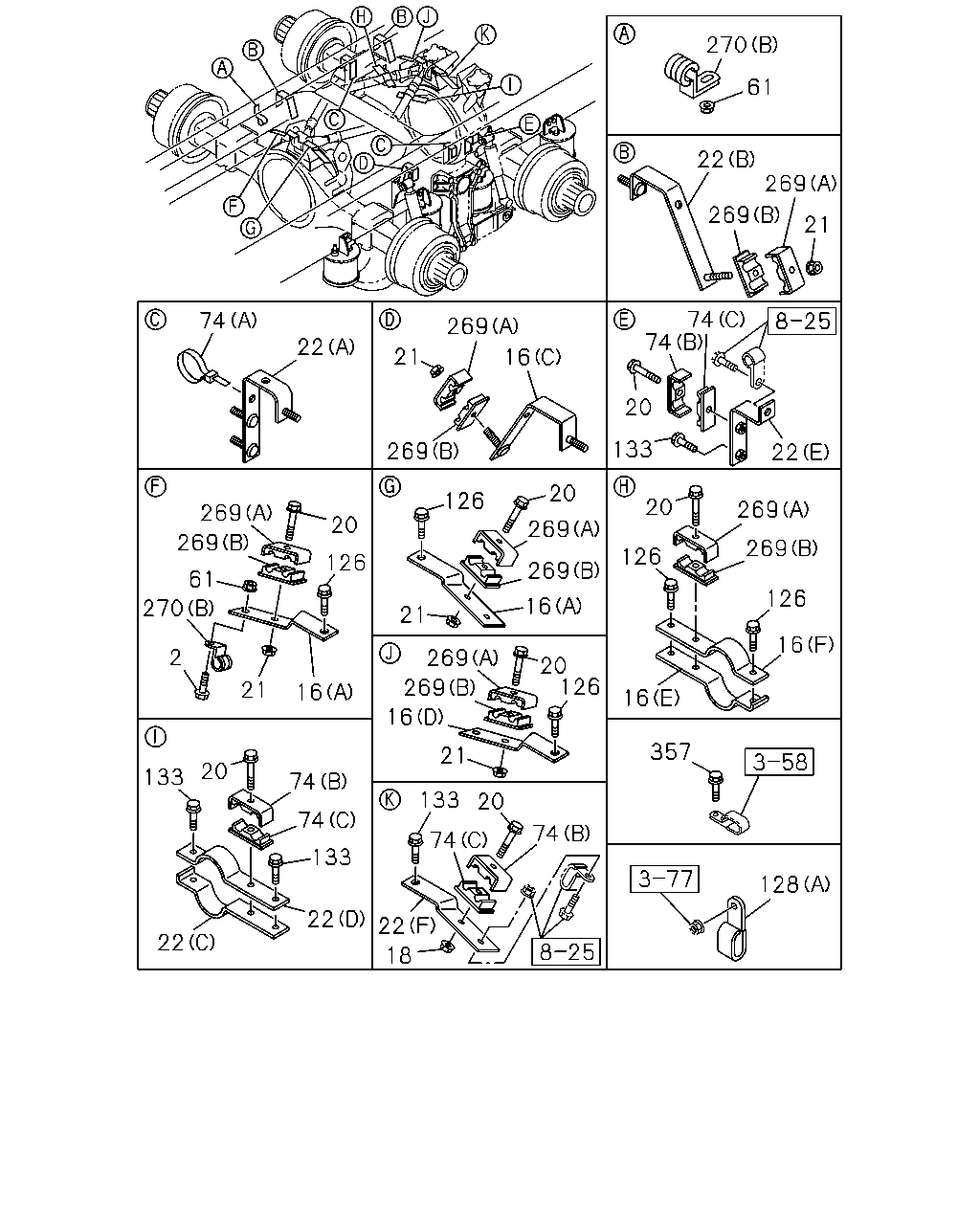

çizim 25707
270 61 22 269 269 21 74 74 74 269 22 21 16 20 133 269 22 20 126 20 269 269 20 269 269 269 126 126 269 61 126 16 270 21 16 2 269 20 126 269 21 16 16 16 357 21 20 133 74 133 20 74 74 74 133 128 22 22 22 18
BalonParca AdiParca NoAdetTipApplied Date
2 BOLT; CLIP FIX
M8X20 FLANGE 		0-28680-820-0 01 1 0302-
16 BRACKET; PIPE CLIP
(V) L=30 		1-47479-481-0 01 1 0306-
16 BRACKET; PIPE CLIP
(W) 		1-47479-846-0 01 1 0306-
16 BRACKET; PIPE CLIP
(J) L=100 		1-47477-620-1 01 1 0302-
16 BRACKET; PIPE CLIP
(K) L=65 		1-47477-713-0 01 1 0302-
16 BRACKET; PIPE CLIP
(G) 		1-47479-329-0 01 1 0302-0303
16 BRACKET; PIPE CLIP
(G) 		1-47479-329-0 02 1 0304-
16 BRACKET; PIPE CLIP
(H) 		1-47479-333-0 01 1 0302-0303
16 BRACKET; PIPE CLIP
(E) 		1-47479-577-0 01 1 0302-0302
16 BRACKET; PIPE CLIP
(O) 		1-47479-740-0 02 1 0303-0305
16 BRACKET; PIPE CLIP
(O) 		1-47479-740-0 01 1 0306-0309
16 BRACKET; PIPE CLIP
(X) 		1-47479-898-0 01 1 0310-
16 BRACKET; PIPE CLIP
(F) 		1-47479-578-0 01 1 0302-0302
16 BRACKET; PIPE CLIP
(P) 		1-47479-741-0 01 1 0303-0309
16 BRACKET; PIPE CLIP
(C) 		1-47479-590-0 01 1 0302-0302
16 BRACKET; PIPE CLIP
(Q) 		1-47479-742-0 01 1 0303-0305
16 BRACKET; PIPE CLIP
(U) 		1-47479-719-0 01 1 0306-0309
16 BRACKET; PIPE CLIP
(Y) 		1-47479-896-0 01 1 0310-
16 BRACKET; PIPE CLIP
(D) 		1-82569-374-0 02 1 0302-0302
16 BRACKET; PIPE CLIP
(R) 		1-47479-744-0 01 1 0303-0305
16 BRACKET; PIPE CLIP
(Q) 		1-47479-837-0 01 1 0306-
16 BRACKET; PIPE CLIP
(A) 		1-82569-375-0 01 1 0302-0302
16 BRACKET; PIPE CLIP
(S) 		1-47479-745-0 01 1 0303-0305
16 BRACKET; PIPE CLIP
(T) 		1-47479-845-0 02 1 0306-
16 BRACKET; PIPE CLIP
(B) L=100 H=30 		1-47477-645-2 01 1 0302-
16 BRACKET; PIPE CLIP
(I) 		1-47479-381-2 18 1 0302-0303
16 BRACKET; PIPE CLIP
(I) 		1-47479-381-2 14 1 0304-
16 BRACKET; PIPE CLIP
(L) 		1-47479-437-1 04 1 0302-0302
16 BRACKET; PIPE CLIP
(M) 		1-47479-693-0 04 1 0302-0303
16 BRACKET; PIPE CLIP
(M) 		1-47479-693-0 03 1 0304-
16 BRACKET; PIPE CLIP
(N) 		1-47479-580-0 01 1 0302-0304
16 BRACKET; PIPE CLIP
(N) 		1-47479-800-0 01 1 0305-
18 NUT; CLIP
M6 FLANGE 		0-91150-106-0 01 1 0302-0309
18 NUT; CLIP
M8 FLANGE 		0-91150-108-0 04 1 0302-0302
18 NUT; CLIP
M8 FLANGE 		0-91150-108-0 07 1 0303-0303
18 NUT; CLIP
M8 FLANGE 		0-91150-108-0 05 1 0304-
20 BOLT; CLIP
M6X40 FLANGE 		0-28080-640-0 07 1 0302-0302
20 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 02 1 0302-
20 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 04 1 0302-
20 BOLT; CLIP
M8X30 FLANGE 		0-28680-830-0 01 1 0302-0302
20 BOLT; CLIP
M8X30 FLANGE 		0-28680-830-0 02 1 0303-
21 NUT; CLIP
M6 FLANGE 		0-91150-106-0 06 1 0302-0309
21 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0302-0302
21 NUT; CLIP
M8 FLANGE 		0-91150-108-0 05 1 0303-0309
21 NUT; CLIP
M8 FLANGE 		0-91150-108-0 08 1 0310-
22 BRACKET; CLIP
(C) 		1-47479-577-0 01 1 0302-0302
22 BRACKET; CLIP
(N) 		1-47479-741-0 01 1 0303-0305
22 BRACKET; CLIP
(T) 		1-47479-719-0 01 1 0306-0309
22 BRACKET; CLIP
(D) 		1-47479-578-0 01 1 0302-0302
22 BRACKET; CLIP
(O) 		1-47479-742-0 02 1 0303-0305
22 BRACKET; CLIP
(H) 		1-47479-381-2 08 1 0306-
22 BRACKET; CLIP
(E) 		1-47479-579-0 01 1 0302-0302
22 BRACKET; CLIP
(P) 		1-47479-744-0 01 1 0303-0305
22 BRACKET; CLIP
(V) 		1-47479-836-0 01 1 0306-
22 BRACKET; CLIP
(B) 		1-47479-590-0 02 1 0302-0302
22 BRACKET; CLIP
(Q) 		1-47479-745-0 01 1 0303-0305
22 BRACKET; CLIP
(U) 		1-47479-838-0 01 1 0306-
22 BRACKET; CLIP
(M) 		1-47479-598-0 03 1 0302-0303
22 BRACKET; CLIP
(M) 		1-47479-598-0 02 1 0304-
22 BRACKET; CLIP
(F) 		1-82569-375-0 01 1 0302-0302
22 BRACKET; CLIP
(R) 		1-47479-746-1 01 1 0303-
22 BRACKET; CLIP
(G) L=100 H=30 		1-47477-645-2 01 1 0302-
22 BRACKET; CLIP
(A) 		1-47479-329-0 02 1 0302-
22 BRACKET; CLIP
(H) 		1-47479-381-2 15 1 0302-0303
22 BRACKET; CLIP
(H) 		1-47479-381-2 09 1 0304-0305
22 BRACKET; CLIP
(H) 		1-47479-381-2 01 1 0306-
22 BRACKET; CLIP
(I) 		1-47479-437-1 05 1 0302-0302
22 BRACKET; CLIP
(J) 		1-47479-693-0 05 1 0302-0303
22 BRACKET; CLIP
(J) 		1-47479-693-0 03 1 0304-
22 BRACKET; CLIP
(K) 		1-47479-542-0 01 1 0302-0302
22 BRACKET; CLIP
(S) 		1-47479-754-0 01 1 0303-
22 BRACKET; CLIP
(L) 		1-47479-580-0 01 1 0302-0304
22 BRACKET; CLIP
(L) 		1-47479-800-0 01 1 0305-
61 NUT; CLIP FIX
M8 FLANGE 		0-91150-108-0 02 1 0302-
61 NUT; CLIP FIX
M8 FLANGE 		0-91150-108-0 02 1 0302-
74 CLIP; NYLON TUBE
(H) ID=8 & 12 		1-09709-312-0 01 1 0305-0505
74 CLIP; NYLON TUBE
(G) ID=45 H=31 L=35 		1-09701-308-0 01 1 0304-
74 CLIP; NYLON TUBE
(D) ID=35 L=33 		1-09700-945-0 02 1 0302-0302
74 CLIP; NYLON TUBE
(B) 		1-09701-174-0 03 1 0302-0302
74 CLIP; NYLON TUBE
(F) 		1-09701-306-0 03 1 0303-
74 CLIP; NYLON TUBE
(C) 		1-09701-175-0 03 1 0302-0302
74 CLIP; NYLON TUBE
(E) ID=35 H=45 L=33 		1-09700-947-0 02 1 0302-0302
74 CLIP; NYLON TUBE
(E) ID=35 H=45 L=33 		1-09700-947-0 04 1 0303-0303
74 CLIP; NYLON TUBE
(E) ID=35 H=45 L=33 		1-09700-947-0 03 1 0304-
74 CLIP; NYLON TUBE
(A) L=250 		1-09707-126-0 35 1 0302-0304
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 35 1 0305-0505
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 36 1 0506-
126 BOLT; CLIP BRKT
M8X12 FLANGE 		0-28080-812-0 03 1 0302-0309
126 BOLT; CLIP BRKT
M8X12 FLANGE 		0-28080-812-0 04 1 0310-
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28680-825-0 04 1 0302-0302
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28680-825-0 08 1 0302-0303
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28680-825-0 07 1 0304-0305
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28680-825-0 08 1 0306-0309
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28680-825-0 07 1 0310-
126 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 0302-
128 CLIP; NYLON TUBE
(A) ID=18 L=28 		1-09701-067-0 01 1 0302-
128 CLIP; NYLON TUBE
(B) L=250 		1-09707-126-0 35 1 0302-0304
128 CLIP; NYLON TUBE
(B) L=350 		1-09707-183-0 35 1 0305-0305
128 CLIP; NYLON TUBE
(B) L=350 		1-09707-183-0 36 1 0306-
133 BOLT; BRKT
M6X10 FLANGE 		0-28080-610-0 01 1 0302-
133 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 01 1 0302-0309
133 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 01 1 0302-
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 11 1 0302-0302
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 16 1 0303-0303
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 13 1 0304-0304
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 14 1 0305-0309
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 12 1 0310-0405
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 10 1 0406-
133 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 03 1 0302-0405
133 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 05 1 0406-
133 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 11 1 0302-0303
133 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 08 1 0304-
269 CLIP; BAND,NYLON TUBE
(D) L=350 		1-09707-183-0 04 1 0306-
269 CLIP; BAND,NYLON TUBE
(A) 		1-09701-174-0 07 1 0302-0302
269 CLIP; BAND,NYLON TUBE
(C) 		1-09701-306-0 07 1 0303-
269 CLIP; BAND,NYLON TUBE
(B) 		1-09701-175-0 07 1 0302-0302
270 CLIP; NYLON TUBE
(A) ID=28 L=40 		1-09700-995-1 01 1 0302-
270 CLIP; NYLON TUBE
(A) ID=28 L=32 		1-09701-107-1 02 1 0302-0302
270 CLIP; NYLON TUBE
(A) ID=28 L=32 		1-09701-107-1 01 1 0303-0308
270 CLIP; NYLON TUBE
(B) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0309-
270 CLIP; NYLON TUBE
(B) ID=16 H=25 L=25 		1-09701-162-0 02 1 0302-
357 BOLT; CLIP FIX
M8X10 FLANGE 		0-28080-810-0 02 1 0302-

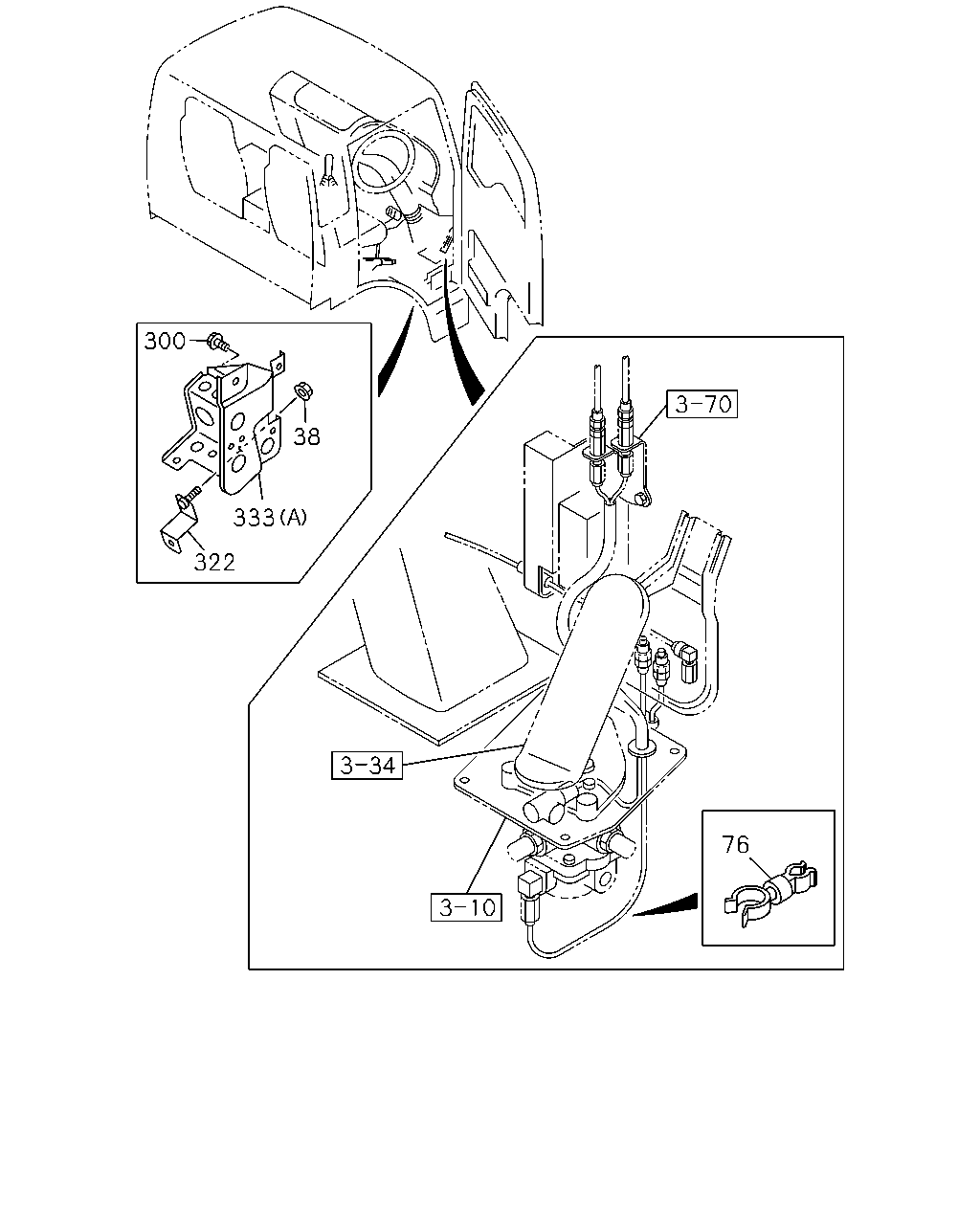

çizim 25790
300 38 333 322 76
BalonParca AdiParca NoAdetTipApplied Date
38 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0302-
76 CLIP; NYLON TUBE
ID=6 & 8.3 		8-94167-742-0 02 1 0302-
300 BOLT; TUBE CLIP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0302-
322 BRACKET; CLIP 1-79996-360-0 01 1 0302-
333 BRACKET; BRK AIR PIPE
(B) 		1-47477-045-0 01 1 0302-
333 BRACKET; BRK AIR PIPE
(A) 		1-79997-360-6 01 1 0302-

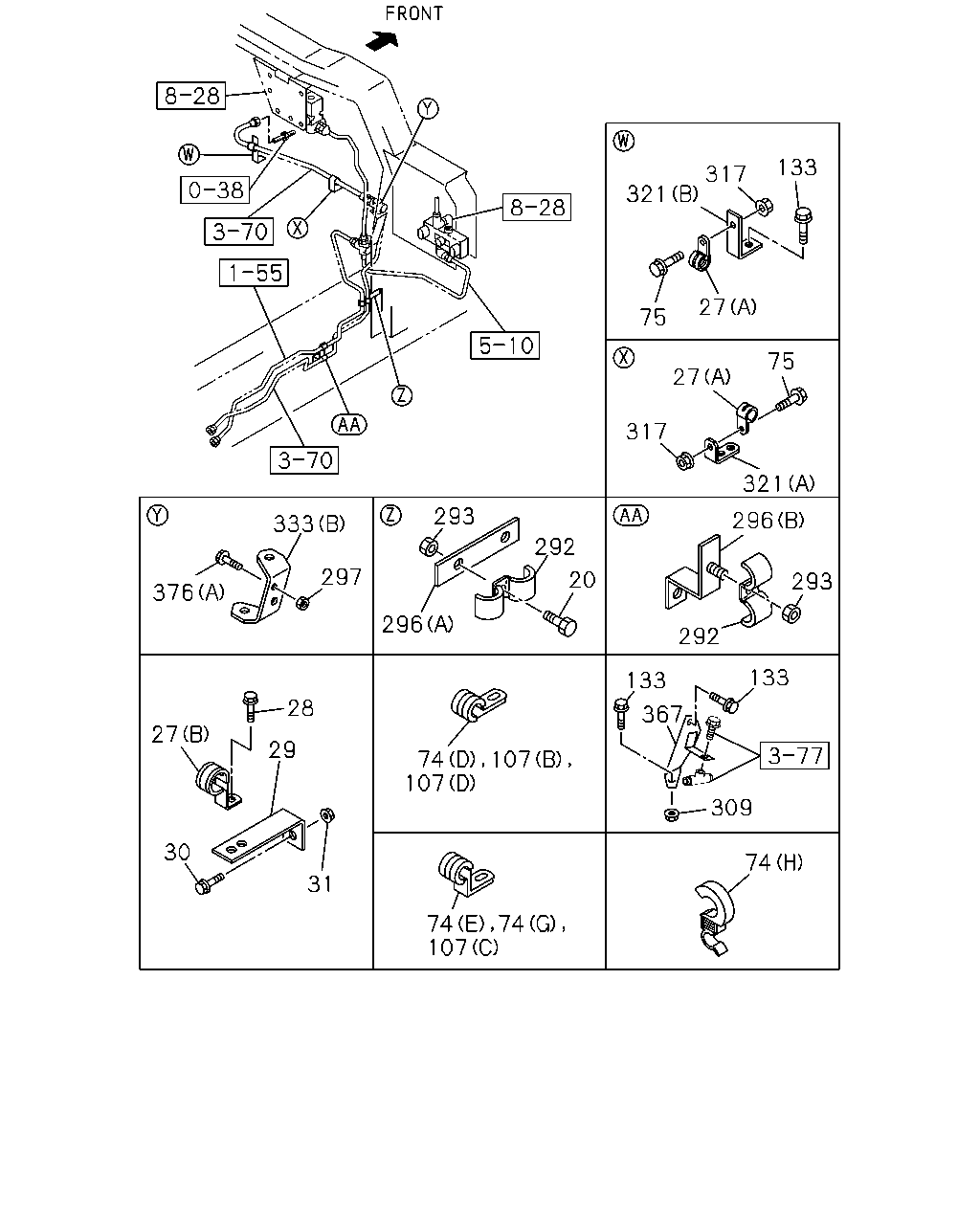

çizim 25823
133 317 321 27 75 75 27 317 321 293 296 333 292 297 20 293 376 296 292 133 133 28 367 27 29 74 107 107 309 30 74 31 107 74 74
BalonParca AdiParca NoAdetTipApplied Date
20 BOLT; CLIP
M6X40 FLANGE 		0-28080-640-0 07 1 0302-0302
20 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 02 1 0302-
20 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 04 1 0302-
20 BOLT; CLIP
M8X30 FLANGE 		0-28680-830-0 01 1 0302-0302
20 BOLT; CLIP
M8X30 FLANGE 		0-28680-830-0 02 1 0303-
27 CLIP; FLEX HOSE
(B) ID=25 H=30 L=35 		1-09700-875-0 01 1 0302-
27 CLIP; FLEX HOSE
(A) ID=15 L=28 		1-09701-216-0 02 1 0302-
28 BOLT; CLIP,FLEX HOSE
M8X20 FLANGE 		0-28680-820-0 01 1 0302-
29 BRACKET; CLIP,AIR PIPE
L=145 B=25 		1-47477-697-0 01 1 0302-0303
29 BRACKET; CLIP,AIR PIPE
L=145 B=25 		1-47479-123-0 01 1 0304-
30 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28680-830-0 01 1 0302-
31 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 01 1 0302-
74 CLIP; NYLON TUBE
(H) ID=8 & 12 		1-09709-312-0 01 1 0305-0505
74 CLIP; NYLON TUBE
(G) ID=45 H=31 L=35 		1-09701-308-0 01 1 0304-
74 CLIP; NYLON TUBE
(D) ID=35 L=33 		1-09700-945-0 02 1 0302-0302
74 CLIP; NYLON TUBE
(B) 		1-09701-174-0 03 1 0302-0302
74 CLIP; NYLON TUBE
(F) 		1-09701-306-0 03 1 0303-
74 CLIP; NYLON TUBE
(C) 		1-09701-175-0 03 1 0302-0302
74 CLIP; NYLON TUBE
(E) ID=35 H=45 L=33 		1-09700-947-0 02 1 0302-0302
74 CLIP; NYLON TUBE
(E) ID=35 H=45 L=33 		1-09700-947-0 04 1 0303-0303
74 CLIP; NYLON TUBE
(E) ID=35 H=45 L=33 		1-09700-947-0 03 1 0304-
74 CLIP; NYLON TUBE
(A) L=250 		1-09707-126-0 35 1 0302-0304
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 35 1 0305-0505
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 36 1 0506-
75 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 02 1 0302-
107 CLIP; NYLON TUBE
(B) ID=24 L=27 		1-09700-809-0 01 1 0302-
107 CLIP; NYLON TUBE
(C) ID=31 H=30 L=35 		1-09700-994-0 02 1 0302-
107 CLIP; NYLON TUBE
(D) ID=25 L=50 		1-09701-019-0 01 1 0302-
107 CLIP; NYLON TUBE
(A) L=250 		1-09707-126-0 14 1 0302-0304
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 14 1 0305-
133 BOLT; BRKT
M6X10 FLANGE 		0-28080-610-0 01 1 0302-
133 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 01 1 0302-0309
133 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 01 1 0302-
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 11 1 0302-0302
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 16 1 0303-0303
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 13 1 0304-0304
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 14 1 0305-0309
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 12 1 0310-0405
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 10 1 0406-
133 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 03 1 0302-0405
133 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 05 1 0406-
133 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 11 1 0302-0303
133 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 08 1 0304-
292 CLIP; AIR PIPE
ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 02 1 0302-
293 NUT; CLIP
M8 FLANGE 		0-91150-108-0 03 1 0302-0302
293 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0303-
296 BRACKET; CLIP
(A) 		1-47475-648-0 01 1 0302-
296 BRACKET; CLIP
(B) 		1-47477-235-0 01 1 0302-0302
296 BRACKET; CLIP
(B) 		1-47476-676-0 01 1 0303-
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 05 1 0302-
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 25 1 0302-0303
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 22 1 0304-
309 NUT; BRKT FIX
M8 FLANGE 		0-91150-108-0 01 1 0311-
317 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0302-
321 BRACKET; CLIP
(A) 		1-47477-337-1 01 1 0302-
321 BRACKET; CLIP
(B) L=75 		1-47478-328-0 01 1 0302-
321 BRACKET; CLIP
(C) L=59 B=20 		1-47479-048-0 01 1 0302-
333 BRACKET; BRK AIR PIPE
(B) 		1-47477-045-0 01 1 0302-
333 BRACKET; BRK AIR PIPE
(A) 		1-79997-360-6 01 1 0302-
367 BRACKET ASM 1-47479-701-1 01 1 0302-
376 BOLT; BRKT
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0302-
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0302-

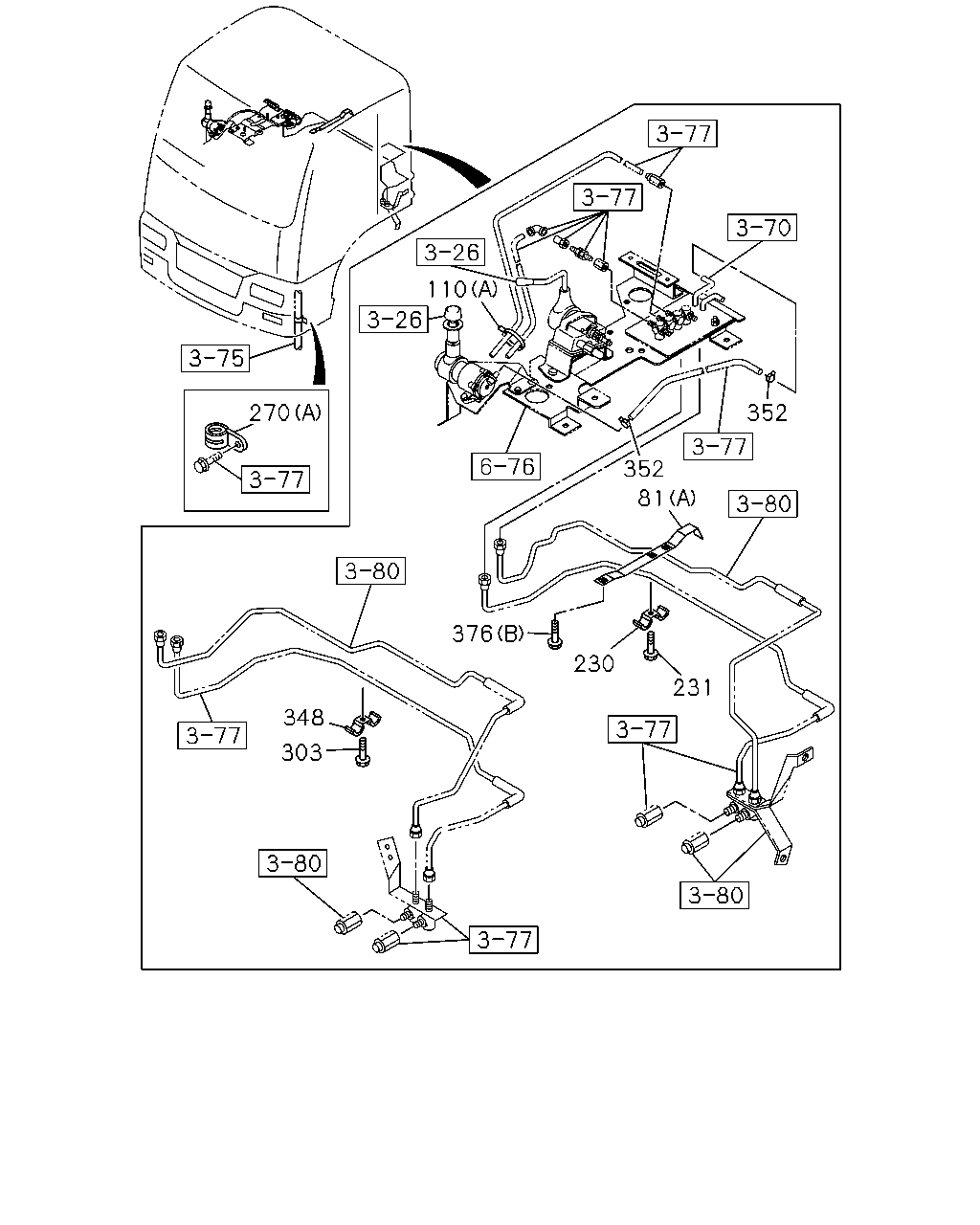

çizim 81910
110 352 270 352 81 376 230 231 348 303
BalonParca AdiParca NoAdetTipApplied Date
81 BRACKET; CLIP
(E) L=30 		1-47479-481-0 01 1 0305-
81 BRACKET; CLIP
(A) 		1-47477-483-0 01 1 0302-
81 BRACKET; CLIP
(B) L=100 H=30 		1-47477-645-2 04 1 0302-0303
81 BRACKET; CLIP
(B) L=100 H=30 		1-47477-645-2 02 1 0304-
81 BRACKET; CLIP
(D) L=130 		1-47478-959-0 02 1 0302-
81 BRACKET; CLIP
(C) 		1-47479-381-2 05 1 0302-0303
81 BRACKET; CLIP
(C) 		1-47479-381-2 04 1 0304-
81 BRACKET; CLIP
(E) L=30 		1-47479-481-0 01 1 0302-0303
81 BRACKET; CLIP
(F) 		1-47479-562-0 02 1 0302-0410
81 BRACKET; CLIP
(F) W/STUD M8X20 		1-47471-209-0 02 1 0411-
110 CLIP; BAND,NYLON TUBE
(B) L=250 		1-09707-126-0 01 1 0302-0304
110 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 01 1 0305-
110 CLIP; BAND,NYLON TUBE
(A) L=140 		5-09707-031-1 01 1 0302-
230 CLIP; PIPE,AIR
ID=11 & 9 L=15 & 15 		1-09700-062-0 02 1 0302-
231 BOLT; CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0302-
270 CLIP; NYLON TUBE
(A) ID=28 L=40 		1-09700-995-1 01 1 0302-
270 CLIP; NYLON TUBE
(A) ID=28 L=32 		1-09701-107-1 02 1 0302-0302
270 CLIP; NYLON TUBE
(A) ID=28 L=32 		1-09701-107-1 01 1 0303-0308
270 CLIP; NYLON TUBE
(B) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0309-
270 CLIP; NYLON TUBE
(B) ID=16 H=25 L=25 		1-09701-162-0 02 1 0302-
303 BOLT; PIPE CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0302-
348 CLIP; AIR PIPE
ID=9 & 9 L=15 & 15 		1-09700-061-0 02 1 0302-
352 CLIP; EXH HOSE
ID=14 		8-94238-572-0 02 1 0302-
376 BOLT; BRKT
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0302-
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0302-

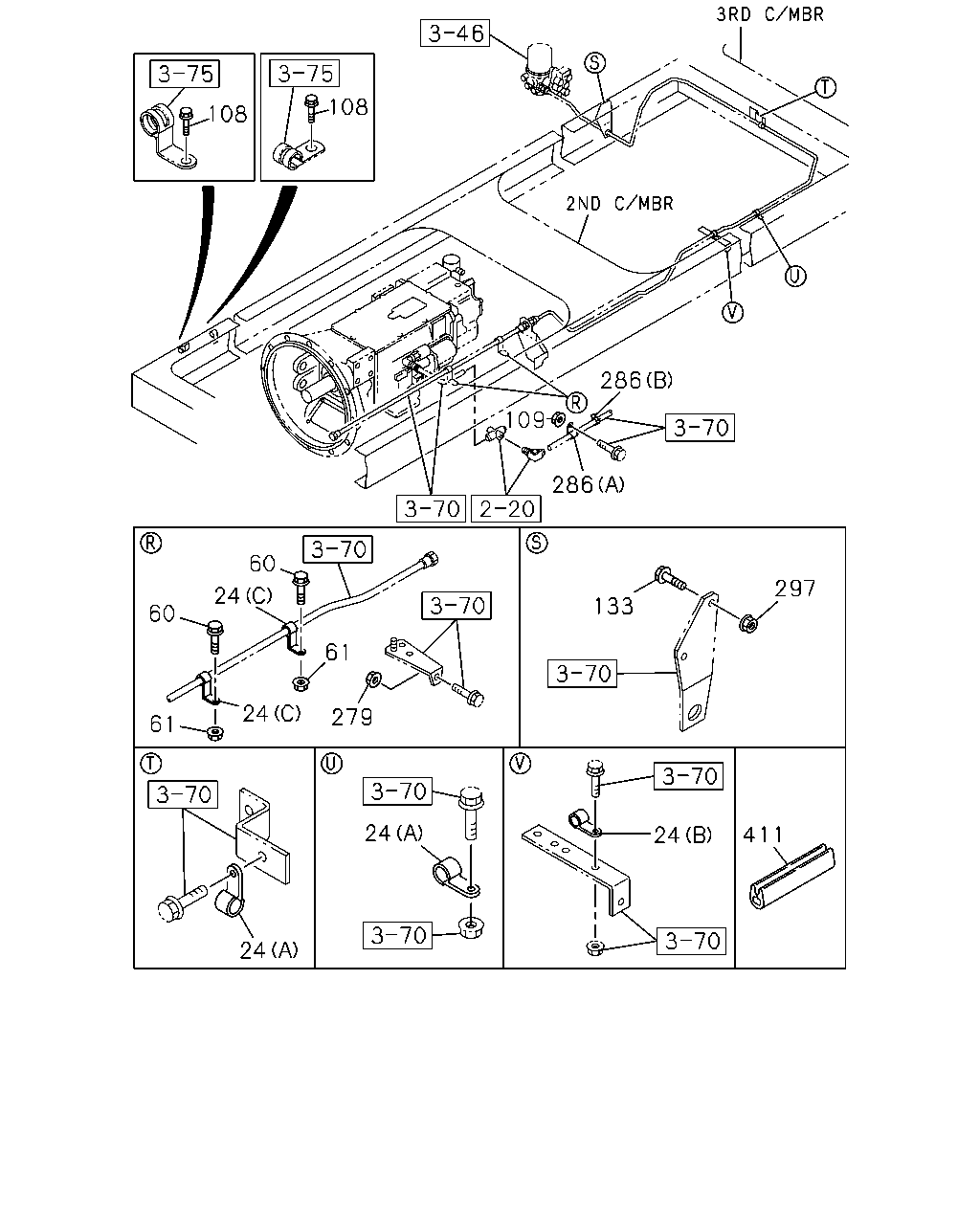

çizim 83638
108 108 286 109 286 60 297 24 133 60 61 24 279 61 24 24 411 24
BalonParca AdiParca NoAdetTipApplied Date
24 CLIP; PIPE
(C) ID=25 H=30 L=35 		1-09700-875-0 02 1 0302-
24 CLIP; PIPE
(B) ID=19 L=20 		9-09525-836-0 01 1 0302-
24 CLIP; PIPE
(A) ID=19 H=25 L=25 		9-09917-035-0 02 1 0302-
60 BOLT; CLIP FIX
M8X20 FLANGE 		0-28680-820-0 02 1 0302-
60 BOLT; CLIP FIX
M8X30 FLANGE 		0-28680-830-0 02 1 0302-
61 NUT; CLIP FIX
M8 FLANGE 		0-91150-108-0 02 1 0302-
61 NUT; CLIP FIX
M8 FLANGE 		0-91150-108-0 02 1 0302-
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28680-825-0 10 1 0302-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 01 1 0302-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 05 1 0302-
133 BOLT; BRKT
M6X10 FLANGE 		0-28080-610-0 01 1 0302-
133 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 01 1 0302-0309
133 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 01 1 0302-
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 11 1 0302-0302
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 16 1 0303-0303
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 13 1 0304-0304
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 14 1 0305-0309
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 12 1 0310-0405
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 10 1 0406-
133 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 03 1 0302-0405
133 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 05 1 0406-
133 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 11 1 0302-0303
133 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 08 1 0304-
279 NUT; BRKT
M8 FLANGE 		0-91150-108-0 14 1 0302-0303
279 NUT; BRKT
M8 FLANGE 		0-91150-108-0 11 1 0304-
286 CLIP; NYLON TUBE
(A) ID=18 L=28 H=30 		1-09701-110-0 01 1 0302-0304
286 CLIP; NYLON TUBE
(A) ID=18 L=28 		1-09701-067-0 01 1 0305-
286 CLIP; NYLON TUBE
(B) L=250 		1-09707-126-0 02 1 0302-
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 05 1 0302-
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 25 1 0302-0303
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 22 1 0304-
411 SLEEVE; RUBBER
L=60 		8-97865-346-0 01 1 0303-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
