0-20B — TIMING GEAR CASE AND FLYWHEEL HOUSING (#2589) — 161 parça

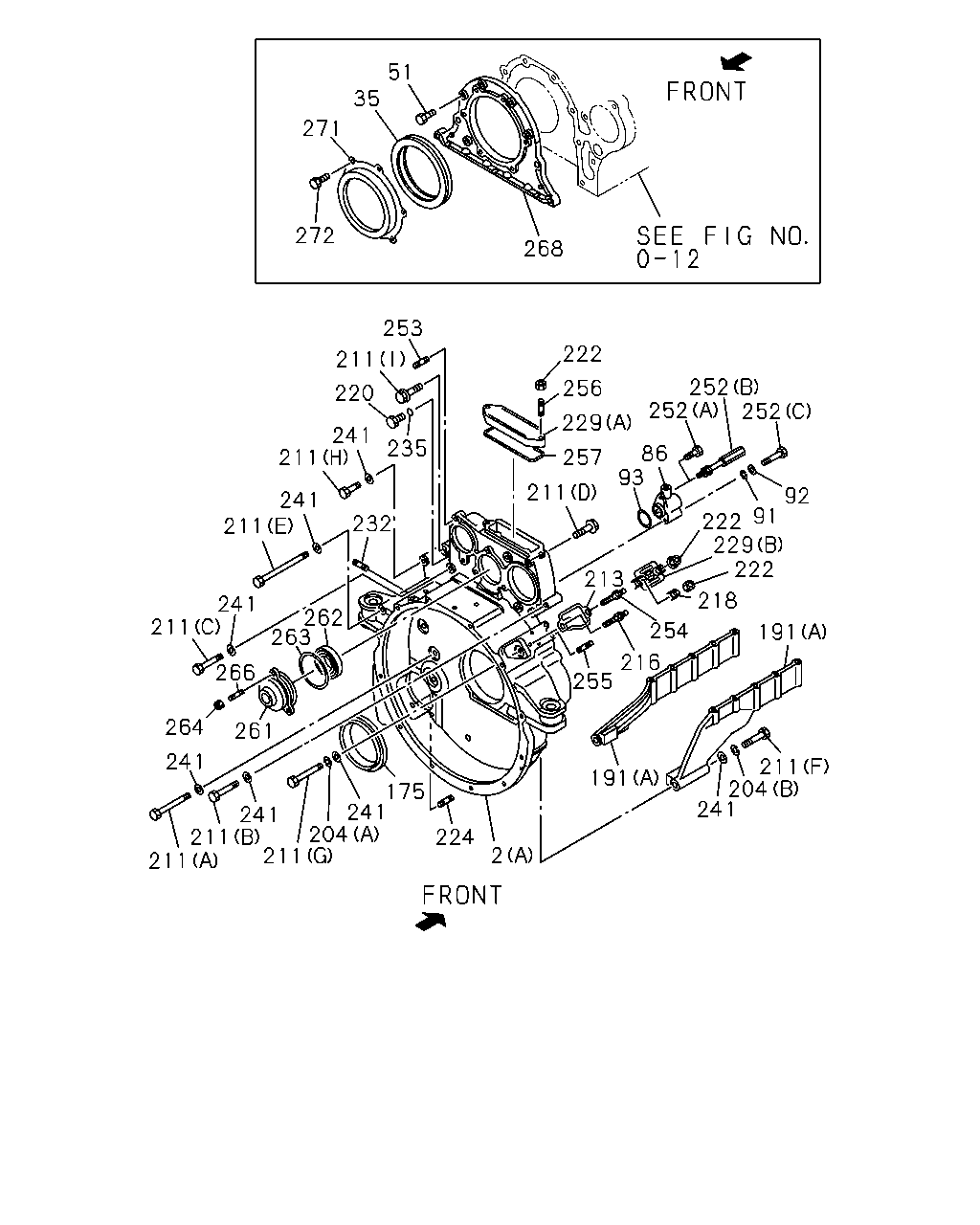

çizim 29049
51 35 271 272 268 253 211 222 256 252 252 229 257 211 86 93 92 252 222 91 229 222 218 191 254 213 220 235 241 211 232 241 211 241 262 263 266 261 264 211 241 241 211 211 211 204 241 175 224 2 191 255 216 211 204 241
BalonParca AdiParca NoAdetTipApplied Date A B
2 HOUSING; FLYWHEEL
ENGINE REAR PTO(SV1) (C) 		1-11341-226-6 01 1 9002-9302 ●
2 HOUSING; FLYWHEEL
ENGINE REAR PTO(SV1) (C) 		1-11341-430-3 01 1 9303-9303 ●
2 HOUSING; FLYWHEEL
ENGINE REAR PTO(SV1) EXC. CAUTIONS ECE<WX4> (C) 		1-11341-430-7 01 1 9304- ●
2 HOUSING; FLYWHEEL
EXC. 14INCH TWO PLATE SPICER CLUTCH(M07) (C) 		1-11341-430-7 01 1 9304- ●
2 HOUSING; FLYWHEEL
ENGINE REAR PTO(SV1) CAUTIONS ECE<WX4> (C) 		1-11341-226-6 01 1 9308- ●
2 HOUSING; FLYWHEEL
EXC. ENGINE REAR PTO(SV1) (B) 		1-11341-223-6 01 1 9002-9306 ●
2 HOUSING; FLYWHEEL
EXC. ENGINE REAR PTO(SV1) (B) 		1-11341-223-6 01 1 9307- ●
2 HOUSING; FLYWHEEL
14INCH TWO PLATE SPICER CLUTCH(M07) (B) 		1-11341-223-6 01 1 9307- ●
2 HOUSING; FLYWHEEL
EXC. 14INCH TWO PLATE SPICER CLUTCH(M07) (A) 		1-11341-382-7 01 1 9307- ●
35 SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09625-506-0 01 1 9002-9302 ●
35 SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09625-524-2 01 1 9303- ● ●
51 BOLT; GEAR CASE COVER
M8X28 FLANGE 		0-28020-828-0 08 1 9002-9005 ●
51 BOLT; GEAR CASE COVER
M8X28 FLANGE 		0-28080-828-0 08 1 9006- ● ●
86 ELBOW; TACHOMETER DRIVE 1-85860-039-1 01 1 9002-9309 ● ●
86 ELBOW; TACHOMETER DRIVE 1-85860-033-2 01 1 9310- ● ●
91 WASHER; LK,ELBOW
ID=8.2 		9-09150-508-0 01 1 9002- ● ●
92 WASHER; PL,ELBOW
ID=8.4 		9-09160-508-0 01 1 9002- ● ●
93 GASKET; ELBOW
ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.7 		1-09623-416-0 01 1 9002- ● ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09625-507-1 01 1 9002-9302 ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09625-525-2 01 1 9303- ● ●
191 STAY; FLYWHEEL HSG
(A) 		1-11349-124-2 01 1 9002-9106 ●
191 STAY; FLYWHEEL HSG
(A) 		1-11349-167-0 01 1 9107- ● ●
191 STAY; FLYWHEEL HSG
(A) 		1-11349-078-2 01 1 9002-9106 ●
191 STAY; FLYWHEEL HSG
(A) 		1-11349-168-0 01 1 9107- ● ●
191 STAY; FLYWHEEL HSG
ENGINE REAR PTO(SV1) (B) 		1-11349-169-0 01 1 9303- ● ●
204 WASHER; LK,HSG
(B) ID=14.2 		9-09150-514-0 15 1 9002-9306 ●
204 WASHER; LK,HSG
(B) ID=14.2 		9-09150-514-0 15 1 9307- ●
204 WASHER; LK,HSG
EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B) ID=14.2 		9-09150-514-0 15 1 9307- ●
204 WASHER; LK,HSG
(A) ID=10.2 		9-09150-510-0 01 1 9002- ● ●
204 WASHER; LK,HSG
FRAME ENG MTG SEPARATE TYPE<SGM> (B) ID=14.2 		9-09150-514-0 02 1 9307- ●
211 BOLT; HSG
(D) M10X25 		0-28121-025-0 02 1 9002-9002 ●
211 BOLT; HSG
(D) M10X25 FLANGE 		0-28181-025-0 02 1 9003- ● ●
211 BOLT; HSG
(B) M14X75 		9-91656-475-0 01 1 9002-9005 ●
211 BOLT; HSG
(B) M14X75 		0-16806-475-0 01 1 9006- ● ●
211 BOLT; HSG
ENGINE REAR PTO(SV1) (C) M10X22 		0-28121-022-0 01 1 9002-9002 ●
211 BOLT; HSG
ENGINE REAR PTO(SV1) (C) M10X22 FLANGE 		0-28181-022-0 01 1 9003-9503 ● ●
211 BOLT; HSG
(C) M10X22 FLANGE 		0-28181-022-0 01 1 9504- ● ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (I) M10X28 		0-28121-028-0 01 1 9002-9002 ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (I) M10X28 FLANGE 		0-28181-028-0 01 1 9003-9410 ● ●
211 BOLT; HSG
(I) M10X28 FLANGE 		0-28181-028-0 01 1 9411- ● ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (H) M14X55 		9-91656-455-0 01 1 9002-9005 ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (H) M14X55 		0-16806-455-0 01 1 9006-9410 ● ●
211 BOLT; HSG
(H) M14X55 		0-16806-455-0 01 1 9411- ● ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (C) M14X95 		9-91656-495-0 01 1 9002-9005 ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (C) M14X95 		0-16806-495-0 01 1 9006-9410 ● ●
211 BOLT; HSG
(C) M14X95 		0-16806-495-0 01 1 9411- ● ●
211 BOLT; HSG
(E) M14X230 		1-09020-003-1 01 1 9002- ● ●
211 BOLT; HSG
(F) M14X155 		1-09020-008-1 02 1 9002- ● ●
211 BOLT; HSG
(G) M10X115 		9-09804-203-1 01 1 9002- ● ●
211 BOLT; HSG
(A) M14X125 		9-09804-234-0 09 1 9002- ● ●
211 BOLT; HSG
ENGINE REAR PTO(SV1) (A) M14X125 		9-09804-234-0 11 1 9002-9503 ● ●
211 BOLT; HSG
(A) M14X125 		9-09804-234-0 11 1 9504- ● ●
213 POINTER; FLYWHEEL HSG 1-11342-010-0 01 1 9002-9306 ●
213 POINTER; FLYWHEEL HSG 1-11342-010-0 01 1 9307- ●
213 POINTER; FLYWHEEL HSG
EXC. FRAME ENG MTG SEPARATE TYPE<SGM> 		1-11342-010-0 01 1 9307- ●
213 POINTER; FLYWHEEL HSG
FRAME ENG MTG SEPARATE TYPE<SGM> 		1-11342-019-0 01 1 9307- ●
216 STUD; COVER,TIMING CHECK HOLE
FRAME ENG MTG SEPARATE TYPE<SGM> M8X14,M8X14 L=33 		1-09300-058-1 02 1 9307- ●
218 WASHER; PL,COVER 1-11349-127-0 01 1 9002-9306 ●
218 WASHER; PL,COVER 1-11349-127-0 01 1 9307- ● ●
220 PLUG; GEAR CHECK HOLE 1-09604-066-1 01 1 9002- ●
220 PLUG; GEAR CHECK HOLE
14INCH TWO PLATE SPICER CLUTCH(M07) 		1-09604-066-1 01 1 9002- ●
222 NUT; COVER,TIMING CHECK HOLE
M8 FLANGE 		0-91150-108-0 02 1 9002- ●
222 NUT; COVER,TIMING CHECK HOLE
M8 FLANGE 		0-91150-108-0 07 1 9307- ●
224 STUD; STARTER
M14X35 L=56 		9-04411-435-0 03 1 9002- ● ●
229 COVER; TIMING CHECK HOLE
(B) 		1-11349-126-0 01 1 9002-9306 ●
229 COVER; TIMING CHECK HOLE
(B) 		1-11349-126-0 01 1 9307- ●
229 COVER; TIMING CHECK HOLE
EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B) 		1-11349-126-0 01 1 9307- ●
229 COVER; TIMING CHECK HOLE
(A) 		1-11349-118-2 01 1 9002- ● ●
229 COVER; TIMING CHECK HOLE
FRAME ENG MTG SEPARATE TYPE<SGM> (B) 		1-11349-143-0 01 1 9307- ●
232 STUD; OIL FILTER
M10X25 L=40 		9-04411-025-0 02 1 9002-9306 ●
232 STUD; OIL FILTER
FRAME ENG MTG SEPARATE TYPE<SGM> M10X25 L=40 		9-04411-025-0 01 1 9307- ●
232 STUD; OIL FILTER
M10X25 L=40 		9-04411-025-0 02 1 9307- ●
232 STUD; OIL FILTER
EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M10X25 L=40 		9-04411-025-0 02 1 9307- ●
232 STUD; OIL FILTER
FRAME ENG MTG SEPARATE TYPE<SGM> M10X60 L=75 		9-04411-060-0 01 1 9307- ●
235 GASKET; PLUG GEAR CHECK HOLE
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09630-084-0 01 1 9002- ●
235 GASKET; PLUG GEAR CHECK HOLE
ALSO INCLUDED IN GASKET SET(ENGINE). 14INCH TWO PLATE SPICER CLUTCH(M07) ID=12.2 		1-09630-084-0 01 1 9002- ●
241 WASHER; PL,HSG
ID=15 		9-09160-514-0 14 1 9002-9306 ●
241 WASHER; PL,HSG
ID=15 		9-09160-514-0 14 1 9307- ●
241 WASHER; PL,HSG
EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=15 		9-09160-514-0 14 1 9307- ●
241 WASHER; PL,HSG
ENGINE REAR PTO(SV1) ID=10.5 OD=18 		9-09160-510-0 01 1 9002-9503 ● ●
241 WASHER; PL,HSG
ID=10.5 OD=18 		9-09160-510-0 01 1 9504- ● ●
241 WASHER; PL,HSG
EXC. ENGINE REAR PTO(SV1) ID=10.5 OD=18 		9-09160-510-0 02 1 9002-9410 ● ●
241 WASHER; PL,HSG
ID=10.5 OD=18 		9-09160-510-0 02 1 9411- ● ●
241 WASHER; PL,HSG
FRAME ENG MTG SEPARATE TYPE<SGM> ID=15.2 T=4.0 		1-09503-057-0 13 1 9307- ●
241 WASHER; PL,HSG
FRAME ENG MTG SEPARATE TYPE<SGM> ID=15 		9-09160-514-0 02 1 9307- ●
252 BOLT; GEAR BOX
(A) M8X18 		0-28010-818-0 01 1 9002-9106 ●
252 BOLT; GEAR BOX
(B) M8X22 W/LK&PL WASHER L=102 		1-09009-129-1 01 1 9107- ● ●
252 BOLT; GEAR BOX
(C) M8X70 		9-01055-870-0 01 1 9002-9005 ●
252 BOLT; GEAR BOX
(C) M8X70 		0-10805-870-0 01 1 9006- ● ●
253 STUD; POWER STRG PUMP
M10X25 L=45 		9-04311-025-0 02 1 9002- ● ●
254 STUD; POINTER & COVER
M8X14,M8X14 L=33 		1-09300-058-1 02 1 9002- ● ●
255 STUD; RELAY LEVER BRKT
M8X16 L=28 		9-04110-816-0 04 1 9002- ● ●
256 STUD; COVER
M8X35 L=47 		9-04110-835-0 02 1 9002- ● ●
257 GASKET; TIMING CHECK HOLE
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-11349-142-0 01 1 9002- ● ●
261 COVER; INJ PUMP COUPLING 1-11349-117-0 01 1 9002- ● ●
262 BEARING 1-09810-126-0 01 1 9002- ● ●
263 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-422-0 01 1 9002- ● ●
264 NUT; COVER
M8 FLANGE 		0-91150-108-0 05 1 9002- ●
266 STUD; COVER & TACHO BOX
M8X20 L=32 		1-09305-005-0 03 1 9002- ● ●
268 COVER; FRT 1-11320-056-1 01 1 9002- ● ●
271 COVER; DUST 1-11329-004-0 01 1 9002- ● ●
272 BOLT; DUST COVER
M8X10 FLANGE 		0-28020-810-0 06 1 9002-9005 ●
272 BOLT; DUST COVER
M8X10 FLANGE 		0-28080-810-0 06 1 9006- ● ●

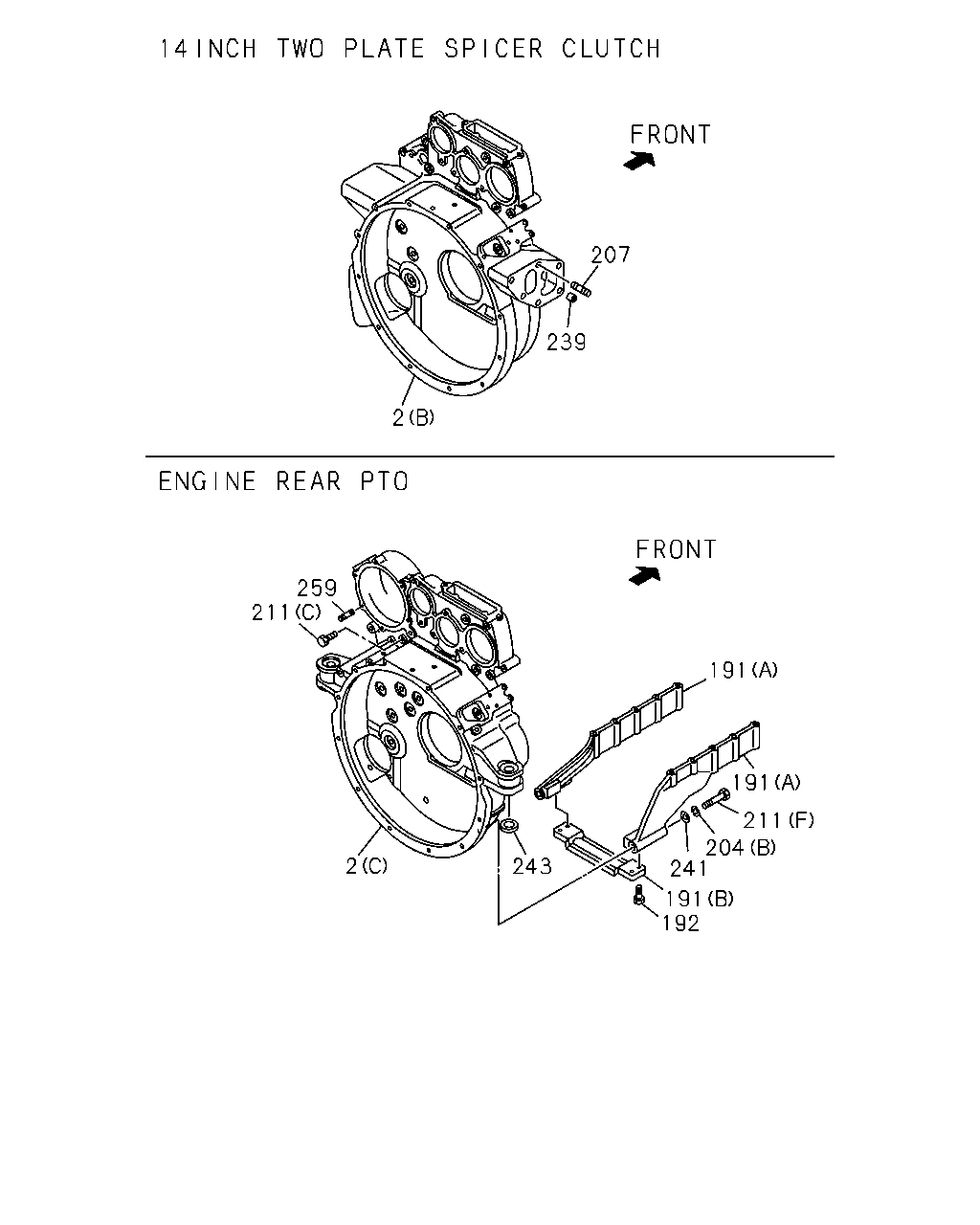

çizim 93914
207 239 2 191 191 211 204 241 191 192 243 2 211 259
BalonParca AdiParca NoAdetTipApplied Date A B
2 HOUSING; FLYWHEEL
ENGINE REAR PTO(SV1) (C) 		1-11341-226-6 01 1 9002-9302 ●
2 HOUSING; FLYWHEEL
ENGINE REAR PTO(SV1) (C) 		1-11341-430-3 01 1 9303-9303 ●
2 HOUSING; FLYWHEEL
ENGINE REAR PTO(SV1) EXC. CAUTIONS ECE<WX4> (C) 		1-11341-430-7 01 1 9304- ●
2 HOUSING; FLYWHEEL
EXC. 14INCH TWO PLATE SPICER CLUTCH(M07) (C) 		1-11341-430-7 01 1 9304- ●
2 HOUSING; FLYWHEEL
ENGINE REAR PTO(SV1) CAUTIONS ECE<WX4> (C) 		1-11341-226-6 01 1 9308- ●
2 HOUSING; FLYWHEEL
EXC. ENGINE REAR PTO(SV1) (B) 		1-11341-223-6 01 1 9002-9306 ●
2 HOUSING; FLYWHEEL
EXC. ENGINE REAR PTO(SV1) (B) 		1-11341-223-6 01 1 9307- ●
2 HOUSING; FLYWHEEL
14INCH TWO PLATE SPICER CLUTCH(M07) (B) 		1-11341-223-6 01 1 9307- ●
2 HOUSING; FLYWHEEL
EXC. 14INCH TWO PLATE SPICER CLUTCH(M07) (A) 		1-11341-382-7 01 1 9307- ●
191 STAY; FLYWHEEL HSG
(A) 		1-11349-124-2 01 1 9002-9106 ●
191 STAY; FLYWHEEL HSG
(A) 		1-11349-167-0 01 1 9107- ● ●
191 STAY; FLYWHEEL HSG
(A) 		1-11349-078-2 01 1 9002-9106 ●
191 STAY; FLYWHEEL HSG
(A) 		1-11349-168-0 01 1 9107- ● ●
191 STAY; FLYWHEEL HSG
ENGINE REAR PTO(SV1) (B) 		1-11349-169-0 01 1 9303- ● ●
192 BOLT; STAY TO HSG
ENGINE REAR PTO(SV1) M10X30 FLANGE 		0-28181-030-0 04 1 9303- ● ●
204 WASHER; LK,HSG
(B) ID=14.2 		9-09150-514-0 15 1 9002-9306 ●
204 WASHER; LK,HSG
(B) ID=14.2 		9-09150-514-0 15 1 9307- ●
204 WASHER; LK,HSG
EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B) ID=14.2 		9-09150-514-0 15 1 9307- ●
204 WASHER; LK,HSG
(A) ID=10.2 		9-09150-510-0 01 1 9002- ● ●
204 WASHER; LK,HSG
FRAME ENG MTG SEPARATE TYPE<SGM> (B) ID=14.2 		9-09150-514-0 02 1 9307- ●
207 STUD; ENG FOOT
FRAME ENG MTG SEPARATE TYPE<SGM> M18X60 L=96 		9-04321-860-0 04 1 9307- ●
207 STUD; ENG FOOT
FRAME ENG MTG SEPARATE TYPE<SGM> M18X80 L=116 		9-04321-880-0 02 1 9307- ●
211 BOLT; HSG
(D) M10X25 		0-28121-025-0 02 1 9002-9002 ●
211 BOLT; HSG
(D) M10X25 FLANGE 		0-28181-025-0 02 1 9003- ● ●
211 BOLT; HSG
(B) M14X75 		9-91656-475-0 01 1 9002-9005 ●
211 BOLT; HSG
(B) M14X75 		0-16806-475-0 01 1 9006- ● ●
211 BOLT; HSG
ENGINE REAR PTO(SV1) (C) M10X22 		0-28121-022-0 01 1 9002-9002 ●
211 BOLT; HSG
ENGINE REAR PTO(SV1) (C) M10X22 FLANGE 		0-28181-022-0 01 1 9003-9503 ● ●
211 BOLT; HSG
(C) M10X22 FLANGE 		0-28181-022-0 01 1 9504- ● ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (I) M10X28 		0-28121-028-0 01 1 9002-9002 ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (I) M10X28 FLANGE 		0-28181-028-0 01 1 9003-9410 ● ●
211 BOLT; HSG
(I) M10X28 FLANGE 		0-28181-028-0 01 1 9411- ● ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (H) M14X55 		9-91656-455-0 01 1 9002-9005 ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (H) M14X55 		0-16806-455-0 01 1 9006-9410 ● ●
211 BOLT; HSG
(H) M14X55 		0-16806-455-0 01 1 9411- ● ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (C) M14X95 		9-91656-495-0 01 1 9002-9005 ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (C) M14X95 		0-16806-495-0 01 1 9006-9410 ● ●
211 BOLT; HSG
(C) M14X95 		0-16806-495-0 01 1 9411- ● ●
211 BOLT; HSG
(E) M14X230 		1-09020-003-1 01 1 9002- ● ●
211 BOLT; HSG
(F) M14X155 		1-09020-008-1 02 1 9002- ● ●
211 BOLT; HSG
(G) M10X115 		9-09804-203-1 01 1 9002- ● ●
211 BOLT; HSG
(A) M14X125 		9-09804-234-0 09 1 9002- ● ●
211 BOLT; HSG
ENGINE REAR PTO(SV1) (A) M14X125 		9-09804-234-0 11 1 9002-9503 ● ●
211 BOLT; HSG
(A) M14X125 		9-09804-234-0 11 1 9504- ● ●
239 PIN; KNOCK,HSG TO FOOT
FRAME ENG MTG SEPARATE TYPE<SGM> 		1-43249-001-0 04 1 9307- ●
241 WASHER; PL,HSG
ID=15 		9-09160-514-0 14 1 9002-9306 ●
241 WASHER; PL,HSG
ID=15 		9-09160-514-0 14 1 9307- ●
241 WASHER; PL,HSG
EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=15 		9-09160-514-0 14 1 9307- ●
241 WASHER; PL,HSG
ENGINE REAR PTO(SV1) ID=10.5 OD=18 		9-09160-510-0 01 1 9002-9503 ● ●
241 WASHER; PL,HSG
ID=10.5 OD=18 		9-09160-510-0 01 1 9504- ● ●
241 WASHER; PL,HSG
EXC. ENGINE REAR PTO(SV1) ID=10.5 OD=18 		9-09160-510-0 02 1 9002-9410 ● ●
241 WASHER; PL,HSG
ID=10.5 OD=18 		9-09160-510-0 02 1 9411- ● ●
241 WASHER; PL,HSG
FRAME ENG MTG SEPARATE TYPE<SGM> ID=15.2 T=4.0 		1-09503-057-0 13 1 9307- ●
241 WASHER; PL,HSG
FRAME ENG MTG SEPARATE TYPE<SGM> ID=15 		9-09160-514-0 02 1 9307- ●
243 SEAT; ENG FOOT
ENGINE REAR PTO(SV1) 		1-11349-016-1 02 1 9303-9410 ● ●
243 SEAT; ENG FOOT
ENGINE REAR PTO(SV1) EXC. CAUTIONS ECE<WX4> 		1-11349-016-1 02 1 9411- ●
243 SEAT; ENG FOOT
EXC. 14INCH TWO PLATE SPICER CLUTCH(M07) 		1-11349-016-1 02 1 9411- ●
259 STUD; PTO
ENGINE REAR PTO(SV1) M10X35 L=55 		9-04311-035-0 06 1 9002- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
