3-75 — BRAKE PIPING; AIR,FRONT (#25888) — 109 parça

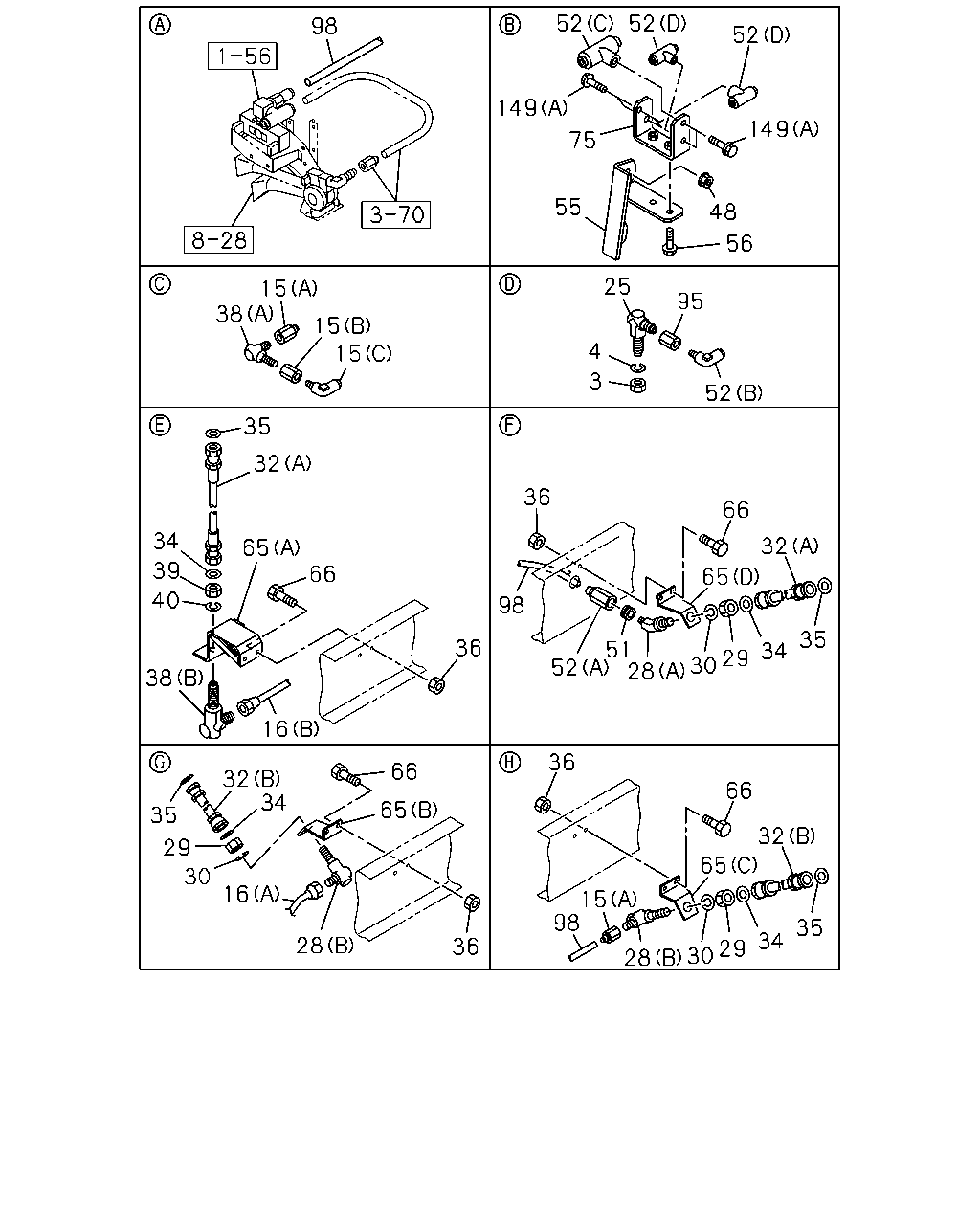

52 52 98 52 149 149 75 55 48 56 25 15 38 95 15 15 4 3 52 35 32 36 66 34 32 65 39 66 65 40 98 35 36 51 28 34 29 30 52 38 16 36 66 32 34 66 65 35 32 29 65 30 15 98 16 35 34 28 36 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	NUT; PIPE UNION M20	9-99111-420-0	01	1	0302-
4	WASHER; LK,PIPE UNION ID=20.2	9-09150-520-0	01	1	0302-0405
15	CONNECTOR; AIR PIPE (A) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0302-
15	CONNECTOR; AIR PIPE (B) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	0302-
15	CONNECTOR; AIR PIPE (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0302-
16	PIPE; AIR,UNION TO MODULATOR (A) L=1139 SERVICED BY L=1200	1-49115-464-0	01	1	0302-0302
16	PIPE; AIR,UNION TO MODULATOR (A) L=1479 SERVICED BY L=1600	1-49115-467-0	01	1	0303-0304
16	PIPE; AIR,UNION TO MODULATOR (A) L=1571 SERVICED BY L=1600	1-49115-490-0	01	1	0305-0408
16	PIPE; AIR,UNION TO MODULATOR (A) L=1574 SERVICED BY L=1600	1-49115-490-0	01	1	0409-0410
16	PIPE; AIR,UNION TO MODULATOR (A) L=1571 SERVICED BY L=1600	1-49115-490-0	01	1	0411-
16	PIPE; AIR,UNION TO MODULATOR (B) L=1224 SERVICED BY L=1300	1-49115-465-0	01	1	0302-0302
16	PIPE; AIR,UNION TO MODULATOR (B) L=1205 SERVICED BY L=1300	1-49115-465-0	01	1	0303-
25	UNION; AIR PIPE M20	9-09235-212-1	01	1	0302-
28	NIPPLE; AIR PIPE (B)	1-09654-128-1	02	1	0302-
28	NIPPLE; AIR PIPE (A) M20	1-09654-199-2	01	1	0302-
29	NUT; NIPPLE M20	9-99111-420-0	03	1	0302-
30	WASHER; LK,NIPPLE ID=20.2	9-09150-520-0	03	1	0302-
32	HOSE; FLEX,FRT (B) L=430	0-07847-430-1	02	1	0302-
32	HOSE; FLEX,FRT (A) L=500	0-07847-500-1	02	1	0302-
34	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	04	1	0302-
35	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	04	1	0302-
36	NUT; HOSE BRKT M8 FLANGE	0-91150-108-0	08	1	0302-
38	UNION; AIR PIPE (B)	1-09654-128-1	01	1	0302-
38	UNION; AIR PIPE (A) M20	9-09235-212-1	01	1	0302-
39	NUT; PIPE UNION M20	9-99111-420-0	02	1	0302-
40	WASHER; LK,PIPE UNION ID=20.2	9-09150-520-0	02	1	0302-0405
40	WASHER; LK,PIPE UNION ID=20.2	9-09150-520-0	01	1	0406-
48	NUT; UNION BRKT M12 FLANGE	0-91150-212-0	02	1	0302-
51	GROMMET; NYLON TUBE ID=24 OD=30 T=17	9-09956-092-1	01	1	0302-
52	CONNECTOR; NYLON TUBE (E)	1-09654-416-1	01	1	0302-
52	CONNECTOR; NYLON TUBE (A) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0302-
52	CONNECTOR; NYLON TUBE (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0302-
52	CONNECTOR; NYLON TUBE (C)	1-09661-128-0	01	1	0302-
52	CONNECTOR; NYLON TUBE (D)	1-09661-133-0	03	1	0302-
55	BRACKET; TUBE UNION	1-47478-381-1	01	1	0302-
56	BOLT; UNION BRKT M8X16 FLANGE	0-28080-816-0	02	1	0302-
65	BRACKET; FLEX HOSE (A)	1-47479-604-0	01	1	0302-0303
65	BRACKET; FLEX HOSE (A)	1-47479-793-0	01	1	0304-0503
65	BRACKET; FLEX HOSE (A)	1-47471-247-1	01	1	0504-
65	BRACKET; FLEX HOSE (B)	1-47479-605-0	01	1	0302-
65	BRACKET; FLEX HOSE (C)	1-47479-676-0	01	1	0302-
65	BRACKET; FLEX HOSE (D)	1-47477-369-1	01	1	0302-
66	BOLT; HOSE BRKT M8X30 FLANGE	0-28680-830-0	06	1	0302-
66	BOLT; HOSE BRKT M8X35 FLANGE	0-28680-835-0	02	1	0302-
75	BRACKET; UNION	1-47478-382-0	01	1	0302-
95	ADAPTER; BRKT M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	0302-
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0302-
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	0302-
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0302-
98	TUBE; NYLON SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0302-
98	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0302-
98	TUBE; NYLON SERVICED BY L=6000 OD=6	1-87411-003-0	AR	1	0302-
98	TUBE; NYLON SERVICED BY L=8000 OD=6	1-87411-004-0	AR	1	0302-
149	BOLT; UNION (A) M8X16 FLANGE	0-28080-816-0	04	1	0302-
149	BOLT; UNION (B) M8X45 FLANGE	0-28080-845-0	02	1	0302-

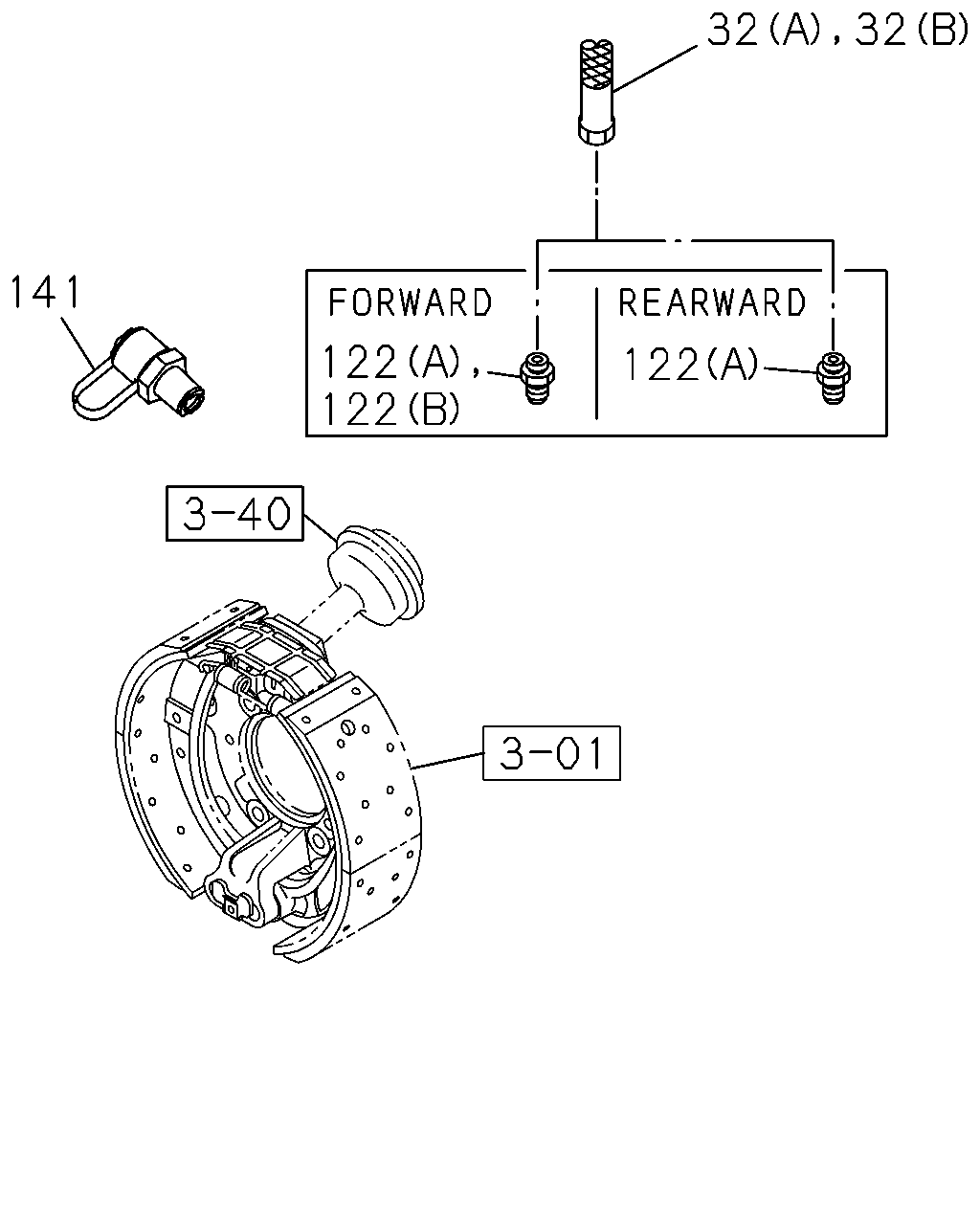

32 32 141 122 122 122

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	HOSE; FLEX,FRT (B) L=430	0-07847-430-1	02	1	0302-
32	HOSE; FLEX,FRT (A) L=500	0-07847-500-1	02	1	0302-
122	CONNECTOR; FLEX HOSE (A) REARWARD M20 & PT3/8	1-09660-731-0	02	1	0302-
122	CONNECTOR; FLEX HOSE (B) FORWARD	1-09661-607-0	01	1	0302-
122	CONNECTOR; FLEX HOSE (A) FORWARD M20 & PT3/8	1-09660-731-0	01	1	0302-
141	CONNECTOR; TEST	1-47459-013-0	01	1	0302-

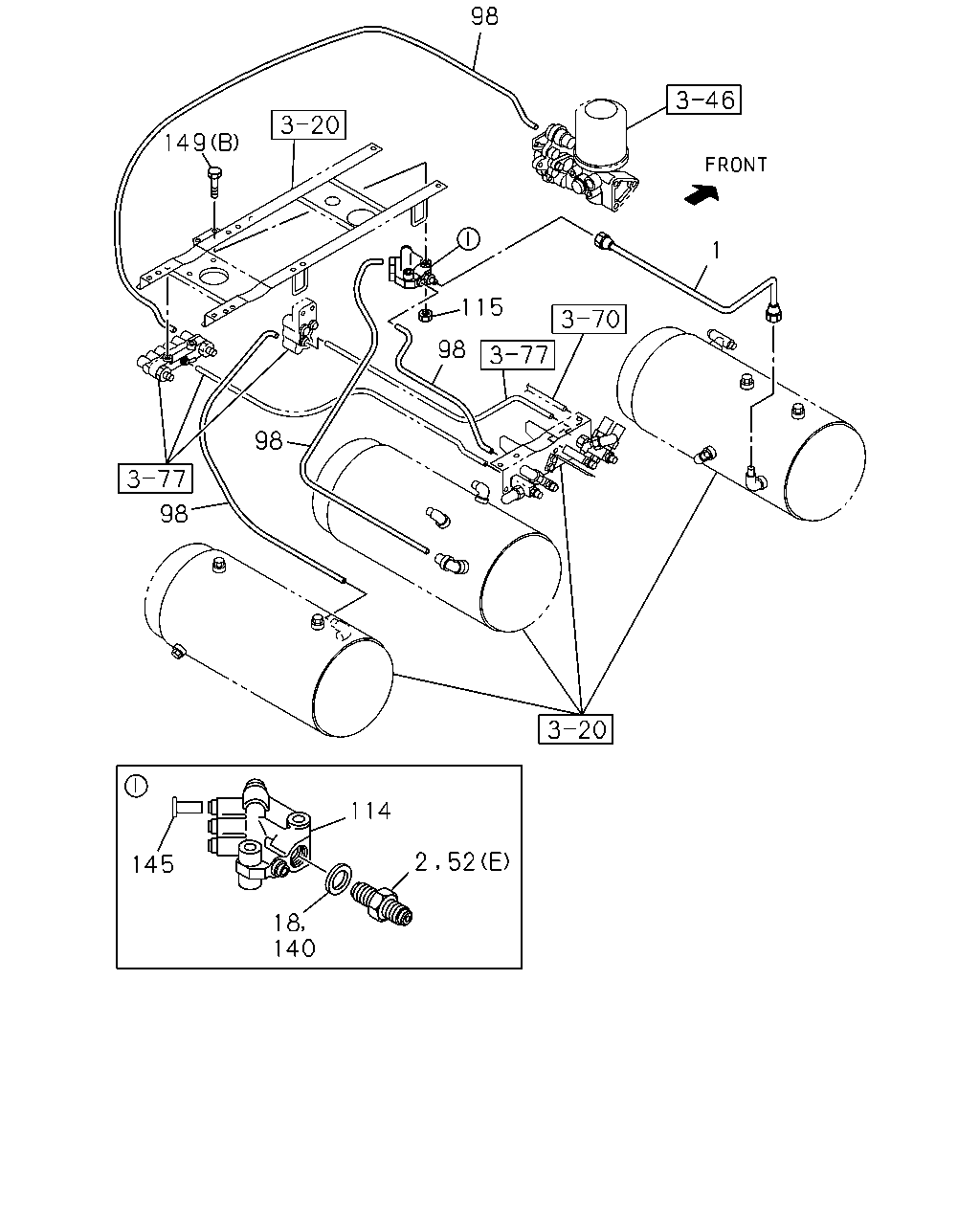

98 149 1 115 98 98 98 114 52 145 18 140 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; AIR,AIR TANK TO UNION	1-49123-983-0	01	1	0302-
2	UNION; AIR PIPE	1-09654-416-0	01	1	0302-0302
18	GASKET; AIR PIPE	9-09572-022-0	01	1	0302-0302
52	CONNECTOR; NYLON TUBE (E)	1-09654-416-1	01	1	0302-
52	CONNECTOR; NYLON TUBE (A) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0302-
52	CONNECTOR; NYLON TUBE (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0302-
52	CONNECTOR; NYLON TUBE (C)	1-09661-128-0	01	1	0302-
52	CONNECTOR; NYLON TUBE (D)	1-09661-133-0	03	1	0302-
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0302-
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	0302-
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0302-
98	TUBE; NYLON SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0302-
98	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0302-
98	TUBE; NYLON SERVICED BY L=6000 OD=6	1-87411-003-0	AR	1	0302-
98	TUBE; NYLON SERVICED BY L=8000 OD=6	1-87411-004-0	AR	1	0302-
114	UNION; NYLON TUBE	1-09661-611-0	01	1	0302-
115	NUT; TUBE UNION M8 FLANGE	0-91150-208-0	02	1	0302-0308
115	NUT; TUBE UNION M8 FLANGE	0-91150-108-0	02	1	0309-
140	GASKET; CONNECTOR	9-09572-022-0	01	1	0302-
145	PLUG OD=12	1-09661-617-0	01	1	0302-
149	BOLT; UNION (A) M8X16 FLANGE	0-28080-816-0	04	1	0302-
149	BOLT; UNION (B) M8X45 FLANGE	0-28080-845-0	02	1	0302-

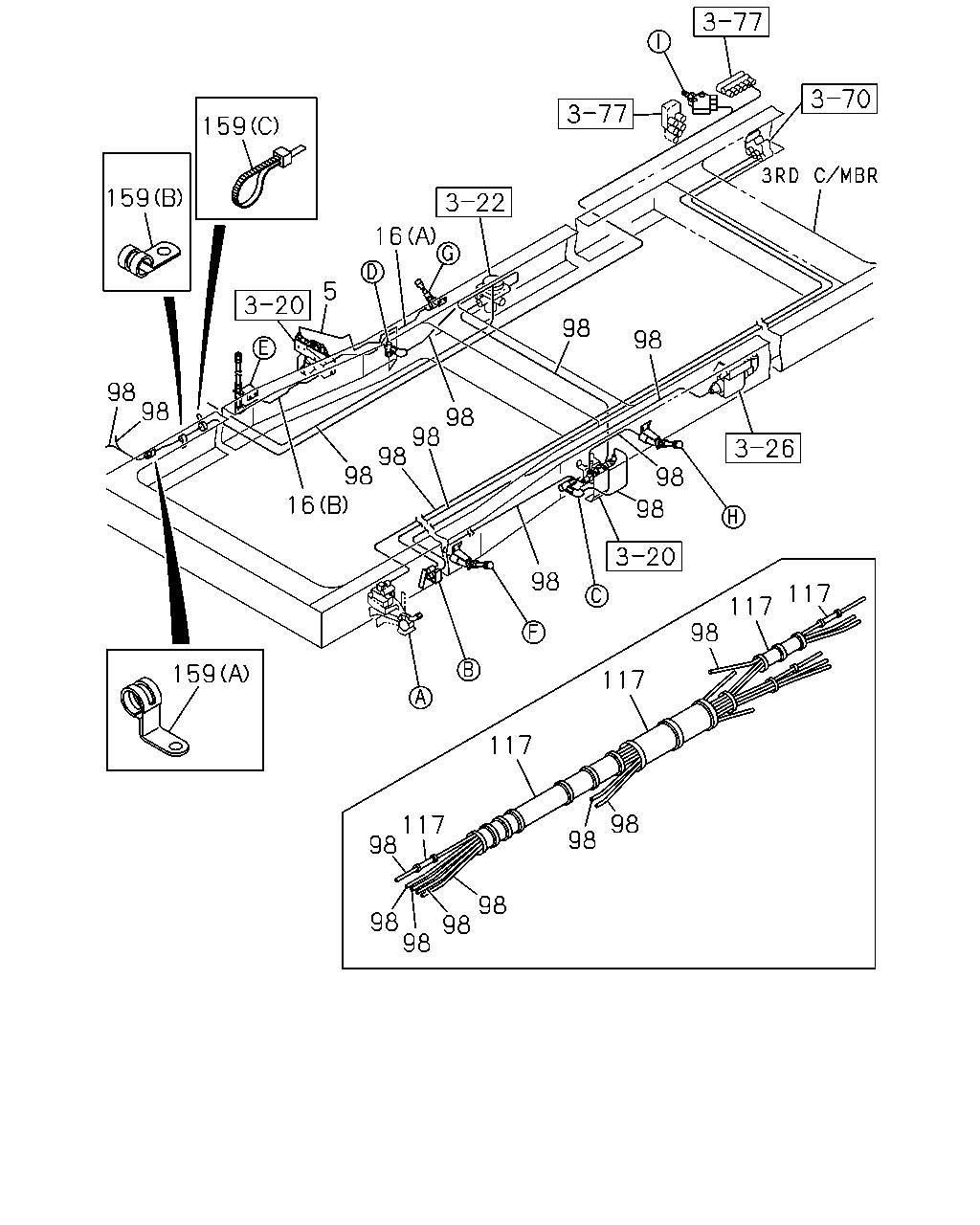

159 159 16 5 98 98 98 98 98 98 98 98 16 98 98 98 117 117 98 159 117 117 98 117 98 98 98 98 98 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	PIPE; AIR,UNION TO UNION L=1371 SERVICED BY L=1450	1-49115-466-0	01	1	0302-0302
5	PIPE; AIR,UNION TO UNION L=1403 SERVICED BY L=1450	1-49115-466-0	01	1	0303-0303
5	PIPE; AIR,UNION TO UNION L=1396	1-49124-084-1	01	1	0304-0305
5	PIPE; AIR,UNION TO UNION	1-49124-159-0	01	1	0306-
16	PIPE; AIR,UNION TO MODULATOR (A) L=1139 SERVICED BY L=1200	1-49115-464-0	01	1	0302-0302
16	PIPE; AIR,UNION TO MODULATOR (A) L=1479 SERVICED BY L=1600	1-49115-467-0	01	1	0303-0304
16	PIPE; AIR,UNION TO MODULATOR (A) L=1571 SERVICED BY L=1600	1-49115-490-0	01	1	0305-0408
16	PIPE; AIR,UNION TO MODULATOR (A) L=1574 SERVICED BY L=1600	1-49115-490-0	01	1	0409-0410
16	PIPE; AIR,UNION TO MODULATOR (A) L=1571 SERVICED BY L=1600	1-49115-490-0	01	1	0411-
16	PIPE; AIR,UNION TO MODULATOR (B) L=1224 SERVICED BY L=1300	1-49115-465-0	01	1	0302-0302
16	PIPE; AIR,UNION TO MODULATOR (B) L=1205 SERVICED BY L=1300	1-49115-465-0	01	1	0303-
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0302-
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	0302-
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0302-
98	TUBE; NYLON SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0302-
98	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0302-
98	TUBE; NYLON SERVICED BY L=6000 OD=6	1-87411-003-0	AR	1	0302-
98	TUBE; NYLON SERVICED BY L=8000 OD=6	1-87411-004-0	AR	1	0302-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87411-016-0	AR	1	0302-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	0302-
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=22	1-87411-030-0	AR	1	0302-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	0302-
159	CLIP; NYLON TUBE (A) ID=28 H=45 L=30	1-09700-948-0	02	1	0302-
159	CLIP; NYLON TUBE (B) ID=28 L=40	1-09701-261-0	03	1	0302-
159	CLIP; NYLON TUBE (C) L=250	1-09707-126-0	13	1	0302-0304
159	CLIP; NYLON TUBE (C) L=350	1-09707-183-0	13	1	0305-
