3-70 — BRAKE PIPING; AIR,AIR MASTER (#25887) — 141 parça

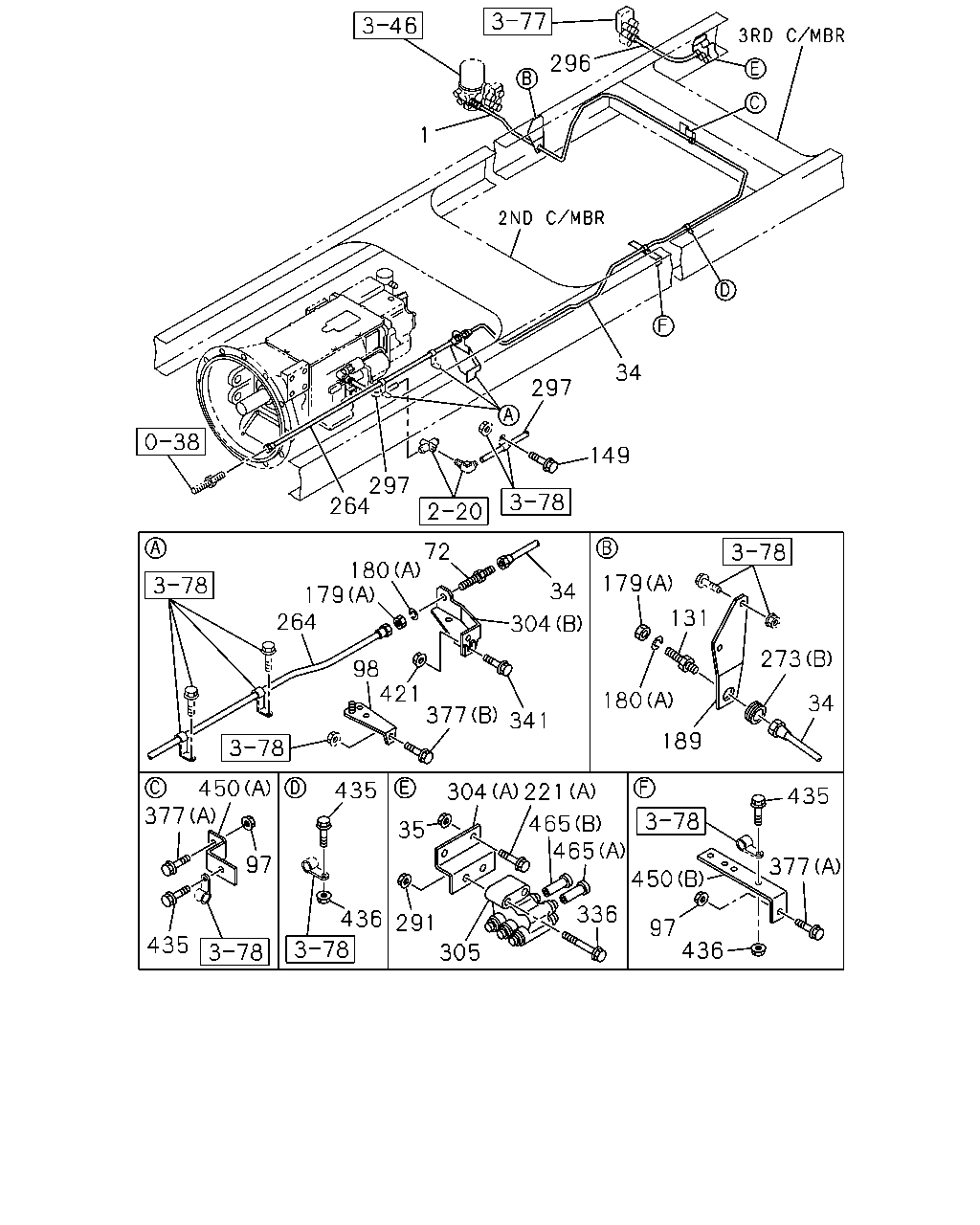

çizim 25041
296 1 34 297 149 297 264 72 180 179 264 179 34 131 304 273 98 421 377 180 34 341 189 450 377 435 304 221 435 465 465 35 97 377 450 336 436 291 97 436 435 305
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK 1-09363-911-0 01 1 0302-
34 PIPE; AIR 1-49123-991-0 01 1 0302-
35 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0302-
72 UNION; AIR PIPE 1-48320-039-2 01 1 0302-0410
72 UNION; AIR PIPE 1-48320-058-0 01 1 0411-
97 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0302-
98 BRACKET; AIR PIPE 1-47479-551-0 01 1 0302-0302
98 BRACKET; AIR PIPE 1-47479-723-0 01 1 0303-
131 UNION; AIR PIPE
M22 & M30 STRAIGHT 		1-09664-237-0 01 1 0302-
149 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 0302-
179 NUT; UNION
(A) M22 		9-09111-422-0 02 1 0302-
179 NUT; UNION
(B) M12 		9-09840-280-0 01 1 0302-
180 WASHER; LK,UNION
(B) ID=12.2 		9-09150-512-0 01 1 0302-
180 WASHER; LK,UNION
(A) ID=22.5 		9-09150-522-0 02 1 0302-
189 BRACKET; FLEX HOSE 1-47479-581-0 01 1 0302-
221 BOLT; BRKT
(A) M8X25 FLANGE 		0-28680-825-0 02 1 0302-
221 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0302-
264 HOSE; FLEX
L=1050 		1-09363-789-0 01 1 0302-
273 GROMMET
(A) 		1-09332-135-0 01 1 0302-
273 GROMMET
(B) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0302-
291 NUT; UNION
M8 FLANGE 		0-91150-108-0 02 1 0302-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0302-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0302-
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0302-
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0302-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0302-
297 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0302-
304 BRACKET; UNION
(A) 		1-47479-603-0 01 1 0302-
304 BRACKET; UNION
(B) 		1-47479-682-1 01 1 0302-
304 BRACKET; UNION
(C) 		1-71117-211-0 01 1 0302-
305 UNION ASM; NYLON TUBE 1-09661-613-0 01 1 0302-
336 BOLT; PIPE UNION
M8X70 FLANGE 		0-28080-870-0 02 1 0302-
341 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0302-
377 BOLT; BRKT FIX
(A) M8X25 FLANGE 		0-28680-825-0 02 1 0302-
377 BOLT; BRKT FIX
(B) M8X30 FLANGE 		0-28680-830-0 01 1 0302-
421 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0302-
435 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 04 1 0302-
435 BOLT; CLIP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0302-
436 NUT; CLIP
M8 FLANGE 		0-91150-108-0 03 1 0302-
450 BRACKET; CLIP
(A) 		1-47475-881-0 01 1 0302-
450 BRACKET; CLIP
(B) 		1-82698-358-0 01 1 0302-
465 PLUG
(A) OD=6 L=27 		1-09661-615-0 01 1 0302-
465 PLUG
(B) OD=8 		1-09661-616-0 02 1 0302-0402
465 PLUG
(B) OD=8 		1-09661-616-0 01 1 0403-
465 PLUG
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) OD=8 		1-09661-616-0 01 1 0403-
465 PLUG
(C) OD=12 		1-09661-617-0 01 1 0302-
465 PLUG
(D) PT1/4 		9-99204-513-0 02 1 0302-0302
465 PLUG
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) OD=8 		1-09661-616-0 01 1 0302-0402

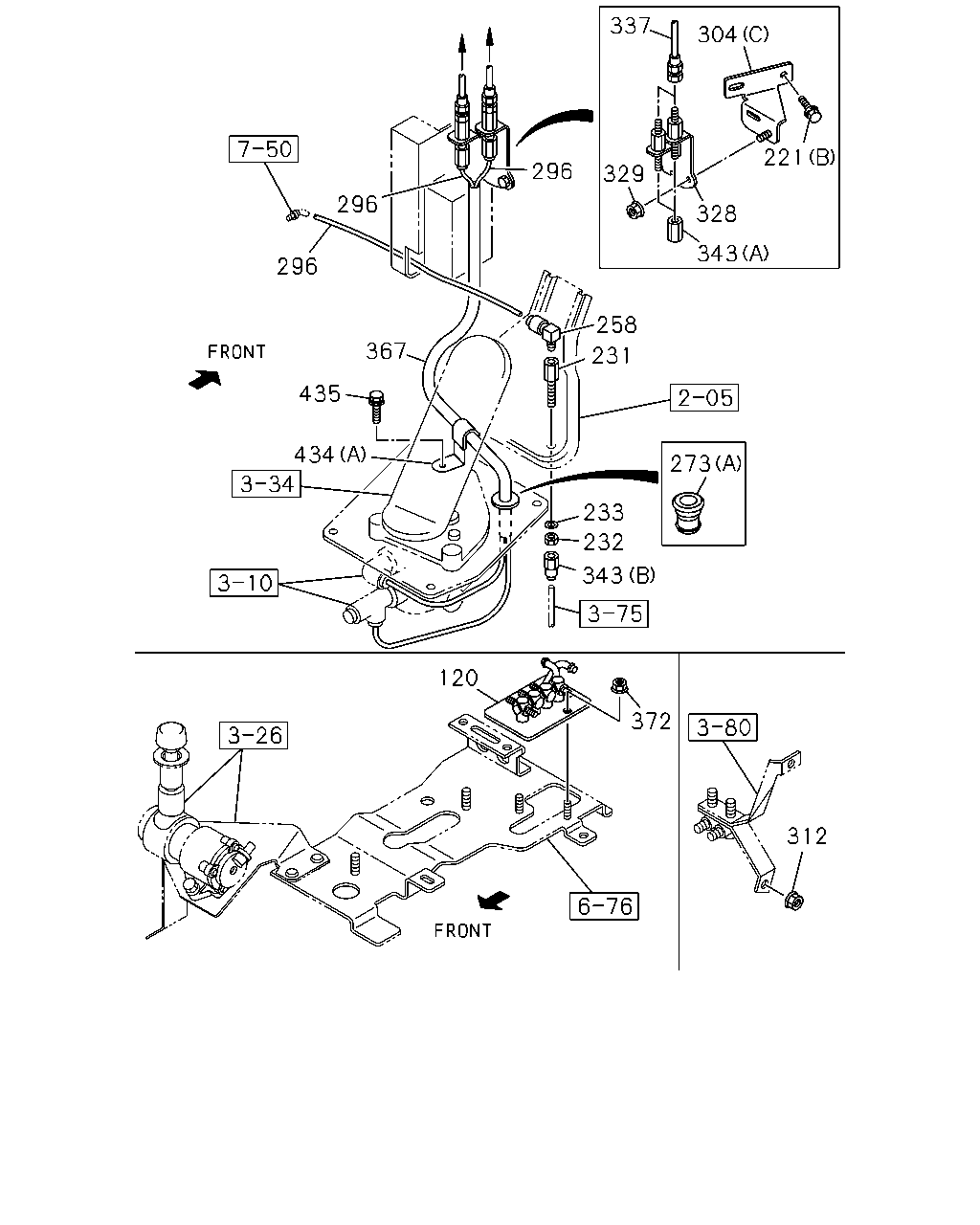

çizim 80159
337 304 221 296 329 296 328 343 296 258 367 231 435 434 273 233 232 343 120 372 312
BalonParca AdiParca NoAdetTipApplied Date
120 CONNECTOR; AIR PIPE 1-47470-604-0 01 1 0302-
221 BOLT; BRKT
(A) M8X25 FLANGE 		0-28680-825-0 02 1 0302-
221 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0302-
231 UNION; AIR PIPE 1-09656-713-2 01 1 0302-
232 NUT; UNION,AIR PIPE
M10 H=8 		1-09400-029-0 01 1 0302-
233 WASHER; LK,UNION,AIR PIPE
ID=10.2 		9-09150-510-0 01 1 0302-
258 CONNECTOR; NYLON TUBE
DIN8 R1/8 ELBOW 		1-09660-644-1 01 1 0302-0302
258 CONNECTOR; NYLON TUBE
TRI LC6X4-R1/8 		1-09660-760-1 01 1 0303-
273 GROMMET
(A) 		1-09332-135-0 01 1 0302-
273 GROMMET
(B) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0302-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0302-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0302-
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0302-
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0302-
304 BRACKET; UNION
(A) 		1-47479-603-0 01 1 0302-
304 BRACKET; UNION
(B) 		1-47479-682-1 01 1 0302-
304 BRACKET; UNION
(C) 		1-71117-211-0 01 1 0302-
312 NUT; UNION
M8 		9-09110-408-0 01 1 0302-
328 UNION; AIR PIPE 1-47470-442-0 01 1 0302-
329 NUT; UNION,AIR PIPE
M6 FLANGE 		0-91150-106-0 01 1 0302-
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=520 		0-07210-520-0 02 1 0302-
343 UNION; NYLON TUBE
(A) 		1-09660-796-1 02 1 0302-
343 UNION; NYLON TUBE
(B) 		1-09661-382-0 01 1 0302-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 0302-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0302-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0302-
372 NUT
M8 FLANGE 		0-91150-108-0 02 1 0302-
434 CLIP
(B) ID=6 H=20 L=20 		1-09700-603-0 01 1 0302-
434 CLIP
(A) ID=17 		8-94449-734-1 01 1 0302-
435 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 04 1 0302-
435 BOLT; CLIP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0302-

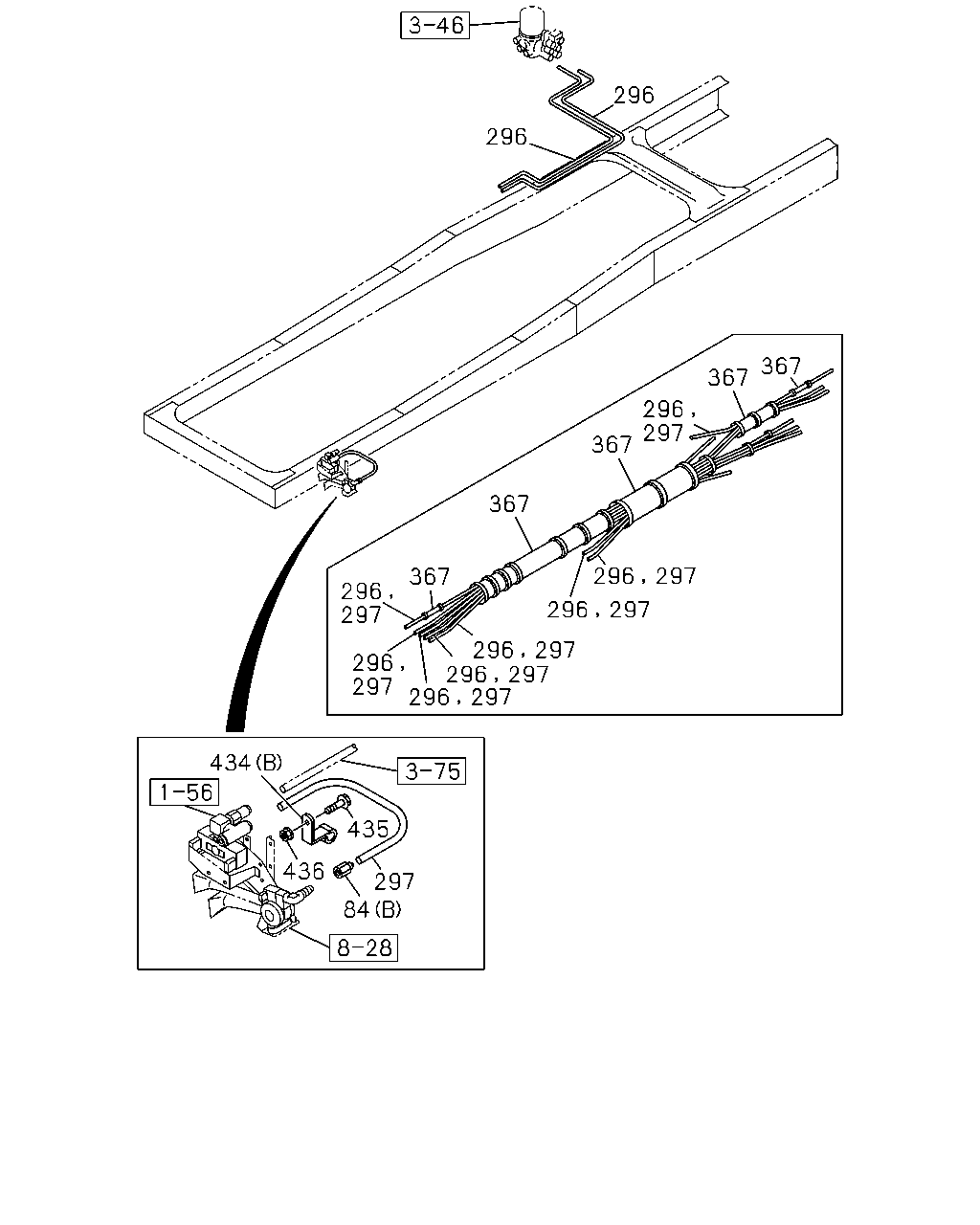

çizim 81907
296 296 367 367 296 297 367 367 367 296 297 296 297 434 435 436 297 84 297 296 297 296 297 296 296 297 297 296
BalonParca AdiParca NoAdetTipApplied Date
84 UNION; NYLON TUBE
(C) PT1/4 2WAY 		1-09660-693-0 01 1 0512-
84 UNION; NYLON TUBE
(A) 		1-09661-092-0 01 1 0302-
84 UNION; NYLON TUBE
(B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0302-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0302-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0302-
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0302-
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0302-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0302-
297 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0302-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 0302-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0302-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0302-
434 CLIP
(B) ID=6 H=20 L=20 		1-09700-603-0 01 1 0302-
434 CLIP
(A) ID=17 		8-94449-734-1 01 1 0302-
435 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 04 1 0302-
435 BOLT; CLIP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0302-
436 NUT; CLIP
M8 FLANGE 		0-91150-108-0 03 1 0302-

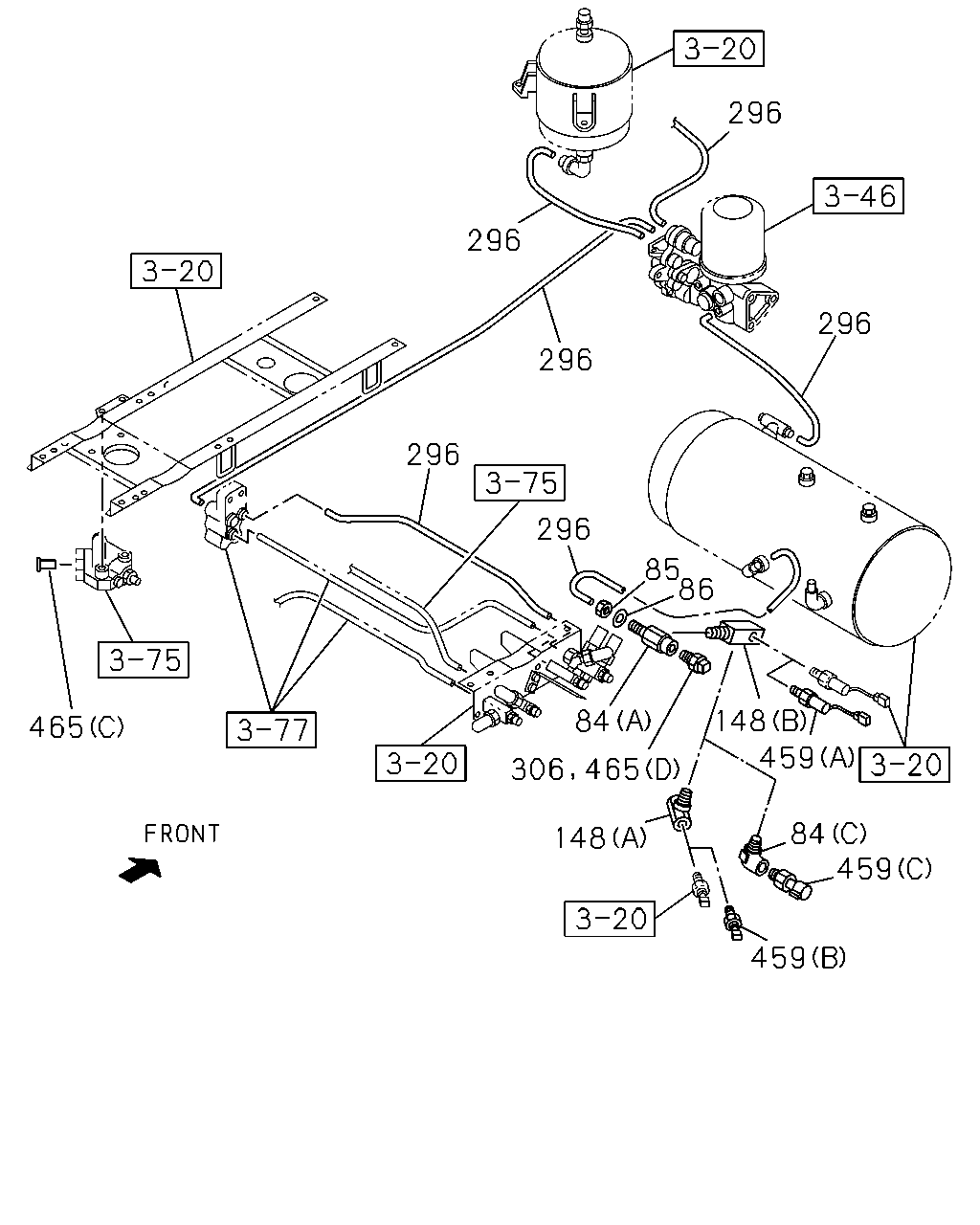

çizim 83529
296 296 296 296 296 296 85 86 148 459 84 465 84 459 148 459 306 465
BalonParca AdiParca NoAdetTipApplied Date
84 UNION; NYLON TUBE
(C) PT1/4 2WAY 		1-09660-693-0 01 1 0512-
84 UNION; NYLON TUBE
(A) 		1-09661-092-0 01 1 0302-
84 UNION; NYLON TUBE
(B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0302-
85 NUT; UNION
M18 		9-99110-518-0 01 1 0302-
86 WASHER; LK,TUBE UNION
ID=18.2 		9-09150-518-0 01 1 0302-
148 CONNECTOR; UNION
(A) 		1-09660-012-0 01 1 0302-0511
148 CONNECTOR; UNION
(B) PT1/4 4WAY 		1-09660-358-0 01 1 0302-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0302-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0302-
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0302-
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0302-
306 PLUG; NYLON TUBE
PT1/4 		9-99204-513-0 02 1 0303-
459 SWITCH; PRESS
(A) 		1-48340-066-0 01 1 0303-
459 SWITCH; PRESS
(B) 		1-80220-015-0 01 1 0303-0511
459 SWITCH; PRESS
(C) THREAD R1/4 		1-80220-023-1 01 1 0512-
465 PLUG
(A) OD=6 L=27 		1-09661-615-0 01 1 0302-
465 PLUG
(B) OD=8 		1-09661-616-0 02 1 0302-0402
465 PLUG
(B) OD=8 		1-09661-616-0 01 1 0403-
465 PLUG
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) OD=8 		1-09661-616-0 01 1 0403-
465 PLUG
(C) OD=12 		1-09661-617-0 01 1 0302-
465 PLUG
(D) PT1/4 		9-99204-513-0 02 1 0302-0302
465 PLUG
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) OD=8 		1-09661-616-0 01 1 0302-0402

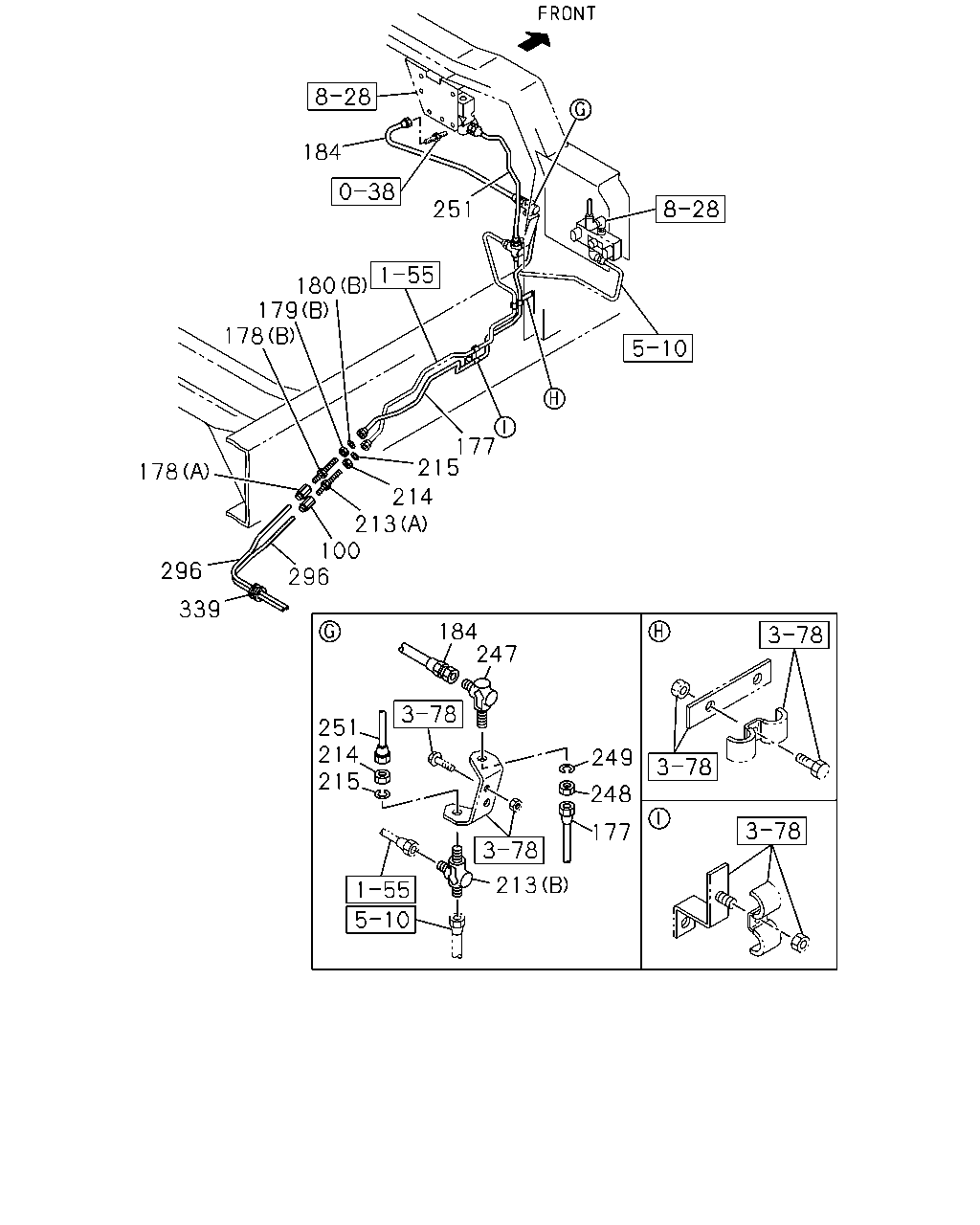

çizim 83782
184 251 180 179 178 177 215 178 214 213 100 296 296 339 184 247 251 214 215 249 248 177 213
BalonParca AdiParca NoAdetTipApplied Date
100 CONNECTOR; AIR PIPE
DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0302-
177 PIPE; AIR,UNION TO UNION
L=1037 SERVICED BY L=1100 		1-47428-815-0 01 1 0302-0302
177 PIPE; AIR,UNION TO UNION
L=1031 SERVICED BY L=1100 		1-47428-815-0 01 1 0303-
178 UNION; AIR PIPE
(A) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0302-
178 UNION; AIR PIPE
(B) M12 L=66.5 		9-09223-306-1 01 1 0302-
179 NUT; UNION
(A) M22 		9-09111-422-0 02 1 0302-
179 NUT; UNION
(B) M12 		9-09840-280-0 01 1 0302-
180 WASHER; LK,UNION
(B) ID=12.2 		9-09150-512-0 01 1 0302-
180 WASHER; LK,UNION
(A) ID=22.5 		9-09150-522-0 02 1 0302-
184 HOSE; FLEX,AIR GOV
L=780 		1-09363-620-0 01 1 0302-
213 UNION; AIR PIPE
(A) M12 L=66.5 		9-09223-306-1 01 1 0302-
213 UNION; AIR PIPE
(B) M12 3WAY 		9-09228-906-1 01 1 0302-
214 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 02 1 0302-
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		9-09150-512-0 02 1 0302-
247 UNION; AIR PIPE
M12 ELBOW 		9-09225-206-1 01 1 0302-
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 0302-
249 WASHER; LK,PIPE UNION
ID=12.2 		9-09150-512-0 01 1 0302-
251 PIPE; AIR,UNION TO MAG VLV 1-49121-947-0 01 1 0302-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0302-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0302-
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0302-
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0302-
339 GROMMET; AIR PIPE
ID=28 OD=35 T=17 		9-09956-256-2 01 1 0302-
