Isuzu WW
▶
TRUCKS
▶
CXJ
▶
10910 - CXJ RHD
▶
3 - Brakes, Brake System
▶
3-46 - AIR DRYER
▶
3-46 — AIR DRYER
(#25884) — 34 parça
◀

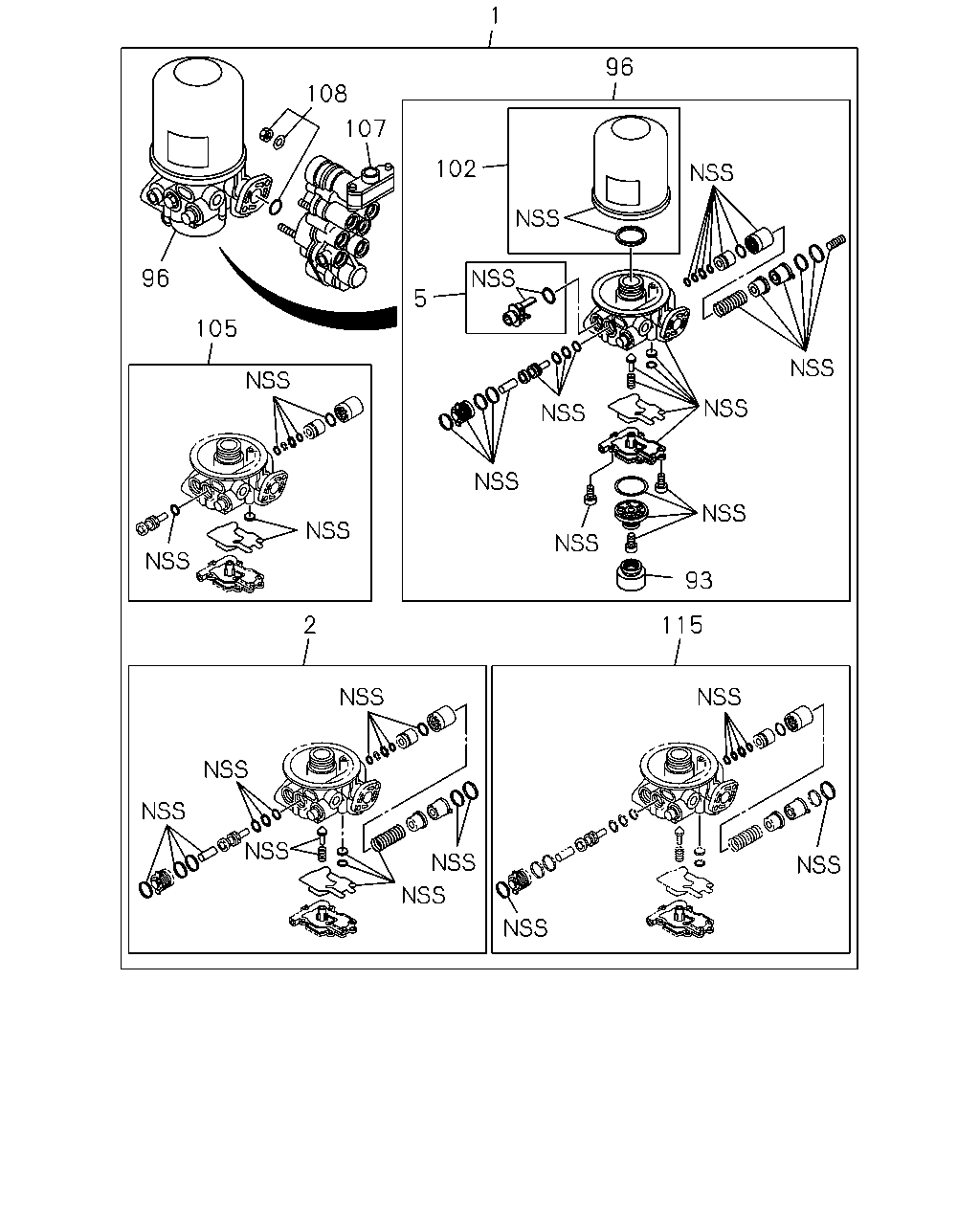

[346A] COMPONENT AND REPAIR KIT (16 parça)

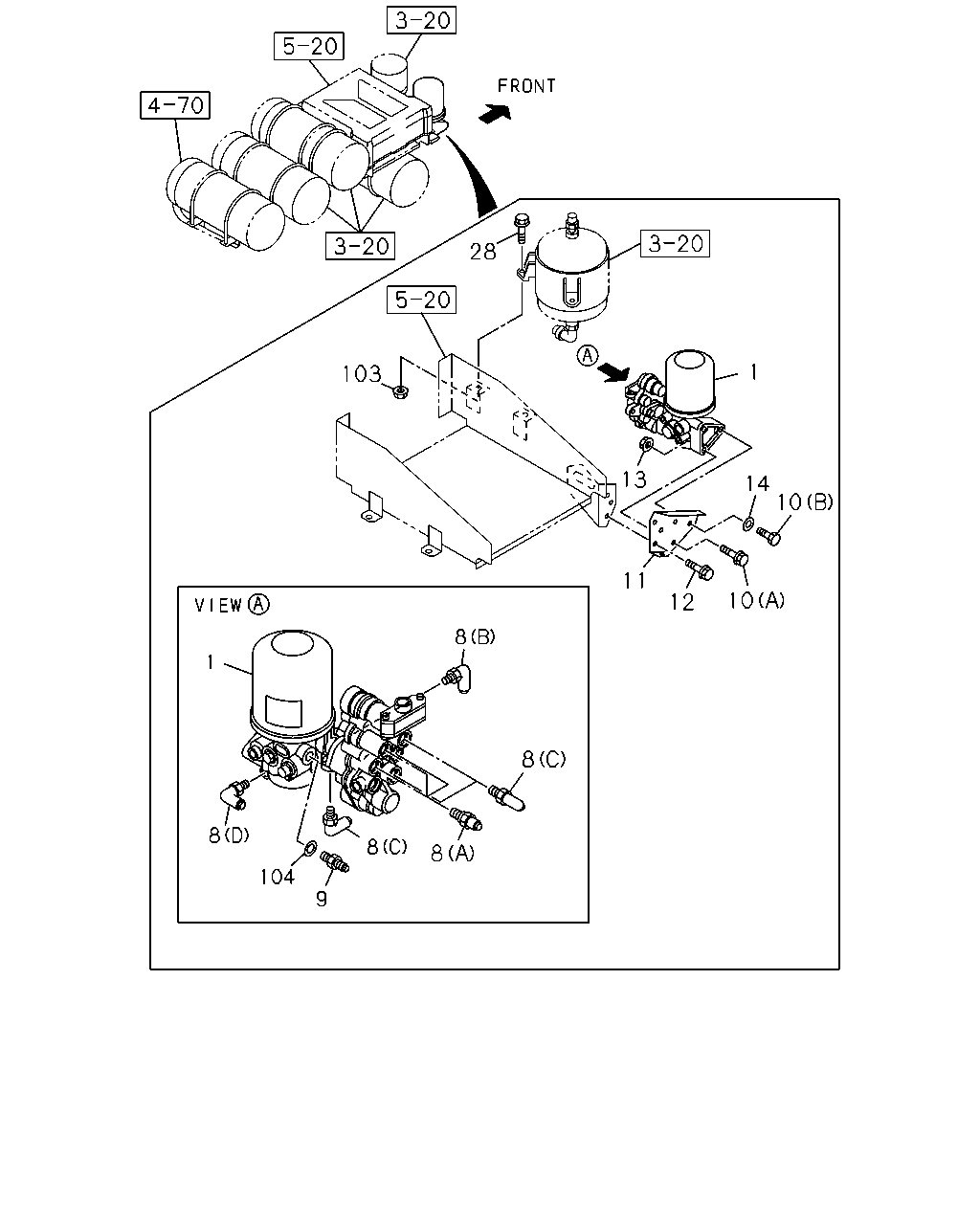

[346A] FIXING (18 parça)
▶
1
96
108
107
102
96
5
105
93
2
115
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
1-48190-315-2
01
1
0302-0305
1
DRYER; AIR
1-48190-326-2
01
1
0306-0502
1
DRYER; AIR
1-48190-335-2
01
1
0503-
2
REPAIR KIT; AIR DRYER
1-85576-367-0
01
1
0302-0502
2
REPAIR KIT; AIR DRYER
1-85576-398-0
01
1
0503-
5
HEATER ASM; AIR DRYER
1-85576-363-0
01
1
0302-
93
SILENCER; AIR DRYER
1-85576-362-0
01
1
0302-
96
DRYER KIT; AIR
1-85576-370-0
01
1
0302-0502
96
DRYER KIT; AIR
1-85576-399-0
01
1
0503-
102
CARTRIDGE; AIR DRYER
1-85576-365-0
01
1
0302-
105
SEAL KIT; AIR DRYER
1-85576-366-0
01
1
0302-0502
105
SEAL KIT; AIR DRYER
1-85576-397-0
01
1
0503-
107
VALVE ASM; PROTECTION,AIR DRYER
1-85576-369-0
01
1
0302-
108
FIXING KIT; PROTECTION,AIR DRYER
1-85576-371-0
01
1
0302-
115
REPAIR KIT; GOVERNOR,AIR DRYER
1-85576-400-0
01
1
0503-
120
TAPPET
1-87411-310-0
01
1
0302-
28
1
103
13
14
10
11
10
12
8
1
8
8
8
8
104
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
1-48190-315-2
01
1
0302-0305
1
DRYER; AIR
1-48190-326-2
01
1
0306-0502
1
DRYER; AIR
1-48190-335-2
01
1
0503-
8
CONNECTOR; OUT,AIR DRYER
(A) DIN12 & M22 STRAIGHT
1-09661-050-0
03
1
0302-
8
CONNECTOR; OUT,AIR DRYER
(B)
1-09661-520-0
01
1
0302-
8
CONNECTOR; OUT,AIR DRYER
(C)
1-09661-521-0
03
1
0302-
8
CONNECTOR; OUT,AIR DRYER
(D)
1-09661-574-0
01
1
0302-
9
CONNECTOR; PIPE,AIR DRYER
1-09654-416-1
01
1
0302-
10
BOLT; AIR DRYER
(A) M12X50 FLANGE
0-28081-250-0
01
1
0302-
10
BOLT; AIR DRYER
(B) M12X25
1-09009-081-0
02
1
0302-
11
BRACKET; AIR DRYER
1-48316-019-0
01
1
0302-
12
BOLT; BRKT
M12X30 FLANGE
0-28681-230-0
03
1
0302-
13
NUT; AIR DRYER
M12 FLANGE
0-91150-212-0
01
1
0302-
14
WASHER; PL,AIR DRYER
ID=12.5
9-09160-512-0
02
1
0302-
28
BOLT; PURGE TANK
M10X25 FLANGE
0-28681-025-0
02
1
0302-
103
NUT; PURGE TANK
M10 FLANGE
0-91150-210-0
02
1
0302-
104
GASKET
9-09572-022-0
01
1
0302-
120
TAPPET
1-87411-310-0
01
1
0302-
