◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXJ ▶ 10910 - CXJ RHD ▶ 3 - Brakes, Brake System ▶ 3-41 - REAR BRAKE POWER CHAMBER ▶
3-41 — REAR BRAKE POWER CHAMBER (#25883) — 49 parça

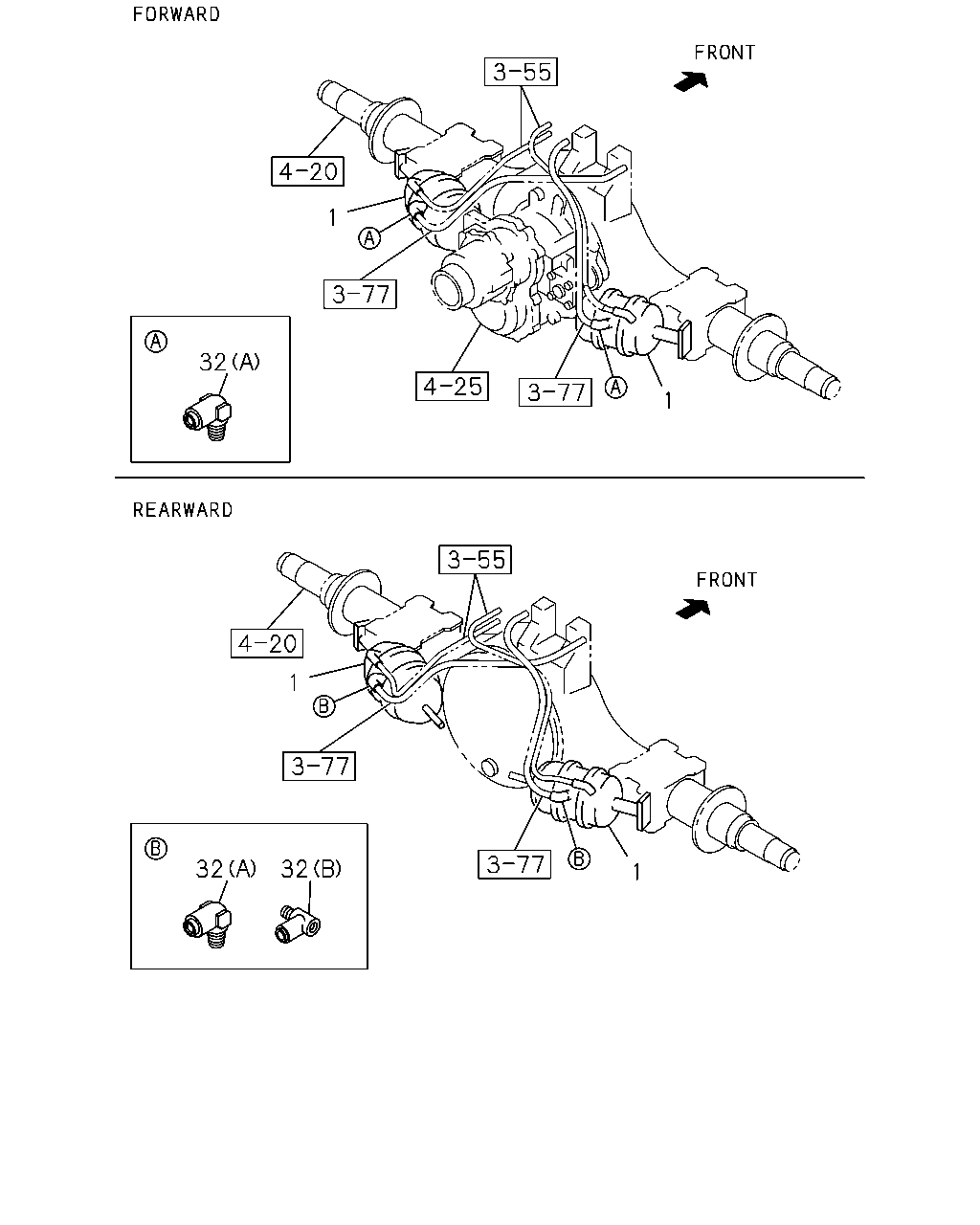

çizim 24459
1 32 1 1 32 1 32
BalonParca AdiParca NoAdetTipApplied Date
1 CHAMBER ASM; SPRING
FORWARD LH,REARWARD RH 		1-48250-814-1 01 1 0302-0511
1 CHAMBER ASM; SPRING
FORWARD LH,REARWARD RH 		1-48250-814-1 01 1 0302-0511
1 CHAMBER ASM; SPRING
FORWARD LH,REARWARD RH 		1-48250-902-0 01 1 0512-
1 CHAMBER ASM; SPRING
FORWARD LH,REARWARD RH 		1-48250-902-0 01 1 0512-
1 CHAMBER ASM; SPRING
FORWARD RH,REARWARD LH 		1-48250-815-1 01 1 0302-0511
1 CHAMBER ASM; SPRING
FORWARD RH,REARWARD LH 		1-48250-815-1 01 1 0302-0511
1 CHAMBER ASM; SPRING
FORWARD RH,REARWARD LH 		1-48250-903-0 01 1 0512-
1 CHAMBER ASM; SPRING
FORWARD RH,REARWARD LH 		1-48250-903-0 01 1 0512-
32 CONNECTOR; SPR CHAMBER
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 0302-
32 CONNECTOR; SPR CHAMBER
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 0302-
32 CONNECTOR; SPR CHAMBER
(B) DIN12 & RC1/4 & R3/8 3WAY 		1-09661-132-0 01 1 0302-

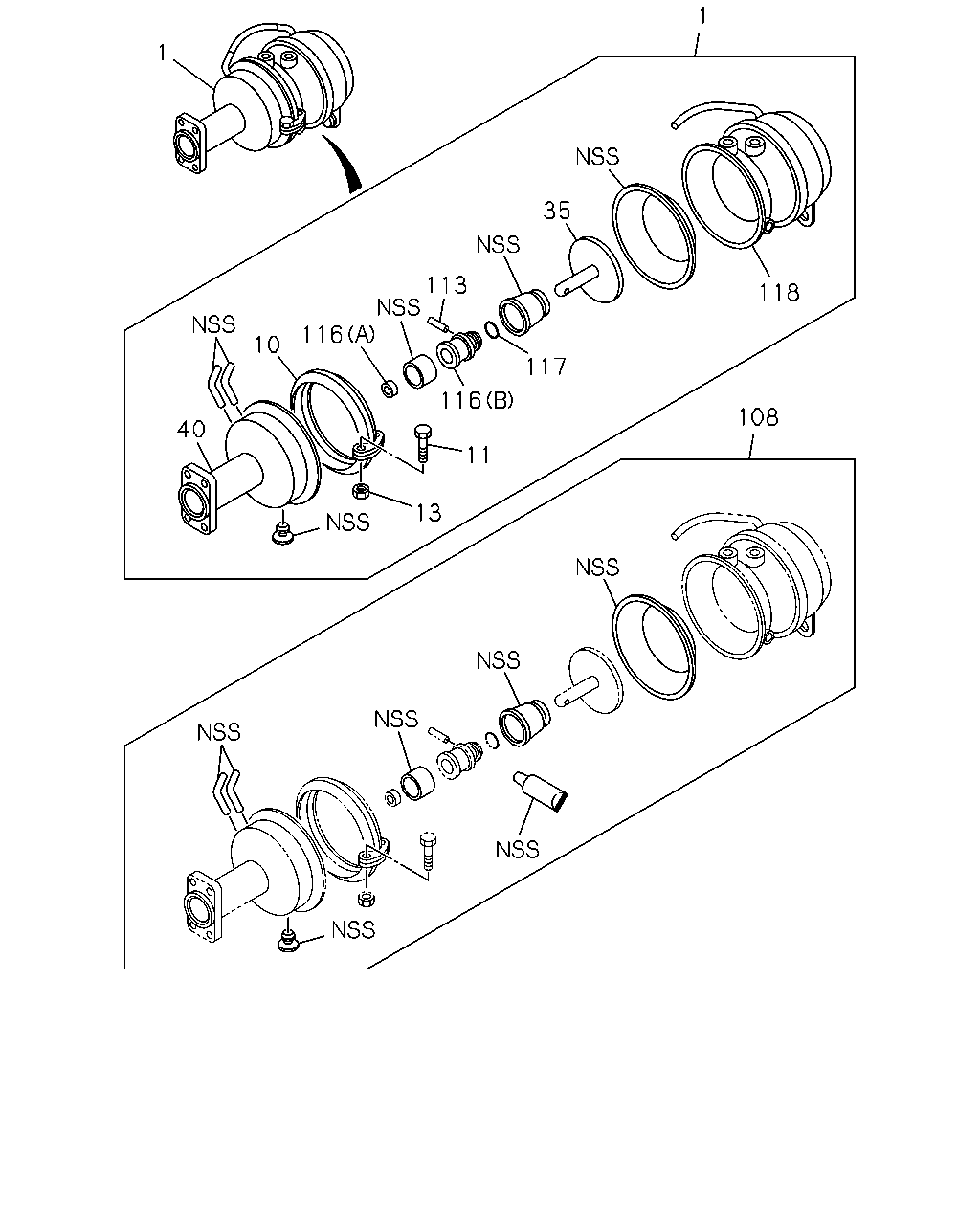

çizim 82095
1 1 35 118 108 117 113 116 11 13 116 10 40
BalonParca AdiParca NoAdetTipApplied Date
1 CHAMBER ASM; SPRING
FORWARD LH,REARWARD RH 		1-48250-814-1 01 1 0302-0511
1 CHAMBER ASM; SPRING
FORWARD LH,REARWARD RH 		1-48250-814-1 01 1 0302-0511
1 CHAMBER ASM; SPRING
FORWARD LH,REARWARD RH 		1-48250-902-0 01 1 0512-
1 CHAMBER ASM; SPRING
FORWARD LH,REARWARD RH 		1-48250-902-0 01 1 0512-
1 CHAMBER ASM; SPRING
FORWARD RH,REARWARD LH 		1-48250-815-1 01 1 0302-0511
1 CHAMBER ASM; SPRING
FORWARD RH,REARWARD LH 		1-48250-815-1 01 1 0302-0511
1 CHAMBER ASM; SPRING
FORWARD RH,REARWARD LH 		1-48250-903-0 01 1 0512-
1 CHAMBER ASM; SPRING
FORWARD RH,REARWARD LH 		1-48250-903-0 01 1 0512-
10 RING; CLAMP,SPR CHAMBER 1-48269-148-0 02 1 0302-
10 RING; CLAMP,SPR CHAMBER 1-48269-148-0 02 1 0302-
11 BOLT; CLAMP RING 1-48269-146-0 04 1 0302-
11 BOLT; CLAMP RING 1-48269-146-0 04 1 0302-
13 NUT; CLAMP RING 1-48269-147-0 04 1 0302-
13 NUT; CLAMP RING 1-48269-147-0 04 1 0302-
35 PLATE; ROD END,SPR CHAMBER 1-48263-019-0 02 1 0302-
35 PLATE; ROD END,SPR CHAMBER 1-48263-019-0 02 1 0302-
40 COVER ASM; LWR,SPR CHAMBER
FORWARD LH,REARWARD RH 		1-48251-138-0 01 1 0302-
40 COVER ASM; LWR,SPR CHAMBER
FORWARD LH,REARWARD RH 		1-48251-138-0 01 1 0302-
40 COVER ASM; LWR,SPR CHAMBER
FORWARD RH,REARWARD LH 		1-48251-139-0 01 1 0302-
40 COVER ASM; LWR,SPR CHAMBER
FORWARD RH,REARWARD LH 		1-48251-139-0 01 1 0302-
108 REPAIR KIT; SPR CHAMBER 1-85576-321-0 02 1 0302-
108 REPAIR KIT; SPR CHAMBER 1-85576-321-0 02 1 0302-
113 PIN; SPR CHAMBER 1-48269-153-0 02 1 0302-
113 PIN; SPR CHAMBER 1-48269-153-0 02 1 0302-
116 GUIDE; SPR CHAMBER
(A) 		1-48269-152-0 02 1 0302-
116 GUIDE; SPR CHAMBER
(A) 		1-48269-152-0 02 1 0302-
116 GUIDE; SPR CHAMBER
(B) 		1-48269-154-0 02 1 0302-
116 GUIDE; SPR CHAMBER
(B) 		1-48269-154-0 02 1 0302-
117 RING; SPR CHAMBER 1-48269-155-0 02 1 0302-
117 RING; SPR CHAMBER 1-48269-155-0 02 1 0302-
118 CHAMBER; PIGGY BACK
FORWARD LH,REARWARD RH 		1-48251-144-1 01 1 0302-0511
118 CHAMBER; PIGGY BACK
FORWARD LH,REARWARD RH 		1-48251-144-1 01 1 0302-0511
118 CHAMBER; PIGGY BACK
FORWARD LH,REARWARD RH 		1-48251-187-0 01 1 0512-
118 CHAMBER; PIGGY BACK
FORWARD LH,REARWARD RH 		1-48251-187-0 01 1 0512-
118 CHAMBER; PIGGY BACK
FORWARD RH,REARWARD LH 		1-48251-145-1 01 1 0302-0511
118 CHAMBER; PIGGY BACK
FORWARD RH,REARWARD LH 		1-48251-145-1 01 1 0302-0511
118 CHAMBER; PIGGY BACK
FORWARD RH,REARWARD LH 		1-48251-188-0 01 1 0512-
118 CHAMBER; PIGGY BACK
FORWARD RH,REARWARD LH 		1-48251-188-0 01 1 0512-
