Isuzu WW
▶
TRUCKS
▶
CXJ
▶
10910 - CXJ RHD
▶
3 - Brakes, Brake System
▶

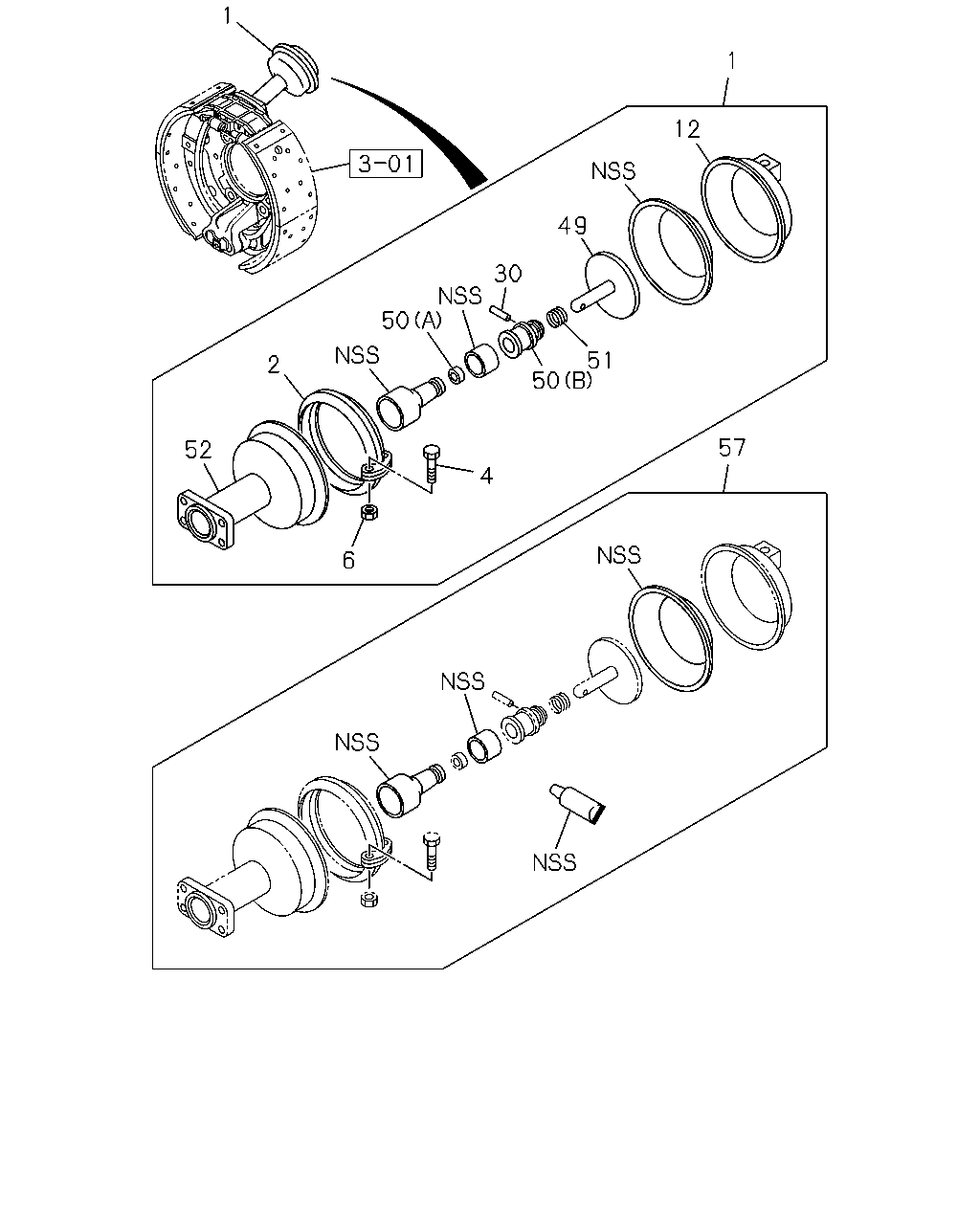

3-40 - FRONT BRAKE POWER CHAMBER
▶
3-40 — FRONT BRAKE POWER CHAMBER
(#25882) — 30 parça
1
1
12
49
30
57
51
4
50
2
52
6
50
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CHAMBER ASM; POWER,FRT BRK
1-48250-820-0
02
1
0302-0309
1
CHAMBER ASM; POWER,FRT BRK
1-48250-820-0
02
1
0302-0309
1
CHAMBER ASM; POWER,FRT BRK
1-48250-836-0
02
1
0310-
1
CHAMBER ASM; POWER,FRT BRK
1-48250-836-0
02
1
0310-
2
RING; CLAMP,SPR CHAMBER
1-48269-148-0
02
1
0302-
2
RING; CLAMP,SPR CHAMBER
1-48269-148-0
02
1
0302-
4
BOLT; CLAMP RING
1-48269-146-0
04
1
0302-
4
BOLT; CLAMP RING
1-48269-146-0
04
1
0302-
6
NUT; CLAMP RING
1-48269-147-0
04
1
0302-
6
NUT; CLAMP RING
1-48269-147-0
04
1
0302-
12
COVER ASM; LWR,SPR CHAMBER
1-48251-102-0
02
1
0302-
12
COVER ASM; LWR,SPR CHAMBER
1-48251-102-0
02
1
0302-
30
PIN; STRAIGHT,SPR CHAMBER
1-48269-153-0
02
1
0302-
30
PIN; STRAIGHT,SPR CHAMBER
1-48269-153-0
02
1
0302-
49
ROD; PUSH,SPR CHAMBER
1-48263-018-0
02
1
0302-0309
49
ROD; PUSH,SPR CHAMBER
1-48263-018-0
02
1
0302-0309
49
ROD; PUSH,SPR CHAMBER
1-48263-035-0
02
1
0310-
49
ROD; PUSH,SPR CHAMBER
1-48263-035-0
02
1
0310-
50
GUIDE; SPR CHAMBER
(A)
1-48269-152-0
02
1
0302-
50
GUIDE; SPR CHAMBER
(A)
1-48269-152-0
02
1
0302-
50
GUIDE; SPR CHAMBER
(B)
1-48269-154-0
02
1
0302-
50
GUIDE; SPR CHAMBER
(B)
1-48269-154-0
02
1
0302-
51
RING; SPR CHAMBER
1-48269-155-0
02
1
0302-
51
RING; SPR CHAMBER
1-48269-155-0
02
1
0302-
52
HOUSING; SPR CHAMBER
1-48251-072-0
02
1
0302-0309
52
HOUSING; SPR CHAMBER
1-48251-072-0
02
1
0302-0309
52
HOUSING; SPR CHAMBER
1-48251-152-0
02
1
0310-
52
HOUSING; SPR CHAMBER
1-48251-152-0
02
1
0310-
57
REPAIR KIT; SPR CHAMBER
1-85576-324-0
02
1
0302-
57
REPAIR KIT; SPR CHAMBER
1-85576-324-0
02
1
0302-
