Sayfa 3-26 - Isuzu EPC

3-26 — TRAILER CONTROL (#25880) — 101 parça

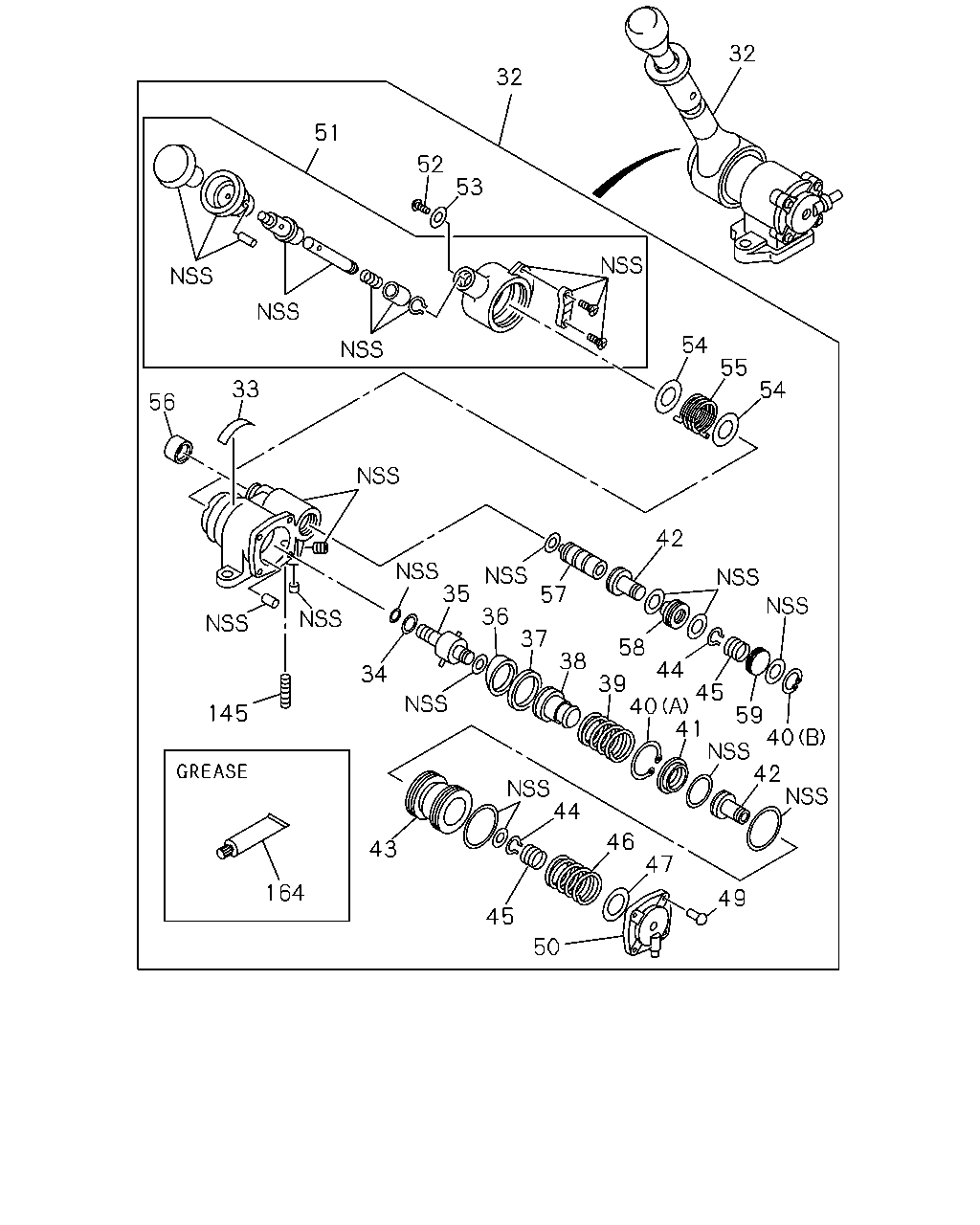

32 32 51 52 53 54 55 33 54 56 42 35 57 36 37 58 38 44 34 39 45 40 41 42 145 59 40 44 46 43 47 164 49 45 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	VALVE; BRK,HAND CONT	1-48460-316-0	01	1	0302-
33	PLATE; CAUTION	1-48469-121-0	01	1	0302-
34	SHIM; CAM HOLDER	1-48469-055-0	AR	1	0302-
35	HOLDER; CAM	1-48469-054-0	01	1	0302-
36	RING; CAM	1-48469-056-0	01	1	0302-
37	GUIDE; CAM RING	1-48469-058-0	01	1	0302-
38	SEAT; EXH VLV	1-48469-057-0	01	1	0302-
39	SPRING; RETURN,CAM RING	1-48469-063-0	01	1	0302-
40	RING; SNAP (A)	1-48469-067-0	01	1	0302-
40	RING; SNAP (B)	1-48469-079-0	01	1	0302-
41	SEAT; FEED VLV	1-48469-066-0	01	1	0302-
42	VALVE; FEED	1-48469-065-0	02	1	0302-
43	PISTON; HAND BRK VLV	1-48469-064-0	01	1	0302-
44	RING; SNAP,FEED VLV	1-48469-068-0	02	1	0302-
45	SPRING; FEED VLV	1-48469-070-0	02	1	0302-
46	SPRING; MAIN,PISTON	1-48469-119-0	01	1	0302-
47	SHIM; MAIN SPRING	1-48469-072-0	AR	1	0302-
49	SCREW; COVER	1-48469-120-0	04	1	0302-
50	COVER; HAND BRK VLV	1-48469-073-0	01	1	0302-
51	HANDLE ASM; HAND BRK VLV	1-48469-060-0	01	1	0302-
52	SCREW; HANDLE	1-48469-062-0	01	1	0302-
53	WASHER; HANDLE	1-48469-061-0	01	1	0302-
54	SEAT; SPRING	1-48469-082-0	02	1	0302-
55	SPRING; RETURN,HANDLE	1-48469-059-0	01	1	0302-
56	BOOT; PLUNGER	1-48469-080-0	01	1	0302-
57	PLUNGER; HAND BRK VLV	1-48469-076-0	01	1	0302-
58	HOLDER; FEED VLV	1-48469-077-0	01	1	0302-
59	HOLDER; SPRING	1-48469-078-0	01	1	0302-
145	STUD; HAND BRK VLV	1-48469-069-0	01	1	0302-
164	GREASE; HAND BRK VLV	1-48469-084-0	01	1	0302-

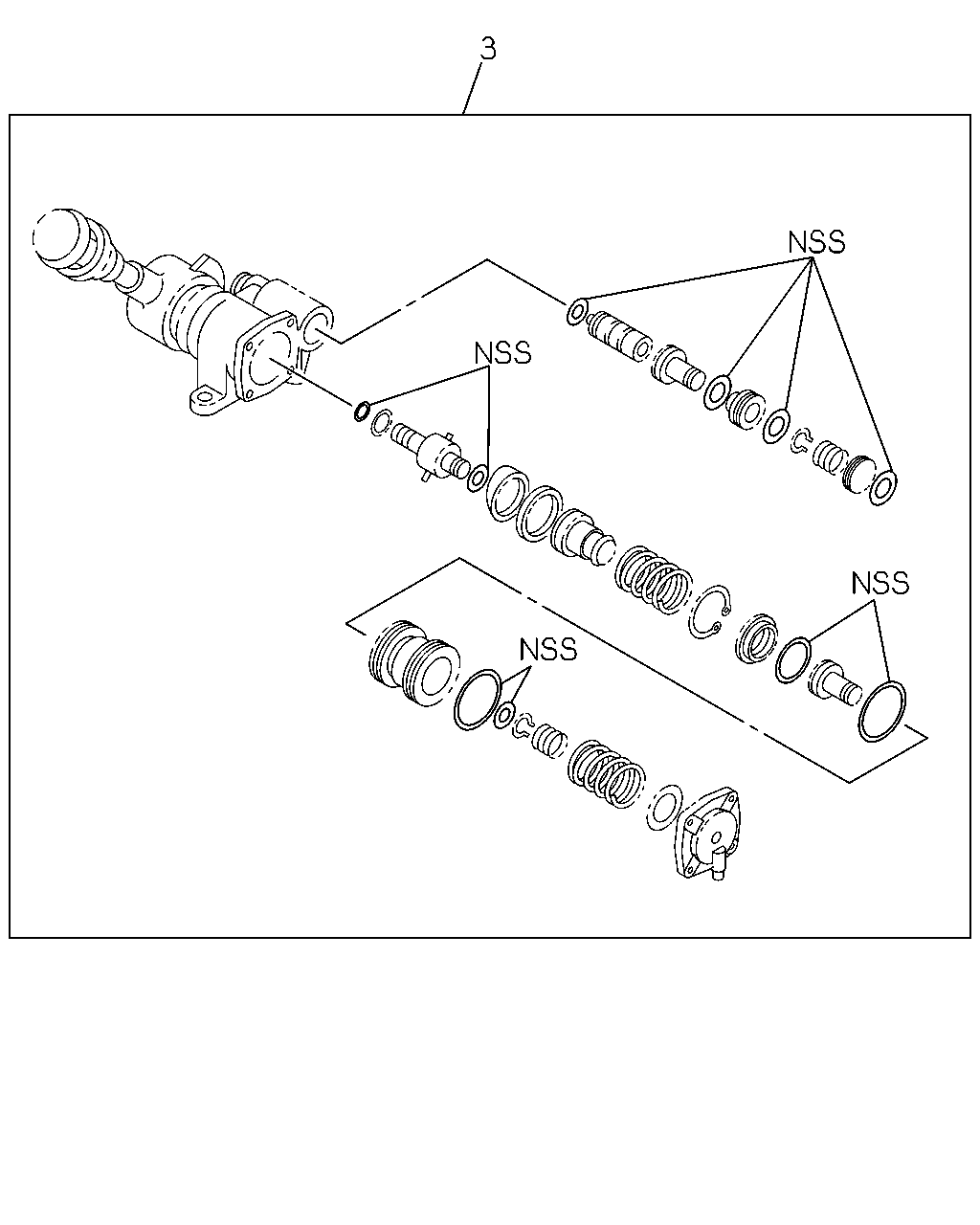

2 5 13 14 15 21 18 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	REPAIR KIT; HAND BRK VLV	1-85576-305-0	01	1	0302-
5	GASKET; HANDLE	1-48119-128-0	01	1	0302-
13	GASKET; BODY TO COVER	1-48119-120-0	01	1	0302-
14	FOLLOWER; CAM	1-48129-135-0	01	1	0302-
15	CAM; FOLLOWER	1-48129-134-0	01	1	0302-
18	GASKET; BODY	1-48129-096-0	01	1	0302-
21	VALVE; IN & EXH	1-48121-017-0	01	1	0302-
28	STEM ASM; BRK VLV	1-48129-089-0	01	1	0302-

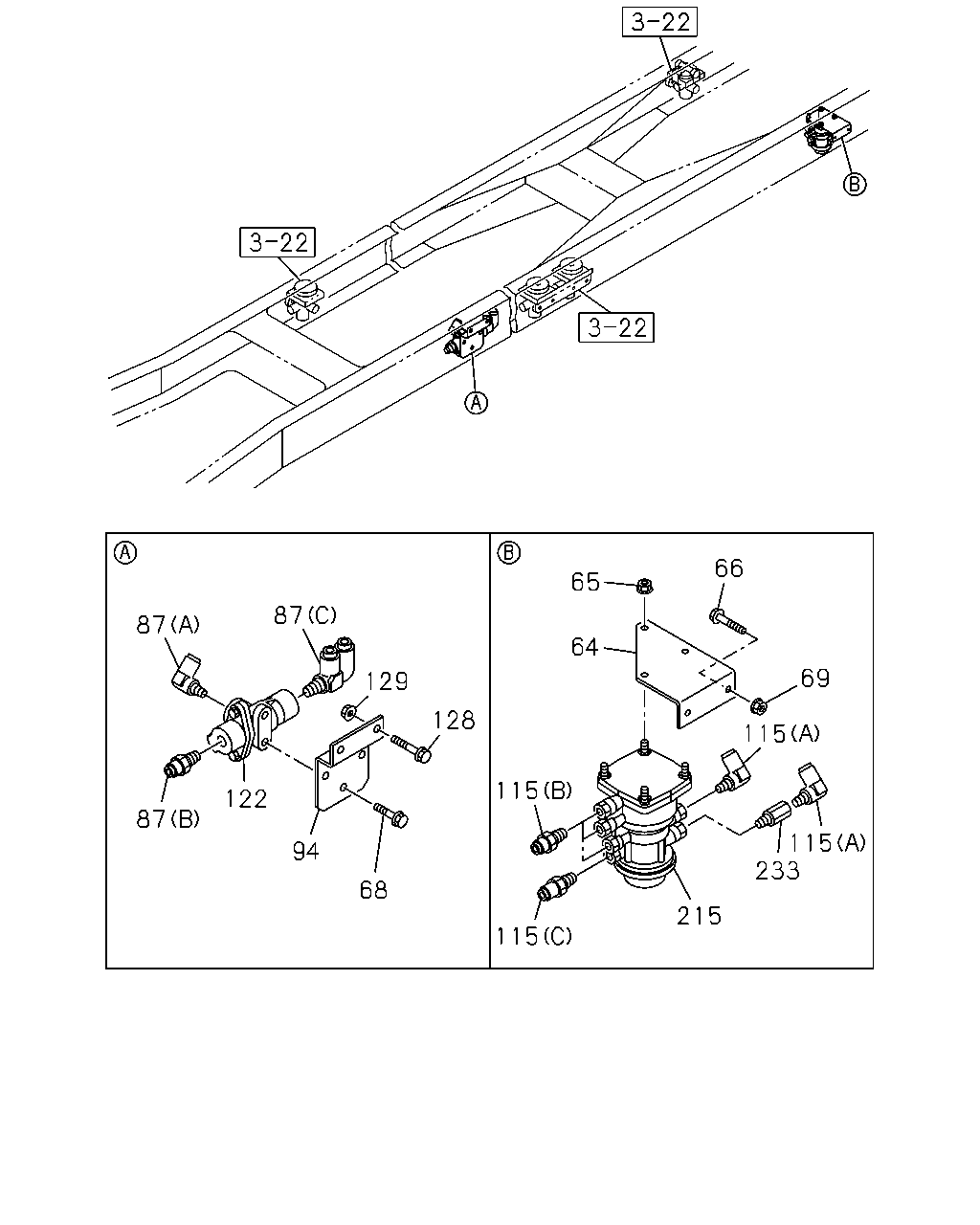

66 65 87 87 64 69 129 115 128 115 122 87 115 233 94 68 215 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
64	BRACKET; RELAY VLV	1-48495-226-0	01	1	0302-
65	NUT; RELAY VLV M8 FLANGE	0-91150-108-0	03	1	0302-
66	BOLT; VLV BRKT M10X30 FLANGE	0-28681-030-0	02	1	0302-
68	BOLT; DOUBLE CHECK VLV M8X14 FLANGE	0-28080-814-0	02	1	0302-
69	NUT; VLV BRKT M10 FLANGE	0-91150-210-0	02	1	0302-
87	CONNECTOR; DBL CHECK VLV (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0302-
87	CONNECTOR; DBL CHECK VLV (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0302-
87	CONNECTOR; DBL CHECK VLV (C) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0302-
94	BRACKET; CHECK VLV	1-47479-367-0	01	1	0302-
115	CONNECTOR; DUAL RELAY VLV (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0302-
115	CONNECTOR; DUAL RELAY VLV (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	03	1	0302-
115	CONNECTOR; DUAL RELAY VLV (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0302-
122	VALVE ASM; DOUBLE CHECK	1-48410-531-0	01	1	0302-
128	BOLT; VLV M8X25 FLANGE	0-28680-825-0	02	1	0302-
129	NUT; VLV M8 FLANGE	0-91150-108-0	03	1	0302-
215	VALVE; TRAILER CONT	1-48240-045-0	01	1	0302-
233	ADAPTER; VLV PT3/8	1-48319-058-0	01	1	0302-

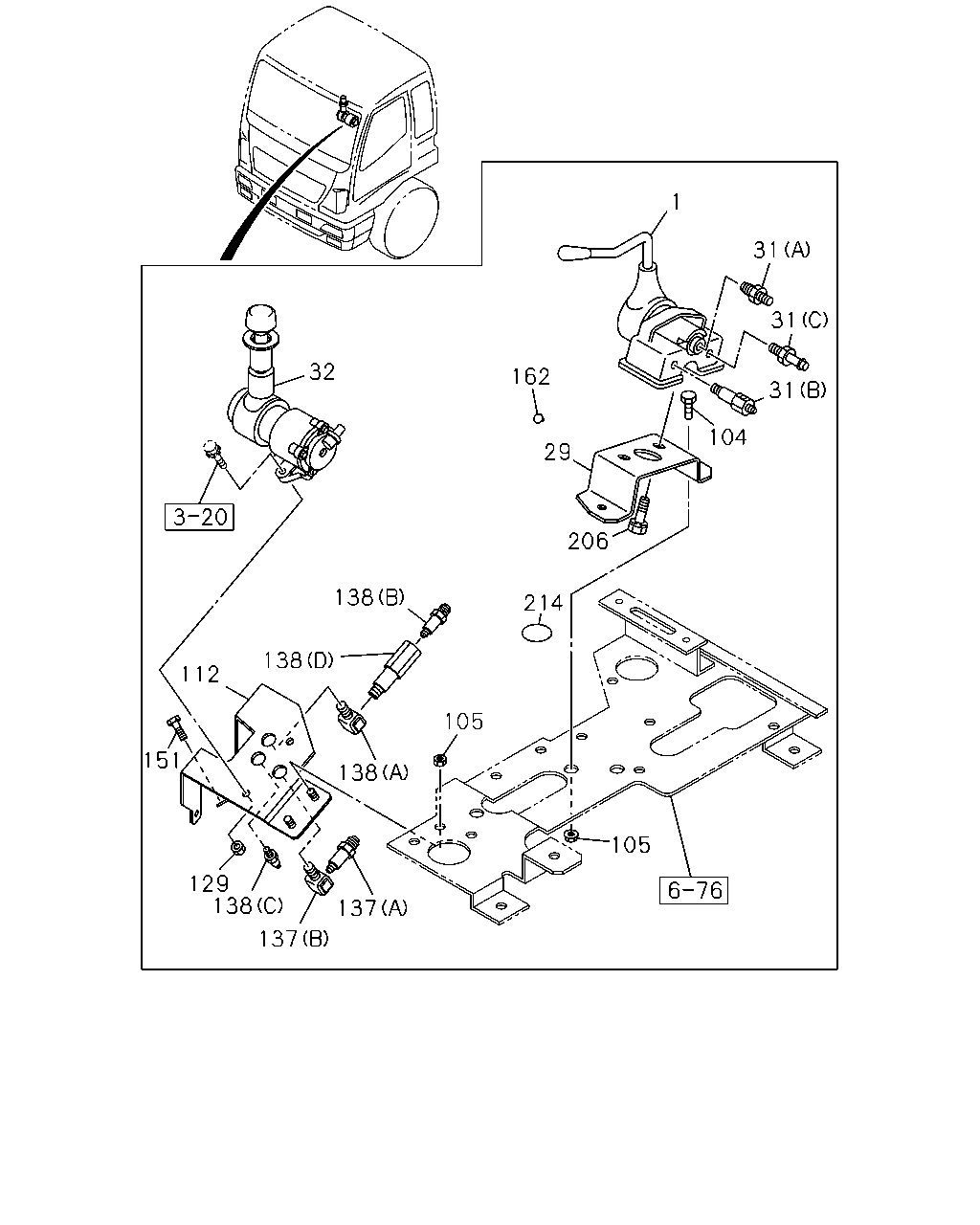

1 31 31 32 162 31 104 29 206 138 214 138 112 105 151 138 105 129 138 137 137

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE ASM; HAND BRK	1-48100-859-0	01	1	0302-
29	BRACKET; HAND BRK	1-79997-357-1	01	1	0302-
31	CONNECTOR; HAND BRK VLV (B) M14	1-09656-391-2	01	1	0302-
31	CONNECTOR; HAND BRK VLV (C) L=45	8-94338-874-0	01	1	0302-
31	CONNECTOR; HAND BRK VLV (A) M16 & PT1/4 STRAIGHT	9-09231-810-1	01	1	0302-
32	VALVE; BRK,HAND CONT	1-48460-316-0	01	1	0302-
104	BOLT; BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0302-0302
105	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	0302-
112	BRACKET; CONT VLV	1-79996-336-1	01	1	0302-
129	NUT; VLV M8 FLANGE	0-91150-108-0	03	1	0302-
137	CONNECTOR; SUPPLY (B) PT1/4 2WAY	1-09660-693-0	01	1	0302-
137	CONNECTOR; SUPPLY (A) DIN12 & R1/4 STRAIGHT	1-09660-967-0	01	1	0302-
138	CONNECTOR; DELIVERY (B) M14	1-09656-391-2	01	1	0302-
138	CONNECTOR; DELIVERY (A) PT1/4 2WAY	1-09660-693-0	01	1	0302-
138	CONNECTOR; DELIVERY (D) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0302-
138	CONNECTOR; DELIVERY (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0302-
151	BOLT; VLV BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0302-0409
151	BOLT; VLV BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	0410-
162	SWITCH; PARKING BRK VLV	1-72447-390-0	01	1	0302-
206	BOLT; HAND BRK VALVE M10X20 W/LK WASHER	0-50041-020-0	02	1	0302-
214	SEAL; COVER,HAND BRK OD=25 BLACK	1-76798-019-0	01	1	0302-

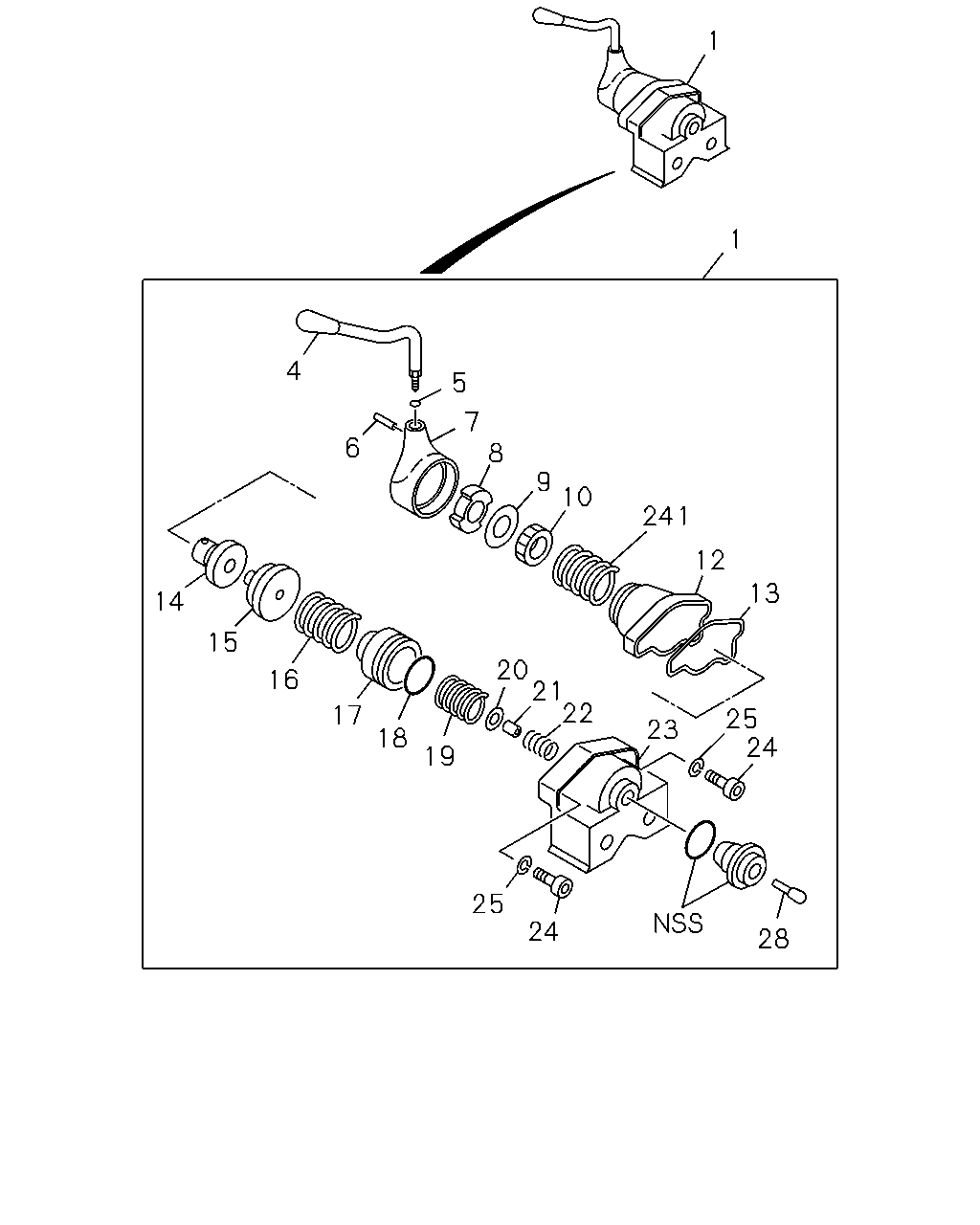

1 1 4 5 7 8 6 9 10 241 12 13 14 15 20 21 22 16 25 24 23 17 18 19 25 24 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE ASM; HAND BRK	1-48100-859-0	01	1	0302-
4	HANDLE ASM; BRK VLV	1-48119-580-0	01	1	0302-
5	GASKET; HANDLE	1-48119-128-0	01	1	0302-
6	PIN; SPR	1-48119-143-0	01	1	0302-
7	HEAD; BRK VLV	1-48119-577-0	01	1	0302-
8	STOPPER; BRK VLV	1-48119-327-0	01	1	0302-
9	WASHER; LK,ADJ	1-48119-123-0	01	1	0302-
10	RING; ADJ	1-48119-122-0	01	1	0302-
12	COVER; BRK VLV	1-48129-319-0	01	1	0302-
13	GASKET; BODY TO COVER	1-48119-120-0	01	1	0302-
14	FOLLOWER; CAM	1-48129-135-0	01	1	0302-
15	CAM; FOLLOWER	1-48129-134-0	01	1	0302-
16	SPRING; GRUDUATING	1-48129-101-0	01	1	0302-
17	PISTON; SPR	1-48129-095-0	01	1	0302-
18	GASKET; BODY	1-48129-096-0	01	1	0302-
19	SPRING; PISTON	1-48129-094-0	01	1	0302-
20	GUIDE; VLV	1-48129-090-0	01	1	0302-
21	VALVE; IN & EXH	1-48121-017-0	01	1	0302-
22	SPRING; VLV	1-48123-024-0	01	1	0302-
23	BODY; BRK VLV	1-48111-060-0	01	1	0302-
24	BOLT; EXH VLV	1-48129-092-0	02	1	0302-
25	WASHER; LK,EXH VLV	1-48129-093-0	02	1	0302-
28	STEM ASM; BRK VLV	1-48129-089-0	01	1	0302-
241	SPRING; RETURN	1-48119-576-0	01	1	0302-

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	3	REPAIR KIT; HAND BRK VLV	1-48469-083-0	01	1	0302-
