3-22 — AIR CONTROL PARTS (#25879) — 60 parça

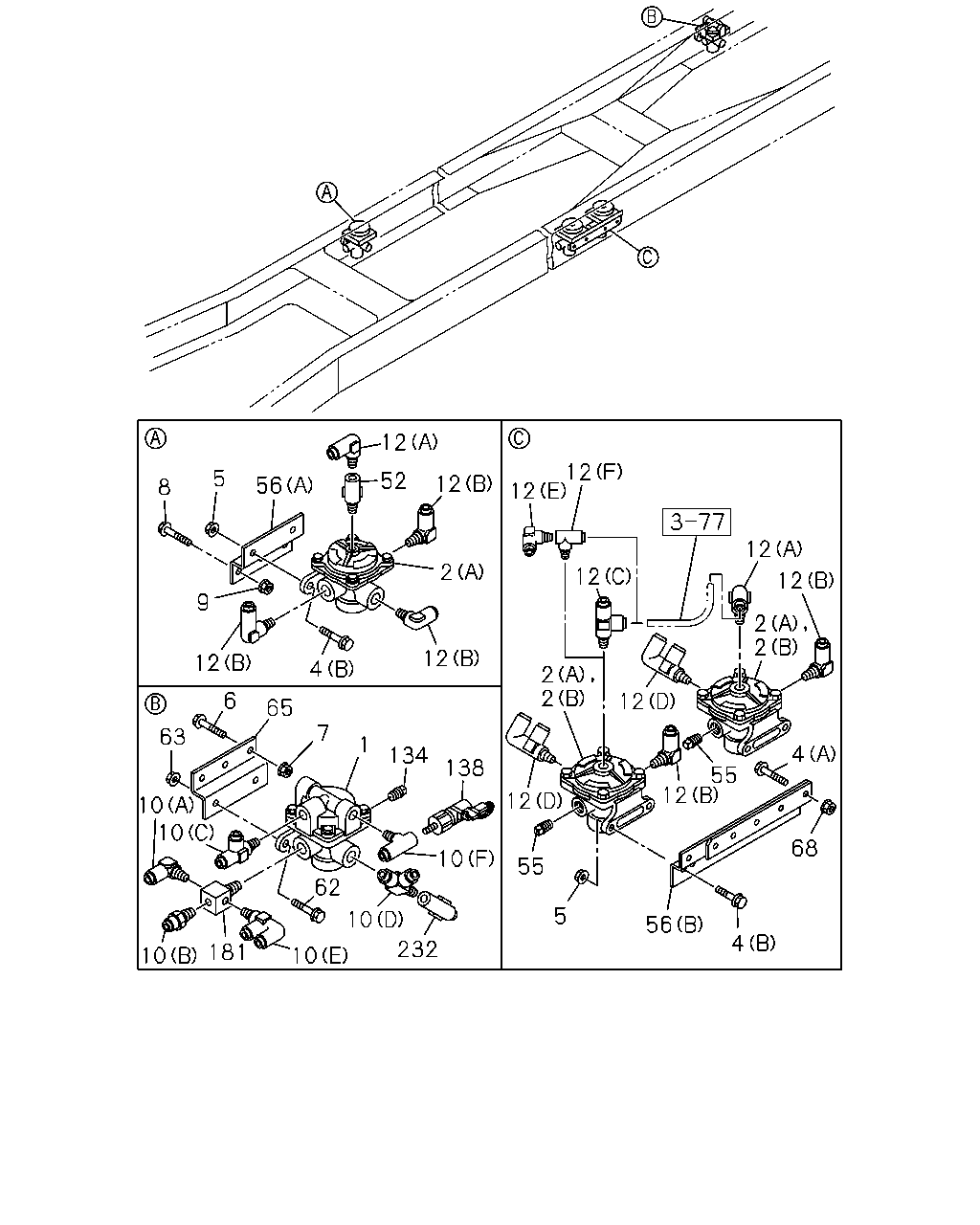

çizim 25348
12 12 12 5 52 12 56 8 12 2 12 12 9 2 2 12 12 4 2 2 6 12 65 7 63 1 4 134 138 55 12 12 10 10 68 10 55 62 5 10 56 181 4 232 10 10
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE; RELAY RWD RR 1-48240-041-0 01 1 0302-
2 VALVE; RELAY
(B) 		1-48210-875-0 02 1 0304-
2 VALVE; RELAY
(A) 		1-48240-278-0 03 1 0302-0303
2 VALVE; RELAY
(A) 		1-48240-278-0 01 1 0304-
4 BOLT; RELAY VLV TO BRKT
(B) M10X35 FLANGE 		0-28681-035-0 04 1 0304-
4 BOLT; RELAY VLV TO BRKT
(A) M8X25 FLANGE 		0-28680-825-0 04 1 0302-
4 BOLT; RELAY VLV TO BRKT
(B) M10X30 FLANGE 		0-28681-030-0 06 1 0302-0303
4 BOLT; RELAY VLV TO BRKT
(B) M10X30 FLANGE 		0-28681-030-0 02 1 0304-
5 NUT
M10 FLANGE 		0-91150-210-0 06 1 0302-
6 BOLT; VLV
M8X25 FLANGE 		0-28680-825-0 02 1 0302-
7 NUT; RELAY VLV
M8 FLANGE 		0-91150-108-0 02 1 0302-
8 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0302-
9 NUT
M8 FLANGE 		0-91150-108-0 02 1 0302-
10 CONNECTOR
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0302-
10 CONNECTOR
(B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0302-
10 CONNECTOR
(C) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0302-
10 CONNECTOR
(D) DIN12X2 & R3/8 3WAY 		1-09661-007-0 01 1 0302-
10 CONNECTOR
(E) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 0302-
10 CONNECTOR
(F) 		1-09661-537-0 01 1 0302-
12 CONNECTOR; RELAY VLV
(F) 		1-09661-537-0 01 1 0304-
12 CONNECTOR; RELAY VLV
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 0302-
12 CONNECTOR; RELAY VLV
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 05 1 0302-
12 CONNECTOR; RELAY VLV
(C) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0302-0303
12 CONNECTOR; RELAY VLV
(E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0304-
12 CONNECTOR; RELAY VLV
(D) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 02 1 0302-
52 CONNECTOR; RELAY VLV 1-09661-271-0 01 1 0302-
55 PLUG; SUPPLY
PT3/8 		9-09204-517-0 02 1 0302-
56 BRACKET; RELAY VLV
(A) 		1-47479-328-0 01 1 0302-
56 BRACKET; RELAY VLV
(B) 		1-47479-447-0 01 1 0302-0310
56 BRACKET; RELAY VLV
(B) 		1-47479-937-0 01 1 0311-
62 BOLT; BRKT FIX
M10X30 FLANGE 		0-28681-030-0 02 1 0302-
63 NUT; BRKT FIX
M10 FLANGE 		0-91150-210-0 02 1 0302-
65 BRACKET; RELAY VLV RR 1-47479-328-0 01 1 0302-
68 NUT; RELAY VLV TO BRKT
M8 FLANGE 		0-91150-108-0 04 1 0302-
134 PLUG; RELAY VALVE
PT3/8 		9-09204-517-0 01 1 0302-
138 SWITCH; RELAY VALVE 1-48340-064-1 01 1 0302-0312
138 SWITCH; RELAY VALVE 1-48340-067-0 01 1 0401-
181 ADAPTER; PRESSURE SW
PT3/8 4WAY 		1-09661-489-0 01 1 0302-
232 VALVE; CHECK 1-48320-031-1 01 1 0302-

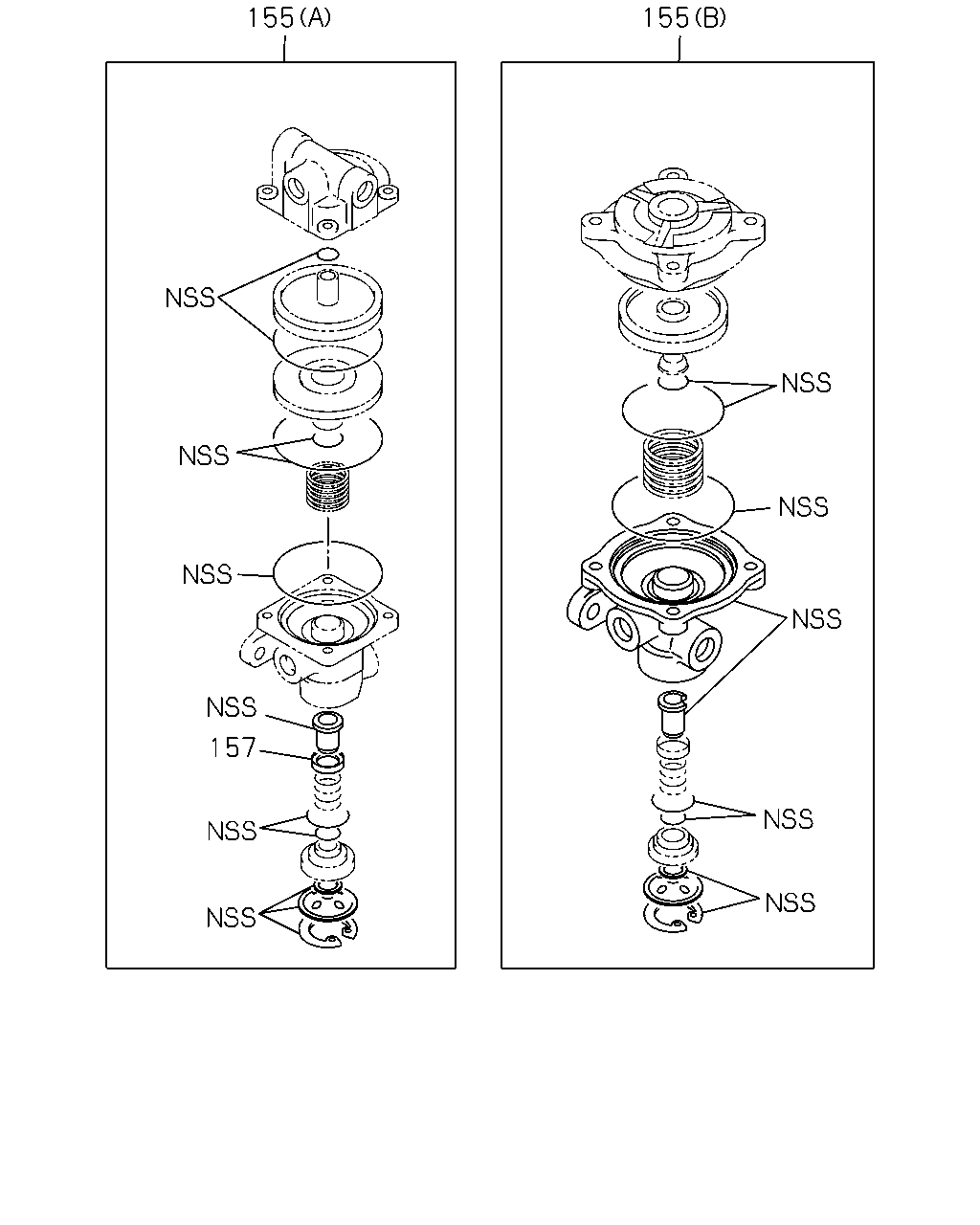

çizim 81567
155 155 157
BalonParca AdiParca NoAdetTipApplied Date
155 REPAIR KIT; RELAY VALVE
(B) 		1-85576-033-0 03 1 0302-
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-035-0 01 1 0302-
157 RETAINER; VALVE 1-48213-002-0 04 1 0302-

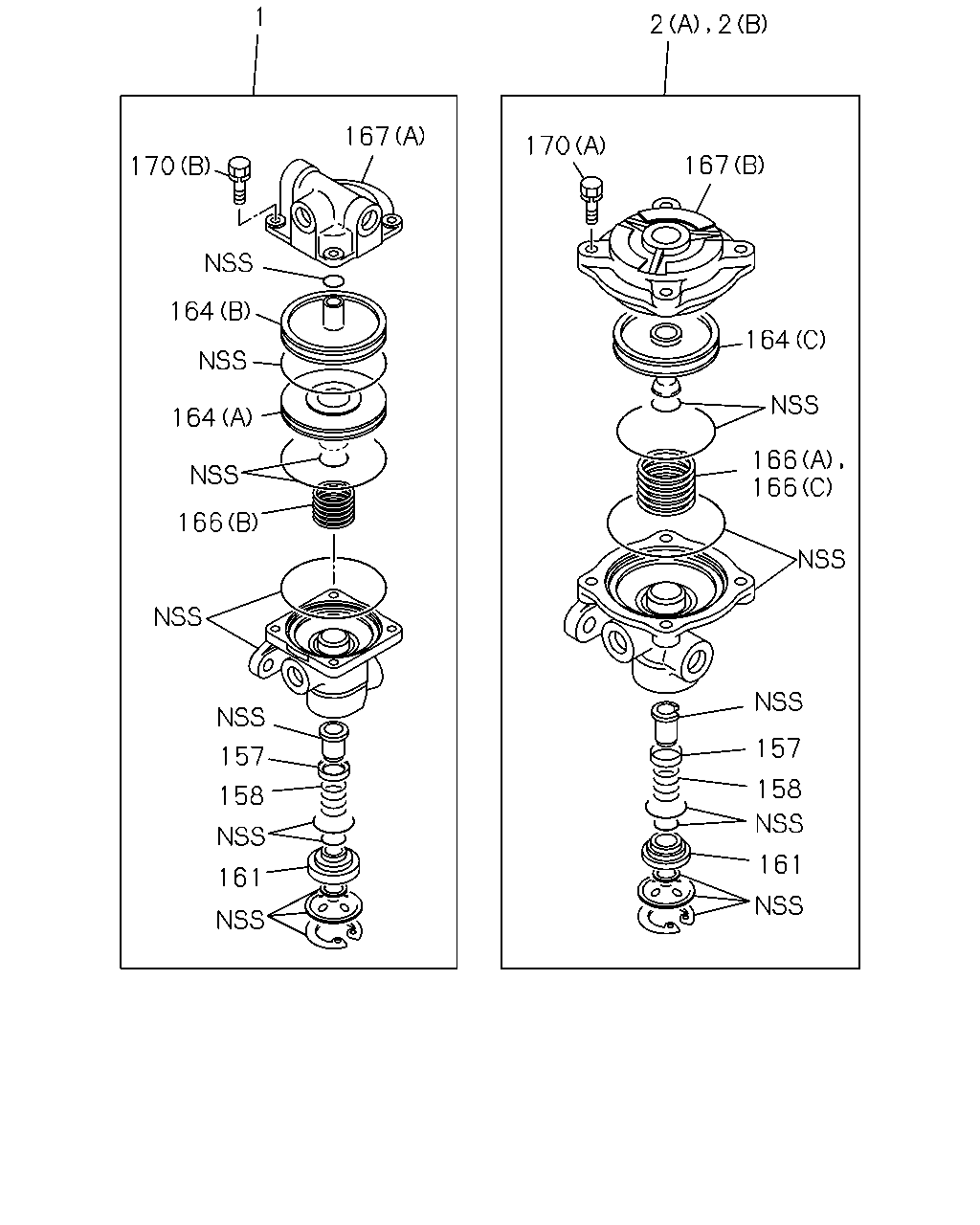

çizim 81945
1 2 2 167 170 167 170 164 164 164 166 166 166 157 157 158 158 161 161
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE; RELAY RWD RR 1-48240-041-0 01 1 0302-
2 VALVE; RELAY
(B) 		1-48210-875-0 02 1 0304-
2 VALVE; RELAY
(A) 		1-48240-278-0 03 1 0302-0303
2 VALVE; RELAY
(A) 		1-48240-278-0 01 1 0304-
157 RETAINER; VALVE 1-48213-002-0 04 1 0302-
158 SPRING; VALVE 1-47819-089-0 04 1 0302-
161 GUIDE; VALVE 1-48129-014-0 04 1 0302-
164 PISTON; RELAY VALVE
(A) 		1-48219-032-0 01 1 0302-
164 PISTON; RELAY VALVE
(B) 		1-48219-047-0 01 1 0302-
164 PISTON; RELAY VALVE
(C) 		1-48219-071-0 03 1 0302-
166 SPRING; PISTON
(C) 		1-47819-090-0 02 1 0304-
166 SPRING; PISTON
(A) 		1-47819-165-0 03 1 0302-0303
166 SPRING; PISTON
(A) 		1-47819-165-0 01 1 0304-
166 SPRING; PISTON
(B) 		1-48219-048-0 01 1 0302-
167 COVER; VALVE
(A) 		1-48219-050-1 01 1 0302-
167 COVER; VALVE
(B) 		1-48219-070-0 03 1 0302-
170 SCREW; COVER TO BODY
(A) 		1-48219-039-0 12 1 0302-
170 SCREW; COVER TO BODY
(B) 		1-48219-041-0 04 1 0302-
