3-20 — AIR TANK (#25878) — 126 parça

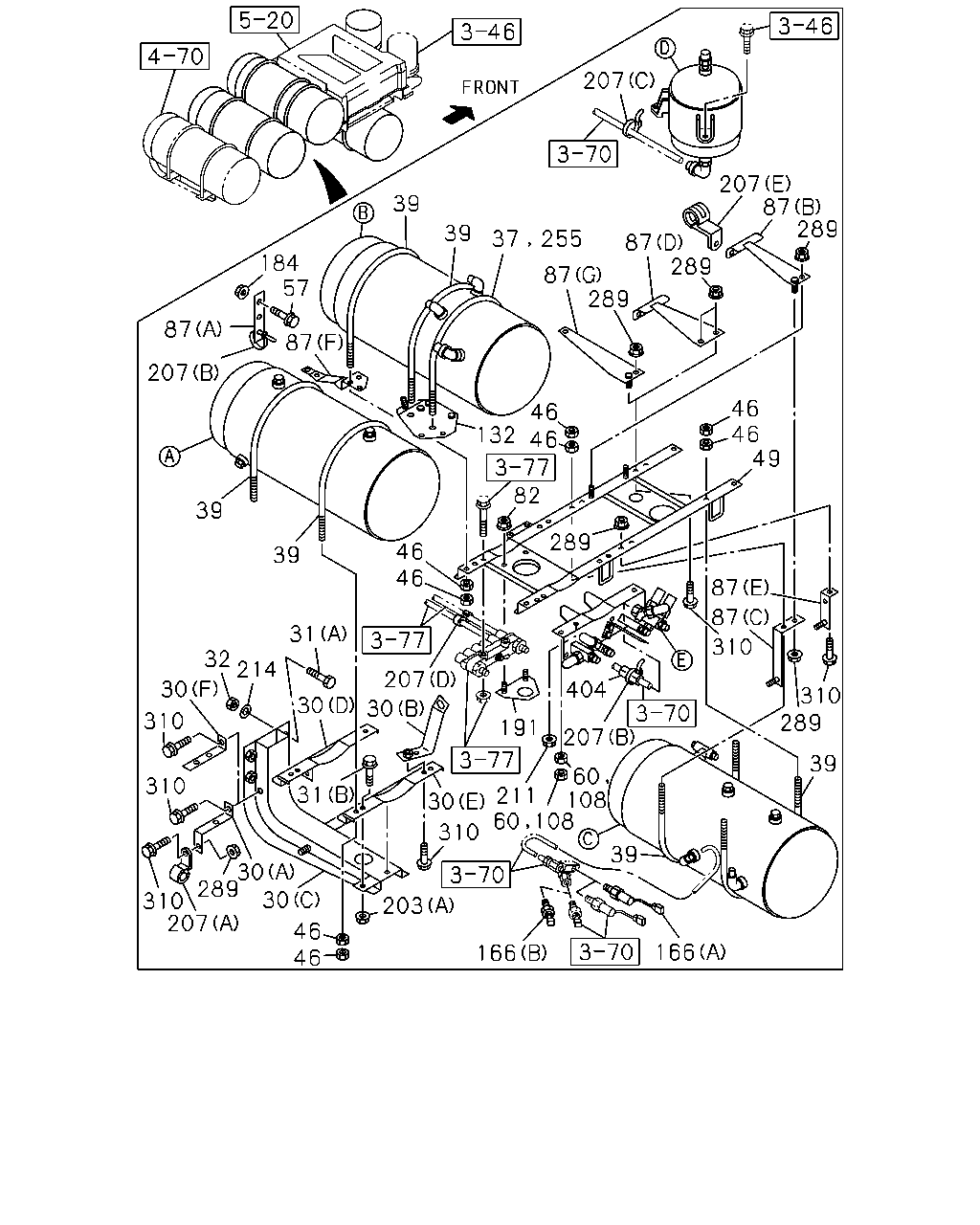

çizim 24453
207 207 87 289 39 39 87 289 184 57 87 289 87 87 207 46 46 49 46 46 82 132 39 289 46 46 39 87 87 31 310 32 214 207 30 404 310 289 30 30 207 310 191 39 60 211 30 108 31 310 310 39 30 289 30 310 207 203 46 46 166 166 37 255 60 108
BalonParca AdiParca NoAdetTipApplied Date
30 BRACKET; AIR TANK,SUB
(A) 		1-33659-142-0 01 1 0302-0305
30 BRACKET; AIR TANK,SUB
(F) 		1-82699-208-1 01 1 0306-
30 BRACKET; AIR TANK,SUB
(B) 		1-48316-014-0 01 1 0302-
30 BRACKET; AIR TANK,SUB
(C) 		1-48316-024-3 01 1 0302-
30 BRACKET; AIR TANK,SUB
(D) 		1-48316-026-0 01 1 0302-
30 BRACKET; AIR TANK,SUB
(E) 		1-48317-994-2 01 1 0302-
31 BOLT; BRKT TO FRAME
(B) M8X25 FLANGE 		0-28680-825-0 01 1 0303-
31 BOLT; BRKT TO FRAME
(A) M14X40 		0-20801-440-0 04 1 0302-0309
31 BOLT; BRKT TO FRAME
(A) M14X50 		0-20801-450-0 04 1 0310-
31 BOLT; BRKT TO FRAME
(B) M12X25 FLANGE 		0-28681-225-0 03 1 0302-0302
31 BOLT; BRKT TO FRAME
(B) M12X25 FLANGE 		0-28681-225-0 04 1 0303-
32 NUT; BRKT TO FRAME
M14 		9-99110-514-0 04 1 0302-
37 BOLT; AIR TANK
L=303 		1-48317-087-2 01 1 0302-0409
39 U-BOLT; AIR TANK
L=303 		1-48317-087-2 06 1 0302-
46 NUT; U-BOLT
M8 		9-09110-408-0 24 1 0302-
49 BRACKET; AIR TANK 1-48316-025-0 01 1 0302-0402
49 BRACKET; AIR TANK 1-48316-046-0 01 1 0403-
57 BOLT; BRKT,AIR TANK TO FRAME
M10X25 FLANGE 		0-28681-025-0 04 1 0302-
60 NUT; AIR TANK FIX
M8 		9-09110-408-0 04 1 0302-0409
82 NUT; STAY,AIR MASTER BRKT
M8 FLANGE 		0-91150-208-0 02 1 0302-0308
82 NUT; STAY,AIR MASTER BRKT
M8 FLANGE 		0-91150-108-0 02 1 0309-
87 BRACKET; AIR PIPE JOINT
(A) L=125 		1-47477-975-1 01 1 0302-
87 BRACKET; AIR PIPE JOINT
(C) 		1-47479-470-2 01 1 0302-
87 BRACKET; AIR PIPE JOINT
(E) 		1-47479-541-1 01 1 0302-
87 BRACKET; AIR PIPE JOINT
(F) 		1-47479-663-1 01 1 0302-
87 BRACKET; AIR PIPE JOINT
(D) 		1-47479-690-0 01 1 0302-0302
87 BRACKET; AIR PIPE JOINT
(G) 		1-47479-708-0 01 1 0303-
87 BRACKET; AIR PIPE JOINT
(B) 		1-47479-691-0 01 1 0302-0302
87 BRACKET; AIR PIPE JOINT
(B) 		1-47479-709-1 01 1 0303-
108 NUT; CONNECTOR
M8 		9-09110-408-0 04 1 0410-
132 BRACKET; STRING GUIDE 1-47479-531-0 01 1 0302-
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
(A) 		1-48340-066-0 01 1 0302-0302
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
(B) 		1-80220-015-0 01 1 0302-0302
184 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 0302-
191 BRACKET; STOPPER,AIR TANK 1-48316-023-1 01 1 0302-
203 NUT
(A) M12 FLANGE 		0-91150-212-0 01 1 0302-
203 NUT
(B) M16 		9-99110-516-0 01 1 0302-
203 NUT
(C) M18 		9-99110-518-0 03 1 0302-
207 CLIP; AIR PIPE
(E) ID=45 H=31 L=35 		1-09701-308-0 01 1 0305-
207 CLIP; AIR PIPE
(A) ID=18 H=23 L=28 		1-09701-070-0 01 1 0302-0305
207 CLIP; AIR PIPE
(A) ID=18 L=25 H=50 		1-09701-096-0 01 1 0306-
207 CLIP; AIR PIPE
(B) L=250 		1-09707-126-0 18 1 0302-0304
207 CLIP; AIR PIPE
(B) L=250 		1-09707-126-0 17 1 0305-0305
207 CLIP; AIR PIPE
(B) L=350 		1-09707-183-0 17 1 0305-0305
207 CLIP; AIR PIPE
(B) L=350 		1-09707-183-0 19 1 0306-
207 CLIP; AIR PIPE
(C) L=256 		1-09707-189-0 01 1 0302-0302
207 CLIP; AIR PIPE
(D) ID=12 & 12 		1-09709-280-1 02 1 0302-0305
207 CLIP; AIR PIPE
(D) ID=8 & 12 		1-09709-312-0 02 1 0302-0305
211 NUT; STRING GUIDE
M8 FLANGE 		0-91150-108-0 03 1 0302-
214 WASHER; LK,BRKT TO FRAME
ID=14.2 		9-09150-514-0 04 1 0302-
255 BOLT; CONN
L=303 		1-48317-087-2 01 1 0410-
289 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91150-108-0 09 1 0302-0304
289 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91150-108-0 10 1 0305-
310 BOLT; CLIP,AIR PIPE
M8X16 FLANGE 		0-28080-816-0 07 1 0302-0304
310 BOLT; CLIP,AIR PIPE
M8X16 FLANGE 		0-28080-816-0 08 1 0305-0308
310 BOLT; CLIP,AIR PIPE
M8X16 FLANGE 		0-28080-816-0 07 1 0309-
310 BOLT; CLIP,AIR PIPE
M8X30 FLANGE 		0-28680-830-0 01 1 0302-
404 SLEEVE; RUBBER
ID=15 OD=19 L=50 		1-09337-014-0 04 1 0302-0305
404 SLEEVE; RUBBER
ID=15 OD=19 L=50 		1-09337-014-0 06 1 0306-

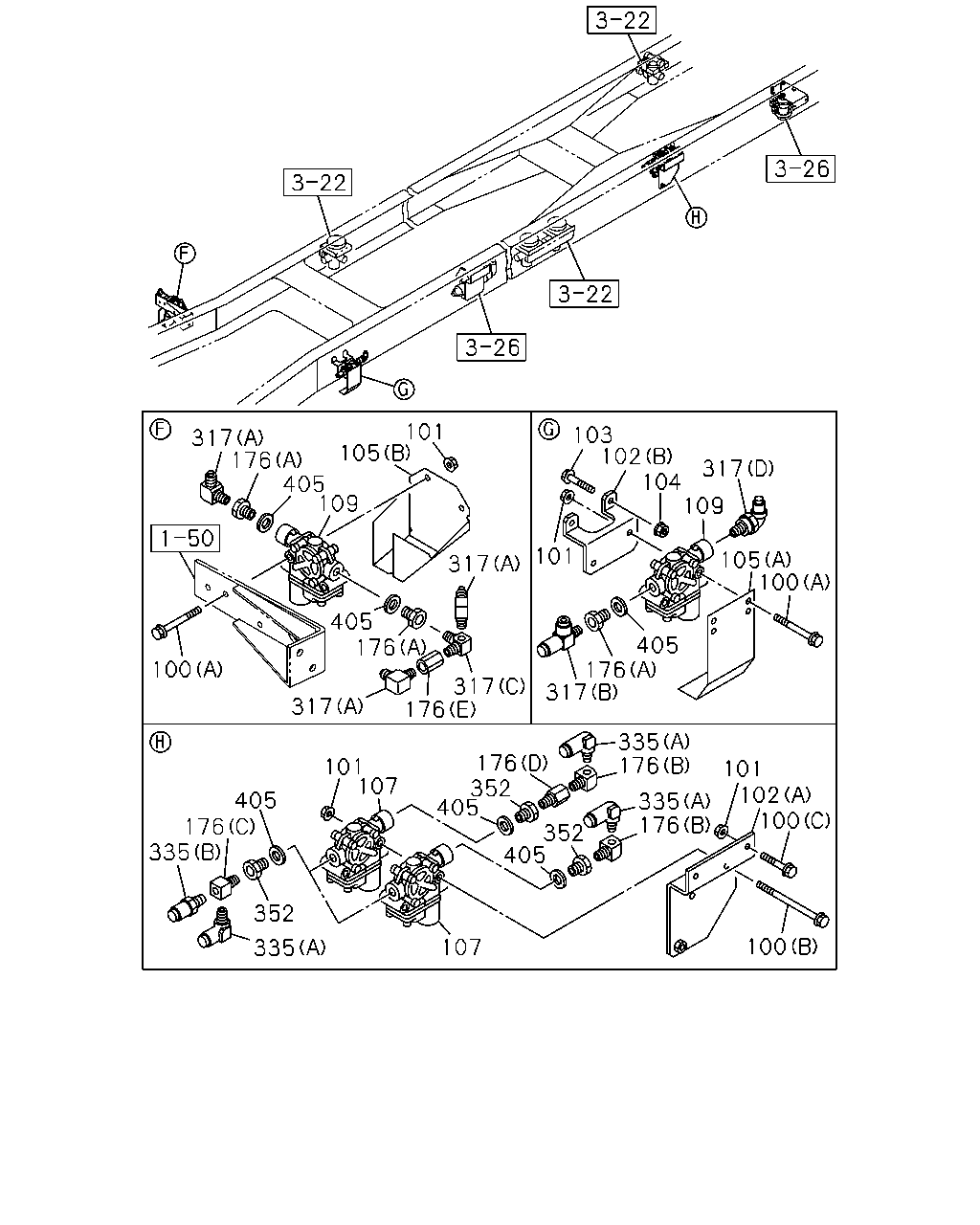

çizim 24454
101 105 103 102 104 109 317 176 405 109 317 101 105 100 317 405 176 405 176 317 100 317 176 317 335 176 176 352 405 101 107 101 102 100 405 176 335 335 176 352 405 352 100 107 335
BalonParca AdiParca NoAdetTipApplied Date
100 BOLT; MODULATOR
(A) M8X80 FLANGE 		0-28080-880-0 04 1 0302-
100 BOLT; MODULATOR
(B) M8X140 FLANGE 		0-28085-814-0 02 1 0302-
100 BOLT; MODULATOR
(C) M8X25 FLANGE 		0-28680-825-0 02 1 0302-
101 NUT; MODULATOR
M8 FLANGE 		0-91150-108-0 08 1 0302-
102 BRACKET; MODULATOR
(A) 		1-47479-591-1 01 1 0302-
102 BRACKET; MODULATOR
(B) 		1-47479-635-0 01 1 0302-
103 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 0302-
104 NUT; BRKT
M8 FLANGE 		0-91150-108-0 03 1 0302-
105 COVER; MODULATOR
(A) 		1-47479-434-1 01 1 0302-
105 COVER; MODULATOR
(B) 		1-47479-611-1 01 1 0302-
107 MODULATOR; RR 1-48240-115-0 02 1 0302-
109 MODULATOR; FRT 1-48240-115-0 02 1 0302-
176 ADAPTER
(E) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 0303-
176 ADAPTER
(D) PT3/8 		1-48319-058-0 01 1 0303-
176 ADAPTER
(A) INNER PT3/8,OUTER M22 		1-09650-494-1 03 1 0302-
176 ADAPTER
(B) PT3/8 ELBOW 		1-09660-696-0 02 1 0302-
176 ADAPTER
(C) PT3/8 3WAY 		1-09661-300-0 02 1 0302-
317 CONNECTOR; MODULATOR
(A) M20 & PT3/8 ELBOW 		1-09650-439-0 03 1 0302-
317 CONNECTOR; MODULATOR
(B) DIN12X2 & R3/8 3WAY 		1-09661-007-0 01 1 0302-
317 CONNECTOR; MODULATOR
(C) PT3/8 3WAY 		1-09661-300-0 01 1 0302-0302
317 CONNECTOR; MODULATOR
(C) 		1-09656-722-0 01 1 0303-
317 CONNECTOR; MODULATOR
(D) DIN12 & M22 ELBOW 		1-09661-497-0 01 1 0302-
335 CONNECTOR; MODULATOR
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 0302-
335 CONNECTOR; MODULATOR
(B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 0302-
352 CONNECTOR; STRAIGHT
INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 0302-
405 GASKET
ID=22.5 		9-09571-422-0 07 1 0302-

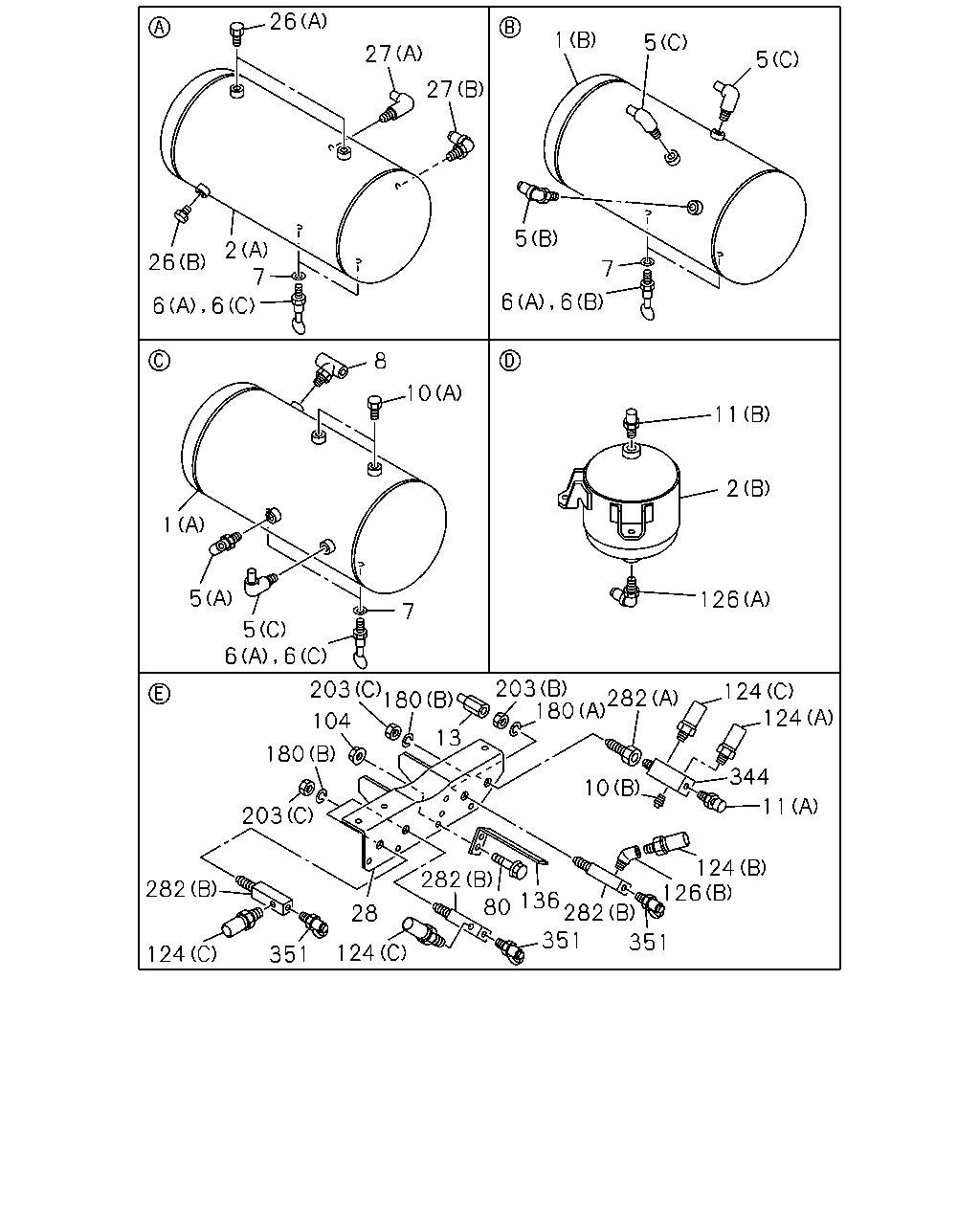

çizim 25039
26 1 5 27 5 27 5 2 7 26 7 6 6 6 6 8 10 11 2 1 5 126 7 5 203 180 203 180 124 124 282 104 13 180 344 10 11 203 124 126 282 80 282 136 282 351 28 351 124 124 351
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; AIR
(A) 		1-48371-226-3 01 1 0302-
1 TANK ASM; AIR
(B) 		1-48371-227-4 01 1 0302-
2 TANK; AIR
(B) 		1-48371-166-3 01 1 0302-
2 TANK; AIR
(A) 		1-48371-226-3 01 1 0302-
5 UNION; AIR TANK
(A) DIN8 & M22 ELBOW 		1-09661-495-0 01 1 0302-
5 UNION; AIR TANK
(B) DIN12 & M22 ELBOW 		1-09661-497-0 01 1 0302-
5 UNION; AIR TANK
(C) 		1-09661-550-0 03 1 0302-
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-015-0 02 1 0404-
6 COCK; DRAIN,AIR TANK
(A) W/COVER 		1-48312-004-2 06 1 0302-0403
6 COCK; DRAIN,AIR TANK
(C) W/COVER 		1-48312-004-2 04 1 0404-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 06 1 0302-
8 CONNECTOR; AIR TANK 1-09661-568-0 01 1 0302-
10 PLUG; AIR TANK
(A) 		1-09661-569-0 02 1 0302-
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 0302-
11 VALVE; SAFETY,AIR TANK
(A) 		1-48320-012-1 01 1 0302-
11 VALVE; SAFETY,AIR TANK
(B) 		1-48320-047-1 01 1 0302-
13 ADAPTER; NYLON TUBE
DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0302-
26 PLUG; SUB AIR TANK
(B) 		1-09661-502-0 01 1 0302-
26 PLUG; SUB AIR TANK
(A) 		1-09661-569-0 02 1 0302-
27 UNION; ELBOW,AIR TANK
(B) DIN12 & M22 ELBOW 		1-09661-497-0 01 1 0302-
27 UNION; ELBOW,AIR TANK
(A) 		1-09661-550-0 01 1 0302-
28 BRACKET; AIR TANK 1-47479-675-1 01 1 0302-
80 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 0302-
104 NUT; BRKT
M8 FLANGE 		0-91150-108-0 03 1 0302-
124 SWITCH; AIR PRESSURE
(A) 		1-48340-064-1 01 1 0302-0312
124 SWITCH; AIR PRESSURE
(A) 		1-48340-067-0 01 1 0401-
124 SWITCH; AIR PRESSURE
(B) 		1-48340-065-0 01 1 0302-
124 SWITCH; AIR PRESSURE
(C) 		1-48340-066-0 03 1 0302-
126 CONNECTOR; ELBOW
(A) DIN8 & M22 ELBOW 		1-09661-495-0 01 1 0302-
126 CONNECTOR; ELBOW
(B) R1/4 & RC1/4 		1-09664-211-0 01 1 0302-
136 BRACKET; CLIP 1-47479-565-0 01 1 0302-
180 WASHER; LK
(A) ID=16.2 		9-09150-516-0 01 1 0302-
180 WASHER; LK
(B) ID=18.2 		9-09150-518-0 03 1 0302-
203 NUT
(A) M12 FLANGE 		0-91150-212-0 01 1 0302-
203 NUT
(B) M16 		9-99110-516-0 01 1 0302-
203 NUT
(C) M18 		9-99110-518-0 03 1 0302-
282 UNION; 2 WAY
(A) 		1-09650-222-1 01 1 0302-
282 UNION; 2 WAY
(B) 		1-09661-593-0 03 1 0302-
344 CONNECTOR; 4WAY 1-09660-521-2 01 1 0302-
351 CONNECTOR; TEST 1-47459-013-0 03 1 0302-
çizim 85058
241
BalonParca AdiParca NoAdetTipApplied Date
241 BOLT; SET,CONT VLV
M8X30 W/LK&PL WASHER 		0-50140-830-0 01 1 0302-
