3-08 — PARKING BRAKE (#25875) — 78 parça

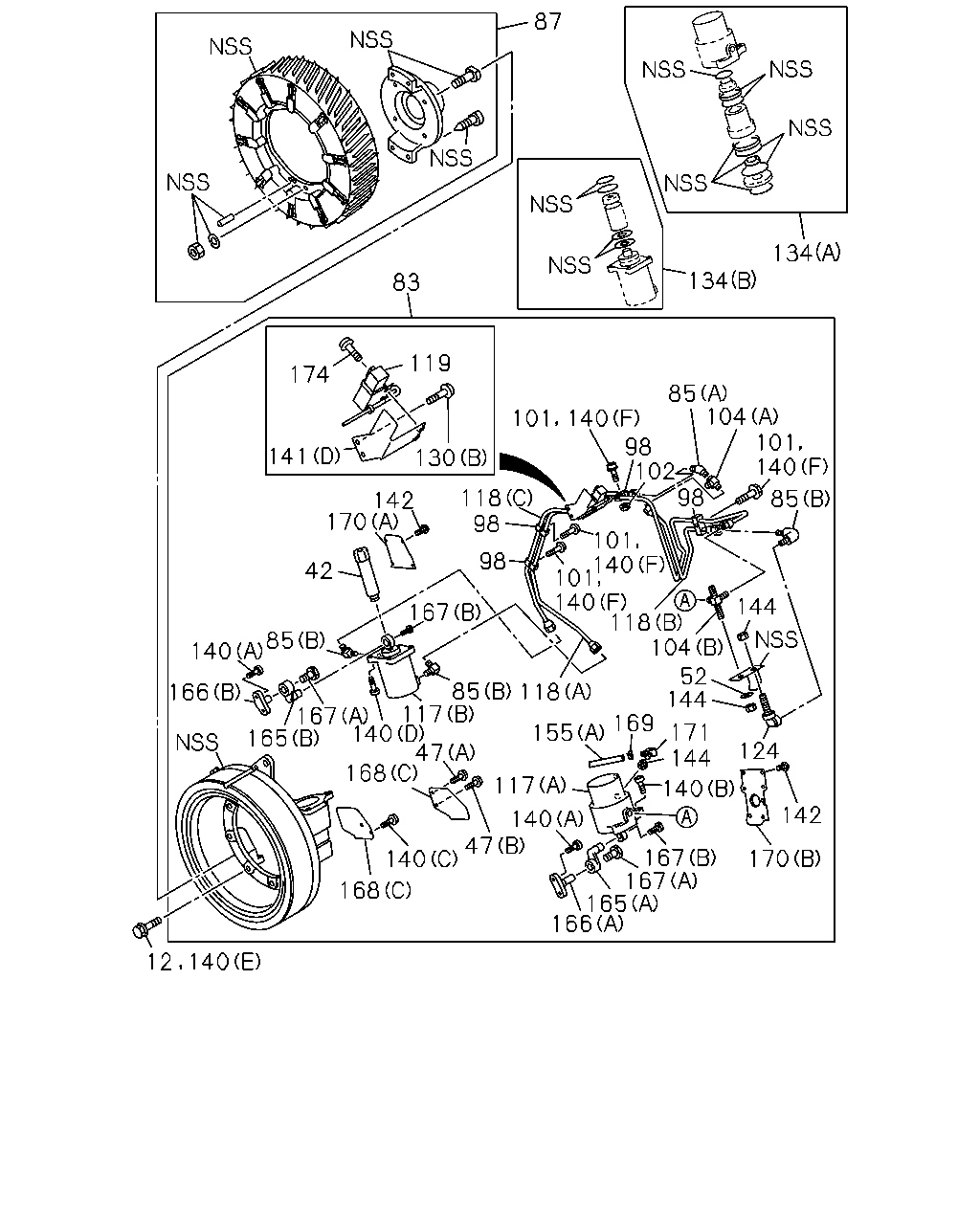

87 134 134 83 119 174 85 104 101 140 101 140 98 102 98 141 130 118 98 85 142 170 101 140 101 140 118 104 98 42 144 167 85 140 52 144 167 117 140 165 47 168 166 169 171 144 155 124 140 117 142 140 47 140 167 167 165 166 170 168 118 85 12 140

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	BOLT; FIX BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M12X35 FLANGE	0-28791-235-0	08	1	0302-0410
42	SPRING; RETURN,LEVER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-071-1	01	1	0302-
47	BOLT; SUPPORT PLATE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X10 HEX SOCKET	1-48629-133-0	01	1	0302-
47	BOLT; SUPPORT PLATE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6X14 HEX SOCKET	1-48629-145-0	01	1	0302-
52	WASHER; PL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=12.5 OD=26	9-09160-612-0	01	1	0302-
83	RETARDER ASM; PARKING BRK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48610-466-3	01	1	0302-
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-150-0	01	1	0302-
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M12 & PT1/8	9-09224-306-2	03	1	0302-
87	DRUM; RETARDER,PARKING BRK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48610-460-2	01	1	0302-
98	CLIP; AIR PIPE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-131-0	10	1	0302-
101	BOLT; CLIP BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6X18	1-48629-134-0	05	1	0302-0312
102	NUT; CLIP,AIR PIPE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6 FLANGE	5-09440-004-0	01	1	0302-
104	CONNECTOR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-149-0	01	1	0302-
104	CONNECTOR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-394-0	01	1	0302-
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-142-0	01	1	0302-
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-146-0	01	1	0302-
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-391-0	01	1	0302-
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C)	1-48629-392-0	01	1	0302-
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-49115-875-0	01	1	0302-
119	SWITCH; THERMO BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82450-054-0	01	1	0302-
124	CONNECTOR; FLEX HOSE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-393-0	01	1	0302-
130	BOLT; BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X25 FLANGE	0-28680-825-0	12	1	0302-0303
130	BOLT; BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M8X25 FLANGE	0-28680-825-0	04	1	0304-
130	BOLT; BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X14 HEX SOCKET	1-48629-145-0	01	1	0302-
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-137-0	01	1	0302-
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-138-0	01	1	0302-
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (E) M12X35 FLANGE	0-28791-235-0	08	1	0401-
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (F) M6X18	1-48629-134-0	05	1	0401-
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M10X20	1-48629-070-0	04	1	0302-
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-104-0	03	1	0302-
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M6X10 HEX SOCKET	1-48629-133-0	01	1	0302-
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D)	1-48629-148-0	04	1	0302-
141	BRACKET BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D)	1-48629-111-2	01	1	0302-
141	BRACKET BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-47479-683-0	02	1	0302-0303
141	BRACKET BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (E)	1-47479-803-0	02	1	0304-
141	BRACKET BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-47479-684-0	01	1	0302-0303
141	BRACKET BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C)	1-47479-685-0	01	1	0302-0303
142	SCREW BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M5X10 PAN-HD	9-93490-510-0	11	1	0302-
144	NUT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M12	9-09840-280-0	03	1	0302-
155	TUBE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) L=6000 OD=8	1-87411-008-0	01	1	0302-
155	TUBE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-092-0	01	1	0302-
165	LINK; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-140-0	01	1	0302-
165	LINK; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-141-0	01	1	0302-
166	ATTACHMENT; YOKE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-066-0	01	1	0302-
166	ATTACHMENT; YOKE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-067-0	01	1	0302-
167	STOPPER; LINKAGE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-069-0	02	1	0302-
167	STOPPER; LINKAGE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-217-0	02	1	0302-
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C)	1-48629-190-0	02	1	0302-
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-22119-542-1	01	1	0302-
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-22119-541-0	01	1	0302-0303
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D)	1-22119-547-1	01	1	0304-0407
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D)	1-22119-603-0	01	1	0408-
169	CLAMP BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-126-0	01	1	0302-0312
170	COVER; CASE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-063-0	01	1	0302-
170	COVER; CASE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-240-0	01	1	0302-
171	BREATHER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-144-0	01	1	0302-
174	BOLT; SWITCH BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6X10 HEX SOCKET	1-48629-133-0	02	1	0302-

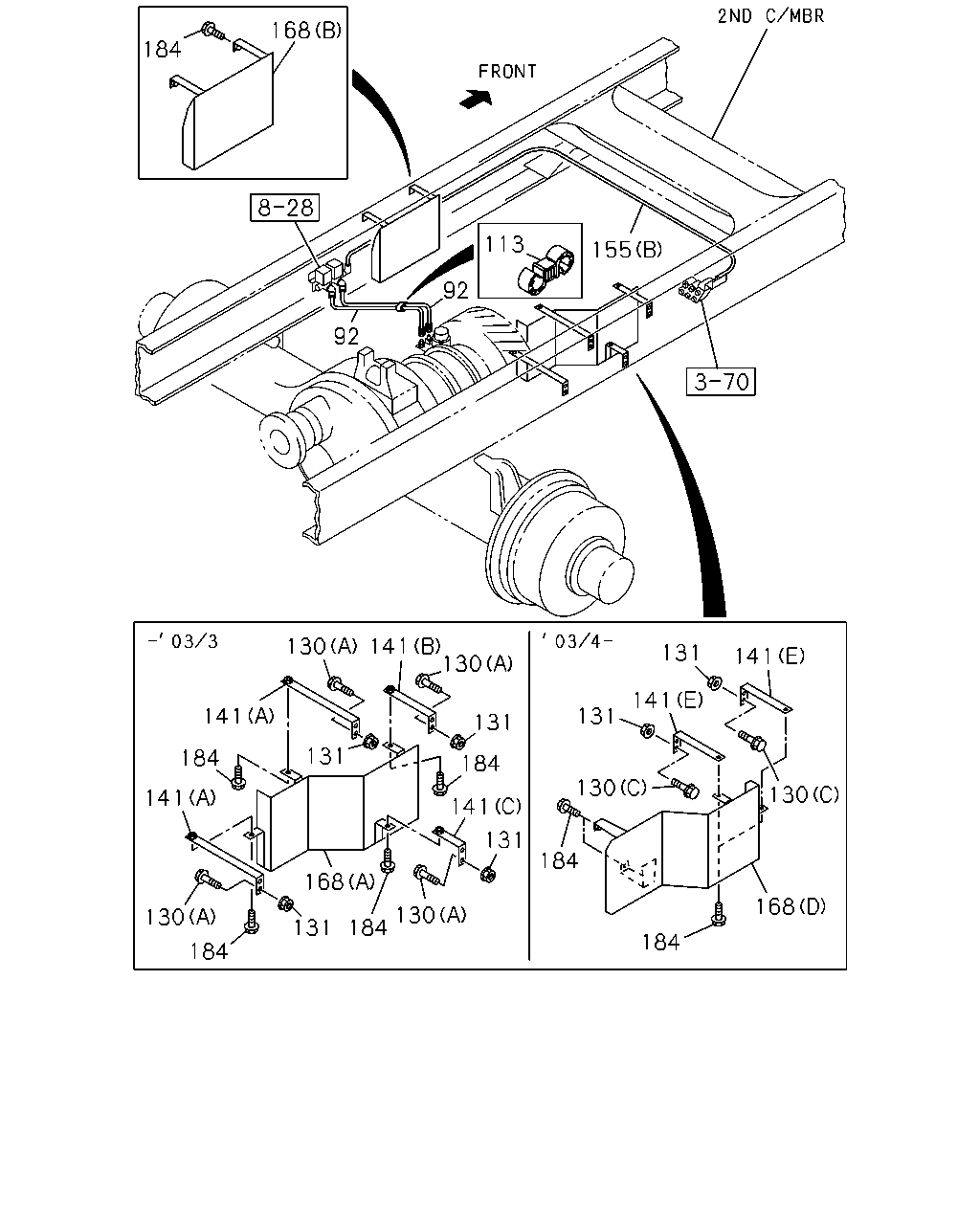

168 184 113 155 92 92 130 141 130 131 141 141 131 141 131 184 131 184 130 130 141 141 131 184 168 168 131 130 184 130 184 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
92	HOSE; FLEX,RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> L=390	1-09363-616-0	02	1	0302-
113	CLIP; HOSE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=10 & 10	1-09709-277-1	01	1	0302-
130	BOLT; BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X25 FLANGE	0-28680-825-0	12	1	0302-0303
130	BOLT; BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M8X25 FLANGE	0-28680-825-0	04	1	0304-
130	BOLT; BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X14 HEX SOCKET	1-48629-145-0	01	1	0302-
131	NUT; BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE	0-91150-108-0	08	1	0302-0303
131	NUT; BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE	0-91150-108-0	04	1	0304-
141	BRACKET BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D)	1-48629-111-2	01	1	0302-
141	BRACKET BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-47479-683-0	02	1	0302-0303
141	BRACKET BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (E)	1-47479-803-0	02	1	0304-
141	BRACKET BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-47479-684-0	01	1	0302-0303
141	BRACKET BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C)	1-47479-685-0	01	1	0302-0303
155	TUBE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) L=6000 OD=8	1-87411-008-0	01	1	0302-
155	TUBE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-092-0	01	1	0302-
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C)	1-48629-190-0	02	1	0302-
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-22119-542-1	01	1	0302-
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-22119-541-0	01	1	0302-0303
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D)	1-22119-547-1	01	1	0304-0407
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D)	1-22119-603-0	01	1	0408-
184	BOLT; HEAT PROTECTOR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X16 FLANGE	0-28080-816-0	04	1	0302-
184	BOLT; HEAT PROTECTOR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X25 FLANGE	0-28680-825-0	04	1	0302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
