3-05 — REAR WHEEL BRAKE (#25874) — 107 parça

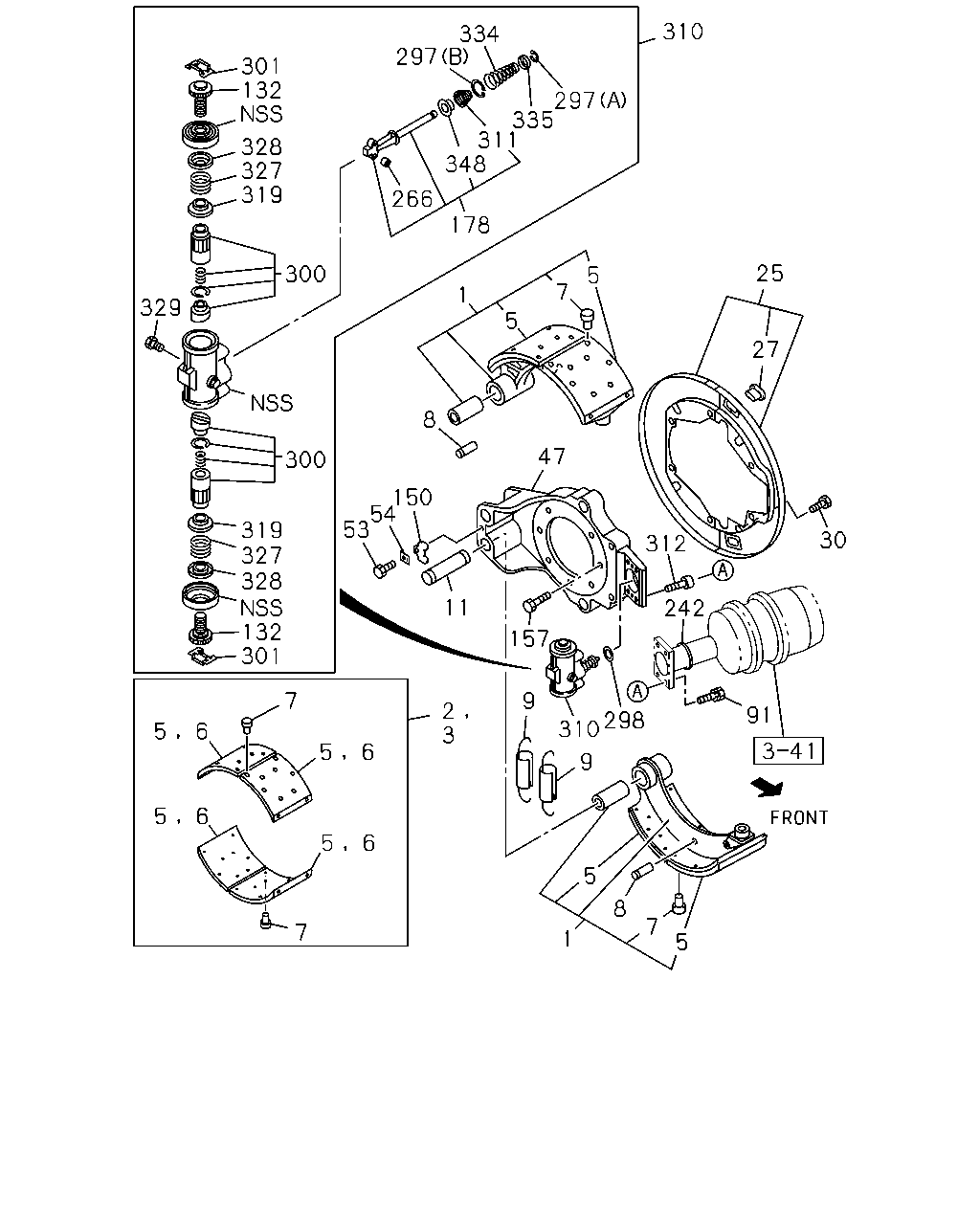

çizim 22220
301 132 328 327 319 300 329 300 319 327 328 132 301 5 6 7 6 6 5 7 6 5 2 3 11 150 54 53 8 1 5 7 5 25 27 30 312 242 157 310 298 9 5 8 7 5 1 47 266 178 348 311 335 297 310 334 297 91 9 5
BalonParca AdiParca NoAdetTipApplied Date
1 SHOE; BRK,RR
LEADING 		1-47170-252-0 02 1 0302-
1 SHOE; BRK,RR
LEADING 		1-47170-252-0 02 1 0302-
1 SHOE; BRK,RR
TRAILING 		1-47170-253-0 02 1 0302-
1 SHOE; BRK,RR
TRAILING 		1-47170-253-0 02 1 0302-
2 LINING SET; RR BRK,STANDARD 1-88311-255-0 02 1 0302-
2 LINING SET; RR BRK,STANDARD 1-88311-255-0 02 1 0302-
3 LINING SET; RR BRK,OVER SIZE 1-88311-258-0 02 1 0302-
3 LINING SET; RR BRK,OVER SIZE 1-88311-258-0 02 1 0302-
5 LINING; RR BRK SHOE,STANDARD 1-47126-665-0 08 1 0302-
5 LINING; RR BRK SHOE,STANDARD 1-47126-665-0 08 1 0302-
6 LINING; RR BRK SHOE,OVER SIZE 1-47126-667-0 08 1 0302-
6 LINING; RR BRK SHOE,OVER SIZE 1-47126-667-0 08 1 0302-
7 RIVET; LINING,RR BRK
L=15.5 		1-09732-053-0 AR 1 0302-
7 RIVET; LINING,RR BRK
L=15.5 		1-09732-053-0 AR 1 0302-
8 PIN; RETURN SPRING,RR BRK SHOE 1-47119-159-0 04 1 0302-
8 PIN; RETURN SPRING,RR BRK SHOE 1-47119-159-0 04 1 0302-
9 SPRING; RETURN,BRK SHOE 1-09583-366-0 04 1 0302-
9 SPRING; RETURN,BRK SHOE 1-09583-366-0 04 1 0302-
11 PIN; ANCHOR,RR WHEEL BRK
L=138.5 		1-47131-045-0 04 1 0302-
11 PIN; ANCHOR,RR WHEEL BRK
L=138.5 		1-47131-045-0 04 1 0302-
25 COVER SET; RR BRK DRUM
FORWARD RH,REARWARD LH 		1-47151-806-0 01 1 0302-
25 COVER SET; RR BRK DRUM
FORWARD RH,REARWARD LH 		1-47151-806-0 01 1 0302-
25 COVER SET; RR BRK DRUM
FORWARD LH,REARWARD RH 		1-47151-807-0 01 1 0302-
25 COVER SET; RR BRK DRUM
FORWARD LH,REARWARD RH 		1-47151-807-0 01 1 0302-
27 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 0302-
27 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 0302-
30 BOLT; DRUM COVER
M10X12 		1-47159-187-0 12 1 0302-
30 BOLT; DRUM COVER
M10X12 		1-47159-187-0 12 1 0302-
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
FORWARD 		1-47137-472-0 02 1 0302-
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
REARWARD 		1-47137-448-0 01 1 0302-
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
REARWARD 		1-47137-449-0 01 1 0302-
53 BOLT; LOCK PLATE
M10X16 		0-20801-016-0 02 1 0302-0511
53 BOLT; LOCK PLATE
M10X16 		0-20801-016-0 02 1 0302-0511
53 BOLT; LOCK PLATE
M10X16 		0-20851-016-0 02 1 0512-
53 BOLT; LOCK PLATE
M10X16 		0-20851-016-0 02 1 0512-
54 WASHER; LK,ANCHOR PIN,RR BRK 1-47133-011-0 02 1 0302-
54 WASHER; LK,ANCHOR PIN,RR BRK 1-47133-011-0 02 1 0302-
91 BOLT; CHAMBER
M10X45 W/LK WASHER 		0-50051-045-0 08 1 0302-
91 BOLT; CHAMBER
M10X45 W/LK WASHER 		0-50051-045-0 08 1 0302-
132 SCREW; ADJ,RR BRK 1-47623-035-1 04 1 0302-
132 SCREW; ADJ,RR BRK 1-47623-035-1 04 1 0302-
150 PLATE; LK,ANCHOR PIN 1-47133-010-0 02 1 0302-
150 PLATE; LK,ANCHOR PIN 1-47133-010-0 02 1 0302-
157 BOLT; RR BRK SET
M14X50 		1-09040-066-0 02 1 0302-
157 BOLT; RR BRK SET
M14X50 		1-09040-066-0 02 1 0302-
178 WEDGE; RR WHEEL CYL 1-47640-012-0 02 1 0302-
178 WEDGE; RR WHEEL CYL 1-47640-012-0 02 1 0302-
242 SEAL 1-47159-186-0 04 1 0302-
242 SEAL 1-47159-186-0 04 1 0302-
266 ROLLER; WEDGE 1-47643-007-0 04 1 0302-
266 ROLLER; WEDGE 1-47643-007-0 04 1 0302-
297 RING; SNAP
(A) 		1-47649-031-0 02 1 0302-
297 RING; SNAP
(A) 		1-47649-031-0 02 1 0302-
297 RING; SNAP
(B) 		1-47649-034-1 02 1 0302-
297 RING; SNAP
(B) 		1-47649-034-1 02 1 0302-
298 GASKET 1-48259-231-0 02 1 0302-
298 GASKET 1-48259-231-0 02 1 0302-
300 SLEEVE 1-47629-247-0 04 1 0302-
300 SLEEVE 1-47629-247-0 04 1 0302-
301 CLIP; ANTI LOTATION 1-47621-017-0 04 1 0302-
301 CLIP; ANTI LOTATION 1-47621-017-0 04 1 0302-
310 EXPANDER 1-47601-087-0 02 1 0302-
310 EXPANDER 1-47601-087-0 02 1 0302-
311 BOOT; WEDGE 1-47649-042-0 02 1 0302-
311 BOOT; WEDGE 1-47649-042-0 02 1 0302-
312 BOLT; EXPANDER 1-47634-008-0 04 1 0302-
312 BOLT; EXPANDER 1-47634-008-0 04 1 0302-
319 RING; DRIVE 1-47629-200-0 04 1 0302-
319 RING; DRIVE 1-47629-200-0 04 1 0302-
327 SPRING; ADJ 1-47629-196-0 04 1 0302-
327 SPRING; ADJ 1-47629-196-0 04 1 0302-
328 CAGE; SPRING 1-47629-192-0 04 1 0302-
328 CAGE; SPRING 1-47629-192-0 04 1 0302-
329 SCREW; LOCATING 1-47619-149-1 04 1 0302-
329 SCREW; LOCATING 1-47619-149-1 04 1 0302-
334 SPRING; ROD 1-47649-041-0 02 1 0302-
334 SPRING; ROD 1-47649-041-0 02 1 0302-
335 RETAINER; SPRING 1-47649-020-0 02 1 0302-
335 RETAINER; SPRING 1-47649-020-0 02 1 0302-
348 CAP; EXPANDER 1-47649-044-0 02 1 0302-
348 CAP; EXPANDER 1-47649-044-0 02 1 0302-
çizim 80290
346 301 328 327 319 334 297 297 335 311 348 329 319 327 328 301 347 301 301
BalonParca AdiParca NoAdetTipApplied Date
297 RING; SNAP
(A) 		1-47649-031-0 02 1 0302-
297 RING; SNAP
(A) 		1-47649-031-0 02 1 0302-
297 RING; SNAP
(B) 		1-47649-034-1 02 1 0302-
297 RING; SNAP
(B) 		1-47649-034-1 02 1 0302-
301 CLIP; ANTI LOTATION 1-47621-017-0 04 1 0302-
301 CLIP; ANTI LOTATION 1-47621-017-0 04 1 0302-
311 BOOT; WEDGE 1-47649-042-0 02 1 0302-
311 BOOT; WEDGE 1-47649-042-0 02 1 0302-
319 RING; DRIVE 1-47629-200-0 04 1 0302-
319 RING; DRIVE 1-47629-200-0 04 1 0302-
327 SPRING; ADJ 1-47629-196-0 04 1 0302-
327 SPRING; ADJ 1-47629-196-0 04 1 0302-
328 CAGE; SPRING 1-47629-192-0 04 1 0302-
328 CAGE; SPRING 1-47629-192-0 04 1 0302-
329 SCREW; LOCATING 1-47619-149-1 04 1 0302-
329 SCREW; LOCATING 1-47619-149-1 04 1 0302-
334 SPRING; ROD 1-47649-041-0 02 1 0302-
334 SPRING; ROD 1-47649-041-0 02 1 0302-
335 RETAINER; SPRING 1-47649-020-0 02 1 0302-
335 RETAINER; SPRING 1-47649-020-0 02 1 0302-
346 REPAIR KIT; EXPANDER 1-85576-403-0 02 1 0302-
346 REPAIR KIT; EXPANDER 1-85576-403-0 02 1 0302-
347 REPAIR KIT; BOOT,EXPANDER 1-85576-404-0 02 1 0302-
347 REPAIR KIT; BOOT,EXPANDER 1-85576-404-0 02 1 0302-
348 CAP; EXPANDER 1-47649-044-0 02 1 0302-
348 CAP; EXPANDER 1-47649-044-0 02 1 0302-
