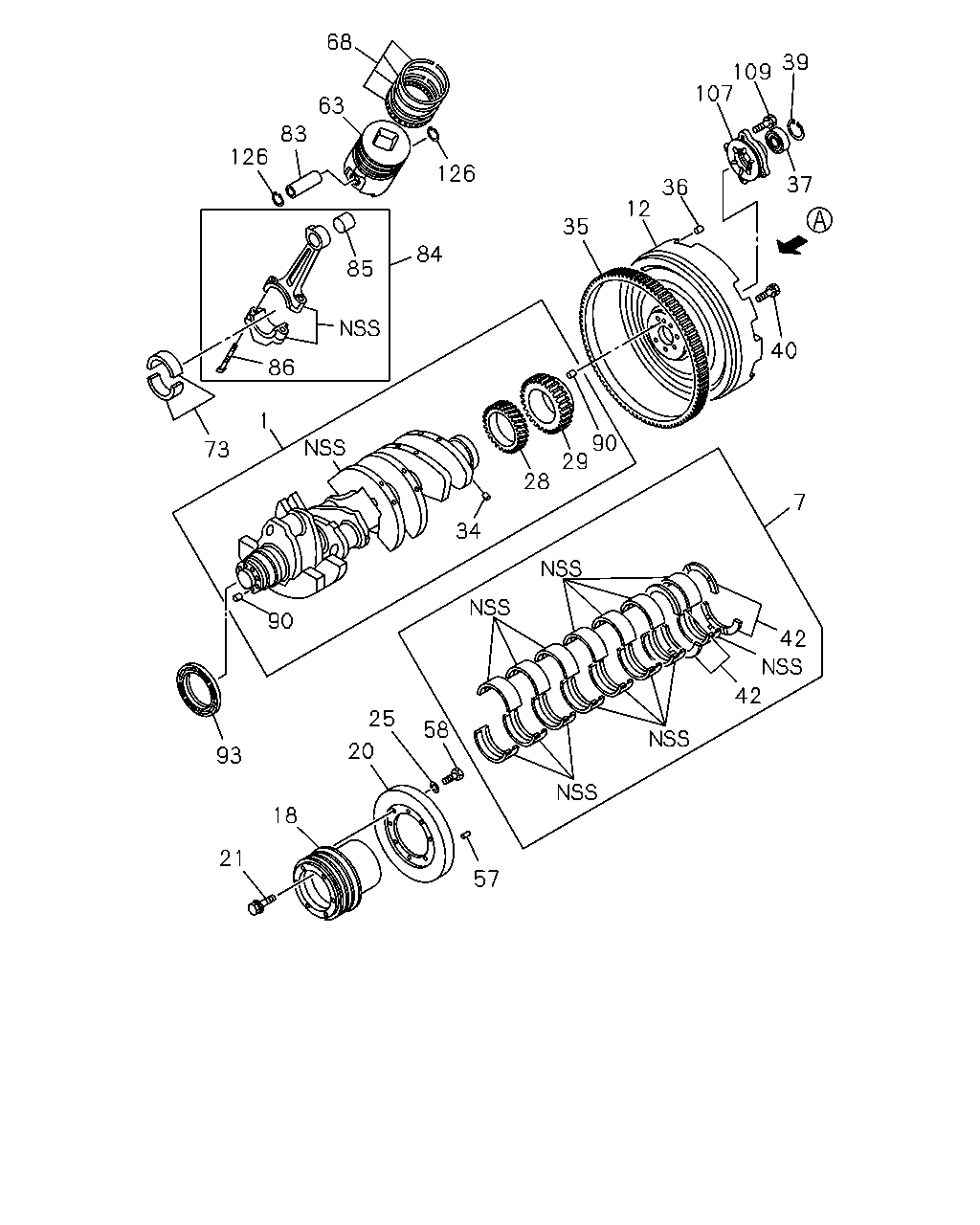

0-15B — CRANKSHAFT,PISTON AND FLYWHEEL (#2587) — 135 parça

68 126 63 83 126 84 85 86 73 90 34 28 29 33 90 35 12 36 107 109 39 37 40 7 42 42 58 57 25 20 18 21 93 33 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CRANKSHAFT ENGINE REAR PTO(SV1)	1-12310-574-4	01	1	9002-9302	●
1	CRANKSHAFT ENGINE REAR PTO(SV1)	1-12310-610-1	01	1	9303-	●
1	CRANKSHAFT EXC. ENGINE REAR PTO(SV1)	1-12310-541-4	01	1	9002-9302	●
1	CRANKSHAFT EXC. ENGINE REAR PTO(SV1)	1-12310-609-1	01	1	9303-	●
1	CRANKSHAFT ENGINE REAR PTO(SV1)	1-12310-608-1	01	1	9307-		●
1	CRANKSHAFT EXC. ENGINE REAR PTO(SV1)	1-12310-607-1	01	1	9307-		●
7	METAL KIT; CRANKSHAFT,STANDARD	1-11510-068-0	01	1	9002-9405	●
7	METAL KIT; CRANKSHAFT,STANDARD	1-11510-088-0	01	1	9406-9601	●
7	METAL KIT; CRANKSHAFT,STANDARD	1-11510-096-0	01	1	9602-	●
7	METAL KIT; CRANKSHAFT,STANDARD	1-11510-078-0	01	1	9307-9405		●
7	METAL KIT; CRANKSHAFT,STANDARD	1-11510-089-0	01	1	9406-9601		●
7	METAL KIT; CRANKSHAFT,STANDARD	1-11510-097-0	01	1	9602-		●
12	FLYWHEEL 14INCH TWO PLATE SPICER CLUTCH(M07)	1-12331-138-1	01	1	9002-	●	●
12	FLYWHEEL EXC. 14INCH TWO PLATE SPICER CLUTCH(M07)	1-12331-258-4	01	1	9002-	●	●
18	PULLEY; CR/SHF 3-GROOVE	1-12371-222-0	01	1	9002-	●	●
20	DAMPER; CR/SHF	1-12375-141-1	01	1	9002-	●
20	DAMPER; CR/SHF	1-12375-113-1	01	1	9307-		●
21	BOLT; PULLEY FIX M18X42 W/WASHER	1-12334-016-2	06	1	9002-	●	●
25	WASHER; DAMPER ID=12.5	9-09851-682-0	08	1	9002-	●	●
28	GEAR; CR/SHF Z=48	1-12521-012-1	01	1	9002-	●	●
29	GEAR; CR/SHF,PTO ENGINE REAR PTO(SV1) Z=34	1-38261-016-0	01	1	9002-	●	●
33	RING; WEAR,CR/SHF	1-12315-018-0	02	1	9002-9302	●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	9002-	●	●
35	GEAR; RING 14INCH TWO PLATE SPICER CLUTCH(M07)	1-12333-001-2	01	1	9002-9011	●
35	GEAR; RING EXC. 14INCH TWO PLATE SPICER CLUTCH(M07) Z=164	1-12333-019-0	01	1	9002-9011	●
35	GEAR; RING Z=164	1-12333-019-0	01	1	9012-	●	●
36	PIN; FLYWHEEL	9-08151-020-0	02	1	9002-9009	●
36	PIN; FLYWHEEL OD=10 L=22	9-08151-022-0	02	1	9010-	●	●
37	BEARING; PILOT,TOP GEAR SHAFT	1-09800-200-0	01	1	9002-	●	●
39	RING; SNAP,BRG OD=76.5	9-09180-172-0	01	1	9002-	●	●
40	BOLT; FLYWHEEL M18X60 W/PL WASHER	1-12334-012-3	08	1	9002-	●	●
42	WASHER; THRUST,CR/SHF	1-11515-041-0	02	1	9002-	●	●
57	PIN; PULLEY OD=8 L=16	9-08150-816-0	01	1	9002-	●	●
58	BOLT; CR/SHF PULLEY	9-02361-220-0	08	1	9002-	●	●
63	PISTON ALSO INCLUDED IN LINER SET.	1-12111-444-1	10	1	9002-9306	●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	1-12111-804-0	10	1	9307-9410	●
63	PISTON ALSO INCLUDED IN LINER SET. EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> GRADE=AX	1-12111-804-0	10	1	9411-	●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	1-12111-805-0	10	1	9307-9410	●
63	PISTON ALSO INCLUDED IN LINER SET. EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> GRADE=CX	1-12111-805-0	10	1	9411-	●
63	PISTON ALSO INCLUDED IN LINER SET. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> GRADE=AX	1-12111-806-0	10	1	9411-	●
63	PISTON ALSO INCLUDED IN LINER SET. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> GRADE=CX	1-12111-807-0	10	1	9411-	●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	1-12111-804-0	08	1	9307-		●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	1-12111-805-0	08	1	9307-		●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	1-12121-063-2	10	1	9002-	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	1-12121-063-2	08	1	9307-		●
73	METAL SET; CONN ROD,STANDARD	1-12271-043-0	10	1	9002-9405	●
73	METAL SET; CONN ROD,STANDARD	1-12271-067-0	10	1	9406-	●
73	METAL SET; CONN ROD,STANDARD	1-12271-043-0	08	1	9307-9405		●
73	METAL SET; CONN ROD,STANDARD	1-12271-067-0	08	1	9406-		●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	1-12211-016-2	10	1	9002-	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	1-12211-016-2	08	1	9307-		●
84	ROD ASM; CONN	1-12230-138-4	10	1	9002-	●
84	ROD ASM; CONN	1-12230-138-4	08	1	9307-		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-033-0	10	1	9002-	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-033-0	08	1	9307-		●
86	BOLT; CONNROD	1-12235-034-2	20	1	9002-	●
86	BOLT; CONNROD	1-12235-034-2	16	1	9307-		●
90	PIN; FLYWHEEL & PULLEY OD=8 L=16	9-08150-816-0	02	1	9002-	●	●
93	THROWER; OIL,CR/SHF	1-12319-017-0	01	1	9303-	●	●
107	RETAINER; BRG	1-12338-006-0	01	1	9002-	●	●
109	BOLT; RET M10X20	0-28121-020-0	04	1	9002-9002	●
109	BOLT; RET M10X20 FLANGE	0-28181-020-0	04	1	9003-	●	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-065-0	20	1	9002-	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-065-0	16	1	9307-		●

117 117 116 12 19 127

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	FLYWHEEL 14INCH TWO PLATE SPICER CLUTCH(M07)	1-12331-138-1	01	1	9002-	●	●
12	FLYWHEEL EXC. 14INCH TWO PLATE SPICER CLUTCH(M07)	1-12331-258-4	01	1	9002-	●	●
19	POINTER; TIMING	1-11779-035-2	01	1	9002-	●
19	POINTER; TIMING	1-11779-029-0	01	1	9307-		●
116	PIN; DRIVE 14INCH TWO PLATE SPICER CLUTCH(M07)	1-09749-026-0	06	1	9002-	●
116	PIN; DRIVE 14INCH TWO PLATE SPICER CLUTCH(M07)	1-09749-026-0	01	1	9307-		●
117	SCREW; DRIVE PIN 14INCH TWO PLATE SPICER CLUTCH(M07)	1-09187-005-0	12	1	9002-	●	●
127	BOLT; POINTER	0-10811-045-0	01	1	9307-		●

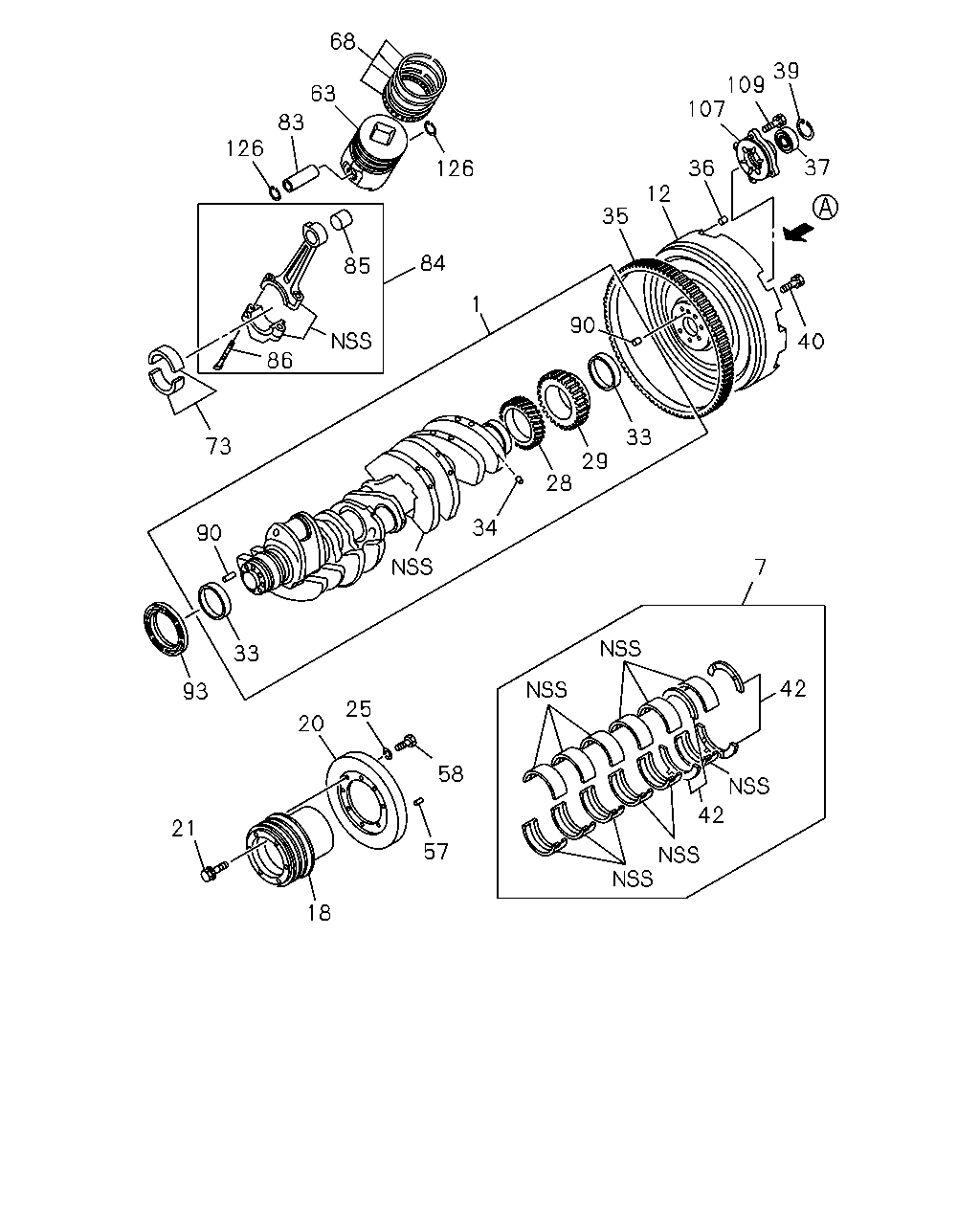

68 63 126 83 126 85 84 86 73 1 35 12 36 107 109 39 37 40 7 42 90 29 28 34 90 93 25 58 20 18 21 57 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CRANKSHAFT ENGINE REAR PTO(SV1)	1-12310-574-4	01	1	9002-9302	●
1	CRANKSHAFT ENGINE REAR PTO(SV1)	1-12310-610-1	01	1	9303-	●
1	CRANKSHAFT EXC. ENGINE REAR PTO(SV1)	1-12310-541-4	01	1	9002-9302	●
1	CRANKSHAFT EXC. ENGINE REAR PTO(SV1)	1-12310-609-1	01	1	9303-	●
1	CRANKSHAFT ENGINE REAR PTO(SV1)	1-12310-608-1	01	1	9307-		●
1	CRANKSHAFT EXC. ENGINE REAR PTO(SV1)	1-12310-607-1	01	1	9307-		●
7	METAL KIT; CRANKSHAFT,STANDARD	1-11510-068-0	01	1	9002-9405	●
7	METAL KIT; CRANKSHAFT,STANDARD	1-11510-088-0	01	1	9406-9601	●
7	METAL KIT; CRANKSHAFT,STANDARD	1-11510-096-0	01	1	9602-	●
7	METAL KIT; CRANKSHAFT,STANDARD	1-11510-078-0	01	1	9307-9405		●
7	METAL KIT; CRANKSHAFT,STANDARD	1-11510-089-0	01	1	9406-9601		●
7	METAL KIT; CRANKSHAFT,STANDARD	1-11510-097-0	01	1	9602-		●
12	FLYWHEEL 14INCH TWO PLATE SPICER CLUTCH(M07)	1-12331-138-1	01	1	9002-	●	●
12	FLYWHEEL EXC. 14INCH TWO PLATE SPICER CLUTCH(M07)	1-12331-258-4	01	1	9002-	●	●
18	PULLEY; CR/SHF 3-GROOVE	1-12371-222-0	01	1	9002-	●	●
20	DAMPER; CR/SHF	1-12375-141-1	01	1	9002-	●
20	DAMPER; CR/SHF	1-12375-113-1	01	1	9307-		●
21	BOLT; PULLEY FIX M18X42 W/WASHER	1-12334-016-2	06	1	9002-	●	●
25	WASHER; DAMPER ID=12.5	9-09851-682-0	08	1	9002-	●	●
28	GEAR; CR/SHF Z=48	1-12521-012-1	01	1	9002-	●	●
29	GEAR; CR/SHF,PTO ENGINE REAR PTO(SV1) Z=34	1-38261-016-0	01	1	9002-	●	●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	9002-	●	●
35	GEAR; RING 14INCH TWO PLATE SPICER CLUTCH(M07)	1-12333-001-2	01	1	9002-9011	●
35	GEAR; RING EXC. 14INCH TWO PLATE SPICER CLUTCH(M07) Z=164	1-12333-019-0	01	1	9002-9011	●
35	GEAR; RING Z=164	1-12333-019-0	01	1	9012-	●	●
36	PIN; FLYWHEEL	9-08151-020-0	02	1	9002-9009	●
36	PIN; FLYWHEEL OD=10 L=22	9-08151-022-0	02	1	9010-	●	●
37	BEARING; PILOT,TOP GEAR SHAFT	1-09800-200-0	01	1	9002-	●	●
39	RING; SNAP,BRG OD=76.5	9-09180-172-0	01	1	9002-	●	●
40	BOLT; FLYWHEEL M18X60 W/PL WASHER	1-12334-012-3	08	1	9002-	●	●
42	WASHER; THRUST,CR/SHF	1-11515-041-0	02	1	9002-	●	●
57	PIN; PULLEY OD=8 L=16	9-08150-816-0	01	1	9002-	●	●
58	BOLT; CR/SHF PULLEY	9-02361-220-0	08	1	9002-	●	●
63	PISTON ALSO INCLUDED IN LINER SET.	1-12111-444-1	10	1	9002-9306	●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	1-12111-804-0	10	1	9307-9410	●
63	PISTON ALSO INCLUDED IN LINER SET. EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> GRADE=AX	1-12111-804-0	10	1	9411-	●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	1-12111-805-0	10	1	9307-9410	●
63	PISTON ALSO INCLUDED IN LINER SET. EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> GRADE=CX	1-12111-805-0	10	1	9411-	●
63	PISTON ALSO INCLUDED IN LINER SET. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> GRADE=AX	1-12111-806-0	10	1	9411-	●
63	PISTON ALSO INCLUDED IN LINER SET. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> GRADE=CX	1-12111-807-0	10	1	9411-	●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	1-12111-804-0	08	1	9307-		●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	1-12111-805-0	08	1	9307-		●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	1-12121-063-2	10	1	9002-	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	1-12121-063-2	08	1	9307-		●
73	METAL SET; CONN ROD,STANDARD	1-12271-043-0	10	1	9002-9405	●
73	METAL SET; CONN ROD,STANDARD	1-12271-067-0	10	1	9406-	●
73	METAL SET; CONN ROD,STANDARD	1-12271-043-0	08	1	9307-9405		●
73	METAL SET; CONN ROD,STANDARD	1-12271-067-0	08	1	9406-		●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	1-12211-016-2	10	1	9002-	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	1-12211-016-2	08	1	9307-		●
84	ROD ASM; CONN	1-12230-138-4	10	1	9002-	●
84	ROD ASM; CONN	1-12230-138-4	08	1	9307-		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-033-0	10	1	9002-	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-033-0	08	1	9307-		●
86	BOLT; CONNROD	1-12235-034-2	20	1	9002-	●
86	BOLT; CONNROD	1-12235-034-2	16	1	9307-		●
90	PIN; FLYWHEEL & PULLEY OD=8 L=16	9-08150-816-0	02	1	9002-	●	●
93	THROWER; OIL,CR/SHF	1-12319-017-0	01	1	9303-	●	●
107	RETAINER; BRG	1-12338-006-0	01	1	9002-	●	●
109	BOLT; RET M10X20	0-28121-020-0	04	1	9002-9002	●
109	BOLT; RET M10X20 FLANGE	0-28181-020-0	04	1	9003-	●	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-065-0	20	1	9002-	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-065-0	16	1	9307-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
