2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#25869) — 146 parça

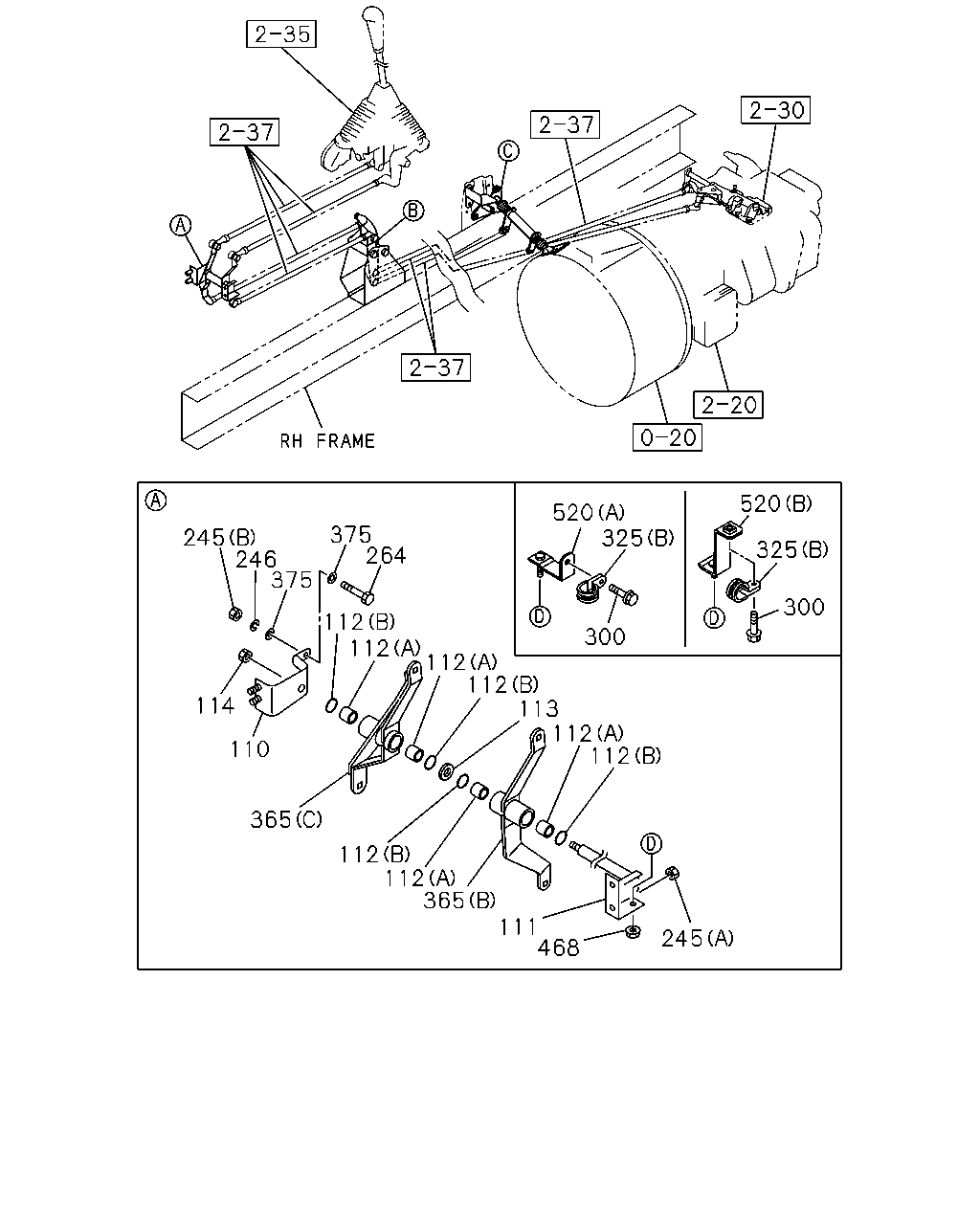

çizim 81346
520 520 35 375 264 245 246 375 325 300 112 112 300 112 112 113 112 112 114 110 365 112 112 365 111 468 245
BalonParca AdiParca NoAdetTipApplied Date
35 RING; SNAP,RELAY LEVER
OD=34.4 		9-09180-132-0 01 1 0302-
110 BRACKET; RELAY LEVER,1ST 1-33657-598-0 01 1 0302-
111 SHAFT; RELAY LEVER,1ST 1-33619-468-1 01 1 0302-
112 BUSHING; RELAY LEVER
(A) 		1-09330-119-0 04 1 0302-
112 BUSHING; RELAY LEVER
(B) 		1-09623-594-0 04 1 0302-
113 WASHER; RELAY LEVER
ID=17 		9-09160-516-0 01 1 0302-
114 NUT; RELAY LEVER
M10 FLANGE 		0-91150-110-0 01 1 0302-
245 NUT; BRKT,RELAY LEVER
(A) M10 FLANGE 		0-91150-210-0 02 1 0302-
245 NUT; BRKT,RELAY LEVER
(B) M10 		1-09984-142-0 01 1 0302-
246 WASHER; LK,BRKT,RELAY LEVER
ID=10 		1-09985-185-0 01 1 0302-
264 BOLT; BRKT,RELAY LEVER
M10X105 		1-79198-008-1 01 1 0302-
300 BOLT; CLIP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0302-
325 CLIP; NYLON TUBE
(A) ID=9.5 		5-09709-020-0 06 1 0302-
325 CLIP; NYLON TUBE
(B) ID=19 L=28 		9-09525-856-0 01 1 0302-
365 LEVER; RELAY,SELECT
(A) 		1-33651-771-1 01 1 0302-
365 LEVER; RELAY,SELECT
(C) 		1-33651-790-1 01 1 0302-
365 LEVER; RELAY,SELECT
(B) 		1-33651-805-1 01 1 0302-
375 WASHER; PL,BRKT,RELAY LEVER
ID=10.5 OD=26 T=2.6 		1-09985-184-0 02 1 0302-
468 NUT; BRKT
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 01 1 0302-
468 NUT; BRKT
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 02 1 0302-
520 BRACKET; NYLON TUBE
(A) 		1-79996-545-0 01 1 0302-0304
520 BRACKET; NYLON TUBE
(B) 		1-79996-628-0 01 1 0305-

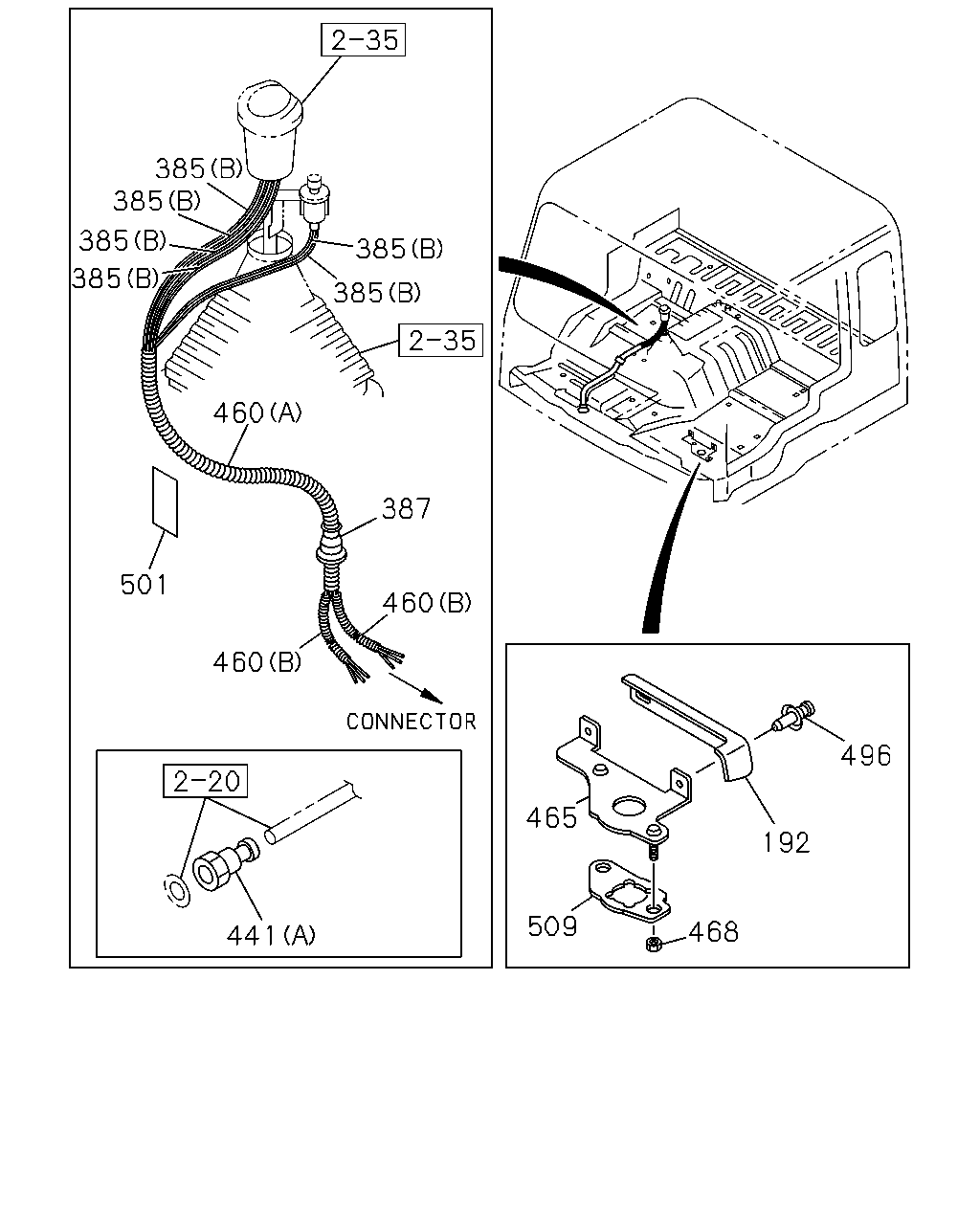

çizim 81529
385 385 385 385 385 385 460 387 501 460 460 496 465 192 509 468 441
BalonParca AdiParca NoAdetTipApplied Date
192 COVER 1-79907-090-0 01 1 0302-
385 TUBE; NYLON
(B) L=1810 SERVICED BY L=5800 RED 		1-33619-362-0 01 1 0302-0304
385 TUBE; NYLON
(B) L=1760 SERVICED BY L=5800 RED 		1-33619-362-0 01 1 0305-
385 TUBE; NYLON
(A) L=3130 SERVICED BY L=5800 RED 		1-33619-362-0 01 1 0302-
385 TUBE; NYLON
(B) L=1810 SERVICED BY L=5800 BLACK 		1-33619-371-0 01 1 0302-0304
385 TUBE; NYLON
(B) L=1760 SERVICED BY L=5800 BLACK 		1-33619-371-0 01 1 0305-
385 TUBE; NYLON
(A) L=3220 SERVICED BY L=5800 BLACK 		1-33619-371-0 01 1 0302-
385 TUBE; NYLON
(B) L=1810 SERVICED BY L=6350 BLUE 		1-33619-380-0 01 1 0302-0304
385 TUBE; NYLON
(B) L=1760 SERVICED BY L=6350 BLUE 		1-33619-380-0 01 1 0305-
385 TUBE; NYLON
(A) L=3650 SERVICED BY L=6350 BLUE 		1-33619-380-0 01 1 0302-
385 TUBE; NYLON
(B) L=1810 SERVICED BY L=5800 GREEN 		1-33619-389-0 01 1 0302-0304
385 TUBE; NYLON
(B) L=1760 SERVICED BY L=5800 GREEN 		1-33619-389-0 01 1 0305-
385 TUBE; NYLON
(A) L=3235 SERVICED BY L=5800 GREEN 		1-33619-389-0 01 1 0302-
385 TUBE; NYLON
(A) L=2750 SERVICED BY L=5250 YELLOW 		1-33619-392-0 01 1 0302-
385 TUBE; NYLON
(A) L=3650 SERVICED BY L=6350 BLUE 		1-33619-380-0 01 1 0304-
385 TUBE; NYLON
(B) L=1810 SERVICED BY L=5250 YELLOW 		1-33619-392-0 01 1 0302-0304
385 TUBE; NYLON
(B) L=1760 SERVICED BY L=5250 YELLOW 		1-33619-392-0 01 1 0305-
385 TUBE; NYLON
(A) L=3235 SERVICED BY L=5800 GREEN 		1-33619-389-0 01 1 0304-
385 TUBE; NYLON
(A) L=3450 SERVICED BY L=6250 ORANGE 		1-33619-400-0 01 1 0302-
385 TUBE; NYLON
(A) L=3130 SERVICED BY L=5800 RED 		1-33619-362-0 01 1 0304-
385 TUBE; NYLON
(B) L=1810 SERVICED BY L=6250 ORANGE 		1-33619-400-0 01 1 0302-0304
385 TUBE; NYLON
(B) L=1760 SERVICED BY L=6250 ORANGE 		1-33619-400-0 01 1 0305-
385 TUBE; NYLON
(A) L=3220 SERVICED BY L=5800 BLACK 		1-33619-371-0 01 1 0304-
387 GROMMET; CONT TUBE,FULLER 1-09332-135-0 01 1 0302-
441 CONNECTOR; NYLON TUBE
(A) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 0302-
441 CONNECTOR; NYLON TUBE
(B) 		1-09660-975-0 06 1 0302-
460 TUBE; CORRUGATE
(B) L=250,SERVICED BY L=800 		1-83129-031-1 02 1 0302-
460 TUBE; CORRUGATE
(D) L=150,SERVICED BY L=800 		1-83129-031-1 01 1 0302-
460 TUBE; CORRUGATE
(E) L=600,SERVICED BY L=800 		1-83129-031-1 01 1 0302-
460 TUBE; CORRUGATE
(F) SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 0302-
460 TUBE; CORRUGATE
(H) L=50,SERVICED BY L=800 		1-83129-031-1 01 1 0302-0303
460 TUBE; CORRUGATE
(H) SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 0304-
460 TUBE; CORRUGATE
(G) L=350 SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0302-0303
460 TUBE; CORRUGATE
(A) L=1240 SERVICED BY L=2000 ID=13 		1-87411-022-0 01 1 0302-0304
460 TUBE; CORRUGATE
(A) L=1190 SERVICED BY L=2000 ID=13 		1-87411-022-0 01 1 0305-
460 TUBE; CORRUGATE
(C) L=2500 SERVICED BY L=4000 ID=13 		1-87411-023-0 01 1 0302-
460 TUBE; CORRUGATE
(G) L=350 SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0304-
460 TUBE; CORRUGATE
(H) L=50,SERVICED BY L=800 		1-83129-031-1 01 1 0304-
465 BRACKET; CONNECTOR 1-47478-772-1 01 1 0302-
468 NUT; BRKT
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 01 1 0302-
468 NUT; BRKT
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 02 1 0302-
496 FASTENER
D8X13.5 		1-09987-248-1 02 1 0302-
501 SEAL; HARNESS PROTECTOR
100X40 		1-72498-022-0 04 1 0302-0503
501 SEAL; HARNESS PROTECTOR
180X40 		1-72498-019-0 04 1 0504-
509 SEAL; BRKT 1-47477-825-2 01 1 0302-0401
509 SEAL; BRKT 1-47479-978-0 01 1 0402-
çizim 81889
466 507 103 35 34 162 46 33 34 71 100 46 34 242 34 71
BalonParca AdiParca NoAdetTipApplied Date
33 BOLT; BRKT,3RD RELAY LEVER
M10X30 FLANGE 		0-28681-030-0 03 1 0302-
34 SEAT; BALL,RELAY LEVER 1-33659-165-0 04 1 0302-
35 RING; SNAP,RELAY LEVER
OD=34.4 		9-09180-132-0 01 1 0302-
46 SEAL; DUST,RELAY LEVER 1-33659-166-0 02 1 0302-0503
46 SEAL; DUST,RELAY LEVER 1-33659-248-0 02 1 0504-
71 BRACKET; 3RD RELAY LEVER,FRAME
(B) 		1-33657-481-0 01 1 0302-
71 BRACKET; 3RD RELAY LEVER,FRAME
(A) 		1-33657-706-0 01 1 0302-
100 SPRING
(B) 		1-09583-319-0 01 1 0302-
100 SPRING
(A) 		1-09583-351-0 01 1 0302-
103 NUT
M8 FLANGE 		0-91150-108-0 01 1 0302-
162 LEVER; RELAY 1-33651-625-1 01 1 0302-
242 NUT; FLANGE 3RD RELAY LEVER
M12 FLANGE 		0-91150-212-0 03 1 0302-
466 BOLT; FIX
M8X20 FLANGE 		0-28680-820-0 02 1 0302-
507 PROTECTOR; HEAT 1-14181-287-1 01 1 0302-

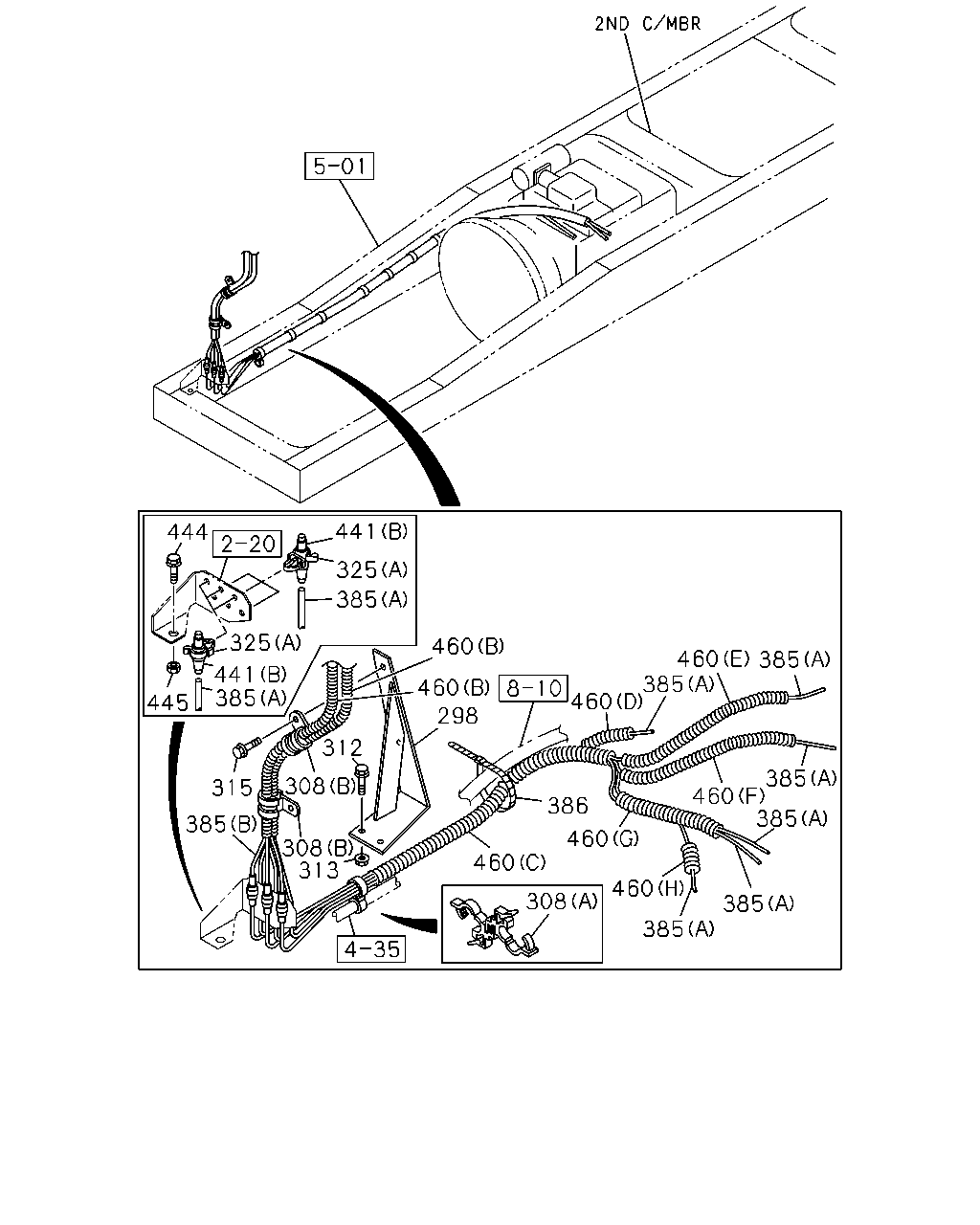

çizim 82082
441 444 325 385 325 460 385 460 441 385 460 445 298 312 385 460 385 308 315 386 385 460 308 313 460 460 308 385 385 460 385
BalonParca AdiParca NoAdetTipApplied Date
298 BRACKET 1-47479-645-0 01 1 0302-
308 CLIP; PIPE
(A) ID=12-16 & 12-16 		1-09709-191-0 01 1 0302-
308 CLIP; PIPE
(B) ID=19 L=28 		9-09525-856-0 02 1 0302-
312 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0302-
313 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 02 1 0302-
315 BOLT; PIPE CLIP
M8X25 FLANGE 		0-28680-825-0 02 1 0302-
325 CLIP; NYLON TUBE
(A) ID=9.5 		5-09709-020-0 06 1 0302-
325 CLIP; NYLON TUBE
(B) ID=19 L=28 		9-09525-856-0 01 1 0302-
385 TUBE; NYLON
(B) L=1810 SERVICED BY L=5800 RED 		1-33619-362-0 01 1 0302-0304
385 TUBE; NYLON
(B) L=1760 SERVICED BY L=5800 RED 		1-33619-362-0 01 1 0305-
385 TUBE; NYLON
(A) L=3130 SERVICED BY L=5800 RED 		1-33619-362-0 01 1 0302-
385 TUBE; NYLON
(B) L=1810 SERVICED BY L=5800 BLACK 		1-33619-371-0 01 1 0302-0304
385 TUBE; NYLON
(B) L=1760 SERVICED BY L=5800 BLACK 		1-33619-371-0 01 1 0305-
385 TUBE; NYLON
(A) L=3220 SERVICED BY L=5800 BLACK 		1-33619-371-0 01 1 0302-
385 TUBE; NYLON
(B) L=1810 SERVICED BY L=6350 BLUE 		1-33619-380-0 01 1 0302-0304
385 TUBE; NYLON
(B) L=1760 SERVICED BY L=6350 BLUE 		1-33619-380-0 01 1 0305-
385 TUBE; NYLON
(A) L=3650 SERVICED BY L=6350 BLUE 		1-33619-380-0 01 1 0302-
385 TUBE; NYLON
(B) L=1810 SERVICED BY L=5800 GREEN 		1-33619-389-0 01 1 0302-0304
385 TUBE; NYLON
(B) L=1760 SERVICED BY L=5800 GREEN 		1-33619-389-0 01 1 0305-
385 TUBE; NYLON
(A) L=3235 SERVICED BY L=5800 GREEN 		1-33619-389-0 01 1 0302-
385 TUBE; NYLON
(A) L=2750 SERVICED BY L=5250 YELLOW 		1-33619-392-0 01 1 0302-
385 TUBE; NYLON
(A) L=3650 SERVICED BY L=6350 BLUE 		1-33619-380-0 01 1 0304-
385 TUBE; NYLON
(B) L=1810 SERVICED BY L=5250 YELLOW 		1-33619-392-0 01 1 0302-0304
385 TUBE; NYLON
(B) L=1760 SERVICED BY L=5250 YELLOW 		1-33619-392-0 01 1 0305-
385 TUBE; NYLON
(A) L=3235 SERVICED BY L=5800 GREEN 		1-33619-389-0 01 1 0304-
385 TUBE; NYLON
(A) L=3450 SERVICED BY L=6250 ORANGE 		1-33619-400-0 01 1 0302-
385 TUBE; NYLON
(A) L=3130 SERVICED BY L=5800 RED 		1-33619-362-0 01 1 0304-
385 TUBE; NYLON
(B) L=1810 SERVICED BY L=6250 ORANGE 		1-33619-400-0 01 1 0302-0304
385 TUBE; NYLON
(B) L=1760 SERVICED BY L=6250 ORANGE 		1-33619-400-0 01 1 0305-
385 TUBE; NYLON
(A) L=3220 SERVICED BY L=5800 BLACK 		1-33619-371-0 01 1 0304-
386 CLIP; CONT CABLE & TUBE
L=250 		1-09707-126-0 08 1 0302-0304
386 CLIP; CONT CABLE & TUBE
L=350 		1-09707-183-0 08 1 0305-
441 CONNECTOR; NYLON TUBE
(A) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 0302-
441 CONNECTOR; NYLON TUBE
(B) 		1-09660-975-0 06 1 0302-
444 BOLT; BRKT,NIPPLE
M8X25 FLANGE 		0-28680-825-0 01 1 0302-
445 NUT; BRKT,NIPPLE
M8 FLANGE 		0-91150-108-0 01 1 0302-
460 TUBE; CORRUGATE
(B) L=250,SERVICED BY L=800 		1-83129-031-1 02 1 0302-
460 TUBE; CORRUGATE
(D) L=150,SERVICED BY L=800 		1-83129-031-1 01 1 0302-
460 TUBE; CORRUGATE
(E) L=600,SERVICED BY L=800 		1-83129-031-1 01 1 0302-
460 TUBE; CORRUGATE
(F) SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 0302-
460 TUBE; CORRUGATE
(H) L=50,SERVICED BY L=800 		1-83129-031-1 01 1 0302-0303
460 TUBE; CORRUGATE
(H) SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 0304-
460 TUBE; CORRUGATE
(G) L=350 SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0302-0303
460 TUBE; CORRUGATE
(A) L=1240 SERVICED BY L=2000 ID=13 		1-87411-022-0 01 1 0302-0304
460 TUBE; CORRUGATE
(A) L=1190 SERVICED BY L=2000 ID=13 		1-87411-022-0 01 1 0305-
460 TUBE; CORRUGATE
(C) L=2500 SERVICED BY L=4000 ID=13 		1-87411-023-0 01 1 0302-
460 TUBE; CORRUGATE
(G) L=350 SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0304-
460 TUBE; CORRUGATE
(H) L=50,SERVICED BY L=800 		1-83129-031-1 01 1 0304-
çizim 85004
457 118 88 365 118 457 268 457 118 88 115 118 457 100 16 253 253 254 458 283
BalonParca AdiParca NoAdetTipApplied Date
16 NUT; RELAY LEVER
M10 FLANGE 		0-91150-110-0 02 1 0302-
88 COLLAR; RELAY LEVER 1-33659-191-1 02 1 0302-
100 SPRING
(B) 		1-09583-319-0 01 1 0302-
100 SPRING
(A) 		1-09583-351-0 01 1 0302-
115 LEVER; RELAY,2ND SHIFT 1-33651-769-1 01 1 0302-
118 BUSHING; RELAY LEVER 1-09330-119-0 04 1 0302-
253 BOLT; BRKT,2ND RELAY LEVER
(A) M14X45 		0-20801-445-0 02 1 0302-
253 BOLT; BRKT,2ND RELAY LEVER
(B) M10X25 FLANGE 		0-28081-025-0 02 1 0302-
254 WASHER; LK,RELAY LEVER
ID=14.2 		9-09150-614-0 02 1 0302-
268 BRACKET; LINK ROD 1-33657-216-0 01 1 0302-
283 BOLT; RELAY LEVER
M10X110 		9-09801-316-1 02 1 0302-
365 LEVER; RELAY,SELECT
(A) 		1-33651-771-1 01 1 0302-
365 LEVER; RELAY,SELECT
(C) 		1-33651-790-1 01 1 0302-
365 LEVER; RELAY,SELECT
(B) 		1-33651-805-1 01 1 0302-
457 GASKET 1-09623-594-0 04 1 0302-
458 BRACKET; 2ND RELAY LEVER 1-33657-583-1 01 1 0302-
