2-20 — MANUAL TRANSMISSION ASM AND CASE (#25864) — 44 parça

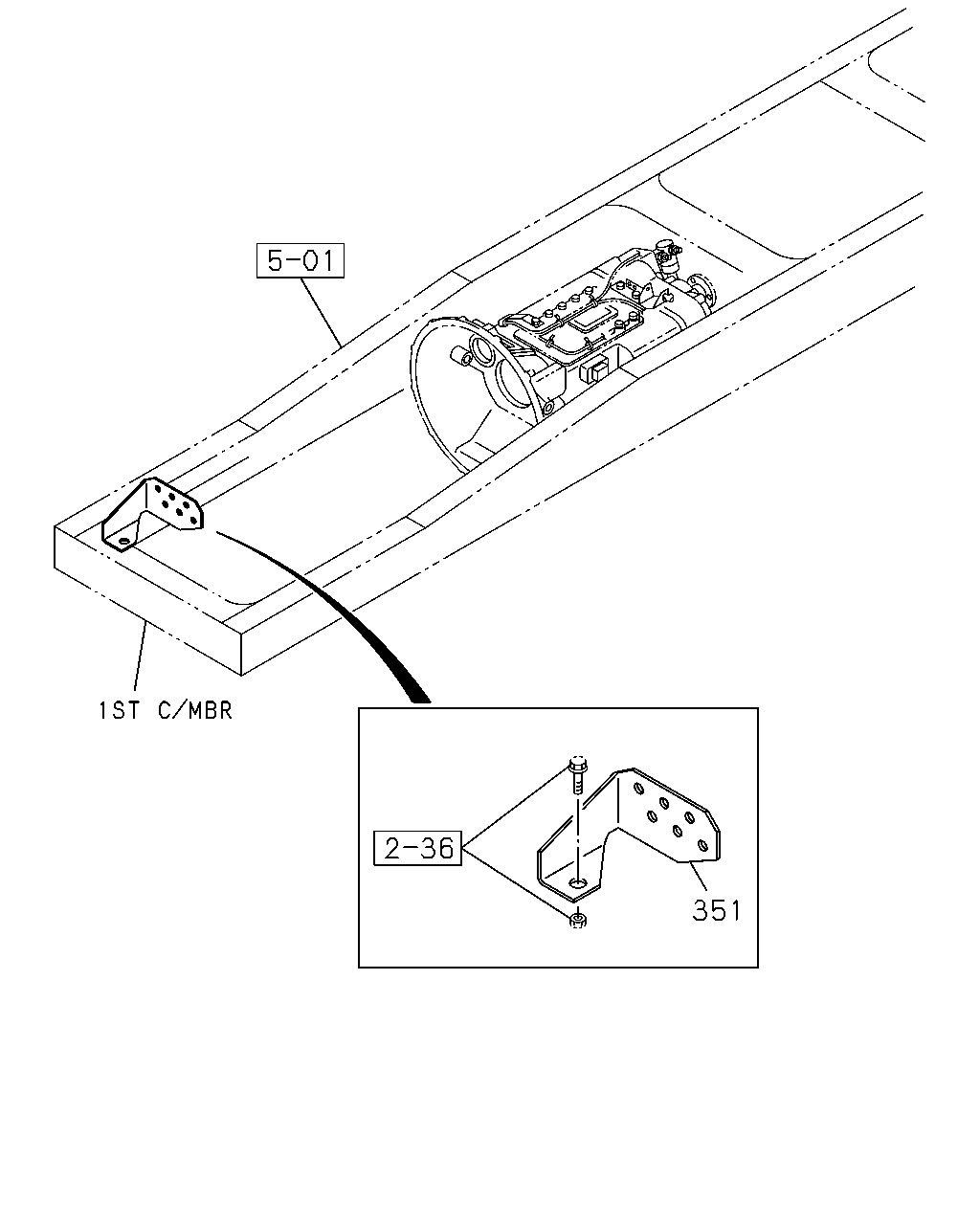

çizim 20989
351
BalonParca AdiParca NoAdetTipApplied Date
351 BRACKET; UNION,FLEX HOSE 1-47478-747-0 01 1 0302-

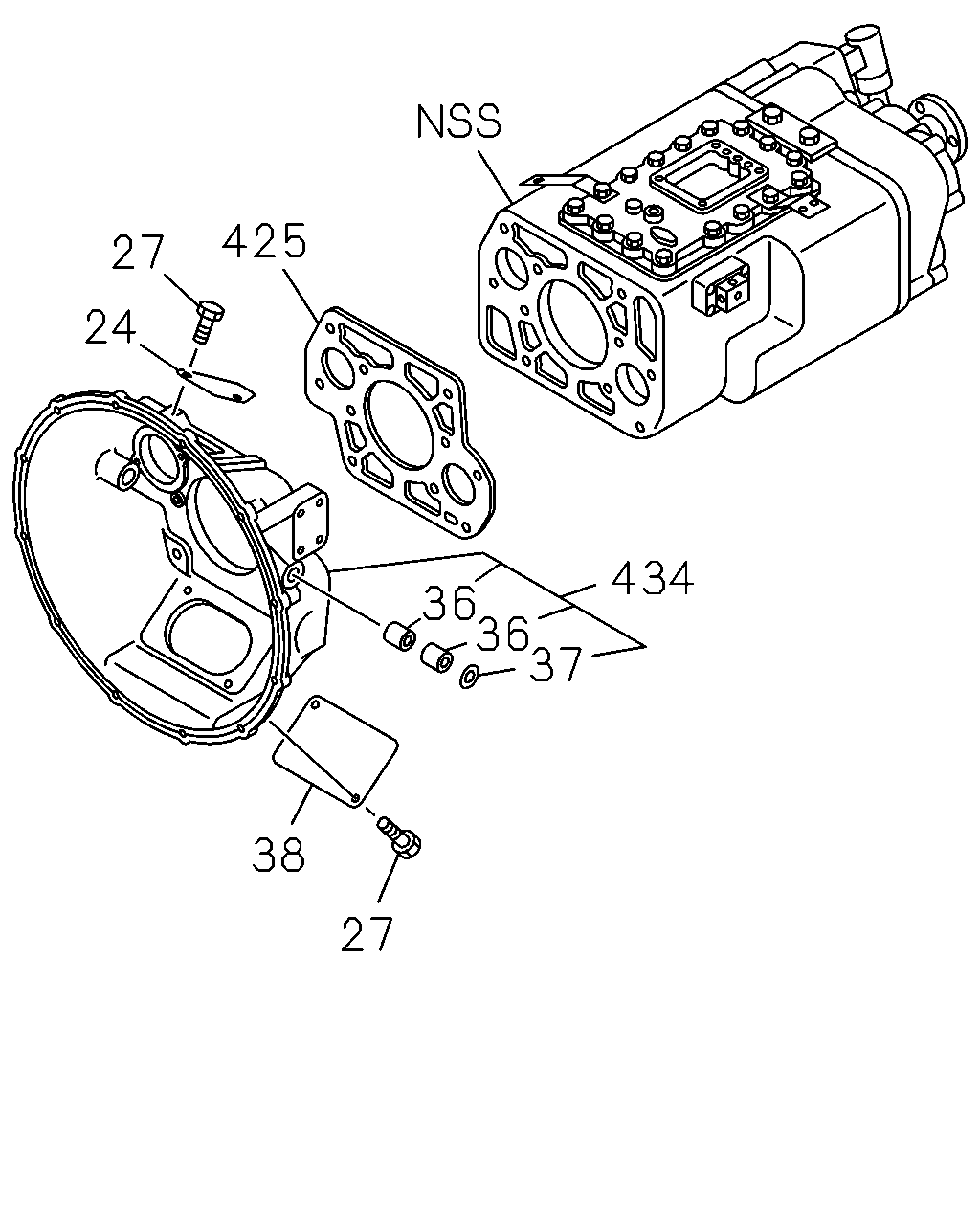

çizim 24791
425 27 24 434 36 36 37 38 27
BalonParca AdiParca NoAdetTipApplied Date
24 COVER; CHECK HOLE,DUST 1-31131-003-0 01 1 0302-
27 BOLT; COVER TO CLU HSG
M8X16 FLANGE 		0-28080-816-0 04 1 0302-
36 BEARING; NEEDLE,CLU HSG
NTN 		1-09811-181-0 04 1 0302-
37 SEAL; DUST,CLU HSG
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-215-0 02 1 0302-
38 COVER; CHECK HOLE,LWR 1-31131-044-1 01 1 0302-
425 GASKET; CLU HSG TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-31121-004-0 01 1 0302-0502
425 GASKET; CLU HSG TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-31121-011-0 01 1 0503-
434 HOUSING; CLU 1-31110-208-1 01 1 0302-0309
434 HOUSING; CLU 1-31110-209-0 01 1 0310-0412
434 HOUSING; CLU 1-31110-220-0 01 1 0501-

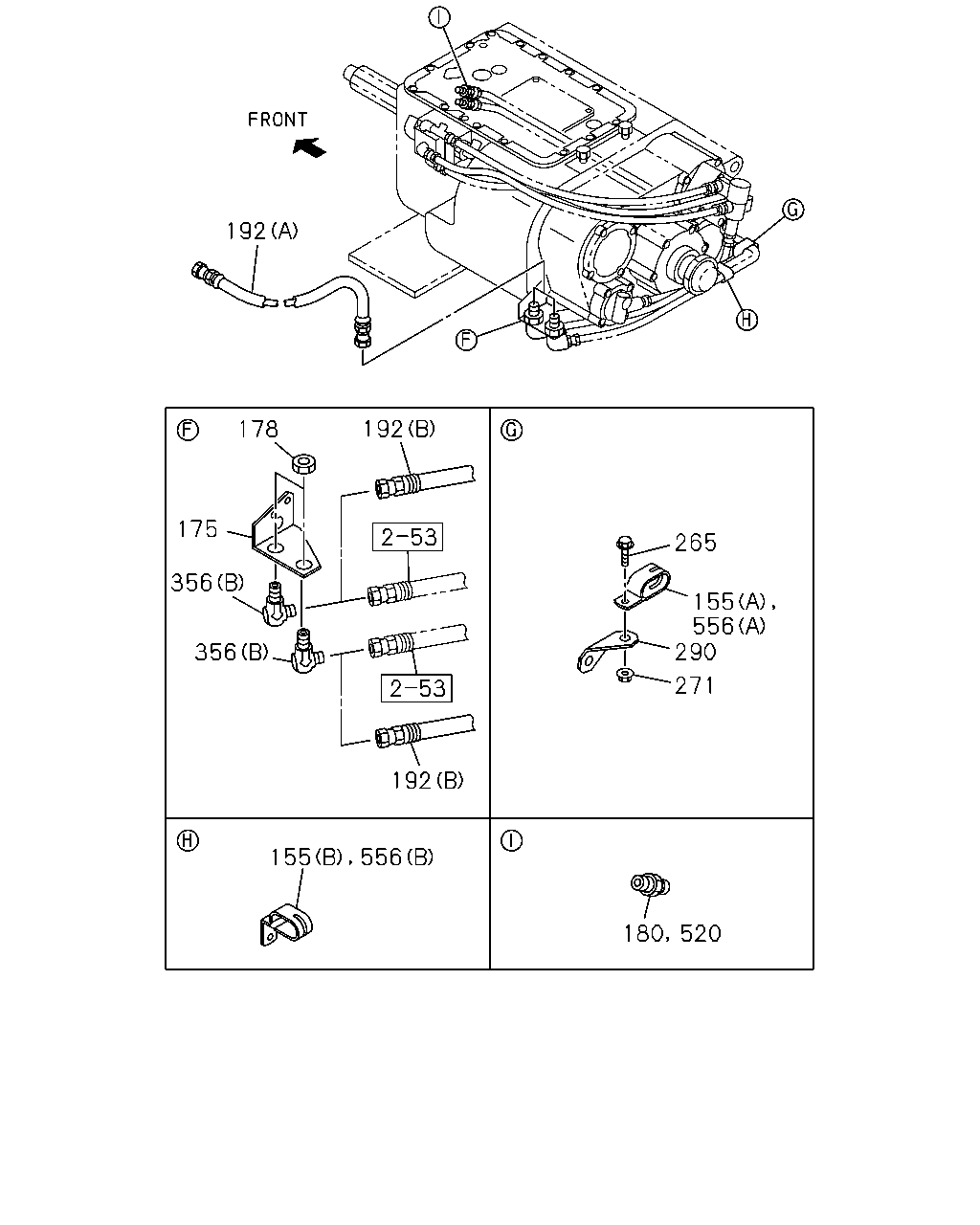

çizim 80122
192 192 178 175 265 356 155 556 290 356 271 192 180 520 155 556
BalonParca AdiParca NoAdetTipApplied Date
155 CLIP; HOSE
(A) ID=24X2 L=35 		1-09701-121-0 01 1 0302-0309
155 CLIP; HOSE
(B) 		8-97019-083-0 01 1 0302-0309
175 BRACKET; UNION 1-47478-084-0 01 1 0302-
178 NUT; UNION
M22 		9-09111-522-0 02 1 0302-
180 CONNECTOR; NYLON TUBE 1-09661-055-0 02 1 0310-
192 HOSE; FLEX,TRANS
(B) L=1120 		1-09365-010-0 02 1 0310-
192 HOSE; FLEX,TRANS
(A) L=460 		1-09365-008-0 01 1 0302-0304
192 HOSE; FLEX,TRANS
(A) L=400 		1-09365-279-0 01 1 0305-
192 HOSE; FLEX,TRANS
(A) L=520 		1-09365-009-0 01 1 0302-0304
192 HOSE; FLEX,TRANS
(A) L=450 		1-09365-280-0 01 1 0305-
265 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 0302-
271 NUT; CLIP
M8 FLANGE 		0-91150-208-0 01 1 0302-
290 BRACKET; CLIP 1-38329-074-0 01 1 0302-
356 UNION
(A) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0302-
356 UNION
(B) 		1-09664-020-1 02 1 0302-
520 CONNECTOR 1-09661-055-0 02 1 0302-0309
556 CLIP; OIL HOSE
(A) ID=24X2 L=35 		1-09701-121-0 01 1 0310-
556 CLIP; OIL HOSE
(B) 		8-97019-083-0 01 1 0310-

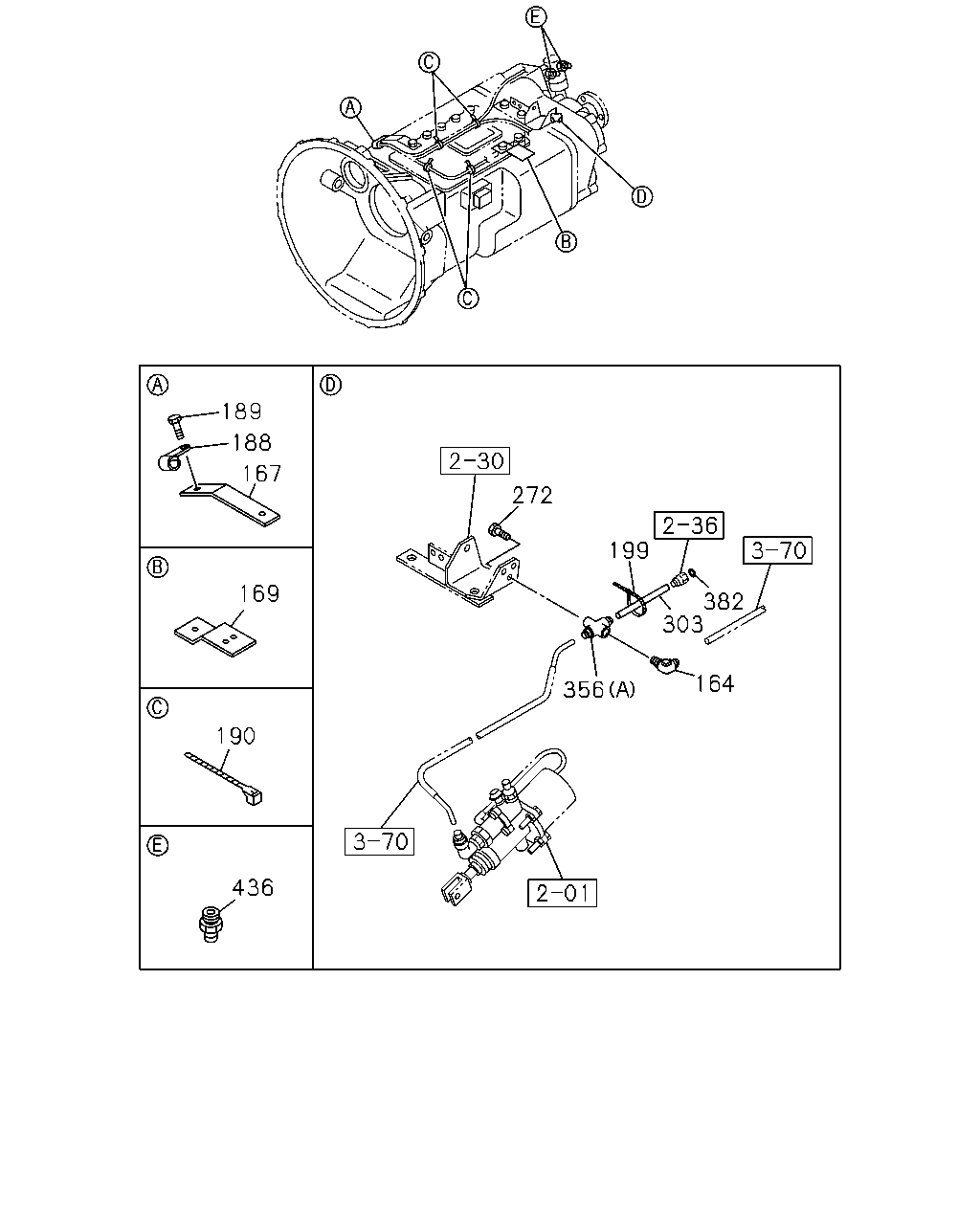

çizim 81767
189 188 167 272 199 169 382 303 164 356 190 436
BalonParca AdiParca NoAdetTipApplied Date
164 CONNECTOR; ELBOW
DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0302-
167 BRACKET; CLIP,AIR TUBE 1-82699-123-1 01 1 0302-
169 BRACKET; CLIP,PIPE HOSE 1-47475-633-0 01 1 0302-
188 CLIP; PIPE,BRKT
ID=16 L=28 		9-09525-556-0 01 1 0302-
189 BOLT; PIPE CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 0302-
190 CLIP; BAND,CONT TUBE
L=250 		1-09707-126-0 05 1 0302-0304
190 CLIP; BAND,CONT TUBE
L=350 		1-09707-183-0 05 1 0305-
199 CLIP; NYLON TUBE
L=250 		1-09707-126-0 01 1 0302-
272 BOLT
M8X16 FLANGE 		0-28080-816-0 01 1 0302-
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0302-
356 UNION
(A) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0302-
356 UNION
(B) 		1-09664-020-1 02 1 0302-
382 GASKET; ADAPTER
ID=11 OD=18 		9-09572-510-0 01 1 0302-
436 CONNECTOR; AIR HOSE,SUPPLY
L=35 		1-09660-039-0 01 1 0302-0309
436 CONNECTOR; AIR HOSE,SUPPLY
L=35 		1-09660-039-0 02 1 0310-
