Sayfa 2-05 - Isuzu EPC

2-05 — CLUTCH PIPING (#25861) — 81 parça

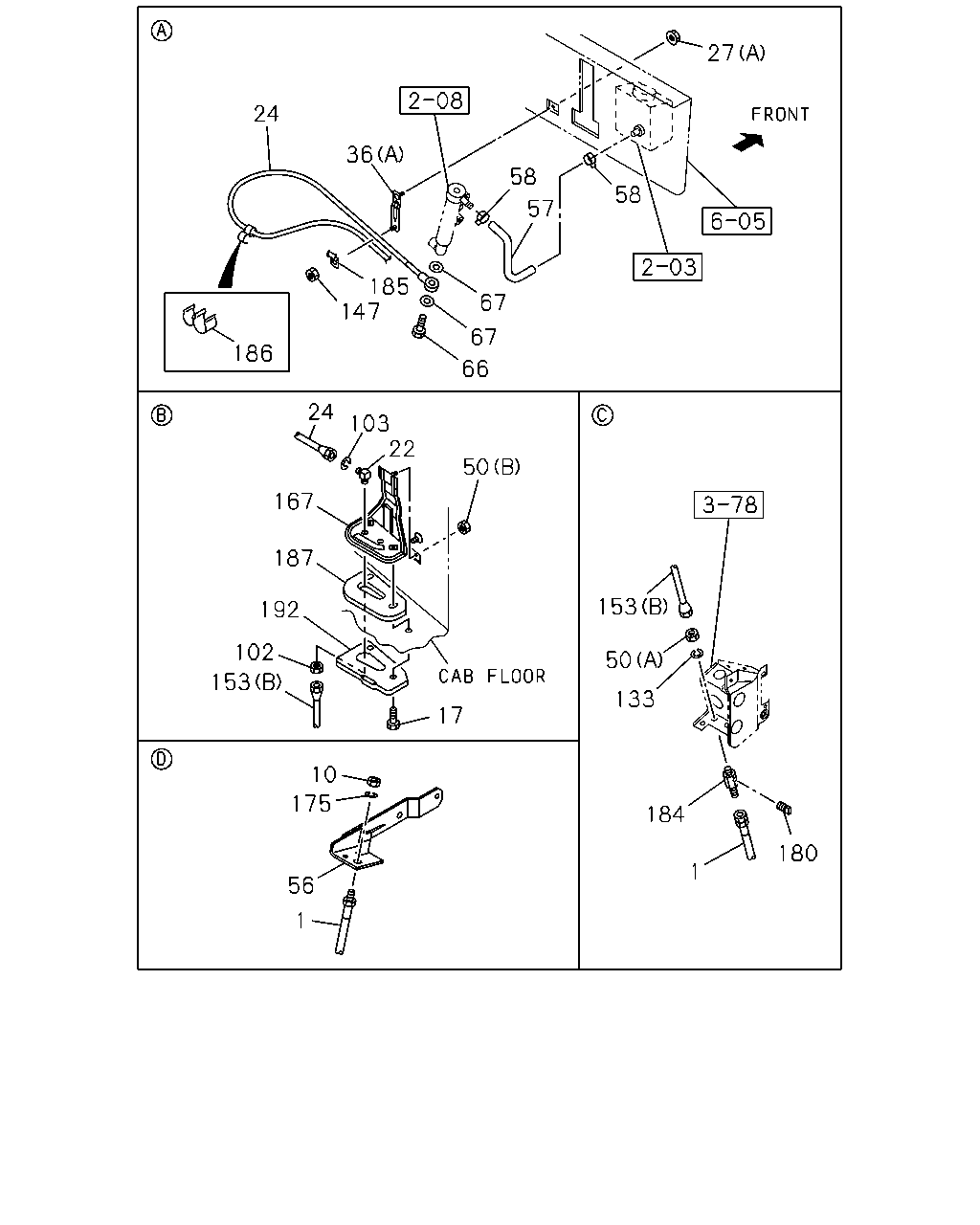

27 24 36 58 58 57 185 147 67 67 186 66 24 103 22 50 167 187 153 192 102 50 153 133 17 10 175 184 180 1 56 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,CLU CONT L=430	1-09364-859-1	01	1	0302-
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0302-
17	BOLT; BRKT M8X20 W/LK&PL WASHER	8-94279-216-0	02	1	0302-
22	UNION; CLU PIPE M14	9-09225-208-1	01	1	0302-
24	PIPE ASM; CLU,M/CYL TO UNION L=643	1-47424-529-2	01	1	0302-
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0302-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0302-
36	BRACKET; CLIP (B)	1-47475-427-1	01	1	0302-
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	0302-
36	BRACKET; CLIP (C)	1-82699-304-0	01	1	0302-
50	NUT; UNION (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0302-
50	NUT; UNION (A) M14	9-99111-414-0	01	1	0302-
56	BRACKET; FLEX HOSE	1-47478-300-1	01	1	0302-
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	0302-
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	0302-
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	0302-
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	0302-
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0302-
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0302-
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	0302-
147	NUT; CLIP FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	0302-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	0302-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=1690 SERVICED BY L=1700	1-47426-391-0	01	1	0302-
167	BRACKET; UNION	1-71117-183-3	01	1	0302-
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0302-
180	PLUG; PIPE	9-09204-510-0	01	1	0302-
184	UNION; FLEX HOSE 3WAY	1-09656-679-0	01	1	0302-
185	CLIP; BRKT ID=9 L=20	9-09545-108-0	01	1	0302-
186	HOLDER; CLIP	8-94107-710-0	02	1	0302-
187	SEAL; BRKT	1-71117-222-0	01	1	0302-
192	PLATE	1-71117-221-0	01	1	0302-

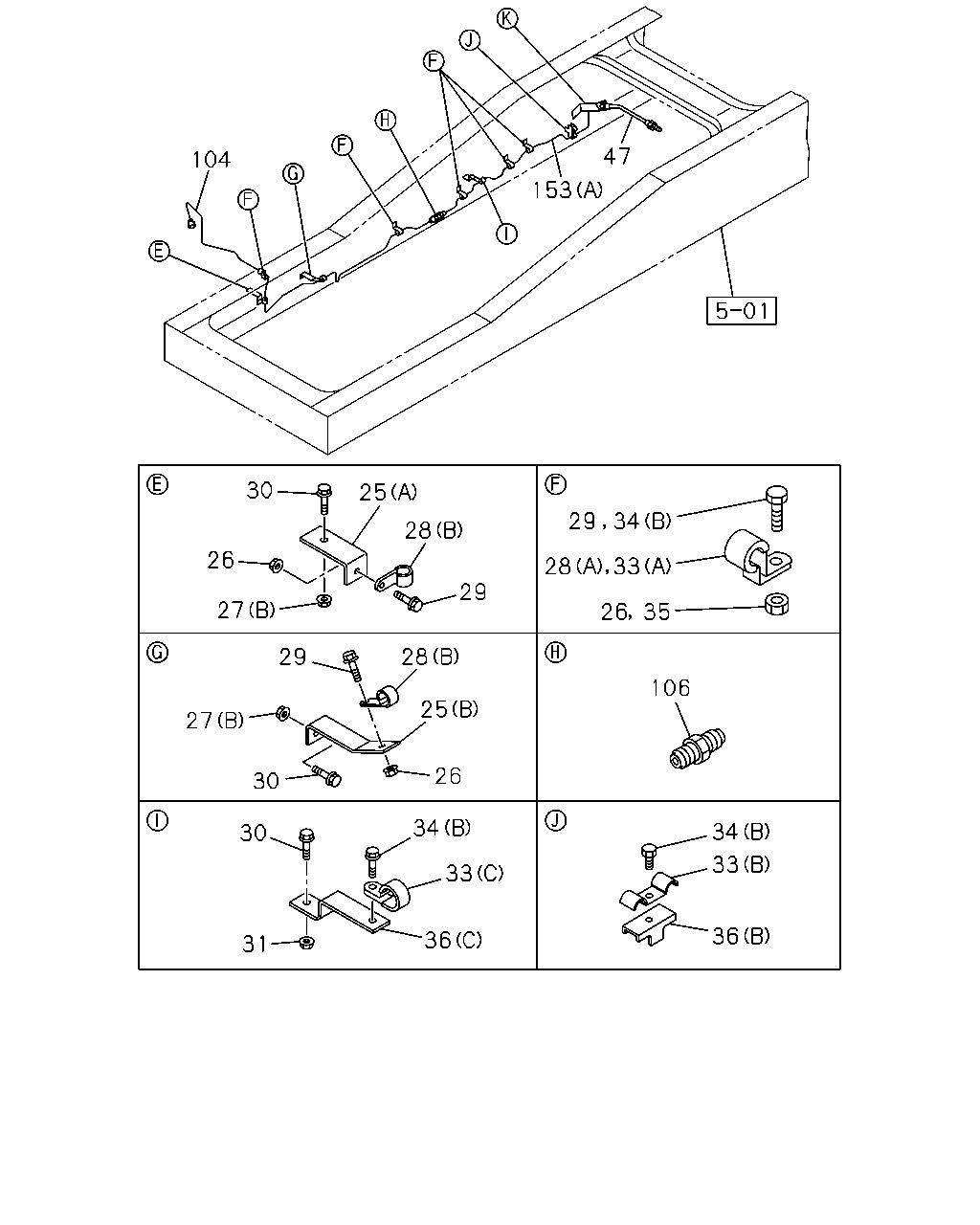

47 104 153 30 25 28 26 33 28 29 27 26 35 29 28 106 25 27 26 30 34 34 30 33 33 36 36 31 29 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	BRACKET; OIL PIPE (A) L=55	1-47475-304-0	01	1	0302-
25	BRACKET; OIL PIPE (B)	1-47477-406-0	01	1	0302-
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	04	1	0302-
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0302-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0302-
28	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0302-
28	CLIP; OIL PIPE (B) ID=9 L=20	9-09524-835-0	02	1	0302-
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28680-820-0	03	1	0302-
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	01	1	0302-
30	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	01	1	0302-
30	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	0302-
31	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0302-
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	03	1	0302-
33	CLIP; OIL PIPE (B) ID=19 & 9 L=22 & 18	1-09701-298-0	01	1	0302-
33	CLIP; OIL PIPE (C) ID=9 L=20	9-09524-835-0	01	1	0302-
34	BOLT; PIPE CLIP (A) M8X20 FLANGE	0-28080-820-0	01	1	0302-
34	BOLT; PIPE CLIP (B) M8X45 FLANGE	0-28080-845-0	01	1	0302-
34	BOLT; PIPE CLIP (B) M8X20 FLANGE	0-28680-820-0	01	1	0302-
34	BOLT; PIPE CLIP (B) M8X30 FLANGE	0-28680-830-0	03	1	0302-
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	04	1	0302-
36	BRACKET; CLIP (B)	1-47475-427-1	01	1	0302-
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	0302-
36	BRACKET; CLIP (C)	1-82699-304-0	01	1	0302-
47	HOSE; FLEX,CLU CONT L=445	1-09364-478-0	01	1	0302-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1535 SERVICED BY L=1550	1-47428-766-0	01	1	0302-
106	UNION; OIL PIPE M14 STRAIGHT	9-09223-008-1	01	1	0302-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	0302-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=1690 SERVICED BY L=1700	1-47426-391-0	01	1	0302-

24 153 167 56 104 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,CLU CONT L=430	1-09364-859-1	01	1	0302-
24	PIPE ASM; CLU,M/CYL TO UNION L=643	1-47424-529-2	01	1	0302-
56	BRACKET; FLEX HOSE	1-47478-300-1	01	1	0302-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1535 SERVICED BY L=1550	1-47428-766-0	01	1	0302-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	0302-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=1690 SERVICED BY L=1700	1-47426-391-0	01	1	0302-
167	BRACKET; UNION	1-71117-183-3	01	1	0302-

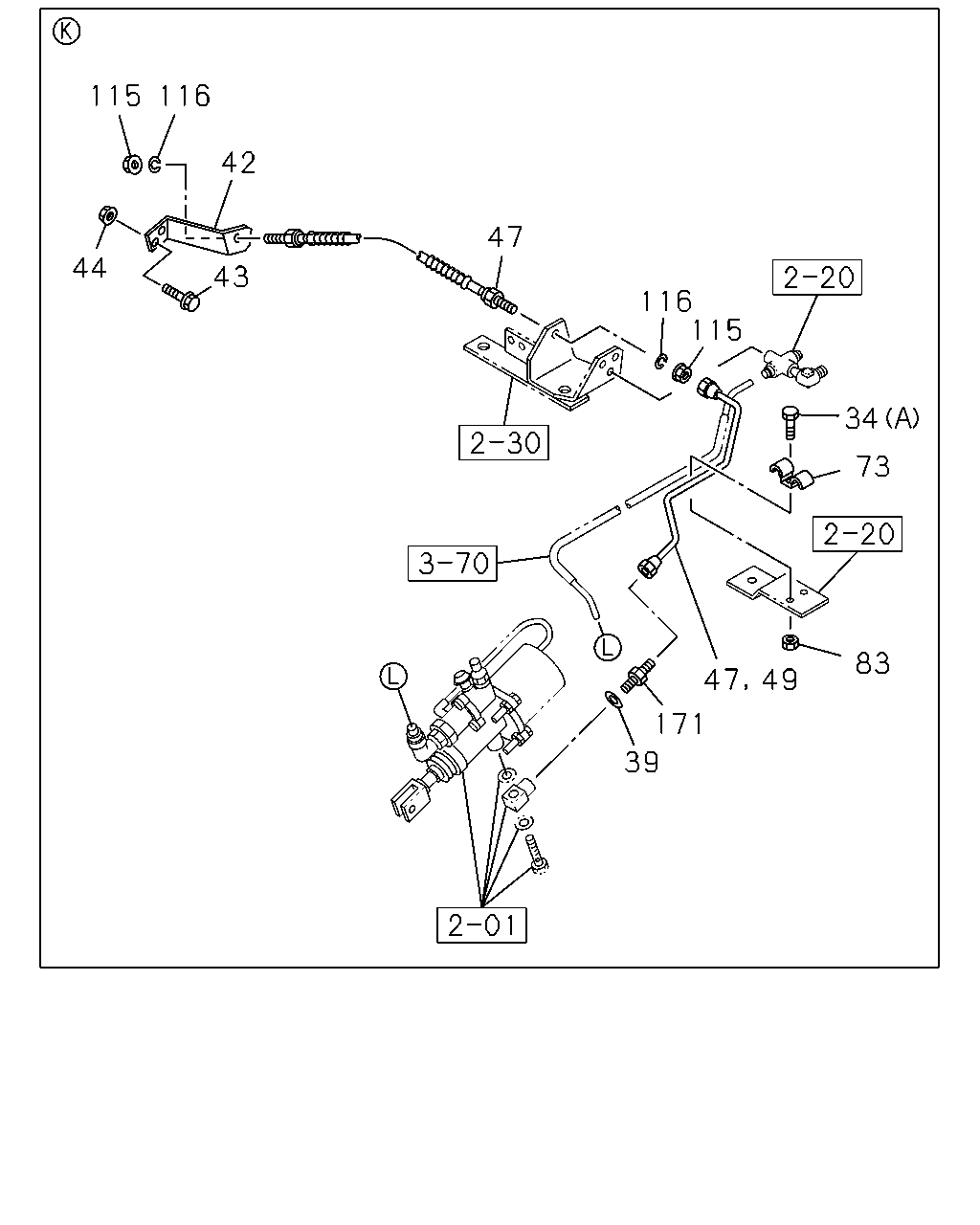

115 116 42 47 44 43 116 115 34 73 83 171 39 47 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	BOLT; PIPE CLIP (A) M8X20 FLANGE	0-28080-820-0	01	1	0302-
34	BOLT; PIPE CLIP (B) M8X45 FLANGE	0-28080-845-0	01	1	0302-
34	BOLT; PIPE CLIP (B) M8X20 FLANGE	0-28680-820-0	01	1	0302-
34	BOLT; PIPE CLIP (B) M8X30 FLANGE	0-28680-830-0	03	1	0302-
39	GASKET; CONNECTOR ID=10.2 OD=16.0	9-09571-410-0	01	1	0302-
42	BRACKET; FLEX HOSE,CLU CONT	1-47478-511-0	01	1	0302-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	0302-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	0302-
47	HOSE; FLEX,CLU CONT L=445	1-09364-478-0	01	1	0302-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER	1-49161-120-0	01	1	0302-
73	CLIP; OIL PIPE ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0302-
83	NUT; PIPE CLIP M8	9-09110-408-0	01	1	0302-
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	02	1	0302-
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	02	1	0302-
171	CONNECTOR; CLU BOOSTER	1-09650-256-2	01	1	0302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
