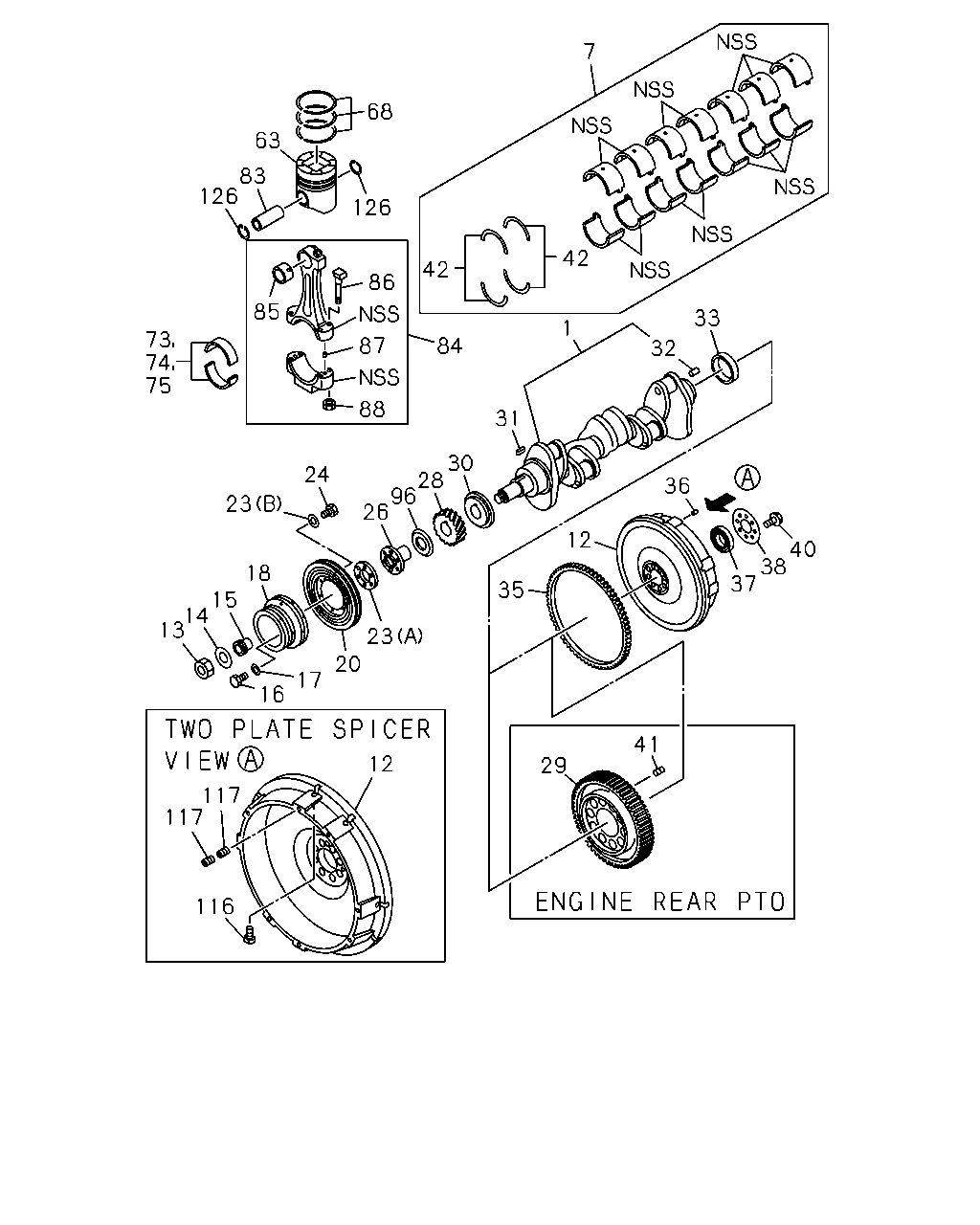

0-15A — CRANKSHAFT,PISTON AND FLYWHEEL (#2586) — 88 parça

68 63 83 126 126 86 87 88 85 73 74 75 7 42 84 1 42 33 32 31 36 12 40 38 37 35 30 28 96 26 24 23 18 15 14 13 23 20 17 16 117 12 117 116 29 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CRANKSHAFT	1-12310-365-5	01	1	9002-9306	●
1	CRANKSHAFT	1-12310-503-2	01	1	9002-		●
1	CRANKSHAFT	1-12310-497-2	01	1	9002-			●
7	METAL KIT; CRANKSHAFT,STANDARD	1-11510-060-1	01	1	9002-	●		●
7	METAL KIT; CRANKSHAFT,STANDARD EXC. AIR BREATHER<E2C>	1-11510-060-1	01	1	9002-		●
7	METAL KIT; CRANKSHAFT,STANDARD AIR BREATHER<E2C>	1-11510-073-0	01	1	9002-		●
12	FLYWHEEL	1-12331-128-1	01	1	9002-	●		●
12	FLYWHEEL 14INCH TWO PLATE SPICER CLUTCH(M07)	1-12331-128-1	01	1	9002-		●
12	FLYWHEEL EXC. 14INCH TWO PLATE SPICER CLUTCH(M07)	1-12331-127-3	01	1	9002-		●
13	NUT; STARTING HANDLE	9-12378-039-0	01	1	9002-	●	●	●
14	WASHER; PULLEY DAMPER	9-09851-431-0	01	1	9002-	●	●	●
15	BUSHING; TAPER,CR/SHF PULLEY	9-12379-061-0	01	1	9002-	●	●	●
16	BOLT; PULLEY TO CENTER M12X30	9-92061-230-0	06	1	9002-	●	●	●
17	WASHER; PULLEY CENTER	1-09503-111-0	06	1	9002-	●	●	●
18	PULLEY; CR/SHF 6-GROOVE	1-12371-266-0	01	1	9002-9306	●
18	PULLEY; CR/SHF 5-GROOVE	1-12371-182-1	01	1	9002-		●
18	PULLEY; CR/SHF 6-GROOVE	1-12371-299-0	01	1	9002-			●
20	DAMPER; CR/SHF	1-12375-099-0	01	1	9002-9306	●
20	DAMPER; CR/SHF	1-12375-075-3	01	1	9002-		●
20	DAMPER; CR/SHF	1-12375-144-0	01	1	9002-			●
23	WASHER; DAMPER (B) ID=10	1-09503-033-1	06	1	9002-	●	●	●
23	WASHER; DAMPER (A) ID=142	1-12379-034-0	01	1	9002-			●
24	BOLT; DAMPER M10X22	9-02361-022-0	06	1	9002-	●	●
24	BOLT; DAMPER M10X28	9-02361-028-0	06	1	9002-			●
26	PULLEY; CENTER	1-12371-313-0	01	1	9002-9306	●	●	●
26	PULLEY; CENTER	1-12371-292-0	01	1	9307-		●	●
28	GEAR; CR/SHF	9-12521-045-2	01	1	9002-	●	●	●
29	GEAR; CR/SHF,PTO ENGINE REAR PTO(SV1)	1-38261-008-2	01	1	9002-		●
30	COLLAR; THRUST	9-12361-024-2	01	1	9002-	●	●	●
31	KEY; FEATHER,CR/SHF	9-08031-225-0	01	1	9002-	●	●	●
32	PIN; FLYWHEEL OD=12 L=20	9-08151-220-0	01	1	9002-	●	●	●
33	RING; WEAR,CR/SHF D=22	1-12319-010-0	01	1	9002-	●		●
33	RING; WEAR,CR/SHF EXC. ENGINE REAR PTO(SV1) D=22	1-12319-010-0	01	1	9002-		●
33	RING; WEAR,CR/SHF ENGINE REAR PTO(SV1) D=19	1-12315-009-1	01	1	9002-		●
35	GEAR; RING Z=139	1-12333-013-0	01	1	9002-	●	●	●
36	PIN; FLYWHEEL	9-08151-020-0	02	1	9002-9009		●
36	PIN; FLYWHEEL OD=10 L=22	9-08151-022-0	02	1	9010-		●
37	BEARING; PILOT,TOP GEAR SHAFT	1-09800-195-0	01	1	9002-9412	●	●	●
37	BEARING; PILOT,TOP GEAR SHAFT	1-09800-257-0	01	1	9501-		●	●
38	WASHER; FLYWHEEL	9-12336-025-1	01	1	9002-	●	●	●
40	BOLT; FLYWHEEL	1-09044-030-1	08	1	9002-	●		●
40	BOLT; FLYWHEEL 14INCH TWO PLATE SPICER CLUTCH(M07) EXC. ENGINE REAR PTO(SV1)	1-09044-030-1	08	1	9002-		●
40	BOLT; FLYWHEEL ENGINE REAR PTO(SV1)	1-09070-021-1	08	1	9002-		●
40	BOLT; FLYWHEEL EXC. 14INCH TWO PLATE SPICER CLUTCH(M07),ENGINE REAR PTO(SV1)	1-09070-017-1	08	1	9002-		●
41	PIN; GEAR,CR/SHF PTO ENGINE REAR PTO(SV1)	9-08151-222-0	01	1	9002-		●
42	WASHER; THRUST,CR/SHF	1-11515-040-0	02	1	9002-	●	●	●
63	PISTON ALSO INCLUDED IN LINER SET.	1-12111-482-0	06	1	9002-9306	●
63	PISTON ALSO INCLUDED IN LINER SET.	1-12111-437-0	06	1	9002-9306		●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	1-12111-873-0	06	1	9307-		●
63	PISTON ALSO INCLUDED IN LINER SET.	1-12111-506-1	06	1	9002-9012			●
63	PISTON ALSO INCLUDED IN LINER SET.	1-12111-632-0	06	1	9101-9306			●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	1-12111-821-0	06	1	9307-			●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	1-12121-078-2	06	1	9002-9306	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	1-12121-068-1	06	1	9002-		●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	1-12121-102-1	06	1	9002-			●
73	METAL SET; CONN ROD,STANDARD	1-12271-073-0	06	1	9002-9304	●
73	METAL SET; CONN ROD,STANDARD	1-12271-055-0	06	1	9305-9306	●
73	METAL SET; CONN ROD,STANDARD AIR BREATHER<E2C>	1-12271-057-0	06	1	9002-		●
73	METAL SET; CONN ROD,STANDARD EXC. AIR BREATHER<E2C>	1-12271-048-0	06	1	9002-		●
73	METAL SET; CONN ROD,STANDARD	1-12271-048-0	06	1	9002-			●
74	METAL SET; CONN ROD,U/S=0.25	1-12273-055-0	06	1	9002-9306	●
74	METAL SET; CONN ROD,U/S=0.25 AIR BREATHER<E2C>	1-12273-057-0	06	1	9002-		●
74	METAL SET; CONN ROD,U/S=0.25 EXC. AIR BREATHER<E2C>	1-12273-048-0	06	1	9002-		●
74	METAL SET; CONN ROD,U/S=0.25	1-12273-048-0	06	1	9002-			●
75	METAL SET; CONN ROD,U/S=0.50	1-12274-055-0	06	1	9002-9306	●
75	METAL SET; CONN ROD,U/S=0.50 AIR BREATHER<E2C>	1-12274-057-0	06	1	9002-		●
75	METAL SET; CONN ROD,U/S=0.50 EXC. AIR BREATHER<E2C>	1-12274-048-0	06	1	9002-		●
75	METAL SET; CONN ROD,U/S=0.50	1-12274-048-0	06	1	9002-			●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	1-12211-020-0	06	1	9002-9306	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	9-12211-078-0	06	1	9002-		●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	1-12211-018-1	06	1	9002-			●
84	ROD ASM; CONN	1-12230-109-1	06	1	9002-		●
84	ROD ASM; CONN	1-12230-108-1	06	1	9307-9509			●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-012-0	06	1	9002-9306	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	9-12251-088-0	06	1	9002-		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-025-0	06	1	9002-9509			●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-044-0	06	1	9510-			●
86	BOLT; CONNROD	1-12235-030-0	24	1	9002-9306	●
86	BOLT; CONNROD	1-12235-026-1	24	1	9002-		●	●
87	PIN; CONNROD BIG END	9-09878-610-1	12	1	9002-	●	●	●
88	NUT; CONNROD	9-09840-316-0	24	1	9002-	●	●	●
96	THROWER; DUST,CR/SHF	1-12379-020-0	01	1	9002-	●	●	●
116	PIN; DRIVE	1-09749-026-0	08	1	9002-	●		●
116	PIN; DRIVE 14INCH TWO PLATE SPICER CLUTCH(M07)	1-09749-026-0	08	1	9002-		●
117	SCREW; DRIVE PIN	1-09187-005-0	16	1	9002-	●		●
117	SCREW; DRIVE PIN 14INCH TWO PLATE SPICER CLUTCH(M07)	1-09187-005-0	16	1	9002-		●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-051-0	12	1	9002-	●	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-075-0	12	1	9002-			●
