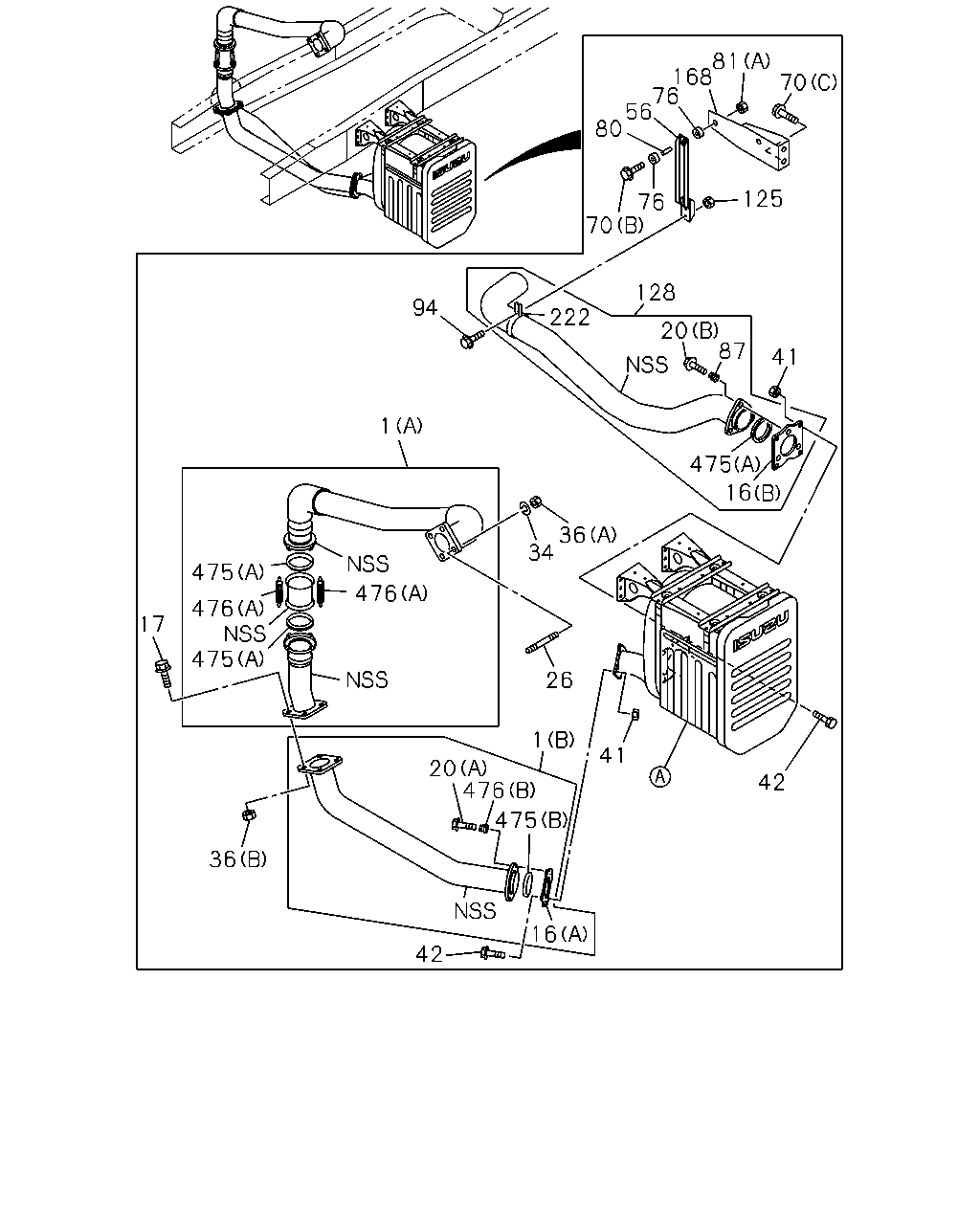

1-50 — EXHAUST PIPE AND SILENCER (#25856) — 58 parça

81 168 76 56 80 70 125 76 70 128 94 222 20 87 41 1 475 36 34 475 476 476 475 17 26 1 41 20 476 42 475 36 16 42 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH (A)	1-22123-646-2	01	1	0302-
1	PIPE; EXH (B)	1-22123-683-1	01	1	0302-
16	FLANGE; EXH PIPE (B)	1-22115-229-0	01	1	0302-0304
16	FLANGE; EXH PIPE (B)	1-22115-229-0	01	1	0305-
16	FLANGE; EXH PIPE (A)	1-22115-217-0	01	1	0302-
17	BOLT; EXH PIPE M12X25 FLANGE	1-09000-604-0	04	1	0302-
20	BOLT; FLANGE,EXH PIPE (A) M10X51.4	8-94436-943-0	02	1	0302-
20	BOLT; FLANGE,EXH PIPE (B) M10X51.4	1-09009-167-0	03	1	0302-
26	STUD; EXH MANIF M12X140 L=160	1-09302-163-0	04	1	0302-
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09556-020-0	04	1	0302-
36	NUT; EXH PIPE (A) M12	1-09400-131-0	04	1	0302-
36	NUT; EXH PIPE (B) M12	9-99110-512-0	04	1	0302-
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	08	1	0302-
42	BOLT; EXH PIPE TO EXH SILENCER M12X25 FLANGE	1-09000-604-0	08	1	0302-
56	BRACKET; CLAMP,EXH PIPE	1-22151-812-0	01	1	0302-0312
56	BRACKET; CLAMP,EXH PIPE	1-22152-070-0	01	1	0401-
70	BOLT; BRKT (C) M10X30 FLANGE	0-28081-030-0	02	1	0302-
70	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	05	1	0302-
70	BOLT; BRKT (A) M10X20 FLANGE	0-28681-020-0	04	1	0302-
76	SUPPORT; BRKT OD=40	1-22159-094-0	02	1	0302-
80	COLLAR; DIST,SUPPORT RUBBER L=22	9-22159-024-0	01	1	0302-
81	NUT; BRKT (A) M10 FLANGE	0-91150-210-0	01	1	0302-
81	NUT; BRKT (B) M12 FLANGE	0-91150-212-0	08	1	0302-
87	SPRING; PRE SILENCER	8-94141-851-0	03	1	0302-0304
87	SPRING; PRE SILENCER	8-94141-851-0	03	1	0305-
94	BOLT; CLAMP M8X40 FLANGE	0-28680-840-0	02	1	0302-
125	NUT; CLAMP M8 FLANGE	0-91150-108-0	02	1	0302-
128	PIPE; EXH,RR	1-22126-414-1	01	1	0302-
168	BRACKET; EXH PIPE,FRT	1-22131-995-1	01	1	0302-
222	CLAMP; EXH PIPE	1-22133-276-0	01	1	0302-0304
222	CLAMP; EXH PIPE	1-22133-276-0	01	1	0305-
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-0	01	1	0302-0412
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-0	01	1	0501-
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-0	03	1	0302-0304
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-0	02	1	0305-
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-0	01	1	0305-
476	SPRING; VIBNON,EXH PIPE (B)	8-94141-851-0	02	1	0501-
476	SPRING; VIBNON,EXH PIPE (A)	1-09583-248-0	04	1	0302-
476	SPRING; VIBNON,EXH PIPE (B)	8-94141-851-0	02	1	0302-0412

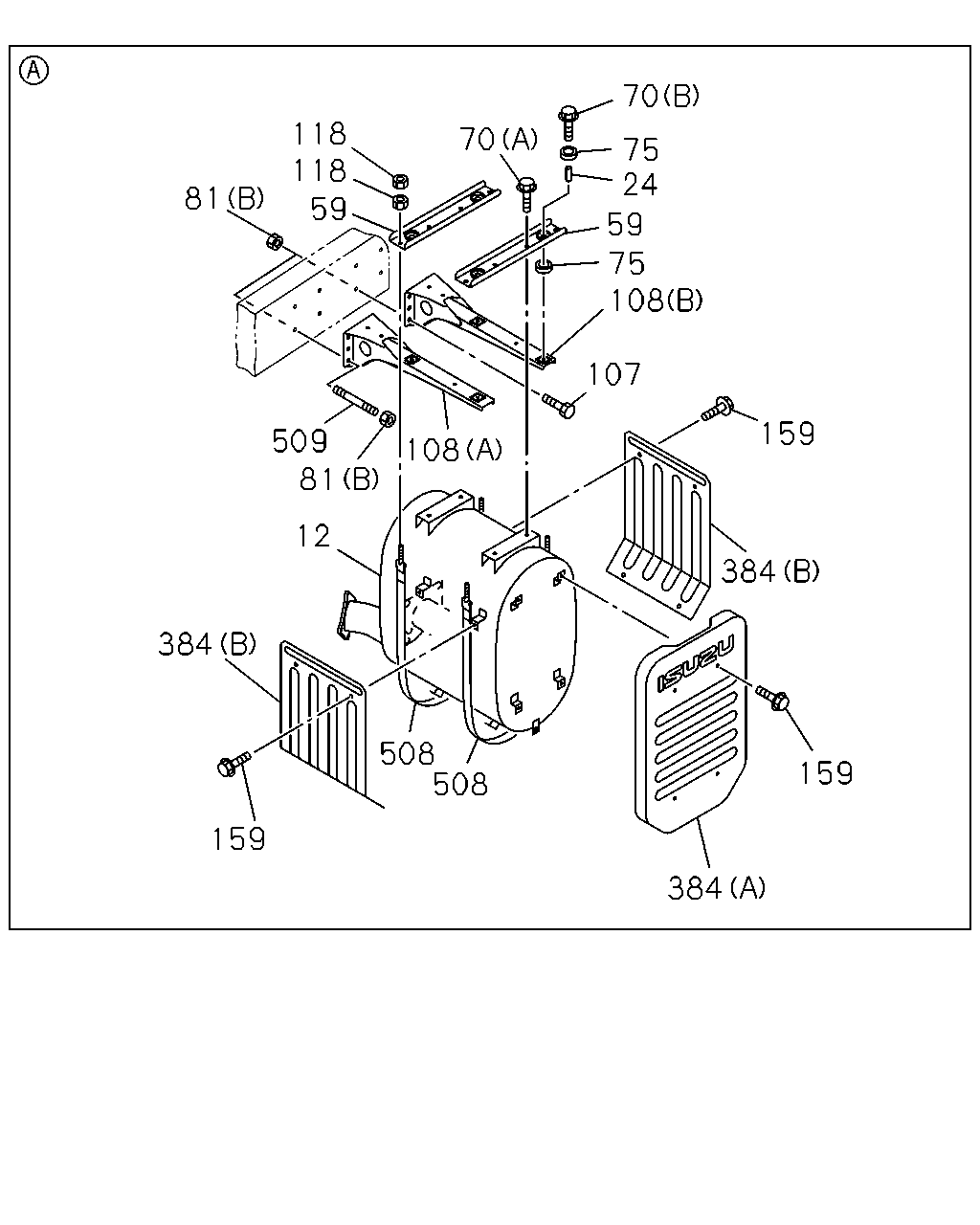

70 118 118 59 70 75 24 81 59 75 108 107 108 159 509 81 12 384 384 508 508 159 159 384

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	SILENCER ASM; EXH	1-22140-968-3	01	1	0302-
24	COLLAR; DIST,CLAMP L=22	9-22159-024-0	04	1	0302-
59	BRACKET; EXH SILENCER,FRT	1-22151-710-1	02	1	0302-
70	BOLT; BRKT (C) M10X30 FLANGE	0-28081-030-0	02	1	0302-
70	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	05	1	0302-
70	BOLT; BRKT (A) M10X20 FLANGE	0-28681-020-0	04	1	0302-
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	08	1	0302-
81	NUT; BRKT (A) M10 FLANGE	0-91150-210-0	01	1	0302-
81	NUT; BRKT (B) M12 FLANGE	0-91150-212-0	08	1	0302-
107	BOLT; BRKT M12X35 FLANGE	0-28681-235-0	04	1	0302-
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR (A)	1-22131-774-3	01	1	0302-
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR (B)	1-22131-775-3	01	1	0302-
118	NUT; SILENCER MTG BRKT M10	9-09110-510-0	08	1	0302-
159	BOLT; HEAT PROTECTOR M8X25 W/LK&PL WASHER	1-09030-074-0	12	1	0302-
384	PROTECTOR; HEAT SILENCER MTG (B)	1-22119-341-3	02	1	0302-
384	PROTECTOR; HEAT SILENCER MTG (A)	1-22119-378-3	01	1	0302-
508	BAND; EXHAUST SILENCER	1-22159-264-1	02	1	0302-0408
508	BAND; EXHAUST SILENCER	1-22159-382-0	02	1	0409-
509	STUD; BRKT M12X40 L=56	1-09300-123-0	04	1	0302-
