Sayfa 4-01 - Isuzu EPC

4-01 — PROPELLER SHAFT (#25850) — 350 parça

173 174 62 64 45 172 51 46 21 23 20 22 21 9 25 24 1 10 12 13 14 63 177 71 17 173 8 172 62 64 60 51 46 21 23 20 22 21 9 25 24 1 10 12 13 63 14 49 74 17 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; PROP (C) L=1056	1-37124-970-0	01	1	0609-	●
1	SHAFT; PROP (A) L=631	1-37151-421-1	01	1	0609-	●
1	SHAFT; PROP (B) L=1061	1-37152-787-0	01	1	0609-	●
1	SHAFT; PROP P60 PROP SHAFT(C2M) (F) L=1214	1-37124-501-0	01	1	0609-		●
1	SHAFT; PROP P60 PROP SHAFT(C2M) (D) L=851	1-37152-335-0	01	1	0609-		●
1	SHAFT; PROP P60 PROP SHAFT(C2M) (E) L=1076	1-37153-360-0	01	1	0609-		●
1	SHAFT; PROP P46 PROP SHAFT(C4Z) (C) L=1286	1-37124-066-1	01	1	0609-		●
1	SHAFT; PROP P46 PROP SHAFT(C4Z) (B) L=1081	1-37151-641-1	01	1	0609-		●
1	SHAFT; PROP P46 PROP SHAFT(C4Z) (A) L=871	1-37151-647-1	01	1	0609-		●
8	YOKE; FLANGE,PROP SHAFT P60 PROP SHAFT(C2M) (A)	1-37211-072-1	02	1	0609-		●
8	YOKE; FLANGE,PROP SHAFT P60 PROP SHAFT(C2M) (A)	1-37211-072-1	02	1	0609-		●
8	YOKE; FLANGE,PROP SHAFT (B)	1-37211-056-3	04	1	0609-	●
8	YOKE; FLANGE,PROP SHAFT P46 PROP SHAFT(C4Z) (B)	1-37211-056-3	04	1	0609-		●
9	JOURNAL ASM; PROP SHAFT (C)	1-37300-102-1	AR	1	0609-	●
9	JOURNAL ASM; PROP SHAFT P46 PROP SHAFT(C4Z) (C)	1-37300-102-1	AR	1	0609-		●
9	JOURNAL ASM; PROP SHAFT P60 PROP SHAFT(C2M) (B)	1-37300-095-1	AR	1	0609-		●
9	JOURNAL ASM; PROP SHAFT P60 PROP SHAFT(C2M) (A)	1-37300-094-1	AR	1	0609-		●
9	JOURNAL ASM; PROP SHAFT P60 PROP SHAFT(C2M) (A)	1-37300-094-1	AR	1	0609-		●
10	BOLT; UJT P60 PROP SHAFT(C2M) M10X20	0-20951-020-0	16	1	0609-		●
10	BOLT; UJT P60 PROP SHAFT(C2M) M10X20	0-20951-020-0	16	1	0609-		●
12	PLATE; LK,FRT UJT,PROP SHAFT P60 PROP SHAFT(C2M)	1-37356-010-0	04	1	0609-		●
12	PLATE; LK,FRT UJT,PROP SHAFT P60 PROP SHAFT(C2M)	1-37356-010-0	08	1	0609-		●
13	COVER; FRT UJT,PROP SHAFT P60 PROP SHAFT(C2M) T=6	1-37355-022-0	04	1	0609-		●
13	COVER; FRT UJT,PROP SHAFT P60 PROP SHAFT(C2M) T=6	1-37355-022-0	08	1	0609-		●
14	COVER; DUST,SPIDER (B)	8-98020-800-0	16	1	1506-	●
14	COVER; DUST,SPIDER P46 PROP SHAFT(C4Z) (B) 1ST,END	8-98020-800-0	12	1	1506-		●
14	COVER; DUST,SPIDER P60 PROP SHAFT(C2M) (A)	9-37352-023-0	08	1	0609-		●
14	COVER; DUST,SPIDER P60 PROP SHAFT(C2M) (A)	9-37352-023-0	08	1	0609-		●
14	COVER; DUST,SPIDER (B)	1-37319-012-0	16	1	0609-1505	●
14	COVER; DUST,SPIDER P46 PROP SHAFT(C4Z) (B)	1-37319-012-0	16	1	0609-1505		●
14	COVER; DUST,SPIDER P46 PROP SHAFT(C4Z) (B) 2ND	1-37319-012-0	04	1	1506-		●
17	NIPPLE; GREASE,PROP SHAFT P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0609-		●
17	NIPPLE; GREASE,PROP SHAFT P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0609-		●
17	NIPPLE; GREASE,PROP SHAFT P60 PROP SHAFT(C2M) (B) PT1/8 ELBOW	0-90301-610-0	01	1	0609-		●
17	NIPPLE; GREASE,PROP SHAFT (B) PT1/8 ELBOW	0-90301-610-0	04	1	0609-	●
17	NIPPLE; GREASE,PROP SHAFT P46 PROP SHAFT(C4Z) (B) PT1/8 ELBOW	0-90301-610-0	04	1	0609-		●
20	BEARING ASM; CTR,PROP SHAFT P60 PROP SHAFT(C2M) (B)	1-37510-093-3	02	1	0609-		●
20	BEARING ASM; CTR,PROP SHAFT (A)	1-37510-105-0	02	1	0609-	●
20	BEARING ASM; CTR,PROP SHAFT P46 PROP SHAFT(C4Z) (A)	1-37510-105-0	02	1	0609-		●
21	SEAL; OIL,CENTER BRG P60 PROP SHAFT(C2M) (B) D=120	1-09625-126-0	04	1	0609-		●
21	SEAL; OIL,CENTER BRG (A) ID=54	1-09625-161-0	04	1	0609-	●
21	SEAL; OIL,CENTER BRG P46 PROP SHAFT(C4Z) (A) ID=54	1-09625-161-0	04	1	0609-		●
22	RUBBER; CUSHION,CENTER BRG,1ST P60 PROP SHAFT(C2M) (B)	1-37516-047-2	02	1	0609-		●
22	RUBBER; CUSHION,CENTER BRG,1ST (A)	1-37516-059-0	02	1	0609-	●
22	RUBBER; CUSHION,CENTER BRG,1ST P46 PROP SHAFT(C4Z) (A)	1-37516-059-0	02	1	0609-		●
23	BEARING; CENTER,PROP SHAFT P60 PROP SHAFT(C2M) (B)	9-00090-292-0	02	1	0609-		●
23	BEARING; CENTER,PROP SHAFT (A)	9-00090-071-0	02	1	0609-	●
23	BEARING; CENTER,PROP SHAFT P46 PROP SHAFT(C4Z) (A)	9-00090-071-0	02	1	0609-		●
24	RETAINER; CENTER BRG,1ST P60 PROP SHAFT(C2M) (B)	1-37529-039-0	02	1	0609-		●
24	RETAINER; CENTER BRG,1ST (A)	1-37529-068-0	02	1	0609-	●
24	RETAINER; CENTER BRG,1ST P46 PROP SHAFT(C4Z) (A)	1-37529-068-0	02	1	0609-		●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	02	1	0609-	●	●
45	WASHER; PL,RET TO BRKT P60 PROP SHAFT(C2M) ID=17	1-09503-241-1	02	1	0609-		●
45	WASHER; PL,RET TO BRKT ID=10.5 OD=22	0-91614-610-0	04	1	0609-	●
45	WASHER; PL,RET TO BRKT P46 PROP SHAFT(C4Z) ID=10.5 OD=22	0-91614-610-0	04	1	0609-		●
46	FLANGE; SPLINED,PROP SHAFT,1ST P60 PROP SHAFT(C2M)	1-37245-283-1	02	1	0609-		●
46	FLANGE; SPLINED,PROP SHAFT,1ST	1-37245-071-0	02	1	0609-	●
46	FLANGE; SPLINED,PROP SHAFT,1ST P46 PROP SHAFT(C4Z)	1-37245-071-0	02	1	0609-		●
49	NUT; YOKE P60 PROP SHAFT(C2M) M16 FLANGE	1-09449-065-0	04	1	0609-		●
49	NUT; YOKE M14	0-91110-514-0	04	1	0609-	●
49	NUT; YOKE P46 PROP SHAFT(C4Z) M14	0-91110-514-0	04	1	0609-		●
51	NUT; FLANGE,SPLINED P60 PROP SHAFT(C2M) M33 FLANGE	1-09449-051-0	02	1	0609-		●
51	NUT; FLANGE,SPLINED M30	8-97160-857-0	02	1	0609-	●
51	NUT; FLANGE,SPLINED P46 PROP SHAFT(C4Z) M30	8-97160-857-0	02	1	0609-		●
60	WASHER; PL,RET TO BRKT P60 PROP SHAFT(C2M) ID=17	1-09503-241-1	02	1	0609-		●
60	WASHER; PL,RET TO BRKT ID=10.5 OD=22	0-91614-610-0	04	1	0609-	●
60	WASHER; PL,RET TO BRKT P46 PROP SHAFT(C4Z) ID=10.5 OD=22	0-91614-610-0	04	1	0609-		●
62	PIN; SPLIT,BRKT,PROP SHAFT P60 PROP SHAFT(C2M) OD=3.7 L=25	0-81124-025-0	02	1	0609-		●
62	PIN; SPLIT,BRKT,PROP SHAFT P60 PROP SHAFT(C2M) OD=3.7 L=25	0-81124-025-0	02	1	0609-		●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST P60 PROP SHAFT(C2M) M16X45	1-09042-030-0	02	1	0609-		●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST P60 PROP SHAFT(C2M) M16X45	1-09042-030-0	02	1	0609-		●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE	0-28651-035-0	04	1	0609-	●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE	0-28651-035-0	04	1	0609-	●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST P46 PROP SHAFT(C4Z) M10X35 FLANGE	0-28651-035-0	04	1	0609-		●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST P46 PROP SHAFT(C4Z) M10X35 FLANGE	0-28651-035-0	04	1	0609-		●
64	NUT; RET TO BRKT P60 PROP SHAFT(C2M) M16 SLOTTED	0-91116-516-0	02	1	0609-1204		●
64	NUT; RET TO BRKT P60 PROP SHAFT(C2M) M16 SLOTTED	0-91116-516-0	02	1	0609-1204		●
64	NUT; RET TO BRKT P60 PROP SHAFT(C2M) M16 SLOTTED	8-98049-689-0	02	1	1205-		●
64	NUT; RET TO BRKT P60 PROP SHAFT(C2M) M16 SLOTTED	8-98049-689-0	02	1	1205-		●
64	NUT; RET TO BRKT M10 FLANGE	0-91180-210-0	04	1	0609-	●
64	NUT; RET TO BRKT M10 FLANGE	0-91180-210-0	04	1	0609-	●
64	NUT; RET TO BRKT P46 PROP SHAFT(C4Z) M10 FLANGE	0-91180-210-0	04	1	0609-		●
64	NUT; RET TO BRKT P46 PROP SHAFT(C4Z) M10 FLANGE	0-91180-210-0	04	1	0609-		●
71	NUT; YOKE P60 PROP SHAFT(C2M) M16 FLANGE	1-09449-065-0	04	1	0609-		●
71	NUT; YOKE M14	0-91110-514-0	04	1	0609-	●
71	NUT; YOKE P46 PROP SHAFT(C4Z) M14	0-91110-514-0	04	1	0609-		●
74	BOLT; YOKE,TRANS P60 PROP SHAFT(C2M) M16X48	1-09000-383-0	04	1	0609-		●
74	BOLT; YOKE,TRANS P60 PROP SHAFT(C2M) M16X48	1-09000-383-0	04	1	0609-		●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	0609-	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	0609-	●
74	BOLT; YOKE,TRANS P46 PROP SHAFT(C4Z) M14X37	1-09000-121-0	04	1	0609-		●
74	BOLT; YOKE,TRANS P46 PROP SHAFT(C4Z) M14X37	1-09000-121-0	04	1	0609-		●
172	BRACKET; CENTER BRG	1-37515-071-2	01	1	0610-	●
172	BRACKET; CENTER BRG	1-37515-102-0	01	1	0610-0703	●
172	BRACKET; CENTER BRG P46 PROP SHAFT(C4Z)	1-37515-102-0	01	1	0610-0703		●
172	BRACKET; CENTER BRG P46 PROP SHAFT(C4Z)	1-37515-102-0	01	1	0704-		●
172	BRACKET; CENTER BRG P46 PROP SHAFT(C4Z)	1-37515-101-0	01	1	0610-		●
172	BRACKET; CENTER BRG 2ND	1-37515-071-2	01	1	0609-0609	●
172	BRACKET; CENTER BRG 2ND	1-37515-101-0	01	1	0609-0609		●
172	BRACKET; CENTER BRG 1ST	1-37515-102-0	01	1	0609-0609		●
173	BOLT; BRKT P46 PROP SHAFT(C4Z) M10X25 FLANGE	0-28651-025-0	04	1	0610-	●	●
173	BOLT; BRKT P46 PROP SHAFT(C4Z) M10X25 FLANGE	0-28651-025-0	04	1	0610-	●	●
173	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	04	1	0609-0609	●	●
173	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	04	1	0609-0609		●
174	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	0610-	●
174	NUT; BRKT P46 PROP SHAFT(C4Z) M10 FLANGE	0-91180-210-0	04	1	0610-		●
174	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	0609-0609		●
177	NUT M10 FLANGE	0-91180-210-0	04	1	0610-	●
177	NUT P46 PROP SHAFT(C4Z) M10 FLANGE	0-91180-210-0	04	1	0610-		●
177	NUT M10 FLANGE	0-91180-210-0	04	1	0609-0609	●	●

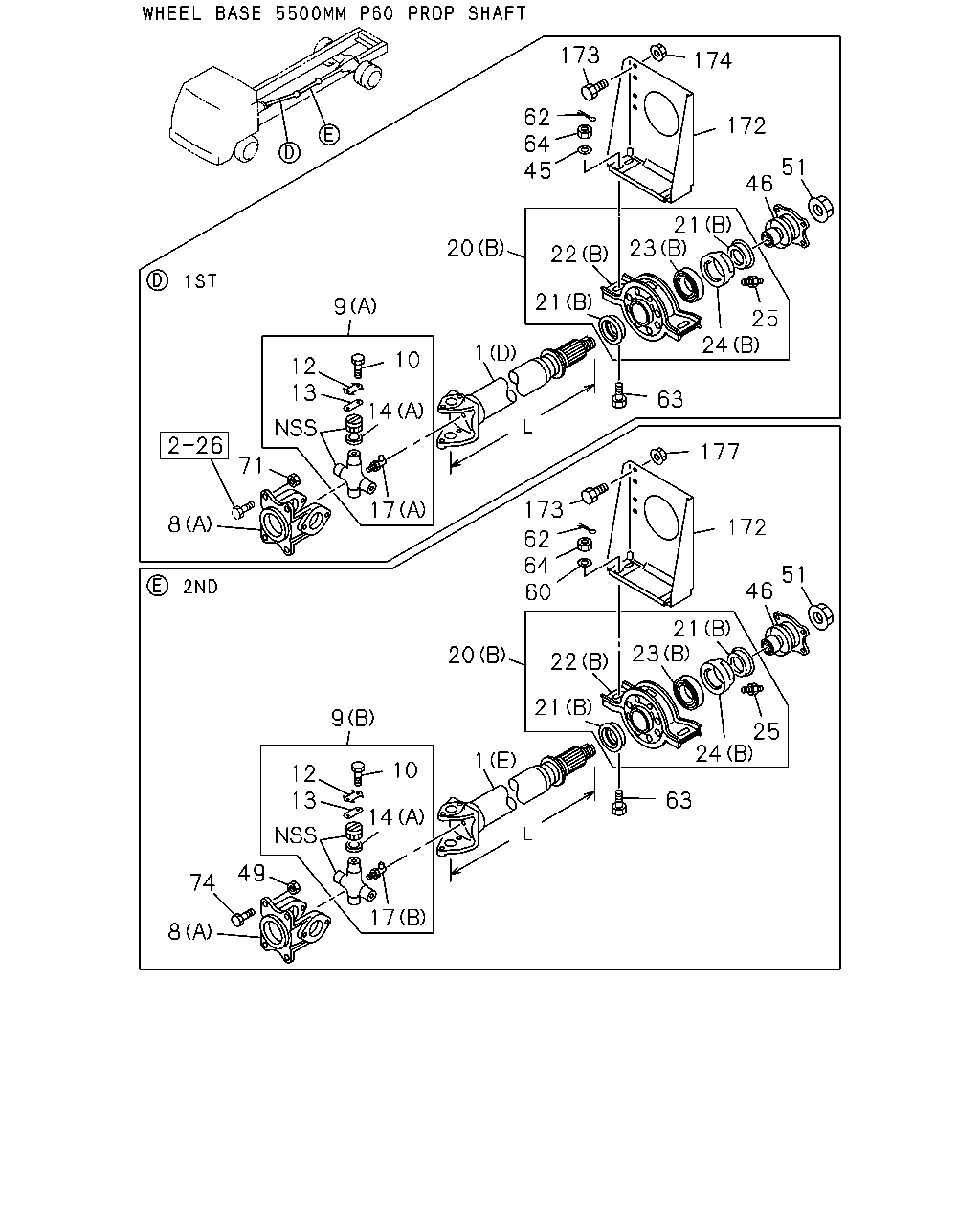

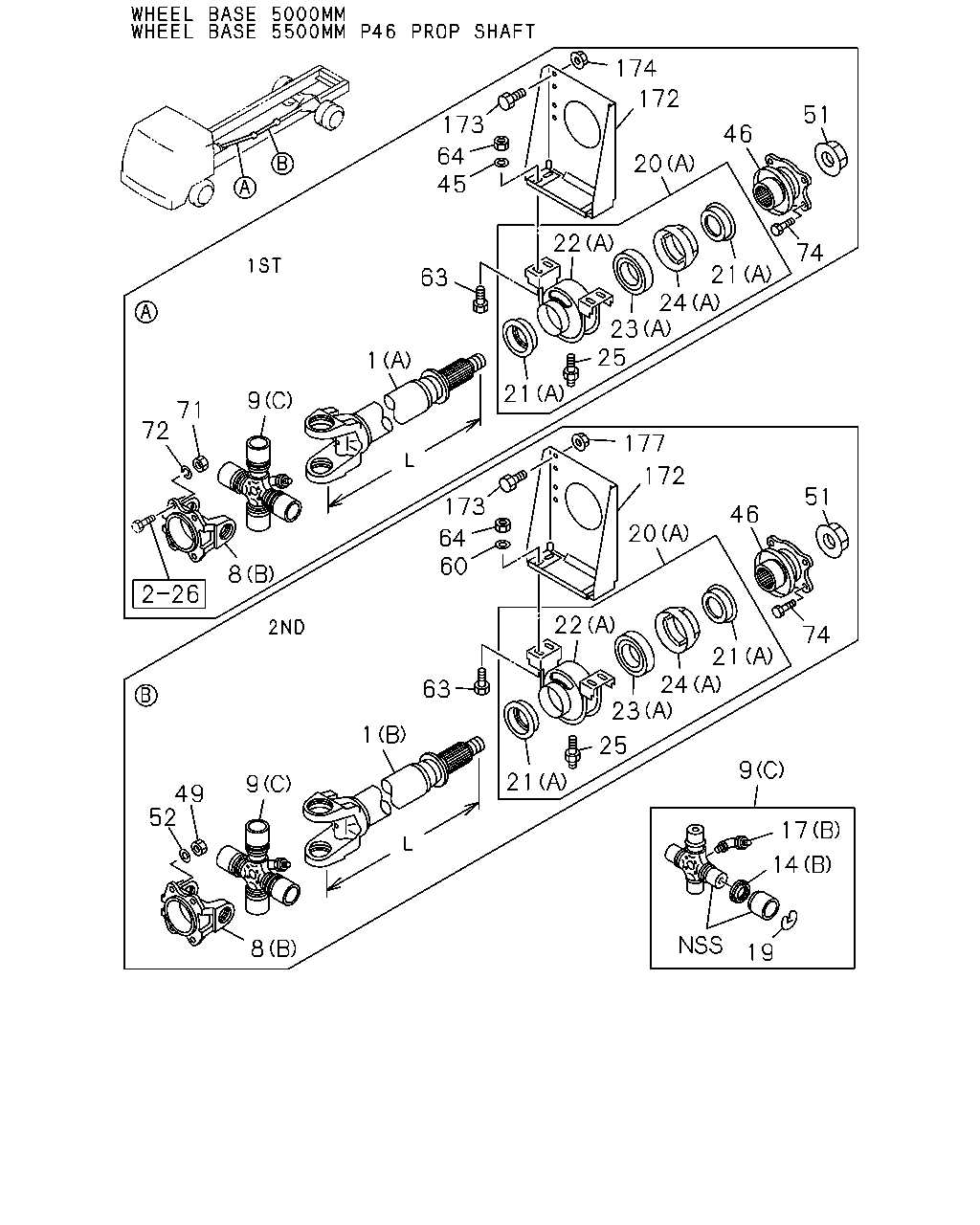

174 172 51 173 46 64 45 20 22 74 21 63 24 23 25 1 21 9 71 72 177 172 51 173 46 20 64 60 8 22 74 21 24 23 63 1 25 9 21 9 49 52 17 14 8 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; PROP (C) L=1056	1-37124-970-0	01	1	0609-	●
1	SHAFT; PROP (A) L=631	1-37151-421-1	01	1	0609-	●
1	SHAFT; PROP (B) L=1061	1-37152-787-0	01	1	0609-	●
1	SHAFT; PROP P60 PROP SHAFT(C2M) (F) L=1214	1-37124-501-0	01	1	0609-		●
1	SHAFT; PROP P60 PROP SHAFT(C2M) (D) L=851	1-37152-335-0	01	1	0609-		●
1	SHAFT; PROP P60 PROP SHAFT(C2M) (E) L=1076	1-37153-360-0	01	1	0609-		●
1	SHAFT; PROP P46 PROP SHAFT(C4Z) (C) L=1286	1-37124-066-1	01	1	0609-		●
1	SHAFT; PROP P46 PROP SHAFT(C4Z) (B) L=1081	1-37151-641-1	01	1	0609-		●
1	SHAFT; PROP P46 PROP SHAFT(C4Z) (A) L=871	1-37151-647-1	01	1	0609-		●
8	YOKE; FLANGE,PROP SHAFT P60 PROP SHAFT(C2M) (A)	1-37211-072-1	02	1	0609-		●
8	YOKE; FLANGE,PROP SHAFT P60 PROP SHAFT(C2M) (A)	1-37211-072-1	02	1	0609-		●
8	YOKE; FLANGE,PROP SHAFT (B)	1-37211-056-3	04	1	0609-	●
8	YOKE; FLANGE,PROP SHAFT P46 PROP SHAFT(C4Z) (B)	1-37211-056-3	04	1	0609-		●
9	JOURNAL ASM; PROP SHAFT (C)	1-37300-102-1	AR	1	0609-	●
9	JOURNAL ASM; PROP SHAFT P46 PROP SHAFT(C4Z) (C)	1-37300-102-1	AR	1	0609-		●
9	JOURNAL ASM; PROP SHAFT P60 PROP SHAFT(C2M) (B)	1-37300-095-1	AR	1	0609-		●
9	JOURNAL ASM; PROP SHAFT P60 PROP SHAFT(C2M) (A)	1-37300-094-1	AR	1	0609-		●
9	JOURNAL ASM; PROP SHAFT P60 PROP SHAFT(C2M) (A)	1-37300-094-1	AR	1	0609-		●
14	COVER; DUST,SPIDER (B)	8-98020-800-0	16	1	1506-	●
14	COVER; DUST,SPIDER P46 PROP SHAFT(C4Z) (B) 1ST,END	8-98020-800-0	12	1	1506-		●
14	COVER; DUST,SPIDER P60 PROP SHAFT(C2M) (A)	9-37352-023-0	08	1	0609-		●
14	COVER; DUST,SPIDER P60 PROP SHAFT(C2M) (A)	9-37352-023-0	08	1	0609-		●
14	COVER; DUST,SPIDER (B)	1-37319-012-0	16	1	0609-1505	●
14	COVER; DUST,SPIDER P46 PROP SHAFT(C4Z) (B)	1-37319-012-0	16	1	0609-1505		●
14	COVER; DUST,SPIDER P46 PROP SHAFT(C4Z) (B) 2ND	1-37319-012-0	04	1	1506-		●
17	NIPPLE; GREASE,PROP SHAFT P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0609-		●
17	NIPPLE; GREASE,PROP SHAFT P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0609-		●
17	NIPPLE; GREASE,PROP SHAFT P60 PROP SHAFT(C2M) (B) PT1/8 ELBOW	0-90301-610-0	01	1	0609-		●
17	NIPPLE; GREASE,PROP SHAFT (B) PT1/8 ELBOW	0-90301-610-0	04	1	0609-	●
17	NIPPLE; GREASE,PROP SHAFT P46 PROP SHAFT(C4Z) (B) PT1/8 ELBOW	0-90301-610-0	04	1	0609-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	16	1	0609-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE	1-09587-086-0	16	1	0609-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	16	1	0609-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE	1-09587-087-2	16	1	0609-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	16	1	0609-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW	1-09587-088-1	16	1	0609-		●
20	BEARING ASM; CTR,PROP SHAFT P60 PROP SHAFT(C2M) (B)	1-37510-093-3	02	1	0609-		●
20	BEARING ASM; CTR,PROP SHAFT (A)	1-37510-105-0	02	1	0609-	●
20	BEARING ASM; CTR,PROP SHAFT P46 PROP SHAFT(C4Z) (A)	1-37510-105-0	02	1	0609-		●
21	SEAL; OIL,CENTER BRG P60 PROP SHAFT(C2M) (B) D=120	1-09625-126-0	04	1	0609-		●
21	SEAL; OIL,CENTER BRG (A) ID=54	1-09625-161-0	04	1	0609-	●
21	SEAL; OIL,CENTER BRG P46 PROP SHAFT(C4Z) (A) ID=54	1-09625-161-0	04	1	0609-		●
22	RUBBER; CUSHION,CENTER BRG,1ST P60 PROP SHAFT(C2M) (B)	1-37516-047-2	02	1	0609-		●
22	RUBBER; CUSHION,CENTER BRG,1ST (A)	1-37516-059-0	02	1	0609-	●
22	RUBBER; CUSHION,CENTER BRG,1ST P46 PROP SHAFT(C4Z) (A)	1-37516-059-0	02	1	0609-		●
23	BEARING; CENTER,PROP SHAFT P60 PROP SHAFT(C2M) (B)	9-00090-292-0	02	1	0609-		●
23	BEARING; CENTER,PROP SHAFT (A)	9-00090-071-0	02	1	0609-	●
23	BEARING; CENTER,PROP SHAFT P46 PROP SHAFT(C4Z) (A)	9-00090-071-0	02	1	0609-		●
24	RETAINER; CENTER BRG,1ST P60 PROP SHAFT(C2M) (B)	1-37529-039-0	02	1	0609-		●
24	RETAINER; CENTER BRG,1ST (A)	1-37529-068-0	02	1	0609-	●
24	RETAINER; CENTER BRG,1ST P46 PROP SHAFT(C4Z) (A)	1-37529-068-0	02	1	0609-		●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	02	1	0609-	●	●
45	WASHER; PL,RET TO BRKT P60 PROP SHAFT(C2M) ID=17	1-09503-241-1	02	1	0609-		●
45	WASHER; PL,RET TO BRKT ID=10.5 OD=22	0-91614-610-0	04	1	0609-	●
45	WASHER; PL,RET TO BRKT P46 PROP SHAFT(C4Z) ID=10.5 OD=22	0-91614-610-0	04	1	0609-		●
46	FLANGE; SPLINED,PROP SHAFT,1ST P60 PROP SHAFT(C2M)	1-37245-283-1	02	1	0609-		●
46	FLANGE; SPLINED,PROP SHAFT,1ST	1-37245-071-0	02	1	0609-	●
46	FLANGE; SPLINED,PROP SHAFT,1ST P46 PROP SHAFT(C4Z)	1-37245-071-0	02	1	0609-		●
49	NUT; YOKE P60 PROP SHAFT(C2M) M16 FLANGE	1-09449-065-0	04	1	0609-		●
49	NUT; YOKE M14	0-91110-514-0	04	1	0609-	●
49	NUT; YOKE P46 PROP SHAFT(C4Z) M14	0-91110-514-0	04	1	0609-		●
51	NUT; FLANGE,SPLINED P60 PROP SHAFT(C2M) M33 FLANGE	1-09449-051-0	02	1	0609-		●
51	NUT; FLANGE,SPLINED M30	8-97160-857-0	02	1	0609-	●
51	NUT; FLANGE,SPLINED P46 PROP SHAFT(C4Z) M30	8-97160-857-0	02	1	0609-		●
52	WASHER; LK,YOKE ID=14.2	0-91510-814-0	04	1	0609-0702	●
52	WASHER; LK,YOKE P46 PROP SHAFT(C4Z) ID=14.2	0-91510-814-0	04	1	0609-0702		●
52	WASHER; LK,YOKE ID=14.2	0-91510-614-0	04	1	0703-	●
52	WASHER; LK,YOKE P46 PROP SHAFT(C4Z) ID=14.2	0-91510-614-0	04	1	0703-		●
60	WASHER; PL,RET TO BRKT P60 PROP SHAFT(C2M) ID=17	1-09503-241-1	02	1	0609-		●
60	WASHER; PL,RET TO BRKT ID=10.5 OD=22	0-91614-610-0	04	1	0609-	●
60	WASHER; PL,RET TO BRKT P46 PROP SHAFT(C4Z) ID=10.5 OD=22	0-91614-610-0	04	1	0609-		●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST P60 PROP SHAFT(C2M) M16X45	1-09042-030-0	02	1	0609-		●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST P60 PROP SHAFT(C2M) M16X45	1-09042-030-0	02	1	0609-		●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE	0-28651-035-0	04	1	0609-	●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE	0-28651-035-0	04	1	0609-	●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST P46 PROP SHAFT(C4Z) M10X35 FLANGE	0-28651-035-0	04	1	0609-		●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST P46 PROP SHAFT(C4Z) M10X35 FLANGE	0-28651-035-0	04	1	0609-		●
64	NUT; RET TO BRKT P60 PROP SHAFT(C2M) M16 SLOTTED	0-91116-516-0	02	1	0609-1204		●
64	NUT; RET TO BRKT P60 PROP SHAFT(C2M) M16 SLOTTED	0-91116-516-0	02	1	0609-1204		●
64	NUT; RET TO BRKT P60 PROP SHAFT(C2M) M16 SLOTTED	8-98049-689-0	02	1	1205-		●
64	NUT; RET TO BRKT P60 PROP SHAFT(C2M) M16 SLOTTED	8-98049-689-0	02	1	1205-		●
64	NUT; RET TO BRKT M10 FLANGE	0-91180-210-0	04	1	0609-	●
64	NUT; RET TO BRKT M10 FLANGE	0-91180-210-0	04	1	0609-	●
64	NUT; RET TO BRKT P46 PROP SHAFT(C4Z) M10 FLANGE	0-91180-210-0	04	1	0609-		●
64	NUT; RET TO BRKT P46 PROP SHAFT(C4Z) M10 FLANGE	0-91180-210-0	04	1	0609-		●
71	NUT; YOKE P60 PROP SHAFT(C2M) M16 FLANGE	1-09449-065-0	04	1	0609-		●
71	NUT; YOKE M14	0-91110-514-0	04	1	0609-	●
71	NUT; YOKE P46 PROP SHAFT(C4Z) M14	0-91110-514-0	04	1	0609-		●
72	WASHER; LK,YOKE ID=14.2	0-91510-814-0	04	1	0609-0702	●
72	WASHER; LK,YOKE P46 PROP SHAFT(C4Z) ID=14.2	0-91510-814-0	04	1	0609-0702		●
72	WASHER; LK,YOKE ID=14.2	0-91510-614-0	04	1	0703-	●
72	WASHER; LK,YOKE P46 PROP SHAFT(C4Z) ID=14.2	0-91510-614-0	04	1	0703-		●
74	BOLT; YOKE,TRANS P60 PROP SHAFT(C2M) M16X48	1-09000-383-0	04	1	0609-		●
74	BOLT; YOKE,TRANS P60 PROP SHAFT(C2M) M16X48	1-09000-383-0	04	1	0609-		●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	0609-	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	0609-	●
74	BOLT; YOKE,TRANS P46 PROP SHAFT(C4Z) M14X37	1-09000-121-0	04	1	0609-		●
74	BOLT; YOKE,TRANS P46 PROP SHAFT(C4Z) M14X37	1-09000-121-0	04	1	0609-		●
172	BRACKET; CENTER BRG	1-37515-071-2	01	1	0610-	●
172	BRACKET; CENTER BRG	1-37515-102-0	01	1	0610-0703	●
172	BRACKET; CENTER BRG P46 PROP SHAFT(C4Z)	1-37515-102-0	01	1	0610-0703		●
172	BRACKET; CENTER BRG P46 PROP SHAFT(C4Z)	1-37515-102-0	01	1	0704-		●
172	BRACKET; CENTER BRG P46 PROP SHAFT(C4Z)	1-37515-101-0	01	1	0610-		●
172	BRACKET; CENTER BRG 2ND	1-37515-071-2	01	1	0609-0609	●
172	BRACKET; CENTER BRG 2ND	1-37515-101-0	01	1	0609-0609		●
172	BRACKET; CENTER BRG 1ST	1-37515-102-0	01	1	0609-0609		●
173	BOLT; BRKT P46 PROP SHAFT(C4Z) M10X25 FLANGE	0-28651-025-0	04	1	0610-	●	●
173	BOLT; BRKT P46 PROP SHAFT(C4Z) M10X25 FLANGE	0-28651-025-0	04	1	0610-	●	●
173	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	04	1	0609-0609	●	●
173	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	04	1	0609-0609		●
174	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	0610-	●
174	NUT; BRKT P46 PROP SHAFT(C4Z) M10 FLANGE	0-91180-210-0	04	1	0610-		●
174	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	0609-0609		●
177	NUT M10 FLANGE	0-91180-210-0	04	1	0610-	●
177	NUT P46 PROP SHAFT(C4Z) M10 FLANGE	0-91180-210-0	04	1	0610-		●
177	NUT M10 FLANGE	0-91180-210-0	04	1	0609-0609	●	●

9 10 106 225 12 13 106 14 104 8 17 9 95 8 56 10 83 74 84 14 56 17 128 107 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; PROP (C) L=1056	1-37124-970-0	01	1	0609-	●
1	SHAFT; PROP (A) L=631	1-37151-421-1	01	1	0609-	●
1	SHAFT; PROP (B) L=1061	1-37152-787-0	01	1	0609-	●
1	SHAFT; PROP P60 PROP SHAFT(C2M) (F) L=1214	1-37124-501-0	01	1	0609-		●
1	SHAFT; PROP P60 PROP SHAFT(C2M) (D) L=851	1-37152-335-0	01	1	0609-		●
1	SHAFT; PROP P60 PROP SHAFT(C2M) (E) L=1076	1-37153-360-0	01	1	0609-		●
1	SHAFT; PROP P46 PROP SHAFT(C4Z) (C) L=1286	1-37124-066-1	01	1	0609-		●
1	SHAFT; PROP P46 PROP SHAFT(C4Z) (B) L=1081	1-37151-641-1	01	1	0609-		●
1	SHAFT; PROP P46 PROP SHAFT(C4Z) (A) L=871	1-37151-647-1	01	1	0609-		●
8	YOKE; FLANGE,PROP SHAFT P60 PROP SHAFT(C2M) (A)	1-37211-072-1	02	1	0609-		●
8	YOKE; FLANGE,PROP SHAFT P60 PROP SHAFT(C2M) (A)	1-37211-072-1	02	1	0609-		●
8	YOKE; FLANGE,PROP SHAFT (B)	1-37211-056-3	04	1	0609-	●
8	YOKE; FLANGE,PROP SHAFT P46 PROP SHAFT(C4Z) (B)	1-37211-056-3	04	1	0609-		●
9	JOURNAL ASM; PROP SHAFT (C)	1-37300-102-1	AR	1	0609-	●
9	JOURNAL ASM; PROP SHAFT P46 PROP SHAFT(C4Z) (C)	1-37300-102-1	AR	1	0609-		●
9	JOURNAL ASM; PROP SHAFT P60 PROP SHAFT(C2M) (B)	1-37300-095-1	AR	1	0609-		●
9	JOURNAL ASM; PROP SHAFT P60 PROP SHAFT(C2M) (A)	1-37300-094-1	AR	1	0609-		●
9	JOURNAL ASM; PROP SHAFT P60 PROP SHAFT(C2M) (A)	1-37300-094-1	AR	1	0609-		●
10	BOLT; UJT P60 PROP SHAFT(C2M) M10X20	0-20951-020-0	16	1	0609-		●
10	BOLT; UJT P60 PROP SHAFT(C2M) M10X20	0-20951-020-0	16	1	0609-		●
12	PLATE; LK,FRT UJT,PROP SHAFT P60 PROP SHAFT(C2M)	1-37356-010-0	04	1	0609-		●
12	PLATE; LK,FRT UJT,PROP SHAFT P60 PROP SHAFT(C2M)	1-37356-010-0	08	1	0609-		●
13	COVER; FRT UJT,PROP SHAFT P60 PROP SHAFT(C2M) T=6	1-37355-022-0	04	1	0609-		●
13	COVER; FRT UJT,PROP SHAFT P60 PROP SHAFT(C2M) T=6	1-37355-022-0	08	1	0609-		●
14	COVER; DUST,SPIDER (B)	8-98020-800-0	16	1	1506-	●
14	COVER; DUST,SPIDER P46 PROP SHAFT(C4Z) (B) 1ST,END	8-98020-800-0	12	1	1506-		●
14	COVER; DUST,SPIDER P60 PROP SHAFT(C2M) (A)	9-37352-023-0	08	1	0609-		●
14	COVER; DUST,SPIDER P60 PROP SHAFT(C2M) (A)	9-37352-023-0	08	1	0609-		●
14	COVER; DUST,SPIDER (B)	1-37319-012-0	16	1	0609-1505	●
14	COVER; DUST,SPIDER P46 PROP SHAFT(C4Z) (B)	1-37319-012-0	16	1	0609-1505		●
14	COVER; DUST,SPIDER P46 PROP SHAFT(C4Z) (B) 2ND	1-37319-012-0	04	1	1506-		●
17	NIPPLE; GREASE,PROP SHAFT P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0609-		●
17	NIPPLE; GREASE,PROP SHAFT P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0609-		●
17	NIPPLE; GREASE,PROP SHAFT P60 PROP SHAFT(C2M) (B) PT1/8 ELBOW	0-90301-610-0	01	1	0609-		●
17	NIPPLE; GREASE,PROP SHAFT (B) PT1/8 ELBOW	0-90301-610-0	04	1	0609-	●
17	NIPPLE; GREASE,PROP SHAFT P46 PROP SHAFT(C4Z) (B) PT1/8 ELBOW	0-90301-610-0	04	1	0609-		●
56	NUT; YOKE P60 PROP SHAFT(C2M) M16 FLANGE	1-09449-065-0	08	1	0609-		●
56	NUT; YOKE M14	0-91110-514-0	08	1	0609-	●
56	NUT; YOKE P46 PROP SHAFT(C4Z) M14	0-91110-514-0	08	1	0609-		●
74	BOLT; YOKE,TRANS P60 PROP SHAFT(C2M) M16X48	1-09000-383-0	04	1	0609-		●
74	BOLT; YOKE,TRANS P60 PROP SHAFT(C2M) M16X48	1-09000-383-0	04	1	0609-		●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	0609-	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	0609-	●
74	BOLT; YOKE,TRANS P46 PROP SHAFT(C4Z) M14X37	1-09000-121-0	04	1	0609-		●
74	BOLT; YOKE,TRANS P46 PROP SHAFT(C4Z) M14X37	1-09000-121-0	04	1	0609-		●
83	PLATE; LK,UJT,PROP SHAFT P60 PROP SHAFT(C2M)	1-37356-010-0	04	1	0609-		●
84	COVER; UJT,PROP SHAFT P60 PROP SHAFT(C2M) T=6	1-37355-022-0	04	1	0609-		●
95	BOLT; YOKE,FINAL P60 PROP SHAFT(C2M) M16X48	1-09000-383-0	04	1	0609-		●
95	BOLT; YOKE,FINAL M14X37	1-09000-121-0	04	1	0609-	●
95	BOLT; YOKE,FINAL P46 PROP SHAFT(C4Z) M14X37	1-09000-121-0	04	1	0609-		●
104	PLUG; SLEEVE YOKE P60 PROP SHAFT(C2M)	1-09600-067-0	01	1	0609-		●
104	PLUG; SLEEVE YOKE	1-09600-064-0	01	1	0609-	●
104	PLUG; SLEEVE YOKE P46 PROP SHAFT(C4Z)	1-09600-064-0	01	1	0609-		●
106	NIPPLE; GREASE,YOKE,PROP SHAFT P60 PROP SHAFT(C2M) (B) MT6 STRAIGHT	1-09380-006-0	01	1	0609-		●
106	NIPPLE; GREASE,YOKE,PROP SHAFT (A) PT1/8 STRAIGHT	0-90301-410-0	01	1	0609-	●	●
107	COVER; RET,SLEEVE P60 PROP SHAFT(C2M)	1-37249-137-1	01	1	0609-		●
107	COVER; RET,SLEEVE	1-37249-060-1	01	1	0609-	●
107	COVER; RET,SLEEVE P46 PROP SHAFT(C4Z)	1-37249-060-1	01	1	0609-		●
128	SEAL; SLEEVE P60 PROP SHAFT(C2M)	1-37247-021-0	01	1	0609-		●
128	SEAL; SLEEVE	1-37247-024-0	01	1	0609-	●
128	SEAL; SLEEVE P46 PROP SHAFT(C4Z)	1-37247-024-0	01	1	0609-		●
225	YOKE; SLEEVE,PROP SHAFT P60 PROP SHAFT(C2M) L=332	1-37241-109-1	01	1	0609-		●
225	YOKE; SLEEVE,PROP SHAFT L=271	1-37241-099-2	01	1	0609-	●
225	YOKE; SLEEVE,PROP SHAFT P46 PROP SHAFT(C4Z) L=271	1-37241-099-2	01	1	0609-		●

1 128 107 106 95 8 9 8 225 57 56 104 9 56 9 57 17 14 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; PROP (C) L=1056	1-37124-970-0	01	1	0609-	●
1	SHAFT; PROP (A) L=631	1-37151-421-1	01	1	0609-	●
1	SHAFT; PROP (B) L=1061	1-37152-787-0	01	1	0609-	●
1	SHAFT; PROP P60 PROP SHAFT(C2M) (F) L=1214	1-37124-501-0	01	1	0609-		●
1	SHAFT; PROP P60 PROP SHAFT(C2M) (D) L=851	1-37152-335-0	01	1	0609-		●
1	SHAFT; PROP P60 PROP SHAFT(C2M) (E) L=1076	1-37153-360-0	01	1	0609-		●
1	SHAFT; PROP P46 PROP SHAFT(C4Z) (C) L=1286	1-37124-066-1	01	1	0609-		●
1	SHAFT; PROP P46 PROP SHAFT(C4Z) (B) L=1081	1-37151-641-1	01	1	0609-		●
1	SHAFT; PROP P46 PROP SHAFT(C4Z) (A) L=871	1-37151-647-1	01	1	0609-		●
8	YOKE; FLANGE,PROP SHAFT P60 PROP SHAFT(C2M) (A)	1-37211-072-1	02	1	0609-		●
8	YOKE; FLANGE,PROP SHAFT P60 PROP SHAFT(C2M) (A)	1-37211-072-1	02	1	0609-		●
8	YOKE; FLANGE,PROP SHAFT (B)	1-37211-056-3	04	1	0609-	●
8	YOKE; FLANGE,PROP SHAFT P46 PROP SHAFT(C4Z) (B)	1-37211-056-3	04	1	0609-		●
9	JOURNAL ASM; PROP SHAFT (C)	1-37300-102-1	AR	1	0609-	●
9	JOURNAL ASM; PROP SHAFT P46 PROP SHAFT(C4Z) (C)	1-37300-102-1	AR	1	0609-		●
9	JOURNAL ASM; PROP SHAFT P60 PROP SHAFT(C2M) (B)	1-37300-095-1	AR	1	0609-		●
9	JOURNAL ASM; PROP SHAFT P60 PROP SHAFT(C2M) (A)	1-37300-094-1	AR	1	0609-		●
9	JOURNAL ASM; PROP SHAFT P60 PROP SHAFT(C2M) (A)	1-37300-094-1	AR	1	0609-		●
14	COVER; DUST,SPIDER (B)	8-98020-800-0	16	1	1506-	●
14	COVER; DUST,SPIDER P46 PROP SHAFT(C4Z) (B) 1ST,END	8-98020-800-0	12	1	1506-		●
14	COVER; DUST,SPIDER P60 PROP SHAFT(C2M) (A)	9-37352-023-0	08	1	0609-		●
14	COVER; DUST,SPIDER P60 PROP SHAFT(C2M) (A)	9-37352-023-0	08	1	0609-		●
14	COVER; DUST,SPIDER (B)	1-37319-012-0	16	1	0609-1505	●
14	COVER; DUST,SPIDER P46 PROP SHAFT(C4Z) (B)	1-37319-012-0	16	1	0609-1505		●
14	COVER; DUST,SPIDER P46 PROP SHAFT(C4Z) (B) 2ND	1-37319-012-0	04	1	1506-		●
17	NIPPLE; GREASE,PROP SHAFT P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0609-		●
17	NIPPLE; GREASE,PROP SHAFT P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0609-		●
17	NIPPLE; GREASE,PROP SHAFT P60 PROP SHAFT(C2M) (B) PT1/8 ELBOW	0-90301-610-0	01	1	0609-		●
17	NIPPLE; GREASE,PROP SHAFT (B) PT1/8 ELBOW	0-90301-610-0	04	1	0609-	●
17	NIPPLE; GREASE,PROP SHAFT P46 PROP SHAFT(C4Z) (B) PT1/8 ELBOW	0-90301-610-0	04	1	0609-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	16	1	0609-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE	1-09587-086-0	16	1	0609-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	16	1	0609-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE	1-09587-087-2	16	1	0609-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	16	1	0609-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW	1-09587-088-1	16	1	0609-		●
56	NUT; YOKE P60 PROP SHAFT(C2M) M16 FLANGE	1-09449-065-0	08	1	0609-		●
56	NUT; YOKE M14	0-91110-514-0	08	1	0609-	●
56	NUT; YOKE P46 PROP SHAFT(C4Z) M14	0-91110-514-0	08	1	0609-		●
57	WASHER; LK,YOKE ID=14.2	0-91510-814-0	08	1	0609-0702	●
57	WASHER; LK,YOKE P46 PROP SHAFT(C4Z) ID=14.2	0-91510-814-0	08	1	0609-0702		●
57	WASHER; LK,YOKE ID=14.2	0-91510-614-0	08	1	0703-	●
57	WASHER; LK,YOKE P46 PROP SHAFT(C4Z) ID=14.2	0-91510-614-0	08	1	0703-		●
95	BOLT; YOKE,FINAL P60 PROP SHAFT(C2M) M16X48	1-09000-383-0	04	1	0609-		●
95	BOLT; YOKE,FINAL M14X37	1-09000-121-0	04	1	0609-	●
95	BOLT; YOKE,FINAL P46 PROP SHAFT(C4Z) M14X37	1-09000-121-0	04	1	0609-		●
104	PLUG; SLEEVE YOKE P60 PROP SHAFT(C2M)	1-09600-067-0	01	1	0609-		●
104	PLUG; SLEEVE YOKE	1-09600-064-0	01	1	0609-	●
104	PLUG; SLEEVE YOKE P46 PROP SHAFT(C4Z)	1-09600-064-0	01	1	0609-		●
106	NIPPLE; GREASE,YOKE,PROP SHAFT P60 PROP SHAFT(C2M) (B) MT6 STRAIGHT	1-09380-006-0	01	1	0609-		●
106	NIPPLE; GREASE,YOKE,PROP SHAFT (A) PT1/8 STRAIGHT	0-90301-410-0	01	1	0609-	●	●
107	COVER; RET,SLEEVE P60 PROP SHAFT(C2M)	1-37249-137-1	01	1	0609-		●
107	COVER; RET,SLEEVE	1-37249-060-1	01	1	0609-	●
107	COVER; RET,SLEEVE P46 PROP SHAFT(C4Z)	1-37249-060-1	01	1	0609-		●
128	SEAL; SLEEVE P60 PROP SHAFT(C2M)	1-37247-021-0	01	1	0609-		●
128	SEAL; SLEEVE	1-37247-024-0	01	1	0609-	●
128	SEAL; SLEEVE P46 PROP SHAFT(C4Z)	1-37247-024-0	01	1	0609-		●
225	YOKE; SLEEVE,PROP SHAFT P60 PROP SHAFT(C2M) L=332	1-37241-109-1	01	1	0609-		●
225	YOKE; SLEEVE,PROP SHAFT L=271	1-37241-099-2	01	1	0609-	●
225	YOKE; SLEEVE,PROP SHAFT P46 PROP SHAFT(C4Z) L=271	1-37241-099-2	01	1	0609-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
