3-78 — FIXING PARTS; AIR PIPING (#25849) — 98 parça

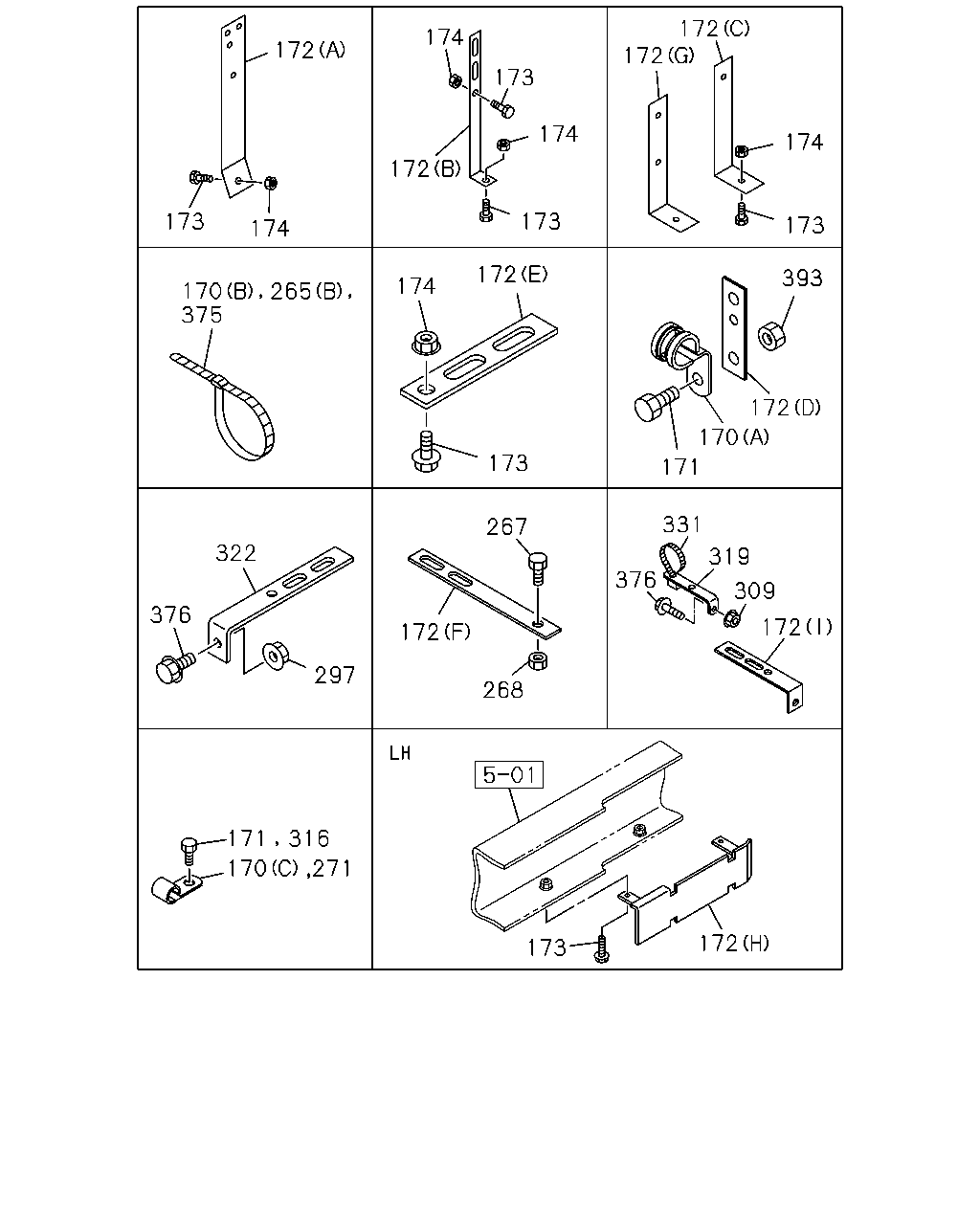

172 172 174 172 173 174 174 172 173 173 173 174 172 393 174 375 172 170 173 171 331 267 322 319 376 309 376 172 172 297 268 316 171 172 173 170 265 271 170

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
170	CLIP; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=250	1-09707-126-0	02	1	0609-0612
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	02	1	0701-
170	CLIP; NYLON TUBE AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (C) ID=11 L=50	0-95235-085-0	01	1	0609-
170	CLIP; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (C) ID=11 L=50	0-95235-085-0	01	1	0609-
170	CLIP; NYLON TUBE (A) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0609-
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	21	1	0609-
170	CLIP; NYLON TUBE EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B) L=250	1-09707-126-0	01	1	0609-
171	BOLT; TUBE CLIP AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> M8X20 FLANGE	0-28650-820-0	01	1	0609-
171	BOLT; TUBE CLIP EXC. DUAL AIR GAUGE<UG2> M8X20 FLANGE	0-28650-820-0	01	1	0609-
171	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	01	1	0609-
172	BRACKET; TUBE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (H)	1-47471-449-0	01	1	0609-0612
172	BRACKET; TUBE CLIP (H)	1-47471-449-0	01	1	0701-
172	BRACKET; TUBE CLIP AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (D) L=117	1-47478-116-0	01	1	0609-
172	BRACKET; TUBE CLIP EXC. DUAL AIR GAUGE<UG2> (D) L=117	1-47478-116-0	01	1	0609-
172	BRACKET; TUBE CLIP HEAVY DUTY PACKAGE TRUCK<RD2> (I) L=225	1-47477-646-3	01	1	0609-
172	BRACKET; TUBE CLIP (A)	1-47477-256-1	01	1	0609-
172	BRACKET; TUBE CLIP (E)	1-47477-514-3	01	1	0609-
172	BRACKET; TUBE CLIP (B) L=100 H=30	1-47477-645-2	02	1	0609-
172	BRACKET; TUBE CLIP (C) L=60 H=30	1-47477-716-1	01	1	0609-
172	BRACKET; TUBE CLIP (G) L=90	1-47477-755-1	01	1	0609-
172	BRACKET; TUBE CLIP (D) L=125	1-47477-975-1	02	1	0609-
172	BRACKET; TUBE CLIP EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (F) L=215	1-47479-288-0	01	1	0609-
173	BOLT; CLIP BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X30 FLANGE	0-28650-830-0	02	1	0609-0612
173	BOLT; CLIP BRKT AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> M8X25 FLANGE	0-28650-825-0	01	1	0609-
173	BOLT; CLIP BRKT EXC. DUAL AIR GAUGE<UG2> M8X25 FLANGE	0-28650-825-0	01	1	0609-
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	04	1	0609-
173	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	06	1	0609-0612
173	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	08	1	0701-
174	NUT; CLIP BRKT AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> M8 FLANGE	0-91180-108-0	01	1	0609-
174	NUT; CLIP BRKT EXC. DUAL AIR GAUGE<UG2> M8 FLANGE	0-91180-108-0	01	1	0609-
174	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	07	1	0609-
265	CLIP; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=31 H=30 L=35	1-09700-994-0	01	1	0609-
265	CLIP; NYLON TUBE WHEEL BASE 5000MM(50W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=250	1-09707-126-0	13	1	0609-
265	CLIP; NYLON TUBE WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=250	1-09707-126-0	16	1	0609-
267	BOLT; CLIP BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	01	1	0609-
268	NUT; CLIP BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	01	1	0609-
271	CLIP; AIR PIPE FIX FINAL GEAR 41/8 15.5" HYPOID(W4H) ID=9	9-09524-872-0	01	1	0609-
297	NUT; BRKT WHEEL BASE 5000MM(50W) M8 FLANGE	0-91180-108-0	01	1	0609-
297	NUT; BRKT WHEEL BASE 5500MM(55W) M8 FLANGE	0-91180-108-0	02	1	0609-
309	NUT; BRKT FIX DUAL AIR GAUGE<UG2> M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	0609-
309	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	01	1	0609-
316	BOLT; CLIP FINAL GEAR 41/8 15.5" HYPOID(W4H) M6X12 W/LK WASHER	0-50540-612-0	01	1	0609-
319	BRACKET; CLIP L=59 B=20	1-47479-048-0	01	1	0609-
322	BRACKET; CLIP WHEEL BASE 5000MM(50W) L=100 H=30	1-47477-645-2	01	1	0609-
322	BRACKET; CLIP WHEEL BASE 5500MM(55W) L=100 H=30	1-47477-645-2	02	1	0609-
331	CLIP; NYLON TUBE L=250	1-09707-126-0	01	1	0609-
375	CLIP; AIR PIPE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=250	1-09707-126-0	06	1	0609-
376	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0609-
376	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0609-
376	BOLT; BRKT WHEEL BASE 5000MM(50W) M8X25 FLANGE	0-28650-825-0	01	1	0609-
376	BOLT; BRKT WHEEL BASE 5500MM(55W) M8X25 FLANGE	0-28650-825-0	02	1	0609-
393	NUT; UNION AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> M8 FLANGE	0-91180-108-0	01	1	0609-
393	NUT; UNION EXC. DUAL AIR GAUGE<UG2> M8 FLANGE	0-91180-108-0	01	1	0609-
393	NUT; UNION M8 FLANGE	0-91180-108-0	01	1	0609-

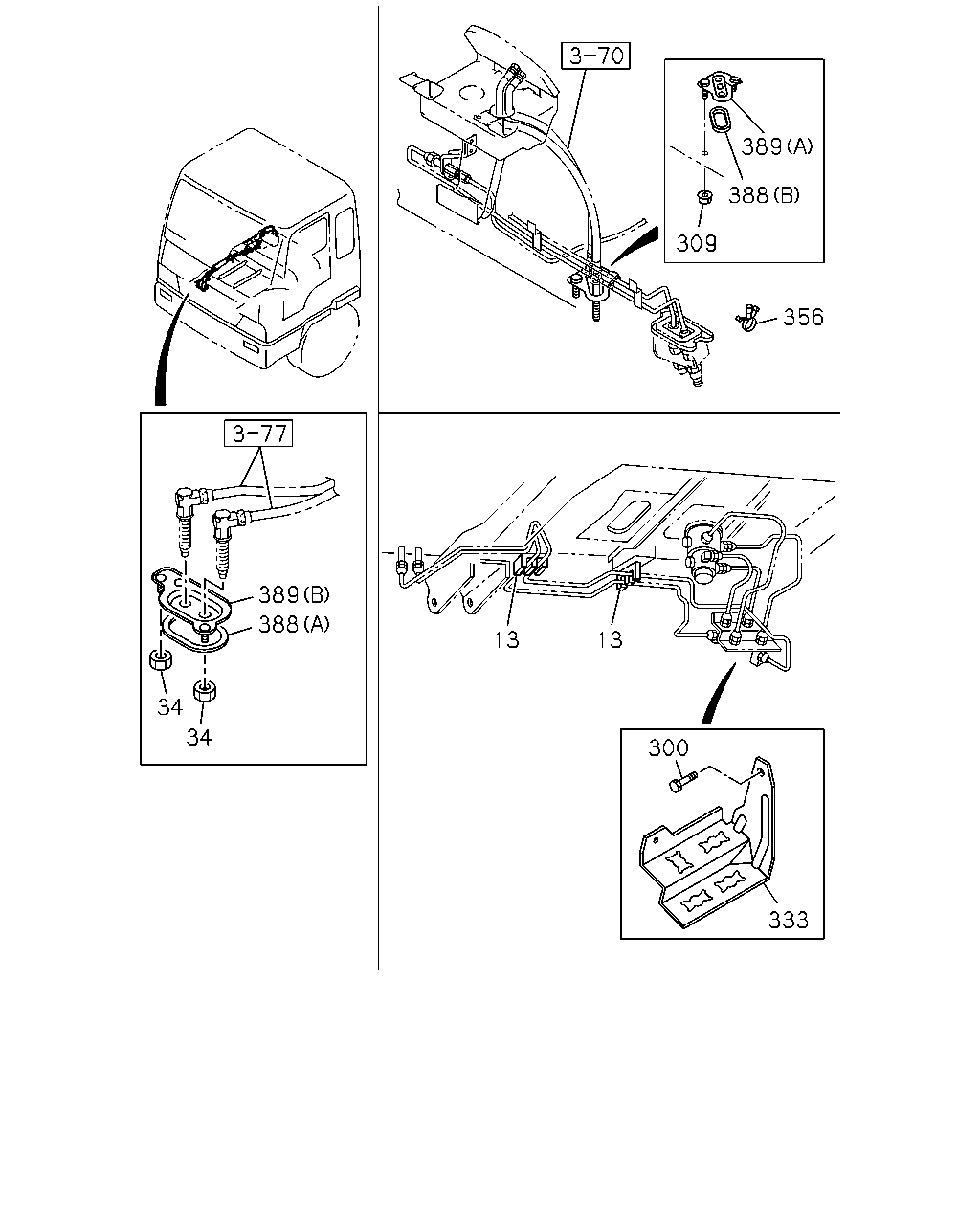

389 388 309 356 389 388 13 13 34 34 300 333

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	CLIP; AIR PIPE DUAL AIR GAUGE<UG2>	8-94435-553-0	03	1	0609-
34	NUT; BRKT DUAL AIR GAUGE<UG2> M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	0609-
34	NUT; BRKT M8 FLANGE	0-91150-108-0	03	1	0609-0609
34	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0609-0609
34	NUT; BRKT M8 FLANGE	0-91180-108-0	07	1	0609-
300	BOLT; TUBE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0609-0904
300	BOLT; TUBE CLIP M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-
309	NUT; BRKT FIX DUAL AIR GAUGE<UG2> M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	0609-
309	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	01	1	0609-
333	BRACKET; BRK AIR PIPE	1-79738-815-2	01	1	0609-
356	CLIP; AIR PIPE AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=4.8	8-94128-483-0	01	1	0609-
356	CLIP; AIR PIPE EXC. DUAL AIR GAUGE<UG2> ID=4.8	8-94128-483-0	01	1	0609-
388	SEAL DUAL AIR GAUGE<UG2> (A) L=280	1-79738-793-1	01	1	0609-
388	SEAL DUAL AIR GAUGE<UG2> (B)	1-79738-826-0	01	1	0609-
389	BRACKET; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-79738-814-2	01	1	0609-
389	BRACKET; UNION DUAL AIR GAUGE<UG2> (A)	1-79738-827-1	01	1	0609-
389	BRACKET; UNION DUAL AIR GAUGE<UG2> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-79738-796-2	01	1	0609-
389	BRACKET; UNION WHEEL BASE 5000MM(50W) (C)	1-47471-460-0	01	1	0609-
389	BRACKET; UNION WHEEL BASE 5500MM(55W) (C)	1-47471-361-0	01	1	0609-

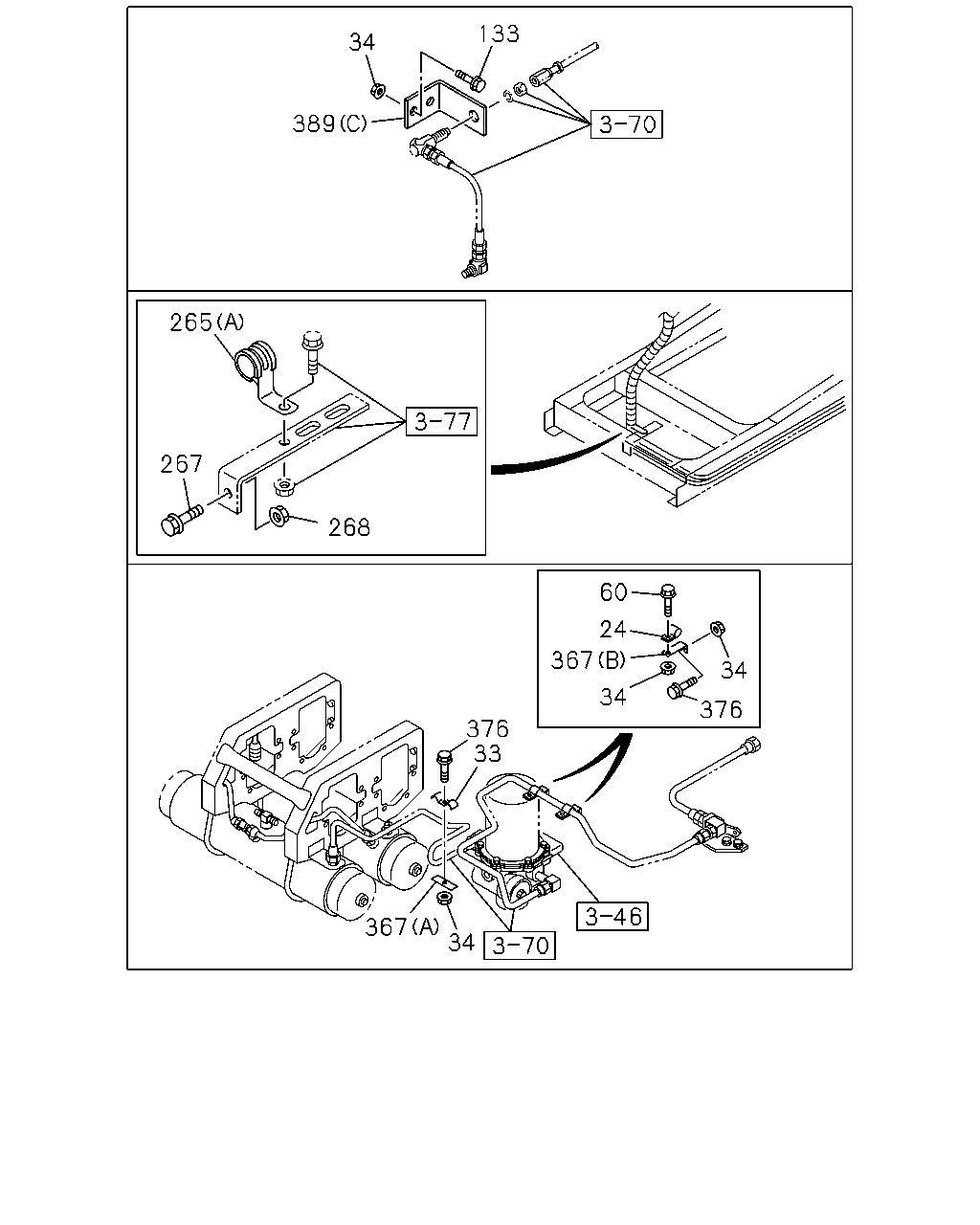

133 34 389 265 267 268 60 24 367 34 34 376 376 33 367 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	CLIP; PIPE ID=19 L=20	0-95235-836-0	02	1	0609-
33	CLIP; BOLT	1-09701-323-0	01	1	0609-
34	NUT; BRKT DUAL AIR GAUGE<UG2> M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	0609-
34	NUT; BRKT M8 FLANGE	0-91150-108-0	03	1	0609-0609
34	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0609-0609
34	NUT; BRKT M8 FLANGE	0-91180-108-0	07	1	0609-
60	BOLT; CLIP FIX M8X20 FLANGE	0-28650-820-0	02	1	0609-
133	BOLT; BRKT WHEEL BASE 5000MM(50W) M8X25 FLANGE	0-28650-825-0	02	1	0609-
133	BOLT; BRKT WHEEL BASE 5500MM(55W) M8X30 FLANGE	0-28650-830-0	02	1	0609-
265	CLIP; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=31 H=30 L=35	1-09700-994-0	01	1	0609-
265	CLIP; NYLON TUBE WHEEL BASE 5000MM(50W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=250	1-09707-126-0	13	1	0609-
265	CLIP; NYLON TUBE WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=250	1-09707-126-0	16	1	0609-
267	BOLT; CLIP BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	01	1	0609-
268	NUT; CLIP BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	01	1	0609-
367	BRACKET ASM (A) L=50	1-47475-299-2	01	1	0609-
367	BRACKET ASM (B) L=90 B=25	1-47475-530-0	02	1	0609-
376	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0609-
376	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0609-
376	BOLT; BRKT WHEEL BASE 5000MM(50W) M8X25 FLANGE	0-28650-825-0	01	1	0609-
376	BOLT; BRKT WHEEL BASE 5500MM(55W) M8X25 FLANGE	0-28650-825-0	02	1	0609-
389	BRACKET; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-79738-814-2	01	1	0609-
389	BRACKET; UNION DUAL AIR GAUGE<UG2> (A)	1-79738-827-1	01	1	0609-
389	BRACKET; UNION DUAL AIR GAUGE<UG2> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-79738-796-2	01	1	0609-
389	BRACKET; UNION WHEEL BASE 5000MM(50W) (C)	1-47471-460-0	01	1	0609-
389	BRACKET; UNION WHEEL BASE 5500MM(55W) (C)	1-47471-361-0	01	1	0609-
