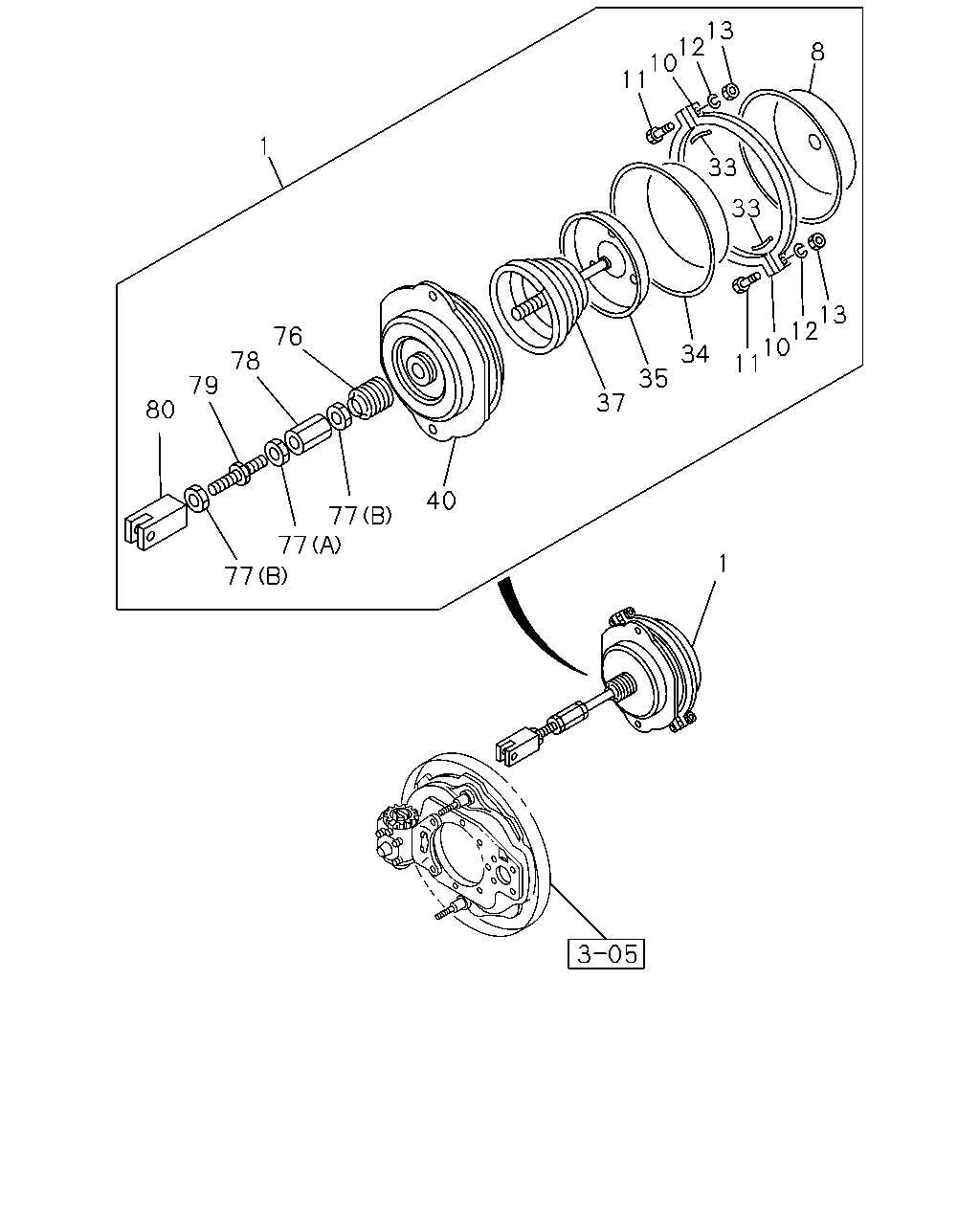

3-41 — REAR BRAKE POWER CHAMBER (#25841) — 18 parça

13 12 10 11 8 1 33 33 13 12 10 11 76 34 78 35 79 37 80 40 77 77 1 77

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CHAMBER ASM; SPRING FINAL GEAR 41/8 15.5" HYPOID(W4H)	1-48250-217-3	01	1	0609-
1	CHAMBER ASM; SPRING FINAL GEAR 41/8 15.5" HYPOID(W4H)	1-48250-218-3	01	1	0609-
8	SHELL; CYL,SPR CHAMBER FINAL GEAR 41/8 15.5" HYPOID(W4H)	1-48251-031-0	02	1	0609-
10	RING; CLAMP,SPR CHAMBER FINAL GEAR 41/8 15.5" HYPOID(W4H)	1-48259-016-0	04	1	0609-
11	BOLT; CLAMP RING FINAL GEAR 41/8 15.5" HYPOID(W4H)	1-48259-035-0	04	1	0609-
12	WASHER; LK,CLAMP RING FINAL GEAR 41/8 15.5" HYPOID(W4H) ID=10.2	9-09150-510-0	04	1	0609-
13	NUT; CLAMP RING FINAL GEAR 41/8 15.5" HYPOID(W4H)	9-83315-080-0	04	1	0609-
33	RETAINER; DIAPH FINAL GEAR 41/8 15.5" HYPOID(W4H)	1-48259-044-0	04	1	0609-
34	DIAPHRAGM FINAL GEAR 41/8 15.5" HYPOID(W4H)	1-48252-026-0	02	1	0609-
35	PLATE; ROD END,SPR CHAMBER FINAL GEAR 41/8 15.5" HYPOID(W4H)	1-48253-024-0	02	1	0609-
37	SPRING; LWR,SPR CHAMBER FINAL GEAR 41/8 15.5" HYPOID(W4H)	1-48255-008-0	02	1	0609-
40	COVER ASM; LWR,SPR CHAMBER FINAL GEAR 41/8 15.5" HYPOID(W4H)	1-48251-032-0	02	1	0609-
76	GUARD; SPR CHAMBER BRK FINAL GEAR 41/8 15.5" HYPOID(W4H)	1-48259-096-0	02	1	0609-
77	NUT; SPR CHAMBER BRK FINAL GEAR 41/8 15.5" HYPOID(W4H) (A)	1-48253-021-0	02	1	0609-
77	NUT; SPR CHAMBER BRK FINAL GEAR 41/8 15.5" HYPOID(W4H) (B)	9-88510-432-0	04	1	0609-
78	TURNBACKLE; SPR CHAMBER BRK FINAL GEAR 41/8 15.5" HYPOID(W4H)	1-48253-023-0	02	1	0609-
79	STUD; SPR CHAMBER BRK FINAL GEAR 41/8 15.5" HYPOID(W4H)	1-48253-022-0	02	1	0609-
80	CLEVIS; SPR CHAMBER BRK FINAL GEAR 41/8 15.5" HYPOID(W4H)	1-48253-020-0	02	1	0609-
