Sayfa 3-20 - Isuzu EPC

3-20 — AIR TANK (#25836) — 69 parça

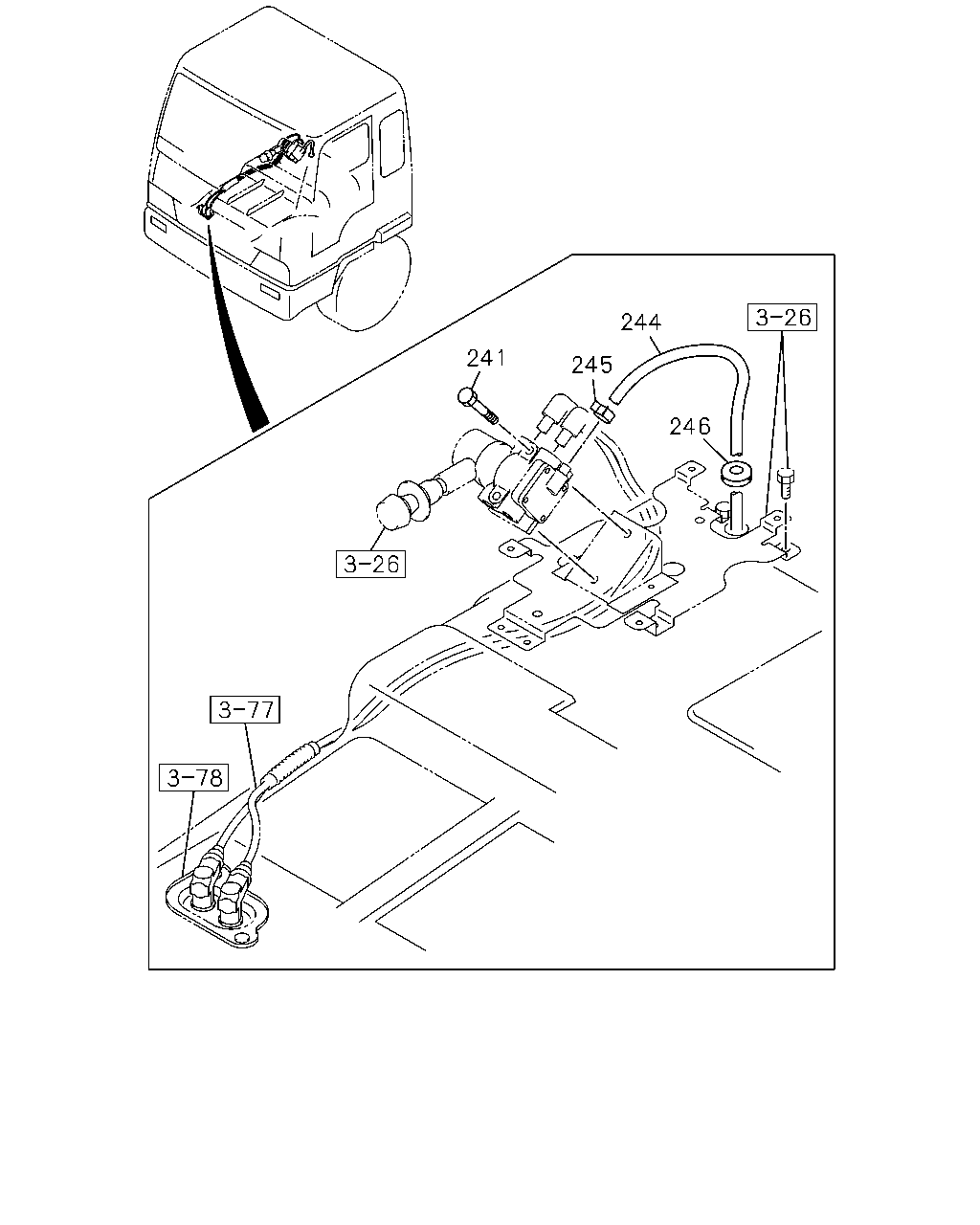

244 241 245 246

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
241	BOLT; SET,CONT VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X70 FLANGE	0-28050-870-0	02	1	0609-
244	PIPE; VINYL,EXH REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	0609-
245	CLIP; VINYL PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14	8-94238-572-0	01	1	0609-
246	GROMMET; VINYL PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=24	9-61166-007-0	01	1	0609-
246	GROMMET; VINYL PIPE DUAL AIR GAUGE<UG2> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=35	8-94122-971-0	01	1	0609-

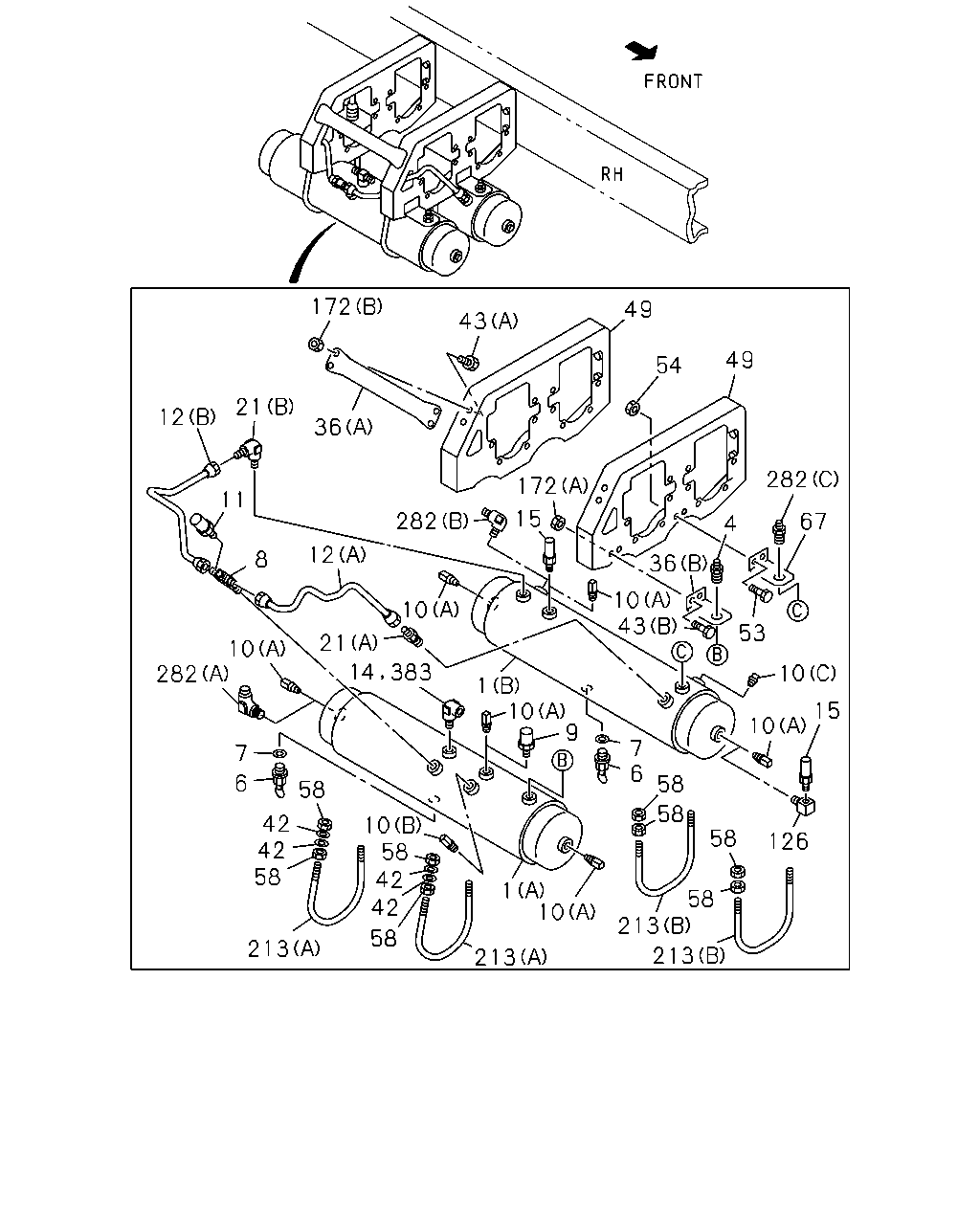

172 49 43 49 54 21 12 36 282 172 11 15 282 67 4 12 8 36 10 43 10 53 21 10 10 282 1 10 15 9 10 7 6 7 6 58 58 58 42 42 58 10 58 42 42 58 126 1 10 58 213 58 213 213 213 14 383

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR AIR DRYER<PS7> (A)	1-48330-598-0	01	1	0609-
1	TANK ASM; AIR AIR DRYER<PS7> (B)	1-48370-512-2	01	1	0609-
4	CONNECTOR; FLARE AIR DRYER<PS7>	1-09650-536-0	01	1	0609-
6	COCK; DRAIN,AIR TANK AIR DRYER<PS7>	1-48312-015-0	04	1	0609-
7	GASKET; DRAIN COCK AIR DRYER<PS7> ID=14	1-09630-145-0	04	1	0609-
8	CONNECTOR; AIR TANK AIR DRYER<PS7>	1-09656-699-0	01	1	0609-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK AIR DRYER<PS7> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 530KPA	1-48340-054-1	01	1	0609-
10	PLUG; AIR TANK AIR DRYER<PS7> (B) PT3/8	9-09204-517-0	01	1	0609-
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> (A) PT1/4	9-99204-513-0	03	1	0609-
10	PLUG; AIR TANK AIR DRYER<PS7> (C) PT3/4	9-09204-526-0	01	1	0609-
10	PLUG; AIR TANK AIR DRYER<PS7> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) PT1/4	9-99204-513-0	05	1	0609-
11	VALVE; SAFETY,AIR TANK	1-48320-012-2	01	1	0609-
12	PIPE ASM; AIR,AIR TANK TO AIR TANK AIR DRYER<PS7> (B)	1-47497-011-0	01	1	0609-
12	PIPE ASM; AIR,AIR TANK TO AIR TANK AIR DRYER<PS7> (A)	1-47497-012-0	01	1	0609-
14	UNION; 3 WAY,AIR TANK AIR DRYER<PS7> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0609-
15	SWITCH; LOW PRESS,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> 530KPA	1-48340-054-1	02	1	0609-
21	VALVE; CHECK,AIR TANK AIR DRYER<PS7> (B) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	0609-
21	VALVE; CHECK,AIR TANK AIR DRYER<PS7> (A)	1-48410-182-3	01	1	0609-
36	STAY; MAIN TANK AIR DRYER<PS7> (A)	1-53318-293-1	01	1	0609-
36	STAY; MAIN TANK AIR DRYER<PS7> (B)	8-94301-490-0	01	1	0609-
42	WASHER; PL AIR DRYER<PS7> ID=8.4 OD=18	0-91610-608-0	04	1	0609-
43	BOLT; STAY,AIR TANK,MAIN AIR DRYER<PS7> (B) M8X20 FLANGE	0-28650-820-0	02	1	0609-
43	BOLT; STAY,AIR TANK,MAIN AIR DRYER<PS7> (A) M10X25 FLANGE	0-28651-025-0	04	1	0609-
49	BRACKET; AIR TANK AIR DRYER<PS7>	1-53318-338-6	02	1	0609-
53	BOLT; STAY,AIR TANK AIR DRYER<PS7> M8X20 FLANGE	0-28650-820-0	02	1	0609-
54	NUT; STAY AIR DRYER<PS7> M8 FLANGE	0-91180-108-0	02	1	0609-
58	NUT; BAND,AIR TANK AIR DRYER<PS7> M8	0-91110-508-0	16	1	0609-
67	STAY; SUB TANK AIR DRYER<PS7>	1-48317-349-0	01	1	0609-
126	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> PT1/4 2WAY	1-09660-693-0	01	1	0609-
172	NUT; STAY,AIR TANK,MAIN AIR DRYER<PS7> (A) M8 FLANGE	0-91180-108-0	02	1	0609-
172	NUT; STAY,AIR TANK,MAIN AIR DRYER<PS7> (B) M10 FLANGE	0-91180-210-0	04	1	0609-
213	BOLT; U AIR TANK AIR DRYER<PS7> (A) L=97.5	1-48317-323-1	02	1	0609-
213	BOLT; U AIR TANK AIR DRYER<PS7> (B) L=195	1-48317-367-2	02	1	0609-
282	UNION; 2 WAY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> (A) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	0609-
282	UNION; 2 WAY AIR DRYER<PS7> (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0609-
282	UNION; 2 WAY AIR DRYER<PS7> (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0609-
383	UNION; 3 WAY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0609-

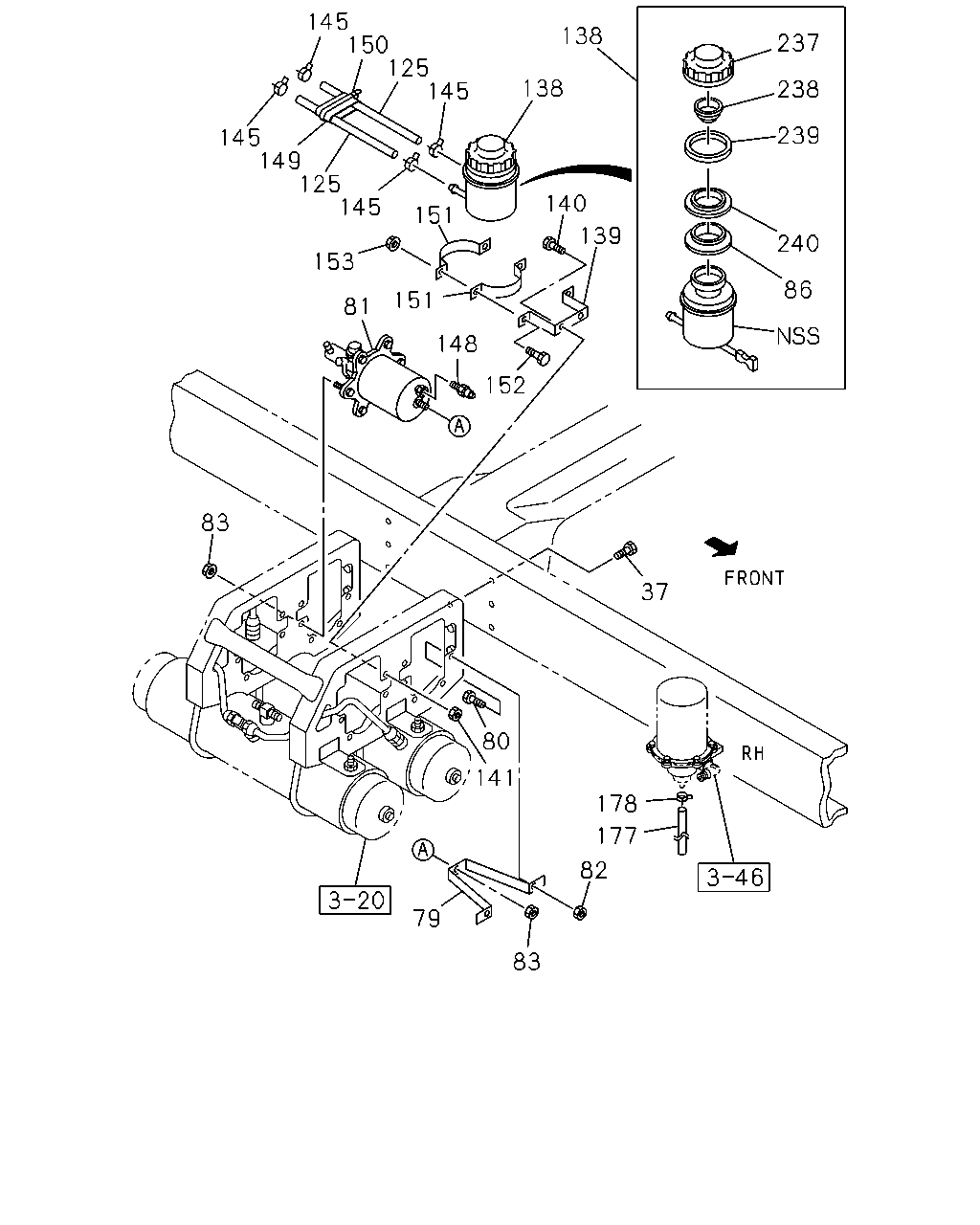

145 150 125 145 138 237 138 238 239 145 149 125 145 140 151 139 240 153 86 151 81 148 152 83 37 80 141 178 177 82 79 83

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	BOLT; AIR TANK M12X40 FLANGE	0-28651-240-0	06	1	0609-
79	STAY; AIR MASTER TO BRKT	1-53318-347-0	02	1	0609-0805
79	STAY; AIR MASTER TO BRKT	8-98120-254-0	02	1	0806-
80	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	04	1	0609-
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. PRIMARY	1-47800-663-1	01	1	0609-
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. SECONDARY	1-47800-664-2	01	1	0609-
82	NUT; STAY,AIR MASTER BRKT M10 FLANGE	0-91180-210-0	04	1	0609-
83	NUT; AIR MASTER M10 FLANGE	0-91180-210-0	10	1	0609-
86	SEAL; DUST	1-47529-019-0	01	1	0609-
125	HOSE; OIL TANK TO AIR MASTER L=270 SERVICED BY L=1800	1-09360-320-0	02	1	0609-
138	TANK ASM; OIL,AIR MASTER	1-47530-185-1	01	1	0609-
139	BRACKET; OIL TANK	1-47537-081-2	01	1	0609-
140	BOLT; OIL TANK TO BRKT M10X20 FLANGE	0-28651-020-0	02	1	0609-
141	NUT; OIL TANK TO BRKT M10 FLANGE	0-91180-210-0	02	1	0609-
145	CLIP; OIL TANK TO AIR MASTER HOSE ID=14	1-09704-102-0	04	1	0609-
148	CONNECTOR; AIR MASTER DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	0609-
149	SLEEVE; RUBBER,HOSE ID=23 OD=27 L=40	1-09337-015-0	01	1	0609-
150	CLIP; BAND,RUBBER SLEEVE L=140	5-09707-031-1	01	1	0609-
151	BAND; OIL TANK,AIR MASTER	1-47537-056-2	02	1	0609-
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28650-820-0	02	1	0609-
153	NUT; OIL TANK TO BAND M8 FLANGE	0-91180-108-0	02	1	0609-
177	HOSE; RUBBER,DRAIN AIR DRYER<PS7> L=90	9-09712-638-0	01	1	0609-
178	CLIP; HOSE AIR DRYER<PS7> ID=33.6	8-94362-518-0	01	1	0609-
237	CAP; OIL TANK	1-47525-030-0	01	1	0609-
238	PLATE; BAFFLE	1-47529-022-0	01	1	0609-
239	FILTER; DUST	1-47529-017-0	01	1	0609-
240	HOLDER; FILTER	1-47529-018-0	01	1	0609-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
