2 |

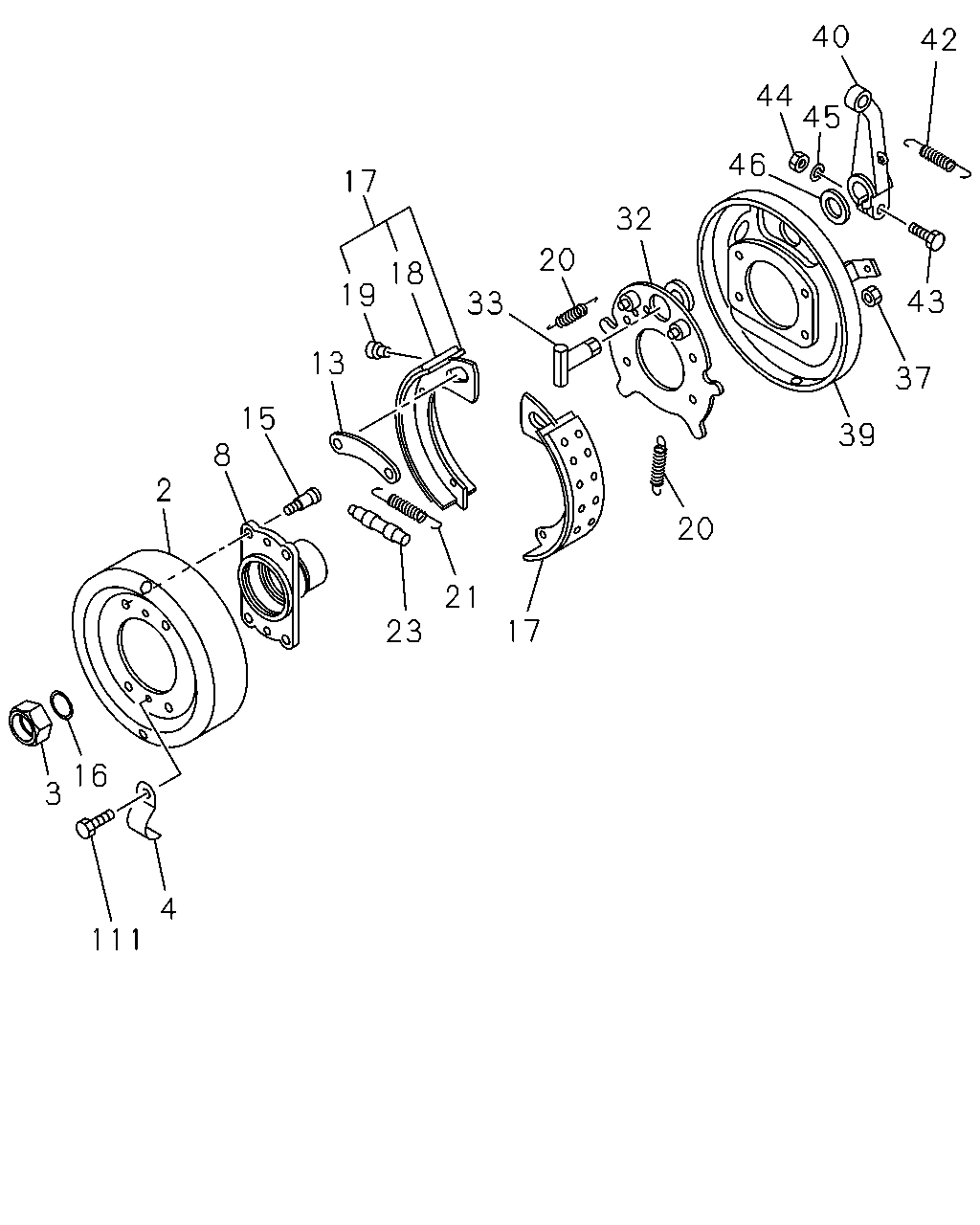

DRUM; PARKING BRK
PARKING BRAKE DRUM 10"(B1T)
|
1-46211-019-0 |
01 |
1 |
0609- |
| |
3 |
NUT; LK
PARKING BRAKE DRUM 10"(B1T)
M36 FLANGE
|
1-09449-063-0 |
01 |
1 |
0609-0805 |
| |
3 |
NUT; LK
PARKING BRAKE DRUM 10"(B1T)
M36 FLANGE
|
8-98014-140-0 |
01 |
1 |
0806- |
| |
4 |
COVER; ADJ HOLE
PARKING BRAKE DRUM 10"(B1T)
|
1-46219-030-0 |
02 |
1 |
0609- |
| |
8 |
FLANGE; PARKING BRK
PARKING BRAKE DRUM 10"(B1T)
|
1-37243-235-0 |
01 |
1 |
0609-1002 |
| |
8 |
FLANGE; PARKING BRK
PARKING BRAKE DRUM 10"(B1T)
|
8-98153-193-0 |
01 |
1 |
1003- |
| |
13 |
BRACE; PARKING BRK
PARKING BRAKE DRUM 10"(B1T)
|
9-46239-002-0 |
01 |
1 |
0609- |
| |
15 |
BOLT; FLANGE
PARKING BRAKE DRUM 10"(B1T)
M16X55
|
1-46219-039-0 |
04 |
1 |
0609-0707 |
| |
15 |
BOLT; FLANGE
PARKING BRAKE DRUM 10"(B1T)
M16X55
|
8-98023-172-0 |
04 |
1 |
0708- |
| |
16 |
GASKET; FLANGE
ALSO INCLUDED IN GASKET SET(M/T).
PARKING BRAKE DRUM 10"(B1T)
ID=47 T=5
|
1-09623-380-0 |
01 |
1 |
0609- |
| |
17 |
SHOE; PARKING BRK
PARKING BRAKE DRUM 10"(B1T)
|
1-46220-022-1 |
02 |
1 |
0609- |
| |
18 |
LINING; BRK,PARKING
PARKING BRAKE DRUM 10"(B1T)
|
1-46225-023-0 |
02 |
1 |
0609- |
| |
19 |
RIVET; LINING,PARKING BRK
PARKING BRAKE DRUM 10"(B1T)
|
1-09732-012-0 |
32 |
1 |
0609-0807 |
| |
19 |
RIVET; LINING,PARKING BRK
PARKING BRAKE DRUM 10"(B1T)
|
1-09732-058-0 |
32 |
1 |
0808- |
| |
20 |
SPRING; RETURN,SECONDARY,PARKING BRK
PARKING BRAKE DRUM 10"(B1T)
|
9-09942-434-0 |
02 |
1 |
0609- |
| |
21 |
SPRING; RETURN,PARKING BRK SHOE
PARKING BRAKE DRUM 10"(B1T)
|
9-09942-516-0 |
01 |
1 |
0609- |
| |
23 |
SCREW; ADJ,PARKING BRK SHOE
PARKING BRAKE DRUM 10"(B1T)
|
1-46240-003-0 |
01 |
1 |
0609- |
| |
32 |
PLATE; SUPPORT,PARKING BRK
PARKING BRAKE DRUM 10"(B1T)
|
1-46213-039-0 |
01 |
1 |
0609- |
| |
33 |
SHAFT; CAM,PARKING BRK
PARKING BRAKE DRUM 10"(B1T)
|
1-46251-010-0 |
01 |
1 |
0609- |
| |
37 |
NUT; SUPPORT PLATE
PARKING BRAKE DRUM 10"(B1T)
M14 FLANGE
|
8-97365-444-0 |
04 |
1 |
0609- |
| |
39 |
COVER; DUST,PARKING BRK
PARKING BRAKE DRUM 10"(B1T)
|
1-46213-038-0 |
01 |
1 |
0609- |
| |
40 |
LEVER; CM/SHF,PARKING BRK
PARKING BRAKE DRUM 10"(B1T)
|
1-46252-046-0 |
01 |
1 |
0609- |
| |
42 |
SPRING; RETURN,LEVER
PARKING BRAKE DRUM 10"(B1T)
|
1-09583-104-0 |
01 |
1 |
0609- |
| |
43 |
BOLT; LEVER TO CM/SHF
PARKING BRAKE DRUM 10"(B1T)
|
0-10811-040-0 |
01 |
1 |
0609-0710 |
| |
43 |
BOLT; LEVER TO CM/SHF
PARKING BRAKE DRUM 10"(B1T)
|
8-98061-595-0 |
01 |
1 |
0711- |
| |
44 |
NUT; LEVER TO CM/SHF
PARKING BRAKE DRUM 10"(B1T)
M10
|
0-91111-510-0 |
01 |
1 |
0609- |
| |
45 |
WASHER; LK,LEVER TO CM/SHF
PARKING BRAKE DRUM 10"(B1T)
ID=10.2
|
0-91510-510-0 |
01 |
1 |
0609- |
| |
46 |
WASHER; LEVER
PARKING BRAKE DRUM 10"(B1T)
|
9-09855-362-0 |
01 |
1 |
0609- |
| |
111 |
BOLT; COVER,CHECK HOLE
PARKING BRAKE DRUM 10"(B1T)
M8X20 W/LK WASHER
|
0-50040-820-0 |
02 |
1 |
0609-0906 |
| |
111 |
BOLT; COVER,CHECK HOLE
PARKING BRAKE DRUM 10"(B1T)
M8X20 W/LK WASHER
|
0-50540-820-0 |
02 |
1 |
0907-1009 |
| |
111 |
BOLT; COVER,CHECK HOLE
PARKING BRAKE DRUM 10"(B1T)
M8X20 W/LK WASHER
|
0-50740-820-0 |
02 |
1 |
1010- |
