3-05 — REAR WHEEL BRAKE (#25832) — 141 parça

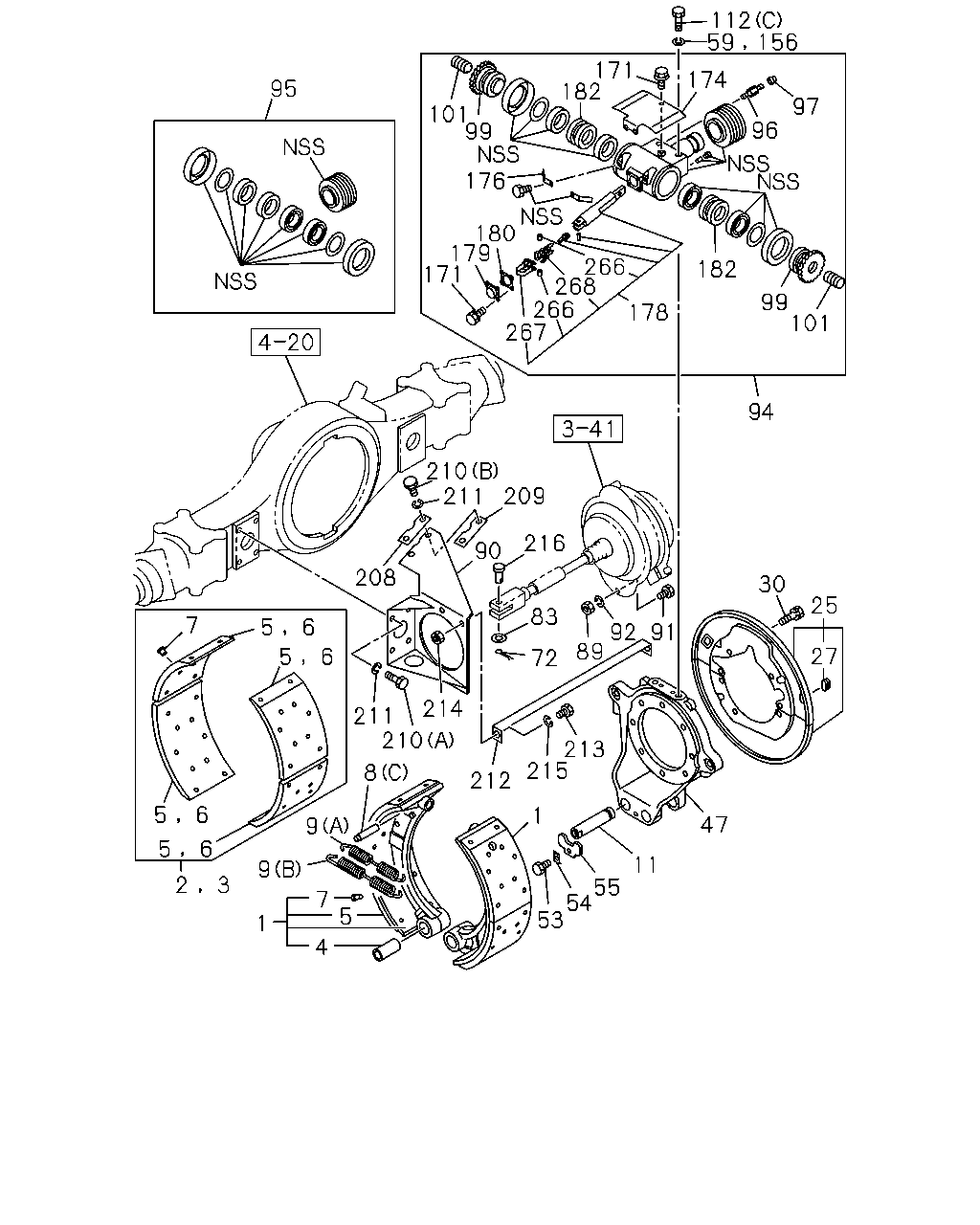

çizim 24910
112 59 156 171 182 174 95 97 101 99 176 96 180 179 171 266 268 266 267 182 99 101 178 94 210 216 90 208 30 25 83 7 5 6 91 92 89 27 5 6 72 214 211 210 213 215 8 212 5 6 1 47 9 6 5 11 9 3 2 55 54 53 7 5 1 4 211 209
BalonParca AdiParca NoAdetTipApplied Date
1 SHOE; BRK,RR
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/7 16.5" HYPOID(W3L) 		1-47120-708-0 04 1 0609-
1 SHOE; BRK,RR
FINAL GEAR 41/8 15.5" HYPOID(W4H) 		1-47120-707-0 04 1 0609-
2 LINING SET; RR BRK,STANDARD
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/7 16.5" HYPOID(W3L) T=16 		1-88310-529-1 02 1 0609-
2 LINING SET; RR BRK,STANDARD
FINAL GEAR 41/8 15.5" HYPOID(W4H) 		1-88310-495-0 02 1 0609-
2 LINING SET; RR BRK,STANDARD
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/7 16.5" HYPOID(W3L) BEST VALUE PARTS 		1-87610-129-0 01 1 0609-0905
2 LINING SET; RR BRK,STANDARD
FINAL GEAR 41/8 15.5" HYPOID(W4H) BEST VALUE PARTS 		1-87610-125-0 01 1 0609-
3 LINING SET; RR BRK,OVER SIZE
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/7 16.5" HYPOID(W3L) T=17 		1-88310-530-1 02 1 0609-
3 LINING SET; RR BRK,OVER SIZE
FINAL GEAR 41/8 15.5" HYPOID(W4H) 		1-88310-496-0 02 1 0609-
4 BUSHING; BRK SHOE,RR WHEEL 1-47112-012-0 04 1 0609-
5 LINING; RR BRK SHOE,STANDARD
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/7 16.5" HYPOID(W3L) T=16 		1-47125-813-0 08 1 0609-
5 LINING; RR BRK SHOE,STANDARD
FINAL GEAR 41/8 15.5" HYPOID(W4H) 		1-47125-811-0 08 1 0609-
6 LINING; RR BRK SHOE,OVER SIZE
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/7 16.5" HYPOID(W3L) T=17 		1-47125-814-0 08 1 0609-
6 LINING; RR BRK SHOE,OVER SIZE
FINAL GEAR 41/8 15.5" HYPOID(W4H) 		1-47125-812-0 08 1 0609-
7 RIVET; LINING,RR BRK
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/7 16.5" HYPOID(W3L) L=18.5 		1-09732-034-0 AR 1 0609-
7 RIVET; LINING,RR BRK
FINAL GEAR 41/8 15.5" HYPOID(W4H) L=18.5 		1-09732-034-0 80 1 0609-
8 PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/7 16.5" HYPOID(W3L) (A) 		1-09744-051-0 04 1 0609-
8 PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/7 16.5" HYPOID(W3L) (B) 		1-47119-025-0 04 1 0609-
8 PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 41/8 15.5" HYPOID(W4H) (C) L=73.5 		1-47119-017-1 04 1 0609-
9 SPRING; RETURN,BRK SHOE
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/7 16.5" HYPOID(W3L) (A) 		1-09583-175-0 02 1 0609-
9 SPRING; RETURN,BRK SHOE
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/7 16.5" HYPOID(W3L) (B) 		1-09583-210-0 04 1 0609-
9 SPRING; RETURN,BRK SHOE
FINAL GEAR 41/8 15.5" HYPOID(W4H) (A) 		1-09583-236-0 02 1 0609-
9 SPRING; RETURN,BRK SHOE
FINAL GEAR 41/8 15.5" HYPOID(W4H) (B) 		1-09583-237-1 02 1 0609-
11 PIN; ANCHOR,RR WHEEL BRK
L=121.5 		1-47131-039-0 04 1 0609-
25 COVER SET; RR BRK DRUM
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/7 16.5" HYPOID(W3L) 		1-47151-461-1 02 1 0609-
25 COVER SET; RR BRK DRUM
FINAL GEAR 41/8 15.5" HYPOID(W4H) 		1-47151-482-1 02 1 0609-
27 COVER; CHECK HOLE,DRUM COVER
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/7 16.5" HYPOID(W3L) 		1-09333-151-0 04 1 0609-
27 COVER; CHECK HOLE,DRUM COVER
FINAL GEAR 41/8 15.5" HYPOID(W4H) 		1-09333-095-0 04 1 0609-
30 BOLT; DRUM COVER
M10X16 W/LK WASHER 		0-50041-016-0 12 1 0609-0906
30 BOLT; DRUM COVER
M10X16 W/LK WASHER 		0-50541-016-0 12 1 0907-
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/7 16.5" HYPOID(W3L) 		1-47137-151-0 02 1 0609-
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
FINAL GEAR 41/8 15.5" HYPOID(W4H) 		1-47130-088-1 02 1 0609-
53 BOLT; LOCK PLATE
M10X16 		0-20851-016-0 02 1 0609-
54 WASHER; LK,ANCHOR PIN,RR BRK 1-47133-011-0 02 1 0609-
55 PLATE; LK,RR WHEEL CYL 1-47133-005-0 02 1 0609-
59 WASHER; LK,RR WHEEL CYL
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/7 16.5" HYPOID(W3L) ID=14.2 		0-91510-514-0 04 1 0609-
59 WASHER; LK,RR WHEEL CYL
FINAL GEAR 41/8 15.5" HYPOID(W4H) ID=12.2 		0-91510-612-0 02 1 0609-
72 PIN; SPLIT
FINAL GEAR 41/8 15.5" HYPOID(W4H) OD=2.8 L=18 		0-81123-018-0 02 1 0609-
83 WASHER; PL
FINAL GEAR 41/8 15.5" HYPOID(W4H) ID=10.5 		0-91610-510-0 02 1 0609-
89 NUT; CHAMBER
FINAL GEAR 41/8 15.5" HYPOID(W4H) M12 		0-91110-512-0 04 1 0609-
90 BRACKET; CHAMBER
FINAL GEAR 41/8 15.5" HYPOID(W4H) 		1-48258-146-0 01 1 0609-
90 BRACKET; CHAMBER
FINAL GEAR 41/8 15.5" HYPOID(W4H) 		1-48258-147-0 01 1 0609-
91 BOLT; CHAMBER
FINAL GEAR 41/8 15.5" HYPOID(W4H) M12X30 		0-20801-230-0 04 1 0609-
92 WASHER; LK,CHAMBER
FINAL GEAR 41/8 15.5" HYPOID(W4H) ID=12.2 		0-91510-612-0 04 1 0609-
94 CYLINDER; WHEEL,RR BRK
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/7 16.5" HYPOID(W3L) 		1-47600-682-0 02 1 0609-
94 CYLINDER; WHEEL,RR BRK
FINAL GEAR 41/8 15.5" HYPOID(W4H) 		1-47600-579-1 01 1 0609-
94 CYLINDER; WHEEL,RR BRK
FINAL GEAR 41/8 15.5" HYPOID(W4H) 		1-47600-580-1 01 1 0609-
95 CUP SET; RR WHEEL CYL
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/7 16.5" HYPOID(W3L) 		1-87830-528-0 02 1 0609-
95 CUP SET; RR WHEEL CYL
FINAL GEAR 41/8 15.5" HYPOID(W4H) 		1-87830-721-0 02 1 0609-
96 SCREW; BLEEDER,RR BRK 1-47615-002-0 02 1 0609-
97 CAP; BLEEDER,RR WHEEL CYL
OD=12 		1-47619-011-0 02 1 0609-
99 PISTON; RR WHEEL CYL
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/7 16.5" HYPOID(W3L) 		1-47624-303-0 04 1 0609-
99 PISTON; RR WHEEL CYL
FINAL GEAR 41/8 15.5" HYPOID(W4H) 		1-47624-210-0 04 1 0609-
101 SCREW; ADJ,RR WHEEL CYL
FINAL GEAR 41/8 15.5" HYPOID(W4H) 		1-47622-030-0 04 1 0609-
112 BOLT; WHEEL CYL SETTING
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/7 16.5" HYPOID(W3L) (A) M14X35 		0-20851-435-0 04 1 0609-
112 BOLT; WHEEL CYL SETTING
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/7 16.5" HYPOID(W3L) (B) M8X16 W/LK WASHER 		0-50540-816-0 06 1 0609-
112 BOLT; WHEEL CYL SETTING
FINAL GEAR 41/8 15.5" HYPOID(W4H) (C) 		0-16806-270-0 04 1 0609-
156 WASHER; LK,WHEEL CYL SETTING
FINAL GEAR 41/8 15.5" HYPOID(W4H) ID=12.2 		0-91510-612-0 02 1 0609-
171 BOLT; RR WHEEL CYL
FINAL GEAR 41/8 15.5" HYPOID(W4H) M6X10 		9-01900-610-0 14 1 0609-
174 COVER; CYL,RR WHEEL CYL
FINAL GEAR 41/8 15.5" HYPOID(W4H) 		1-47619-115-0 02 1 0609-
176 STOPPER; RR WHEEL CYL
FINAL GEAR 41/8 15.5" HYPOID(W4H) 		1-47629-070-0 04 1 0609-
178 WEDGE; RR WHEEL CYL
FINAL GEAR 41/8 15.5" HYPOID(W4H) 		1-47640-003-0 02 1 0609-
179 COVER; WEDGE,RR WHEEL CYL
FINAL GEAR 41/8 15.5" HYPOID(W4H) 		1-47649-011-0 02 1 0609-
180 GASKET; COVER,RR WHEEL CYL
FINAL GEAR 41/8 15.5" HYPOID(W4H) 		1-47619-017-0 02 1 0609-
182 TAPPET; RR WHEEL CYL
FINAL GEAR 41/8 15.5" HYPOID(W4H) 		1-47629-071-0 04 1 0609-
208 WASHER; BRKT
FINAL GEAR 41/8 15.5" HYPOID(W4H) LOWER L=106 		1-42129-028-3 02 1 0609-
208 WASHER; BRKT
FINAL GEAR 41/8 15.5" HYPOID(W4H) UPPER L=113 		1-42129-163-2 02 1 0609-
209 SHIM; BRKT
FINAL GEAR 41/8 15.5" HYPOID(W4H) LOWER L=106 		1-42129-027-4 06 1 0609-
209 SHIM; BRKT
FINAL GEAR 41/8 15.5" HYPOID(W4H) UPPER L=113 		1-42129-162-1 06 1 0609-
210 BOLT; BRKT FIX
FINAL GEAR 41/8 15.5" HYPOID(W4H) (A) M12X25 		0-20801-225-0 08 1 0609-
210 BOLT; BRKT FIX
FINAL GEAR 41/8 15.5" HYPOID(W4H) (B) M12X38 		0-20801-238-0 08 1 0609-
211 WASHER; LK,BRKT FIX
FINAL GEAR 41/8 15.5" HYPOID(W4H) ID=12.2 		0-91510-612-0 16 1 0609-
212 STAY
FINAL GEAR 41/8 15.5" HYPOID(W4H) 		1-48258-078-0 01 1 0609-
213 BOLT; STAY FIX
FINAL GEAR 41/8 15.5" HYPOID(W4H) M12X25 		0-20801-225-0 02 1 0609-
214 NUT; STAY FIX
FINAL GEAR 41/8 15.5" HYPOID(W4H) M12 		0-91111-512-0 02 1 0609-
215 WASHER; LK,STAY FIX
FINAL GEAR 41/8 15.5" HYPOID(W4H) ID=12.2 		0-91510-612-0 02 1 0609-
216 PIN; STAY FIX
FINAL GEAR 41/8 15.5" HYPOID(W4H) 		9-08234-038-0 02 1 0609-
266 ROLLER; WEDGE
FINAL GEAR 41/8 15.5" HYPOID(W4H) 		1-47643-004-0 04 1 0609-
267 CAGE; WEDGE
FINAL GEAR 41/8 15.5" HYPOID(W4H) 		1-47649-007-0 02 1 0609-
268 RETAINER; WEDGE
FINAL GEAR 41/8 15.5" HYPOID(W4H) 		1-47649-016-0 02 1 0609-

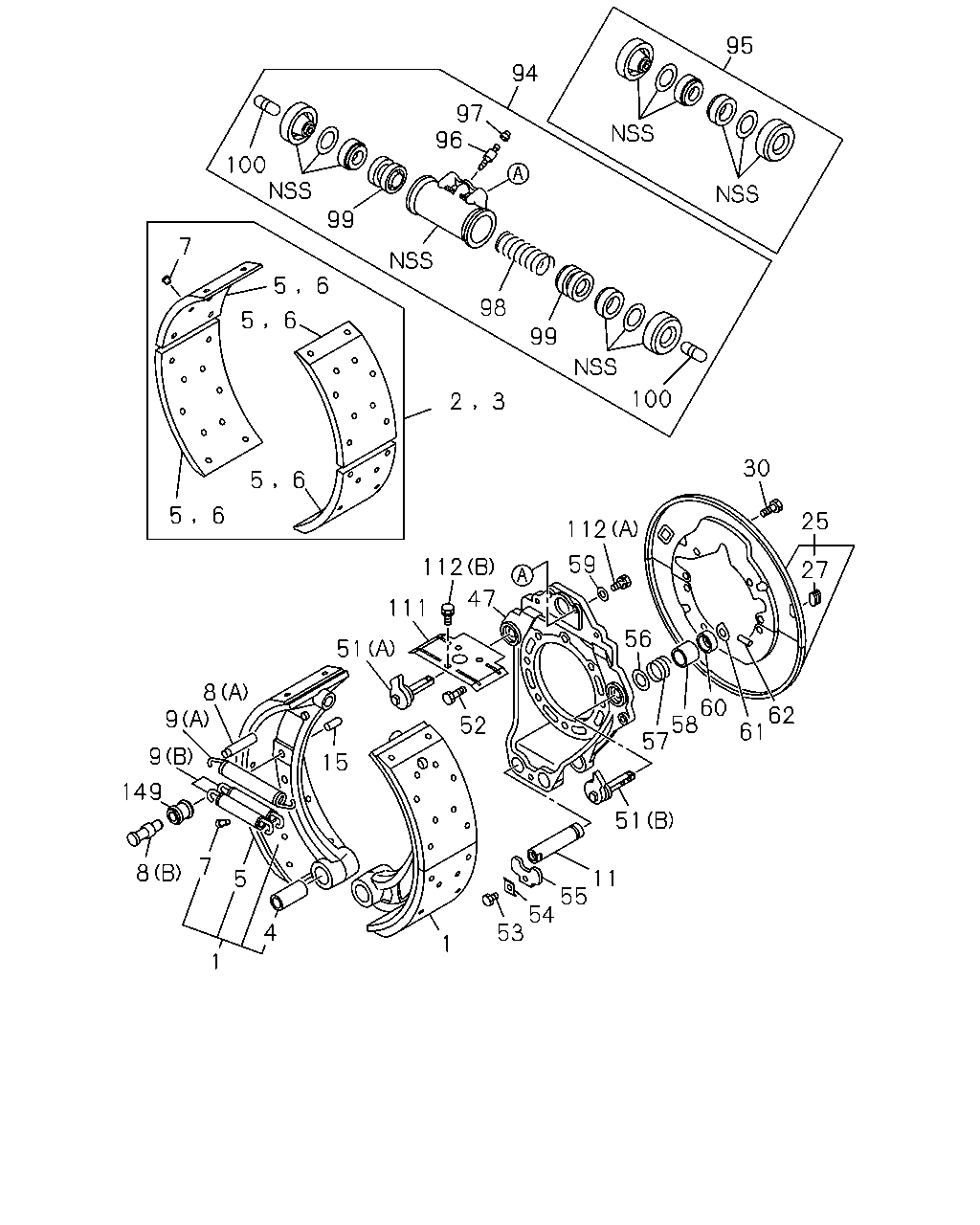

çizim 26597
95 94 97 96 100 99 7 5 6 98 5 6 99 100 2 3 30 5 6 5 6 25 112 59 112 27 47 111 56 51 8 60 58 57 62 61 9 52 9 15 149 51 7 8 11 55 54 53 5 4 1 1
BalonParca AdiParca NoAdetTipApplied Date
1 SHOE; BRK,RR
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/7 16.5" HYPOID(W3L) 		1-47120-708-0 04 1 0609-
1 SHOE; BRK,RR
FINAL GEAR 41/8 15.5" HYPOID(W4H) 		1-47120-707-0 04 1 0609-
2 LINING SET; RR BRK,STANDARD
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/7 16.5" HYPOID(W3L) T=16 		1-88310-529-1 02 1 0609-
2 LINING SET; RR BRK,STANDARD
FINAL GEAR 41/8 15.5" HYPOID(W4H) 		1-88310-495-0 02 1 0609-
2 LINING SET; RR BRK,STANDARD
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/7 16.5" HYPOID(W3L) BEST VALUE PARTS 		1-87610-129-0 01 1 0609-0905
2 LINING SET; RR BRK,STANDARD
FINAL GEAR 41/8 15.5" HYPOID(W4H) BEST VALUE PARTS 		1-87610-125-0 01 1 0609-
3 LINING SET; RR BRK,OVER SIZE
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/7 16.5" HYPOID(W3L) T=17 		1-88310-530-1 02 1 0609-
3 LINING SET; RR BRK,OVER SIZE
FINAL GEAR 41/8 15.5" HYPOID(W4H) 		1-88310-496-0 02 1 0609-
4 BUSHING; BRK SHOE,RR WHEEL 1-47112-012-0 04 1 0609-
5 LINING; RR BRK SHOE,STANDARD
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/7 16.5" HYPOID(W3L) T=16 		1-47125-813-0 08 1 0609-
5 LINING; RR BRK SHOE,STANDARD
FINAL GEAR 41/8 15.5" HYPOID(W4H) 		1-47125-811-0 08 1 0609-
6 LINING; RR BRK SHOE,OVER SIZE
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/7 16.5" HYPOID(W3L) T=17 		1-47125-814-0 08 1 0609-
6 LINING; RR BRK SHOE,OVER SIZE
FINAL GEAR 41/8 15.5" HYPOID(W4H) 		1-47125-812-0 08 1 0609-
7 RIVET; LINING,RR BRK
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/7 16.5" HYPOID(W3L) L=18.5 		1-09732-034-0 AR 1 0609-
7 RIVET; LINING,RR BRK
FINAL GEAR 41/8 15.5" HYPOID(W4H) L=18.5 		1-09732-034-0 80 1 0609-
8 PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/7 16.5" HYPOID(W3L) (A) 		1-09744-051-0 04 1 0609-
8 PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/7 16.5" HYPOID(W3L) (B) 		1-47119-025-0 04 1 0609-
8 PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 41/8 15.5" HYPOID(W4H) (C) L=73.5 		1-47119-017-1 04 1 0609-
9 SPRING; RETURN,BRK SHOE
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/7 16.5" HYPOID(W3L) (A) 		1-09583-175-0 02 1 0609-
9 SPRING; RETURN,BRK SHOE
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/7 16.5" HYPOID(W3L) (B) 		1-09583-210-0 04 1 0609-
9 SPRING; RETURN,BRK SHOE
FINAL GEAR 41/8 15.5" HYPOID(W4H) (A) 		1-09583-236-0 02 1 0609-
9 SPRING; RETURN,BRK SHOE
FINAL GEAR 41/8 15.5" HYPOID(W4H) (B) 		1-09583-237-1 02 1 0609-
11 PIN; ANCHOR,RR WHEEL BRK
L=121.5 		1-47131-039-0 04 1 0609-
15 PIN; GUIDE,ADJ CAM,RR WHEEL BRK
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/7 16.5" HYPOID(W3L) 		1-47116-002-0 04 1 0609-
25 COVER SET; RR BRK DRUM
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/7 16.5" HYPOID(W3L) 		1-47151-461-1 02 1 0609-
25 COVER SET; RR BRK DRUM
FINAL GEAR 41/8 15.5" HYPOID(W4H) 		1-47151-482-1 02 1 0609-
27 COVER; CHECK HOLE,DRUM COVER
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/7 16.5" HYPOID(W3L) 		1-09333-151-0 04 1 0609-
27 COVER; CHECK HOLE,DRUM COVER
FINAL GEAR 41/8 15.5" HYPOID(W4H) 		1-09333-095-0 04 1 0609-
30 BOLT; DRUM COVER
M10X16 W/LK WASHER 		0-50041-016-0 12 1 0609-0906
30 BOLT; DRUM COVER
M10X16 W/LK WASHER 		0-50541-016-0 12 1 0907-
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/7 16.5" HYPOID(W3L) 		1-47137-151-0 02 1 0609-
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
FINAL GEAR 41/8 15.5" HYPOID(W4H) 		1-47130-088-1 02 1 0609-
51 CAM ASM; SHOE ADJ,RR WHEEL BRK
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/7 16.5" HYPOID(W3L) (A) 		1-47165-058-1 02 1 0609-
51 CAM ASM; SHOE ADJ,RR WHEEL BRK
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/7 16.5" HYPOID(W3L) (B) 		1-47165-059-1 02 1 0609-
52 BOLT; ANCHOR BRKT
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/7 16.5" HYPOID(W3L) M14X50 		1-09040-066-0 02 1 0609-
53 BOLT; LOCK PLATE
M10X16 		0-20851-016-0 02 1 0609-
54 WASHER; LK,ANCHOR PIN,RR BRK 1-47133-011-0 02 1 0609-
55 PLATE; LK,RR WHEEL CYL 1-47133-005-0 02 1 0609-
56 WASHER; ADJ CAM,RR WHEEL BRK
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/7 16.5" HYPOID(W3L) 		1-47169-033-0 04 1 0609-
57 SPRING; ADJ CAM,RR WHEEL BRK
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/7 16.5" HYPOID(W3L) 		1-47169-046-0 04 1 0609-
58 BOOT; ADJ CAM,RR WHEEL BRK
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/7 16.5" HYPOID(W3L) 		1-47169-034-0 04 1 0609-
59 WASHER; LK,RR WHEEL CYL
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/7 16.5" HYPOID(W3L) ID=14.2 		0-91510-514-0 04 1 0609-
59 WASHER; LK,RR WHEEL CYL
FINAL GEAR 41/8 15.5" HYPOID(W4H) ID=12.2 		0-91510-612-0 02 1 0609-
60 COVER; ADJ CAM BOOT,RR WHEEL BRK
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/7 16.5" HYPOID(W3L) 		1-47169-031-0 04 1 0609-
61 INDICATOR; WEAR,RR BRK SHOE
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/7 16.5" HYPOID(W3L) 		1-47169-032-1 04 1 0609-
62 PIN; ADJ CAM SPINDLE,RR WHEEL BRK
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/7 16.5" HYPOID(W3L) 		1-47169-030-0 04 1 0609-
94 CYLINDER; WHEEL,RR BRK
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/7 16.5" HYPOID(W3L) 		1-47600-682-0 02 1 0609-
94 CYLINDER; WHEEL,RR BRK
FINAL GEAR 41/8 15.5" HYPOID(W4H) 		1-47600-579-1 01 1 0609-
94 CYLINDER; WHEEL,RR BRK
FINAL GEAR 41/8 15.5" HYPOID(W4H) 		1-47600-580-1 01 1 0609-
95 CUP SET; RR WHEEL CYL
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/7 16.5" HYPOID(W3L) 		1-87830-528-0 02 1 0609-
95 CUP SET; RR WHEEL CYL
FINAL GEAR 41/8 15.5" HYPOID(W4H) 		1-87830-721-0 02 1 0609-
96 SCREW; BLEEDER,RR BRK 1-47615-002-0 02 1 0609-
97 CAP; BLEEDER,RR WHEEL CYL
OD=12 		1-47619-011-0 02 1 0609-
98 SPRING; RR WHEEL CYL
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/7 16.5" HYPOID(W3L) 		1-09580-019-0 02 1 0609-
99 PISTON; RR WHEEL CYL
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/7 16.5" HYPOID(W3L) 		1-47624-303-0 04 1 0609-
99 PISTON; RR WHEEL CYL
FINAL GEAR 41/8 15.5" HYPOID(W4H) 		1-47624-210-0 04 1 0609-
100 ROD; PUSH,RR WHEEL CYL
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/7 16.5" HYPOID(W3L) 		1-47621-009-0 04 1 0609-
111 COVER; WHEEL CYL
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/7 16.5" HYPOID(W3L) 		1-47159-081-0 02 1 0609-
112 BOLT; WHEEL CYL SETTING
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/7 16.5" HYPOID(W3L) (A) M14X35 		0-20851-435-0 04 1 0609-
112 BOLT; WHEEL CYL SETTING
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/7 16.5" HYPOID(W3L) (B) M8X16 W/LK WASHER 		0-50540-816-0 06 1 0609-
112 BOLT; WHEEL CYL SETTING
FINAL GEAR 41/8 15.5" HYPOID(W4H) (C) 		0-16806-270-0 04 1 0609-
149 PIN; GUIDE RETURN
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/7 16.5" HYPOID(W3L) 		1-47119-024-0 04 1 0609-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
