Sayfa 2-85 - Isuzu EPC

2-85 — POWER TAKE OFF CONTROL (#25830) — 6 parça

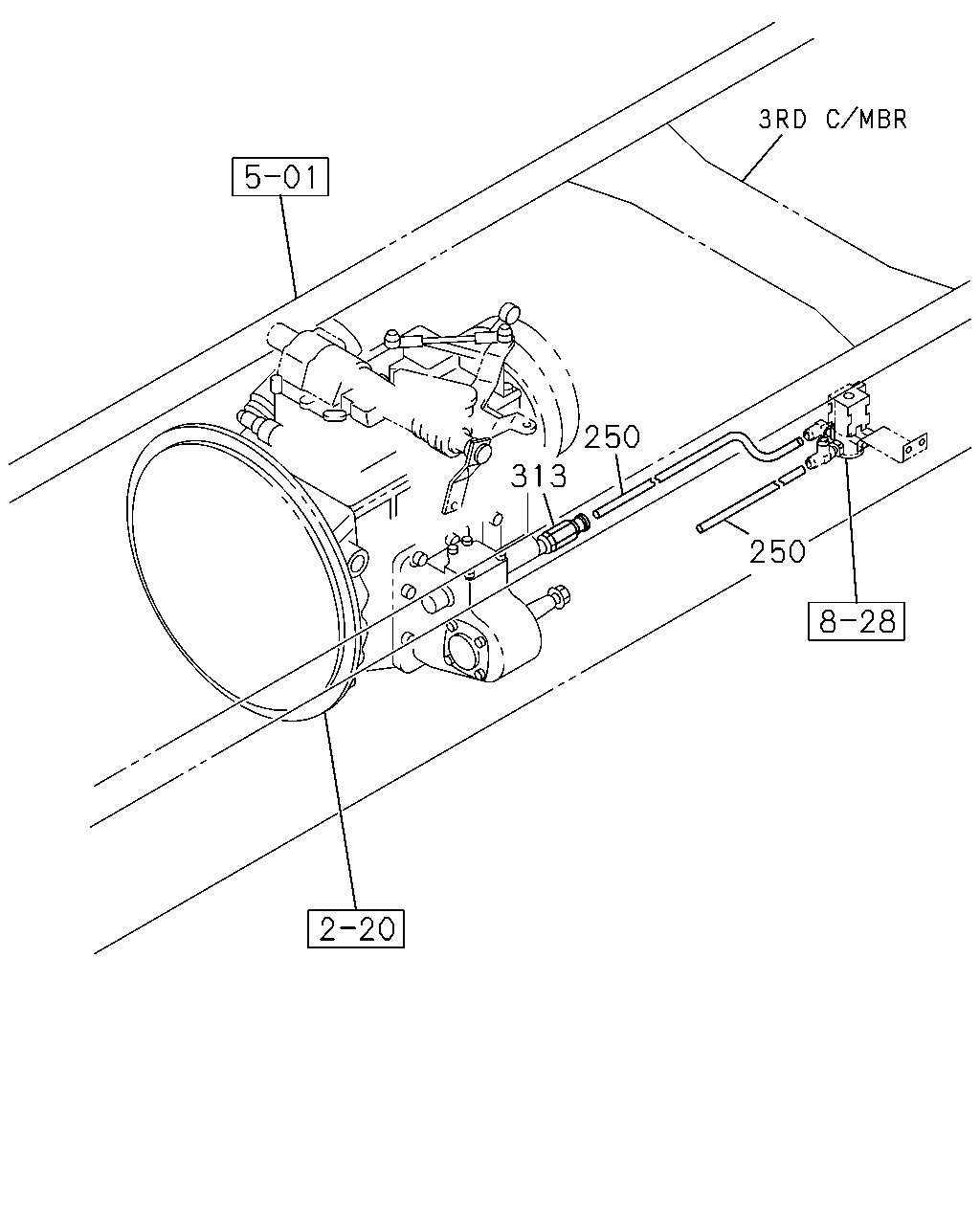

250 313 250

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
250	TUBE; NYLON PTO CONTROL<SV6> SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0609-
250	TUBE; NYLON TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0609-
313	ADAPTER TRANSMISSION SIDE PTO WO/LEVER(SH5) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0609-

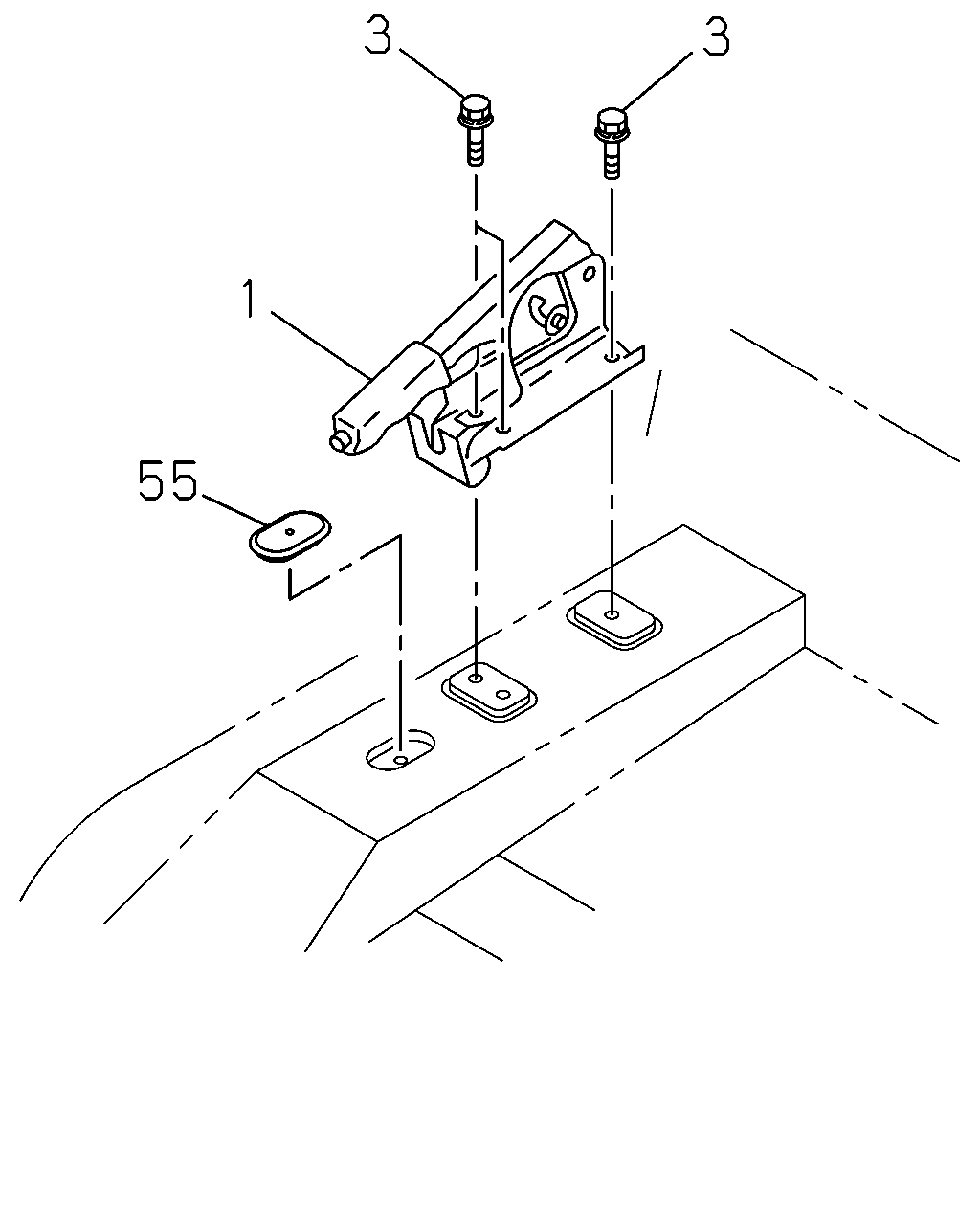

3 3 1 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LEVER ASM; PTO & DUMP CONT DUMP CONTROL LEVER<RC4>	1-79996-092-0	01	1	0609-
3	BOLT; BRKT,DUMP CONT LEVER DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0609-
55	GROMMET; CABLE	1-09983-068-0	01	1	0609-
