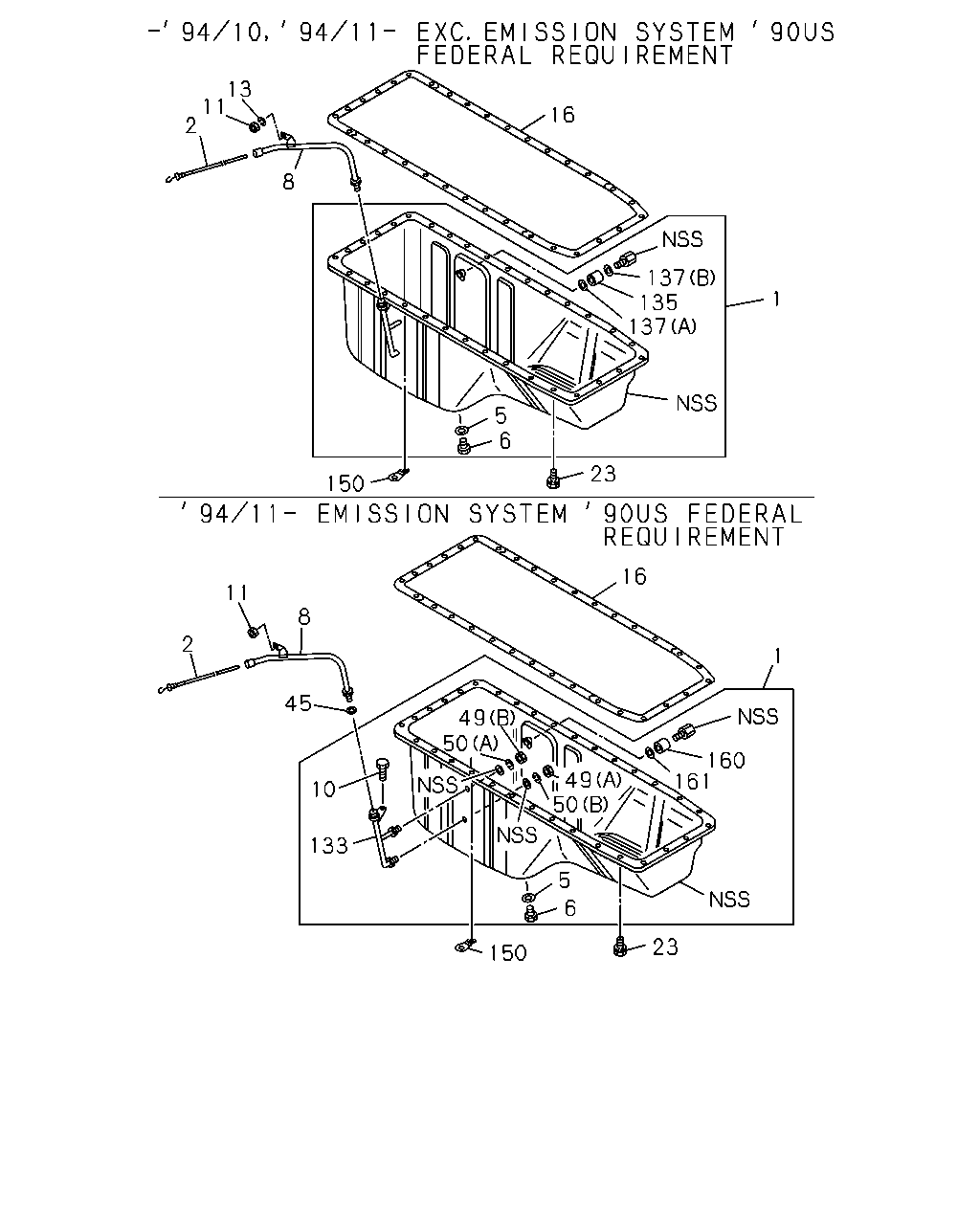

0-13B — OIL PAN AND LEVEL GAUGE (#2583) — 54 parça

11 2 13 16 8 1 137 135 137 5 6 23 150 11 2 8 45 10 133 49 50 16 1 160 161 49 50 5 6 150 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PAN ASM; OIL	1-11360-715-1	01	1	9002-9410	●
1	PAN ASM; OIL EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-11360-715-2	01	1	9411-	●
1	PAN ASM; OIL EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-11360-694-2	01	1	9411-	●
1	PAN ASM; OIL	1-11360-724-2	01	1	9307-		●
2	GAUGE; OIL LEVEL	1-11760-300-2	01	1	9002-	●	●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8	1-09623-415-0	01	1	9002-	●	●
6	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-064-1	01	1	9002-	●	●
8	TUBE; GUIDE,OIL LEVEL GAUGE	1-11766-293-1	01	1	9002-	●
8	TUBE; GUIDE,OIL LEVEL GAUGE	1-11766-296-1	01	1	9307-		●
10	BOLT; GUIDE TUBE EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> M8X16 W/LK WASHER	0-50040-816-0	01	1	9411-	●
11	NUT; GUIDE,OIL LEVEL GAUGE M8 FLANGE	0-91150-108-0	01	1	9002-	●	●
13	WASHER; PL,GUIDE TUBE,OIL LEVEL GAUGE ID=8.4 OD=18	9-09164-608-0	01	1	9002-9306	●
16	GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11367-091-1	01	1	9002-9504	●
16	GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11367-105-0	01	1	9505-	●
16	GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11367-090-1	01	1	9307-9505		●
16	GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11367-107-0	01	1	9506-		●
23	BOLT; OIL PAN M8X18 W/LK&PL WASHER	1-09030-004-0	22	1	9002-	●
23	BOLT; OIL PAN M8X90 W/LK&PL WASHER	1-09030-078-0	10	1	9002-	●	●
23	BOLT; OIL PAN M8X18 W/LK&PL WASHER	1-09030-004-0	18	1	9307-		●
45	GASKET; GUIDE TUBE ALSO INCLUDED IN GASKET SET(ENGINE). EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> ID=10.8	1-09623-274-0	01	1	9411-	●
49	NUT; GUIDE TUBE EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (A) M22	9-09111-422-0	01	1	9411-	●
49	NUT; GUIDE TUBE EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (B) M14	9-99111-414-0	01	1	9411-	●
50	WASHER; PL,GUIDE TUBE EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (A) ID=15 OD=30	9-09160-614-0	01	1	9411-	●
50	WASHER; PL,GUIDE TUBE EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (B) ID=23 OD=44	9-09160-622-0	01	1	9411-	●
133	TUBE ASM; OIL PAN EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-11766-300-0	01	1	9411-	●
135	ADAPTER; GUIDE TUBE	1-11369-126-0	01	1	9002-9410	●
135	ADAPTER; GUIDE TUBE EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-11369-126-0	01	1	9411-	●
137	GASKET; ADAPTER (A)	1-09623-185-0	01	1	9002-9410	●
137	GASKET; ADAPTER EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (A)	1-09623-185-0	01	1	9411-	●
137	GASKET; ADAPTER (B) ID=14.2 OD=19.2	1-09630-085-0	01	1	9002-9410	●
137	GASKET; ADAPTER EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (B) ID=14.2 OD=19.2	1-09630-085-0	01	1	9411-	●
150	CLIP; WATER,OIL DRAIN	9-11229-070-0	01	1	9002-	●	●
160	ADAPTER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-11369-126-0	01	1	9411-	●
161	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-09623-588-0	01	1	9411-	●

16 1 60 59 11 8 2 150 23 5 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PAN ASM; OIL	1-11360-715-1	01	1	9002-9410	●
1	PAN ASM; OIL EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-11360-715-2	01	1	9411-	●
1	PAN ASM; OIL EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-11360-694-2	01	1	9411-	●
1	PAN ASM; OIL	1-11360-724-2	01	1	9307-		●
2	GAUGE; OIL LEVEL	1-11760-300-2	01	1	9002-	●	●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8	1-09623-415-0	01	1	9002-	●	●
6	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-064-1	01	1	9002-	●	●
8	TUBE; GUIDE,OIL LEVEL GAUGE	1-11766-293-1	01	1	9002-	●
8	TUBE; GUIDE,OIL LEVEL GAUGE	1-11766-296-1	01	1	9307-		●
11	NUT; GUIDE,OIL LEVEL GAUGE M8 FLANGE	0-91150-108-0	01	1	9002-	●	●
16	GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11367-091-1	01	1	9002-9504	●
16	GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11367-105-0	01	1	9505-	●
16	GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11367-090-1	01	1	9307-9505		●
16	GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11367-107-0	01	1	9506-		●
23	BOLT; OIL PAN M8X18 W/LK&PL WASHER	1-09030-004-0	22	1	9002-	●
23	BOLT; OIL PAN M8X90 W/LK&PL WASHER	1-09030-078-0	10	1	9002-	●	●
23	BOLT; OIL PAN M8X18 W/LK&PL WASHER	1-09030-004-0	18	1	9307-		●
59	CLIP; HARNESS ID=11 H=20 L=17.5	1-09700-562-1	04	1	9307-		●
60	BOLT; CLIP HARNESS M10X16 W/LK WASHER	1-09033-012-0	03	1	9307-		●
150	CLIP; WATER,OIL DRAIN	9-11229-070-0	01	1	9002-	●	●
