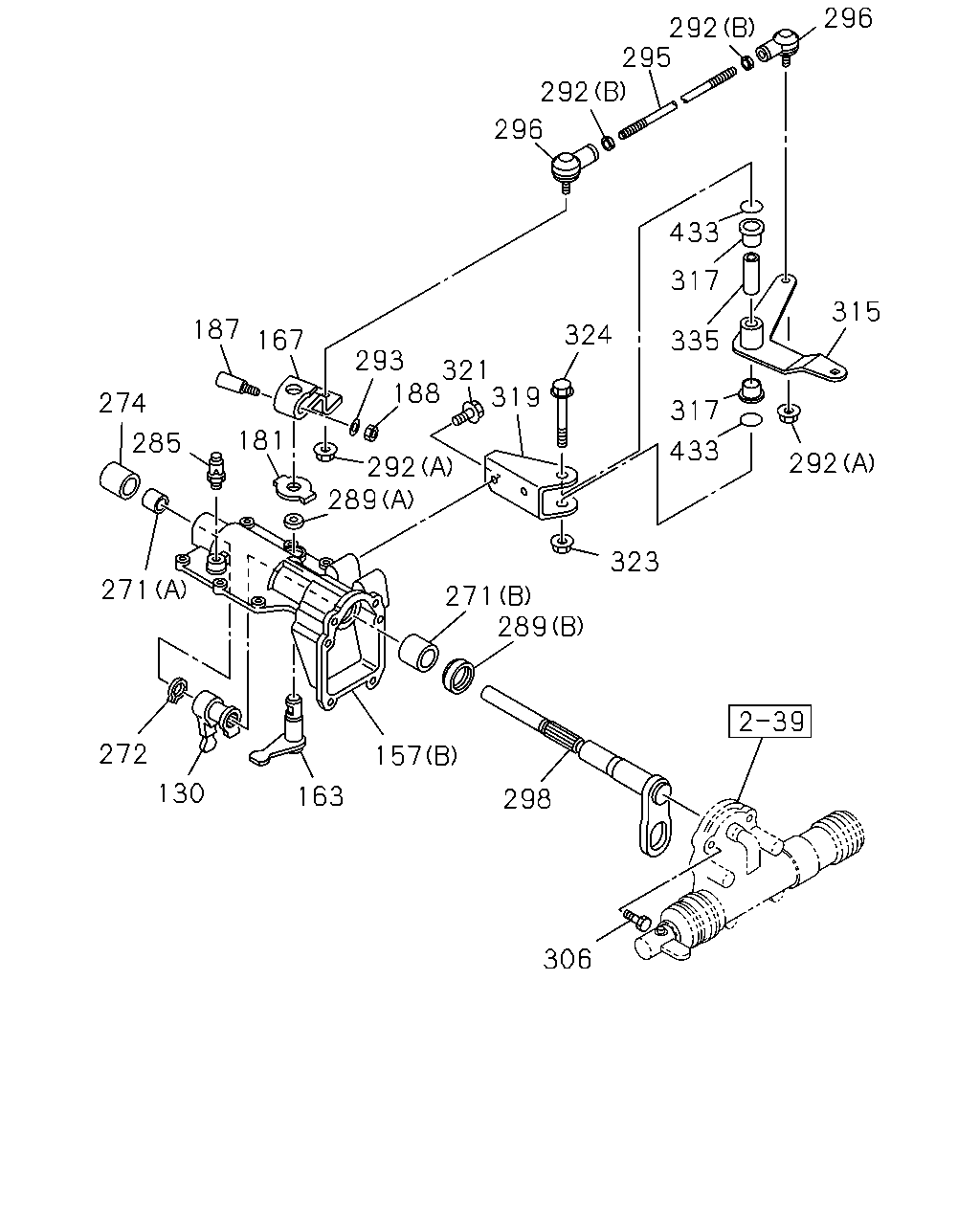

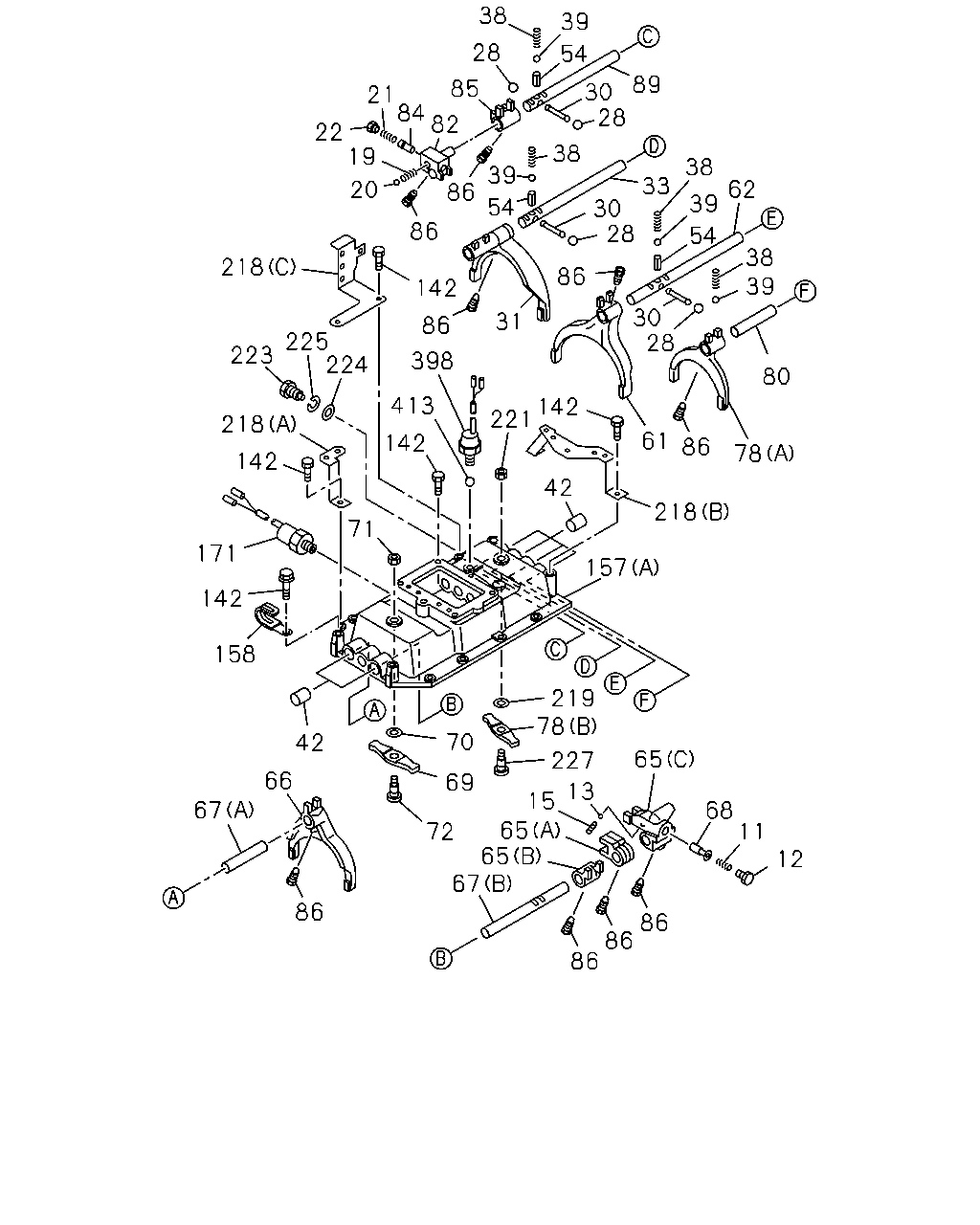

2-30 — GEAR SHIFTER AND QUADRANT BOX (#25824) — 103 parça

296 292 295 292 296 433 317 315 187 324 167 335 293 321 188 319 274 317 181 285 433 292 292 289 323 271 271 289 272 157 130 163 298 306

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
130	LEVER; SHIFT,INTERNAL	1-33521-146-0	01	1	0609-
157	BOX; QUAD,TRANS (B)	1-33541-451-0	01	1	0609-
157	BOX; QUAD,TRANS (A)	1-33541-481-0	01	1	0609-
163	LEVER; SELECT,INTERNAL	1-33522-041-4	01	1	0609-
167	LEVER; SELECT,EXTERNAL	1-33521-064-0	01	1	0609-0609
167	LEVER; SELECT,EXTERNAL	1-33521-070-0	01	1	0609-
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	0609-
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	0609-
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	0609-
271	BUSHING; QUAD BOX (A) ID=20 OD=23	1-33549-016-0	01	1	0609-
271	BUSHING; QUAD BOX (B) ID=28 OD=32	1-33549-104-0	01	1	0609-
272	RING; SNAP,QUAD BOX	1-09588-175-0	01	1	0609-
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	0609-
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	0609-
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=30	1-09625-386-0	01	1	0609-
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=41	1-09625-647-0	01	1	0609-
292	NUT; LINK ROD (B) M8	0-91111-508-0	02	1	0609-
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-062-1	02	1	0609-
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	0-91610-708-0	01	1	0609-
295	ROD; LINK,RELAY LEVER L=222	9-08400-818-0	01	1	0609-
296	ROD END L=45.5	1-09760-118-1	02	1	0609-
298	SHAFT; SHIFT LEVER	1-33522-188-0	01	1	0609-
306	BOLT; SHIFT ASSISTOR M10X45 FLANGE	0-28151-045-0	02	1	0609-
306	BOLT; SHIFT ASSISTOR M10X70 FLANGE	0-28151-070-0	04	1	0609-
315	LEVER; SELECT	1-33651-640-1	01	1	0609-
317	BUSHING; LEVER	1-09330-119-0	02	1	0609-
319	BRACKET; SELECT LEVER	1-33657-603-0	01	1	0609-
321	BOLT; BRKT,RELAY LEVER M10X22 FLANGE	0-28181-022-0	02	1	0609-
323	NUT; LK,SELECT LEVER M10 FLANGE	0-91150-110-0	01	1	0609-
324	BOLT; SHAFT M10X60 FLANGE	0-28081-060-0	01	1	0609-
335	COLLAR; DIST,RELAY LEVER ASM	1-33659-192-0	01	1	0609-
433	GASKET; BUSHING	1-09623-594-0	02	1	0609-

38 39 28 54 89 85 30 28 21 84 82 22 19 38 38 39 33 62 20 86 39 54 30 28 86 54 38 39 218 86 142 30 28 31 86 225 224 223 398 80 413 142 221 218 61 142 86 78 142 42 218 71 171 157 142 158 219 78 70 42 65 227 66 69 13 15 67 68 11 65 65 67 72 12 86 86 86 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	0609-
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0609-
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	0609-
15	SPRING; LK,SHIFT SLEEVE	1-09580-442-0	01	1	0609-
19	SPRING; COIL COMP	1-09580-441-0	01	1	0609-
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	0609-
21	SPRING; COIL COMP SLEEVE	9-09941-160-0	01	1	0609-
22	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0609-
28	BALL; INTER LK	9-00097-501-0	04	1	0609-
30	PIN; INTER LK	9-33534-003-0	03	1	0609-
31	ARM; SHIFT,LOW & 2ND	1-33511-439-1	01	1	0609-
33	ROD; SHIFT,LOW & 2ND	1-33531-253-1	01	1	0609-1202
33	ROD; SHIFT,LOW & 2ND	8-98207-578-0	01	1	1203-
38	SPRING; DETENT	1-09580-379-0	04	1	0609-
39	BALL; DETENT	1-09843-012-0	04	1	0609-
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	06	1	0609-
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	03	1	0609-
61	ARM; SHIFT,3RD & 4TH	1-33511-490-1	01	1	0609-
62	ROD; SHIFT,3RD & 4TH	1-33531-254-1	01	1	0609-1202
62	ROD; SHIFT,3RD & 4TH	8-98207-586-0	01	1	1203-
65	BLOCK ASM; SHIFT,5TH & 6TH (A)	1-33511-202-3	01	1	0609-
65	BLOCK ASM; SHIFT,5TH & 6TH (B)	1-33511-208-3	01	1	0609-
65	BLOCK ASM; SHIFT,5TH & 6TH (C)	1-33511-513-0	01	1	0609-
66	ARM; SHIFT,5TH & 6TH	1-33511-505-0	01	1	0609-
67	ROD; SHIFT,5TH & 6TH (A) L=122	1-33531-235-1	01	1	0609-1202
67	ROD; SHIFT,5TH & 6TH (A) L=122	8-98207-587-0	01	1	1203-
67	ROD; SHIFT,5TH & 6TH (B) L=278	1-33531-255-1	01	1	0609-1202
67	ROD; SHIFT,5TH & 6TH (B) L=278	8-98207-589-0	01	1	1203-
68	SLEEVE; 5TH & 6TH	1-33516-025-0	01	1	0609-
69	LEVER; SHIFT,5TH & 6TH	1-33511-082-0	01	1	0609-
70	WASHER; PL,SHIFT LEVER ID=16.5	9-09857-042-0	01	1	0609-
71	NUT; SHIFT LEVER M12 FLANGE	0-91180-212-0	01	1	0609-
72	SPINDLE; 5TH & 6TH	1-33519-012-0	01	1	0609-
78	ARM; SHIFT,REV (B)	1-33511-082-0	01	1	0609-
78	ARM; SHIFT,REV (A)	1-33511-234-1	01	1	0609-
80	ROD; SHIFT,REV ARM	1-33531-234-1	01	1	0609-1202
80	ROD; SHIFT,REV ARM	8-98207-584-0	01	1	1203-
82	BLOCK; SHIFT,REV	1-33511-310-1	01	1	0609-
84	SLEEVE; REV	1-33516-025-0	01	1	0609-
85	BLOCK; SHIFT,REV RR	1-33511-201-3	01	1	0609-
86	SCREW; TAPER,ARM TO ROD M12X20	1-09052-039-0	09	1	0609-
89	ROD; SHIFT,REV	1-33531-252-1	01	1	0609-1202
89	ROD; SHIFT,REV	8-98207-582-0	01	1	1203-
142	BOLT; QUAD BOX M10X60 FLANGE	0-28151-060-0	03	1	0609-
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	12	1	0609-0805
142	BOLT; QUAD BOX M10X28 FLANGE	8-98044-944-0	12	1	0806-
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-1	02	1	0609-0805
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-
142	BOLT; QUAD BOX M10X20,M10X60 L=90	1-09049-020-0	01	1	0609-
157	BOX; QUAD,TRANS (B)	1-33541-451-0	01	1	0609-
157	BOX; QUAD,TRANS (A)	1-33541-481-0	01	1	0609-
158	CLIP; HARNESS L=36	8-94224-891-1	01	1	0609-
171	SWITCH; NEUTRAL	1-82440-101-1	01	1	0609-0702
171	SWITCH; NEUTRAL	8-98072-777-0	01	1	0703-0801
171	SWITCH; NEUTRAL	8-98108-345-0	01	1	0802-1104
171	SWITCH; NEUTRAL	8-98166-989-0	01	1	1105-1109
171	SWITCH; NEUTRAL	8-97640-725-0	01	1	1110-
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82699-639-1	01	1	0609-
218	BRACKET; HARNESS CLIP,QUAD BOX (C)	1-82699-663-1	01	1	0609-
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-733-0	01	1	0609-
219	WASHER; PL,SPINDLE ID=16.5	9-09857-042-0	01	1	0609-
221	NUT; SPINDLE M12 FLANGE	0-91180-212-0	01	1	0609-
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	0609-
224	WASHER; PL,QUAD BOX ID=15	0-91610-514-0	01	1	0609-
225	WASHER; LK,QUAD BOX ID=14.2	0-91510-514-0	01	1	0609-
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	0609-
398	SWITCH; REV LAMP	8-98042-853-0	01	1	0609-1209
398	SWITCH; REV LAMP	8-98228-482-0	01	1	1210-
413	BALL; BACK SW	9-00097-013-0	01	1	0609-

382 383

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

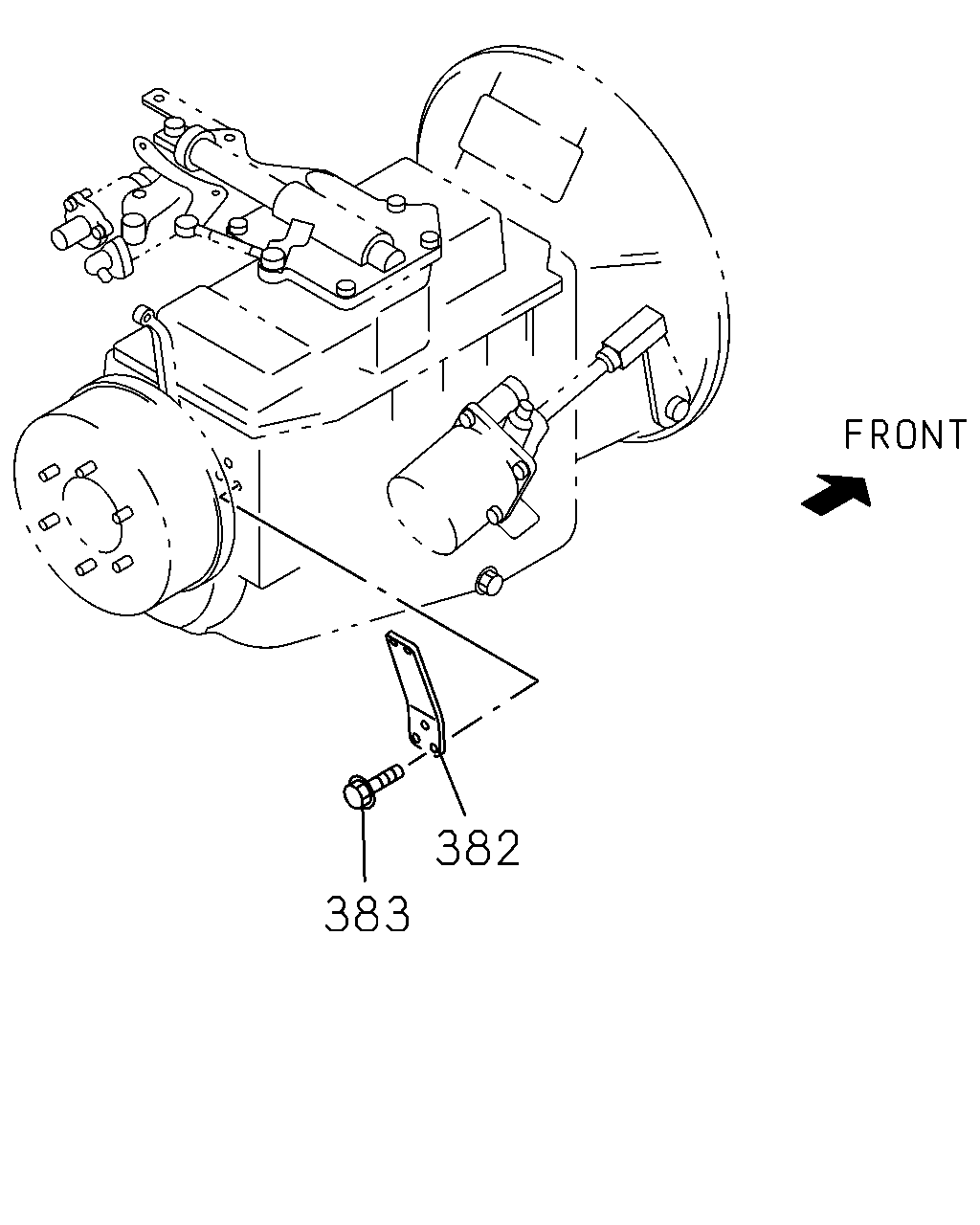

	382	BRACKET; PARKING BRK CONT CABLE PARKING BRAKE DRUM 10"(B1T)	1-46147-109-1	01	1	0609-
	383	BOLT; BRKT,PARK BRAKE PARKING BRAKE DRUM 10"(B1T) M10X22 FLANGE	0-28181-022-0	03	1	0609-
