1-50 — EXHAUST PIPE AND SILENCER (#25812) — 183 parça

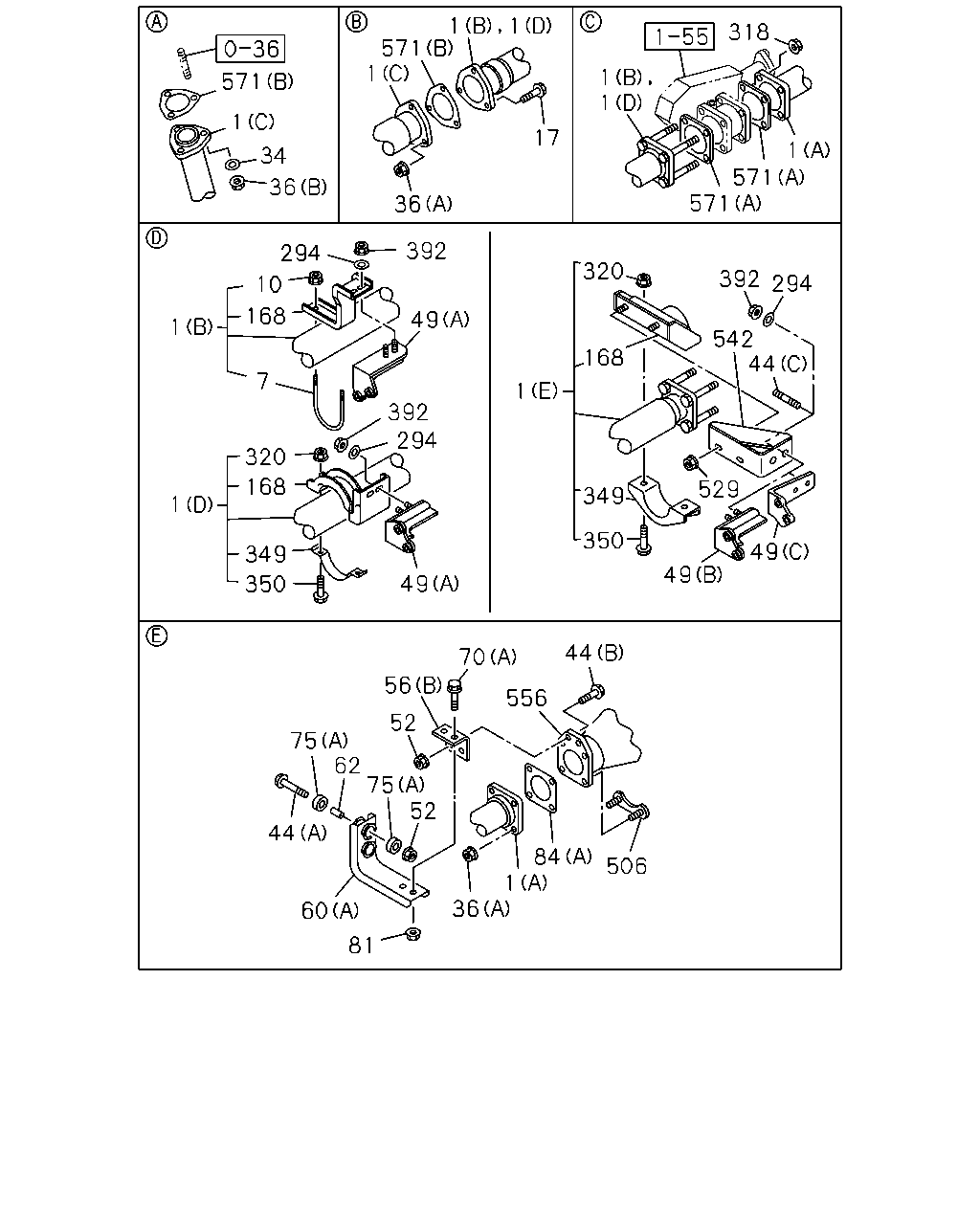

çizim 24725
81 60 44 62 75 75 52 52 56 70 44 556 506 84 1 36 350 349 168 320 7 1 1 168 10 294 392 49 392 294 49 1 320 168 349 350 49 529 542 392 294 44 49 36 34 1 571 571 1 1 17 36 1 1 1 571 571 1 318
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
(C) 		8-98050-133-2 01 1 0609-1304
1 PIPE; EXH
(C) 		8-98234-509-1 01 1 1305-
1 PIPE; EXH
(B) 		8-98050-136-0 01 1 0609-0609
1 PIPE; EXH
(D) 		8-98058-340-0 01 1 0609-0609
1 PIPE; EXH
(D) 		8-98063-857-0 01 1 0610-0712
1 PIPE; EXH
(E) 		8-98079-293-0 01 1 0801-1304
1 PIPE; EXH
(E) 		8-98234-513-0 01 1 1305-
1 PIPE; EXH
(A) 		8-98050-531-0 01 1 0609-0609
1 PIPE; EXH
(A) 		8-98058-346-0 01 1 0609-
7 U-BOLT; EXH PIPE,FRT 1-22113-009-0 01 1 0609-0609
10 NUT; U BOLT
M8 FLANGE 		0-91180-108-0 02 1 0609-0609
17 BOLT; EXH PIPE
M12X40 FLANGE 		0-28051-240-0 03 1 0609-
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09500-030-0 03 1 0609-
36 NUT; EXH PIPE
(C) M10 		0-91110-510-0 04 1 0609-
36 NUT; EXH PIPE
(A) M12 FLANGE 		0-91180-212-0 07 1 0609-
36 NUT; EXH PIPE
(B) M12 		1-09400-010-0 03 1 0609-
44 BOLT; BRKT
(C) M10X25 L=40 		0-44011-025-0 02 1 1305-
44 BOLT; BRKT
(A) M10X60 FLANGE 		0-28051-060-0 04 1 0609-
44 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 04 1 0609-0610
44 BOLT; BRKT
(B) M10X35 FLANGE 		0-28651-035-0 04 1 0611-
49 BRACKET; EXH PIPE TO TRANS
(A) 		8-98050-142-0 01 1 0609-0712
49 BRACKET; EXH PIPE TO TRANS
(B) 		8-98079-287-0 01 1 0801-1304
49 BRACKET; EXH PIPE TO TRANS
(C) 		8-98113-012-0 01 1 1305-
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 03 1 0609-
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 08 1 0609-
56 BRACKET; CLAMP,EXH PIPE
(E) L=94 		1-22131-575-0 01 1 0609-
56 BRACKET; CLAMP,EXH PIPE
(D) L=254 		1-22131-527-1 01 1 0609-
56 BRACKET; CLAMP,EXH PIPE
(C) 		1-22134-247-0 01 1 0609-
56 BRACKET; CLAMP,EXH PIPE
(B) 		1-22139-273-0 01 1 0609-
56 BRACKET; CLAMP,EXH PIPE
(A) 		1-22139-274-0 01 1 0609-
60 BRACKET; FRAME TO BRKT
(D) 		8-98059-537-0 01 1 0609-
60 BRACKET; FRAME TO BRKT
(B) 		1-22152-084-0 01 1 0609-1301
60 BRACKET; FRAME TO BRKT
(B) 		8-98234-333-0 01 1 1302-
60 BRACKET; FRAME TO BRKT
(C) 		8-98043-414-0 01 1 0609-
60 BRACKET; FRAME TO BRKT
(A) 		1-22152-155-0 02 1 0609-
62 TUBE; DIST,BRKT
L=22 		9-22159-024-0 02 1 0609-
62 TUBE; DIST,BRKT
L=22 		9-22159-024-0 04 1 0609-
70 BOLT; BRKT
(B) M10X50 FLANGE 		0-28051-050-0 01 1 1302-
70 BOLT; BRKT
(B) M10X50 		0-10856-050-0 02 1 0609-1301
70 BOLT; BRKT
(B) M10X50 		0-10856-050-0 01 1 1302-
70 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 04 1 0609-
75 RUBBER; SUPPORT,BRKT
(A) OD=40 		1-22159-094-0 02 1 0609-
75 RUBBER; SUPPORT,BRKT
(B) OD=40 		1-22159-193-0 04 1 0609-
75 RUBBER; SUPPORT,BRKT
(A) OD=40 		1-22159-094-0 08 1 0609-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0609-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 06 1 0609-
84 GASKET; EXH PIPE
(B) ID=85.8 		1-22116-043-0 01 1 0609-
84 GASKET; EXH PIPE
(B) ID=85.8 		1-22116-043-0 01 1 0609-
84 GASKET; EXH PIPE
(A) 		1-22116-040-0 01 1 0609-
168 BRACKET; EXH PIPE,FRT 8-98050-143-0 01 1 0609-0609
168 BRACKET; EXH PIPE,FRT 8-98058-350-0 01 1 0609-0609
168 BRACKET; EXH PIPE,FRT 8-98063-859-0 01 1 0610-0712
168 BRACKET; EXH PIPE,FRT 8-98079-295-0 01 1 0801-
294 WASHER; PL,CLAMP TO BRKT,EXH PIPE
ID=10.5 OD=22 T=1.6 		0-91610-610-0 02 1 0609-0712
294 WASHER; PL,CLAMP TO BRKT,EXH PIPE
ID=10.5 		8-98073-091-0 02 1 0801-
318 NUT; EXH PIPE,FRT
M10 		0-91110-510-0 04 1 0609-0712
318 NUT; EXH PIPE,FRT
M10 FLANGE 		0-91180-210-0 04 1 0801-
320 NUT; CLAMP,EXH PIPE
M10 FLANGE 		0-91180-210-0 02 1 0609-
349 CLAMP; EXH PIPE 8-98058-351-0 01 1 0609-1304
349 CLAMP; EXH PIPE 8-98115-162-0 01 1 1305-
350 BOLT; CLAMP,EXH PIPE
M10X30 FLANGE 		0-28651-030-0 02 1 0609-
392 NUT; CLAMP BRKT
M10 FLANGE 		0-91180-210-0 02 1 0609-
506 BRACKET; STUD
M12X35 		1-22131-963-0 02 1 0609-
529 NUT; BRKT,EXH PIPE
M10 FLANGE 		0-91180-210-0 02 1 0803-
542 BRACKET 8-98079-291-0 01 1 0803-1304
542 BRACKET 8-98234-525-0 01 1 1305-
556 DPD ASM 8-97613-331-6 01 1 0609-1010
556 DPD ASM 8-97622-883-3 01 1 1011-
571 GASKET
(A) ID=85.8 		1-22116-043-0 02 1 0609-
571 GASKET
(B) 		8-98043-481-0 02 1 0609-

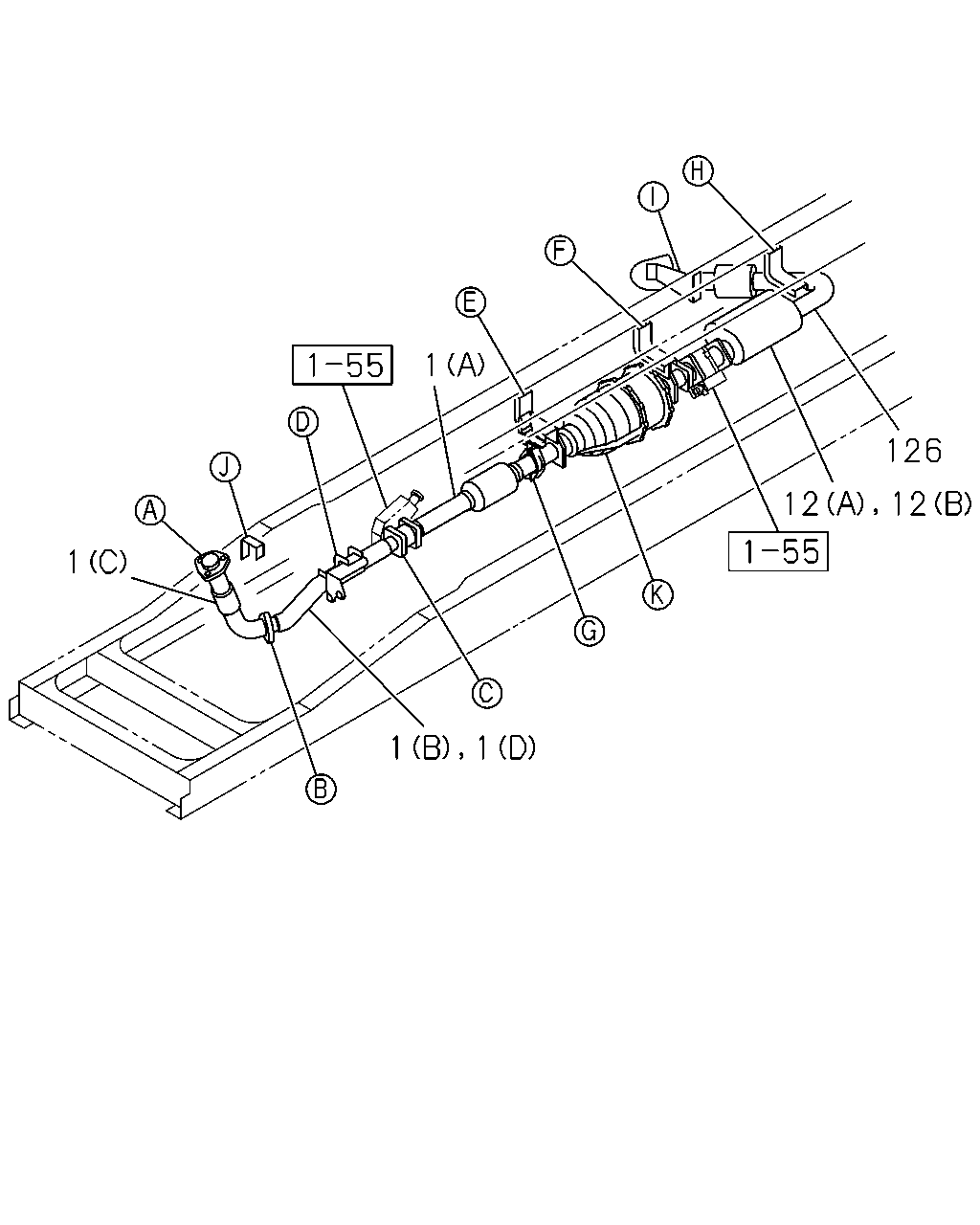

çizim 26250
1 1 12 12 126 1 1
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
(C) 		8-98050-133-2 01 1 0609-1304
1 PIPE; EXH
(C) 		8-98234-509-1 01 1 1305-
1 PIPE; EXH
(B) 		8-98050-136-0 01 1 0609-0609
1 PIPE; EXH
(D) 		8-98058-340-0 01 1 0609-0609
1 PIPE; EXH
(D) 		8-98063-857-0 01 1 0610-0712
1 PIPE; EXH
(E) 		8-98079-293-0 01 1 0801-1304
1 PIPE; EXH
(E) 		8-98234-513-0 01 1 1305-
1 PIPE; EXH
(A) 		8-98050-531-0 01 1 0609-0609
1 PIPE; EXH
(A) 		8-98058-346-0 01 1 0609-
12 SILENCER ASM; EXH
(A) 		8-98041-923-1 01 1 0609-1301
12 SILENCER ASM; EXH
(B) 		8-98234-508-0 01 1 1302-
126 PIPE; EXH,RR 8-98043-365-2 01 1 0609-1301
126 PIPE; EXH,RR 8-97645-571-0 01 1 1302-

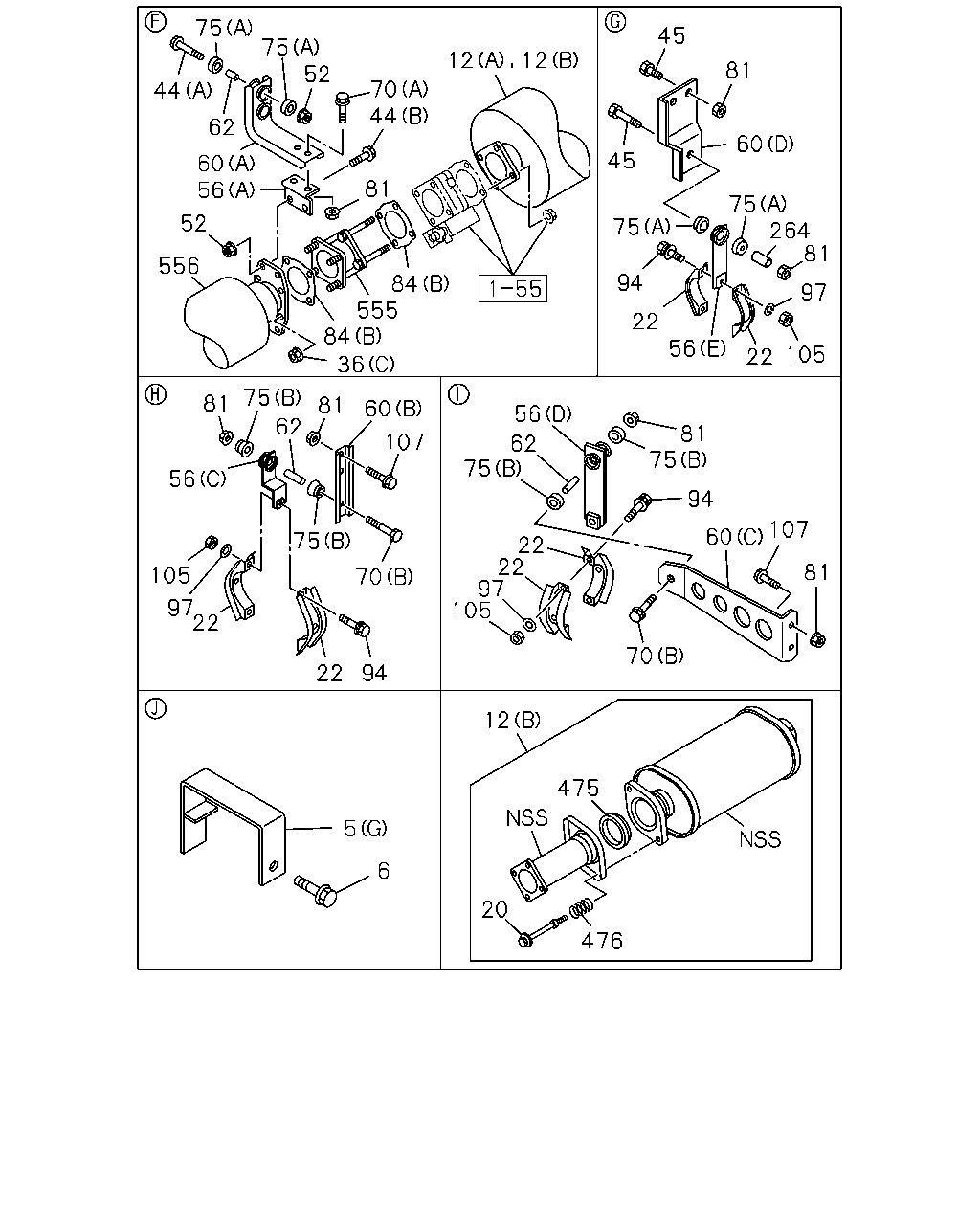

çizim 26625
75 52 476 475 20 12 5 6 70 60 107 81 94 75 81 105 22 22 97 75 62 56 94 22 22 97 105 75 107 70 56 81 75 81 60 36 56 105 22 97 81 264 75 60 22 94 75 45 81 45 84 555 84 81 556 52 56 60 62 44 75 70 12 12 44 62
BalonParca AdiParca NoAdetTipApplied Date
5 PROTECTOR; HEAT
(A) 		8-97605-172-0 01 1 0609-
5 PROTECTOR; HEAT
(B) 		8-97611-086-0 01 1 0609-
5 PROTECTOR; HEAT
(C) 		8-97611-087-0 01 1 0609-
5 PROTECTOR; HEAT
(D) 		8-97611-088-0 01 1 0609-
5 PROTECTOR; HEAT
(E) 		8-97611-089-0 01 1 0609-
5 PROTECTOR; HEAT
(F) 		8-97613-390-0 01 1 0609-
5 PROTECTOR; HEAT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (G) 		1-33659-250-0 01 1 0609-
6 BOLT; HEAT PROTECTOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28650-825-0 01 1 0609-
12 SILENCER ASM; EXH
(A) 		8-98041-923-1 01 1 0609-1301
12 SILENCER ASM; EXH
(B) 		8-98234-508-0 01 1 1302-
20 BOLT; FLANGE,EXH PIPE 8-98233-481-0 02 1 1302-
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 0609-
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 04 1 0609-
36 NUT; EXH PIPE
(C) M10 		0-91110-510-0 04 1 0609-
36 NUT; EXH PIPE
(A) M12 FLANGE 		0-91180-212-0 07 1 0609-
36 NUT; EXH PIPE
(B) M12 		1-09400-010-0 03 1 0609-
44 BOLT; BRKT
(C) M10X25 L=40 		0-44011-025-0 02 1 1305-
44 BOLT; BRKT
(A) M10X60 FLANGE 		0-28051-060-0 04 1 0609-
44 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 04 1 0609-0610
44 BOLT; BRKT
(B) M10X35 FLANGE 		0-28651-035-0 04 1 0611-
45 BOLT; BRKT
M10X50 		0-10856-050-0 01 1 0609-
45 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0609-
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 03 1 0609-
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 08 1 0609-
56 BRACKET; CLAMP,EXH PIPE
(E) L=94 		1-22131-575-0 01 1 0609-
56 BRACKET; CLAMP,EXH PIPE
(D) L=254 		1-22131-527-1 01 1 0609-
56 BRACKET; CLAMP,EXH PIPE
(C) 		1-22134-247-0 01 1 0609-
56 BRACKET; CLAMP,EXH PIPE
(B) 		1-22139-273-0 01 1 0609-
56 BRACKET; CLAMP,EXH PIPE
(A) 		1-22139-274-0 01 1 0609-
60 BRACKET; FRAME TO BRKT
(D) 		8-98059-537-0 01 1 0609-
60 BRACKET; FRAME TO BRKT
(B) 		1-22152-084-0 01 1 0609-1301
60 BRACKET; FRAME TO BRKT
(B) 		8-98234-333-0 01 1 1302-
60 BRACKET; FRAME TO BRKT
(C) 		8-98043-414-0 01 1 0609-
60 BRACKET; FRAME TO BRKT
(A) 		1-22152-155-0 02 1 0609-
62 TUBE; DIST,BRKT
L=22 		9-22159-024-0 02 1 0609-
62 TUBE; DIST,BRKT
L=22 		9-22159-024-0 04 1 0609-
70 BOLT; BRKT
(B) M10X50 FLANGE 		0-28051-050-0 01 1 1302-
70 BOLT; BRKT
(B) M10X50 		0-10856-050-0 02 1 0609-1301
70 BOLT; BRKT
(B) M10X50 		0-10856-050-0 01 1 1302-
70 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 04 1 0609-
75 RUBBER; SUPPORT,BRKT
(A) OD=40 		1-22159-094-0 02 1 0609-
75 RUBBER; SUPPORT,BRKT
(B) OD=40 		1-22159-193-0 04 1 0609-
75 RUBBER; SUPPORT,BRKT
(A) OD=40 		1-22159-094-0 08 1 0609-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0609-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 06 1 0609-
84 GASKET; EXH PIPE
(B) ID=85.8 		1-22116-043-0 01 1 0609-
84 GASKET; EXH PIPE
(B) ID=85.8 		1-22116-043-0 01 1 0609-
84 GASKET; EXH PIPE
(A) 		1-22116-040-0 01 1 0609-
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0609-0805
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		8-98055-085-0 02 1 0806-1301
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		8-98055-085-0 02 1 1302-
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		8-98055-085-0 02 1 1302-
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 04 1 0609-0805
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		8-98055-085-0 04 1 0806-1301
94 BOLT; CLAMP
M10X40 FLANGE 		0-28651-040-0 02 1 1302-
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 0609-1301
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 04 1 0609-1301
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 1302-
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 1302-
105 NUT; CLAMP
M10 		0-91110-510-0 02 1 0609-1301
105 NUT; CLAMP
M10 		0-91110-510-0 02 1 1302-
105 NUT; CLAMP
M10 		0-91110-510-0 02 1 1302-
105 NUT; CLAMP
M10 		0-91110-510-0 04 1 0609-1301
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 02 1 1302-
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0609-
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0609-
264 TUBE; DIST,SUPPORT RUBBER
L=22 		9-22159-024-0 01 1 0609-
475 BEARING; SEAL,VIBNON,EXH PIPE 8-98233-479-0 01 1 1302-
476 SPRING; VIBNON,EXH PIPE 8-98233-482-0 02 1 1302-
555 PIPE; EXH,DPD 8-98050-138-0 01 1 0609-
556 DPD ASM 8-97613-331-6 01 1 0609-1010
556 DPD ASM 8-97622-883-3 01 1 1011-

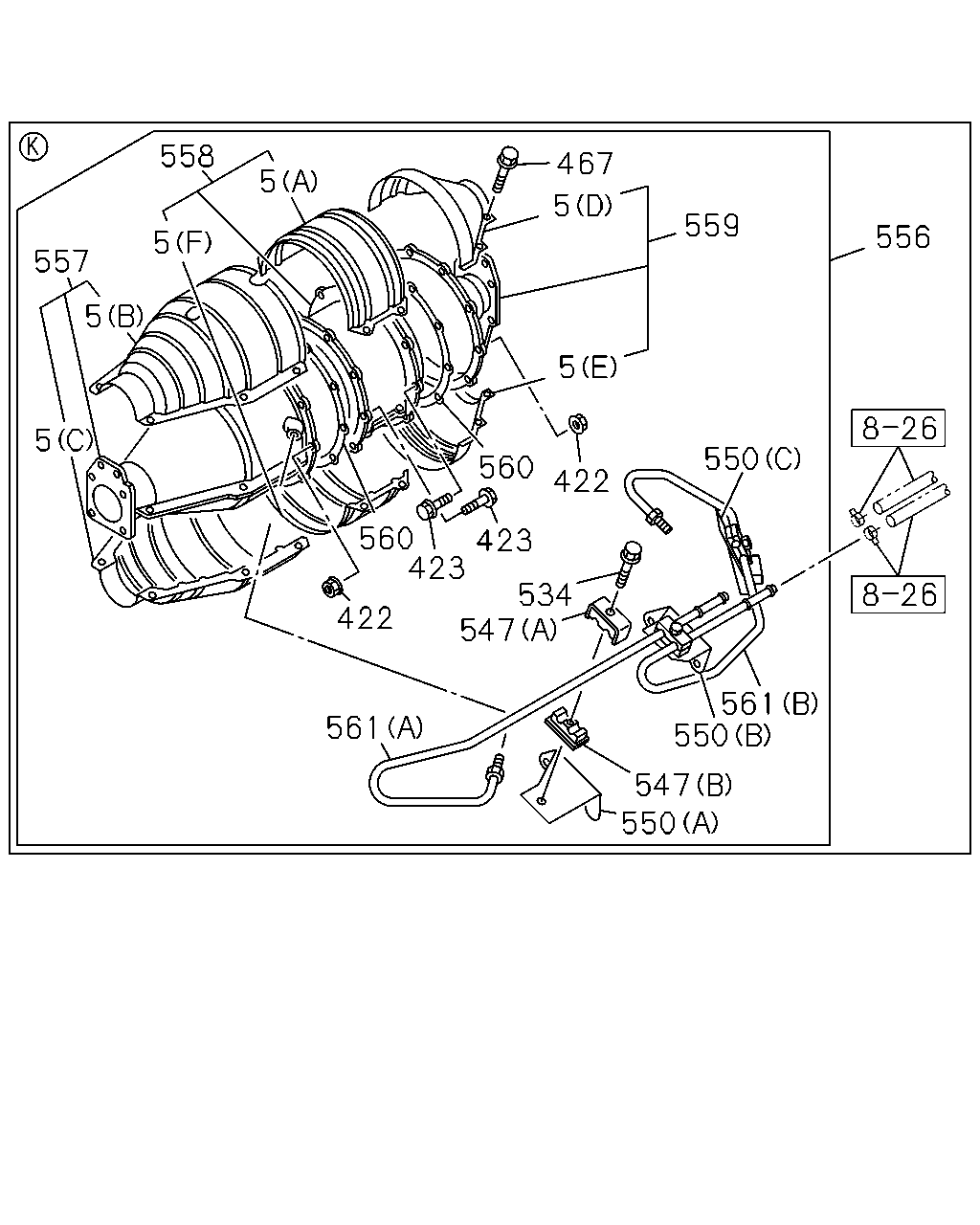

çizim 88285
558 467 5 5 559 556 5 557 5 5 5 550 560 422 560 423 423 534 547 422 561 550 561 547 550
BalonParca AdiParca NoAdetTipApplied Date
5 PROTECTOR; HEAT
(A) 		8-97605-172-0 01 1 0609-
5 PROTECTOR; HEAT
(B) 		8-97611-086-0 01 1 0609-
5 PROTECTOR; HEAT
(C) 		8-97611-087-0 01 1 0609-
5 PROTECTOR; HEAT
(D) 		8-97611-088-0 01 1 0609-
5 PROTECTOR; HEAT
(E) 		8-97611-089-0 01 1 0609-
5 PROTECTOR; HEAT
(F) 		8-97613-390-0 01 1 0609-
5 PROTECTOR; HEAT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (G) 		1-33659-250-0 01 1 0609-
422 NUT; PIPE
M8 FLANGE 		0-91180-208-0 20 1 0609-0702
422 NUT; PIPE
M8 FLANGE 		0-91180-108-0 20 1 0703-
423 BOLT; PIPE
M8X35 FLANGE 		0-28650-835-0 20 1 0609-
467 BOLT; PROTECTOR
M6X16 		8-98019-179-0 14 1 0609-
534 BOLT; CLIP
M6X35 FLANGE 		0-28650-635-0 03 1 0609-
547 CLIP; PIPE
(A) 		8-97381-635-0 03 1 0609-
547 CLIP; PIPE
(B) 		8-97381-636-0 03 1 0609-
550 BRACKET; DPD
(A) 		8-97611-083-0 01 1 0609-
550 BRACKET; DPD
(B) 		8-97611-084-0 01 1 0609-
550 BRACKET; DPD
(C) 		8-97611-085-0 01 1 0609-
556 DPD ASM 8-97613-331-6 01 1 0609-1010
556 DPD ASM 8-97622-883-3 01 1 1011-
557 CATALYST ASM 8-97608-055-7 01 1 0609-
558 FILTER ASM 8-97608-057-3 01 1 0609-
559 COVER; RR 8-97611-078-0 01 1 0609-1010
559 COVER; RR 8-97622-887-0 01 1 1011-
560 GASKET; DPD 8-97611-080-0 02 1 0609-
561 PIPE; DPD
(A) 		8-97611-081-0 01 1 0609-1010
561 PIPE; DPD
(A) 		8-97622-888-0 01 1 1011-
561 PIPE; DPD
(B) 		8-97611-082-0 01 1 0609-1010
561 PIPE; DPD
(B) 		8-97622-889-0 01 1 1011-
