0-12B — CYLINDER BLOCK (#2581) — 163 parça

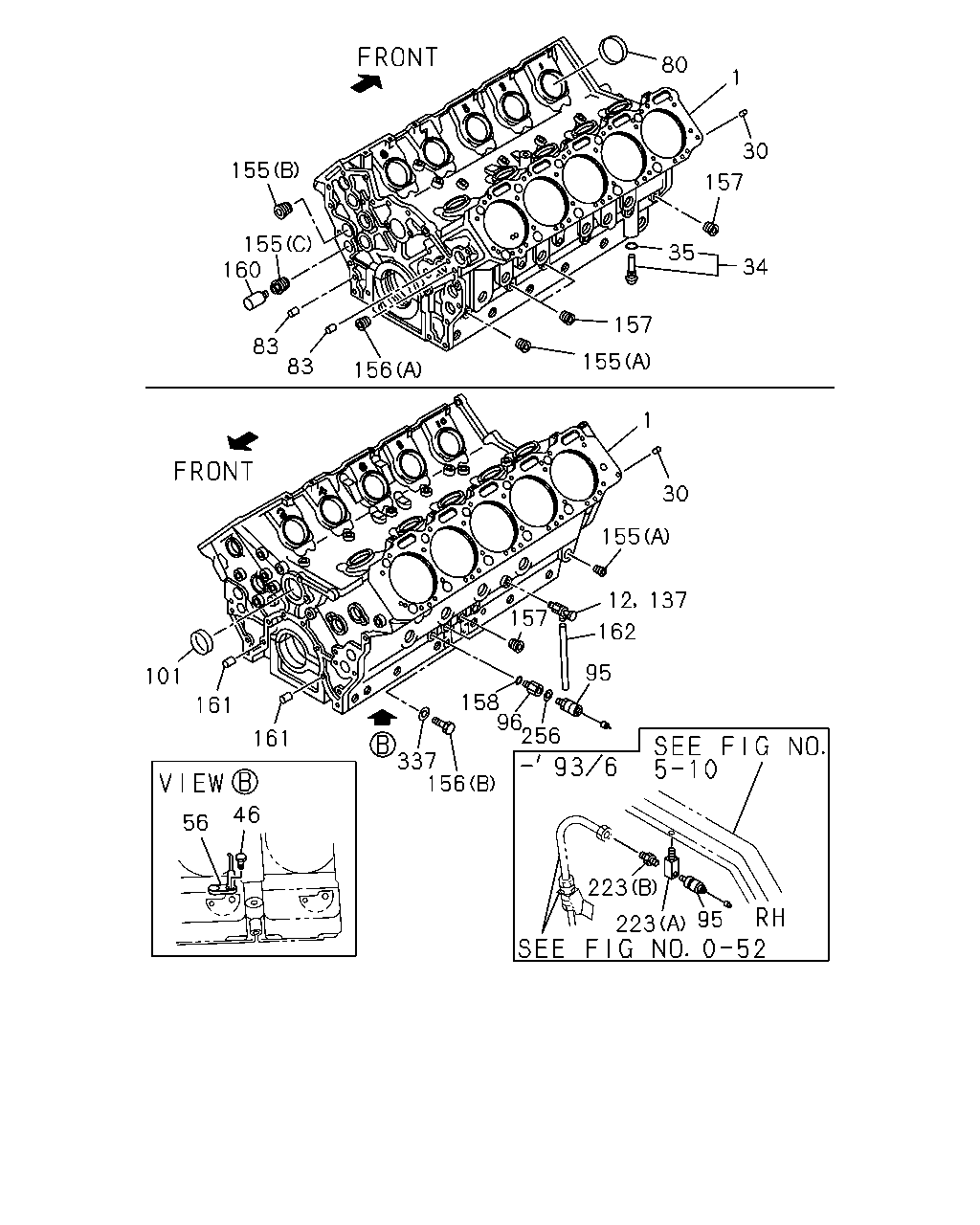

155 155 160 83 83 156 155 157 35 34 157 30 1 80 101 161 161 337 156 46 56 158 96 256 157 155 30 1 137 12 162 95 223 223 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BLOCK ASM; CYL ENGINE REAR PTO(SV1)	1-11210-548-4	01	1	9002-	●
1	BLOCK ASM; CYL EXC. ENGINE REAR PTO(SV1)	1-11210-502-4	01	1	9002-	●
1	BLOCK ASM; CYL ENGINE REAR PTO(SV1)	1-11210-547-4	01	1	9307-		●
1	BLOCK ASM; CYL EXC. ENGINE REAR PTO(SV1)	1-11210-503-4	01	1	9307-		●
12	CONNECTOR; DRAIN COCK,WATER	1-09680-027-1	01	1	9002-9202	●
12	CONNECTOR; DRAIN COCK,WATER	1-09680-055-1	01	1	9203-9306	●	●
30	PIN; CYL HD GASKET SETTING OD=8 L=20	9-08150-816-0	04	1	9002-	●	●
34	VALVE; OIL RELIEF	1-13160-025-0	01	1	9002-	●	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-145-0	01	1	9002-	●	●
46	BOLT; JOINT,OIL JET,PISTON COOLING M14X25	1-13349-033-0	10	1	9002-	●
46	BOLT; JOINT,OIL JET,PISTON COOLING M14X25	1-13349-033-0	08	1	9307-		●
56	JET; OIL,PISTON COOLING	1-13342-113-0	10	1	9002-	●
56	JET; OIL,PISTON COOLING	1-13342-113-0	08	1	9307-		●
80	CUP; SEALING,TAPPET CHAMBER OD=62	1-09600-021-0	10	1	9002-	●
80	CUP; SEALING,TAPPET CHAMBER OD=62	1-09600-021-0	08	1	9307-		●
83	PIN; FLYWHEEL HSG	1-09740-036-0	02	1	9002-	●	●
95	PRESSURE UNIT; OIL	1-83151-035-0	01	1	9002-9306	●
95	PRESSURE UNIT; OIL	1-83151-041-0	01	1	9307-	●	●
96	ADAPTER; PRESS UNIT & SW	1-09669-115-0	01	1	9307-9508	●	●
96	ADAPTER; PRESS UNIT & SW	8-94390-391-0	01	1	9509-	●	●
101	CUP; SEALING CAM END	1-09600-022-0	01	1	9002-	●	●
137	COCK; DRAIN,WATER	1-09680-055-1	01	1	9307-	●
155	PLUG; OIL GALLERY END EXC. ENGINE REAR PTO(SV1) (B) PT1	1-09605-021-0	04	1	9002-9306	●
155	PLUG; OIL GALLERY END ENGINE REAR PTO(SV1) (B) PT1	1-09605-021-0	03	1	9307-		●
155	PLUG; OIL GALLERY END (A) PT3/4	1-09605-020-0	02	1	9002-	●	●
155	PLUG; OIL GALLERY END (B) PT1	1-09605-021-0	04	1	9307-	●	●
155	PLUG; OIL GALLERY END ENGINE REAR PTO(SV1) (C) PT1,PT1/8	1-09605-076-0	01	1	9002-9503	●	●
155	PLUG; OIL GALLERY END (C) PT1,PT1/8	1-09605-076-0	01	1	9504-	●	●
156	PLUG; IDLE GEAR (B) M14X9	9-99202-314-0	01	1	9002-9306	●
156	PLUG; IDLE GEAR (A) PT1/4	1-09605-019-0	02	1	9002-	●	●
157	PLUG; OIL GALLERY SIDE PT1/4	1-09605-019-0	07	1	9002-	●
157	PLUG; OIL GALLERY SIDE PT1/4	1-09605-019-0	06	1	9307-		●
158	GASKET; OIL PRESS UNIT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	01	1	9307-9508	●	●
158	GASKET; OIL PRESS UNIT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	01	1	9509-	●	●
160	JET ASM; OILING,PTO GEAR ENGINE REAR PTO(SV1)	9-13342-002-0	01	1	9002-9503	●	●
160	JET ASM; OILING,PTO GEAR	9-13342-002-0	01	1	9504-	●	●
161	DOWEL; FRT COVER	9-11229-032-0	02	1	9002-9406	●	●
161	DOWEL; FRT COVER	1-11229-012-1	02	1	9407-	●	●
162	HOSE; WATER DRAIN,C/BL L=510 SERVICED BY L=10000	9-09914-701-0	01	1	9002-	●	●
223	CONNECTOR; OIL PRESSURE (A) M10	1-09664-168-1	01	1	9002-9306	●
223	CONNECTOR; OIL PRESSURE (B) M20	9-99220-610-0	01	1	9002-9306	●
256	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	9307-	●	●
337	GASKET; PLUG ID=14.2 OD=19.2	1-09630-085-0	01	1	9002-9306	●

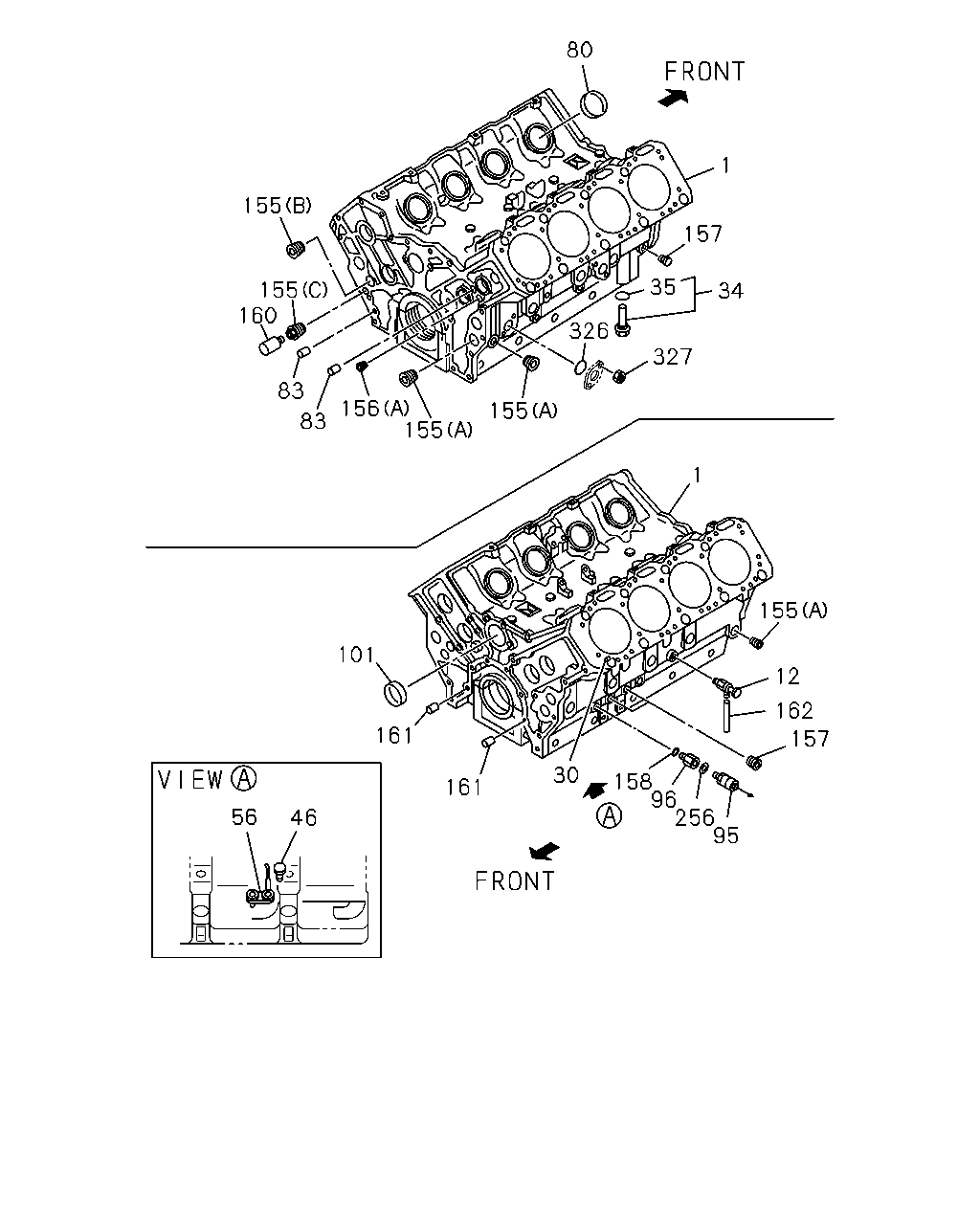

155 155 160 83 83 156 155 155 326 35 327 34 157 1 80 1 101 161 161 30 158 96 256 12 155 162 157 46 56 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BLOCK ASM; CYL ENGINE REAR PTO(SV1)	1-11210-548-4	01	1	9002-	●
1	BLOCK ASM; CYL EXC. ENGINE REAR PTO(SV1)	1-11210-502-4	01	1	9002-	●
1	BLOCK ASM; CYL ENGINE REAR PTO(SV1)	1-11210-547-4	01	1	9307-		●
1	BLOCK ASM; CYL EXC. ENGINE REAR PTO(SV1)	1-11210-503-4	01	1	9307-		●
12	CONNECTOR; DRAIN COCK,WATER	1-09680-027-1	01	1	9002-9202	●
12	CONNECTOR; DRAIN COCK,WATER	1-09680-055-1	01	1	9203-9306	●	●
30	PIN; CYL HD GASKET SETTING OD=8 L=20	9-08150-816-0	04	1	9002-	●	●
34	VALVE; OIL RELIEF	1-13160-025-0	01	1	9002-	●	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-145-0	01	1	9002-	●	●
46	BOLT; JOINT,OIL JET,PISTON COOLING M14X25	1-13349-033-0	10	1	9002-	●
46	BOLT; JOINT,OIL JET,PISTON COOLING M14X25	1-13349-033-0	08	1	9307-		●
56	JET; OIL,PISTON COOLING	1-13342-113-0	10	1	9002-	●
56	JET; OIL,PISTON COOLING	1-13342-113-0	08	1	9307-		●
80	CUP; SEALING,TAPPET CHAMBER OD=62	1-09600-021-0	10	1	9002-	●
80	CUP; SEALING,TAPPET CHAMBER OD=62	1-09600-021-0	08	1	9307-		●
83	PIN; FLYWHEEL HSG	1-09740-036-0	02	1	9002-	●	●
95	PRESSURE UNIT; OIL	1-83151-035-0	01	1	9002-9306	●
95	PRESSURE UNIT; OIL	1-83151-041-0	01	1	9307-	●	●
96	ADAPTER; PRESS UNIT & SW	1-09669-115-0	01	1	9307-9508	●	●
96	ADAPTER; PRESS UNIT & SW	8-94390-391-0	01	1	9509-	●	●
101	CUP; SEALING CAM END	1-09600-022-0	01	1	9002-	●	●
155	PLUG; OIL GALLERY END EXC. ENGINE REAR PTO(SV1) (B) PT1	1-09605-021-0	04	1	9002-9306	●
155	PLUG; OIL GALLERY END ENGINE REAR PTO(SV1) (B) PT1	1-09605-021-0	03	1	9307-		●
155	PLUG; OIL GALLERY END (A) PT3/4	1-09605-020-0	02	1	9002-	●	●
155	PLUG; OIL GALLERY END (B) PT1	1-09605-021-0	04	1	9307-	●	●
155	PLUG; OIL GALLERY END ENGINE REAR PTO(SV1) (C) PT1,PT1/8	1-09605-076-0	01	1	9002-9503	●	●
155	PLUG; OIL GALLERY END (C) PT1,PT1/8	1-09605-076-0	01	1	9504-	●	●
156	PLUG; IDLE GEAR (B) M14X9	9-99202-314-0	01	1	9002-9306	●
156	PLUG; IDLE GEAR (A) PT1/4	1-09605-019-0	02	1	9002-	●	●
157	PLUG; OIL GALLERY SIDE PT1/4	1-09605-019-0	07	1	9002-	●
157	PLUG; OIL GALLERY SIDE PT1/4	1-09605-019-0	06	1	9307-		●
158	GASKET; OIL PRESS UNIT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	01	1	9307-9508	●	●
158	GASKET; OIL PRESS UNIT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	01	1	9509-	●	●
160	JET ASM; OILING,PTO GEAR ENGINE REAR PTO(SV1)	9-13342-002-0	01	1	9002-9503	●	●
160	JET ASM; OILING,PTO GEAR	9-13342-002-0	01	1	9504-	●	●
161	DOWEL; FRT COVER	9-11229-032-0	02	1	9002-9406	●	●
161	DOWEL; FRT COVER	1-11229-012-1	02	1	9407-	●	●
162	HOSE; WATER DRAIN,C/BL L=510 SERVICED BY L=10000	9-09914-701-0	01	1	9002-	●	●
256	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	9307-	●	●
326	GASKET; COVER,OIL FILTER HOLE ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.7	1-09623-416-0	01	1	9307-		●
327	NUT; COVER,OIL FILTER HOLE	0-91150-110-0	02	1	9307-		●

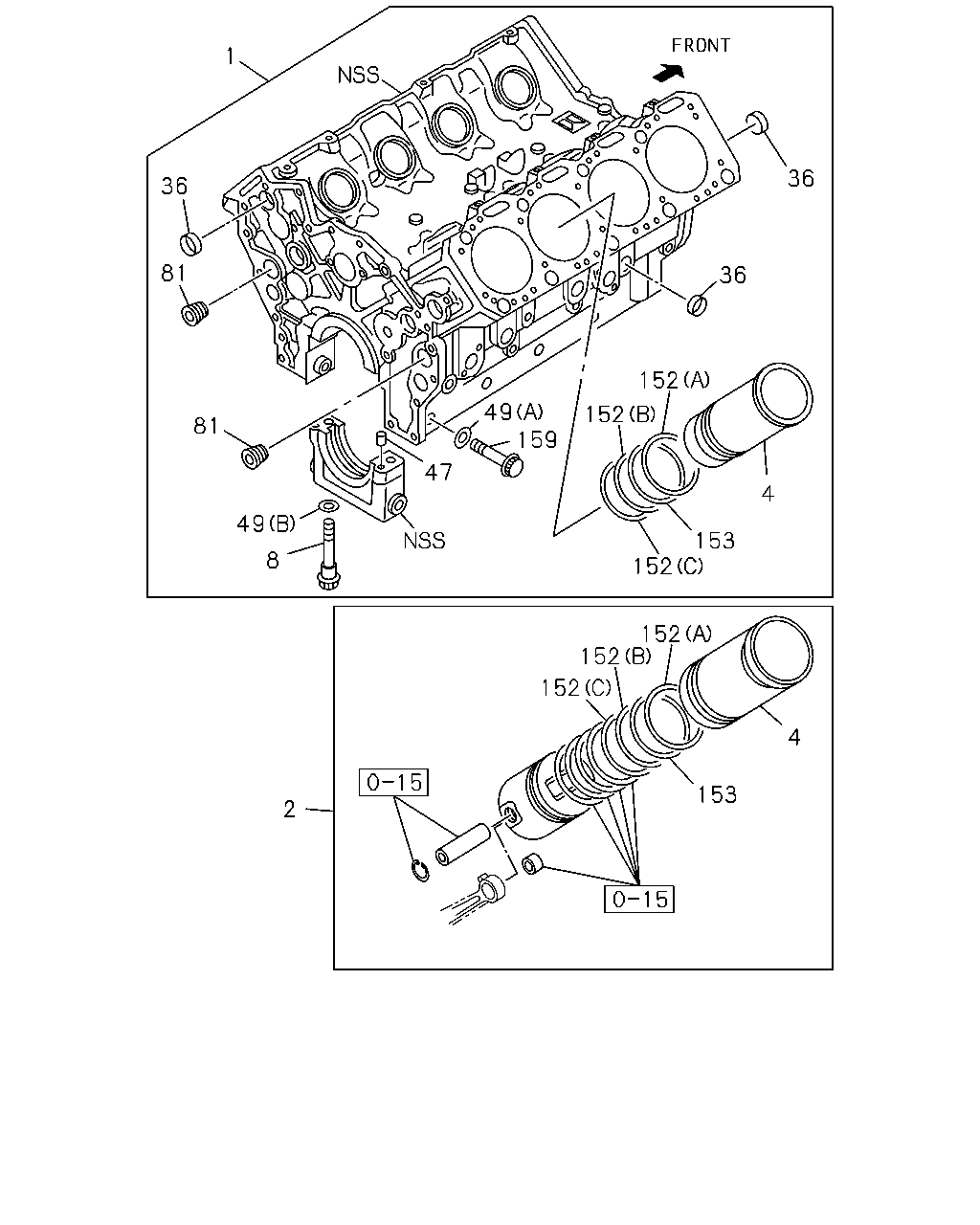

1 36 36 81 36 152 49 159 152 81 47 4 49 153 152 8 152 152 152 4 153 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BLOCK ASM; CYL ENGINE REAR PTO(SV1)	1-11210-548-4	01	1	9002-	●
1	BLOCK ASM; CYL EXC. ENGINE REAR PTO(SV1)	1-11210-502-4	01	1	9002-	●
1	BLOCK ASM; CYL ENGINE REAR PTO(SV1)	1-11210-547-4	01	1	9307-		●
1	BLOCK ASM; CYL EXC. ENGINE REAR PTO(SV1)	1-11210-503-4	01	1	9307-		●
2	LINER SET; ENG CYL	1-87810-835-0	10	1	9002-9306	●
2	LINER SET; ENG CYL NON GRADE	1-87811-396-0	10	1	9307-9410	●
2	LINER SET; ENG CYL EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> NON GRADE	1-87811-396-0	10	1	9411-	●
2	LINER SET; ENG CYL EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> NON GRADE	1-87811-390-0	10	1	9411-	●
2	LINER SET; ENG CYL NON GRADE	1-87811-396-0	08	1	9307-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET.	1-11261-161-2	10	1	9002-9306	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=NON,ID GRADE=AX	1-11261-282-0	10	1	9307-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=NON,ID GRADE=CX	1-11261-283-0	10	1	9307-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=NON,ID GRADE=AX	1-11261-282-0	08	1	9307-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=NON,ID GRADE=CX	1-11261-283-0	08	1	9307-		●
8	BOLT; BRG CAP M16X138	1-09070-040-1	12	1	9002-	●
8	BOLT; BRG CAP M16X138	1-09070-040-1	10	1	9307-		●
36	CUP; SEALING,WATER JACKET OD=40	1-09600-020-0	09	1	9002-	●
36	CUP; SEALING,WATER JACKET OD=45	1-09600-005-1	01	1	9002-	●	●
36	CUP; SEALING,WATER JACKET OD=40	1-09600-020-0	07	1	9307-		●
47	PIN; BRG CAP OD=8 L=16	9-08150-816-0	02	1	9002-	●	●
49	WASHER; BRG CAP (A) ID=14.2	1-09503-050-0	12	1	9002-	●
49	WASHER; BRG CAP (B) ID=16.2	9-09851-672-2	12	1	9002-	●
49	WASHER; BRG CAP (A) ID=14.2	1-09503-050-0	10	1	9307-		●
49	WASHER; BRG CAP (B) ID=16.2	9-09851-672-2	10	1	9307-		●
81	PLUG; WATER JACKET	1-09605-022-0	02	1	9307-		●
152	GASKET; LINER TO BLOCK ALSO INCLUDED IN LINER SET. (A) ID=131.5 LINE OD=2.3	1-09623-409-0	10	1	9002-	●
152	GASKET; LINER TO BLOCK ALSO INCLUDED IN LINER SET. (B) ID=132.5 LINE OD=4.3	1-09623-410-0	10	1	9002-	●
152	GASKET; LINER TO BLOCK ALSO INCLUDED IN LINER SET. (C) ID=132.5 LINE OD=4.3	1-09623-538-0	10	1	9002-	●
152	GASKET; LINER TO BLOCK ALSO INCLUDED IN LINER SET. (A) ID=131.5 LINE OD=2.3	1-09623-409-0	08	1	9307-		●
152	GASKET; LINER TO BLOCK ALSO INCLUDED IN LINER SET. (B) ID=132.5 LINE OD=4.3	1-09623-410-0	08	1	9307-		●
152	GASKET; LINER TO BLOCK ALSO INCLUDED IN LINER SET. (C) ID=132.5 LINE OD=4.3	1-09623-538-0	08	1	9307-		●
153	GASKET; CREVICE,CYL LINER ALSO INCLUDED IN LINER SET.	1-09623-432-0	10	1	9002-	●
153	GASKET; CREVICE,CYL LINER ALSO INCLUDED IN LINER SET.	1-09623-432-0	08	1	9307-		●
159	BOLT; BRG CAP SIDE FIX M14X80 FLANGE	1-09070-034-1	12	1	9002-	●
159	BOLT; BRG CAP SIDE FIX M14X80 FLANGE	1-09070-034-1	10	1	9307-		●

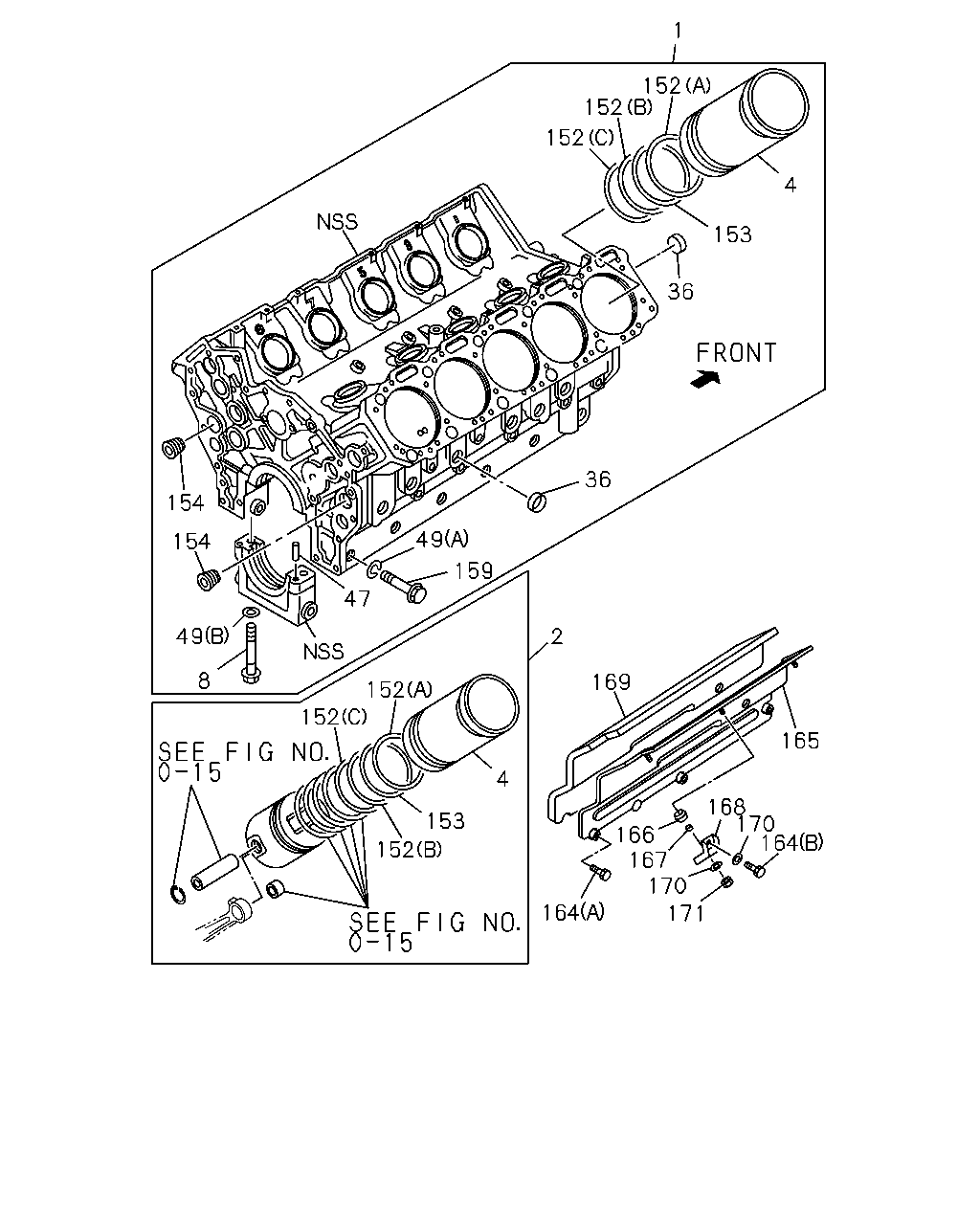

1 152 152 152 153 4 36 36 49 159 47 154 154 49 8 152 152 2 169 4 153 165 168 166 167 170 171 170 164 164 152

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BLOCK ASM; CYL ENGINE REAR PTO(SV1)	1-11210-548-4	01	1	9002-	●
1	BLOCK ASM; CYL EXC. ENGINE REAR PTO(SV1)	1-11210-502-4	01	1	9002-	●
1	BLOCK ASM; CYL ENGINE REAR PTO(SV1)	1-11210-547-4	01	1	9307-		●
1	BLOCK ASM; CYL EXC. ENGINE REAR PTO(SV1)	1-11210-503-4	01	1	9307-		●
2	LINER SET; ENG CYL	1-87810-835-0	10	1	9002-9306	●
2	LINER SET; ENG CYL NON GRADE	1-87811-396-0	10	1	9307-9410	●
2	LINER SET; ENG CYL EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> NON GRADE	1-87811-396-0	10	1	9411-	●
2	LINER SET; ENG CYL EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> NON GRADE	1-87811-390-0	10	1	9411-	●
2	LINER SET; ENG CYL NON GRADE	1-87811-396-0	08	1	9307-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET.	1-11261-161-2	10	1	9002-9306	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=NON,ID GRADE=AX	1-11261-282-0	10	1	9307-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=NON,ID GRADE=CX	1-11261-283-0	10	1	9307-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=NON,ID GRADE=AX	1-11261-282-0	08	1	9307-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=NON,ID GRADE=CX	1-11261-283-0	08	1	9307-		●
8	BOLT; BRG CAP M16X138	1-09070-040-1	12	1	9002-	●
8	BOLT; BRG CAP M16X138	1-09070-040-1	10	1	9307-		●
36	CUP; SEALING,WATER JACKET OD=40	1-09600-020-0	09	1	9002-	●
36	CUP; SEALING,WATER JACKET OD=45	1-09600-005-1	01	1	9002-	●	●
36	CUP; SEALING,WATER JACKET OD=40	1-09600-020-0	07	1	9307-		●
47	PIN; BRG CAP OD=8 L=16	9-08150-816-0	02	1	9002-	●	●
49	WASHER; BRG CAP (A) ID=14.2	1-09503-050-0	12	1	9002-	●
49	WASHER; BRG CAP (B) ID=16.2	9-09851-672-2	12	1	9002-	●
49	WASHER; BRG CAP (A) ID=14.2	1-09503-050-0	10	1	9307-		●
49	WASHER; BRG CAP (B) ID=16.2	9-09851-672-2	10	1	9307-		●
152	GASKET; LINER TO BLOCK ALSO INCLUDED IN LINER SET. (A) ID=131.5 LINE OD=2.3	1-09623-409-0	10	1	9002-	●
152	GASKET; LINER TO BLOCK ALSO INCLUDED IN LINER SET. (B) ID=132.5 LINE OD=4.3	1-09623-410-0	10	1	9002-	●
152	GASKET; LINER TO BLOCK ALSO INCLUDED IN LINER SET. (C) ID=132.5 LINE OD=4.3	1-09623-538-0	10	1	9002-	●
152	GASKET; LINER TO BLOCK ALSO INCLUDED IN LINER SET. (A) ID=131.5 LINE OD=2.3	1-09623-409-0	08	1	9307-		●
152	GASKET; LINER TO BLOCK ALSO INCLUDED IN LINER SET. (B) ID=132.5 LINE OD=4.3	1-09623-410-0	08	1	9307-		●
152	GASKET; LINER TO BLOCK ALSO INCLUDED IN LINER SET. (C) ID=132.5 LINE OD=4.3	1-09623-538-0	08	1	9307-		●
153	GASKET; CREVICE,CYL LINER ALSO INCLUDED IN LINER SET.	1-09623-432-0	10	1	9002-	●
153	GASKET; CREVICE,CYL LINER ALSO INCLUDED IN LINER SET.	1-09623-432-0	08	1	9307-		●
154	PLUG; WATER DUCT	1-09605-022-0	02	1	9002-	●
159	BOLT; BRG CAP SIDE FIX M14X80 FLANGE	1-09070-034-1	12	1	9002-	●
159	BOLT; BRG CAP SIDE FIX M14X80 FLANGE	1-09070-034-1	10	1	9307-		●
164	BOLT; COVER BLOCK SKIRT EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (A) M10X28 FLANGE	0-28181-028-0	03	1	9411-	●
164	BOLT; COVER BLOCK SKIRT EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (B) M10X16 W/LK WASHER	1-09033-012-0	03	1	9411-	●
165	COVER; C/BL SKIRT EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-19381-226-1	01	1	9411-	●
166	MOUNT; COVER BLOCK SKIRT EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-09337-020-0	06	1	9411-	●
167	TUBE; DIST,SIDE COVER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	5-23332-003-0	06	1	9411-	●
168	BRACKET; SIDE COVER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-19386-012-3	03	1	9411-	●
169	INSULATOR; SIDE COVER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-19389-066-3	01	1	9411-	●
170	WASHER; COVER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> ID=10.5 OD=26	9-09160-710-0	06	1	9411-	●
171	NUT; COVER & BRKT EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> M10	9-09110-410-0	03	1	9411-	●
