0-12A — CYLINDER BLOCK (#2580) — 117 parça

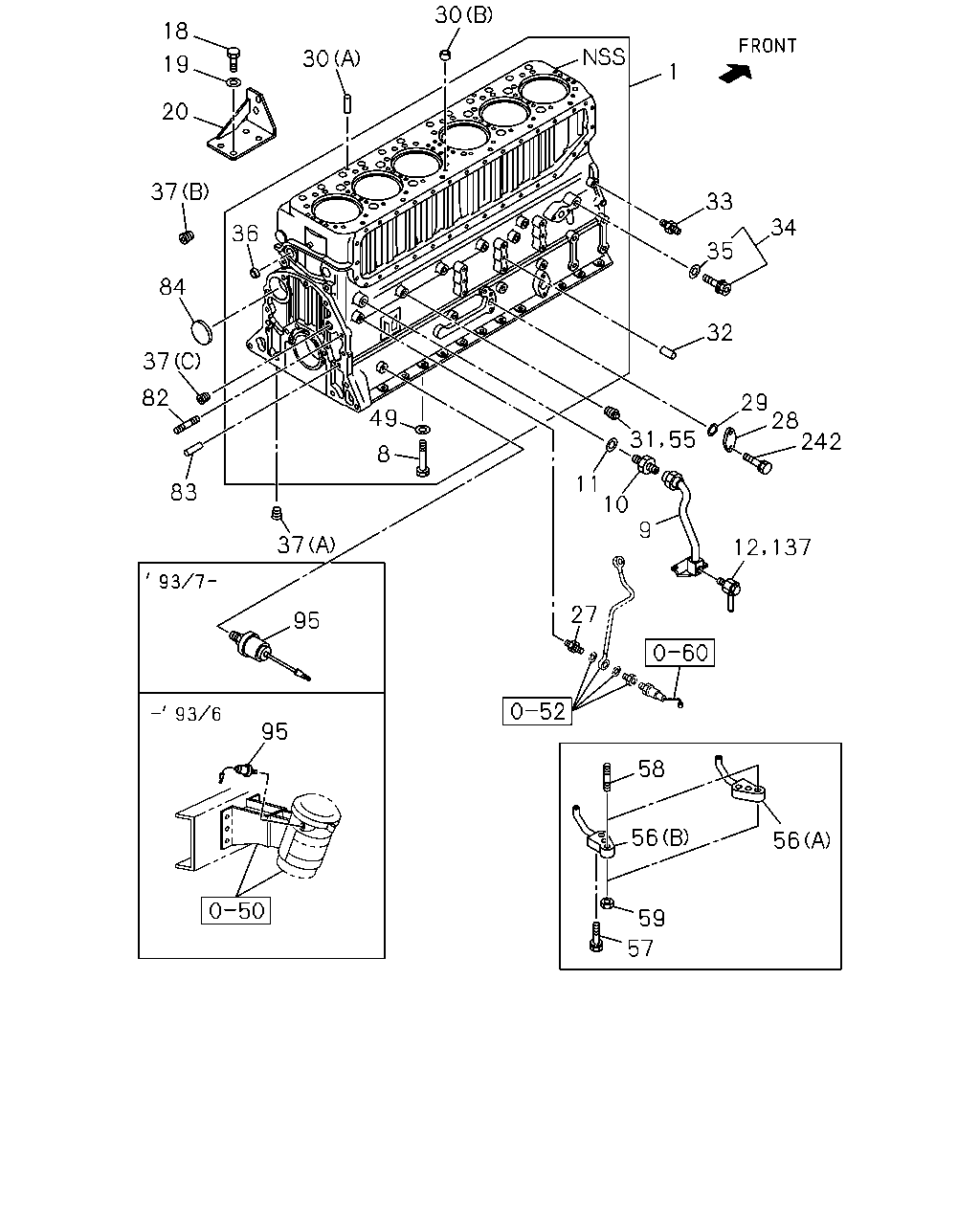

30 18 30 19 1 20 37 33 34 36 35 84 32 37 49 82 29 28 242 8 11 10 83 9 37 27 95 95 58 56 56 59 57 12 137 31 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BLOCK ASM; CYL	1-11210-321-1	01	1	9002-9201	●
1	BLOCK ASM; CYL	1-11210-598-0	01	1	9202-9306	●
1	BLOCK ASM; CYL	1-11210-421-0	01	1	9002-9201		●	●
1	BLOCK ASM; CYL	1-11210-588-0	01	1	9202-9311		●	●
1	BLOCK ASM; CYL	1-11210-421-0	01	1	9312-		●	●
8	BOLT; BRG CAP M20X150	9-09804-217-0	04	1	9002-	●	●	●
8	BOLT; BRG CAP M20X178	9-09804-218-0	10	1	9002-	●	●	●
9	PIPE ASM; WATER DRAIN COCK	1-13711-036-3	01	1	9002-	●	●	●
10	CONNECTOR; WATER DRAIN	1-09660-011-1	01	1	9002-	●	●	●
11	GASKET; CONN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=18	9-09571-418-0	01	1	9002-	●	●	●
12	CONNECTOR; DRAIN COCK,WATER	1-09680-026-0	01	1	9002-9306	●	●	●
18	BOLT; BRKT TO C/BL M10X22	9-02361-022-0	02	1	9002-	●		●
18	BOLT; BRKT TO C/BL AIR COMPRESSOR HEAVY DUTY(E1Q) M10X22	9-02361-022-0	02	1	9002-		●
19	WASHER; BRKT ID=10.5 OD=22 T=4	1-09503-045-0	02	1	9002-	●		●
19	WASHER; BRKT AIR COMPRESSOR HEAVY DUTY(E1Q) ID=10.5 OD=22 T=4	1-09503-045-0	02	1	9002-		●
20	BRACKET; AIR CMPR	1-19187-014-1	01	1	9002-	●		●
20	BRACKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19187-014-1	01	1	9002-		●
27	NIPPLE; OIL GALLERY ENGINE REAR PTO(SV1)	9-09902-198-0	01	1	9002-9003		●
27	NIPPLE; OIL GALLERY ENGINE REAR PTO(SV1)	1-09660-568-0	01	1	9004-		●
28	COVER; OIL PORT	9-11219-214-0	01	1	9002-	●	●	●
29	GASKET; COVER,OIL PORT ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	1-09623-170-0	01	1	9002-9003	●	●	●
29	GASKET; COVER,OIL PORT ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	1-09623-450-0	01	1	9004-	●	●	●
30	PIN; CYL HD GASKET SETTING (A) OD=8 L=16	9-08150-816-0	02	1	9002-	●	●	●
30	PIN; CYL HD GASKET SETTING (B) OD=20 L=15	9-11229-011-2	04	1	9002-	●	●	●
31	PLUG; OIL GALLERY PT1/4	1-09605-019-0	03	1	9307-		●	●
32	PIN; INJ PUMP BRKT OD=8 L=16	9-08150-816-0	02	1	9002-	●	●	●
33	CONNECTOR; OIL GALLERY	1-09660-034-0	01	1	9002-9101	●	●	●
33	CONNECTOR; OIL GALLERY	1-09660-580-0	01	1	9102-9102	●	●	●
33	CONNECTOR; OIL GALLERY EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09660-580-0	01	1	9103-		●
33	CONNECTOR; OIL GALLERY	1-09660-034-1	01	1	9103-	●		●
33	CONNECTOR; OIL GALLERY AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09660-034-1	01	1	9103-		●
34	VALVE; OIL RELIEF	9-13160-060-2	01	1	9002-	●	●	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-059-0	01	1	9002-	●	●	●
36	CUP; SEALING,WATER JACKET OD=45	1-09600-005-1	04	1	9002-	●	●	●
37	PLUG; OIL GALLERY (A),(B),(C) PT1/4	1-09605-019-0	04	1	9002-9306	●	●	●
37	PLUG; OIL GALLERY (B) PT3/4	1-09605-025-0	01	1	9002-	●	●	●
37	PLUG; OIL GALLERY (C) PT3/8	1-09605-056-0	02	1	9002-	●	●	●
37	PLUG; OIL GALLERY (A) PT3/4,M8	1-09609-014-1	01	1	9002-	●	●	●
49	WASHER; BRG CAP OD=23.8	9-09851-915-0	14	1	9002-	●	●	●
55	PLUG; OIL GALLERY PT3/4	1-09605-025-0	01	1	9002-	●	●	●
56	JET; OIL,PISTON COOLING (A)	1-13342-084-0	03	1	9002-9306	●
56	JET; OIL,PISTON COOLING (B)	1-13342-085-0	03	1	9002-9306	●
56	JET; OIL,PISTON COOLING (A)	1-13342-082-0	03	1	9002-		●
56	JET; OIL,PISTON COOLING (B)	1-13342-083-0	03	1	9002-		●
56	JET; OIL,PISTON COOLING (A)	1-13342-111-1	03	1	9002-			●
56	JET; OIL,PISTON COOLING (B)	1-13342-112-1	03	1	9002-			●
57	BOLT; OIL JET M8X20	9-02050-820-0	06	1	9002-9005	●	●	●
57	BOLT; OIL JET M8X20	0-20800-820-0	06	1	9006-	●	●	●
58	STUD; OILING JET M8X20 L=32	9-04110-820-0	06	1	9002-	●	●	●
59	NUT; OILING JET M8	9-09110-408-0	06	1	9002-	●	●	●
82	STUD; FLYWHEEL HSG M14X42 L=63	9-04411-442-0	01	1	9002-	●	●	●
83	PIN; FLYWHEEL HSG	9-08151-428-0	02	1	9002-	●	●	●
84	PLUG; CAM BRG	9-09201-371-0	01	1	9002-	●	●	●
95	PRESSURE UNIT; OIL	1-83151-035-0	01	1	9002-9306	●	●	●
95	PRESSURE UNIT; OIL	1-83151-040-0	01	1	9307-		●	●
137	COCK; DRAIN,WATER	1-09680-026-0	01	1	9307-		●	●
242	BOLT; COVER,OIL PORT M8X20 W/LK WASHER	9-01910-820-0	02	1	9002-9005	●	●	●
242	BOLT; COVER,OIL PORT M8X20 W/LK WASHER	0-50040-820-0	02	1	9006-	●	●	●

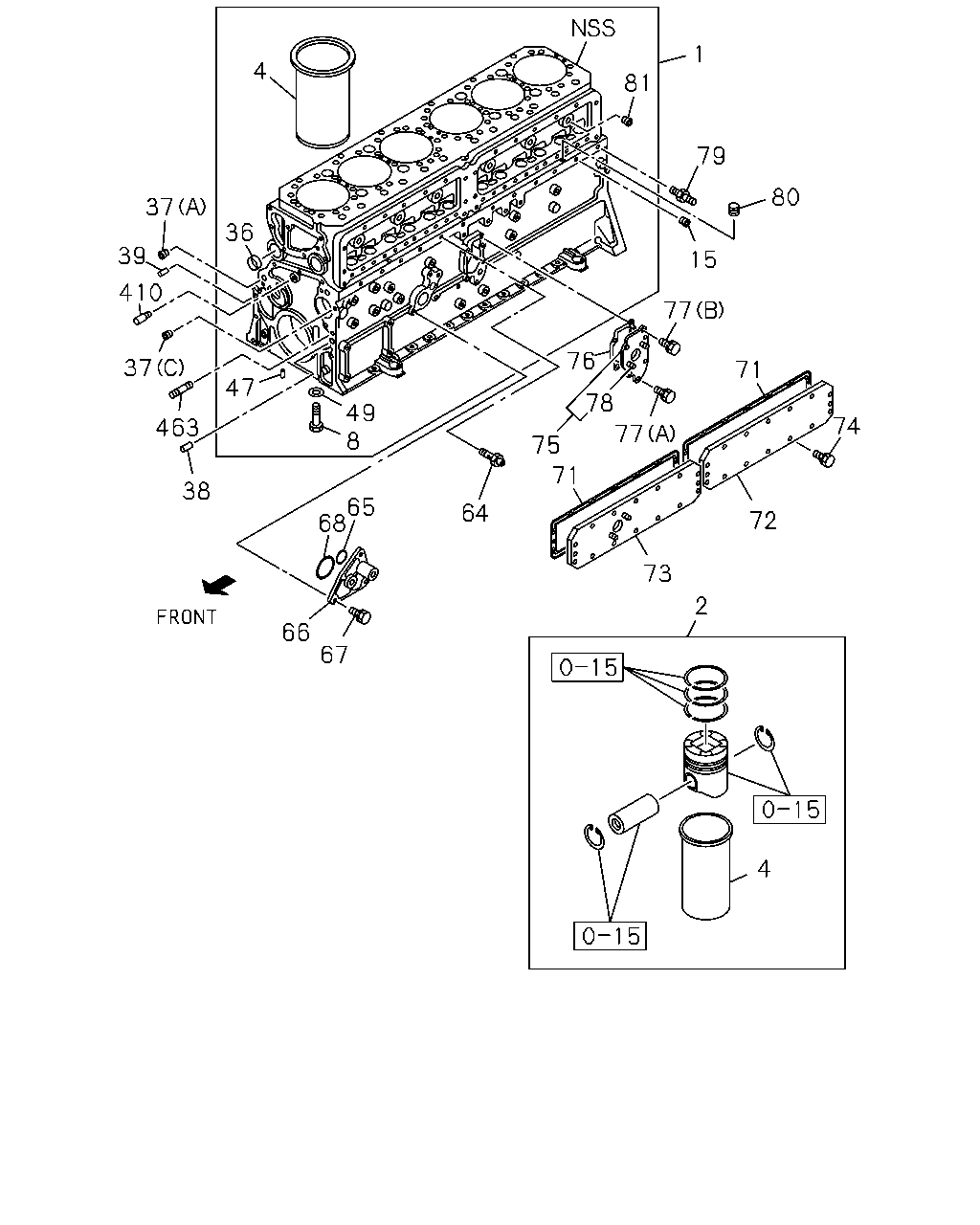

1 4 81 79 80 37 36 39 15 410 77 76 37 71 47 78 49 8 74 463 77 75 71 38 65 68 64 72 73 2 66 67 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BLOCK ASM; CYL	1-11210-321-1	01	1	9002-9201	●
1	BLOCK ASM; CYL	1-11210-598-0	01	1	9202-9306	●
1	BLOCK ASM; CYL	1-11210-421-0	01	1	9002-9201		●	●
1	BLOCK ASM; CYL	1-11210-588-0	01	1	9202-9311		●	●
1	BLOCK ASM; CYL	1-11210-421-0	01	1	9312-		●	●
2	LINER SET; ENG CYL	1-87810-497-1	06	1	9002-9306	●
2	LINER SET; ENG CYL	1-87810-425-0	06	1	9002-9306		●
2	LINER SET; ENG CYL GRADE=1	1-87811-465-0	06	1	9307-		●
2	LINER SET; ENG CYL GRADE=2	1-87811-466-0	06	1	9307-		●
2	LINER SET; ENG CYL	1-87810-910-0	06	1	9002-9306			●
2	LINER SET; ENG CYL GRADE=1	1-87811-449-0	06	1	9307-			●
2	LINER SET; ENG CYL GRADE=2	1-87811-450-0	06	1	9307-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET.	1-11261-105-1	06	1	9002-9306	●	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=NON	1-11261-288-0	06	1	9307-	●	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=NON	1-11261-289-0	06	1	9307-	●	●	●
8	BOLT; BRG CAP M20X150	9-09804-217-0	04	1	9002-	●	●	●
8	BOLT; BRG CAP M20X178	9-09804-218-0	10	1	9002-	●	●	●
15	PLUG; OIL GALLERY PT1/8	1-09605-050-0	15	1	9307-		●
15	PLUG; OIL GALLERY PT1/8	1-09605-050-0	13	1	9307-			●
36	CUP; SEALING,WATER JACKET OD=45	1-09600-005-1	04	1	9002-	●	●	●
37	PLUG; OIL GALLERY (A),(B),(C) PT1/4	1-09605-019-0	04	1	9002-9306	●	●	●
37	PLUG; OIL GALLERY (B) PT3/4	1-09605-025-0	01	1	9002-	●	●	●
37	PLUG; OIL GALLERY (C) PT3/8	1-09605-056-0	02	1	9002-	●	●	●
37	PLUG; OIL GALLERY (A) PT3/4,M8	1-09609-014-1	01	1	9002-	●	●	●
38	PIN; TIMING GEAR CASE	9-08151-222-0	02	1	9002-	●	●	●
39	DOWEL; IDLE GEAR SPINDLE	1-11229-013-0	01	1	9002-	●	●	●
47	PIN; BRG CAP OD=8 L=16	9-08150-816-0	14	1	9002-	●	●	●
49	WASHER; BRG CAP OD=23.8	9-09851-915-0	14	1	9002-	●	●	●
64	CONNECTOR; TURBOCHARGER OIL FEED	1-09660-104-1	01	1	9002-	●		●
65	GASKET; SUCTION ID=27.7	1-09623-170-0	01	1	9002-9003	●	●	●
65	GASKET; SUCTION ID=27.7	1-09623-450-0	01	1	9004-	●	●	●
66	CONNECTOR; PARTIAL FILTER	1-13341-077-2	01	1	9002-	●	●	●
67	BOLT; CONNECTOR M10X25 W/LK&PL WASHER	9-01991-025-0	03	1	9002-9002	●	●	●
67	BOLT; CONNECTOR M10X25 W/LK&PL WASHER	0-50151-025-0	03	1	9003-	●	●	●
68	GASKET; RETURN ALSO INCLUDED IN GASKET SET(ENGINE). ID=49.7	1-09623-171-0	01	1	9002-9003	●	●	●
68	GASKET; RETURN ALSO INCLUDED IN GASKET SET(ENGINE). ID=49.7	1-09623-541-0	01	1	9004-	●	●	●
71	GASKET; COVER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11292-028-0	02	1	9002-	●	●	●
72	COVER; TAPPET CHAMBER	1-11291-048-3	01	1	9002-	●	●	●
73	COVER ASM; TAPPET CHAMBER	1-11291-035-1	01	1	9002-	●	●
73	COVER ASM; TAPPET CHAMBER	1-11291-086-0	01	1	9002-			●
74	BOLT; COVER TO C/BL M8X22	9-01910-822-0	29	1	9002-9005	●	●	●
74	BOLT; COVER TO C/BL M8X22 W/LK WASHER	0-50040-822-0	29	1	9006-	●	●	●
74	BOLT; COVER TO C/BL M8X25 W/LK WASHER	9-01910-825-0	03	1	9002-9005	●	●	●
74	BOLT; COVER TO C/BL M8X25 W/LK WASHER	0-50040-825-0	03	1	9006-	●	●	●
75	COVER; C/BL,OIL PUMP	1-11219-120-0	01	1	9002-	●		●
75	COVER; C/BL,OIL PUMP	1-11219-122-0	01	1	9002-		●
76	GASKET; COVER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-13114-008-0	01	1	9002-	●	●	●
77	BOLT; COVER TO C/BL (A) M10X35 W/LK WASHER	9-01931-035-0	03	1	9002-9002	●	●	●
77	BOLT; COVER TO C/BL (A) M10X35 W/LK WASHER	0-50051-035-0	03	1	9003-	●	●	●
77	BOLT; COVER TO C/BL (B) M10X40 W/LK WASHER	9-01931-040-0	02	1	9002-9002	●	●	●
77	BOLT; COVER TO C/BL (B) M10X40 W/LK WASHER	0-50051-040-0	02	1	9003-	●	●	●
78	STUD; COVER OIL PUMP M8X30 L=41	9-04110-830-0	02	1	9002-	●		●
79	NIPPLE; OIL FEED,TURBOCHARGER	1-09660-359-1	01	1	9002-			●
80	CUP; SEALING,TAPPET CHAMBER PT1/8	1-09605-050-0	14	1	9002-9306	●
80	CUP; SEALING,TAPPET CHAMBER PT1/8	1-09605-050-0	15	1	9002-9306		●
80	CUP; SEALING,TAPPET CHAMBER PT1/8	1-09605-050-0	13	1	9002-9306			●
81	PLUG; WATER JACKET	9-09864-050-1	06	1	9002-	●	●	●
410	JET; OIL,TIMING GEAR	9-13342-002-0	01	1	9002-	●	●	●
463	STUD; TIMING GEAR CASE M12X77 L=95	9-09831-161-0	06	1	9307-		●	●
