◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10625 - FSR-LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-01 - EMBLEM AND NAME PLATE ▶
7-01 — EMBLEM AND NAME PLATE (#258) — 9 parça

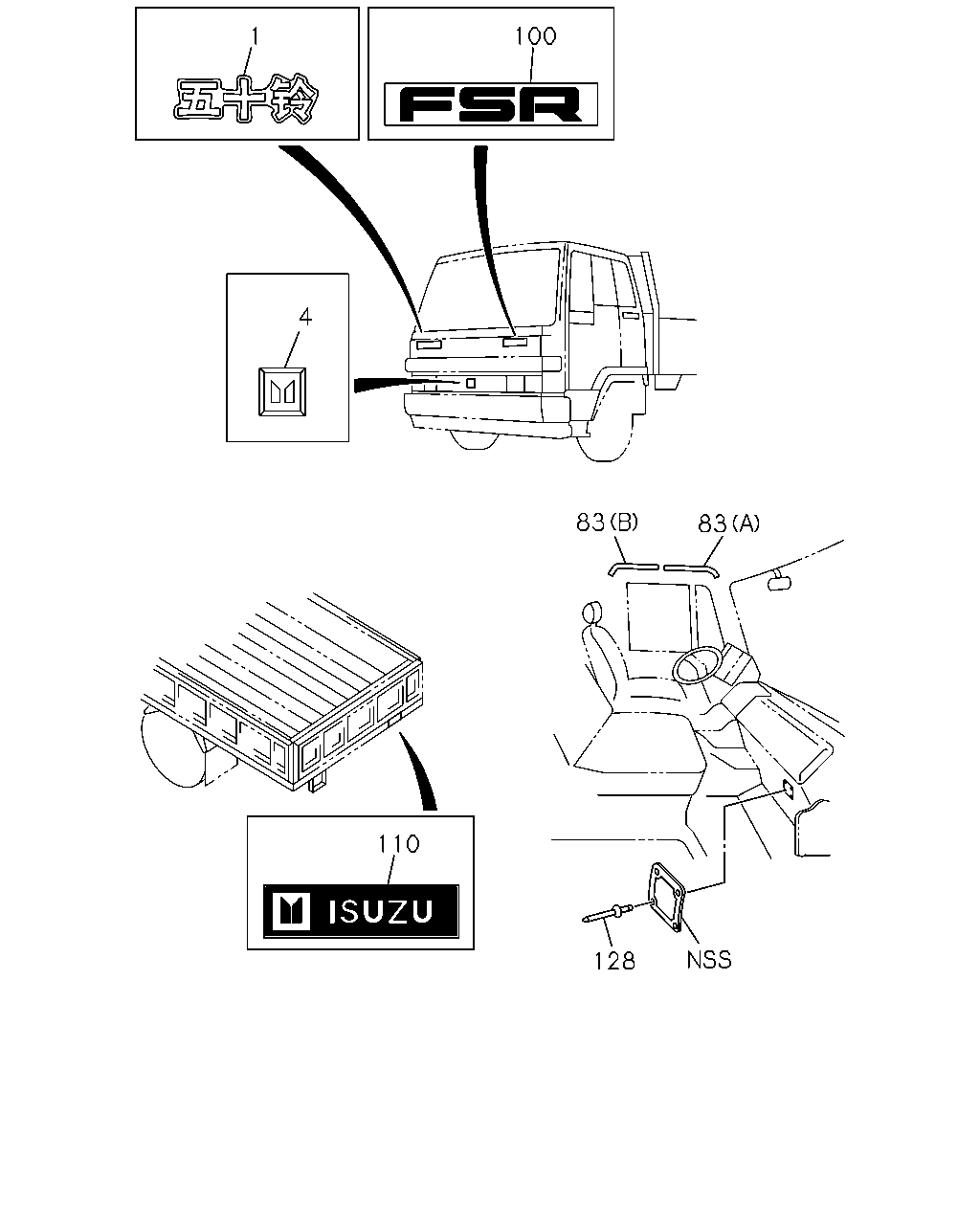

çizim 94514
100 1 4 83 83 110 128
BalonParca AdiParca NoAdetTipApplied Date
1 MARK; ISUZU
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 		1-76210-433-1 01 1 9212-
4 EMBLEM; RAD GRILLE 1-76210-367-0 01 1 9212-
83 PROTECTOR; SUB SEAL,DOOR
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) CLEAR 		1-65500-226-0 01 1 9212-
83 PROTECTOR; SUB SEAL,DOOR
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) CLEAR 		1-65500-227-0 01 1 9212-
83 PROTECTOR; SUB SEAL,DOOR
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) CLEAR 		1-65500-224-0 01 1 9212-
83 PROTECTOR; SUB SEAL,DOOR
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) CLEAR 		1-65500-225-0 01 1 9212-
100 EMBLEM; PET NAME 1-76210-357-1 01 1 9212-
110 EMBLEM; "ISUZU",RR BODY 1-76210-310-0 01 1 9212-
128 RIVET; POP,NAME PLATE 5-09734-001-0 04 1 9212-
