1 |

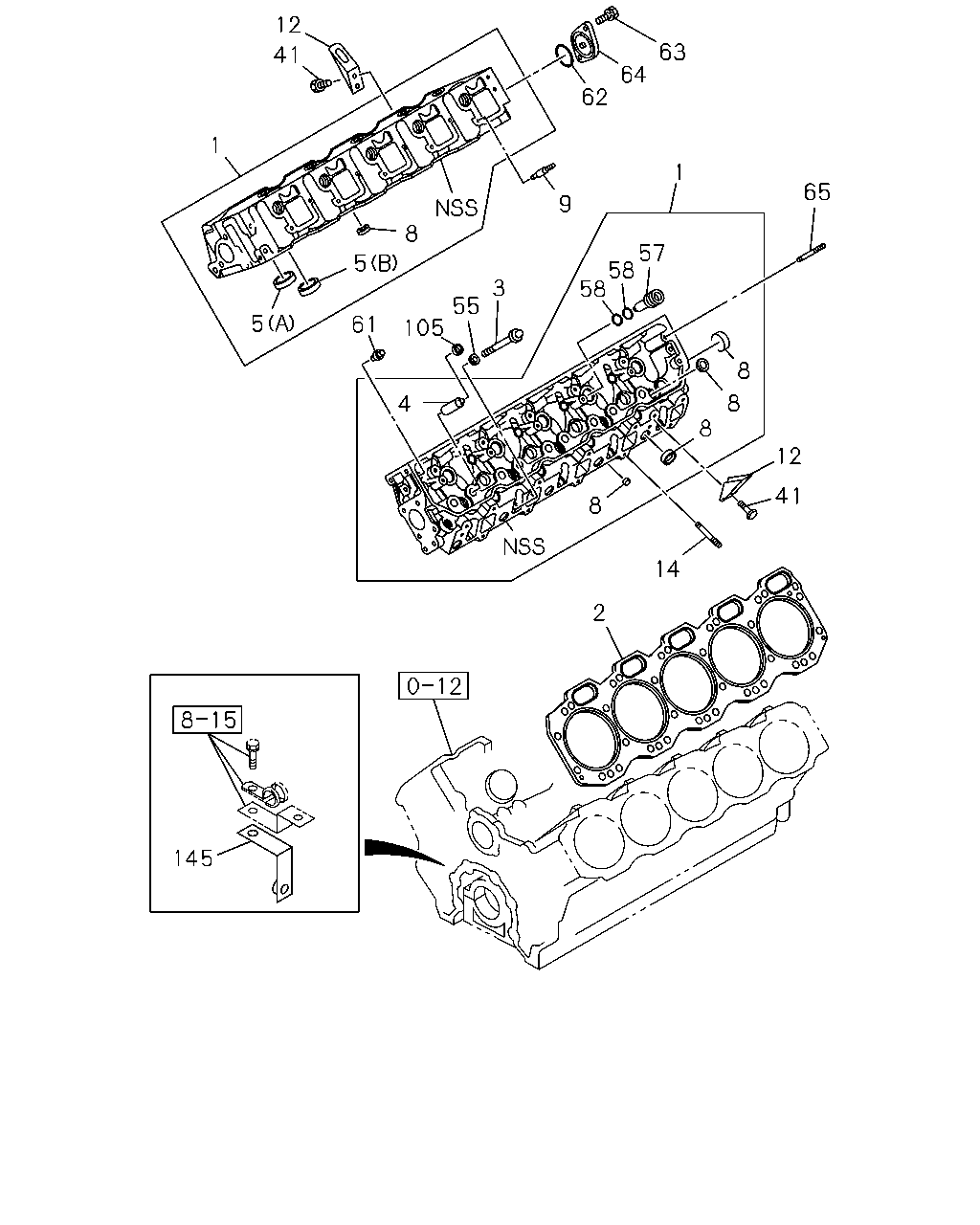

HEAD ASM; CYL
RH BANK
|
1-11110-686-3 |
01 |
1 |
9002- |
● |
|
| |
1 |
HEAD ASM; CYL
LH BANK
|
1-11110-687-3 |
01 |
1 |
9002- |
● |
|
| |
1 |
HEAD ASM; CYL
RH BANK
|
1-11110-688-3 |
01 |
1 |
9307- |
|
● |
| |
1 |
HEAD ASM; CYL
LH BANK
|
1-11110-689-3 |
01 |
1 |
9307- |
|
● |
| |
2 |
GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
|
1-11141-190-1 |
02 |
1 |
9002- |
● |
|
| |
2 |
GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
|
1-11141-189-1 |
02 |
1 |
9307- |
|
● |
| |
3 |
BOLT; CYL HD TO BLOCK
M14X90
|
1-09029-026-1 |
20 |
1 |
9002- |
● |
|
| |
3 |
BOLT; CYL HD TO BLOCK
M14X150
|
1-09029-027-1 |
24 |
1 |
9002- |
● |
|
| |
3 |
BOLT; CYL HD TO BLOCK
M14X90
|
1-09029-026-1 |
16 |
1 |
9307- |
|
● |
| |
3 |
BOLT; CYL HD TO BLOCK
M14X150
|
1-09029-027-1 |
20 |
1 |
9307- |
|
● |
| |
4 |
GUIDE; VLV
|
1-11721-004-0 |
20 |
1 |
9002- |
● |
|
| |
4 |
GUIDE; VLV
|
1-11721-004-0 |
16 |
1 |
9307- |
|
● |
| |
5 |
SEAT; VLV INSERT
(A)
|
1-11711-024-0 |
10 |
1 |
9002-9503 |
● |
|
| |
5 |
SEAT; VLV INSERT
(A)
|
1-11711-054-0 |
10 |
1 |
9504- |
● |
|
| |
5 |
SEAT; VLV INSERT
(B)
|
1-11715-078-0 |
10 |
1 |
9002- |
● |
|
| |
5 |
SEAT; VLV INSERT
(A)
|
1-11711-024-0 |
08 |
1 |
9307-9503 |
|
● |
| |
5 |
SEAT; VLV INSERT
(A)
|
1-11711-054-0 |
08 |
1 |
9504- |
|
● |
| |
5 |
SEAT; VLV INSERT
(B)
|
1-11715-078-0 |
08 |
1 |
9307- |
|
● |
| |
8 |
CUP; SEALING,WATER JACKET
OD=32
|
1-09600-012-1 |
08 |
1 |
9601- |
|
● |
| |
8 |
CUP; SEALING,WATER JACKET
OD=12
|
1-09600-010-1 |
20 |
1 |
9002- |
● |
|
| |
8 |
CUP; SEALING,WATER JACKET
OD=22
|
1-09600-011-2 |
28 |
1 |
9002- |
● |
|
| |
8 |
CUP; SEALING,WATER JACKET
OD=32
|
1-09600-012-1 |
10 |
1 |
9002- |
● |
|
| |
8 |
CUP; SEALING,WATER JACKET
OD=45
|
1-09600-005-1 |
01 |
1 |
9002- |
● |
● |
| |
8 |
CUP; SEALING,WATER JACKET
OD=12
|
1-09600-010-1 |
16 |
1 |
9307- |
|
● |
| |
8 |
CUP; SEALING,WATER JACKET
OD=22
|
1-09600-011-2 |
22 |
1 |
9307- |
|
● |
| |
9 |
STUD; INL MANIF
|
1-09309-008-0 |
20 |
1 |
9002- |
● |
|
| |
9 |
STUD; INL MANIF
|
1-09309-008-0 |
16 |
1 |
9307- |
|
● |
| |
12 |
HANGER; ENG,RR
|
1-11777-164-0 |
03 |
1 |
9002-9103 |
● |
|
| |
12 |
HANGER; ENG,RR
|
1-11777-164-0 |
02 |
1 |
9104- |
● |
● |
| |
14 |
STUD; EXH MANIF
M10X95 L=110
|
1-09302-063-0 |
20 |
1 |
9002- |
● |
|
| |
14 |
STUD; EXH MANIF
M10X95 L=110
|
1-09302-063-0 |
16 |
1 |
9307- |
|
● |
| |
41 |
BOLT; ENG HANGER
M12X26
|
1-09000-535-0 |
06 |
1 |
9002-9203 |
● |
|
| |
41 |
BOLT; ENG HANGER
M12X26
|
1-09000-535-1 |
04 |
1 |
9204- |
● |
● |
| |
55 |
WASHER; PL,CYL HD TO BLOCK
ID=14.2
|
1-09503-050-0 |
44 |
1 |
9002- |
● |
|
| |
55 |
WASHER; PL,CYL HD TO BLOCK
ID=14.2
|
1-09503-050-0 |
36 |
1 |
9307- |
|
● |
| |
57 |
SLEEVE; NOZZLE HOLDER
|
1-11129-017-0 |
10 |
1 |
9002- |
● |
|
| |
57 |
SLEEVE; NOZZLE HOLDER
|
1-11129-017-0 |
08 |
1 |
9307- |
|
● |
| |
58 |
GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
|
9-09920-757-0 |
20 |
1 |
9002- |
● |
|
| |
58 |
GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
|
9-09920-757-0 |
16 |
1 |
9307- |
|
● |
| |
61 |
CONNECTOR; LEAK OFF PIPE
|
1-09669-015-0 |
02 |
1 |
9002- |
● |
● |
| |
62 |
GASKET; COVER,WATER JACKET
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
|
1-09623-425-0 |
01 |
1 |
9002- |
● |
● |
| |
63 |
BOLT; CVR,WATER JACKET
M10X25
|
0-28121-025-0 |
02 |
1 |
9002-9002 |
● |
|
| |
63 |
BOLT; CVR,WATER JACKET
M10X25 FLANGE
|
0-28181-025-0 |
02 |
1 |
9003- |
● |
● |
| |
64 |
COVER; WATER JACKET
|
1-11119-013-1 |
01 |
1 |
9002- |
● |
● |
| |
65 |
STUD; ROCKER OIL FEED
M10X88 L=103
|
1-09300-025-0 |
02 |
1 |
9002- |
● |
● |
| |
105 |
SEAL; OIL VLV STEM
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
|
1-12569-009-1 |
20 |
1 |
9002-9106 |
● |
|
| |
105 |
SEAL; OIL VLV STEM
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
|
1-12569-017-0 |
20 |
1 |
9107- |
● |
|
| |
105 |
SEAL; OIL VLV STEM
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
|
1-12569-017-0 |
16 |
1 |
9307- |
|
● |
| |
145 |
BRACKET
|
1-09709-072-0 |
01 |
1 |
9206- |
● |
● |
