Sayfa 8-15 - Isuzu EPC

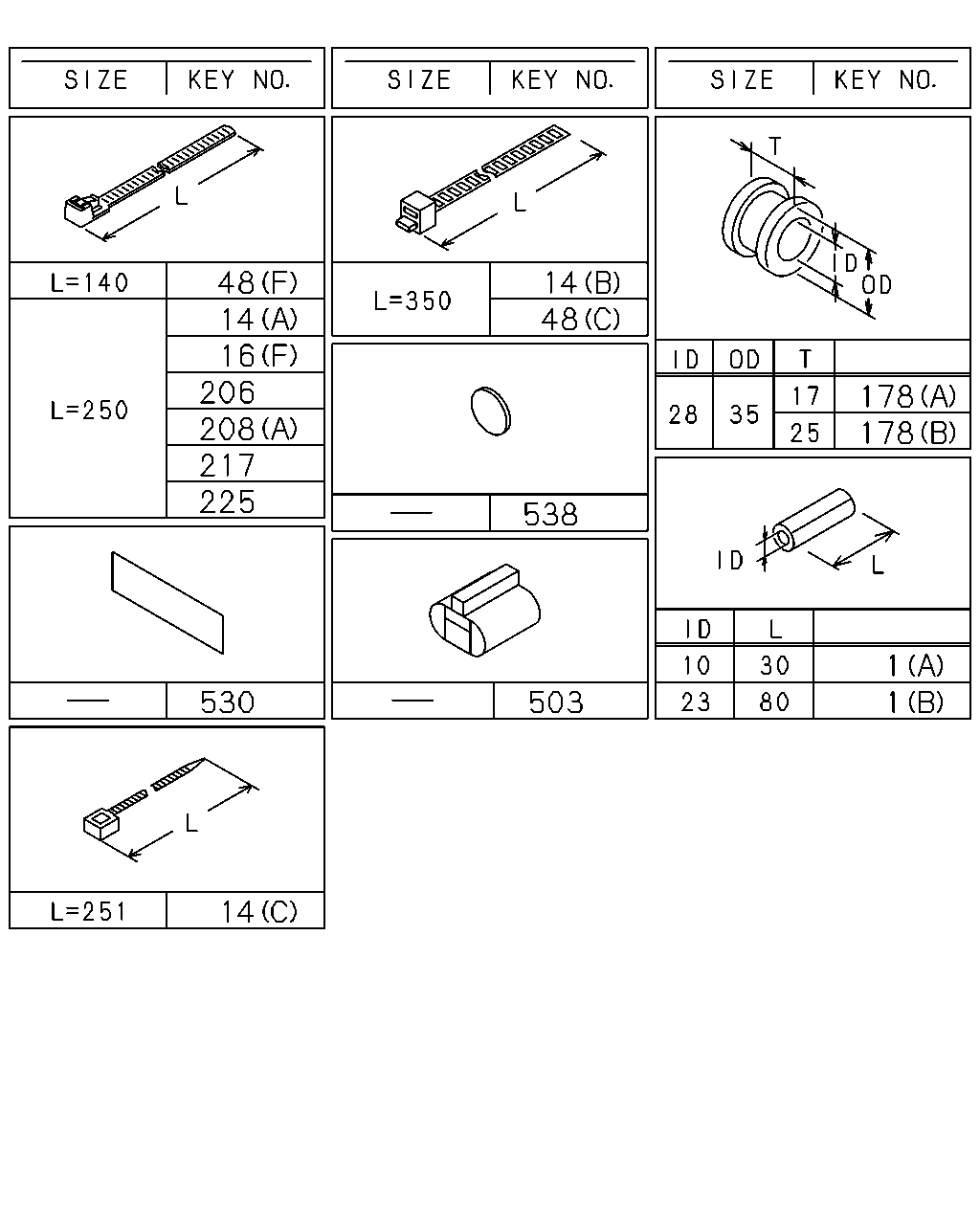

8-15 — FIXING PARTS; WIRING HARNESS (#25781) — 261 parça

48 14 16 206 208 217 225 14 48 178 178 538 1 1 530 503 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SLEEVE; RUBBER (B) ID=23 OD=27 L=80	8-97608-976-0	06	1	0808-
1	SLEEVE; RUBBER (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	0808-
14	CLIP; BAND,HARNESS (C) L=251	8-97619-917-0	01	1	0910-
14	CLIP; BAND,HARNESS (A) L=250 THA	5-09707-030-1	14	1	0808-0909
14	CLIP; BAND,HARNESS (A) L=250 THA	5-09707-030-1	13	1	0910-1102
14	CLIP; BAND,HARNESS (A) L=250 THA	5-09707-030-1	12	1	1103-1104
14	CLIP; BAND,HARNESS (A) L=250 THA	5-09707-030-1	13	1	1105-1205
14	CLIP; BAND,HARNESS (A) L=250	8-98216-430-0	13	1	1206-
14	CLIP; BAND,HARNESS (B) L=350	1-09707-183-0	01	1	0808-
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> (I) ID=11 L=41	1-09700-403-0	02	1	0808-
16	CLIP; HARNESS (E) ID=14 H=50 L=20	1-09700-843-0	02	1	0808-
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	04	1	0808-1208
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1209-
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1209-
16	CLIP; HARNESS (J) ID=15 L=28	1-09701-216-0	02	1	0808-0808
16	CLIP; HARNESS (G) ID=16 L=28	0-95235-556-0	02	1	0809-
16	CLIP; HARNESS (F) L=250 THA	5-09707-030-1	05	1	0808-1102
16	CLIP; HARNESS (F) L=250 THA	5-09707-030-1	03	1	1103-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0808-
16	CLIP; HARNESS (K) ID=14 L=44	9-09917-427-0	03	1	0808-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155 THA	8-97173-307-0	18	1	0808-1003
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155 THA	8-97173-307-0	18	1	0808-1003
16	CLIP; HARNESS (B) L=155 THA	8-97173-307-0	18	1	1004-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (D) L=40.6 THA	8-97229-357-0	02	1	0808-1003
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (D) L=40.6 THA	8-97229-357-0	02	1	0808-1003
16	CLIP; HARNESS (D) L=40.6 THA	8-97229-357-0	02	1	1004-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C) THA	8-98052-679-0	02	1	0808-1003
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C) THA	8-98052-679-0	02	1	0808-1003
16	CLIP; HARNESS (C) THA	8-98052-679-0	02	1	1004-
48	CLIP; FRAME HARNESS WHEEL BASE 3600MM<36W> (G) ID=15 L=65	1-09700-466-0	05	1	1210-
48	CLIP; FRAME HARNESS (G) ID=15 L=65	1-09700-466-0	02	1	0910-
48	CLIP; FRAME HARNESS WHEEL BASE 3600MM<36W> (G) ID=15 L=65	1-09700-466-0	08	1	0808-1209
48	CLIP; FRAME HARNESS WHEEL BASE 3600MM<36W> (G) ID=15 L=65	1-09700-466-0	03	1	1210-
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM<42W> (G) ID=15 L=65	1-09700-466-0	11	1	0808-
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM<42W> POOR QUALITY DIESEL FUEL<KF0> (A) ID=11 L=41	1-09700-403-0	02	1	0808-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM<50W> (G) ID=15 L=65	1-09700-466-0	15	1	0808-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM<55W> (G) ID=15 L=65	1-09700-466-0	18	1	0808-0903
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM<55W> (G) ID=15 L=65	1-09700-466-0	19	1	0904-
48	CLIP; FRAME HARNESS (H) ID=20 L=70	1-09700-485-0	03	1	0808-0909
48	CLIP; FRAME HARNESS (H) ID=20 L=70	1-09700-485-0	01	1	0910-
48	CLIP; FRAME HARNESS (D) ID=28 L=78	1-09700-858-0	02	1	0808-
48	CLIP; FRAME HARNESS (E) ID=35 L=50	1-09701-214-0	01	1	0808-
48	CLIP; FRAME HARNESS (I) ID=33 L=83	1-09701-291-0	02	1	0808-1104
48	CLIP; FRAME HARNESS (I) ID=33 L=83	1-09701-291-0	03	1	1105-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	01	1	0808-
48	CLIP; FRAME HARNESS (B) OD=9 H=9.5 THA	1-09709-179-0	01	1	0808-
48	CLIP; FRAME HARNESS (F) L=140 THA	5-09707-031-1	02	1	0808-
178	GROMMET; HARNESS WHEEL BASE 3600MM<36W>,WHEEL BASE 4200MM<42W>, WHEELBASE 5000MM<50W> (A) ID=28 OD=35 T=17	9-09956-256-2	02	1	0808-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	0808-
178	GROMMET; HARNESS WHEEL BASE 3600MM<36W>,WHEEL BASE 4200MM<42W>, WHEELBASE 5000MM<50W> (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	0808-
178	GROMMET; HARNESS WHEEL BASE 3600MM<36W>,WHEEL BASE 4200MM<42W>, WHEELBASE 5000MM<50W> POOR QUALITY DIESEL FUEL<KF0> (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	0808-
178	GROMMET; HARNESS WHEEL BASE 5500MM<55W> (B) ID=28 OD=35 T=25	1-09332-011-1	03	1	0808-
178	GROMMET; HARNESS WHEEL BASE 5500MM<55W> POOR QUALITY DIESEL FUEL<KF0> (B) ID=28 OD=35 T=25	1-09332-011-1	01	1	0808-
206	CLIP; FUEL TANK HARNESS L=250 THA	5-09707-030-1	02	1	0808-
208	CLIP; HARNESS,MAG VLV (A) L=250 THA	5-09707-030-1	01	1	0808-
208	CLIP; HARNESS,MAG VLV PTO CONTROL<SV6> (A) L=250 THA	5-09707-030-1	01	1	0808-
208	CLIP; HARNESS,MAG VLV (B) ID=20 L=70	1-09700-485-0	01	1	0808-
217	CLIP; RR BODY HARNESS L=250 THA	5-09707-030-1	02	1	0808-
225	CLIP; AIR TANK HARNESS L=250 THA	5-09707-030-1	04	1	0808-
503	CONNECTOR VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-82690-668-0	01	1	0808-
530	SEAL; HARNESS 180X40	1-72498-019-1	16	1	1306-
530	SEAL; HARNESS 180X40	1-72498-019-1	19	1	0808-1305
530	SEAL; HARNESS 180X40	1-72498-019-1	01	1	1306-
538	SEAL; HOLE OD=25 BLACK THA	1-76798-019-0	01	1	0808-

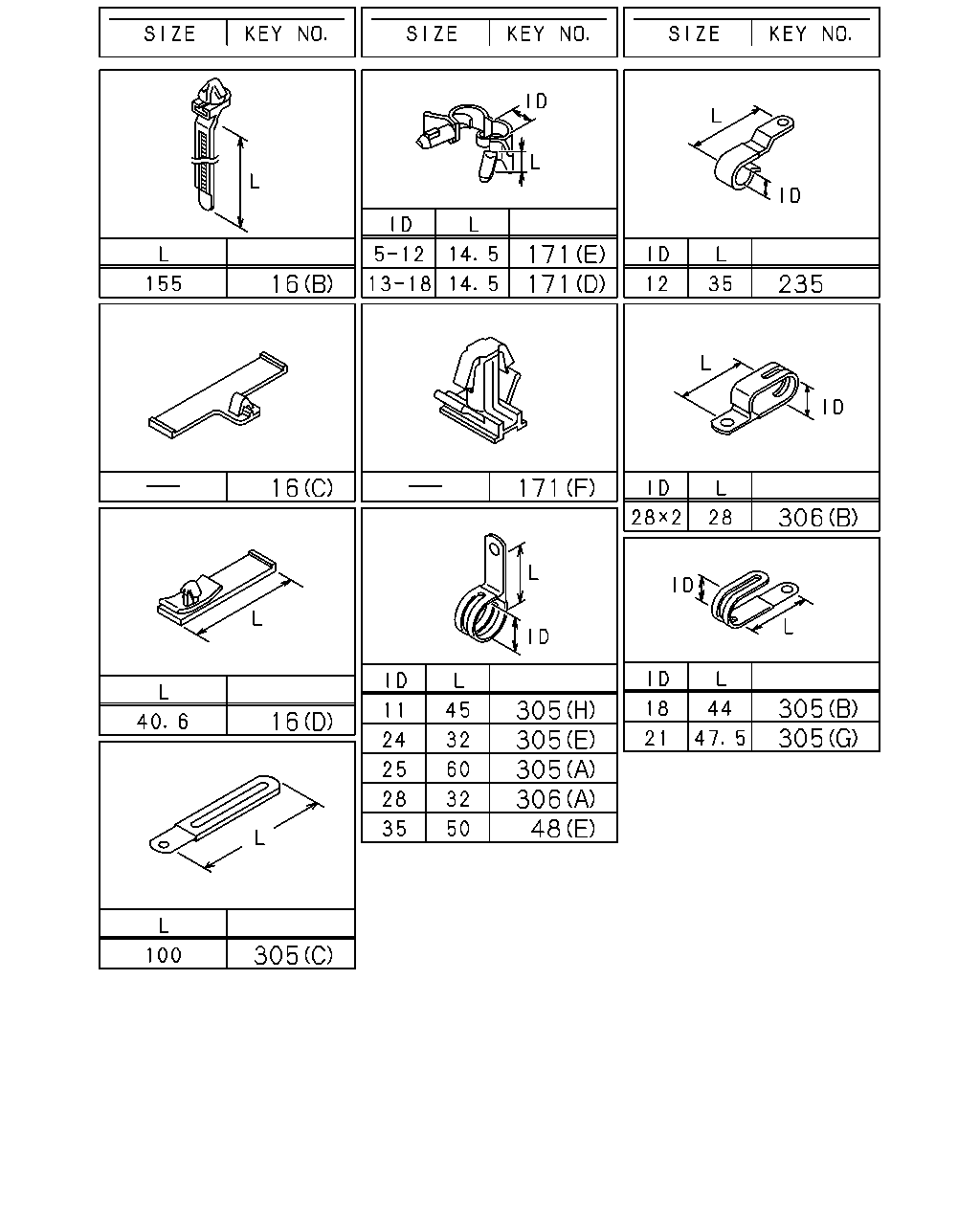

171 171 16 235 16 171 306 305 305 305 305 305 306 48 16 305

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> (I) ID=11 L=41	1-09700-403-0	02	1	0808-
16	CLIP; HARNESS (E) ID=14 H=50 L=20	1-09700-843-0	02	1	0808-
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	04	1	0808-1208
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1209-
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1209-
16	CLIP; HARNESS (J) ID=15 L=28	1-09701-216-0	02	1	0808-0808
16	CLIP; HARNESS (G) ID=16 L=28	0-95235-556-0	02	1	0809-
16	CLIP; HARNESS (F) L=250 THA	5-09707-030-1	05	1	0808-1102
16	CLIP; HARNESS (F) L=250 THA	5-09707-030-1	03	1	1103-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0808-
16	CLIP; HARNESS (K) ID=14 L=44	9-09917-427-0	03	1	0808-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155 THA	8-97173-307-0	18	1	0808-1003
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155 THA	8-97173-307-0	18	1	0808-1003
16	CLIP; HARNESS (B) L=155 THA	8-97173-307-0	18	1	1004-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (D) L=40.6 THA	8-97229-357-0	02	1	0808-1003
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (D) L=40.6 THA	8-97229-357-0	02	1	0808-1003
16	CLIP; HARNESS (D) L=40.6 THA	8-97229-357-0	02	1	1004-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C) THA	8-98052-679-0	02	1	0808-1003
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C) THA	8-98052-679-0	02	1	0808-1003
16	CLIP; HARNESS (C) THA	8-98052-679-0	02	1	1004-
48	CLIP; FRAME HARNESS WHEEL BASE 3600MM<36W> (G) ID=15 L=65	1-09700-466-0	05	1	1210-
48	CLIP; FRAME HARNESS (G) ID=15 L=65	1-09700-466-0	02	1	0910-
48	CLIP; FRAME HARNESS WHEEL BASE 3600MM<36W> (G) ID=15 L=65	1-09700-466-0	08	1	0808-1209
48	CLIP; FRAME HARNESS WHEEL BASE 3600MM<36W> (G) ID=15 L=65	1-09700-466-0	03	1	1210-
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM<42W> (G) ID=15 L=65	1-09700-466-0	11	1	0808-
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM<42W> POOR QUALITY DIESEL FUEL<KF0> (A) ID=11 L=41	1-09700-403-0	02	1	0808-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM<50W> (G) ID=15 L=65	1-09700-466-0	15	1	0808-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM<55W> (G) ID=15 L=65	1-09700-466-0	18	1	0808-0903
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM<55W> (G) ID=15 L=65	1-09700-466-0	19	1	0904-
48	CLIP; FRAME HARNESS (H) ID=20 L=70	1-09700-485-0	03	1	0808-0909
48	CLIP; FRAME HARNESS (H) ID=20 L=70	1-09700-485-0	01	1	0910-
48	CLIP; FRAME HARNESS (D) ID=28 L=78	1-09700-858-0	02	1	0808-
48	CLIP; FRAME HARNESS (E) ID=35 L=50	1-09701-214-0	01	1	0808-
48	CLIP; FRAME HARNESS (I) ID=33 L=83	1-09701-291-0	02	1	0808-1104
48	CLIP; FRAME HARNESS (I) ID=33 L=83	1-09701-291-0	03	1	1105-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	01	1	0808-
48	CLIP; FRAME HARNESS (B) OD=9 H=9.5 THA	1-09709-179-0	01	1	0808-
48	CLIP; FRAME HARNESS (F) L=140 THA	5-09707-031-1	02	1	0808-
171	CLIP; STARTER HARNESS MLD6W M/T<Y2C> (F) OD=8.95 H=6.25	8-97375-754-0	01	1	0809-1102
171	CLIP; STARTER HARNESS MLD6W M/T<Y2C> (A) ID=11 L=28	0-95235-055-0	01	1	0808-1102
171	CLIP; STARTER HARNESS MLD6W M/T<Y2C> (B) ID=16 L=28	0-95235-556-0	01	1	0808-1102
171	CLIP; STARTER HARNESS MLD6W M/T<Y2C> (C) OD=9 H=6	1-09709-178-0	02	1	0808-1102
171	CLIP; STARTER HARNESS MLD6W M/T<Y2C> (D) ID=13-18 L=14.5	1-09709-290-0	01	1	0808-1102
171	CLIP; STARTER HARNESS MLD6W M/T<Y2C> (E) ID=5-12 L=14.5	1-09987-221-0	01	1	0808-1102
235	CLIP; HARNESS,SPD SENSOR,SSPS MLD6W M/T<Y2C> ID=12 L=35	5-09700-206-0	01	1	0808-1102
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (G) ID=21 L=47.5	8-94178-108-0	01	1	0808-
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	0808-
305	CLIP; ENG HARNESS (K) ID=16 L=40	0-95235-576-0	01	1	0808-
305	CLIP; ENG HARNESS (E) ID=24 L=32	1-09700-766-1	01	1	0808-
305	CLIP; ENG HARNESS (D) ID=20 H=23 L=27	1-09700-861-0	01	1	0808-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	0808-
305	CLIP; ENG HARNESS (F) ID=19 H=33 L=45	1-09701-045-0	01	1	0808-1102
305	CLIP; ENG HARNESS (L) ID=19 L=39 H=21	1-09700-972-1	01	1	1103-
305	CLIP; ENG HARNESS (I) OD=9 H=6	1-09709-178-0	01	1	0808-
305	CLIP; ENG HARNESS (H) ID=11 L=45	8-94296-897-1	01	1	0808-1102
305	CLIP; ENG HARNESS (M) ID=26 L=27	1-09701-006-0	01	1	1103-
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	0808-1102
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	0808-
306	CLIP; HARNESS,ELEC GOV (A) ID=28 L=32	1-09701-107-1	01	1	0808-
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	0808-

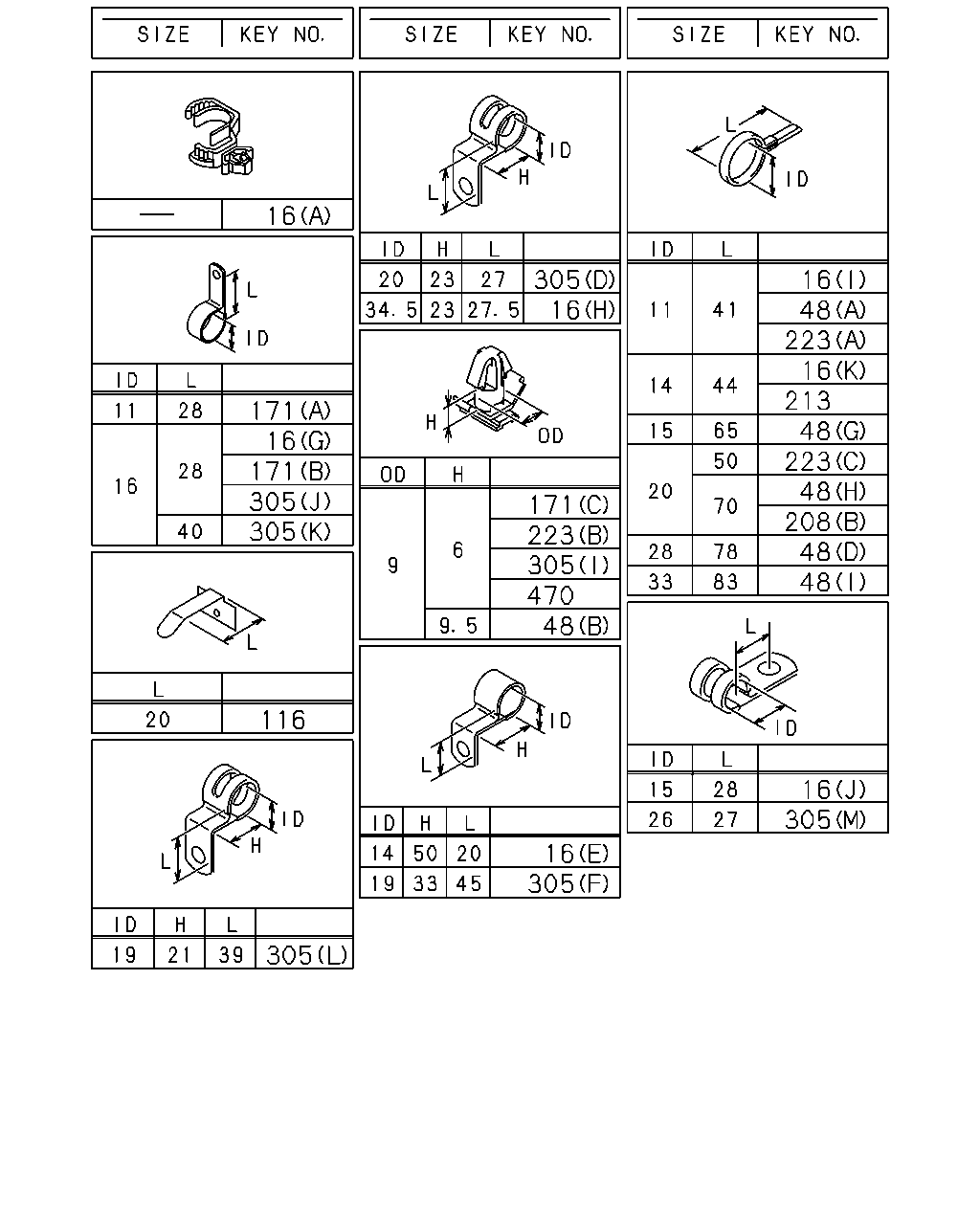

16 305 16 16 48 223 16 213 48 223 48 208 48 48 171 16 171 305 305 171 223 305 470 48 116 16 305 16 305 305

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> (I) ID=11 L=41	1-09700-403-0	02	1	0808-
16	CLIP; HARNESS (E) ID=14 H=50 L=20	1-09700-843-0	02	1	0808-
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	04	1	0808-1208
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1209-
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1209-
16	CLIP; HARNESS (J) ID=15 L=28	1-09701-216-0	02	1	0808-0808
16	CLIP; HARNESS (G) ID=16 L=28	0-95235-556-0	02	1	0809-
16	CLIP; HARNESS (F) L=250 THA	5-09707-030-1	05	1	0808-1102
16	CLIP; HARNESS (F) L=250 THA	5-09707-030-1	03	1	1103-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0808-
16	CLIP; HARNESS (K) ID=14 L=44	9-09917-427-0	03	1	0808-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155 THA	8-97173-307-0	18	1	0808-1003
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155 THA	8-97173-307-0	18	1	0808-1003
16	CLIP; HARNESS (B) L=155 THA	8-97173-307-0	18	1	1004-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (D) L=40.6 THA	8-97229-357-0	02	1	0808-1003
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (D) L=40.6 THA	8-97229-357-0	02	1	0808-1003
16	CLIP; HARNESS (D) L=40.6 THA	8-97229-357-0	02	1	1004-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C) THA	8-98052-679-0	02	1	0808-1003
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C) THA	8-98052-679-0	02	1	0808-1003
16	CLIP; HARNESS (C) THA	8-98052-679-0	02	1	1004-
48	CLIP; FRAME HARNESS WHEEL BASE 3600MM<36W> (G) ID=15 L=65	1-09700-466-0	05	1	1210-
48	CLIP; FRAME HARNESS (G) ID=15 L=65	1-09700-466-0	02	1	0910-
48	CLIP; FRAME HARNESS WHEEL BASE 3600MM<36W> (G) ID=15 L=65	1-09700-466-0	08	1	0808-1209
48	CLIP; FRAME HARNESS WHEEL BASE 3600MM<36W> (G) ID=15 L=65	1-09700-466-0	03	1	1210-
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM<42W> (G) ID=15 L=65	1-09700-466-0	11	1	0808-
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM<42W> POOR QUALITY DIESEL FUEL<KF0> (A) ID=11 L=41	1-09700-403-0	02	1	0808-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM<50W> (G) ID=15 L=65	1-09700-466-0	15	1	0808-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM<55W> (G) ID=15 L=65	1-09700-466-0	18	1	0808-0903
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM<55W> (G) ID=15 L=65	1-09700-466-0	19	1	0904-
48	CLIP; FRAME HARNESS (H) ID=20 L=70	1-09700-485-0	03	1	0808-0909
48	CLIP; FRAME HARNESS (H) ID=20 L=70	1-09700-485-0	01	1	0910-
48	CLIP; FRAME HARNESS (D) ID=28 L=78	1-09700-858-0	02	1	0808-
48	CLIP; FRAME HARNESS (E) ID=35 L=50	1-09701-214-0	01	1	0808-
48	CLIP; FRAME HARNESS (I) ID=33 L=83	1-09701-291-0	02	1	0808-1104
48	CLIP; FRAME HARNESS (I) ID=33 L=83	1-09701-291-0	03	1	1105-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	01	1	0808-
48	CLIP; FRAME HARNESS (B) OD=9 H=9.5 THA	1-09709-179-0	01	1	0808-
48	CLIP; FRAME HARNESS (F) L=140 THA	5-09707-031-1	02	1	0808-
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	03	1	0808-
171	CLIP; STARTER HARNESS MLD6W M/T<Y2C> (F) OD=8.95 H=6.25	8-97375-754-0	01	1	0809-1102
171	CLIP; STARTER HARNESS MLD6W M/T<Y2C> (A) ID=11 L=28	0-95235-055-0	01	1	0808-1102
171	CLIP; STARTER HARNESS MLD6W M/T<Y2C> (B) ID=16 L=28	0-95235-556-0	01	1	0808-1102
171	CLIP; STARTER HARNESS MLD6W M/T<Y2C> (C) OD=9 H=6	1-09709-178-0	02	1	0808-1102
171	CLIP; STARTER HARNESS MLD6W M/T<Y2C> (D) ID=13-18 L=14.5	1-09709-290-0	01	1	0808-1102
171	CLIP; STARTER HARNESS MLD6W M/T<Y2C> (E) ID=5-12 L=14.5	1-09987-221-0	01	1	0808-1102
208	CLIP; HARNESS,MAG VLV (A) L=250 THA	5-09707-030-1	01	1	0808-
208	CLIP; HARNESS,MAG VLV PTO CONTROL<SV6> (A) L=250 THA	5-09707-030-1	01	1	0808-
208	CLIP; HARNESS,MAG VLV (B) ID=20 L=70	1-09700-485-0	01	1	0808-
213	CLIP; END CROSS HARNESS ID=14 L=44	9-09917-427-0	03	1	0808-
223	CLIP; AIR TANK HARNESS (A) ID=11 L=41	1-09700-403-0	02	1	0808-
223	CLIP; AIR TANK HARNESS (B) OD=9 H=6	1-09709-178-0	01	1	0808-
223	CLIP; AIR TANK HARNESS (C) ID=20 L=50	9-09917-430-0	07	1	0808-
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (G) ID=21 L=47.5	8-94178-108-0	01	1	0808-
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	0808-
305	CLIP; ENG HARNESS (K) ID=16 L=40	0-95235-576-0	01	1	0808-
305	CLIP; ENG HARNESS (E) ID=24 L=32	1-09700-766-1	01	1	0808-
305	CLIP; ENG HARNESS (D) ID=20 H=23 L=27	1-09700-861-0	01	1	0808-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	0808-
305	CLIP; ENG HARNESS (F) ID=19 H=33 L=45	1-09701-045-0	01	1	0808-1102
305	CLIP; ENG HARNESS (L) ID=19 L=39 H=21	1-09700-972-1	01	1	1103-
305	CLIP; ENG HARNESS (I) OD=9 H=6	1-09709-178-0	01	1	0808-
305	CLIP; ENG HARNESS (H) ID=11 L=45	8-94296-897-1	01	1	0808-1102
305	CLIP; ENG HARNESS (M) ID=26 L=27	1-09701-006-0	01	1	1103-
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	0808-1102
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	0808-
470	CLIP; HARNESS,LICENSE LAMP OD=9 H=6	1-09709-178-0	01	1	0808-

7 53 53 59 59 59 59 137 137 308 308 308 308 312 312 335 428 428

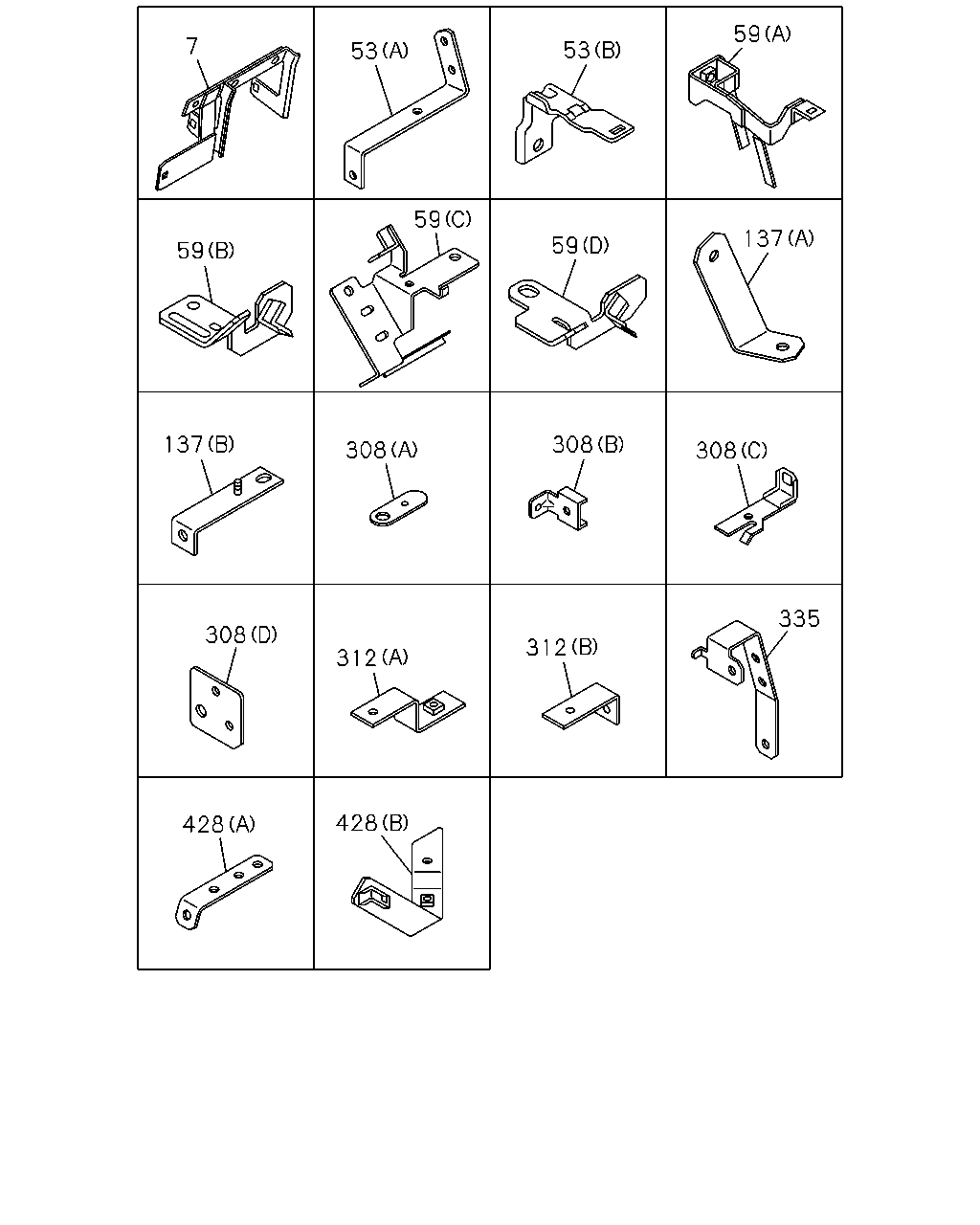

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	BRACKET; CONNECTOR	8-98049-798-1	01	1	0808-1204
7	BRACKET; CONNECTOR THA	8-97925-591-0	01	1	1205-
53	BRACKET; HARNESS POOR QUALITY DIESEL FUEL<KF0> (A)	8-97622-857-0	01	1	0808-
53	BRACKET; HARNESS (B)	8-98052-458-0	01	1	0808-
59	BRACKET; FRAME HARNESS MZW6P M/T<RSZ> (A)	8-97609-264-2	01	1	1001-
59	BRACKET; FRAME HARNESS MLD6W M/T<Y2C> (A)	8-97627-325-0	01	1	0808-1102
59	BRACKET; FRAME HARNESS (B)	8-97616-305-0	01	1	0808-1502
59	BRACKET; FRAME HARNESS (D)	8-98254-592-0	01	1	1503-
59	BRACKET; FRAME HARNESS (C)	8-97620-482-1	01	1	0808-0905
59	BRACKET; FRAME HARNESS (C)	8-98107-611-0	01	1	0906-
137	BRACKET; HARNESS CLAMP (A)	8-97614-728-1	01	1	0808-
137	BRACKET; HARNESS CLAMP (B)	8-97624-013-0	01	1	0808-
308	BRACKET; CLIP,ENG HARNESS (A)	8-97601-310-0	03	1	0808-1010
308	BRACKET; CLIP,ENG HARNESS (A)	8-97601-310-0	02	1	1011-1102
308	BRACKET; CLIP,ENG HARNESS (A)	8-97601-310-0	03	1	1103-
308	BRACKET; CLIP,ENG HARNESS (B)	8-97614-078-0	01	1	0808-
308	BRACKET; CLIP,ENG HARNESS (C)	8-98021-291-2	01	1	0808-
308	BRACKET; CLIP,ENG HARNESS (D)	8-98021-692-1	01	1	0808-
312	BRACKET; CLIP HARNESS (B) L=55	1-47475-304-0	01	1	0808-
312	BRACKET; CLIP HARNESS (A)	8-97609-110-1	01	1	0808-
335	BRACKET; CONNECTOR	8-97619-097-1	01	1	0808-
428	BRACKET (A)	1-82698-167-0	01	1	0808-
428	BRACKET (B)	8-97620-514-0	01	1	0808-

304 139 304 304 516 304 304 516 377 386 38 38 139 38 150 139 313 150 38 313 139 139 139 127 38 515 219 524 294 525 294 47 184

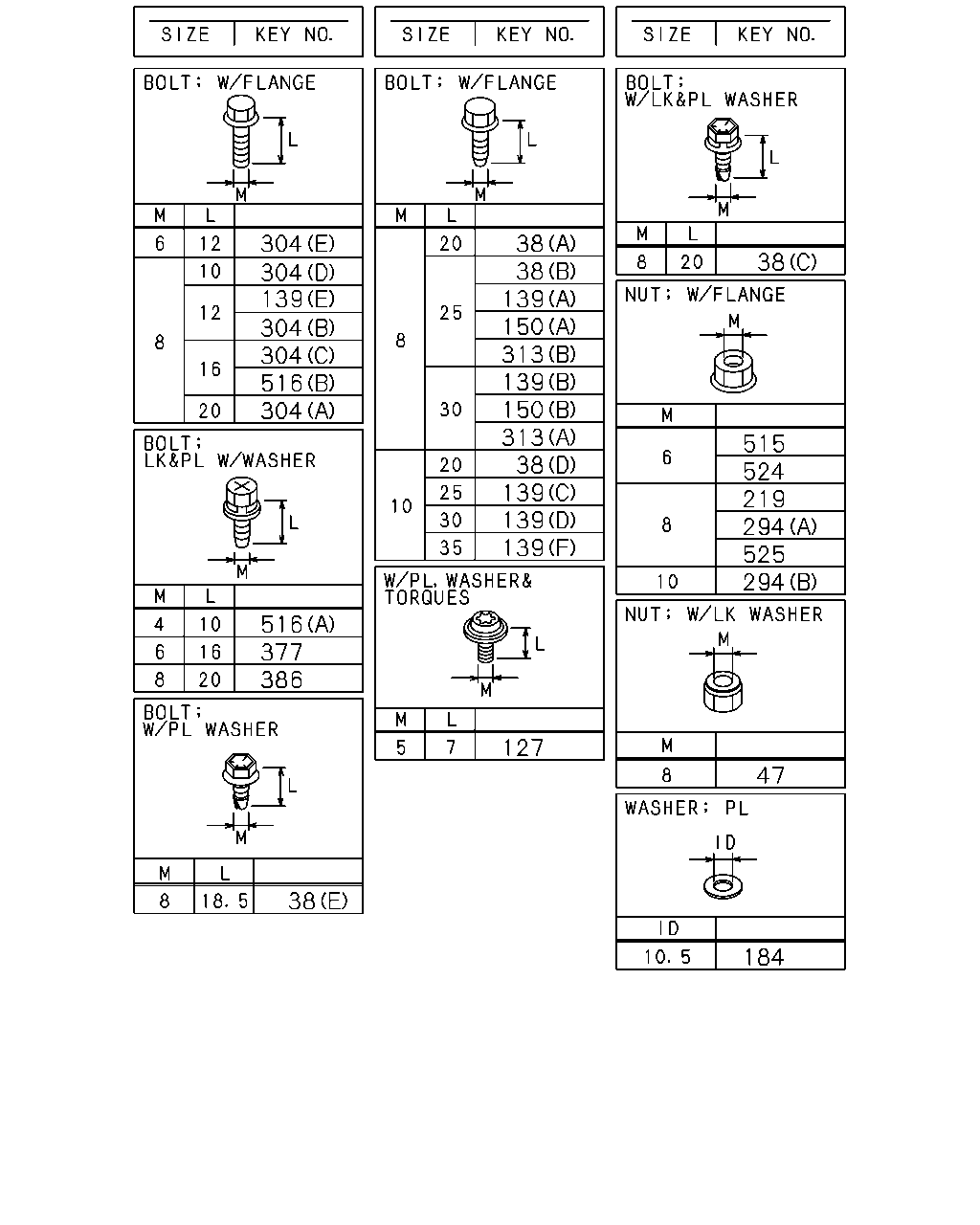

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	BOLT; CLIP,HARNESS MLD6W M/T<Y2C> (D) M10X20 FLANGE THA	0-28751-020-0	01	1	0808-1102
38	BOLT; CLIP,HARNESS (C) M8X20 W/LK&PL WASHER	8-97086-825-0	03	1	0808-1202
38	BOLT; CLIP,HARNESS (E) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1203-
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE THA	0-28650-820-0	02	1	0808-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE THA	0-28650-825-0	06	1	0808-1207
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE THA	0-28650-825-0	03	1	1208-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE THA	0-28650-825-0	03	1	1208-
47	NUT; GEN TERMINAL M8 W/LK WASHER	8-94279-050-0	01	1	1409-
127	SCREW; FACIA HARNESS CLIP M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	0808-
139	BOLT; BRKT (E) M8X12 FLANGE THA	0-28050-812-0	01	1	0808-
139	BOLT; BRKT (A) M8X25 FLANGE THA	0-28650-825-0	01	1	0808-
139	BOLT; BRKT (B) M8X30 FLANGE THA	0-28650-830-0	01	1	0808-
139	BOLT; BRKT (C) M10X25 FLANGE THA	0-28651-025-0	02	1	0808-
139	BOLT; BRKT (D) M10X30 FLANGE THA	0-28651-030-0	01	1	0808-
139	BOLT; BRKT (F) M10X35 FLANGE THA	0-28651-035-0	01	1	0808-
150	BOLT; CLIP (A) M8X25 FLANGE THA	0-28650-825-0	02	1	0808-
150	BOLT; CLIP (B) M8X30 FLANGE THA	0-28650-830-0	01	1	0808-
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	0808-1102
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	1103-
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	1103-
219	NUT M8 FLANGE THA	0-91180-108-0	02	1	0808-
294	NUT (A) M8 FLANGE THA	0-91180-108-0	01	1	0808-
294	NUT (A) M8 FLANGE THA	0-91180-108-0	01	1	0808-
294	NUT POOR QUALITY DIESEL FUEL<KF0> (A) M8 FLANGE THA	0-91180-108-0	01	1	0808-
294	NUT (A) M8 FLANGE THA	0-91180-108-0	03	1	0808-
294	NUT (B) M10 FLANGE THA	0-91180-210-0	02	1	0808-
304	BOLT; ENG HARNESS CLIP (E) M6X12 FLANGE THA	0-28050-612-0	01	1	0808-
304	BOLT; ENG HARNESS CLIP (D) M8X10 FLANGE THA	0-28050-810-0	01	1	0808-1010
304	BOLT; ENG HARNESS CLIP (D) M8X10 FLANGE THA	0-28050-810-0	01	1	1103-
304	BOLT; ENG HARNESS CLIP (B) M8X12 FLANGE THA	0-28050-812-0	03	1	0808-
304	BOLT; ENG HARNESS CLIP (C) M8X16 FLANGE THA	0-28050-816-0	03	1	0808-
304	BOLT; ENG HARNESS CLIP (A) M8X20 FLANGE THA	0-28050-820-0	01	1	0808-1102
304	BOLT; ENG HARNESS CLIP (A) M8X20 FLANGE THA	0-28050-820-0	02	1	1103-
313	BOLT; BRKT (A) M8X30 FLANGE THA	0-28650-830-0	03	1	0808-1102
313	BOLT; BRKT (A) M8X30 FLANGE THA	0-28650-830-0	01	1	0808-
313	BOLT; BRKT POOR QUALITY DIESEL FUEL<KF0> (A) M8X30 FLANGE THA	0-28650-830-0	01	1	0808-
313	BOLT; BRKT (B) M8X25 FLANGE THA	0-28650-825-0	01	1	0808-
313	BOLT; BRKT (A) M8X30 FLANGE THA	0-28650-830-0	06	1	0808-1102
313	BOLT; BRKT (A) M8X30 FLANGE THA	0-28650-830-0	03	1	1103-
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	0808-
386	BOLT; GRAND HARNESS M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	0808-
515	NUT; BRKT M6 FLANGE THA	0-91180-106-0	02	1	0808-0809
516	BOLT; HARNESS (A) M4X10 W/LK&PL WASHER THA	0-36230-410-0	01	1	0808-
516	BOLT; HARNESS MLD6W M/T<Y2C> (B) M8X16 FLANGE THA	0-28050-816-0	02	1	0808-1102
524	NUT; HARNESS M6 FLANGE THA	0-91180-106-0	04	1	0808-
525	NUT; CLIP T=8.5 M8 FLANGE THA	5-09440-010-0	01	1	0808-1102
525	NUT; CLIP T=8.0 M8 FLANGE THA	0-91180-108-0	01	1	0808-
525	NUT; CLIP T=8.0 M8 FLANGE THA	0-91180-108-0	02	1	0808-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
