Isuzu WW
▶
TRUCKS
▶
FTR
▶
11125 - FTR(THAI)EURO3
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-10 - WIRING HARNESS AND FUSE
▶
8-10 — WIRING HARNESS AND FUSE
(#25780) — 142 parça
◀
[810A] OTHER HARNESS NO.1 (26 parça)
[810A] FRAME HARNESS NO.2 (10 parça)
[810A] CAB HARNESS (31 parça)
[810A] AIR TANK HARNESS (7 parça)
[810A] OTHER HARNESS NO.2 (19 parça)
[810A] RELAY;CAB HARNESS (2 parça)
[810A] FRAME HARNESS NO.1 (26 parça)

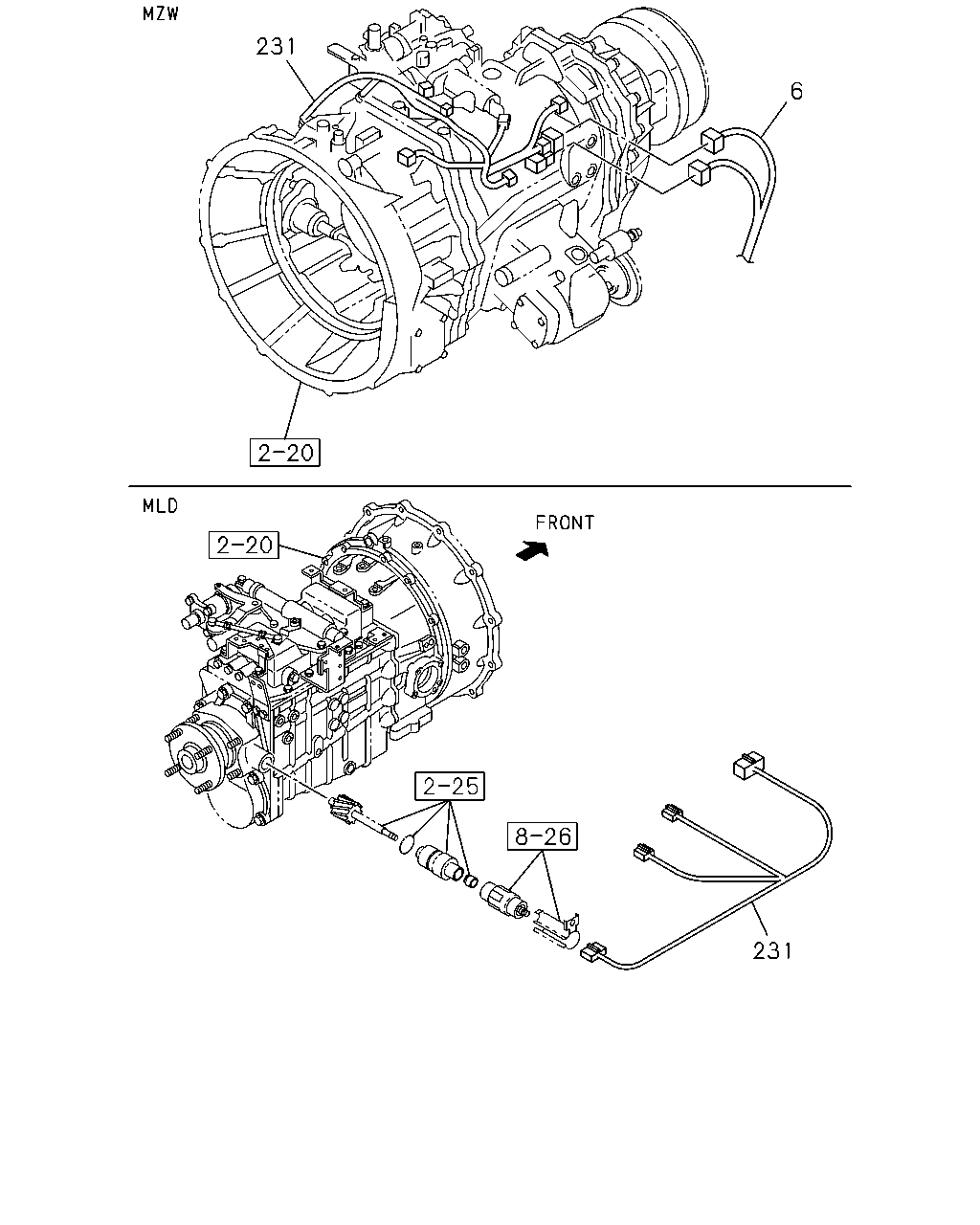

[810A] TRANSMISSION HARNESS (8 parça)

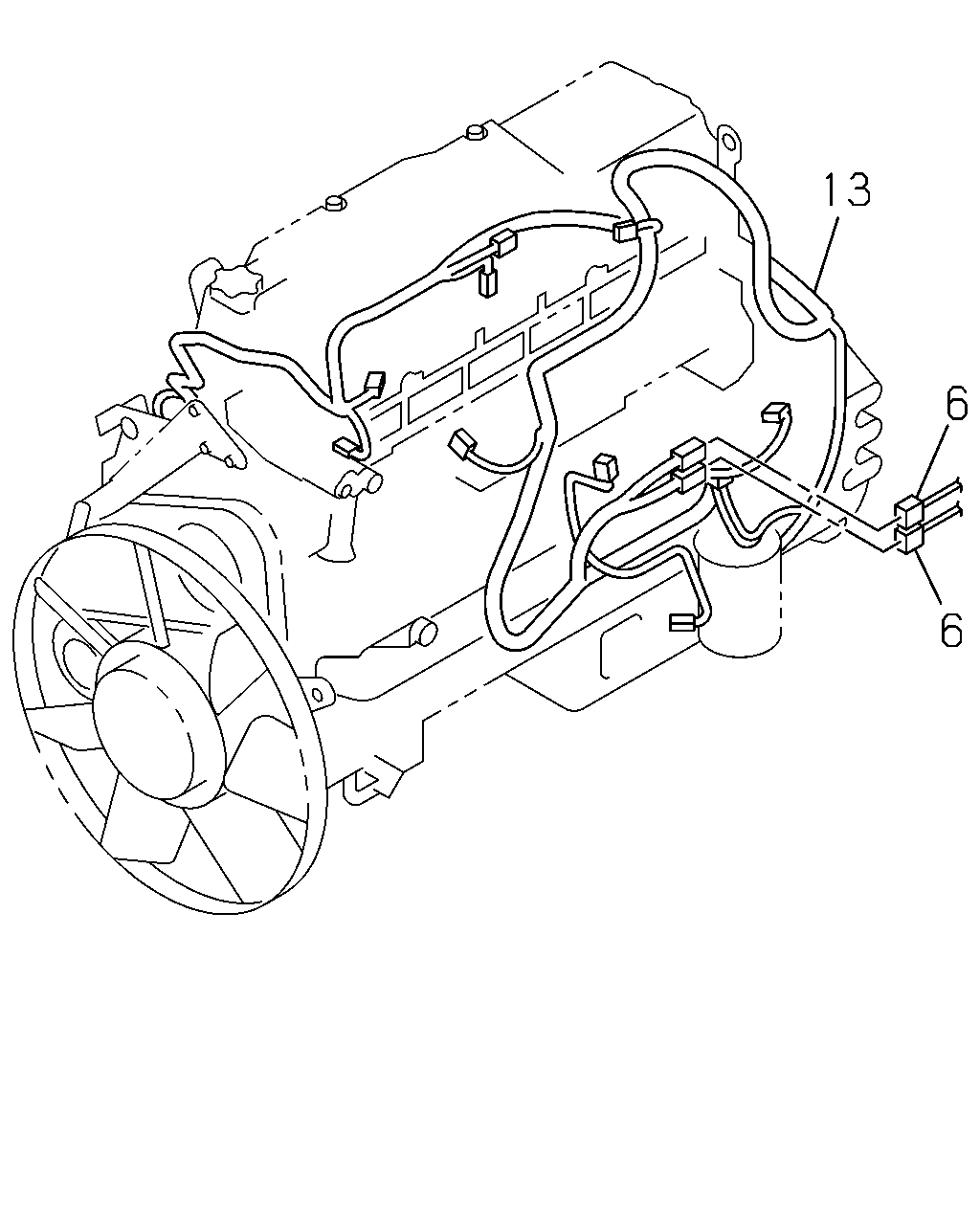

[810A] ENGINE HARNESS (13 parça)
▶

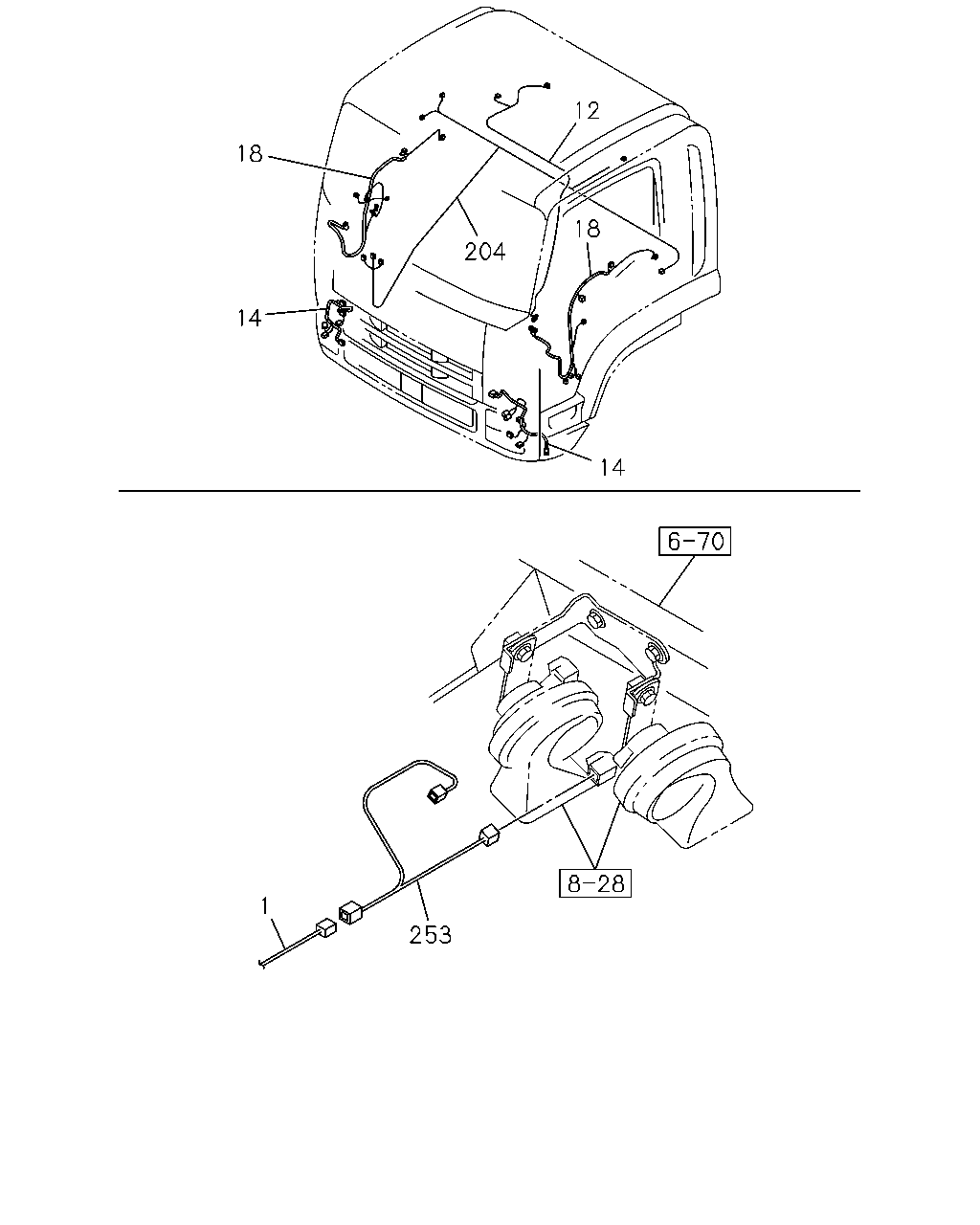

12
18
18
204
14
14
1
253
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HARNESS; CAB
VIN MODEL YEAR 2010<VZA> THA
8-98166-073-1
01
1
1004-1102
1
HARNESS; CAB
THA
8-98166-073-1
01
1
1103-
1
HARNESS; CAB
REMOTE CONT DOOR LOCK<6NF> THA
8-98099-554-2
01
1
0808-0904
1
HARNESS; CAB
REMOTE CONT DOOR LOCK<6NF> THA
8-98145-044-1
01
1
0905-1001
1
HARNESS; CAB
EXC. REMOTE CONT DOOR LOCK<6NF> THA
8-98099-553-2
01
1
0808-0904
1
HARNESS; CAB
EXC. REMOTE CONT DOOR LOCK<6NF> THA
8-98145-043-1
01
1
0905-1001
1
HARNESS; CAB
THA
8-98145-043-1
01
1
1002-1003
1
HARNESS; CAB
EXC. VIN MODEL YEAR 2010<VZA> THA
8-98145-043-1
01
1
1004-1102
12
HARNESS; ROOF
THA
8-97924-274-0
01
1
0808-
14
HARNESS; HEADLAMP
8-98069-166-0
02
1
0808-1302
14
HARNESS; HEADLAMP
THA
8-94270-986-0
02
1
1303-
14
HARNESS; HEADLAMP
THA
8-94270-986-0
02
1
1307-
18
HARNESS; DOOR
THA
8-98076-304-3
01
1
1103-
18
HARNESS; DOOR
THA
8-98076-305-3
01
1
1103-
18
HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> DRIVER THA
8-98108-439-1
01
1
0808-1003
18
HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> PASSENGER THA
8-98108-440-1
01
1
0808-1003
18
HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> DRIVER THA
8-98076-304-3
01
1
0808-1003
18
HARNESS; DOOR
DRIVER THA
8-98076-304-3
01
1
1004-1102
18
HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> PASSENGER THA
8-98076-305-3
01
1
0808-1003
18
HARNESS; DOOR
PASSENGER THA
8-98076-305-3
01
1
1004-1102
204
HARNESS; CABLE,FLOOR
THA
8-98081-205-2
01
1
0808-
253
HARNESS; EXT,HORN
DUAL HEAVY DUTY HORN<6KK> EXC. VIN MODEL YEAR 2010<VZA>
8-98074-080-1
01
1
1004-1102
253
HARNESS; EXT,HORN
ELECTRICAL HORN<WB7>
8-98074-081-1
01
1
0808-1001
253
HARNESS; EXT,HORN
8-98159-227-0
01
1
1002-1003
253
HARNESS; EXT,HORN
EXC. VIN MODEL YEAR 2010<VZA>,DUAL HEAVY DUTY HORN<6KK>
8-98159-227-0
01
1
1004-1102
253
HARNESS; EXT,HORN
EXC. ELECTRICAL HORN<WB7>
8-98074-080-1
01
1
0808-1001
6
9
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HARNESS; FRAME
MZW6P M/T<RSZ> THA
8-97923-690-2
01
1
1001-1102
6
HARNESS; FRAME
MZW6P M/T<RSZ> POOR QUALITY DIESEL FUEL<KF0> THA
8-97925-492-2
01
1
1103-
6
HARNESS; FRAME
THA
8-97924-687-0
01
1
0808-0912
6
HARNESS; FRAME
MLD6W M/T<Y2C> THA
8-97924-687-0
01
1
1001-1102
6
HARNESS; FRAME
MZW6P M/T<RSZ> EXC. POOR QUALITY DIESEL FUEL<KF0> THA
8-97925-493-2
01
1
1103-
9
HARNESS; FRAME,RR
WHEEL BASE 3600MM<36W> THA
8-97923-697-3
01
1
0808-
9
HARNESS; FRAME,RR
WHEEL BASE 4200MM<42W> THA
8-97923-698-4
01
1
0808-
9
HARNESS; FRAME,RR
WHEEL BASE 5000MM<50W> THA
8-97923-699-3
01
1
0808-
9
HARNESS; FRAME,RR
WHEEL BASE 5500MM<55W> THA
8-97923-701-3
01
1
0808-0902
9
HARNESS; FRAME,RR
WHEEL BASE 5500MM<55W> THA
8-97925-143-0
01
1
0903-

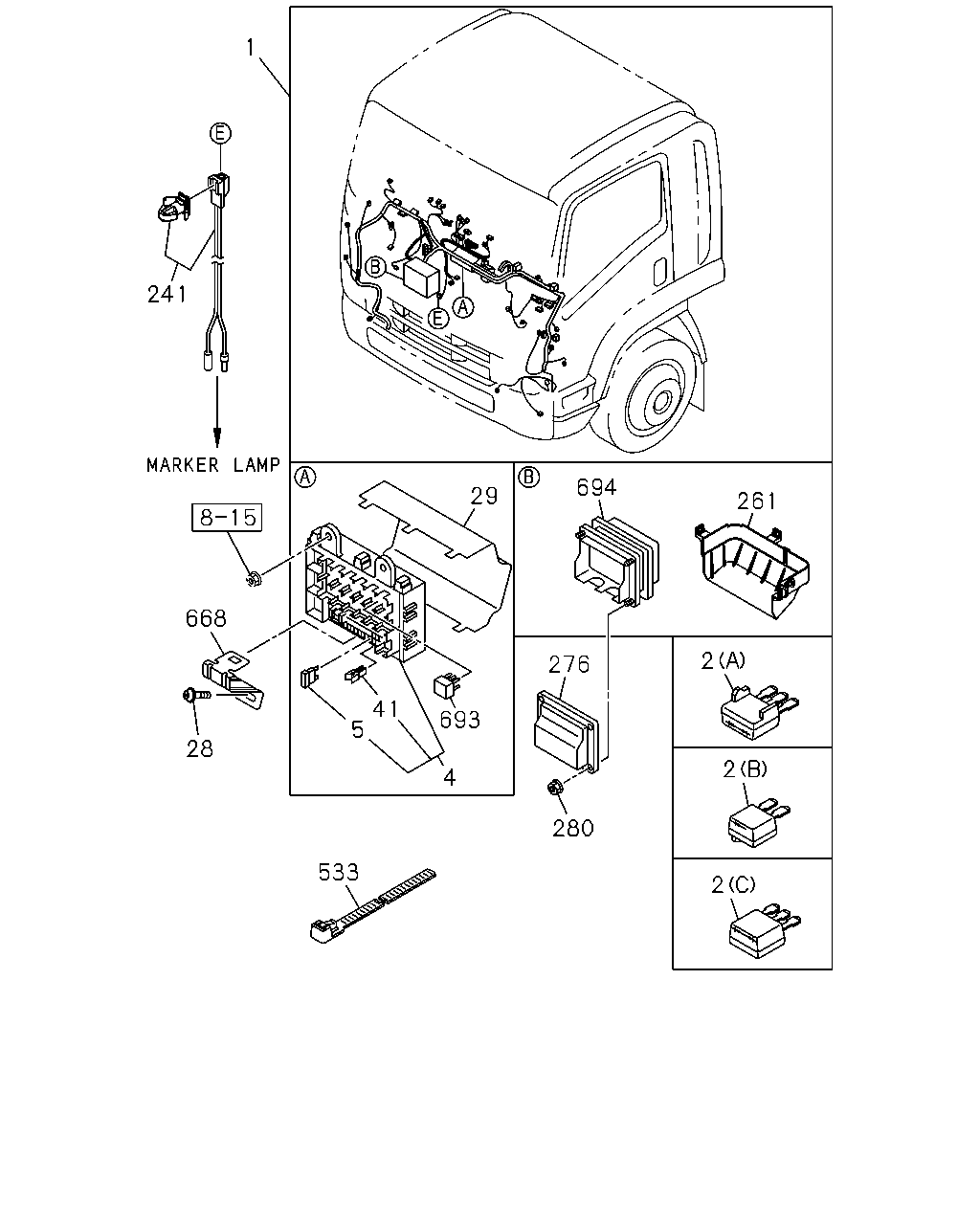

1
241
29
694
261
668
28
5
41
693
4
276
280
2
2
2
533
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HARNESS; CAB
VIN MODEL YEAR 2010<VZA> THA
8-98166-073-1
01
1
1004-1102
1
HARNESS; CAB
THA
8-98166-073-1
01
1
1103-
1
HARNESS; CAB
REMOTE CONT DOOR LOCK<6NF> THA
8-98099-554-2
01
1
0808-0904
1
HARNESS; CAB
REMOTE CONT DOOR LOCK<6NF> THA
8-98145-044-1
01
1
0905-1001
1
HARNESS; CAB
EXC. REMOTE CONT DOOR LOCK<6NF> THA
8-98099-553-2
01
1
0808-0904
1
HARNESS; CAB
EXC. REMOTE CONT DOOR LOCK<6NF> THA
8-98145-043-1
01
1
0905-1001
1
HARNESS; CAB
THA
8-98145-043-1
01
1
1002-1003
1
HARNESS; CAB
EXC. VIN MODEL YEAR 2010<VZA> THA
8-98145-043-1
01
1
1004-1102
2
DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A THA
8-94416-438-1
01
1
0808-
2
DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A THA
8-94422-639-1
02
1
0808-0904
2
DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A THA
8-94422-639-1
03
1
0905-
2
DIODE; CABLE HARNESS
(C) BLACK 3P-1.5A THA
8-94422-640-1
01
1
0808-
4
BOX ASM; FUSE,HARNESS
THA
8-98065-666-0
01
1
0808-
5
FUSE; FACIA HARNESS
10A RED THA
8-98054-257-0
AR
1
0808-
5
FUSE; FACIA HARNESS
15A BLUE THA
8-98054-258-0
AR
1
0808-
5
FUSE; FACIA HARNESS
20A YELLOW THA
8-98054-259-0
AR
1
0808-
5
FUSE; FACIA HARNESS
25A WHITE THA
8-98062-982-0
01
1
0808-0904
5
FUSE; FACIA HARNESS
25A WHITE THA
8-98062-982-0
02
1
0905-
28
SCREW; FUSE BOX
M6X16 FLANGE THA
0-28650-616-0
01
1
0808-
29
COVER; FUSE BOX
THA
8-98056-968-0
01
1
0808-
41
PULLER; FUSE
THA
8-98054-260-0
01
1
0808-
241
HARNESS; MARKER LAMP
THA
8-97924-671-0
01
1
0808-
261
COVER; CONNECTOR BOX
THA
8-98065-986-1
01
1
1103-
276
COVER; BOX,FRAME HARNESS
8-98034-039-1
01
1
0808-
280
NUT; BOX ASM FIX
M6 FLANGE THA
0-91180-106-0
04
1
0808-
533
CLIP
L=180
1-09707-162-1
01
1
0808-1303
533
CLIP
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> L=180
1-09707-162-1
01
1
1304-
668
BRACKET; HARNESS
8-98095-653-2
01
1
0808-
693
RELAY; FUSE BOX
24V 10A PANASONIC THA
8-97173-035-1
AR
1
0808-
694
BOX ASM; CONNECTOR
THA
8-98057-771-0
01
1
1103-
694
BOX ASM; CONNECTOR
8-98063-269-1
01
1
0808-1102

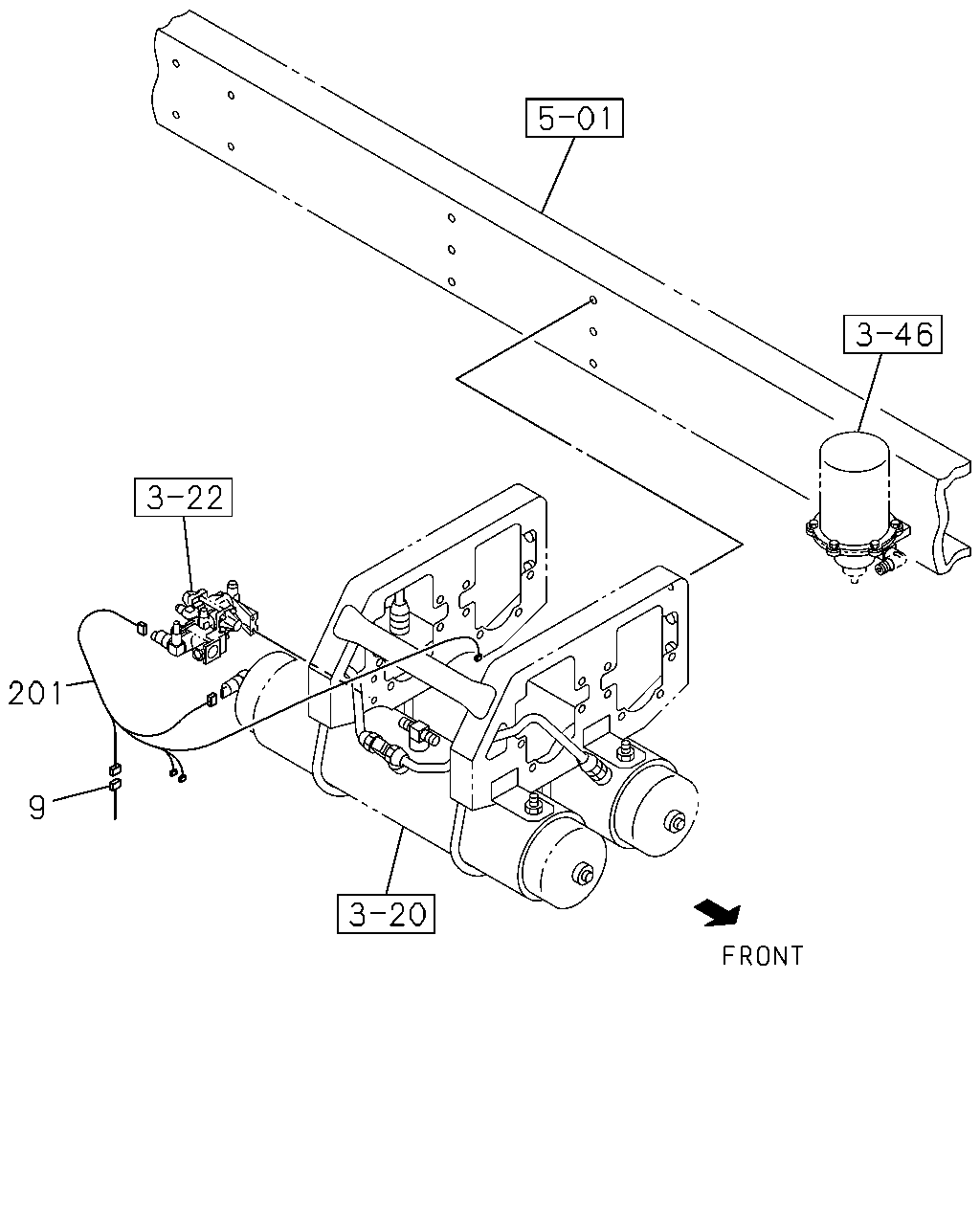

201
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
9
HARNESS; FRAME,RR
WHEEL BASE 3600MM<36W> THA
8-97923-697-3
01
1
0808-
9
HARNESS; FRAME,RR
WHEEL BASE 4200MM<42W> THA
8-97923-698-4
01
1
0808-
9
HARNESS; FRAME,RR
WHEEL BASE 5000MM<50W> THA
8-97923-699-3
01
1
0808-
9
HARNESS; FRAME,RR
WHEEL BASE 5500MM<55W> THA
8-97923-701-3
01
1
0808-0902
9
HARNESS; FRAME,RR
WHEEL BASE 5500MM<55W> THA
8-97925-143-0
01
1
0903-
201
HARNESS; AIR TANK
THA
8-98060-669-1
01
1
0808-1102
201
HARNESS; AIR TANK
THA
8-98060-669-1
01
1
1103-

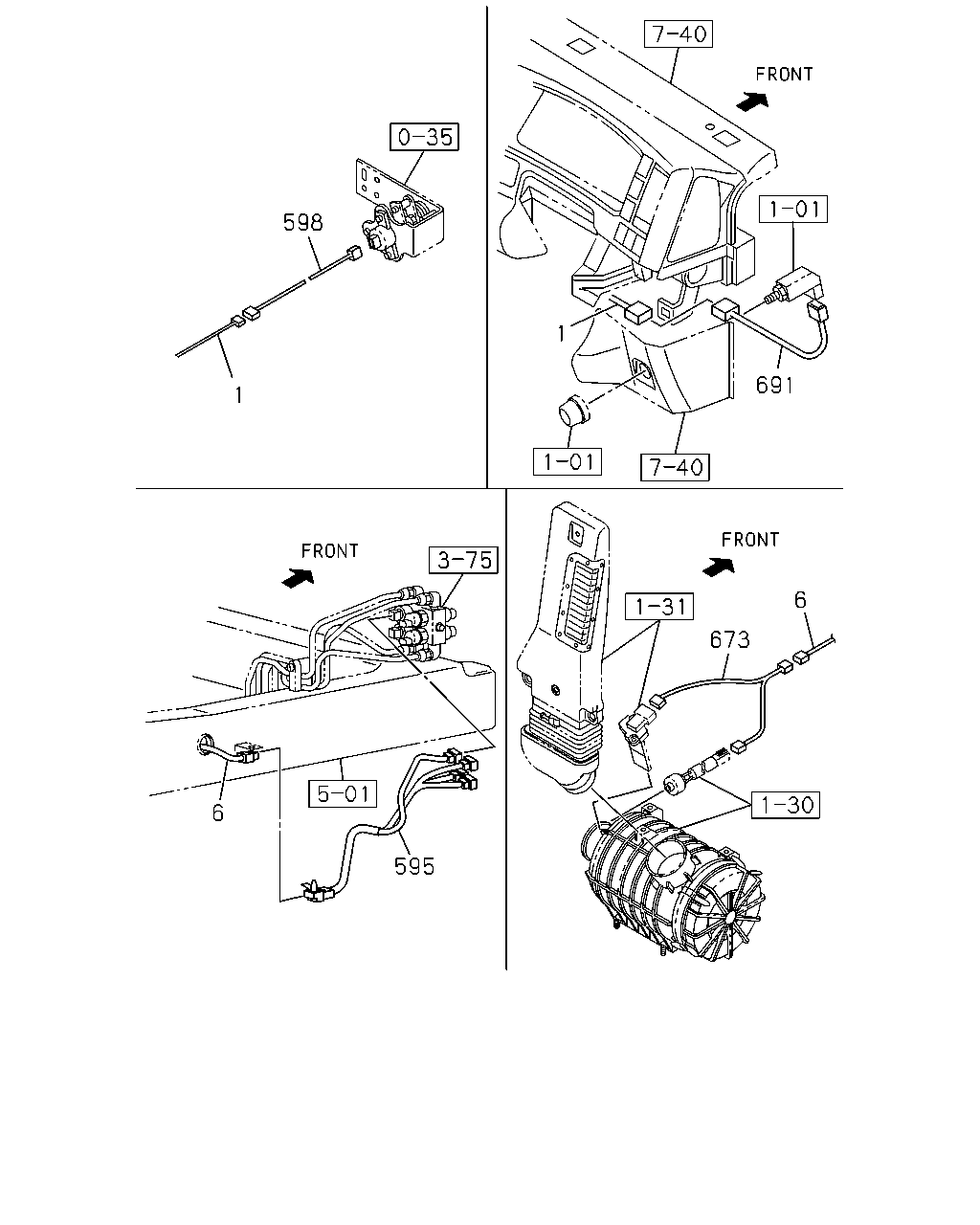

598
1
691
1
6
673
6
595
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HARNESS; CAB
VIN MODEL YEAR 2010<VZA> THA
8-98166-073-1
01
1
1004-1102
1
HARNESS; CAB
THA
8-98166-073-1
01
1
1103-
1
HARNESS; CAB
REMOTE CONT DOOR LOCK<6NF> THA
8-98099-554-2
01
1
0808-0904
1
HARNESS; CAB
REMOTE CONT DOOR LOCK<6NF> THA
8-98145-044-1
01
1
0905-1001
1
HARNESS; CAB
EXC. REMOTE CONT DOOR LOCK<6NF> THA
8-98099-553-2
01
1
0808-0904
1
HARNESS; CAB
EXC. REMOTE CONT DOOR LOCK<6NF> THA
8-98145-043-1
01
1
0905-1001
1
HARNESS; CAB
THA
8-98145-043-1
01
1
1002-1003
1
HARNESS; CAB
EXC. VIN MODEL YEAR 2010<VZA> THA
8-98145-043-1
01
1
1004-1102
6
HARNESS; FRAME
MZW6P M/T<RSZ> THA
8-97923-690-2
01
1
1001-1102
6
HARNESS; FRAME
MZW6P M/T<RSZ> POOR QUALITY DIESEL FUEL<KF0> THA
8-97925-492-2
01
1
1103-
6
HARNESS; FRAME
THA
8-97924-687-0
01
1
0808-0912
6
HARNESS; FRAME
MLD6W M/T<Y2C> THA
8-97924-687-0
01
1
1001-1102
6
HARNESS; FRAME
MZW6P M/T<RSZ> EXC. POOR QUALITY DIESEL FUEL<KF0> THA
8-97925-493-2
01
1
1103-
595
HARNESS; WARNING,BRK
8-97620-487-1
01
1
0808-0809
595
HARNESS; WARNING,BRK
THA
8-97924-875-0
01
1
0810-
598
HARNESS; EXT,PTO
PTO CONTROL<SV6>
1-82675-898-0
01
1
0904-
673
HARNESS; EXT,SENSOR
8-98098-510-0
01
1
0808-1102
673
HARNESS; EXT,SENSOR
8-98069-172-0
01
1
1103-
691
HARNESS; IDLE CONT
8-98049-014-2
01
1
0808-

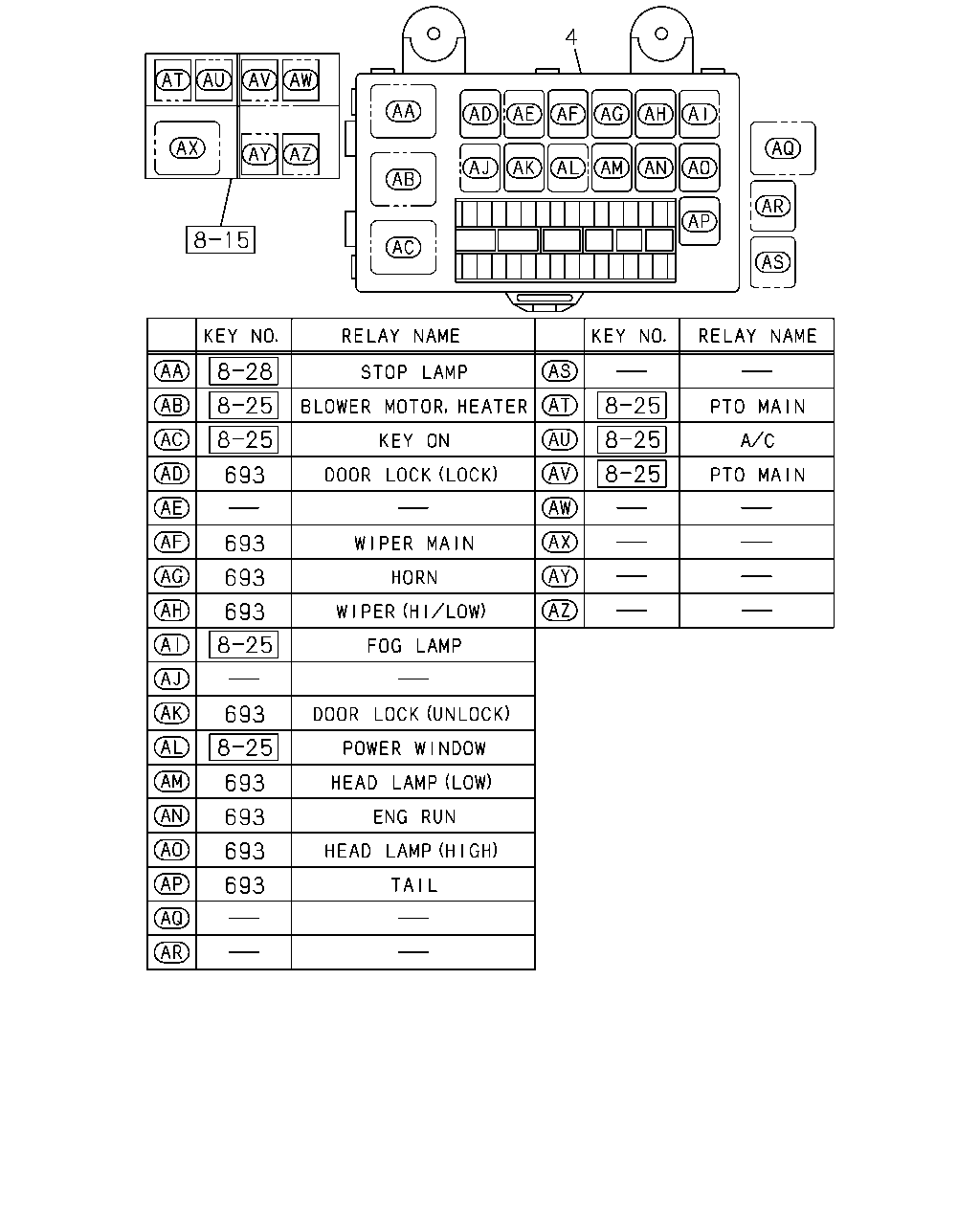

4
693
693
693
693
693
693
693
693
693
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
BOX ASM; FUSE,HARNESS
THA
8-98065-666-0
01
1
0808-
693
RELAY; FUSE BOX
24V 10A PANASONIC THA
8-97173-035-1
AR
1
0808-

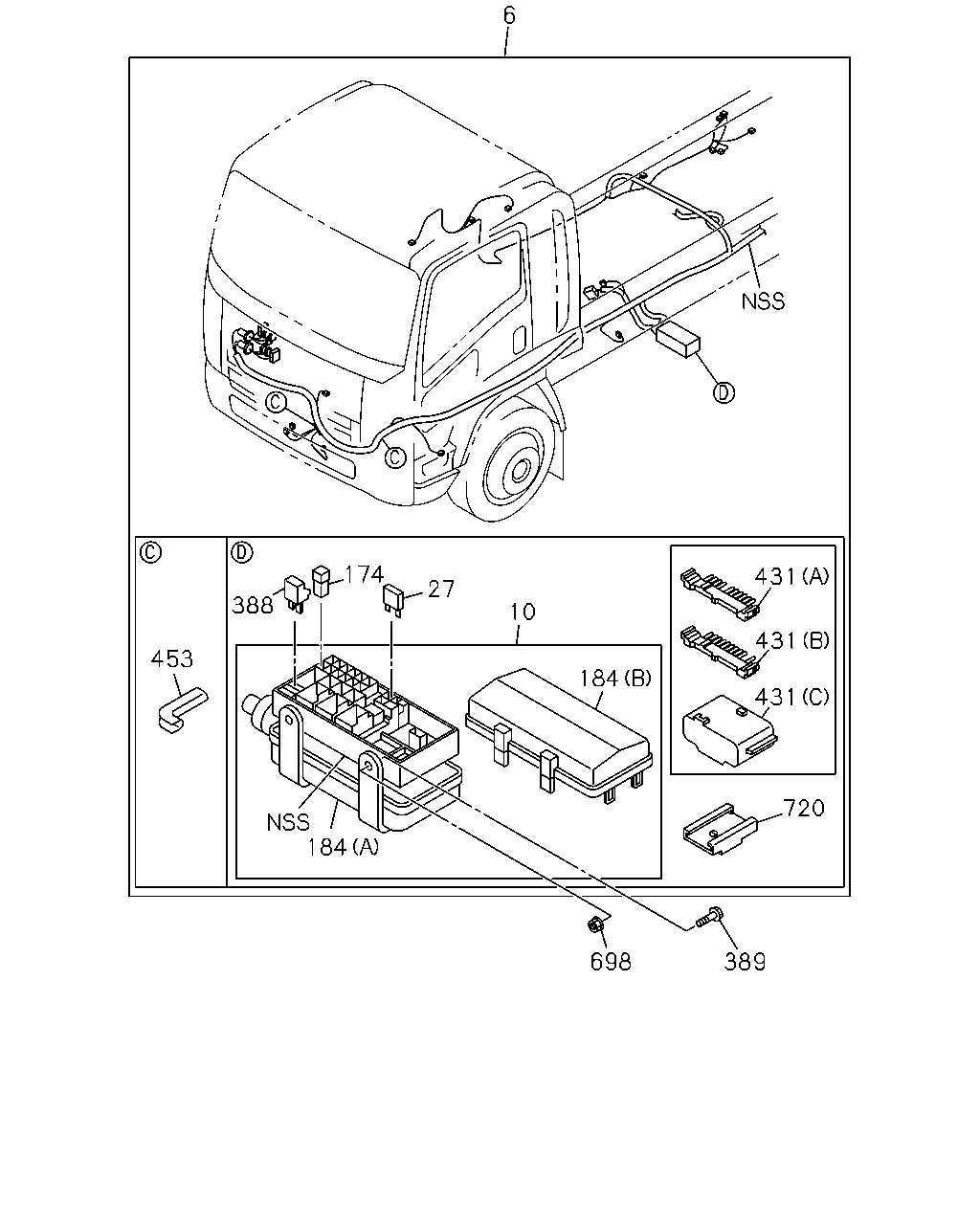

6
174
431
27
388
10
431
453
184
431
720
184
698
389
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HARNESS; FRAME
MZW6P M/T<RSZ> THA
8-97923-690-2
01
1
1001-1102
6
HARNESS; FRAME
MZW6P M/T<RSZ> POOR QUALITY DIESEL FUEL<KF0> THA
8-97925-492-2
01
1
1103-
6
HARNESS; FRAME
THA
8-97924-687-0
01
1
0808-0912
6
HARNESS; FRAME
MLD6W M/T<Y2C> THA
8-97924-687-0
01
1
1001-1102
6
HARNESS; FRAME
MZW6P M/T<RSZ> EXC. POOR QUALITY DIESEL FUEL<KF0> THA
8-97925-493-2
01
1
1103-
10
BOX; FUSE,HARNESS
THA
8-98030-762-0
01
1
0808-
27
FUSE UNIT
10A RED THA
8-98054-257-0
01
1
0808-
27
FUSE UNIT
15A BLUE THA
8-98054-258-0
01
1
0808-
174
FUSE; SLOW BLOW
60A YELLOW THA
8-97219-407-0
01
1
1111-
174
FUSE; SLOW BLOW
30A PINK THA
8-98079-191-0
01
1
0808-
174
FUSE; SLOW BLOW
40A GREEN THA
8-98079-192-0
01
1
0808-
174
FUSE; SLOW BLOW
50A RED THA
8-98079-193-0
03
1
0808-
174
FUSE; SLOW BLOW
60A YELLOW THA
8-98079-194-0
02
1
0808-1102
174
FUSE; SLOW BLOW
60A YELLOW 60A YELLOW THA
8-97219-407-0
02
1
1103-1110
174
FUSE; SLOW BLOW
60A YELLOW 60A YELLOW THA
8-97219-407-0
01
1
1111-
184
COVER; RELAY & FUSE BOX
(A) THA
8-98030-766-0
01
1
0808-
184
COVER; RELAY & FUSE BOX
(B) THA
8-98030-767-1
01
1
0808-
388
DIODE; RELAY BOX
BLACK 2P-1.5A THA
8-94422-639-1
01
1
0808-
389
BOLT; COVER,RELAY BOX
M8X35 W/LK&PL WASHER THA
1-09030-073-0
03
1
0808-
431
CONNECTOR; JOINT
(B) 10P GREEN THA
1-82698-579-0
01
1
0808-1102
431
CONNECTOR; JOINT
(A) 10P BLUE THA
1-82699-598-0
03
1
0808-
431
CONNECTOR; JOINT
(C) 6P BLACK THA
8-97616-194-0
01
1
0808-1102
453
PROTECTOR; HARNESS
THA
1-82699-709-0
01
1
0808-
698
NUT; COVER,RELAY BOX
M8 FLANGE THA
0-91180-108-0
02
1
0808-
720
ATTACHMENT; CONNECTOR
THA
1-82699-688-0
01
1
1103-
720
ATTACHMENT; CONNECTOR
THA
1-82699-688-0
03
1
0808-1102
231
6
231
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HARNESS; FRAME
MZW6P M/T<RSZ> THA
8-97923-690-2
01
1
1001-1102
6
HARNESS; FRAME
MZW6P M/T<RSZ> POOR QUALITY DIESEL FUEL<KF0> THA
8-97925-492-2
01
1
1103-
6
HARNESS; FRAME
THA
8-97924-687-0
01
1
0808-0912
6
HARNESS; FRAME
MLD6W M/T<Y2C> THA
8-97924-687-0
01
1
1001-1102
6
HARNESS; FRAME
MZW6P M/T<RSZ> EXC. POOR QUALITY DIESEL FUEL<KF0> THA
8-97925-493-2
01
1
1103-
231
HARNESS; TRANS
MLD6W M/T<Y2C>
8-97626-769-0
01
1
0808-0809
231
HARNESS; TRANS
MLD6W M/T<Y2C> THA
8-97924-880-0
01
1
0810-1102
231
HARNESS; TRANS
MZW6P M/T<RSZ> THA
8-97924-273-0
01
1
1001-
13
6
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HARNESS; FRAME
MZW6P M/T<RSZ> THA
8-97923-690-2
01
1
1001-1102
6
HARNESS; FRAME
MZW6P M/T<RSZ> POOR QUALITY DIESEL FUEL<KF0> THA
8-97925-492-2
01
1
1103-
6
HARNESS; FRAME
THA
8-97924-687-0
01
1
0808-0912
6
HARNESS; FRAME
MLD6W M/T<Y2C> THA
8-97924-687-0
01
1
1001-1102
6
HARNESS; FRAME
MZW6P M/T<RSZ> EXC. POOR QUALITY DIESEL FUEL<KF0> THA
8-97925-493-2
01
1
1103-
13
HARNESS; ENG
GENERATOR 24V60A<KG2>,GENERATOR 24V90A<K44>
8-97616-797-8
01
1
0808-0909
13
HARNESS; ENG
GENERATOR 24V60A<KG2>,GENERATOR 24V90A<K44>
8-98148-979-0
01
1
0910-1010
13
HARNESS; ENG
GENERATOR 24V60A<KG2>,GENERATOR 24V90A<K44>
8-98177-188-0
01
1
1011-1102
13
HARNESS; ENG
GENERATOR 24V60A<KG2>
8-98171-594-0
01
1
1103-
13
HARNESS; ENG
GENERATOR 24V50A<K89>
8-97616-796-8
01
1
0808-0909
13
HARNESS; ENG
GENERATOR 24V50A<K89>
8-98148-977-0
01
1
0910-1010
13
HARNESS; ENG
GENERATOR 24V50A<K89>
8-98177-187-0
01
1
1011-1102
13
HARNESS; ENG
GENERATOR 24V50A<K89>
8-98171-593-0
01
1
1103-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
