Sayfa 7-43 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11125 - FTR(THAI)EURO3 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-43 - SUN VISOR AND ASSIST GRIP ▶

7-43 — SUN VISOR AND ASSIST GRIP (#25772) — 120 parça

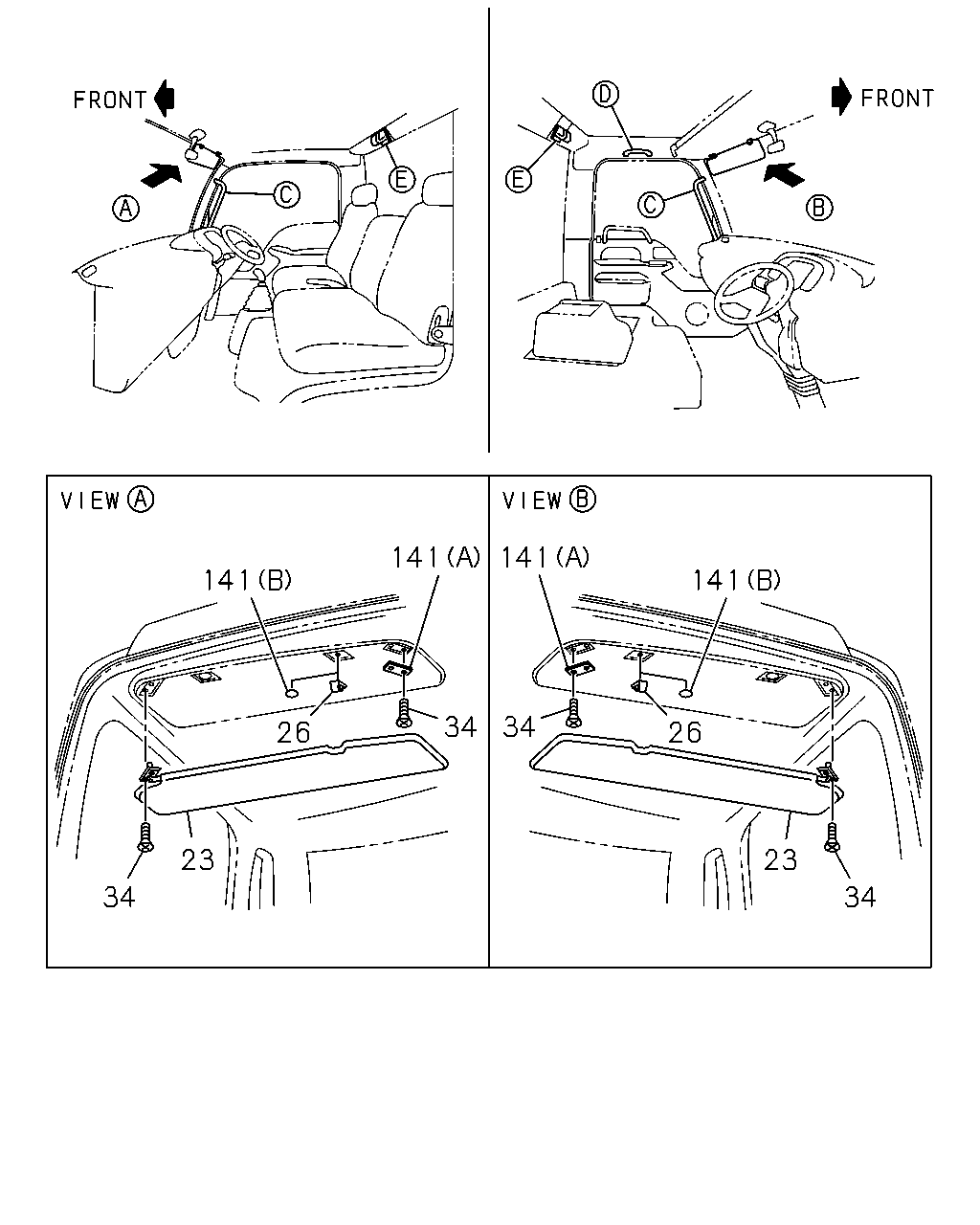

141 141 141 141 34 34 26 26 23 23 34 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
23	SUN VISOR DARK GRAY	8-97407-373-2	01	1	0808-
23	SUN VISOR SUN VISOR PASSENGER<D20> DARK GRAY THA	8-97405-170-3	01	1	0808-1102
23	SUN VISOR DARK GRAY THA	8-97405-170-3	01	1	1103-
26	HOLDER; SUN VISOR SUN VISOR PASSENGER<D20> DARK GRAY	8-97405-171-0	02	1	0808-1102
26	HOLDER; SUN VISOR DARK GRAY	8-97405-171-0	02	1	1103-
26	HOLDER; SUN VISOR EXC. SUN VISOR PASSENGER<D20> DARK GRAY	8-97405-171-0	01	1	0808-1102
34	SCREW; SUN VISOR SUN VISOR PASSENGER<D20> M6X26	8-98033-674-0	04	1	0808-1102
34	SCREW; SUN VISOR M6X26	8-98033-674-0	04	1	1103-
34	SCREW; SUN VISOR M6X26	8-98033-674-0	02	1	0808-1003
34	SCREW; SUN VISOR HEADER CONSOLE DRIVER & PASSENGER<EDG> M6X26	8-98033-674-0	02	1	0808-1003
34	SCREW; SUN VISOR HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. SUN VISOR PASSENGER<D20> M6X26	8-98033-674-0	02	1	0808-1003
34	SCREW; SUN VISOR EXC. SUN VISOR PASSENGER<D20> M6X26	8-98033-674-0	02	1	0808-1003
34	SCREW; SUN VISOR M6X26	8-98033-674-0	02	1	1004-1102
34	SCREW; SUN VISOR HEADER CONSOLE DRIVER & PASSENGER<EDG> M6X26	8-98033-674-0	02	1	1004-1102
34	SCREW; SUN VISOR EXC. SUN VISOR PASSENGER<D20> M6X26	8-98033-674-0	02	1	1004-1102
34	SCREW; SUN VISOR M6X26	8-98033-674-0	02	1	1103-
34	SCREW; SUN VISOR M6X26	8-98033-674-0	02	1	1103-
141	COVER; SUN VISOR (A) L=66 B=30 DARK GRAY	8-97408-029-0	01	1	0808-1003
141	COVER; SUN VISOR HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) L=66 B=30 DARK GRAY	8-97408-029-0	01	1	0808-1003
141	COVER; SUN VISOR HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. SUN VISOR PASSENGER<D20> (A) L=66 B=30 DARK GRAY	8-97408-029-0	01	1	0808-1003
141	COVER; SUN VISOR (A) L=66 B=30 DARK GRAY	8-97408-029-0	01	1	1004-1102
141	COVER; SUN VISOR HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) L=66 B=30 DARK GRAY	8-97408-029-0	01	1	1004-1102
141	COVER; SUN VISOR (A) L=66 B=30 DARK GRAY	8-97408-029-0	01	1	1103-
141	COVER; SUN VISOR (A) L=66 B=30 DARK GRAY	8-97408-029-0	01	1	1103-
141	COVER; SUN VISOR (B) OD=30 T=0.05 DARK GRAY	8-97408-030-0	01	1	0808-1003
141	COVER; SUN VISOR HEADER CONSOLE DRIVER & PASSENGER<EDG> (B) OD=30 T=0.05 DARK GRAY	8-97408-030-0	01	1	0808-1003
141	COVER; SUN VISOR HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. SUN VISOR PASSENGER<D20> (B) OD=30 T=0.05 DARK GRAY	8-97408-030-0	01	1	0808-1003
141	COVER; SUN VISOR (B) OD=30 T=0.05 DARK GRAY	8-97408-030-0	01	1	1004-1102
141	COVER; SUN VISOR HEADER CONSOLE DRIVER & PASSENGER<EDG> (B) OD=30 T=0.05 DARK GRAY	8-97408-030-0	01	1	1004-1102
141	COVER; SUN VISOR (B) OD=30 T=0.05 DARK GRAY	8-97408-030-0	01	1	1103-1401
141	COVER; SUN VISOR (B) OD=30 T=0.05 DARK GRAY	8-97408-030-0	01	1	1103-1401
141	COVER; SUN VISOR (B) OD=30 T=0.05 DARK GRAY	8-97408-030-0	02	1	1402-
141	COVER; SUN VISOR (B) OD=30 T=0.05 DARK GRAY	8-97408-030-0	02	1	1402-

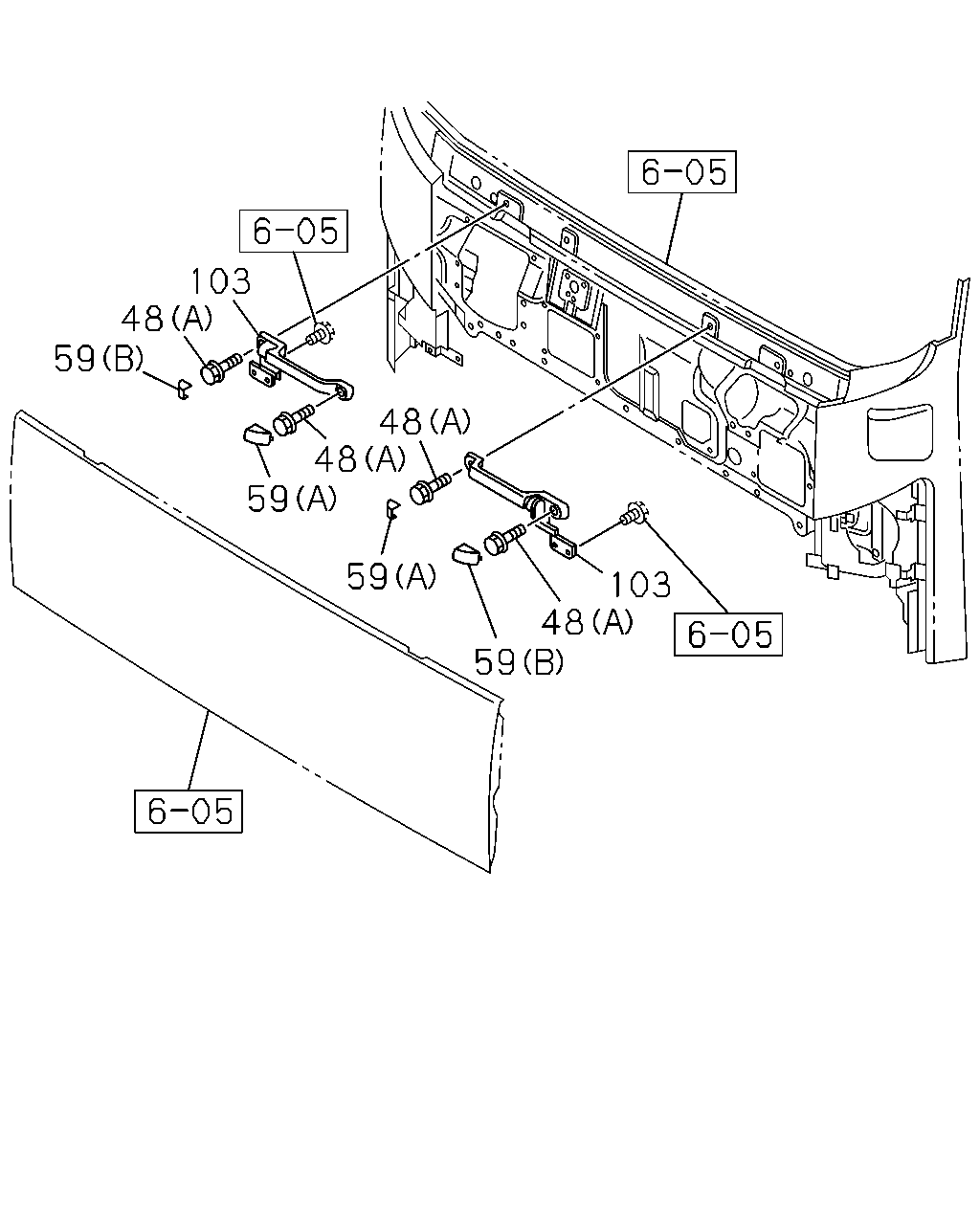

103 48 59 48 48 59 59 103 48 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	BOLT; ASSIST GRIP (B) M8X16 FLANGE	0-28060-816-0	04	1	0808-
48	BOLT; ASSIST GRIP (A) M8X30 FLANGE	0-28660-830-0	04	1	0808-
59	COVER; ASSIST GRIP (B)	1-71998-789-2	02	1	0808-
59	COVER; ASSIST GRIP (A)	1-71998-790-2	02	1	0808-
59	COVER; ASSIST GRIP (C) DARK GRAY	8-97407-417-1	02	1	0808-
103	GRIP; ASSIST,FRT PNL	8-98036-565-1	01	1	0808-
103	GRIP; ASSIST,FRT PNL	8-98036-566-1	01	1	0808-

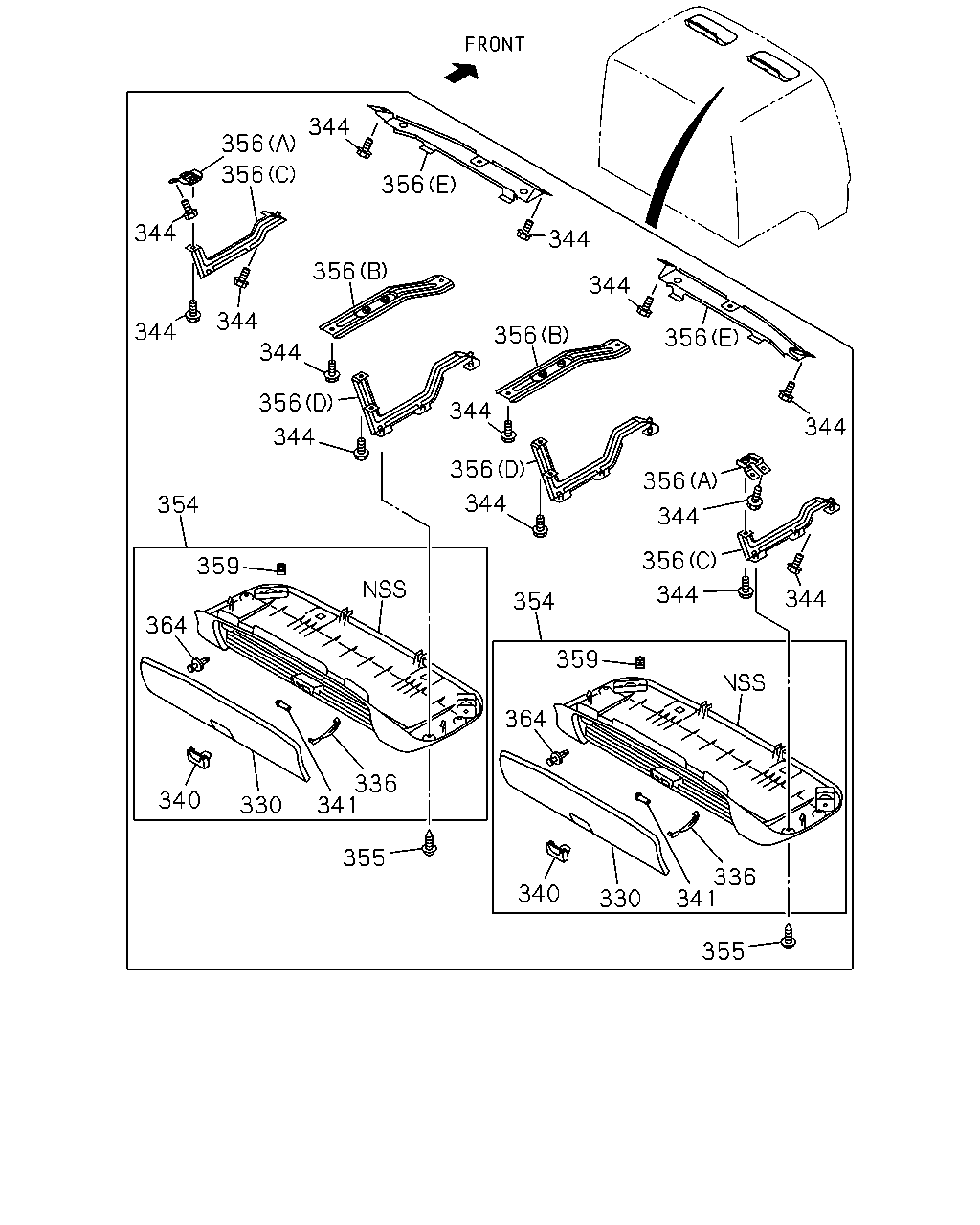

344 356 356 356 344 344 356 344 344 344 356 356 344 356 344 344 344 356 356 344 354 344 356 359 344 344 354 364 359 364 336 341 340 330 355 336 341 340 330 355

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
330	LID; HEADER SHELF DARK GRAY	8-97407-834-1	01	1	1103-
330	LID; HEADER SHELF DARK GRAY	8-97407-834-1	01	1	1103-
330	LID; HEADER SHELF DARK GRAY	8-97407-834-1	02	1	1001-1102
330	LID; HEADER SHELF HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY	8-97407-834-1	02	1	1001-1102
330	LID; HEADER SHELF DARK GRAY	8-97407-834-1	01	1	0808-0912
330	LID; HEADER SHELF HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY	8-97407-834-1	01	1	0808-0912
336	STAY; LID	1-72448-379-3	02	1	0808-1102
336	STAY; LID HEADER CONSOLE DRIVER & PASSENGER<EDG>	1-72448-379-3	02	1	0808-1102
336	STAY; LID	1-72448-379-3	02	1	1103-
336	STAY; LID	1-72448-379-3	02	1	1103-
340	LOCK; HEADER SHELF	1-72448-376-0	01	1	0808-1102
340	LOCK; HEADER SHELF HEADER CONSOLE DRIVER & PASSENGER<EDG>	1-72448-376-0	01	1	0808-1102
340	LOCK; HEADER SHELF	1-72448-376-0	01	1	1103-
340	LOCK; HEADER SHELF	1-72448-376-0	01	1	1103-
341	HINGE; LID,HEADER SHELF	8-98025-428-2	02	1	1112-
341	HINGE; LID,HEADER SHELF	8-98025-428-2	02	1	1112-
341	HINGE; LID,HEADER SHELF	8-98025-428-2	02	1	0808-1102
341	HINGE; LID,HEADER SHELF HEADER CONSOLE DRIVER & PASSENGER<EDG>	8-98025-428-2	02	1	0808-1102
341	HINGE; LID,HEADER SHELF	8-98025-428-2	02	1	1103-
341	HINGE; LID,HEADER SHELF	8-98025-428-2	02	1	1103-
344	BOLT; BRKT,FRT HEADER CONSOLE DRIVER & PASSENGER<EDG> M6X12 FLANGE THA	0-28450-612-0	08	1	0808-1102
344	BOLT; BRKT,FRT M6X12 FLANGE THA	0-28450-612-0	12	1	1103-
344	BOLT; BRKT,FRT M6X12 FLANGE THA	0-28450-612-0	12	1	0808-1102
344	BOLT; BRKT,FRT M6X12 FLANGE THA	0-28450-612-0	08	1	1103-
354	TRAY; HEADER ROOF DARK GRAY	8-97407-386-5	01	1	0808-1102
354	TRAY; HEADER ROOF HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY	8-97407-386-5	01	1	0808-1102
354	TRAY; HEADER ROOF DARK GRAY	8-97407-386-5	01	1	1103-1401
354	TRAY; HEADER ROOF DARK GRAY	8-97407-386-5	01	1	1103-1401
354	TRAY; HEADER ROOF DARK GRAY	8-97428-821-0	01	1	1402-
354	TRAY; HEADER ROOF DARK GRAY	8-97428-821-0	01	1	1402-
355	SCREW; TRAY M5X16 TAPPING HEXALOBULAR	0-72380-516-0	04	1	0808-1102
355	SCREW; TRAY HEADER CONSOLE DRIVER & PASSENGER<EDG> M5X16 TAPPING HEXALOBULAR	0-72380-516-0	04	1	0808-1102
355	SCREW; TRAY M5X16 TAPPING HEXALOBULAR	0-72380-516-0	04	1	1103-
355	SCREW; TRAY M5X16 TAPPING HEXALOBULAR	0-72380-516-0	04	1	1103-
356	BRACKET; ROOF OUTER HEADER CONSOLE DRIVER & PASSENGER<EDG> (C)	8-98016-871-3	01	1	0808-1102
356	BRACKET; ROOF OUTER (C)	8-98016-871-3	01	1	1103-
356	BRACKET; ROOF OUTER HEADER CONSOLE DRIVER & PASSENGER<EDG> (D)	8-98042-009-2	01	1	0808-1102
356	BRACKET; ROOF OUTER (D)	8-98042-009-2	01	1	1103-
356	BRACKET; ROOF OUTER (A)	8-97386-874-1	01	1	0808-1102
356	BRACKET; ROOF OUTER HEADER CONSOLE DRIVER & PASSENGER<EDG> (A)	8-97386-874-1	01	1	0808-1102
356	BRACKET; ROOF OUTER (A)	8-97386-874-1	01	1	1103-
356	BRACKET; ROOF OUTER (A)	8-97386-874-1	01	1	1103-
356	BRACKET; ROOF OUTER (B)	8-98010-059-0	01	1	0808-1102
356	BRACKET; ROOF OUTER HEADER CONSOLE DRIVER & PASSENGER<EDG> (B)	8-98010-059-0	01	1	0808-1102
356	BRACKET; ROOF OUTER (B)	8-98010-059-0	01	1	1103-
356	BRACKET; ROOF OUTER (B)	8-98010-059-0	01	1	1103-
356	BRACKET; ROOF OUTER (C)	8-98014-088-3	01	1	0808-
356	BRACKET; ROOF OUTER (D)	8-98023-257-2	01	1	0808-
356	BRACKET; ROOF OUTER (E)	8-98042-015-3	01	1	0808-
356	BRACKET; ROOF OUTER (E)	8-98042-016-3	01	1	0808-
359	HOLDER; HEADER TRAY	8-98041-754-0	04	1	0808-1102
359	HOLDER; HEADER TRAY HEADER CONSOLE DRIVER & PASSENGER<EDG>	8-98041-754-0	04	1	0808-1102
359	HOLDER; HEADER TRAY	8-98041-754-0	04	1	1103-
359	HOLDER; HEADER TRAY	8-98041-754-0	04	1	1103-
364	STOPPER; LID	8-98010-867-1	03	1	0808-1102
364	STOPPER; LID HEADER CONSOLE DRIVER & PASSENGER<EDG>	8-98010-867-1	03	1	0808-1102
364	STOPPER; LID	8-98010-867-1	03	1	1103-
364	STOPPER; LID	8-98010-867-1	03	1	1103-

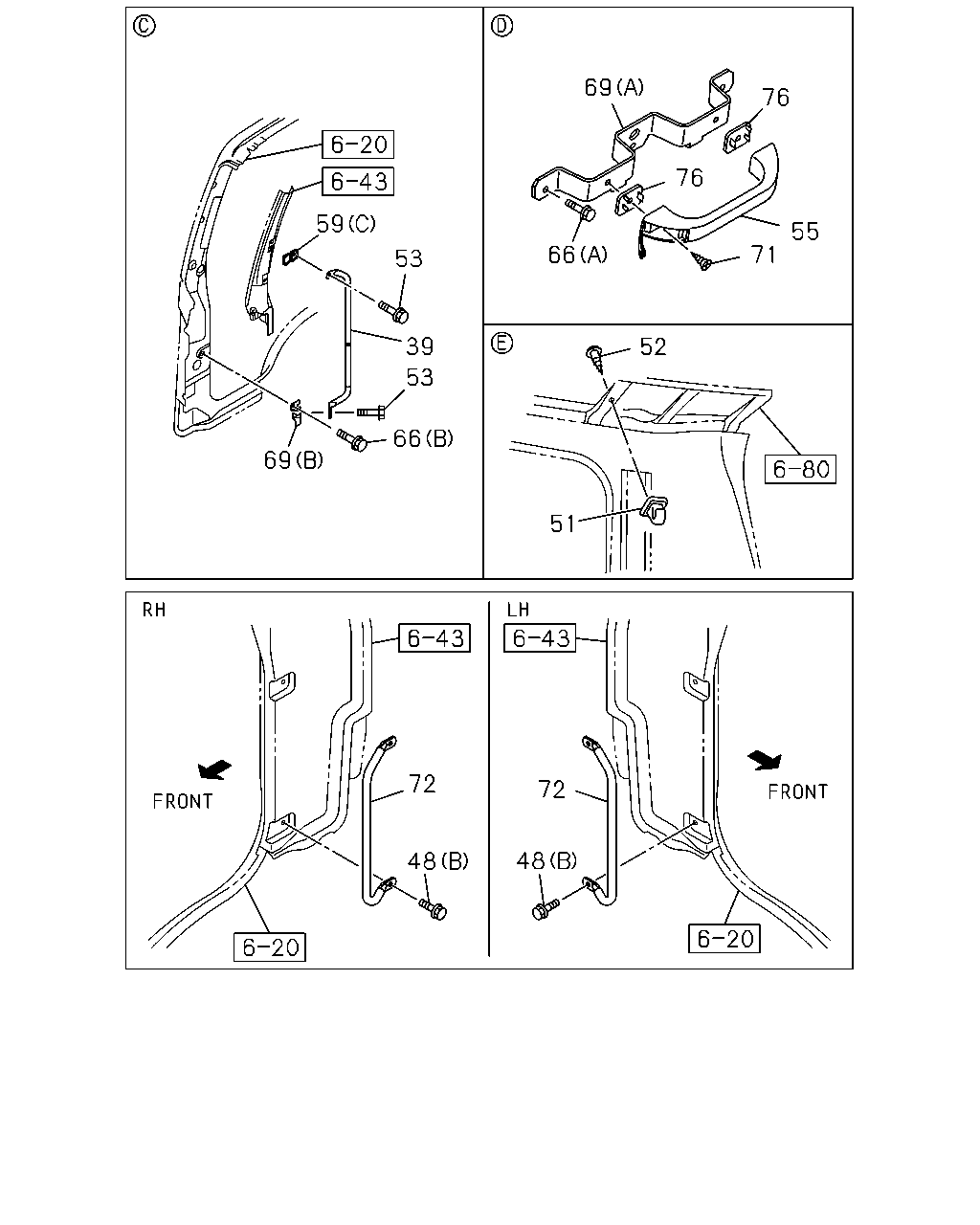

69 76 76 59 55 71 66 53 39 52 53 66 69 51 72 72 48 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	HANDLE; ASSIST,A-POST DARK GRAY	8-97407-942-2	01	1	0808-
39	HANDLE; ASSIST,A-POST DARK GRAY	8-97407-943-2	01	1	0808-
48	BOLT; ASSIST GRIP (B) M8X16 FLANGE	0-28060-816-0	04	1	0808-
48	BOLT; ASSIST GRIP (A) M8X30 FLANGE	0-28660-830-0	04	1	0808-
51	HOOK; COAT HANGER DARK GRAY	8-97409-845-0	02	1	0808-
52	SCREW; HOOK M4X20 TAPPING OVAL-HEAD	0-70540-420-0	02	1	0808-
53	SCREW; ASSIST HANDLE M8X20 FLANGE THA	0-28650-820-0	04	1	0808-
55	GRIP; ASSIST,CAB SIDE UPR DARK GRAY	8-97405-285-2	01	1	0808-
59	COVER; ASSIST GRIP (B)	1-71998-789-2	02	1	0808-
59	COVER; ASSIST GRIP (A)	1-71998-790-2	02	1	0808-
59	COVER; ASSIST GRIP (C) DARK GRAY	8-97407-417-1	02	1	0808-
66	BOLT; ASSIST GRIP BRKT (A) M6X12 FLANGE THA	0-28450-612-0	06	1	0808-
66	BOLT; ASSIST GRIP BRKT (B) M8X20 FLANGE THA	0-28650-820-0	04	1	0808-1102
66	BOLT; ASSIST GRIP BRKT (B) M8X20 FLANGE THA	0-28650-820-0	04	1	1103-1108
66	BOLT; ASSIST GRIP BRKT (B) M8X16 FLANGE THA	0-28050-816-0	04	1	1109-
69	BRACKET; ASSIST GRIP (A)	8-98014-094-0	02	1	0808-
69	BRACKET; ASSIST GRIP (B)	8-98057-971-2	01	1	0808-
69	BRACKET; ASSIST GRIP (B)	8-98057-972-2	01	1	0808-
71	SCREW M6X28	8-98004-344-0	02	1	0808-
72	GRIP; ASSIST,CAB ENTRY,BACK	8-97386-939-0	02	1	1112-
72	GRIP; ASSIST,CAB ENTRY,BACK	8-97386-939-0	02	1	0808-
76	SPACER; ASSIST GRIP DARK GRAY	8-97405-286-0	02	1	0808-
