Sayfa 0-10B - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10660 - CXZ RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-10B - CYLINDER HEAD COVER ▶

0-10B — CYLINDER HEAD COVER (#2577) — 91 parça

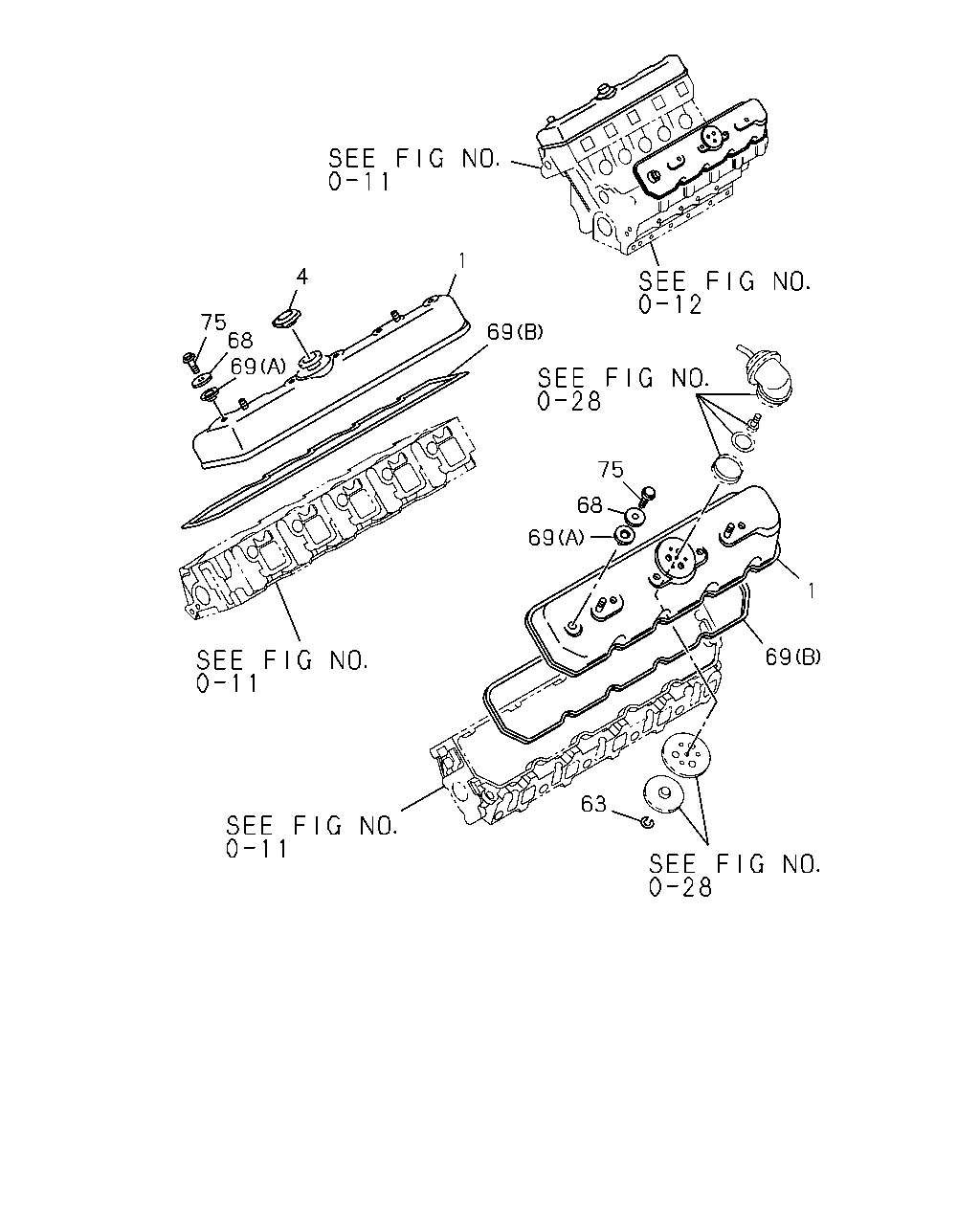

69 69 1 69 68 75 1 4 75 68 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COVER; CYL HD RH BANK	1-11171-344-1	01	1	9002-9410	●
1	COVER; CYL HD EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> RH BANK	1-11171-344-1	01	1	9411-9504	●
1	COVER; CYL HD LH BANK	1-11171-345-0	01	1	9002-9410	●
1	COVER; CYL HD EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> LH BANK	1-11171-345-2	01	1	9411-	●
1	COVER; CYL HD EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> RH BANK	1-11171-340-2	01	1	9411-9504	●
1	COVER; CYL HD EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> RH BANK	1-11171-340-2	01	1	9505-9506	●
1	COVER; CYL HD RH BANK	1-11171-340-2	01	1	9507-	●
1	COVER; CYL HD EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> LH BANK	1-11171-341-2	01	1	9411-	●
1	COVER; CYL HD RH BANK	1-11171-368-1	01	1	9307-9504		●
1	COVER; CYL HD RH BANK	1-11171-366-0	01	1	9505-		●
1	COVER; CYL HD LH BANK	1-11171-369-1	01	1	9307-9504		●
1	COVER; CYL HD LH BANK	1-11171-367-1	01	1	9505-		●
4	CAP; OIL FILLER	1-11750-020-0	01	1	9002-	●	●
68	WASHER; CAP NUT,HD COVER	1-11179-048-0	10	1	9002-9410	●
68	WASHER; CAP NUT,HD COVER EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-11179-048-0	10	1	9411-	●
68	WASHER; CAP NUT,HD COVER	1-11179-048-0	08	1	9307-		●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	1-09639-031-0	10	1	9002-9410	●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (A)	1-09639-031-0	10	1	9411-	●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	1-11173-065-0	02	1	9002-9405	●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	1-11173-089-0	02	1	9406-	●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	1-09639-031-0	08	1	9307-		●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	1-11173-066-0	02	1	9307-9405		●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	1-11173-090-0	02	1	9406-		●
75	NUT; CAP,HD COVER	1-11175-008-0	10	1	9002-	●
75	NUT; CAP,HD COVER	1-11175-008-0	08	1	9307-		●

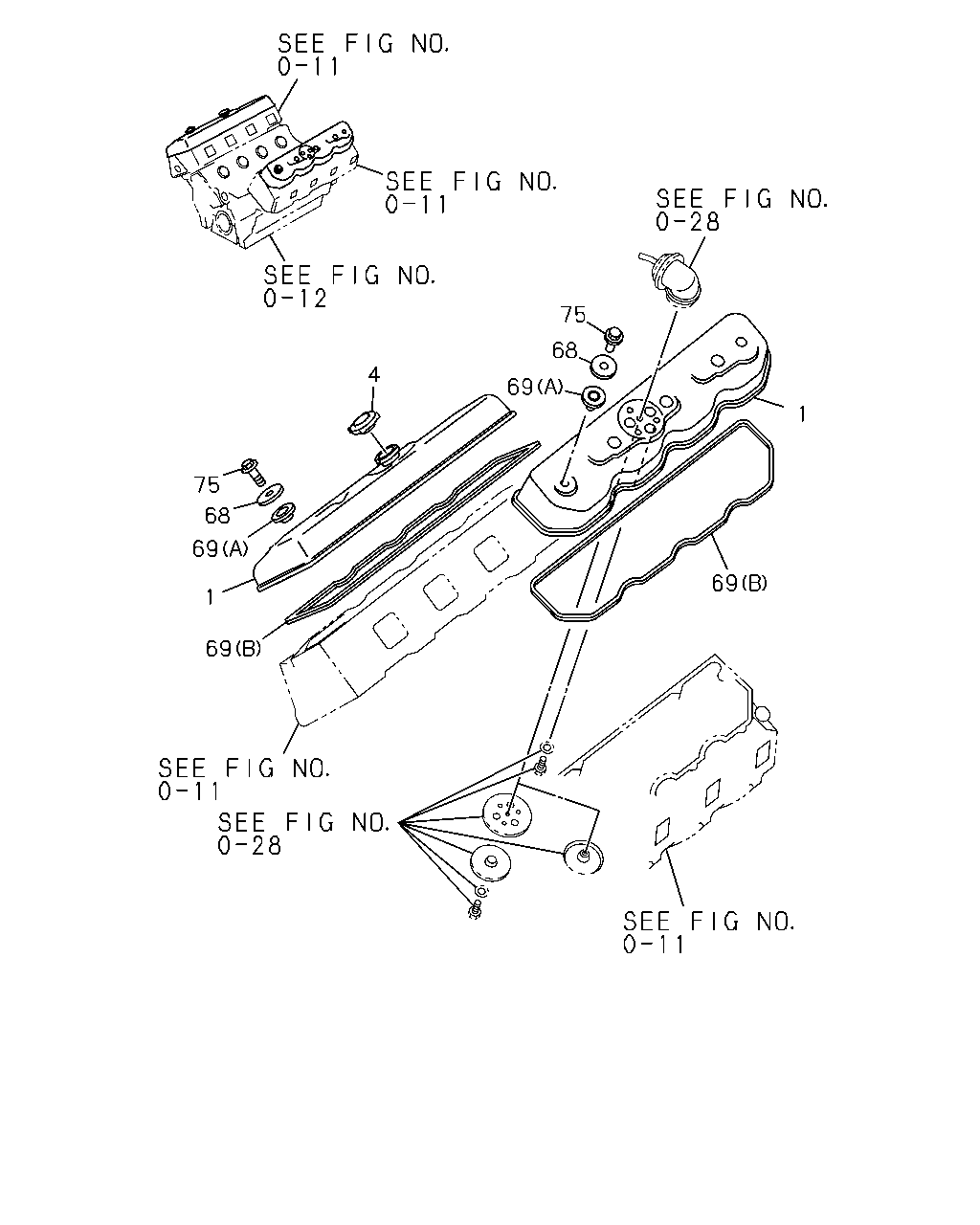

63 69 68 75 1 69 4 75 68 69 69 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COVER; CYL HD RH BANK	1-11171-344-1	01	1	9002-9410	●
1	COVER; CYL HD EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> RH BANK	1-11171-344-1	01	1	9411-9504	●
1	COVER; CYL HD LH BANK	1-11171-345-0	01	1	9002-9410	●
1	COVER; CYL HD EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> LH BANK	1-11171-345-2	01	1	9411-	●
1	COVER; CYL HD EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> RH BANK	1-11171-340-2	01	1	9411-9504	●
1	COVER; CYL HD EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> RH BANK	1-11171-340-2	01	1	9505-9506	●
1	COVER; CYL HD RH BANK	1-11171-340-2	01	1	9507-	●
1	COVER; CYL HD EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> LH BANK	1-11171-341-2	01	1	9411-	●
1	COVER; CYL HD RH BANK	1-11171-368-1	01	1	9307-9504		●
1	COVER; CYL HD RH BANK	1-11171-366-0	01	1	9505-		●
1	COVER; CYL HD LH BANK	1-11171-369-1	01	1	9307-9504		●
1	COVER; CYL HD LH BANK	1-11171-367-1	01	1	9505-		●
4	CAP; OIL FILLER	1-11750-020-0	01	1	9002-	●	●
63	WASHER; LK,BAFFLE PLATE ID=6.1	9-09150-506-0	04	1	9002-9410	●
63	WASHER; LK,BAFFLE PLATE EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> ID=6.1	9-09150-506-0	04	1	9411-	●
68	WASHER; CAP NUT,HD COVER	1-11179-048-0	10	1	9002-9410	●
68	WASHER; CAP NUT,HD COVER EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-11179-048-0	10	1	9411-	●
68	WASHER; CAP NUT,HD COVER	1-11179-048-0	08	1	9307-		●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	1-09639-031-0	10	1	9002-9410	●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (A)	1-09639-031-0	10	1	9411-	●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	1-11173-065-0	02	1	9002-9405	●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	1-11173-089-0	02	1	9406-	●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	1-09639-031-0	08	1	9307-		●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	1-11173-066-0	02	1	9307-9405		●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	1-11173-090-0	02	1	9406-		●
75	NUT; CAP,HD COVER	1-11175-008-0	10	1	9002-	●
75	NUT; CAP,HD COVER	1-11175-008-0	08	1	9307-		●

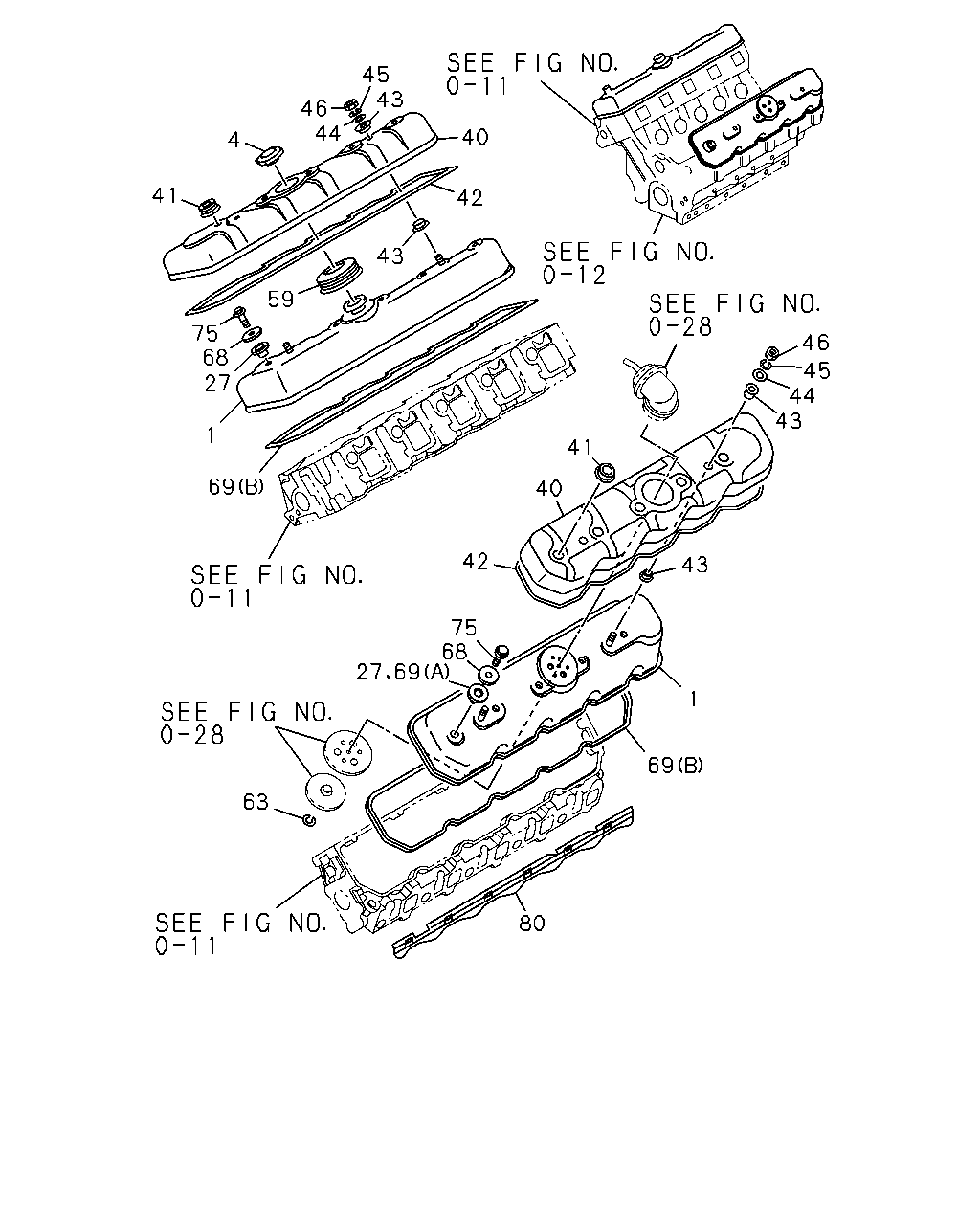

1 69 42 75 68 69 27 63 80 69 1 43 40 41 43 44 45 46 42 43 59 75 68 27 41 4 46 44 45 43 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COVER; CYL HD RH BANK	1-11171-344-1	01	1	9002-9410	●
1	COVER; CYL HD EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> RH BANK	1-11171-344-1	01	1	9411-9504	●
1	COVER; CYL HD LH BANK	1-11171-345-0	01	1	9002-9410	●
1	COVER; CYL HD EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> LH BANK	1-11171-345-2	01	1	9411-	●
1	COVER; CYL HD EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> RH BANK	1-11171-340-2	01	1	9411-9504	●
1	COVER; CYL HD EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> RH BANK	1-11171-340-2	01	1	9505-9506	●
1	COVER; CYL HD RH BANK	1-11171-340-2	01	1	9507-	●
1	COVER; CYL HD EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> LH BANK	1-11171-341-2	01	1	9411-	●
1	COVER; CYL HD RH BANK	1-11171-368-1	01	1	9307-9504		●
1	COVER; CYL HD RH BANK	1-11171-366-0	01	1	9505-		●
1	COVER; CYL HD LH BANK	1-11171-369-1	01	1	9307-9504		●
1	COVER; CYL HD LH BANK	1-11171-367-1	01	1	9505-		●
4	CAP; OIL FILLER	1-11750-020-0	01	1	9002-	●	●
27	GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-09639-031-0	10	1	9411-	●
40	COVER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> RH BANK	1-19381-202-1	01	1	9411-9504	●
40	COVER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> RH BANK	1-19381-341-0	01	1	9505-	●
40	COVER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> LH BANK	1-19381-203-2	01	1	9411-	●
41	GROMMET; HD COVER,OUTER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-19389-004-0	10	1	9411-	●
42	SEAL; RUBBER,HD COVER,OUTER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> L=1820	1-19387-007-0	02	1	9411-	●
43	RUBBER; MTG,HD COVER,OUTER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-09337-027-0	08	1	9411-	●
44	WASHER; PL,HD COVER,OUTER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> ID=8.4 OD=18	9-09160-608-0	04	1	9411-	●
45	WASHER; LK,HD COVER,OUTER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> ID=8.2	9-09150-508-0	04	1	9411-	●
46	NUT; HD COVER,OUTER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> M8	9-09110-408-0	04	1	9411-	●
59	GROMMET; OIL FILLER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-09333-071-0	01	1	9411-	●
63	WASHER; LK,BAFFLE PLATE ID=6.1	9-09150-506-0	04	1	9002-9410	●
63	WASHER; LK,BAFFLE PLATE EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> ID=6.1	9-09150-506-0	04	1	9411-	●
68	WASHER; CAP NUT,HD COVER	1-11179-048-0	10	1	9002-9410	●
68	WASHER; CAP NUT,HD COVER EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-11179-048-0	10	1	9411-	●
68	WASHER; CAP NUT,HD COVER	1-11179-048-0	08	1	9307-		●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	1-09639-031-0	10	1	9002-9410	●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (A)	1-09639-031-0	10	1	9411-	●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	1-11173-065-0	02	1	9002-9405	●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	1-11173-089-0	02	1	9406-	●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	1-09639-031-0	08	1	9307-		●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	1-11173-066-0	02	1	9307-9405		●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	1-11173-090-0	02	1	9406-		●
75	NUT; CAP,HD COVER	1-11175-008-0	10	1	9002-	●
75	NUT; CAP,HD COVER	1-11175-008-0	08	1	9307-		●
80	PROTECTOR; HEAT,SEAL RUBBER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-14181-183-1	02	1	9411-	●
