Isuzu WW
▶
TRUCKS
▶
CXZ
▶
10660 - CXZ RHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-10A - CYLINDER HEAD COVER
▶

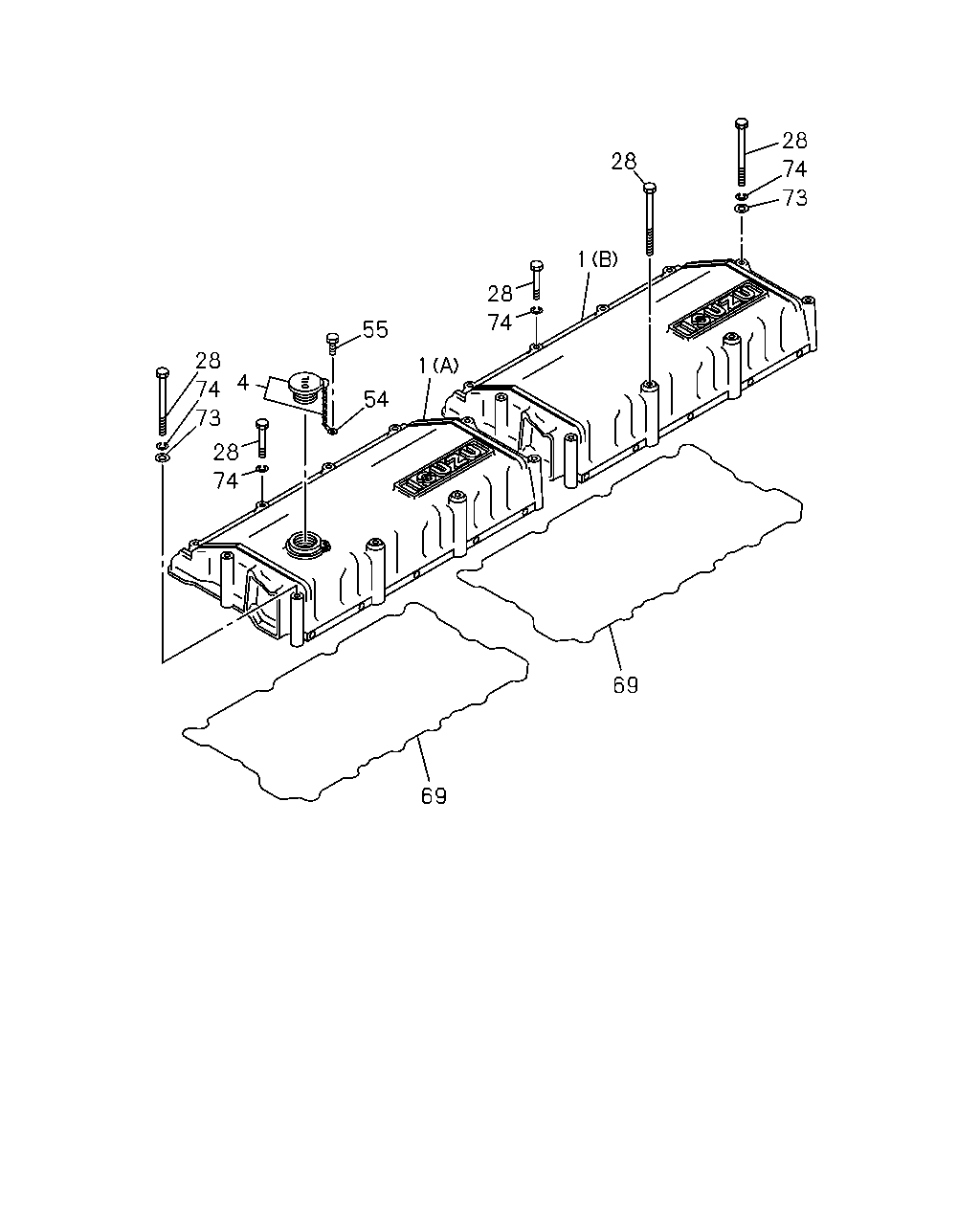

0-10A — CYLINDER HEAD COVER
(#2576) — 21 parça
Tümü
A - 6RB1 STD ENG
B - 6RA1TC ENG
C - 6RB1TC ENG
28
74
4
55
1
54
73
28
74
28
74
1
28
28
74
73
69
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
COVER; CYL HD
(B)
1-11171-086-4
01
1
9002-
●
●
●
1
COVER; CYL HD
(A)
1-11171-239-0
01
1
9002-
●
●
●
4
CAP; OIL FILLER
9-11750-050-0
01
1
9002-9303
●
●
4
CAP; OIL FILLER
EXC. AIR BREATHER<E2C>
9-11750-050-0
01
1
9002-9303
●
4
CAP; OIL FILLER
AIR BREATHER<E2C> W/WHITE MARK
1-11750-017-0
01
1
9002-9303
●
4
CAP; OIL FILLER
W/WHITE MARK
1-11750-017-0
01
1
9304-
●
●
●
28
BOLT; HD COVER
M10X100
9-01656-000-0
07
1
9002-9004
●
28
BOLT; HD COVER
M10X100
0-16806-000-0
07
1
9005-9306
●
28
BOLT; HD COVER
M10X110
9-09804-143-1
03
1
9002-9306
●
28
BOLT; HD COVER
M10X115
9-09804-203-1
02
1
9002-9306
●
28
BOLT; HD COVER
M10X50
9-01656-050-0
08
1
9002-9004
●
●
●
28
BOLT; HD COVER
M10X50
0-16806-050-0
08
1
9005-
●
●
●
28
BOLT; HD COVER
M10X100
9-01656-000-0
08
1
9002-9004
●
●
28
BOLT; HD COVER
M10X100
0-16806-000-0
08
1
9005-
●
●
28
BOLT; HD COVER
M10X110
9-09804-143-1
04
1
9002-
●
●
54
BRACKET; CHAIN HD COVER FRT
9-11759-014-0
01
1
9002-
●
●
●
55
BOLT; BRKT CHAIN FRT COVER
M8X14 W/LK WASHER
9-01900-814-0
01
1
9002-9204
●
●
●
55
BOLT; BRKT CHAIN FRT COVER
M8X14 W/LK WASHER
0-50040-814-0
01
1
9205-
●
●
●
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-11173-010-1
02
1
9002-
●
●
●
73
WASHER; PL,HD COVER
ID=10.5 OD=18
9-09160-510-0
18
1
9002-
●
●
●
74
WASHER; LK,HD COVER
ID=10.2
9-09150-510-0
20
1
9002-
●
●
●
