2-25 — SPEEDOMETER DRIVEN GEAR (#25743) — 84 parça

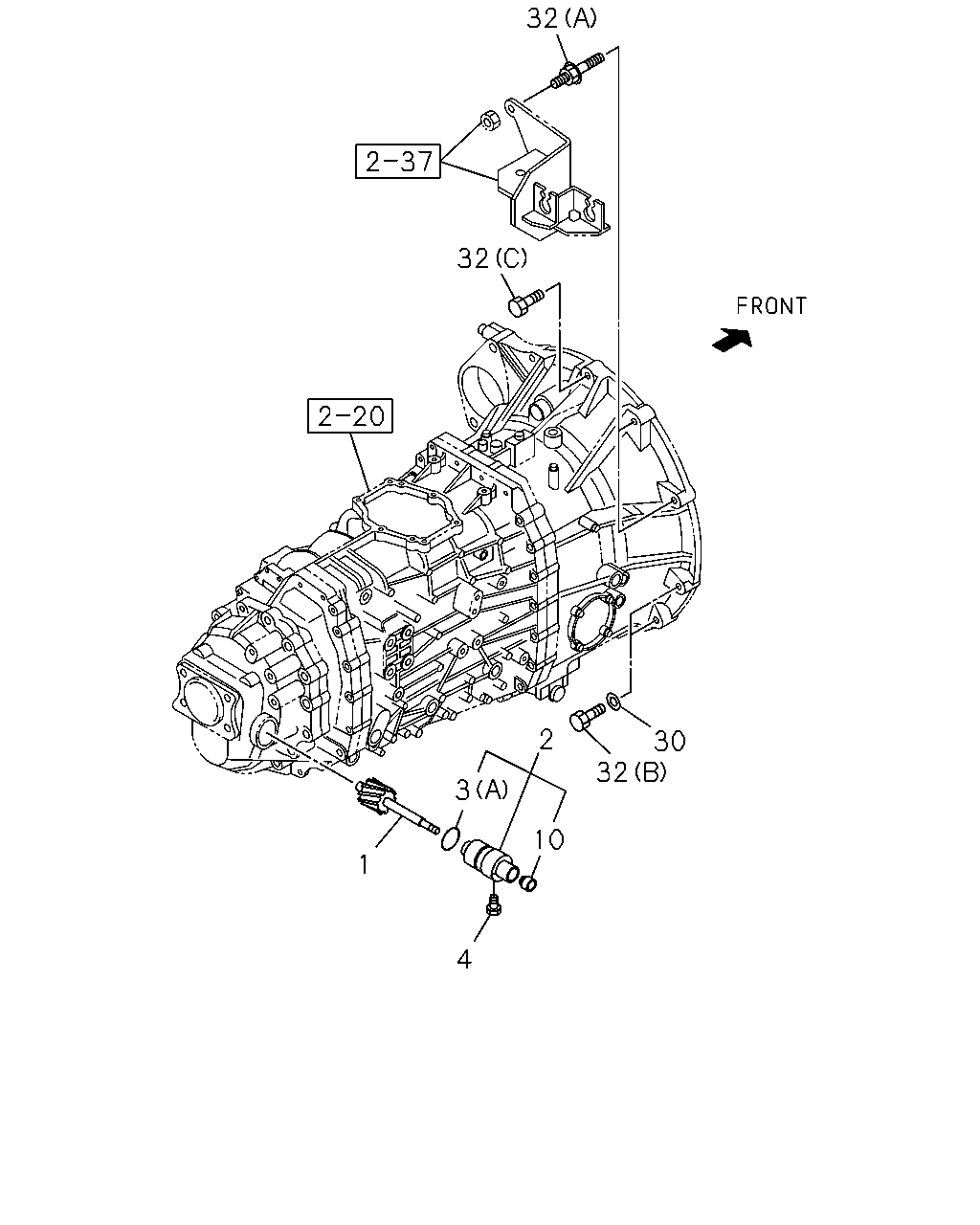

32 32 30 32 2 3 10 4 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	GEAR; DRIVEN,SPD Z=12	8-97253-563-1	01	1	1103-	●
1	GEAR; DRIVEN,SPD Z=15	1-33372-133-5	01	1	0808-0912		●
1	GEAR; DRIVEN,SPD Z=15	1-33372-133-5	01	1	1001-1102		●	●
1	GEAR; DRIVEN,SPD Z=15	1-33372-133-5	01	1	1103-			●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	1-33373-058-3	01	1	0808-1102		●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	8-98000-271-0	01	1	1001-			●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER MARK "12,13,14,15"	8-97253-125-0	01	1	1103-	●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T). (B) NOK	8-97131-328-1	01	1	1103-	●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T). (C)	9-09561-324-0	01	1	1103-	●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T). (A)	1-09623-246-0	01	1	0808-0912		●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T). (A)	1-09623-246-0	01	1	1001-1102		●	●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T). (A)	1-09623-246-0	01	1	1103-			●
4	BOLT; RET,DRIVEN GEAR M8X20 FLANGE THA	0-28650-820-0	01	1	1103-	●
4	BOLT; RET,DRIVEN GEAR M6X12.5 FLANGE THA	8-98014-141-0	01	1	1001-			●
10	SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-510-0	01	1	0808-0912		●
10	SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-510-0	01	1	1001-1102		●	●
10	SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-510-0	01	1	1103-			●
30	WASHER; PL,TRANS ID=11 OD=24	8-94152-902-0	02	1	1302-	●		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (C) M10X45 FLANGE THA	0-28151-045-0	06	1	0808-0912		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (C) M10X45 FLANGE THA	0-28151-045-0	06	1	1001-1102		●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (C) M10X45 FLANGE THA	0-28151-045-0	06	1	1103-	●		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X50 FLANGE THA	0-28151-050-0	02	1	0808-0912		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X50 FLANGE THA	0-28151-050-0	02	1	1001-1102		●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X50 FLANGE THA	0-28151-050-0	02	1	1103-1301	●		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X55 FLANGE	8-97365-449-0	02	1	1302-	●		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X20,M10X45 L=75	8-98010-335-0	02	1	0808-0912		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X20,M10X45 L=75	8-98010-335-0	02	1	1001-1102		●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X20,M10X45 L=75	8-98010-335-0	02	1	1103-	●		●

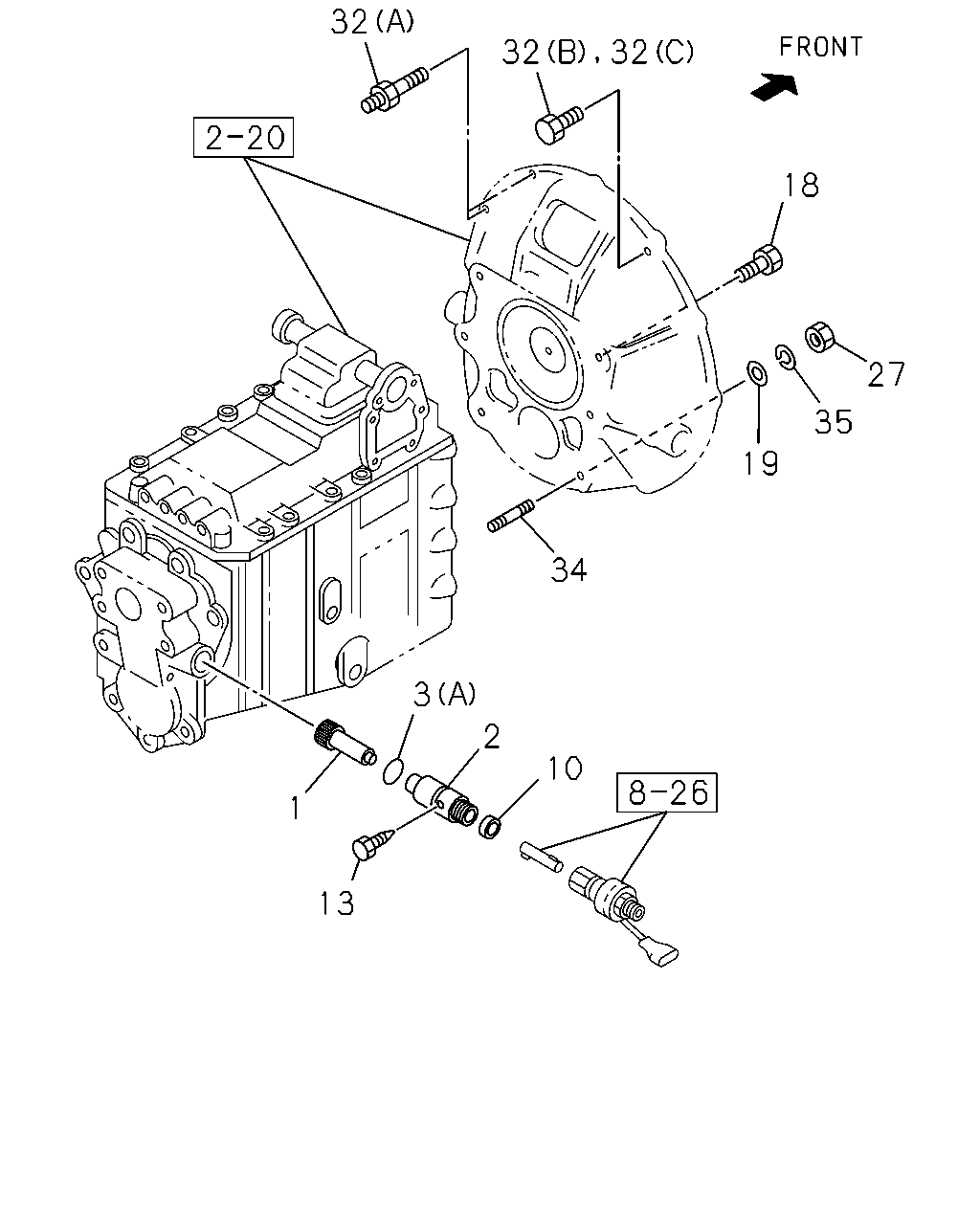

32 18 27 35 19 34 3 2 10 1 13 32 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	GEAR; DRIVEN,SPD Z=12	8-97253-563-1	01	1	1103-	●
1	GEAR; DRIVEN,SPD Z=15	1-33372-133-5	01	1	0808-0912		●
1	GEAR; DRIVEN,SPD Z=15	1-33372-133-5	01	1	1001-1102		●	●
1	GEAR; DRIVEN,SPD Z=15	1-33372-133-5	01	1	1103-			●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	1-33373-058-3	01	1	0808-1102		●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	8-98000-271-0	01	1	1001-			●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER MARK "12,13,14,15"	8-97253-125-0	01	1	1103-	●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T). (B) NOK	8-97131-328-1	01	1	1103-	●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T). (C)	9-09561-324-0	01	1	1103-	●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T). (A)	1-09623-246-0	01	1	0808-0912		●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T). (A)	1-09623-246-0	01	1	1001-1102		●	●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T). (A)	1-09623-246-0	01	1	1103-			●
10	SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-510-0	01	1	0808-0912		●
10	SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-510-0	01	1	1001-1102		●	●
10	SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-510-0	01	1	1103-			●
13	SCREW; BUSHING,DRIVEN GEAR M6X12.5 FLANGE THA	8-98014-141-0	01	1	0808-1102		●
18	BOLT; CLU HSG TO TRANS	1-09033-015-0	06	1	0808-1102		●
19	WASHER; PL,CLU HSG TO TRANS ID=17 OD=30	0-91610-516-0	02	1	0808-1102		●
27	NUT; CLU HSG TO TRANS M16 THA	0-91110-516-0	02	1	0808-1102		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (C) M10X45 FLANGE THA	0-28151-045-0	06	1	0808-0912		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (C) M10X45 FLANGE THA	0-28151-045-0	06	1	1001-1102		●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (C) M10X45 FLANGE THA	0-28151-045-0	06	1	1103-	●		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X50 FLANGE THA	0-28151-050-0	02	1	0808-0912		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X50 FLANGE THA	0-28151-050-0	02	1	1001-1102		●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X50 FLANGE THA	0-28151-050-0	02	1	1103-1301	●		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X55 FLANGE	8-97365-449-0	02	1	1302-	●		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X20,M10X45 L=75	8-98010-335-0	02	1	0808-0912		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X20,M10X45 L=75	8-98010-335-0	02	1	1001-1102		●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X20,M10X45 L=75	8-98010-335-0	02	1	1103-	●		●
34	STUD; CLU HSG M16X45 L=69	9-04411-645-0	02	1	0808-1102		●
35	WASHER; LK,CLU HSG TO TRANS ID=16.2 THA	0-91510-516-0	02	1	0808-1102		●

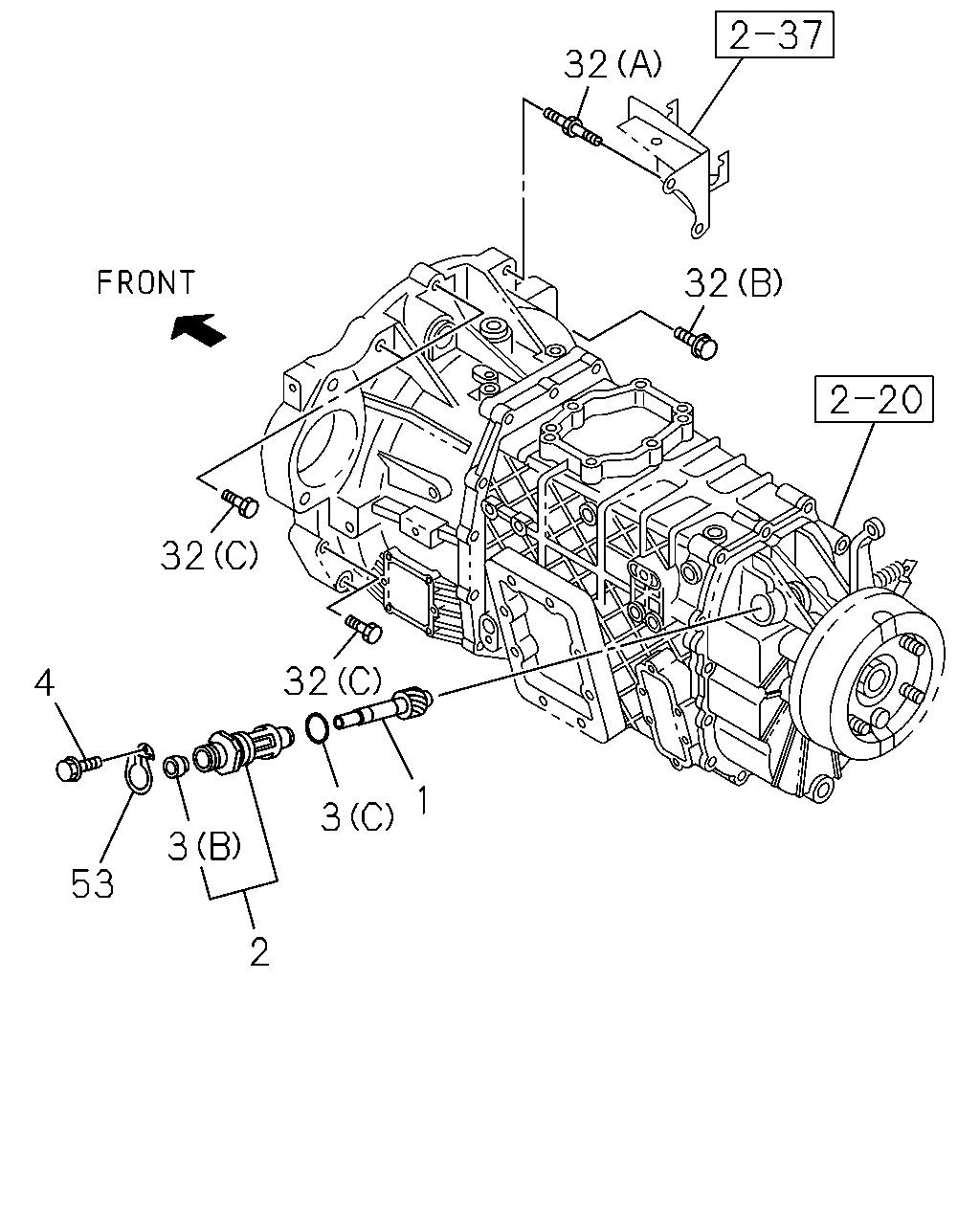

32 32 32 32 4 1 3 3 53 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	GEAR; DRIVEN,SPD Z=12	8-97253-563-1	01	1	1103-	●
1	GEAR; DRIVEN,SPD Z=15	1-33372-133-5	01	1	0808-0912		●
1	GEAR; DRIVEN,SPD Z=15	1-33372-133-5	01	1	1001-1102		●	●
1	GEAR; DRIVEN,SPD Z=15	1-33372-133-5	01	1	1103-			●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	1-33373-058-3	01	1	0808-1102		●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	8-98000-271-0	01	1	1001-			●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER MARK "12,13,14,15"	8-97253-125-0	01	1	1103-	●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T). (B) NOK	8-97131-328-1	01	1	1103-	●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T). (C)	9-09561-324-0	01	1	1103-	●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T). (A)	1-09623-246-0	01	1	0808-0912		●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T). (A)	1-09623-246-0	01	1	1001-1102		●	●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T). (A)	1-09623-246-0	01	1	1103-			●
4	BOLT; RET,DRIVEN GEAR M8X20 FLANGE THA	0-28650-820-0	01	1	1103-	●
4	BOLT; RET,DRIVEN GEAR M6X12.5 FLANGE THA	8-98014-141-0	01	1	1001-			●
32	BOLT; CLU HSG TO FLYWHEEL HSG (C) M10X45 FLANGE THA	0-28151-045-0	06	1	0808-0912		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (C) M10X45 FLANGE THA	0-28151-045-0	06	1	1001-1102		●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (C) M10X45 FLANGE THA	0-28151-045-0	06	1	1103-	●		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X50 FLANGE THA	0-28151-050-0	02	1	0808-0912		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X50 FLANGE THA	0-28151-050-0	02	1	1001-1102		●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X50 FLANGE THA	0-28151-050-0	02	1	1103-1301	●		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X55 FLANGE	8-97365-449-0	02	1	1302-	●		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X20,M10X45 L=75	8-98010-335-0	02	1	0808-0912		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X20,M10X45 L=75	8-98010-335-0	02	1	1001-1102		●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X20,M10X45 L=75	8-98010-335-0	02	1	1103-	●		●
53	PLATE; LOCK,DRIVEN GEAR	8-98046-217-0	01	1	1103-	●
