Sayfa 2-20 - Isuzu EPC

2-20 — MANUAL TRANSMISSION ASM AND CASE (#25742) — 264 parça

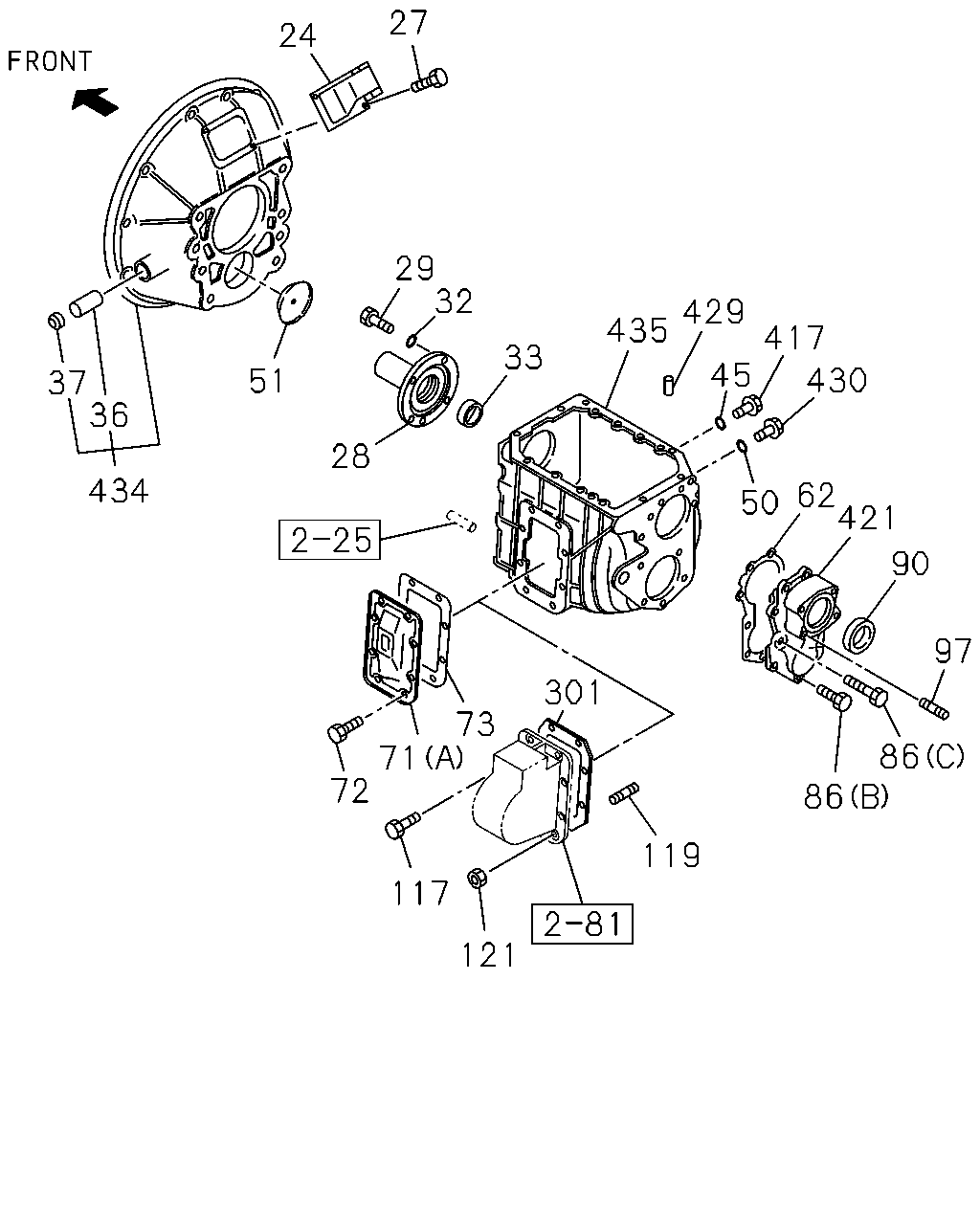

27 24 29 32 429 435 417 45 33 430 51 37 36 28 434 62 421 50 90 97 301 73 86 86 71 72 119 117 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	0808-0912	●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	1001-1102	●	●
24	COVER; CHECK HOLE,DUST	8-98284-107-0	01	1	1411-		●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	1103-1410		●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE THA	0-28050-816-0	02	1	0808-1102	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE THA	0-28050-812-0	02	1	1001-1102		●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE THA	0-28050-816-0	02	1	1411-		●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE THA	0-28050-812-0	02	1	1103-1410		●	●
28	COVER; FRT,TRANS CASE	1-33121-108-1	01	1	0808-1102	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	8-97365-375-0	04	1	0808-1102	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	0808-1102	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-497-0	01	1	0808-1102	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97377-947-0	01	1	1001-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97253-550-0	01	1	1103-			●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	0808-1102	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	0808-1102	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0808-1102	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1001-1102		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1103-		●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0808-1102	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1001-1102		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	1405-		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1103-1404		●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1405-			●
51	COVER; SEAL,COUNTER,FRT	1-33319-107-1	01	1	0808-1102	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-045-2	01	1	0808-1102	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> (A)	1-33141-033-0	01	1	0808-1102	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> (C)	8-97252-624-2	01	1	1103-			●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> (B)	8-98122-318-0	01	1	1001-		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> (B)	8-98270-265-1	01	1	1409-		●
72	BOLT; SIDE COVER M10X16 FLANGE THA	0-28151-016-0	08	1	0808-1102	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X50 FLANGE	1-09044-081-0	08	1	1001-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X20 FLANGE	8-98014-142-0	08	1	1103-			●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-33142-036-0	01	1	0808-1102	●
86	BOLT; RR COVER (C) M17X35	1-09044-076-0	08	1	0808-1102	●
86	BOLT; RR COVER (B) M12X60	1-09044-084-0	01	1	0808-1102	●
86	BOLT; RR COVER (A) M10X40 FLANGE	8-98045-397-0	14	1	1001-		●
86	BOLT; RR COVER (D) M10X40 FLANGE	0-28151-040-0	10	1	1103-			●
86	BOLT; RR COVER (E) M10X40 FLANGE	8-97365-377-0	02	1	1103-			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97253-551-1	01	1	1103-			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	1001-1102	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	0808-0912	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	1103-1103		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97377-948-0	01	1	1104-		●
97	STUD; PARKING BRK M14X22 WO/DRY-ROCK	8-98014-137-0	03	1	0808-1102	●
97	STUD; PARKING BRK M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0808-1102	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X28 FLANGE	8-98044-944-0	06	1	0808-1102	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X28 FLANGE	8-98044-944-0	06	1	1103-			●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X40 FLANGE	0-28151-040-0	02	1	1001-		●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X30 L=45	0-44011-030-0	02	1	0808-1102	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X25 L=40 THA	0-44011-025-0	02	1	1103-			●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X35 L=50	0-44011-035-0	06	1	1001-		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10 FLANGE THA	0-91180-210-0	06	1	1001-		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10 FLANGE THA	0-91180-210-0	02	1	0808-1102	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10 FLANGE THA	0-91180-210-0	02	1	1103-			●
301	PLATE; DIST,PTO TO TRANS TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-38119-037-0	01	1	0808-1102	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	0808-1102	●
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	1001-1102		●
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	1103-		●	●
421	COVER; RR,TRANS	1-33131-177-1	01	1	0808-1102	●
421	COVER; RR,TRANS	8-98051-477-0	01	1	1001-		●
421	COVER; RR,TRANS	8-98186-773-0	01	1	1103-1109			●
421	COVER; RR,TRANS	8-97238-934-5	01	1	1110-			●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	0808-1102	●
429	PIN; STRAIGHT OD=10 L=20	8-97135-423-0	02	1	1103-			●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0808-1102	●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1001-1102		●
430	PLUG; OIL DRAIN	8-97365-374-0	02	1	1405-		●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1103-1404		●	●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1405-			●
434	HOUSING; CLU	8-98114-530-2	01	1	0808-1102	●
434	HOUSING; CLU	8-98004-507-2	01	1	1001-		●
434	HOUSING; CLU	8-97382-931-1	01	1	1103-			●
435	CASE; TRANS	8-98113-243-0	01	1	0808-1102	●
435	CASE; TRANS	8-98123-098-1	01	1	1001-1108		●
435	CASE; TRANS	8-98186-449-0	01	1	1109-1404		●
435	CASE; TRANS	8-98236-421-1	01	1	1405-		●
435	CASE; TRANS	8-97382-868-1	01	1	1103-			●

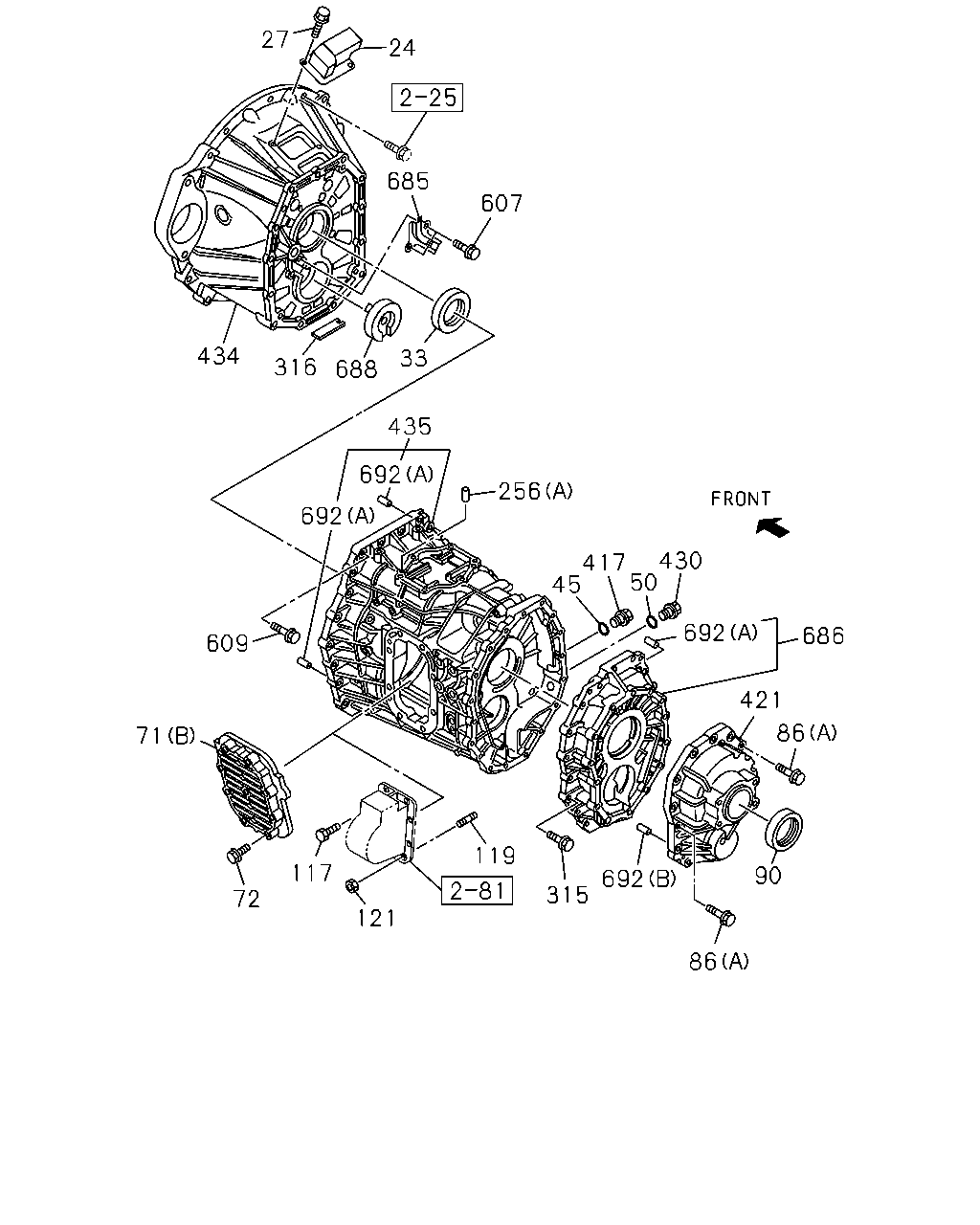

27 24 685 607 434 33 316 688 435 692 256 692 45 50 692 686 609 421 86 71 692 119 117 90 315 72 121 86 417 430

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	0808-0912	●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	1001-1102	●	●
24	COVER; CHECK HOLE,DUST	8-98284-107-0	01	1	1411-		●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	1103-1410		●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE THA	0-28050-816-0	02	1	0808-1102	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE THA	0-28050-812-0	02	1	1001-1102		●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE THA	0-28050-816-0	02	1	1411-		●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE THA	0-28050-812-0	02	1	1103-1410		●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-497-0	01	1	0808-1102	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97377-947-0	01	1	1001-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97253-550-0	01	1	1103-			●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0808-1102	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1001-1102		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1103-		●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0808-1102	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1001-1102		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	1405-		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1103-1404		●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1405-			●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> (A)	1-33141-033-0	01	1	0808-1102	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> (C)	8-97252-624-2	01	1	1103-			●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> (B)	8-98122-318-0	01	1	1001-		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> (B)	8-98270-265-1	01	1	1409-		●
72	BOLT; SIDE COVER M10X16 FLANGE THA	0-28151-016-0	08	1	0808-1102	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X50 FLANGE	1-09044-081-0	08	1	1001-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X20 FLANGE	8-98014-142-0	08	1	1103-			●
86	BOLT; RR COVER (C) M17X35	1-09044-076-0	08	1	0808-1102	●
86	BOLT; RR COVER (B) M12X60	1-09044-084-0	01	1	0808-1102	●
86	BOLT; RR COVER (A) M10X40 FLANGE	8-98045-397-0	14	1	1001-		●
86	BOLT; RR COVER (D) M10X40 FLANGE	0-28151-040-0	10	1	1103-			●
86	BOLT; RR COVER (E) M10X40 FLANGE	8-97365-377-0	02	1	1103-			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97253-551-1	01	1	1103-			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	1001-1102	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	0808-0912	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	1103-1103		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97377-948-0	01	1	1104-		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X28 FLANGE	8-98044-944-0	06	1	0808-1102	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X28 FLANGE	8-98044-944-0	06	1	1103-			●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X40 FLANGE	0-28151-040-0	02	1	1001-		●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X30 L=45	0-44011-030-0	02	1	0808-1102	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X25 L=40 THA	0-44011-025-0	02	1	1103-			●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X35 L=50	0-44011-035-0	06	1	1001-		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10 FLANGE THA	0-91180-210-0	06	1	1001-		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10 FLANGE THA	0-91180-210-0	02	1	0808-1102	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10 FLANGE THA	0-91180-210-0	02	1	1103-			●
256	PIN; KNOCK (B) OD=10 L=20	8-97135-423-0	02	1	1103-			●
256	PIN; KNOCK (C) ID=6 L=12 THA	9-08160-612-0	02	1	1103-			●
256	PIN; KNOCK (A) OD=6 L=12	9-08150-612-0	02	1	1001-		●
315	BOLT; CASE M8X40 FLANGE THA	0-28050-840-0	18	1	1001-		●
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	1001-1102		●
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	1103-		●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	0808-1102	●
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	1001-1102		●
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	1103-		●	●
421	COVER; RR,TRANS	1-33131-177-1	01	1	0808-1102	●
421	COVER; RR,TRANS	8-98051-477-0	01	1	1001-		●
421	COVER; RR,TRANS	8-98186-773-0	01	1	1103-1109			●
421	COVER; RR,TRANS	8-97238-934-5	01	1	1110-			●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0808-1102	●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1001-1102		●
430	PLUG; OIL DRAIN	8-97365-374-0	02	1	1405-		●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1103-1404		●	●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1405-			●
434	HOUSING; CLU	8-98114-530-2	01	1	0808-1102	●
434	HOUSING; CLU	8-98004-507-2	01	1	1001-		●
434	HOUSING; CLU	8-97382-931-1	01	1	1103-			●
435	CASE; TRANS	8-98113-243-0	01	1	0808-1102	●
435	CASE; TRANS	8-98123-098-1	01	1	1001-1108		●
435	CASE; TRANS	8-98186-449-0	01	1	1109-1404		●
435	CASE; TRANS	8-98236-421-1	01	1	1405-		●
435	CASE; TRANS	8-97382-868-1	01	1	1103-			●
607	BOLT; COVER M8X16 FLANGE THA	0-28050-816-0	02	1	1001-		●
609	BOLT; HSG TO CASE M10X40 FLANGE	0-28151-040-0	13	1	1103-			●
609	BOLT; HSG TO CASE M8X40 FLANGE THA	0-28050-840-0	22	1	1001-		●
685	COVER; OIL PORT	8-98018-864-1	01	1	1001-		●
686	CASE; RR,TRANS	8-97388-873-1	01	1	1001-		●
688	NOZZLE; OIL,COUNTER	8-98007-741-0	01	1	1001-1110		●
688	NOZZLE; OIL,COUNTER	8-98202-402-0	01	1	1111-1508		●
688	NOZZLE; OIL,COUNTER	8-98309-860-0	01	1	1509-		●
692	PIN; DOWEL (A) OD=11 L=8	9-11229-058-1	04	1	1001-		●
692	PIN; DOWEL (B) OD=14 L=10	9-11319-065-3	02	1	1001-		●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

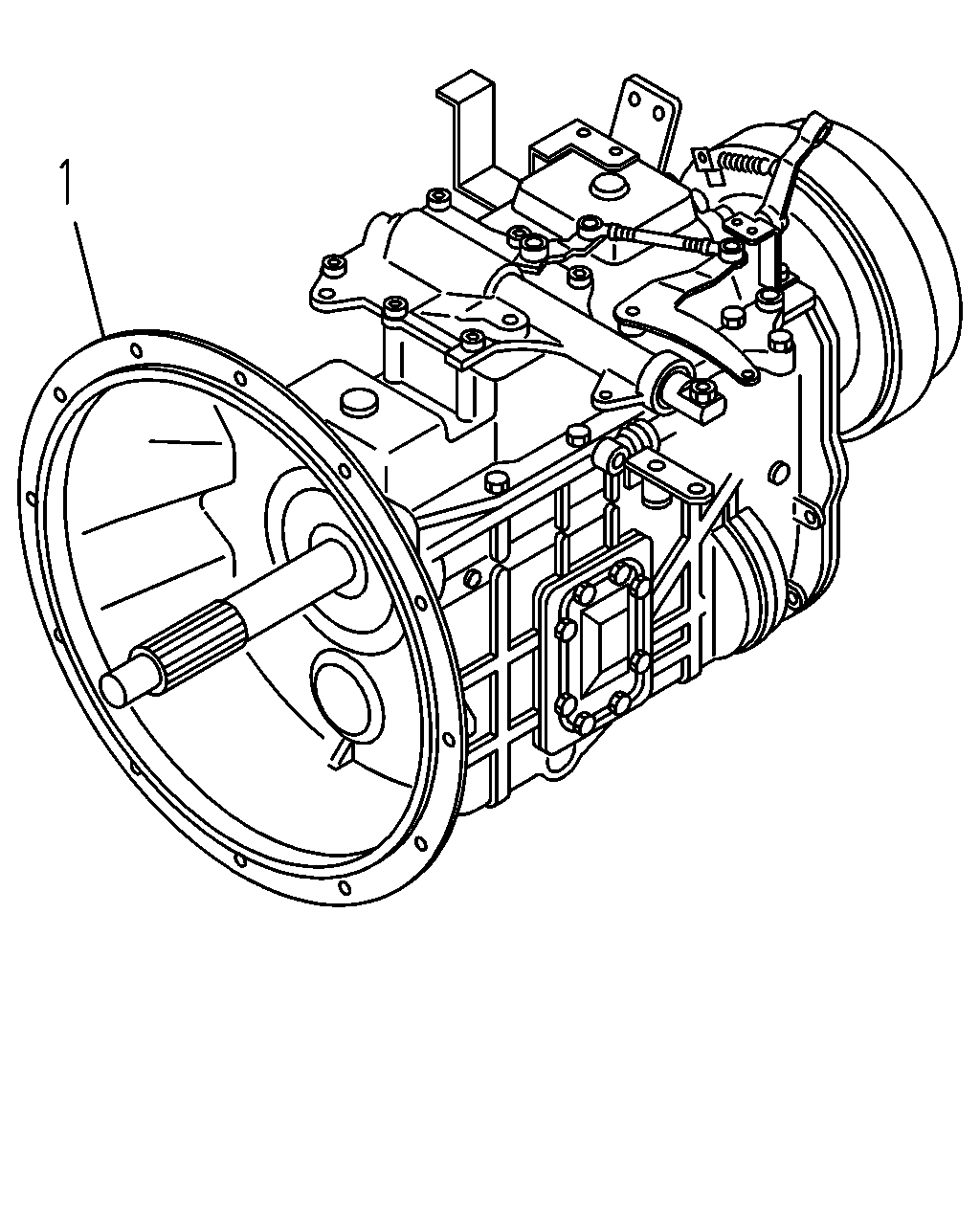

1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-33044-354-0	01	1	0808-1102	●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98171-396-0	01	1	1103-			●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-33044-354-0	01	1	0808-1102	●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98171-396-0	01	1	1103-			●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER<SH5> THA	8-98147-578-0	01	1	1001-		●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> THA	8-97924-935-0	01	1	1001-		●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

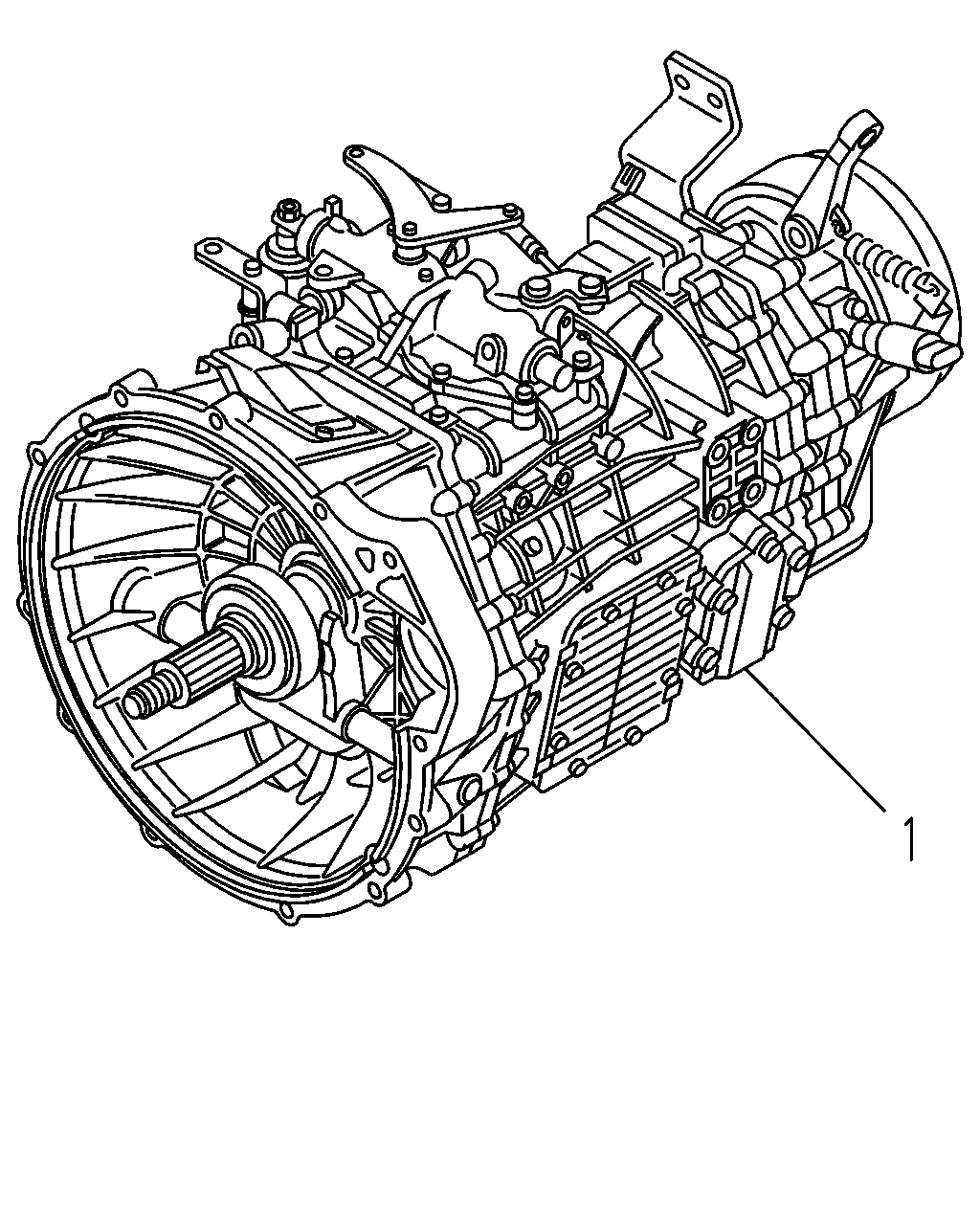

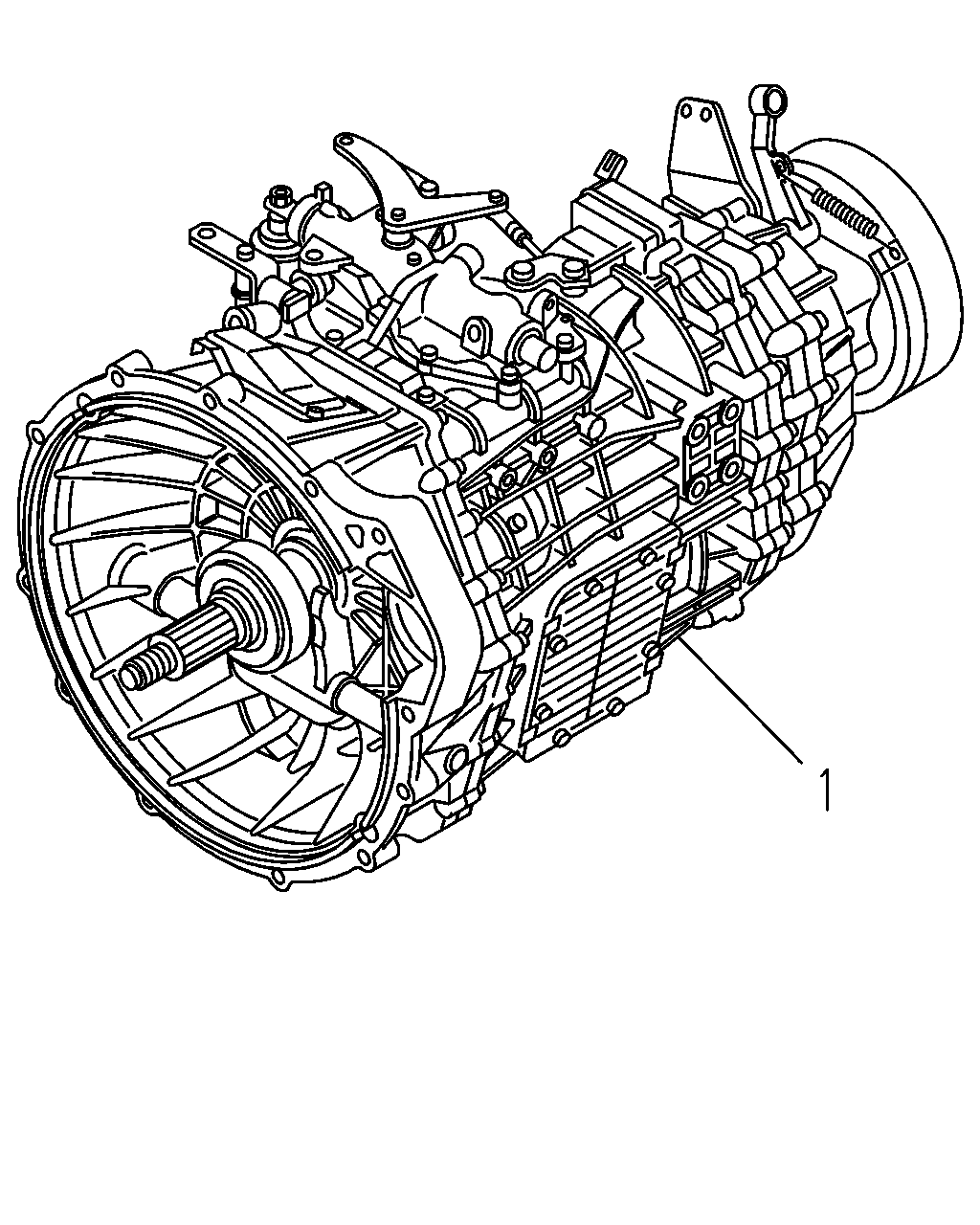

1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-33044-354-0	01	1	0808-1102	●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98171-396-0	01	1	1103-			●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-33044-354-0	01	1	0808-1102	●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98171-396-0	01	1	1103-			●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER<SH5> THA	8-98147-578-0	01	1	1001-		●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> THA	8-97924-935-0	01	1	1001-		●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-33044-354-0	01	1	0808-1102	●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98171-396-0	01	1	1103-			●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-33044-354-0	01	1	0808-1102	●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98171-396-0	01	1	1103-			●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER<SH5> THA	8-98147-578-0	01	1	1001-		●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> THA	8-97924-935-0	01	1	1001-		●

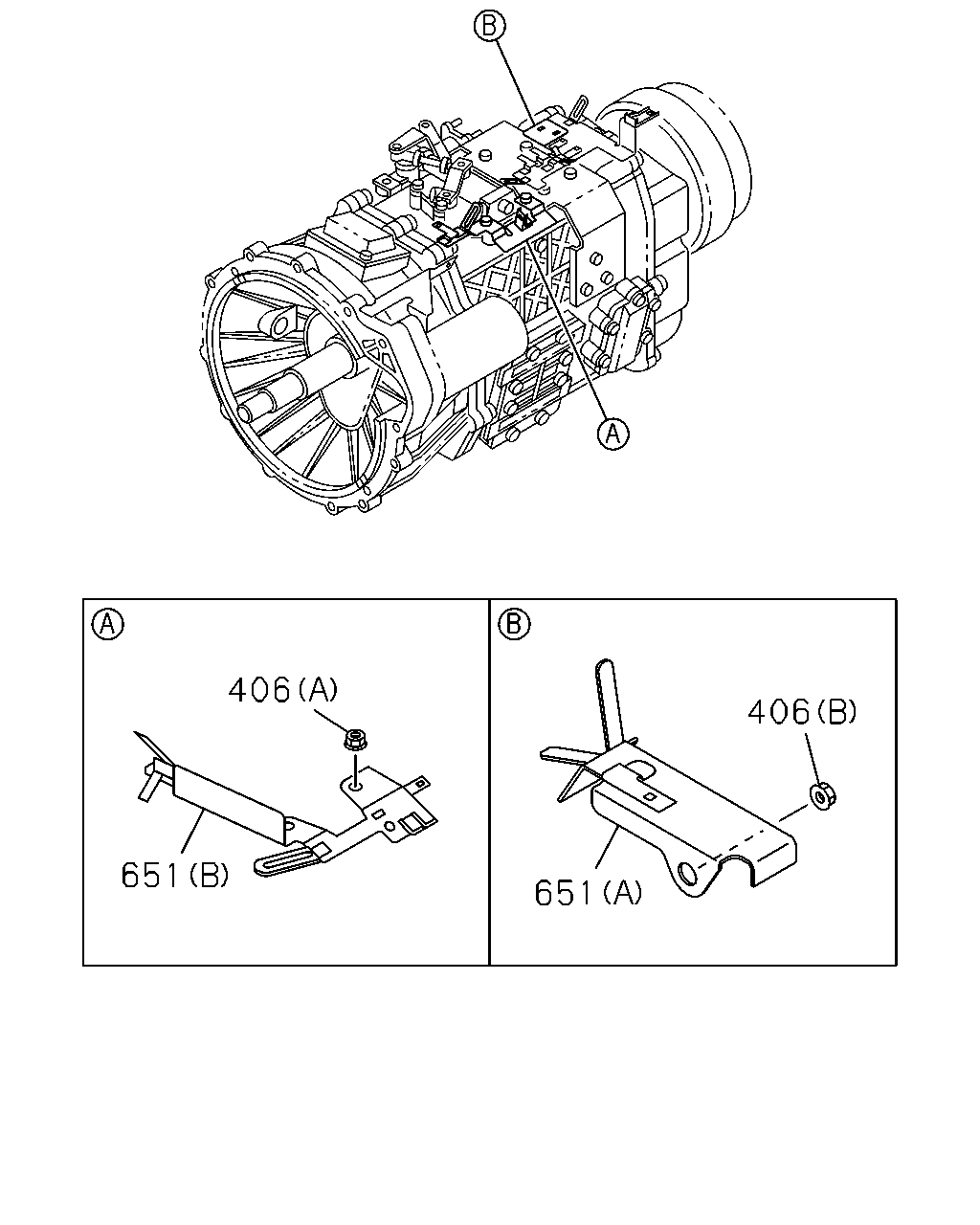

406 406 651 651

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C
406	NUT; BRKT (B) M10 FLANGE THA	0-91180-210-0	01	1	1103-		●
406	NUT; BRKT (A) M8 FLANGE THA	0-91180-108-0	02	1	1001-1102	●
406	NUT; BRKT (A) M8 FLANGE THA	0-91180-108-0	02	1	1103-	●	●
651	BRACKET; T/M HARNESS (A)	8-98044-568-1	01	1	1103-		●
651	BRACKET; T/M HARNESS (B)	8-97609-800-2	01	1	1001-1102	●
651	BRACKET; T/M HARNESS (B)	8-97609-800-3	01	1	1103-	●	●

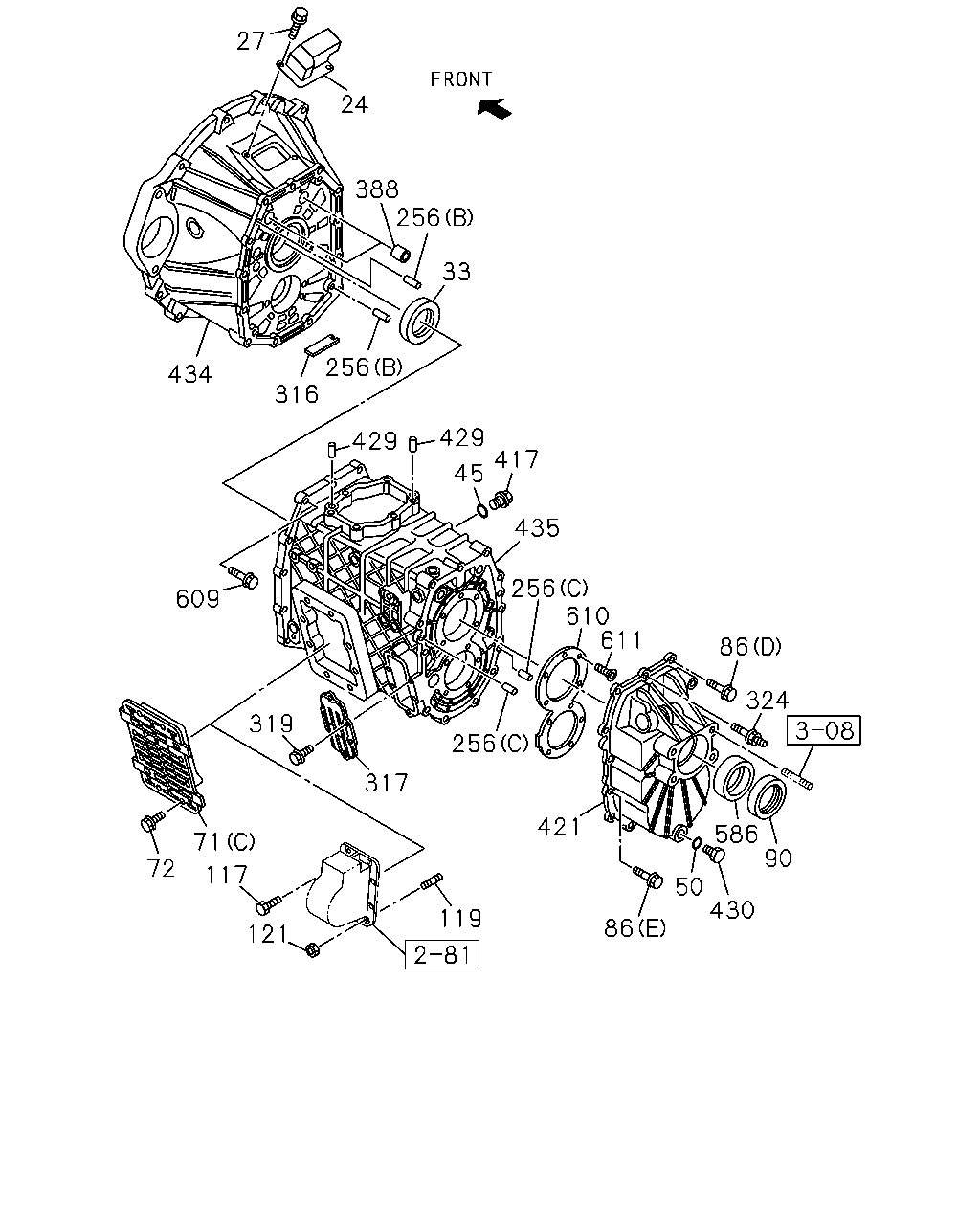

27 24 388 256 33 256 316 434 429 417 45 429 435 256 610 611 609 86 256 324 319 317 421 586 90 71 72 117 50 430 119 86 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	0808-0912	●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	1001-1102	●	●
24	COVER; CHECK HOLE,DUST	8-98284-107-0	01	1	1411-		●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	1103-1410		●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE THA	0-28050-816-0	02	1	0808-1102	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE THA	0-28050-812-0	02	1	1001-1102		●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE THA	0-28050-816-0	02	1	1411-		●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE THA	0-28050-812-0	02	1	1103-1410		●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-497-0	01	1	0808-1102	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97377-947-0	01	1	1001-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97253-550-0	01	1	1103-			●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0808-1102	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1001-1102		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1103-		●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0808-1102	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1001-1102		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	1405-		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1103-1404		●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1405-			●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> (A)	1-33141-033-0	01	1	0808-1102	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> (C)	8-97252-624-2	01	1	1103-			●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> (B)	8-98122-318-0	01	1	1001-		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> (B)	8-98270-265-1	01	1	1409-		●
72	BOLT; SIDE COVER M10X16 FLANGE THA	0-28151-016-0	08	1	0808-1102	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X50 FLANGE	1-09044-081-0	08	1	1001-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X20 FLANGE	8-98014-142-0	08	1	1103-			●
86	BOLT; RR COVER (C) M17X35	1-09044-076-0	08	1	0808-1102	●
86	BOLT; RR COVER (B) M12X60	1-09044-084-0	01	1	0808-1102	●
86	BOLT; RR COVER (A) M10X40 FLANGE	8-98045-397-0	14	1	1001-		●
86	BOLT; RR COVER (D) M10X40 FLANGE	0-28151-040-0	10	1	1103-			●
86	BOLT; RR COVER (E) M10X40 FLANGE	8-97365-377-0	02	1	1103-			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97253-551-1	01	1	1103-			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	1001-1102	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	0808-0912	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	1103-1103		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97377-948-0	01	1	1104-		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X28 FLANGE	8-98044-944-0	06	1	0808-1102	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X28 FLANGE	8-98044-944-0	06	1	1103-			●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X40 FLANGE	0-28151-040-0	02	1	1001-		●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X30 L=45	0-44011-030-0	02	1	0808-1102	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X25 L=40 THA	0-44011-025-0	02	1	1103-			●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X35 L=50	0-44011-035-0	06	1	1001-		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10 FLANGE THA	0-91180-210-0	06	1	1001-		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10 FLANGE THA	0-91180-210-0	02	1	0808-1102	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10 FLANGE THA	0-91180-210-0	02	1	1103-			●
256	PIN; KNOCK (B) OD=10 L=20	8-97135-423-0	02	1	1103-			●
256	PIN; KNOCK (C) ID=6 L=12 THA	9-08160-612-0	02	1	1103-			●
256	PIN; KNOCK (A) OD=6 L=12	9-08150-612-0	02	1	1001-		●
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	1001-1102		●
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	1103-		●	●
317	COVER; CASE	8-97252-626-0	01	1	1103-			●
319	BOLT; COVER M8X20 FLANGE THA	0-28050-820-0	06	1	1103-			●
324	STUD; RR COVER M10X15,M10X40 L=65	8-97365-379-0	01	1	1103-			●
388	BUSHING; CLU HSG	8-97241-326-2	02	1	1103-			●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	0808-1102	●
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	1001-1102		●
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	1103-		●	●
421	COVER; RR,TRANS	1-33131-177-1	01	1	0808-1102	●
421	COVER; RR,TRANS	8-98051-477-0	01	1	1001-		●
421	COVER; RR,TRANS	8-98186-773-0	01	1	1103-1109			●
421	COVER; RR,TRANS	8-97238-934-5	01	1	1110-			●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	0808-1102	●
429	PIN; STRAIGHT OD=10 L=20	8-97135-423-0	02	1	1103-			●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0808-1102	●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1001-1102		●
430	PLUG; OIL DRAIN	8-97365-374-0	02	1	1405-		●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1103-1404		●	●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1405-			●
434	HOUSING; CLU	8-98114-530-2	01	1	0808-1102	●
434	HOUSING; CLU	8-98004-507-2	01	1	1001-		●
434	HOUSING; CLU	8-97382-931-1	01	1	1103-			●
435	CASE; TRANS	8-98113-243-0	01	1	0808-1102	●
435	CASE; TRANS	8-98123-098-1	01	1	1001-1108		●
435	CASE; TRANS	8-98186-449-0	01	1	1109-1404		●
435	CASE; TRANS	8-98236-421-1	01	1	1405-		●
435	CASE; TRANS	8-97382-868-1	01	1	1103-			●
586	BEARING; NEEDLE	8-97253-108-0	01	1	1103-			●
609	BOLT; HSG TO CASE M10X40 FLANGE	0-28151-040-0	13	1	1103-			●
609	BOLT; HSG TO CASE M8X40 FLANGE THA	0-28050-840-0	22	1	1001-		●
610	RETAINER; BRG	8-97241-314-2	01	1	1103-			●
611	SCREW M10X27 TORQUES	8-97365-354-0	10	1	1103-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
