◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11122 - FRR THAILAND ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-10 - REPAIR KIT; TRANSMISSION OVERHAUL ▶
2-10 — REPAIR KIT; TRANSMISSION OVERHAUL (#25741) — 15 parça

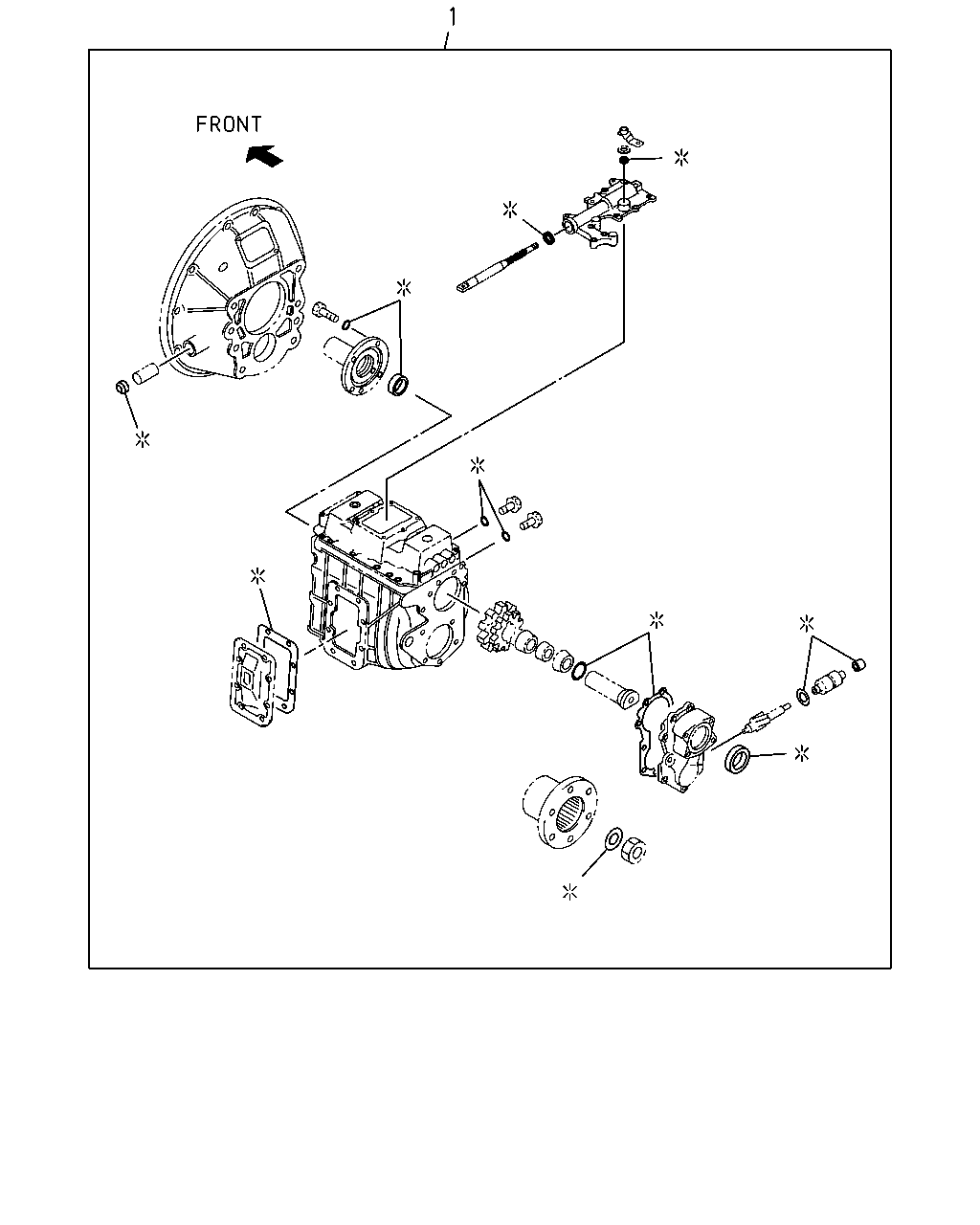

çizim 142790
1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 GASKET SET; TRANS OVERHAUL 1-87831-372-0 01 1 0808-1102 ●
1 GASKET SET; TRANS OVERHAUL 5-87832-242-0 01 1 1001-1001 ●
1 GASKET SET; TRANS OVERHAUL 5-87832-236-0 01 1 1001-1404 ●
1 GASKET SET; TRANS OVERHAUL 5-87832-334-0 01 1 1405- ●
1 GASKET SET; TRANS OVERHAUL 5-87832-126-1 01 1 1103- ●

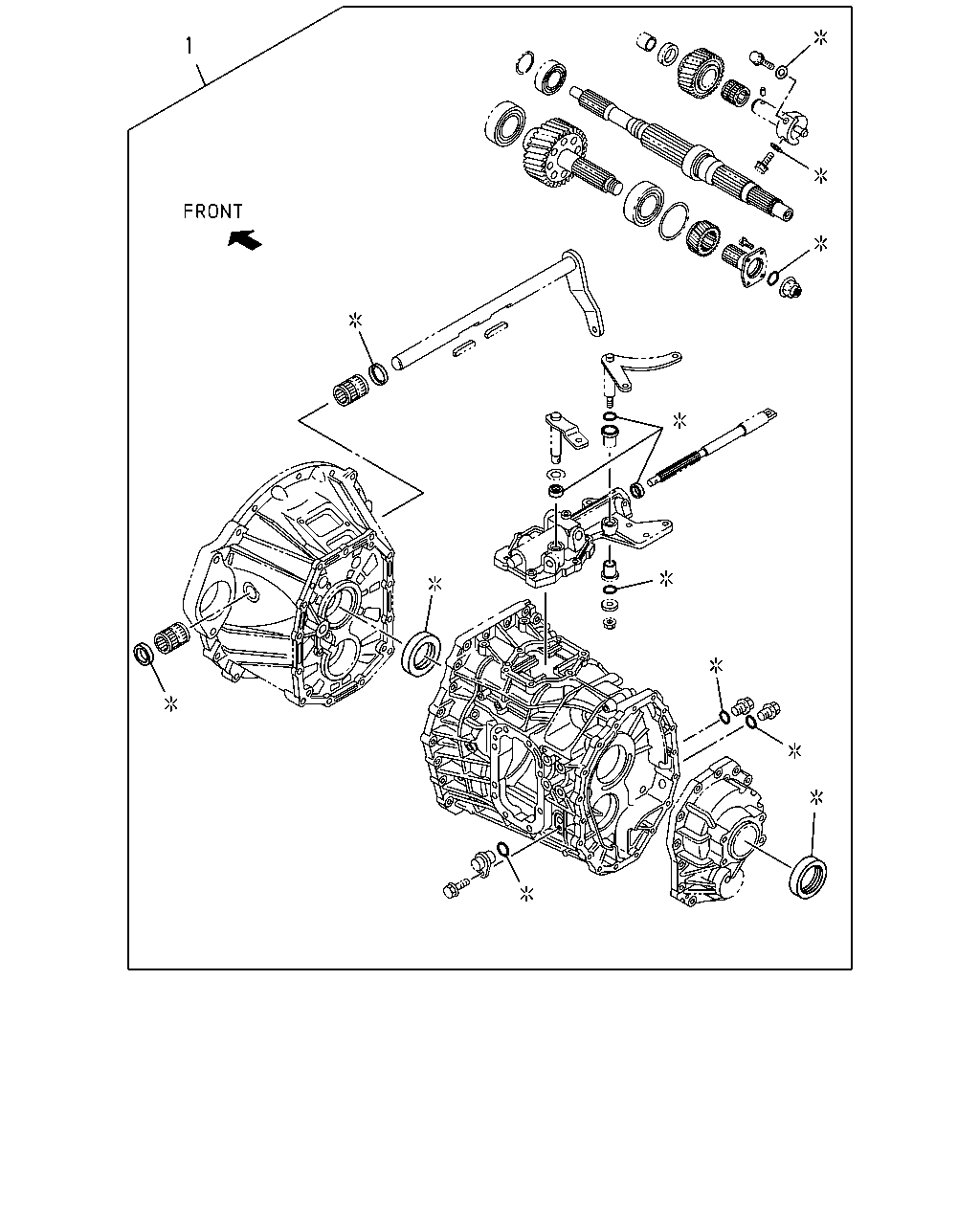

çizim 142792
1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 GASKET SET; TRANS OVERHAUL 1-87831-372-0 01 1 0808-1102 ●
1 GASKET SET; TRANS OVERHAUL 5-87832-242-0 01 1 1001-1001 ●
1 GASKET SET; TRANS OVERHAUL 5-87832-236-0 01 1 1001-1404 ●
1 GASKET SET; TRANS OVERHAUL 5-87832-334-0 01 1 1405- ●
1 GASKET SET; TRANS OVERHAUL 5-87832-126-1 01 1 1103- ●

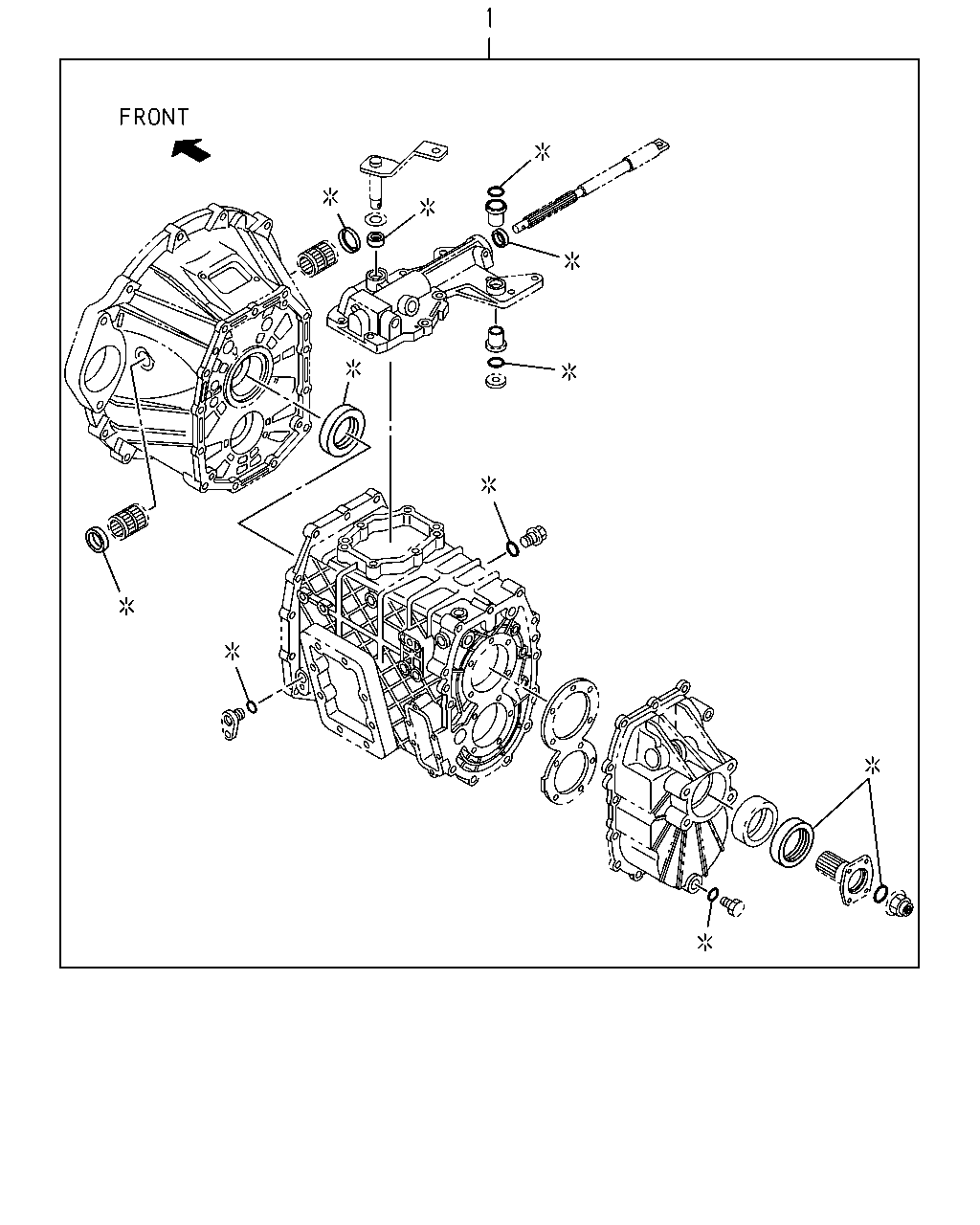

çizim 143002
1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 GASKET SET; TRANS OVERHAUL 1-87831-372-0 01 1 0808-1102 ●
1 GASKET SET; TRANS OVERHAUL 5-87832-242-0 01 1 1001-1001 ●
1 GASKET SET; TRANS OVERHAUL 5-87832-236-0 01 1 1001-1404 ●
1 GASKET SET; TRANS OVERHAUL 5-87832-334-0 01 1 1405- ●
1 GASKET SET; TRANS OVERHAUL 5-87832-126-1 01 1 1103- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
