◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11122 - FRR THAILAND ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-05 - CLUTCH PIPING ▶
2-05 — CLUTCH PIPING (#25738) — 51 parça

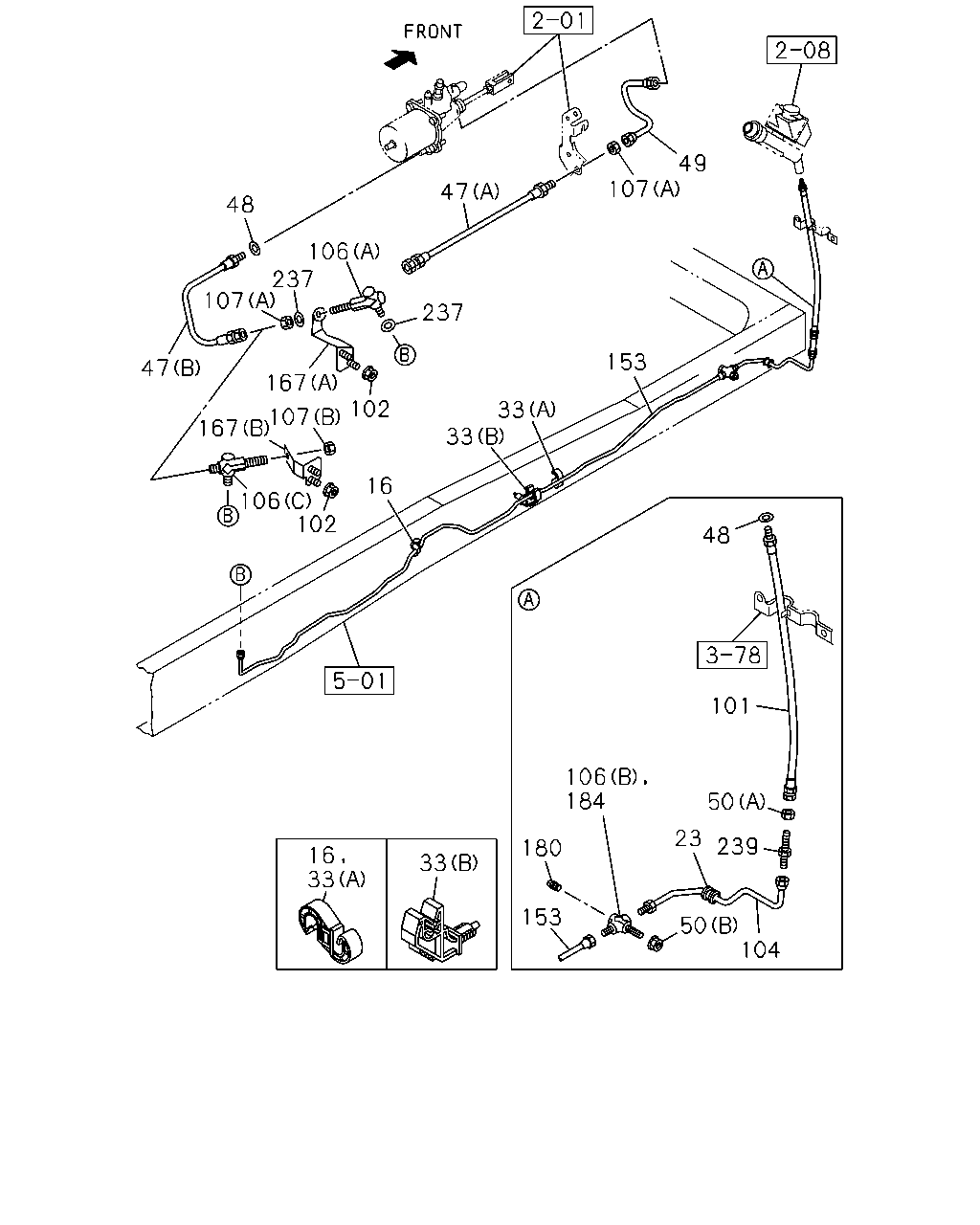

çizim 142788
49 107 47 48 106 237 107 237 153 47 167 102 33 33 107 167 16 106 102 48 101 106 184 50 23 239 180 16 33 33 153 50 104
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; FLEX HOSE
ID=10 & 12 		1-09709-278-1 01 1 0808-
23 GROMMET; CLU PIPE
ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 0808-
33 CLIP; OIL PIPE
(B) ID=6.35 		1-09701-247-1 01 1 0808-
33 CLIP; OIL PIPE
(A) ID=6.35 & 10.0 		1-09709-274-1 03 1 0808-
47 HOSE; FLEX,CLU CONT
MZW6P M/T<RSZ> (B) L=430 		8-98072-351-0 01 1 1103-
47 HOSE; FLEX,CLU CONT
MZW6P M/T<RSZ> WHEEL BASE 3400MM<34W> (A) L=580 		1-09363-692-0 01 1 1103-
47 HOSE; FLEX,CLU CONT
MZW6P M/T<RSZ> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> (A) L=740 		1-09363-674-0 01 1 1103-
47 HOSE; FLEX,CLU CONT
WHEEL BASE 3400MM<34W> (A) L=580 		1-09363-692-0 01 1 0808-1102
47 HOSE; FLEX,CLU CONT
MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> (A) L=540 		1-09363-736-0 01 1 1103-
47 HOSE; FLEX,CLU CONT
WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> (A) L=740 		1-09363-674-0 01 1 0808-1102
47 HOSE; FLEX,CLU CONT
MZZ6W M/T<RSA> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> (A) L=720 		1-09363-801-0 01 1 1103-
47 HOSE; FLEX,CLU CONT
(B) L=430 		8-98072-351-0 01 1 0808-1102
47 HOSE; FLEX,CLU CONT
MZZ6W M/T<RSA> (B) L=390 		8-98080-980-0 01 1 1103-
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 THA 		9-09571-410-0 02 1 0808-1004
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 THA 		9-09571-410-0 01 1 1005-1102
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 THA 		9-09571-410-0 01 1 1005-1102
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 THA 		9-09571-410-0 02 1 1103-
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
MZZ6W M/T<RSA> L=207 THA 		1-49124-782-0 01 1 1103-
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
L=204 		1-49117-400-0 01 1 0808-1102
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
MZW6P M/T<RSZ> L=204 		1-49117-400-0 01 1 1103-
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
MZW6P M/T<RSZ> L=204 		1-49117-400-0 01 1 1205-
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 0808-
50 NUT; UNION
(A) M12 		9-09840-280-0 01 1 0808-
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=440 		8-98072-346-0 01 1 0808-
102 NUT; FLEX HOSE,CLU CONT
M10 FLANGE THA 		0-91180-210-0 02 1 0808-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=336 		8-98067-058-0 01 1 0808-
106 UNION; OIL PIPE
MZW6P M/T<RSZ> (A) M12 ELBOW 		0-92125-206-0 01 1 1103-
106 UNION; OIL PIPE
(A) M12 ELBOW 		0-92125-206-0 01 1 0808-1102
106 UNION; OIL PIPE
MZZ6W M/T<RSA> (C) M12 2WAY 		1-09654-059-2 01 1 1103-
106 UNION; OIL PIPE
(B) M12 3WAY 		8-98051-113-0 01 1 0808-0910
107 NUT; UNION,OIL PIPE
MZZ6W M/T<RSA> (B) M12 		0-91111-512-0 01 1 1103-
107 NUT; UNION,OIL PIPE
(A) M12 		9-09840-280-0 02 1 0808-1004
107 NUT; UNION,OIL PIPE
(A) M12 		9-09840-280-0 01 1 1005-1007
107 NUT; UNION,OIL PIPE
(A) M12 		9-09840-280-0 01 1 1008-1008
107 NUT; UNION,OIL PIPE
(A) M12 		9-09840-280-0 01 1 1008-1008
107 NUT; UNION,OIL PIPE
(A) M12 		9-09840-280-0 02 1 1009-1102
107 NUT; UNION,OIL PIPE
(A) M12 		9-09840-280-0 01 1 1103-
107 NUT; UNION,OIL PIPE
MZW6P M/T<RSZ> (A) M12 		9-09840-280-0 01 1 1103-
153 PIPE ASM; CLU,UNION TO FLEX
MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> L=2340 THA 		8-98174-342-0 01 1 1103-
153 PIPE ASM; CLU,UNION TO FLEX
MZZ6W M/T<RSA> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> L=2442 THA 		8-98078-087-1 01 1 1103-
153 PIPE ASM; CLU,UNION TO FLEX
MZW6P M/T<RSZ> L=2042 THA 		8-98123-177-0 01 1 1103-
153 PIPE ASM; CLU,UNION TO FLEX
L=2042 THA 		8-98123-177-0 01 1 0808-1102
167 BRACKET; UNION
MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> (B) 		8-98086-811-1 01 1 1103-
167 BRACKET; UNION
MZZ6W M/T<RSA> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> (B) 		8-98078-090-1 01 1 1103-
167 BRACKET; UNION
(A) 		8-98078-147-0 01 1 0808-1102
167 BRACKET; UNION
MZW6P M/T<RSZ> (A) 		8-98078-147-0 01 1 1103-
180 PLUG; PIPE 9-09204-510-0 01 1 0808-0910
184 UNION; FLEX HOSE 8-98150-865-0 01 1 0911-
237 WASHER; BRKT
ID=12.2 		0-91510-512-0 02 1 0808-1004
237 WASHER; BRKT
ID=12.2 		0-91510-512-0 01 1 1005-1011
239 UNION; CLU HOSE
M12 L=66.5 		0-92113-306-0 01 1 0808-
