Sayfa 2-01 - Isuzu EPC

2-01 — CLUTCH (#25736) — 358 parça

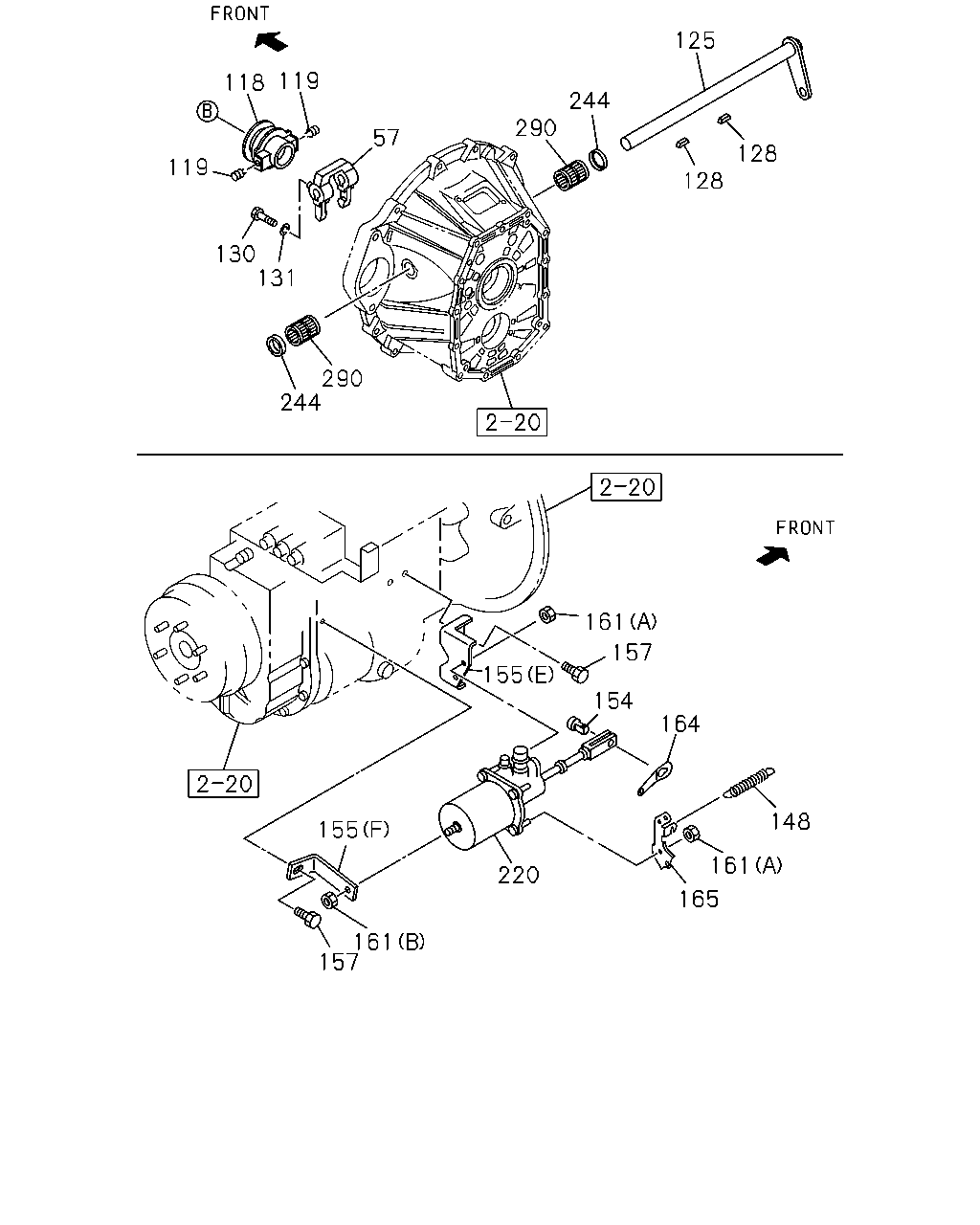

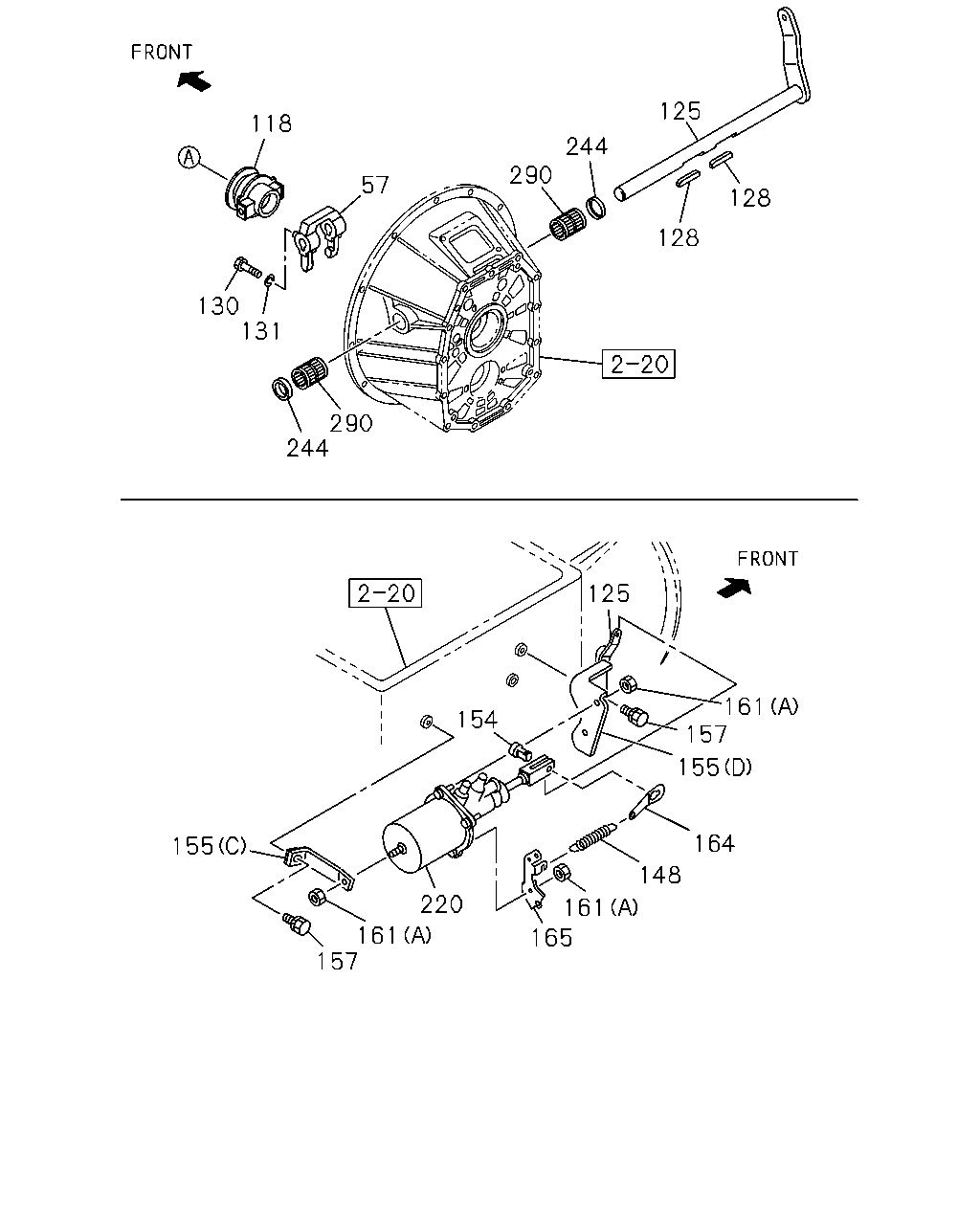

125 118 244 290 57 128 128 130 131 290 244 125 161 157 154 155 164 155 148 220 161 161 157 165

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
57	FORK; SHIFT,CLU	1-31340-060-0	01	1	0808-1102	●
57	FORK; SHIFT,CLU	1-31341-048-2	01	1	1001-		●
57	FORK; SHIFT,CLU	1-31341-031-0	01	1	1103-			●
118	BEARING; CLU RELEASE	1-09820-117-0	01	1	0808-1102	●
118	BEARING; CLU RELEASE	1-31310-026-0	01	1	1001-		●
118	BEARING; CLU RELEASE	1-31310-012-0	01	1	1103-			●
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-108-0	01	1	0808-1102	●
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-110-0	01	1	1103-			●
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-109-0	01	1	1001-		●
125	SHAFT; CLU	1-31342-346-0	01	1	0808-1102	●
125	SHAFT; CLU	1-31342-335-0	01	1	1001-		●
125	SHAFT; CLU	1-31342-331-0	01	1	1103-			●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	0808-0912	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	1001-1102	●	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	1103-		●	●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	0808-0912	●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	1001-1102	●	●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	1103-		●	●
131	WASHER; LK,SHIFT FORK ID=8.2 THA	0-91510-508-0	01	1	0808-0912	●
131	WASHER; LK,SHIFT FORK ID=8.2 THA	0-91510-508-0	01	1	1001-1102	●	●
131	WASHER; LK,SHIFT FORK ID=8.2 THA	0-91510-508-0	01	1	1103-		●	●
148	SPRING; CLU RETURN L=206.4	1-09583-291-1	01	1	1103-			●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	0808-0912	●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	1103-		●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	1001-1102	●	●
154	PIN; JAW JOINT	1-31424-009-0	01	1	1001-1102		●
154	PIN; JAW JOINT	1-31424-009-0	01	1	1103-		●	●
155	BRACKET; MINIPACK (B)	1-31429-514-0	01	1	0808-1102	●
155	BRACKET; MINIPACK (A)	1-31429-515-0	01	1	0808-1102	●
155	BRACKET; MINIPACK (C)	1-31429-474-1	01	1	1001-		●
155	BRACKET; MINIPACK (D)	1-31429-477-0	01	1	1001-		●
155	BRACKET; MINIPACK (E)	1-31429-464-0	01	1	1103-			●
155	BRACKET; MINIPACK (F)	1-31429-465-1	01	1	1103-			●
157	BOLT; BRKT M10X20 FLANGE THA	0-28151-020-0	02	1	1103-			●
157	BOLT; BRKT M10X25 FLANGE THA	0-28751-025-0	03	1	0808-0912	●
157	BOLT; BRKT M10X25 FLANGE THA	0-28751-025-0	03	1	1103-		●
157	BOLT; BRKT M10X25 FLANGE THA	0-28751-025-0	03	1	1001-1102	●	●
157	BOLT; BRKT M10X25 FLANGE THA	0-28051-025-0	01	1	1103-			●
161	NUT; BRKT (A) M8 FLANGE THA	0-91180-208-0	03	1	0808-1102	●
161	NUT; BRKT (A) M8 FLANGE THA	0-91180-208-0	05	1	1001-		●
161	NUT; BRKT (A) M8 FLANGE THA	0-91180-208-0	04	1	1103-			●
161	NUT; BRKT (B) M8 FLANGE THA	0-91180-108-0	01	1	1103-			●
164	EYE; SPRING	1-31426-019-1	01	1	1103-			●
164	EYE; SPRING	1-31426-041-0	01	1	0808-0912	●
164	EYE; SPRING	1-31426-041-0	01	1	1103-		●
164	EYE; SPRING	1-31426-041-0	01	1	1001-1102	●	●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE	1-47471-291-0	01	1	1103-			●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE	1-47477-789-0	01	1	0808-0912	●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE	1-47477-789-0	01	1	1103-		●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE	1-47477-789-0	01	1	1001-1102	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS	1-87610-159-0	01	1	1103-			●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-525-0	01	1	0808-1102	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-510-2	01	1	1001-		●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	8-98177-654-1	01	1	1103-			●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS	1-87610-159-0	01	1	0808-1102	●
244	SEAL; DUST ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	1001-1102		●
244	SEAL; DUST ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	1103-		●	●
290	BEARING; NEEDLE NTN	1-09811-002-1	02	1	1001-1102		●
290	BEARING; NEEDLE NTN	1-09811-002-1	02	1	1103-		●	●

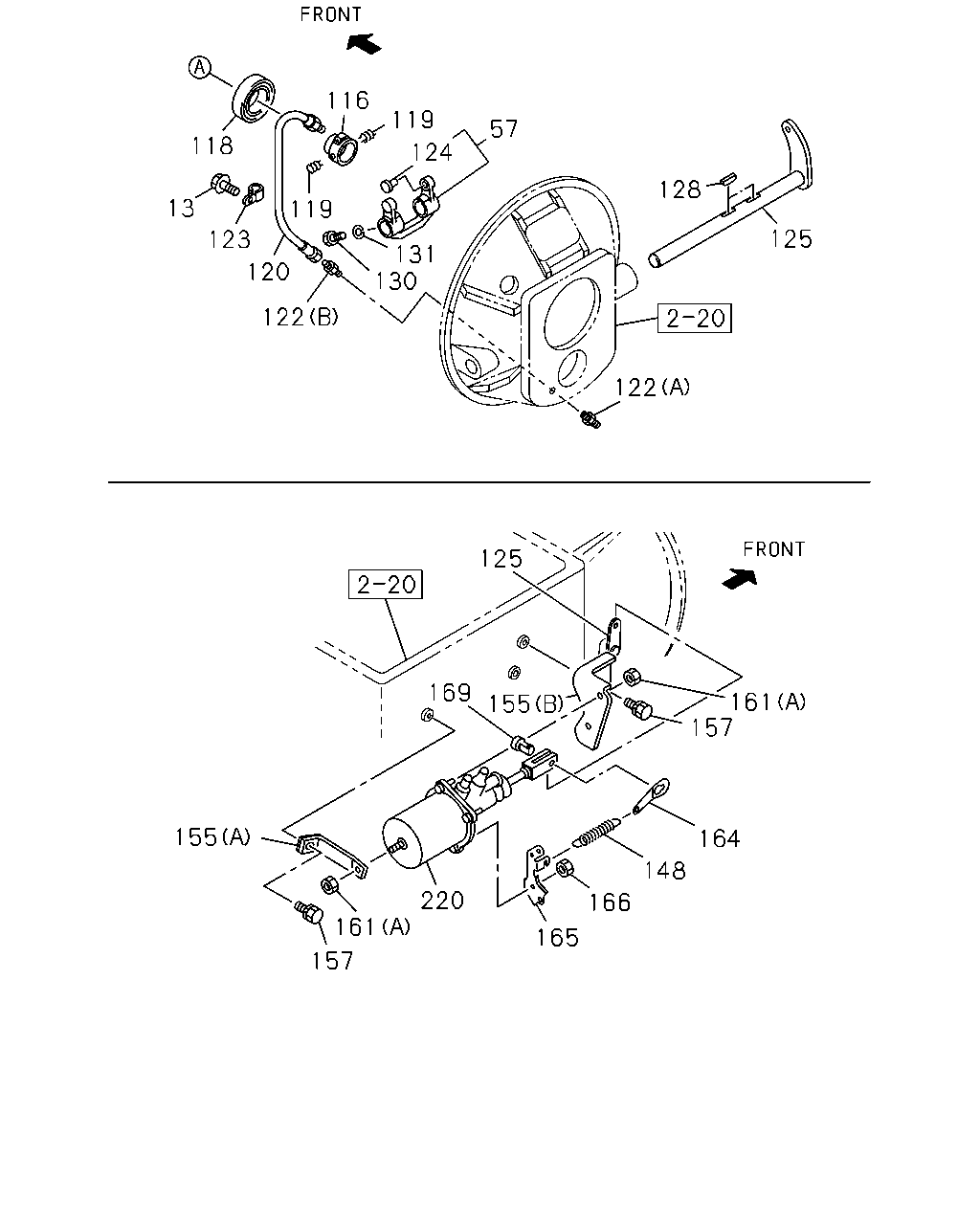

116 119 57 118 124 128 13 119 131 130 125 123 120 122 122 125 169 161 157 155 155 164 148 220 166 161 165 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
13	BOLT; CLIP M8X16 FLANGE THA	0-28050-816-0	01	1	0808-1102	●
57	FORK; SHIFT,CLU	1-31340-060-0	01	1	0808-1102	●
57	FORK; SHIFT,CLU	1-31341-048-2	01	1	1001-		●
57	FORK; SHIFT,CLU	1-31341-031-0	01	1	1103-			●
116	BLOCK; SHIFT,CLU	1-31321-075-1	01	1	0808-1102	●
118	BEARING; CLU RELEASE	1-09820-117-0	01	1	0808-1102	●
118	BEARING; CLU RELEASE	1-31310-026-0	01	1	1001-		●
118	BEARING; CLU RELEASE	1-31310-012-0	01	1	1103-			●
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-108-0	01	1	0808-1102	●
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-110-0	01	1	1103-			●
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-109-0	01	1	1001-		●
119	SPRING; SHIFT FORK	1-09585-054-0	01	1	0808-1102	●
119	SPRING; SHIFT FORK	1-09585-053-0	01	1	0808-1102	●
119	SPRING; SHIFT FORK	1-31329-024-0	02	1	1103-			●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09365-143-0	01	1	0808-1102	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 STRAIGHT THA	0-90301-410-0	01	1	0808-1102	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 & M10	1-09660-710-0	01	1	0808-1102	●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	0-95234-835-0	01	1	0808-1102	●
124	BEARING; CAM,SHIFT FORK	1-31349-004-1	02	1	0808-1102	●
125	SHAFT; CLU	1-31342-346-0	01	1	0808-1102	●
125	SHAFT; CLU	1-31342-335-0	01	1	1001-		●
125	SHAFT; CLU	1-31342-331-0	01	1	1103-			●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	0808-0912	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	1001-1102	●	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	1103-		●	●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	0808-0912	●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	1001-1102	●	●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	1103-		●	●
131	WASHER; LK,SHIFT FORK ID=8.2 THA	0-91510-508-0	01	1	0808-0912	●
131	WASHER; LK,SHIFT FORK ID=8.2 THA	0-91510-508-0	01	1	1001-1102	●	●
131	WASHER; LK,SHIFT FORK ID=8.2 THA	0-91510-508-0	01	1	1103-		●	●
148	SPRING; CLU RETURN L=206.4	1-09583-291-1	01	1	1103-			●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	0808-0912	●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	1103-		●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	1001-1102	●	●
155	BRACKET; MINIPACK (B)	1-31429-514-0	01	1	0808-1102	●
155	BRACKET; MINIPACK (A)	1-31429-515-0	01	1	0808-1102	●
155	BRACKET; MINIPACK (C)	1-31429-474-1	01	1	1001-		●
155	BRACKET; MINIPACK (D)	1-31429-477-0	01	1	1001-		●
155	BRACKET; MINIPACK (E)	1-31429-464-0	01	1	1103-			●
155	BRACKET; MINIPACK (F)	1-31429-465-1	01	1	1103-			●
157	BOLT; BRKT M10X20 FLANGE THA	0-28151-020-0	02	1	1103-			●
157	BOLT; BRKT M10X25 FLANGE THA	0-28751-025-0	03	1	0808-0912	●
157	BOLT; BRKT M10X25 FLANGE THA	0-28751-025-0	03	1	1103-		●
157	BOLT; BRKT M10X25 FLANGE THA	0-28751-025-0	03	1	1001-1102	●	●
157	BOLT; BRKT M10X25 FLANGE THA	0-28051-025-0	01	1	1103-			●
161	NUT; BRKT (A) M8 FLANGE THA	0-91180-208-0	03	1	0808-1102	●
161	NUT; BRKT (A) M8 FLANGE THA	0-91180-208-0	05	1	1001-		●
161	NUT; BRKT (A) M8 FLANGE THA	0-91180-208-0	04	1	1103-			●
161	NUT; BRKT (B) M8 FLANGE THA	0-91180-108-0	01	1	1103-			●
164	EYE; SPRING	1-31426-019-1	01	1	1103-			●
164	EYE; SPRING	1-31426-041-0	01	1	0808-0912	●
164	EYE; SPRING	1-31426-041-0	01	1	1103-		●
164	EYE; SPRING	1-31426-041-0	01	1	1001-1102	●	●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE	1-47471-291-0	01	1	1103-			●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE	1-47477-789-0	01	1	0808-0912	●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE	1-47477-789-0	01	1	1103-		●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE	1-47477-789-0	01	1	1001-1102	●	●
166	NUT; SPRING EYE M8 FLANGE THA	0-91180-208-0	02	1	0808-1102	●
169	PIN; JOINT,MINIPACK	1-31424-009-0	01	1	0808-1102	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS	1-87610-159-0	01	1	1103-			●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-525-0	01	1	0808-1102	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-510-2	01	1	1001-		●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	8-98177-654-1	01	1	1103-			●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS	1-87610-159-0	01	1	0808-1102	●

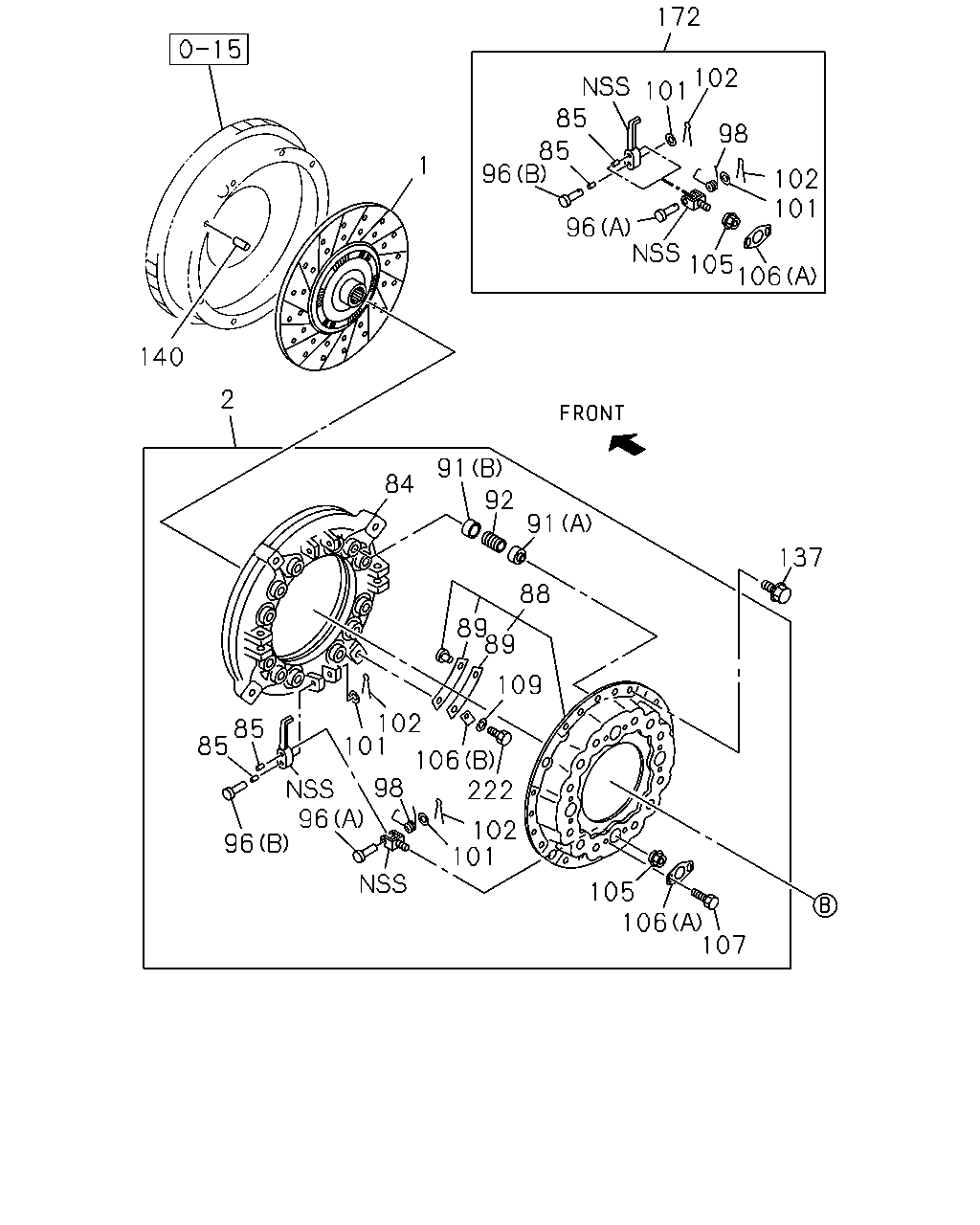

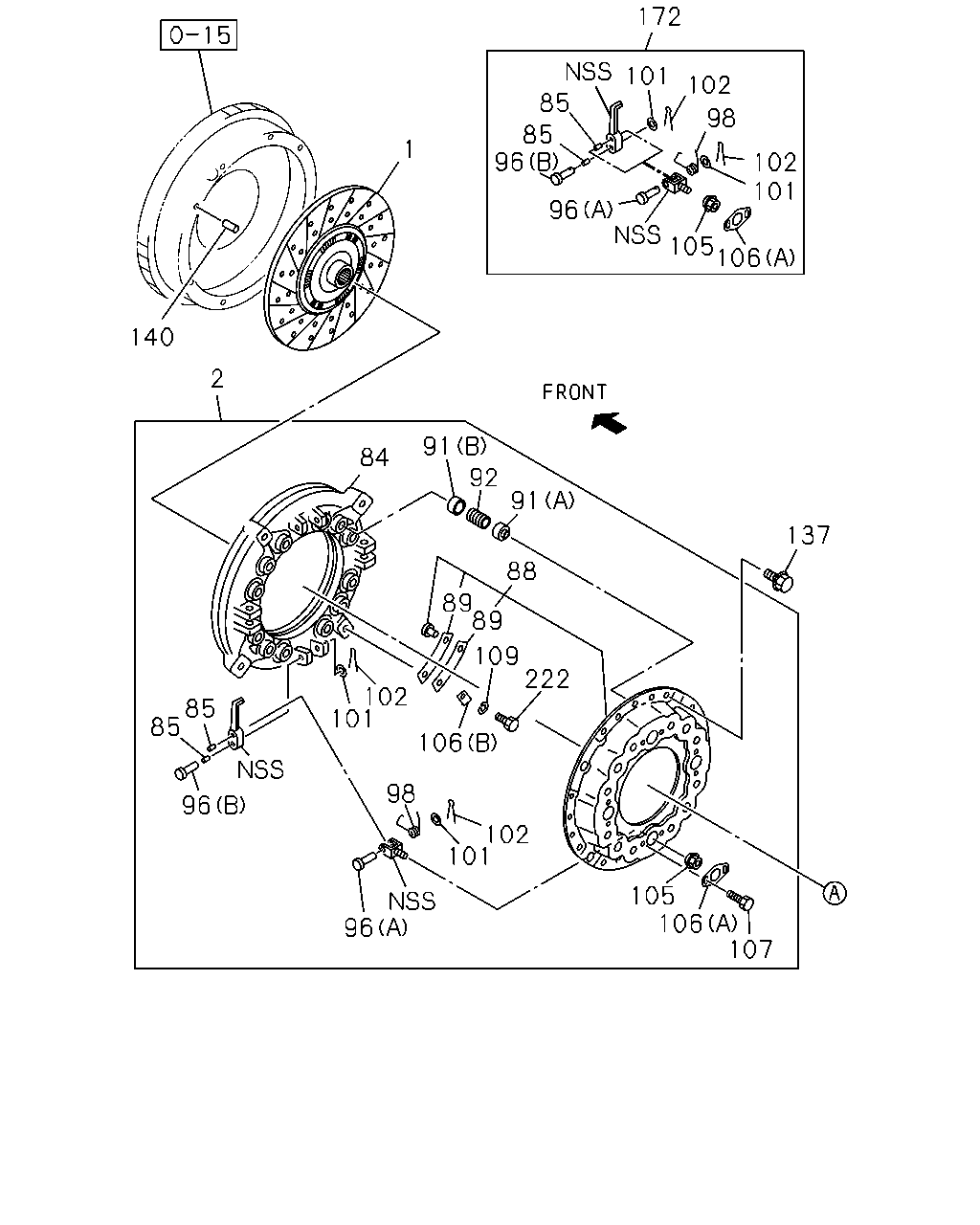

172 101 102 85 98 85 96 1 102 101 96 105 106 140 2 91 92 84 91 137 88 89 89 109 222 102 101 85 85 106 98 96 102 101 105 106 96 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DISC; CLUTCH BEST VALUE PARTS	1-87610-140-0	01	1	1402-		●
1	DISC; CLUTCH 14"	1-31240-949-2	01	1	1103-			●
1	DISC; CLUTCH 14"	1-31240-971-0	01	1	0808-0912	●
1	DISC; CLUTCH 14"	1-31240-971-0	01	1	1001-1102	●	●
1	DISC; CLUTCH 14"	1-31240-971-1	01	1	1103-1401		●
1	DISC; CLUTCH 14"	1-31260-040-1	01	1	1402-		●
2	PLATE ASM; PRESSURE,CLU BEST VALUE PARTS	1-87610-147-0	01	1	1103-		●
2	PLATE ASM; PRESSURE,CLU	1-31220-407-0	01	1	1103-1209			●
2	PLATE ASM; PRESSURE,CLU	1-31220-454-0	01	1	1210-			●
2	PLATE ASM; PRESSURE,CLU	1-31220-411-0	01	1	0808-0912	●
2	PLATE ASM; PRESSURE,CLU	1-31220-411-0	01	1	1001-1102	●	●
2	PLATE ASM; PRESSURE,CLU	1-31220-411-0	01	1	1103-		●
2	PLATE ASM; PRESSURE,CLU BEST VALUE PARTS	1-87610-147-0	01	1	0808-0912	●
2	PLATE ASM; PRESSURE,CLU BEST VALUE PARTS	1-87610-147-0	01	1	1001-1102	●	●
84	PLATE; PRESSURE 14"	1-31221-129-0	01	1	1103-1209			●
84	PLATE; PRESSURE 14"	1-31221-136-0	01	1	0808-0912	●
84	PLATE; PRESSURE 14"	1-31221-136-0	01	1	1001-1102	●	●
84	PLATE; PRESSURE 14"	1-31221-136-0	01	1	1103-1209		●
84	PLATE; PRESSURE 14"	1-31221-136-0	01	1	1210-		●	●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	0808-0912	●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	1001-1102	●	●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	1103-		●	●
88	COVER SUB ASM; CLU	1-31211-038-0	01	1	0808-0912	●
88	COVER SUB ASM; CLU	1-31211-038-0	01	1	1001-1102	●	●
88	COVER SUB ASM; CLU	1-31211-038-0	01	1	1103-		●	●
89	PLATE; STRAP	1-31229-001-0	08	1	0808-0912	●
89	PLATE; STRAP	1-31229-001-0	08	1	1001-1102	●	●
89	PLATE; STRAP	1-31229-001-0	08	1	1103-		●	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	08	1	1210-		●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	08	1	1210-		●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	08	1	0808-0912	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	08	1	1001-1102	●	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	08	1	1103-1209		●	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	1210-			●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	08	1	0808-0912	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	08	1	1001-1102	●	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	08	1	1103-1209		●	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	1210-			●
92	SPRING; CLU	1-31214-060-0	08	1	1103-1209			●
92	SPRING; CLU	1-31214-088-0	12	1	1210-			●
92	SPRING; CLU	1-31214-095-0	08	1	0808-0912	●
92	SPRING; CLU	1-31214-095-0	08	1	1001-1102	●	●
92	SPRING; CLU	1-31214-095-0	08	1	1103-		●
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	0808-0912	●
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	1001-1102	●	●
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	1103-		●	●
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	0808-0912	●
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	1001-1102	●	●
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	1103-		●	●
98	SPRING; RETURN	1-31233-003-0	04	1	0808-0912	●
98	SPRING; RETURN	1-31233-003-0	04	1	1001-1102	●	●
98	SPRING; RETURN	1-31233-003-0	04	1	1103-		●	●
101	WASHER; RELEASE LEVER	1-31239-058-0	08	1	0808-0912	●
101	WASHER; RELEASE LEVER	1-31239-058-0	08	1	1001-1102	●	●
101	WASHER; RELEASE LEVER	1-31239-058-0	08	1	1103-		●	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	0808-0912	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	1001-1102	●	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	1103-		●	●
105	NUT; SUPPORT	1-31235-014-0	04	1	0808-0912	●
105	NUT; SUPPORT	1-31235-014-0	04	1	1001-1102	●	●
105	NUT; SUPPORT	1-31235-014-0	04	1	1103-		●	●
106	PLATE; LK,LEVER SUPPORT (B)	1-31235-008-0	04	1	0808-0912	●
106	PLATE; LK,LEVER SUPPORT (B)	1-31235-008-0	04	1	1001-1102	●	●
106	PLATE; LK,LEVER SUPPORT (B)	1-31235-008-0	04	1	1103-		●	●
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	0808-0912	●
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	1001-1102	●	●
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	1103-		●	●
107	BOLT; LK PLATE	1-31239-061-0	08	1	0808-0912	●
107	BOLT; LK PLATE	1-31239-061-0	08	1	1001-1102	●	●
107	BOLT; LK PLATE	1-31239-061-0	08	1	1103-		●	●
109	WASHER; LK,STRAP ID=10.2	0-91510-510-0	04	1	0808-0912	●
109	WASHER; LK,STRAP ID=10.2	0-91510-510-0	04	1	1001-1102	●	●
109	WASHER; LK,STRAP ID=10.2	0-91510-510-0	04	1	1103-		●	●
137	BOLT; CLU COVER M10X20 FLANGE THA	0-28151-020-0	12	1	0808-0912	●
137	BOLT; CLU COVER M10X20 FLANGE THA	0-28151-020-0	12	1	1001-1102	●	●
137	BOLT; CLU COVER M10X20 FLANGE THA	0-28151-020-0	12	1	1103-		●	●
140	PIN; STRAIGHT L=25	8-94410-361-0	02	1	0808-0912	●
140	PIN; STRAIGHT L=25	8-94410-361-0	02	1	1001-1102	●	●
140	PIN; STRAIGHT L=25	8-94410-361-0	02	1	1103-		●	●
172	LEVER KIT; RELEASE,CLU	1-87831-173-1	01	1	1103-			●
172	LEVER KIT; RELEASE,CLU	1-87831-170-1	01	1	0808-0912	●
172	LEVER KIT; RELEASE,CLU	1-87831-170-1	01	1	1001-1102	●	●
172	LEVER KIT; RELEASE,CLU	1-87831-170-1	01	1	1103-		●
222	BOLT; STRAP	1-31239-059-0	04	1	0808-0912	●
222	BOLT; STRAP	1-31239-059-0	04	1	1001-1102	●	●
222	BOLT; STRAP	1-31239-059-0	04	1	1103-		●	●

125 119 118 244 290 57 128 119 128 130 131 290 244 161 157 155 154 164 148 155 161 220 165 161 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
57	FORK; SHIFT,CLU	1-31340-060-0	01	1	0808-1102	●
57	FORK; SHIFT,CLU	1-31341-048-2	01	1	1001-		●
57	FORK; SHIFT,CLU	1-31341-031-0	01	1	1103-			●
118	BEARING; CLU RELEASE	1-09820-117-0	01	1	0808-1102	●
118	BEARING; CLU RELEASE	1-31310-026-0	01	1	1001-		●
118	BEARING; CLU RELEASE	1-31310-012-0	01	1	1103-			●
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-108-0	01	1	0808-1102	●
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-110-0	01	1	1103-			●
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-109-0	01	1	1001-		●
119	SPRING; SHIFT FORK	1-09585-054-0	01	1	0808-1102	●
119	SPRING; SHIFT FORK	1-09585-053-0	01	1	0808-1102	●
119	SPRING; SHIFT FORK	1-31329-024-0	02	1	1103-			●
125	SHAFT; CLU	1-31342-346-0	01	1	0808-1102	●
125	SHAFT; CLU	1-31342-335-0	01	1	1001-		●
125	SHAFT; CLU	1-31342-331-0	01	1	1103-			●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	0808-0912	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	1001-1102	●	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	1103-		●	●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	0808-0912	●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	1001-1102	●	●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	1103-		●	●
131	WASHER; LK,SHIFT FORK ID=8.2 THA	0-91510-508-0	01	1	0808-0912	●
131	WASHER; LK,SHIFT FORK ID=8.2 THA	0-91510-508-0	01	1	1001-1102	●	●
131	WASHER; LK,SHIFT FORK ID=8.2 THA	0-91510-508-0	01	1	1103-		●	●
148	SPRING; CLU RETURN L=206.4	1-09583-291-1	01	1	1103-			●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	0808-0912	●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	1103-		●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	1001-1102	●	●
154	PIN; JAW JOINT	1-31424-009-0	01	1	1001-1102		●
154	PIN; JAW JOINT	1-31424-009-0	01	1	1103-		●	●
155	BRACKET; MINIPACK (B)	1-31429-514-0	01	1	0808-1102	●
155	BRACKET; MINIPACK (A)	1-31429-515-0	01	1	0808-1102	●
155	BRACKET; MINIPACK (C)	1-31429-474-1	01	1	1001-		●
155	BRACKET; MINIPACK (D)	1-31429-477-0	01	1	1001-		●
155	BRACKET; MINIPACK (E)	1-31429-464-0	01	1	1103-			●
155	BRACKET; MINIPACK (F)	1-31429-465-1	01	1	1103-			●
157	BOLT; BRKT M10X20 FLANGE THA	0-28151-020-0	02	1	1103-			●
157	BOLT; BRKT M10X25 FLANGE THA	0-28751-025-0	03	1	0808-0912	●
157	BOLT; BRKT M10X25 FLANGE THA	0-28751-025-0	03	1	1103-		●
157	BOLT; BRKT M10X25 FLANGE THA	0-28751-025-0	03	1	1001-1102	●	●
157	BOLT; BRKT M10X25 FLANGE THA	0-28051-025-0	01	1	1103-			●
161	NUT; BRKT (A) M8 FLANGE THA	0-91180-208-0	03	1	0808-1102	●
161	NUT; BRKT (A) M8 FLANGE THA	0-91180-208-0	05	1	1001-		●
161	NUT; BRKT (A) M8 FLANGE THA	0-91180-208-0	04	1	1103-			●
161	NUT; BRKT (B) M8 FLANGE THA	0-91180-108-0	01	1	1103-			●
164	EYE; SPRING	1-31426-019-1	01	1	1103-			●
164	EYE; SPRING	1-31426-041-0	01	1	0808-0912	●
164	EYE; SPRING	1-31426-041-0	01	1	1103-		●
164	EYE; SPRING	1-31426-041-0	01	1	1001-1102	●	●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE	1-47471-291-0	01	1	1103-			●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE	1-47477-789-0	01	1	0808-0912	●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE	1-47477-789-0	01	1	1103-		●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE	1-47477-789-0	01	1	1001-1102	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS	1-87610-159-0	01	1	1103-			●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-525-0	01	1	0808-1102	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-510-2	01	1	1001-		●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	8-98177-654-1	01	1	1103-			●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS	1-87610-159-0	01	1	0808-1102	●
244	SEAL; DUST ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	1001-1102		●
244	SEAL; DUST ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	1103-		●	●
290	BEARING; NEEDLE NTN	1-09811-002-1	02	1	1001-1102		●
290	BEARING; NEEDLE NTN	1-09811-002-1	02	1	1103-		●	●

172 102 101 85 98 85 96 1 102 101 96 105 106 140 2 91 84 92 91 137 88 89 89 109 102 101 85 85 106 222 98 96 96 102 101 105 106 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DISC; CLUTCH BEST VALUE PARTS	1-87610-140-0	01	1	1402-		●
1	DISC; CLUTCH 14"	1-31240-949-2	01	1	1103-			●
1	DISC; CLUTCH 14"	1-31240-971-0	01	1	0808-0912	●
1	DISC; CLUTCH 14"	1-31240-971-0	01	1	1001-1102	●	●
1	DISC; CLUTCH 14"	1-31240-971-1	01	1	1103-1401		●
1	DISC; CLUTCH 14"	1-31260-040-1	01	1	1402-		●
2	PLATE ASM; PRESSURE,CLU BEST VALUE PARTS	1-87610-147-0	01	1	1103-		●
2	PLATE ASM; PRESSURE,CLU	1-31220-407-0	01	1	1103-1209			●
2	PLATE ASM; PRESSURE,CLU	1-31220-454-0	01	1	1210-			●
2	PLATE ASM; PRESSURE,CLU	1-31220-411-0	01	1	0808-0912	●
2	PLATE ASM; PRESSURE,CLU	1-31220-411-0	01	1	1001-1102	●	●
2	PLATE ASM; PRESSURE,CLU	1-31220-411-0	01	1	1103-		●
2	PLATE ASM; PRESSURE,CLU BEST VALUE PARTS	1-87610-147-0	01	1	0808-0912	●
2	PLATE ASM; PRESSURE,CLU BEST VALUE PARTS	1-87610-147-0	01	1	1001-1102	●	●
84	PLATE; PRESSURE 14"	1-31221-129-0	01	1	1103-1209			●
84	PLATE; PRESSURE 14"	1-31221-136-0	01	1	0808-0912	●
84	PLATE; PRESSURE 14"	1-31221-136-0	01	1	1001-1102	●	●
84	PLATE; PRESSURE 14"	1-31221-136-0	01	1	1103-1209		●
84	PLATE; PRESSURE 14"	1-31221-136-0	01	1	1210-		●	●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	0808-0912	●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	1001-1102	●	●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	1103-		●	●
88	COVER SUB ASM; CLU	1-31211-038-0	01	1	0808-0912	●
88	COVER SUB ASM; CLU	1-31211-038-0	01	1	1001-1102	●	●
88	COVER SUB ASM; CLU	1-31211-038-0	01	1	1103-		●	●
89	PLATE; STRAP	1-31229-001-0	08	1	0808-0912	●
89	PLATE; STRAP	1-31229-001-0	08	1	1001-1102	●	●
89	PLATE; STRAP	1-31229-001-0	08	1	1103-		●	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	08	1	1210-		●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	08	1	1210-		●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	08	1	0808-0912	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	08	1	1001-1102	●	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	08	1	1103-1209		●	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	1210-			●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	08	1	0808-0912	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	08	1	1001-1102	●	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	08	1	1103-1209		●	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	1210-			●
92	SPRING; CLU	1-31214-060-0	08	1	1103-1209			●
92	SPRING; CLU	1-31214-088-0	12	1	1210-			●
92	SPRING; CLU	1-31214-095-0	08	1	0808-0912	●
92	SPRING; CLU	1-31214-095-0	08	1	1001-1102	●	●
92	SPRING; CLU	1-31214-095-0	08	1	1103-		●
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	0808-0912	●
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	1001-1102	●	●
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	1103-		●	●
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	0808-0912	●
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	1001-1102	●	●
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	1103-		●	●
98	SPRING; RETURN	1-31233-003-0	04	1	0808-0912	●
98	SPRING; RETURN	1-31233-003-0	04	1	1001-1102	●	●
98	SPRING; RETURN	1-31233-003-0	04	1	1103-		●	●
101	WASHER; RELEASE LEVER	1-31239-058-0	08	1	0808-0912	●
101	WASHER; RELEASE LEVER	1-31239-058-0	08	1	1001-1102	●	●
101	WASHER; RELEASE LEVER	1-31239-058-0	08	1	1103-		●	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	0808-0912	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	1001-1102	●	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	1103-		●	●
105	NUT; SUPPORT	1-31235-014-0	04	1	0808-0912	●
105	NUT; SUPPORT	1-31235-014-0	04	1	1001-1102	●	●
105	NUT; SUPPORT	1-31235-014-0	04	1	1103-		●	●
106	PLATE; LK,LEVER SUPPORT (B)	1-31235-008-0	04	1	0808-0912	●
106	PLATE; LK,LEVER SUPPORT (B)	1-31235-008-0	04	1	1001-1102	●	●
106	PLATE; LK,LEVER SUPPORT (B)	1-31235-008-0	04	1	1103-		●	●
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	0808-0912	●
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	1001-1102	●	●
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	1103-		●	●
107	BOLT; LK PLATE	1-31239-061-0	08	1	0808-0912	●
107	BOLT; LK PLATE	1-31239-061-0	08	1	1001-1102	●	●
107	BOLT; LK PLATE	1-31239-061-0	08	1	1103-		●	●
109	WASHER; LK,STRAP ID=10.2	0-91510-510-0	04	1	0808-0912	●
109	WASHER; LK,STRAP ID=10.2	0-91510-510-0	04	1	1001-1102	●	●
109	WASHER; LK,STRAP ID=10.2	0-91510-510-0	04	1	1103-		●	●
137	BOLT; CLU COVER M10X20 FLANGE THA	0-28151-020-0	12	1	0808-0912	●
137	BOLT; CLU COVER M10X20 FLANGE THA	0-28151-020-0	12	1	1001-1102	●	●
137	BOLT; CLU COVER M10X20 FLANGE THA	0-28151-020-0	12	1	1103-		●	●
140	PIN; STRAIGHT L=25	8-94410-361-0	02	1	0808-0912	●
140	PIN; STRAIGHT L=25	8-94410-361-0	02	1	1001-1102	●	●
140	PIN; STRAIGHT L=25	8-94410-361-0	02	1	1103-		●	●
172	LEVER KIT; RELEASE,CLU	1-87831-173-1	01	1	1103-			●
172	LEVER KIT; RELEASE,CLU	1-87831-170-1	01	1	0808-0912	●
172	LEVER KIT; RELEASE,CLU	1-87831-170-1	01	1	1001-1102	●	●
172	LEVER KIT; RELEASE,CLU	1-87831-170-1	01	1	1103-		●
222	BOLT; STRAP	1-31239-059-0	04	1	0808-0912	●
222	BOLT; STRAP	1-31239-059-0	04	1	1001-1102	●	●
222	BOLT; STRAP	1-31239-059-0	04	1	1103-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
