◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11122 - FRR THAILAND ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶
1-50 — EXHAUST PIPE AND SILENCER (#25733) — 127 parça

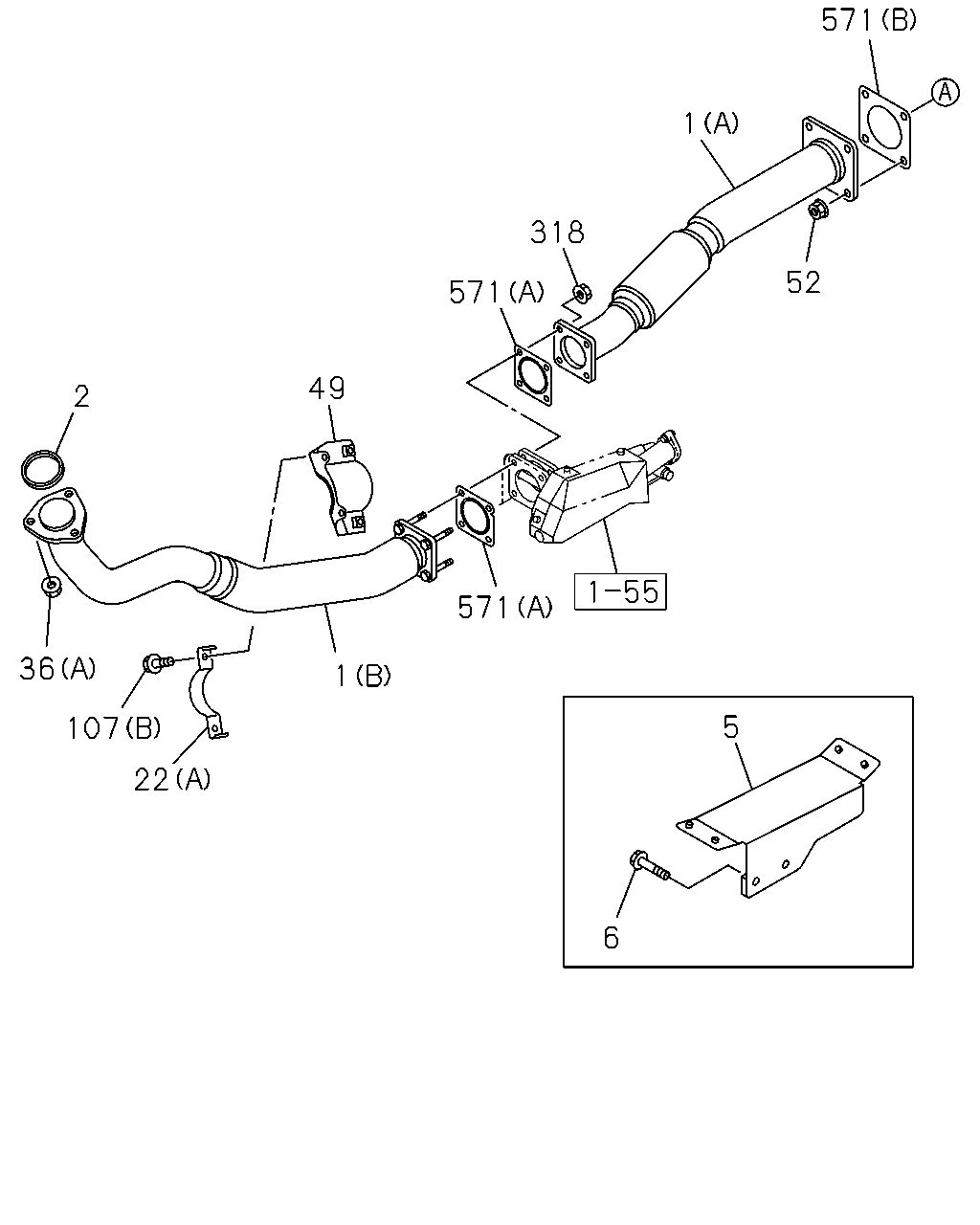

çizim 142778
571 1 318 52 571 49 2 571 36 1 5 107 22 6
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
(A) THA 		8-97924-440-1 01 1 0808-
1 PIPE; EXH
(B) THA 		8-97924-565-0 01 1 0808-
2 GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97381-455-0 01 1 0808-
5 PROTECTOR; HEAT 8-98089-287-1 01 1 0808-
6 BOLT; HEAT PROTECTOR
M8X25 FLANGE THA 		0-28650-825-0 02 1 0808-
22 CLAMP; EXH PIPE
(B) ID=80-84 		1-22133-233-0 02 1 1206-
22 CLAMP; EXH PIPE
(B) ID=80-84 		1-22133-233-0 02 1 1206-
22 CLAMP; EXH PIPE
(A) 		1-22133-295-0 01 1 0808-1309
22 CLAMP; EXH PIPE
(A) 		8-97646-674-0 01 1 1310-
22 CLAMP; EXH PIPE
(B) ID=80-84 		1-22133-233-0 04 1 0808-1205
22 CLAMP; EXH PIPE
WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> (B) ID=80-84 		1-22133-233-0 04 1 0808-1205
22 CLAMP; EXH PIPE
WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> (B) ID=80-84 		1-22133-233-0 04 1 1206-
22 CLAMP; EXH PIPE
(B) ID=80-84 		1-22133-233-0 02 1 1310-
22 CLAMP; EXH PIPE
(B) ID=80-84 		1-22133-233-0 02 1 1310-
22 CLAMP; EXH PIPE
WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> (B) ID=80-84 		1-22133-233-0 02 1 1310-
36 NUT; EXH PIPE
(A) M10 FLANGE 		8-97096-192-1 03 1 0808-
36 NUT; EXH PIPE
(B) M10 FLANGE THA 		0-91180-210-0 02 1 0808-
49 BRACKET; EXH PIPE TO TRANS 8-98042-786-0 01 1 0808-1301
49 BRACKET; EXH PIPE TO TRANS 8-98234-530-0 01 1 1302-
52 NUT; BRKT
M12 FLANGE THA 		0-91180-212-0 04 1 0808-
107 BOLT; BRKT
(A) M10X35 FLANGE THA 		0-28051-035-0 02 1 0808-0809
107 BOLT; BRKT
(B) M8X30 FLANGE THA 		0-28650-830-0 02 1 0808-
107 BOLT; BRKT
(C) M10X35 FLANGE THA 		0-28651-035-0 02 1 0808-0809
107 BOLT; BRKT
(C) M10X35 FLANGE THA 		0-28651-035-0 04 1 0810-
318 NUT; EXH PIPE,FRT
M8 W/LK WASHER THA 		8-97581-234-0 04 1 0808-
571 GASKET
(A) ID=64 		8-97373-108-0 02 1 0808-
571 GASKET
(B) 		8-98096-305-0 01 1 0808-1102
çizim 142780
11 128 12 506 17
BalonParca AdiParca NoAdetTipApplied Date
11 PIPE; EXH,RR
THA 		8-97924-043-0 01 1 0808-
12 SILENCER ASM; EXH 8-98090-389-2 01 1 0808-
17 BOLT; EXH PIPE
(B) M12X35 FLANGE THA 		0-28051-235-0 04 1 1204-
17 BOLT; EXH PIPE
(A) M10X35 FLANGE THA 		0-28651-035-0 02 1 0808-
128 PIPE; EXH,RR
WHEEL BASE 3400MM<34W> THA 		8-97924-096-0 01 1 0808-
128 PIPE; EXH,RR
WHEEL BASE 4300MM<43W> THA 		8-97924-095-0 01 1 0808-
128 PIPE; EXH,RR
WHEEL BASE 4900MM<49W> THA 		8-97924-042-0 01 1 0808-
506 BRACKET; STUD
M12X35 		1-22131-963-0 02 1 0808-1203

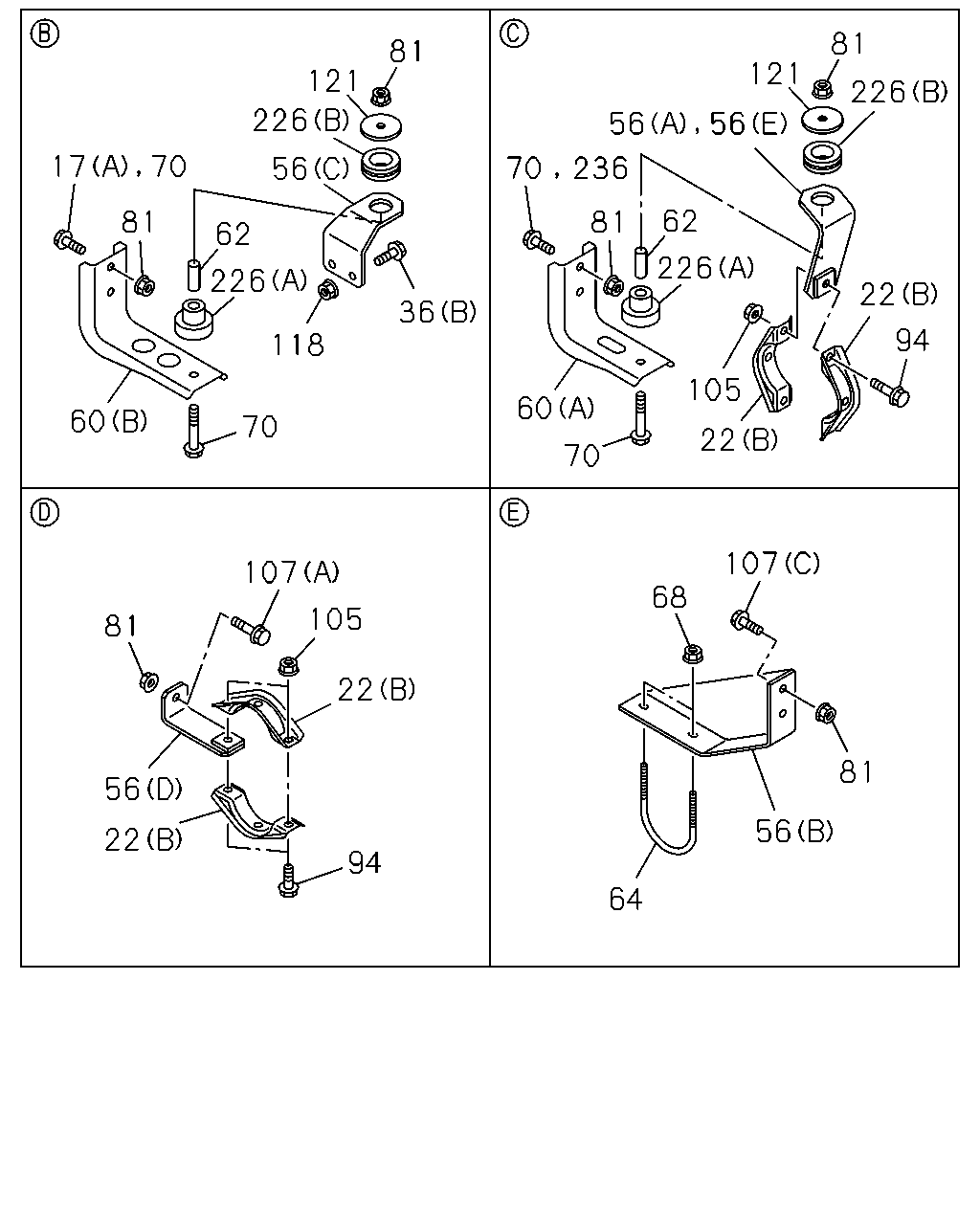

çizim 142781
81 81 121 121 226 226 56 56 17 70 56 62 81 81 62 226 226 22 36 94 118 105 60 60 70 22 70 107 107 68 105 81 22 81 56 56 22 94 64 70 236
BalonParca AdiParca NoAdetTipApplied Date
17 BOLT; EXH PIPE
(B) M12X35 FLANGE THA 		0-28051-235-0 04 1 1204-
17 BOLT; EXH PIPE
(A) M10X35 FLANGE THA 		0-28651-035-0 02 1 0808-
22 CLAMP; EXH PIPE
(B) ID=80-84 		1-22133-233-0 02 1 1206-
22 CLAMP; EXH PIPE
(B) ID=80-84 		1-22133-233-0 02 1 1206-
22 CLAMP; EXH PIPE
(A) 		1-22133-295-0 01 1 0808-1309
22 CLAMP; EXH PIPE
(A) 		8-97646-674-0 01 1 1310-
22 CLAMP; EXH PIPE
(B) ID=80-84 		1-22133-233-0 04 1 0808-1205
22 CLAMP; EXH PIPE
WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> (B) ID=80-84 		1-22133-233-0 04 1 0808-1205
22 CLAMP; EXH PIPE
WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> (B) ID=80-84 		1-22133-233-0 04 1 1206-
22 CLAMP; EXH PIPE
(B) ID=80-84 		1-22133-233-0 02 1 1310-
22 CLAMP; EXH PIPE
(B) ID=80-84 		1-22133-233-0 02 1 1310-
22 CLAMP; EXH PIPE
WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> (B) ID=80-84 		1-22133-233-0 02 1 1310-
36 NUT; EXH PIPE
(A) M10 FLANGE 		8-97096-192-1 03 1 0808-
36 NUT; EXH PIPE
(B) M10 FLANGE THA 		0-91180-210-0 02 1 0808-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> (A) 		8-98245-534-0 01 1 1310-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> (A) 		8-98059-756-0 01 1 1103-1309
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> (A) 		8-98059-756-0 02 1 0808-1102
56 BRACKET; CLAMP,EXH PIPE
(B) THA 		8-98056-460-0 01 1 0808-
56 BRACKET; CLAMP,EXH PIPE
(C) 		8-98074-824-1 01 1 0808-
56 BRACKET; CLAMP,EXH PIPE
(D) THA 		8-98085-168-0 01 1 0808-
56 BRACKET; CLAMP,EXH PIPE
(E) 		8-98086-352-0 01 1 0808-
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> (A) 		8-98059-753-1 02 1 1103-
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> (A) 		8-98059-753-1 02 1 0808-1102
60 BRACKET; FRAME TO BRKT
(B) 		1-22152-274-1 01 1 0808-
60 BRACKET; FRAME TO BRKT
(A) 		8-98059-753-1 01 1 0808-
62 TUBE; DIST,BRKT
L=39 		8-98060-852-0 02 1 1310-
62 TUBE; DIST,BRKT
L=39 		8-98060-852-0 02 1 0808-
62 TUBE; DIST,BRKT
WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> L=39 		8-98060-852-0 02 1 0808-
62 TUBE; DIST,BRKT
WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> L=39 		8-98060-852-0 01 1 1310-
64 U-BOLT; EXH PIPE,RR
THA 		1-22113-101-0 01 1 0808-
68 NUT; U BOLT
M8 FLANGE THA 		0-91180-108-0 04 1 0808-0808
68 NUT; U BOLT
M8 FLANGE THA 		0-91180-108-0 02 1 0809-
70 BOLT; BRKT
M10X70 FLANGE THA 		0-28051-070-0 02 1 1310-
70 BOLT; BRKT
WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> M10X35 FLANGE THA 		0-28651-035-0 02 1 0808-
70 BOLT; BRKT
M10X70 FLANGE THA 		0-28051-070-0 02 1 0808-
70 BOLT; BRKT
WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> M10X70 FLANGE THA 		0-28051-070-0 02 1 0808-
70 BOLT; BRKT
M10X35 FLANGE THA 		0-28651-035-0 01 1 0808-
70 BOLT; BRKT
WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> M10X70 FLANGE THA 		0-28051-070-0 01 1 1310-
81 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 02 1 0808-1102
81 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 02 1 0808-1102
81 NUT; BRKT
WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> M10 FLANGE THA 		0-91180-210-0 02 1 0808-1102
81 NUT; BRKT
WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> M10 FLANGE THA 		0-91180-210-0 02 1 0808-1102
81 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 02 1 1103-
81 NUT; BRKT
WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> M10 FLANGE THA 		0-91180-210-0 02 1 1103-
81 NUT; BRKT
WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> M10 FLANGE THA 		0-91180-210-0 02 1 1103-
81 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 02 1 1103-
81 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 02 1 0808-
81 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 01 1 0808-
81 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 02 1 1206-1309
81 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 02 1 1206-1309
81 NUT; BRKT
WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> M10 FLANGE THA 		0-91180-210-0 02 1 1206-1309
81 NUT; BRKT
WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> M10 FLANGE THA 		0-91180-210-0 02 1 1206-1309
81 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 01 1 1310-
81 NUT; BRKT
WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> M10 FLANGE THA 		0-91180-210-0 01 1 1310-
81 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 01 1 1206-1309
81 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 02 1 1310-
81 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 02 1 1310-
81 NUT; BRKT
WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> M10 FLANGE THA 		0-91180-210-0 02 1 1310-
94 BOLT; CLAMP
M10X40 FLANGE THA 		0-28651-040-0 02 1 1206-
94 BOLT; CLAMP
M10X40 FLANGE THA 		0-28651-040-0 02 1 1206-
94 BOLT; CLAMP
M10X40 FLANGE THA 		0-28651-040-0 04 1 0808-1205
94 BOLT; CLAMP
WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> M10X40 FLANGE THA 		0-28651-040-0 04 1 0808-1205
94 BOLT; CLAMP
WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> M10X40 FLANGE THA 		0-28651-040-0 04 1 1206-
94 BOLT; CLAMP
M10X40 FLANGE THA 		0-28651-040-0 02 1 1310-
94 BOLT; CLAMP
M10X40 FLANGE THA 		0-28651-040-0 02 1 1310-
94 BOLT; CLAMP
WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> M10X40 FLANGE THA 		0-28651-040-0 02 1 1310-
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 02 1 1206-
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 02 1 1206-
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 04 1 0808-1205
105 NUT; CLAMP
WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> M10 FLANGE THA 		0-91180-210-0 04 1 0808-1205
105 NUT; CLAMP
WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> M10 FLANGE THA 		0-91180-210-0 04 1 1206-
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 02 1 1310-
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 02 1 1310-
105 NUT; CLAMP
WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> M10 FLANGE THA 		0-91180-210-0 02 1 1310-
107 BOLT; BRKT
(A) M10X35 FLANGE THA 		0-28051-035-0 02 1 0808-0809
107 BOLT; BRKT
(B) M8X30 FLANGE THA 		0-28650-830-0 02 1 0808-
107 BOLT; BRKT
(C) M10X35 FLANGE THA 		0-28651-035-0 02 1 0808-0809
107 BOLT; BRKT
(C) M10X35 FLANGE THA 		0-28651-035-0 04 1 0810-
118 NUT; SILENCER MTG BRKT
M10 FLANGE THA 		0-91180-210-0 02 1 0808-
121 WASHER; PL,BRKT
WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> ID=11 OD=54 		1-09503-154-2 01 1 1103-
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 02 1 0808-1102
121 WASHER; PL,BRKT
WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> ID=11 OD=54 		1-09503-154-2 02 1 0808-1102
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 02 1 1103-
226 RUBBER; CUSHION
(A) 		8-94457-277-1 02 1 1310-
226 RUBBER; CUSHION
(B) 		8-94457-278-1 02 1 1310-
226 RUBBER; CUSHION
(A) 		8-94457-277-1 02 1 0808-
226 RUBBER; CUSHION
WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> (A) 		8-94457-277-1 02 1 0808-
226 RUBBER; CUSHION
(B) 		8-94457-278-1 02 1 0808-
226 RUBBER; CUSHION
WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> (B) 		8-94457-278-1 02 1 0808-
226 RUBBER; CUSHION
WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> (A) 		8-94457-277-1 01 1 1310-
226 RUBBER; CUSHION
WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> (B) 		8-94457-278-1 01 1 1310-
236 BOLT; PIPE CLAMP TO BRKT
M10X30 FLANGE THA 		0-28651-030-0 02 1 0808-
