Sayfa 1-41 - Isuzu EPC

1-41 — FUEL PIPING; CHASSIS (#25731) — 279 parça

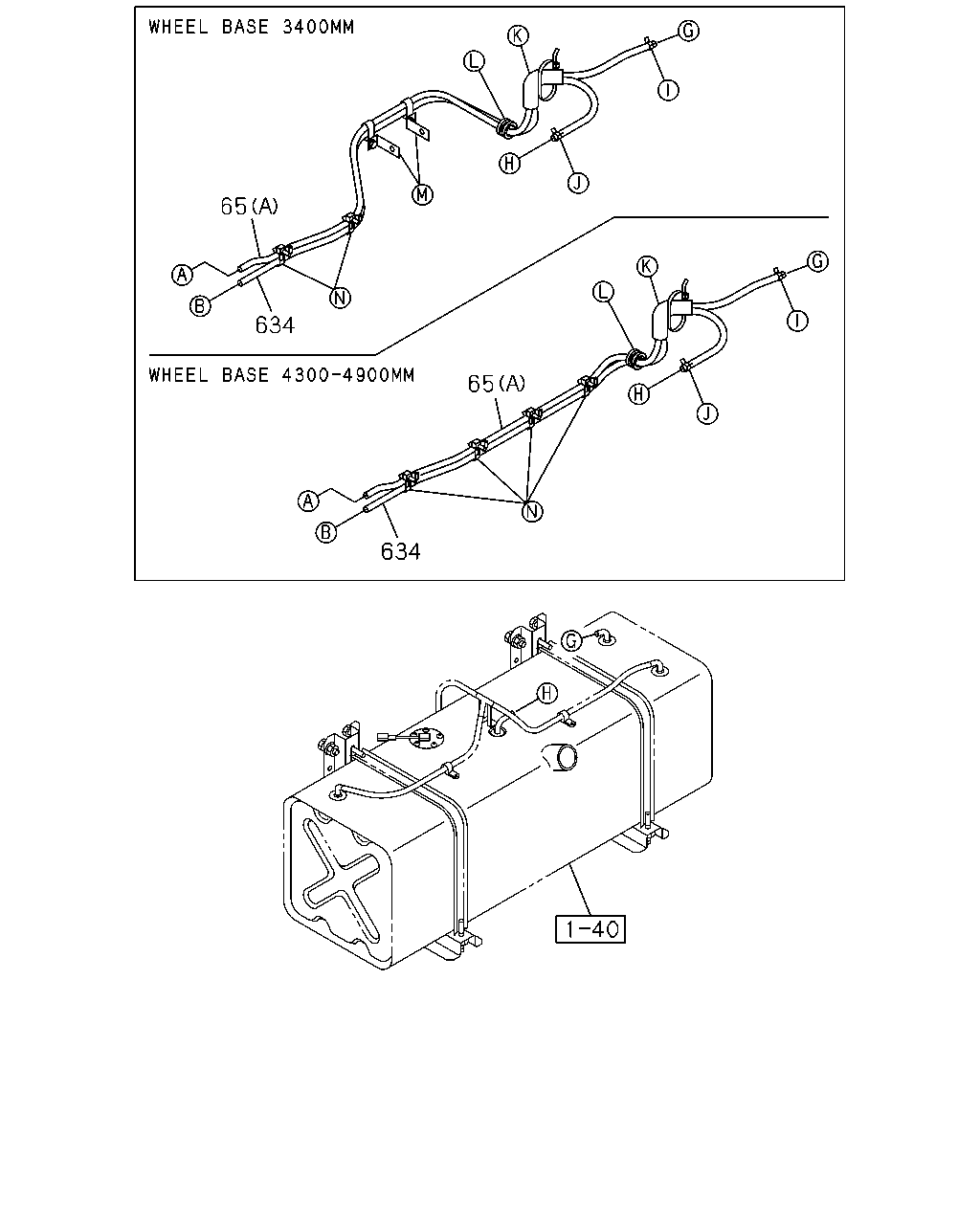

65 634 65 634

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
65	HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL<KF0> (A) L=1150 SERVICED BY L=3000 THA	0-01260-300-0	01	1	0808-0808
65	HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL<KF0> (A) L=1150 SERVICED BY L=3000 THA	0-01260-300-0	01	1	0809-0912
65	HOSE; FUEL,DELIVERY PIPE MLD6S M/T<X7W> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=1150 SERVICED BY L=3000 THA	0-01260-300-0	01	1	0809-0912
65	HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL<KF0> (A) L=1150 SERVICED BY L=3000 THA	0-01260-300-0	01	1	1001-1102
65	HOSE; FUEL,DELIVERY PIPE MZW6P M/T<RSZ> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=1150 SERVICED BY L=3000 THA	0-01260-300-0	01	1	1001-1102
65	HOSE; FUEL,DELIVERY PIPE MLD6S M/T<X7W> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=1150 SERVICED BY L=3000 THA	0-01260-300-0	01	1	1001-1102
65	HOSE; FUEL,DELIVERY PIPE MZZ6W M/T<RSA> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=1150 SERVICED BY L=3000 THA	0-01260-300-0	01	1	1103-
65	HOSE; FUEL,DELIVERY PIPE MZW6P M/T<RSZ> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=1150 SERVICED BY L=3000 THA	0-01260-300-0	01	1	1103-
65	HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL<KF0> (A) L=1150 SERVICED BY L=3000 THA	0-01260-300-0	01	1	1103-
65	HOSE; FUEL,DELIVERY PIPE MLD6S M/T<X7W> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> POOR QUALITY DIESEL FUEL<KF0> (A) L=2100 SERVICED BY L=3000 THA	0-01260-300-0	01	1	0808-0912
65	HOSE; FUEL,DELIVERY PIPE MZW6P M/T<RSZ> POOR QUALITY DIESEL FUEL<KF0> (A) L=2100 SERVICED BY L=3000 THA	0-01260-300-0	01	1	1001-1102
65	HOSE; FUEL,DELIVERY PIPE MLD6S M/T<X7W> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> POOR QUALITY DIESEL FUEL<KF0> (A) L=2100 SERVICED BY L=3000 THA	0-01260-300-0	01	1	1001-1102
65	HOSE; FUEL,DELIVERY PIPE MZZ6W M/T<RSA> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> POOR QUALITY DIESEL FUEL<KF0> (A) L=2100 SERVICED BY L=3000 THA	0-01260-300-0	01	1	1103-
65	HOSE; FUEL,DELIVERY PIPE MZW6P M/T<RSZ> POOR QUALITY DIESEL FUEL<KF0> (A) L=2100 SERVICED BY L=3000 THA	0-01260-300-0	01	1	1103-
65	HOSE; FUEL,DELIVERY PIPE MLD6S M/T<X7W> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=1350 SERVICED BY L=3000 THA	0-01260-300-0	01	1	0808-0808
65	HOSE; FUEL,DELIVERY PIPE MLD6S M/T<X7W> WHEEL BASE 3400MM<34W> POOR QUALITY DIESEL FUEL<KF0> (A) L=2050 SERVICED BY L=3000 THA	0-01260-300-0	01	1	0808-1102
65	HOSE; FUEL,DELIVERY PIPE MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> POOR QUALITY DIESEL FUEL<KF0> (A) L=2050 SERVICED BY L=3000 THA	0-01260-300-0	01	1	1103-
65	HOSE; FUEL,DELIVERY PIPE MLD6S M/T<X7W> WHEEL BASE 3400MM<34W> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=1450 SERVICED BY L=3000 THA	0-01260-300-0	01	1	0808-1102
65	HOSE; FUEL,DELIVERY PIPE MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=1450 SERVICED BY L=3000 THA	0-01260-300-0	01	1	1103-
65	HOSE; FUEL,DELIVERY PIPE (B) L=60 SERVICED BY L=3000 THA	0-01260-300-0	01	1	0808-
634	HOSE; RUBBER RETURN MLD6S M/T<X7W> WHEEL BASE 3400MM<34W> EXC. POOR QUALITY DIESEL FUEL<KF0> L=1450 SERVICED BY L=3000 THA	0-01558-300-0	01	1	0808-0912
634	HOSE; RUBBER RETURN MLD6S M/T<X7W> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> POOR QUALITY DIESEL FUEL<KF0> L=1450 SERVICED BY L=3000 THA	0-01558-300-0	01	1	0808-0912
634	HOSE; RUBBER RETURN MZW6P M/T<RSZ> POOR QUALITY DIESEL FUEL<KF0> L=1450 SERVICED BY L=3000 THA	0-01558-300-0	01	1	1001-1102
634	HOSE; RUBBER RETURN MLD6S M/T<X7W> WHEEL BASE 3400MM<34W> EXC. POOR QUALITY DIESEL FUEL<KF0> L=1450 SERVICED BY L=3000 THA	0-01558-300-0	01	1	1001-1102
634	HOSE; RUBBER RETURN MLD6S M/T<X7W> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> POOR QUALITY DIESEL FUEL<KF0> L=1450 SERVICED BY L=3000 THA	0-01558-300-0	01	1	1001-1102
634	HOSE; RUBBER RETURN MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> EXC. POOR QUALITY DIESEL FUEL<KF0> L=1450 SERVICED BY L=3000 THA	0-01558-300-0	01	1	1103-1209
634	HOSE; RUBBER RETURN MZZ6W M/T<RSA> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> POOR QUALITY DIESEL FUEL<KF0> L=1450 SERVICED BY L=3000 THA	0-01558-300-0	01	1	1103-1209
634	HOSE; RUBBER RETURN MZW6P M/T<RSZ> POOR QUALITY DIESEL FUEL<KF0> L=1450 SERVICED BY L=3000 THA	0-01558-300-0	01	1	1103-1209
634	HOSE; RUBBER RETURN MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> L=1450 SERVICED BY L=3000 THA	0-01558-300-0	01	1	1210-
634	HOSE; RUBBER RETURN MZZ6W M/T<RSA> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> POOR QUALITY DIESEL FUEL<KF0> L=1450 SERVICED BY L=3000 THA	0-01558-300-0	01	1	1210-
634	HOSE; RUBBER RETURN MZW6P M/T<RSZ> POOR QUALITY DIESEL FUEL<KF0> L=1450 SERVICED BY L=3000 THA	0-01558-300-0	01	1	1210-
634	HOSE; RUBBER RETURN MLD6S M/T<X7W> WHEEL BASE 3400MM<34W> POOR QUALITY DIESEL FUEL<KF0> L=1350 SERVICED BY L=3000 THA	0-01558-300-0	01	1	0808-0808
634	HOSE; RUBBER RETURN MLD6S M/T<X7W> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> EXC. POOR QUALITY DIESEL FUEL<KF0> L=1350 SERVICED BY L=3000 THA	0-01558-300-0	01	1	0808-0808
634	HOSE; RUBBER RETURN MLD6S M/T<X7W> WHEEL BASE 3400MM<34W> POOR QUALITY DIESEL FUEL<KF0> L=1250 SERVICED BY L=3000 THA	0-01558-300-0	01	1	0809-0912
634	HOSE; RUBBER RETURN MLD6S M/T<X7W> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> EXC. POOR QUALITY DIESEL FUEL<KF0> L=1250 SERVICED BY L=3000 THA	0-01558-300-0	01	1	0809-0912
634	HOSE; RUBBER RETURN MZW6P M/T<RSZ> EXC. POOR QUALITY DIESEL FUEL<KF0> L=1250 SERVICED BY L=3000 THA	0-01558-300-0	01	1	1001-1102
634	HOSE; RUBBER RETURN MLD6S M/T<X7W> WHEEL BASE 3400MM<34W> POOR QUALITY DIESEL FUEL<KF0> L=1250 SERVICED BY L=3000 THA	0-01558-300-0	01	1	1001-1102
634	HOSE; RUBBER RETURN MLD6S M/T<X7W> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> EXC. POOR QUALITY DIESEL FUEL<KF0> L=1250 SERVICED BY L=3000 THA	0-01558-300-0	01	1	1001-1102
634	HOSE; RUBBER RETURN MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> POOR QUALITY DIESEL FUEL<KF0> L=1250 SERVICED BY L=3000 THA	0-01558-300-0	01	1	1103-
634	HOSE; RUBBER RETURN MZZ6W M/T<RSA> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> EXC. POOR QUALITY DIESEL FUEL<KF0> L=1250 SERVICED BY L=3000 THA	0-01558-300-0	01	1	1103-
634	HOSE; RUBBER RETURN MZW6P M/T<RSZ> EXC. POOR QUALITY DIESEL FUEL<KF0> L=1250 SERVICED BY L=3000 THA	0-01558-300-0	01	1	1103-

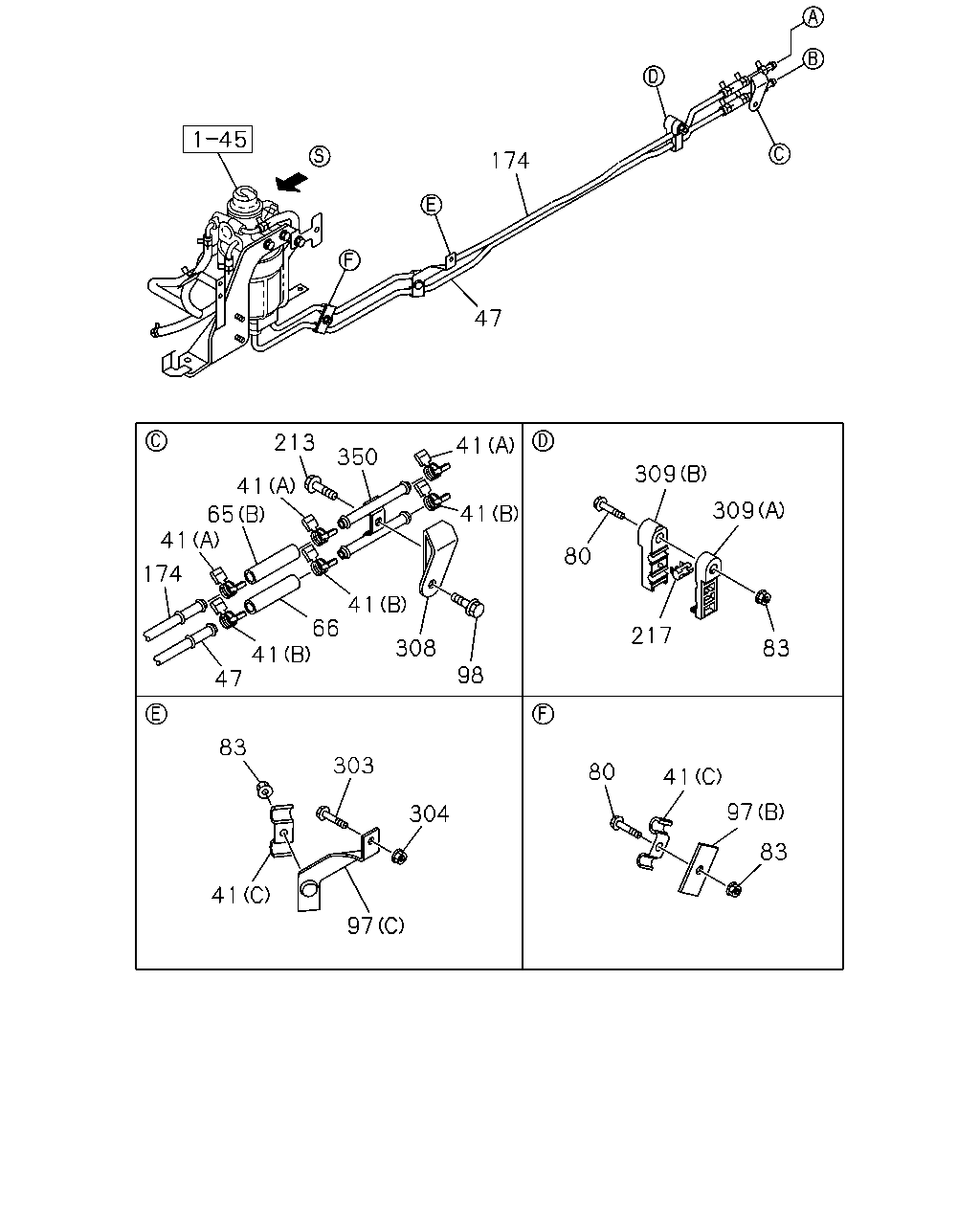

174 47 213 41 350 309 41 309 41 65 41 80 174 41 66 41 47 217 308 83 98 83 303 80 41 97 304 83 41 97

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
41	CLIP; FUEL PIPE,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> (A) ID=14	1-09704-102-0	08	1	0808-
41	CLIP; FUEL PIPE,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> (D) L=250 THA	5-09707-030-1	04	1	0808-
41	CLIP; FUEL PIPE,FUEL TANK MLD6S M/T<X7W> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> (F) ID=14.5 & 14.5	1-09701-246-1	04	1	0808-0912
41	CLIP; FUEL PIPE,FUEL TANK MZW6P M/T<RSZ> (F) ID=14.5 & 14.5	1-09701-246-1	04	1	1001-1102
41	CLIP; FUEL PIPE,FUEL TANK MLD6S M/T<X7W> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> (F) ID=14.5 & 14.5	1-09701-246-1	04	1	1001-1102
41	CLIP; FUEL PIPE,FUEL TANK MZZ6W M/T<RSA> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> (F) ID=14.5 & 14.5	1-09701-246-1	04	1	1103-
41	CLIP; FUEL PIPE,FUEL TANK MZW6P M/T<RSZ> (F) ID=14.5 & 14.5	1-09701-246-1	04	1	1103-
41	CLIP; FUEL PIPE,FUEL TANK MLD6S M/T<X7W> WHEEL BASE 3400MM<34W> (E) ID=16X2 L=20	0-95325-535-0	02	1	0808-1102
41	CLIP; FUEL PIPE,FUEL TANK MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> (E) ID=16X2 L=20	0-95325-535-0	02	1	1103-
41	CLIP; FUEL PIPE,FUEL TANK MLD6S M/T<X7W> WHEEL BASE 3400MM<34W> (F) ID=14.5 & 14.5	1-09701-246-1	02	1	0808-1102
41	CLIP; FUEL PIPE,FUEL TANK MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> (F) ID=14.5 & 14.5	1-09701-246-1	02	1	1103-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0808-
41	CLIP; FUEL PIPE,FUEL TANK (G) ID=16 THA	8-94238-568-0	02	1	0808-
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=13 THA	8-94238-571-0	08	1	0808-
41	CLIP; FUEL PIPE,FUEL TANK EXC. POOR QUALITY DIESEL FUEL<KF0> (A) ID=14	1-09704-102-0	06	1	0808-
41	CLIP; FUEL PIPE,FUEL TANK EXC. POOR QUALITY DIESEL FUEL<KF0> (D) L=250 THA	5-09707-030-1	01	1	0808-
47	PIPE; FUEL,RETURN L=1496	8-98082-818-0	01	1	0808-
65	HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL<KF0> (A) L=1150 SERVICED BY L=3000 THA	0-01260-300-0	01	1	0808-0808
65	HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL<KF0> (A) L=1150 SERVICED BY L=3000 THA	0-01260-300-0	01	1	0809-0912
65	HOSE; FUEL,DELIVERY PIPE MLD6S M/T<X7W> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=1150 SERVICED BY L=3000 THA	0-01260-300-0	01	1	0809-0912
65	HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL<KF0> (A) L=1150 SERVICED BY L=3000 THA	0-01260-300-0	01	1	1001-1102
65	HOSE; FUEL,DELIVERY PIPE MZW6P M/T<RSZ> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=1150 SERVICED BY L=3000 THA	0-01260-300-0	01	1	1001-1102
65	HOSE; FUEL,DELIVERY PIPE MLD6S M/T<X7W> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=1150 SERVICED BY L=3000 THA	0-01260-300-0	01	1	1001-1102
65	HOSE; FUEL,DELIVERY PIPE MZZ6W M/T<RSA> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=1150 SERVICED BY L=3000 THA	0-01260-300-0	01	1	1103-
65	HOSE; FUEL,DELIVERY PIPE MZW6P M/T<RSZ> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=1150 SERVICED BY L=3000 THA	0-01260-300-0	01	1	1103-
65	HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL<KF0> (A) L=1150 SERVICED BY L=3000 THA	0-01260-300-0	01	1	1103-
65	HOSE; FUEL,DELIVERY PIPE MLD6S M/T<X7W> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> POOR QUALITY DIESEL FUEL<KF0> (A) L=2100 SERVICED BY L=3000 THA	0-01260-300-0	01	1	0808-0912
65	HOSE; FUEL,DELIVERY PIPE MZW6P M/T<RSZ> POOR QUALITY DIESEL FUEL<KF0> (A) L=2100 SERVICED BY L=3000 THA	0-01260-300-0	01	1	1001-1102
65	HOSE; FUEL,DELIVERY PIPE MLD6S M/T<X7W> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> POOR QUALITY DIESEL FUEL<KF0> (A) L=2100 SERVICED BY L=3000 THA	0-01260-300-0	01	1	1001-1102
65	HOSE; FUEL,DELIVERY PIPE MZZ6W M/T<RSA> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> POOR QUALITY DIESEL FUEL<KF0> (A) L=2100 SERVICED BY L=3000 THA	0-01260-300-0	01	1	1103-
65	HOSE; FUEL,DELIVERY PIPE MZW6P M/T<RSZ> POOR QUALITY DIESEL FUEL<KF0> (A) L=2100 SERVICED BY L=3000 THA	0-01260-300-0	01	1	1103-
65	HOSE; FUEL,DELIVERY PIPE MLD6S M/T<X7W> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=1350 SERVICED BY L=3000 THA	0-01260-300-0	01	1	0808-0808
65	HOSE; FUEL,DELIVERY PIPE MLD6S M/T<X7W> WHEEL BASE 3400MM<34W> POOR QUALITY DIESEL FUEL<KF0> (A) L=2050 SERVICED BY L=3000 THA	0-01260-300-0	01	1	0808-1102
65	HOSE; FUEL,DELIVERY PIPE MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> POOR QUALITY DIESEL FUEL<KF0> (A) L=2050 SERVICED BY L=3000 THA	0-01260-300-0	01	1	1103-
65	HOSE; FUEL,DELIVERY PIPE MLD6S M/T<X7W> WHEEL BASE 3400MM<34W> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=1450 SERVICED BY L=3000 THA	0-01260-300-0	01	1	0808-1102
65	HOSE; FUEL,DELIVERY PIPE MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=1450 SERVICED BY L=3000 THA	0-01260-300-0	01	1	1103-
65	HOSE; FUEL,DELIVERY PIPE (B) L=60 SERVICED BY L=3000 THA	0-01260-300-0	01	1	0808-
66	HOSE; FUEL,RETURN PIPE L=60 SERVICED BY L=3000 THA	0-01558-300-0	01	1	0808-
80	BOLT; CLIP,FUEL TANK MLD6S M/T<X7W> WHEEL BASE 3400MM<34W> M8X20 FLANGE THA	0-28650-820-0	02	1	0808-1102
80	BOLT; CLIP,FUEL TANK MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> M8X20 FLANGE THA	0-28650-820-0	02	1	1103-
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE THA	0-28650-820-0	01	1	0808-
83	NUT; CLIP,FUEL TANK MLD6S M/T<X7W> WHEEL BASE 3400MM<34W> M8 FLANGE THA	0-91180-108-0	02	1	0808-1102
83	NUT; CLIP,FUEL TANK MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> M8 FLANGE THA	0-91180-108-0	02	1	1103-
83	NUT; CLIP,FUEL TANK M8 FLANGE THA	0-91180-108-0	01	1	0808-
83	NUT; CLIP,FUEL TANK M8 FLANGE THA	0-91180-108-0	03	1	0808-
97	BRACKET; CLIP MLD6S M/T<X7W> WHEEL BASE 3400MM<34W> (A) L=65	1-47477-713-0	02	1	0808-1102
97	BRACKET; CLIP MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> (A) L=65	1-47477-713-0	02	1	1103-
97	BRACKET; CLIP (B) L=50 THA	1-47475-299-2	01	1	0808-
97	BRACKET; CLIP (C)	8-98078-201-0	01	1	0808-
97	BRACKET; CLIP (D)	8-98083-537-0	01	1	0808-
98	BOLT; BRKT,FUEL PIPE M10X30 FLANGE THA	0-28651-030-0	01	1	0808-
174	PIPE; FUEL,FEED,FRT	8-98082-817-0	01	1	0808-
213	BOLT; FUEL PIPE FIX M8X20 FLANGE THA	0-28650-820-0	01	1	0808-
217	COLLAR; FUEL PIPE FIX ID=8 THA	1-47459-011-0	01	1	1103-
217	COLLAR; FUEL PIPE FIX ID=8 THA	1-47459-011-0	03	1	0808-1102
303	BOLT; BRKT POOR QUALITY DIESEL FUEL<KF0> M10X35 FLANGE THA	0-28651-035-0	02	1	0808-
303	BOLT; BRKT MLD6S M/T<X7W> WHEEL BASE 3400MM<34W> M8X20 FLANGE THA	0-28650-820-0	02	1	0808-1102
303	BOLT; BRKT MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> M8X20 FLANGE THA	0-28650-820-0	02	1	1103-
303	BOLT; BRKT M8X30 FLANGE THA	0-28650-830-0	01	1	0808-
304	NUT; BRKT POOR QUALITY DIESEL FUEL<KF0> M10 FLANGE THA	0-91180-210-0	04	1	0808-1203
304	NUT; BRKT POOR QUALITY DIESEL FUEL<KF0> M10 FLANGE THA	0-91180-210-0	02	1	1204-
304	NUT; BRKT POOR QUALITY DIESEL FUEL<KF0> M10 FLANGE THA	0-91180-210-0	02	1	1204-
304	NUT; BRKT MLD6S M/T<X7W> WHEEL BASE 3400MM<34W> M8 FLANGE THA	0-91180-108-0	02	1	0808-1102
304	NUT; BRKT MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> M8 FLANGE THA	0-91180-108-0	02	1	1103-
304	NUT; BRKT M8 FLANGE THA	0-91180-108-0	03	1	0808-
304	NUT; BRKT POOR QUALITY DIESEL FUEL<KF0> M10 FLANGE THA	0-91180-210-0	02	1	1205-
304	NUT; BRKT POOR QUALITY DIESEL FUEL<KF0> M10 FLANGE THA	0-91180-210-0	02	1	1205-
308	BRACKET; FUEL PIPE	8-98117-691-0	01	1	0808-
309	CLIP; PIPE (A) ID=10 & 10 THA	1-09709-241-0	01	1	1103-
309	CLIP; PIPE (B) ID=10 & 10 THA	1-09709-243-0	01	1	1103-
309	CLIP; PIPE (A) ID=10 & 10 THA	1-09709-241-0	03	1	0808-1102
309	CLIP; PIPE (B) ID=10 & 10 THA	1-09709-243-0	03	1	0808-1102
350	PIPE; FUEL,DEL & RET	8-98084-131-0	01	1	0808-

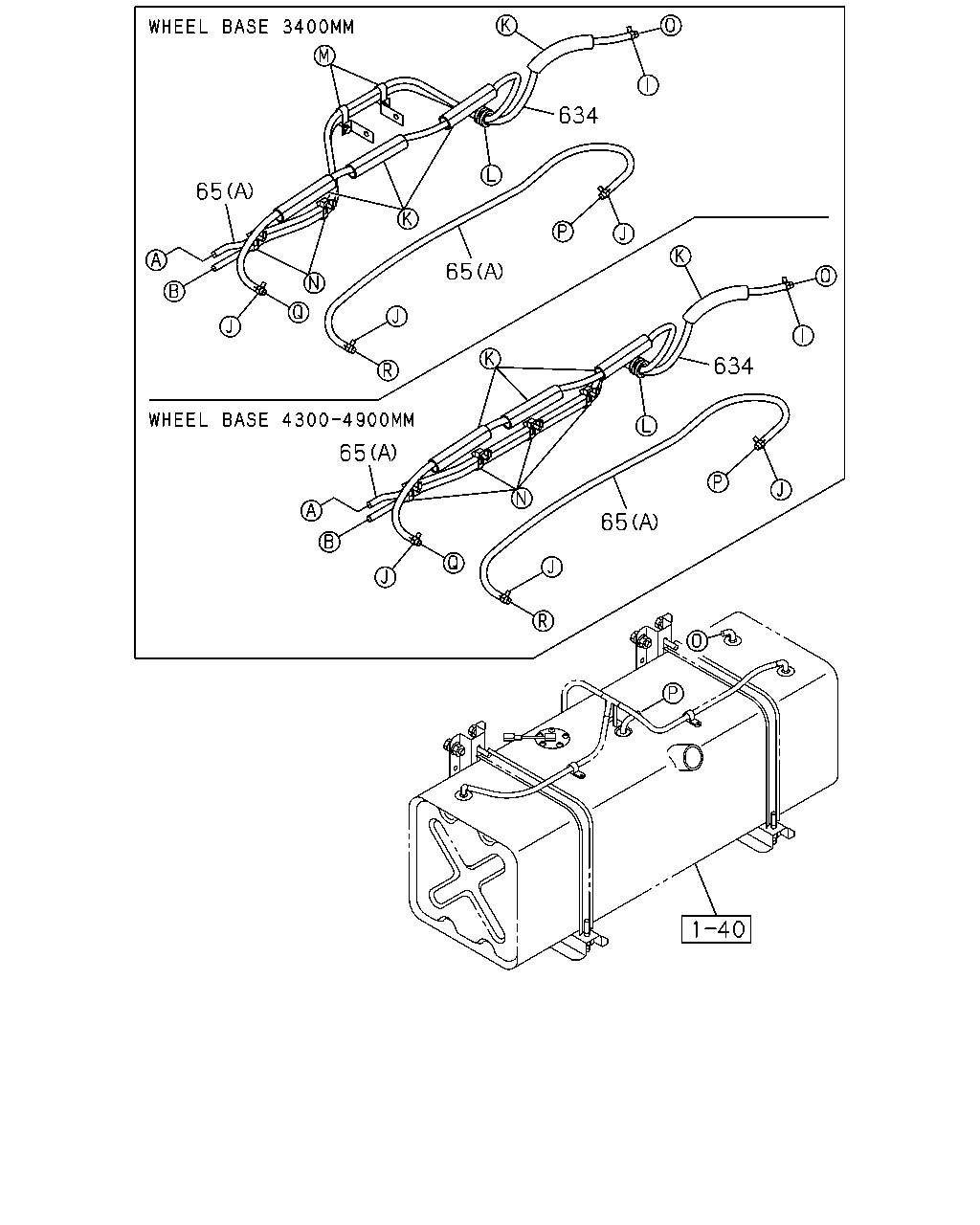

634 65 65 634 65 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
65	HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL<KF0> (A) L=1150 SERVICED BY L=3000 THA	0-01260-300-0	01	1	0808-0808
65	HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL<KF0> (A) L=1150 SERVICED BY L=3000 THA	0-01260-300-0	01	1	0809-0912
65	HOSE; FUEL,DELIVERY PIPE MLD6S M/T<X7W> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=1150 SERVICED BY L=3000 THA	0-01260-300-0	01	1	0809-0912
65	HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL<KF0> (A) L=1150 SERVICED BY L=3000 THA	0-01260-300-0	01	1	1001-1102
65	HOSE; FUEL,DELIVERY PIPE MZW6P M/T<RSZ> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=1150 SERVICED BY L=3000 THA	0-01260-300-0	01	1	1001-1102
65	HOSE; FUEL,DELIVERY PIPE MLD6S M/T<X7W> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=1150 SERVICED BY L=3000 THA	0-01260-300-0	01	1	1001-1102
65	HOSE; FUEL,DELIVERY PIPE MZZ6W M/T<RSA> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=1150 SERVICED BY L=3000 THA	0-01260-300-0	01	1	1103-
65	HOSE; FUEL,DELIVERY PIPE MZW6P M/T<RSZ> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=1150 SERVICED BY L=3000 THA	0-01260-300-0	01	1	1103-
65	HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL<KF0> (A) L=1150 SERVICED BY L=3000 THA	0-01260-300-0	01	1	1103-
65	HOSE; FUEL,DELIVERY PIPE MLD6S M/T<X7W> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> POOR QUALITY DIESEL FUEL<KF0> (A) L=2100 SERVICED BY L=3000 THA	0-01260-300-0	01	1	0808-0912
65	HOSE; FUEL,DELIVERY PIPE MZW6P M/T<RSZ> POOR QUALITY DIESEL FUEL<KF0> (A) L=2100 SERVICED BY L=3000 THA	0-01260-300-0	01	1	1001-1102
65	HOSE; FUEL,DELIVERY PIPE MLD6S M/T<X7W> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> POOR QUALITY DIESEL FUEL<KF0> (A) L=2100 SERVICED BY L=3000 THA	0-01260-300-0	01	1	1001-1102
65	HOSE; FUEL,DELIVERY PIPE MZZ6W M/T<RSA> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> POOR QUALITY DIESEL FUEL<KF0> (A) L=2100 SERVICED BY L=3000 THA	0-01260-300-0	01	1	1103-
65	HOSE; FUEL,DELIVERY PIPE MZW6P M/T<RSZ> POOR QUALITY DIESEL FUEL<KF0> (A) L=2100 SERVICED BY L=3000 THA	0-01260-300-0	01	1	1103-
65	HOSE; FUEL,DELIVERY PIPE MLD6S M/T<X7W> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=1350 SERVICED BY L=3000 THA	0-01260-300-0	01	1	0808-0808
65	HOSE; FUEL,DELIVERY PIPE MLD6S M/T<X7W> WHEEL BASE 3400MM<34W> POOR QUALITY DIESEL FUEL<KF0> (A) L=2050 SERVICED BY L=3000 THA	0-01260-300-0	01	1	0808-1102
65	HOSE; FUEL,DELIVERY PIPE MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> POOR QUALITY DIESEL FUEL<KF0> (A) L=2050 SERVICED BY L=3000 THA	0-01260-300-0	01	1	1103-
65	HOSE; FUEL,DELIVERY PIPE MLD6S M/T<X7W> WHEEL BASE 3400MM<34W> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=1450 SERVICED BY L=3000 THA	0-01260-300-0	01	1	0808-1102
65	HOSE; FUEL,DELIVERY PIPE MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=1450 SERVICED BY L=3000 THA	0-01260-300-0	01	1	1103-
65	HOSE; FUEL,DELIVERY PIPE (B) L=60 SERVICED BY L=3000 THA	0-01260-300-0	01	1	0808-
634	HOSE; RUBBER RETURN MLD6S M/T<X7W> WHEEL BASE 3400MM<34W> EXC. POOR QUALITY DIESEL FUEL<KF0> L=1450 SERVICED BY L=3000 THA	0-01558-300-0	01	1	0808-0912
634	HOSE; RUBBER RETURN MLD6S M/T<X7W> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> POOR QUALITY DIESEL FUEL<KF0> L=1450 SERVICED BY L=3000 THA	0-01558-300-0	01	1	0808-0912
634	HOSE; RUBBER RETURN MZW6P M/T<RSZ> POOR QUALITY DIESEL FUEL<KF0> L=1450 SERVICED BY L=3000 THA	0-01558-300-0	01	1	1001-1102
634	HOSE; RUBBER RETURN MLD6S M/T<X7W> WHEEL BASE 3400MM<34W> EXC. POOR QUALITY DIESEL FUEL<KF0> L=1450 SERVICED BY L=3000 THA	0-01558-300-0	01	1	1001-1102
634	HOSE; RUBBER RETURN MLD6S M/T<X7W> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> POOR QUALITY DIESEL FUEL<KF0> L=1450 SERVICED BY L=3000 THA	0-01558-300-0	01	1	1001-1102
634	HOSE; RUBBER RETURN MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> EXC. POOR QUALITY DIESEL FUEL<KF0> L=1450 SERVICED BY L=3000 THA	0-01558-300-0	01	1	1103-1209
634	HOSE; RUBBER RETURN MZZ6W M/T<RSA> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> POOR QUALITY DIESEL FUEL<KF0> L=1450 SERVICED BY L=3000 THA	0-01558-300-0	01	1	1103-1209
634	HOSE; RUBBER RETURN MZW6P M/T<RSZ> POOR QUALITY DIESEL FUEL<KF0> L=1450 SERVICED BY L=3000 THA	0-01558-300-0	01	1	1103-1209
634	HOSE; RUBBER RETURN MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> L=1450 SERVICED BY L=3000 THA	0-01558-300-0	01	1	1210-
634	HOSE; RUBBER RETURN MZZ6W M/T<RSA> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> POOR QUALITY DIESEL FUEL<KF0> L=1450 SERVICED BY L=3000 THA	0-01558-300-0	01	1	1210-
634	HOSE; RUBBER RETURN MZW6P M/T<RSZ> POOR QUALITY DIESEL FUEL<KF0> L=1450 SERVICED BY L=3000 THA	0-01558-300-0	01	1	1210-
634	HOSE; RUBBER RETURN MLD6S M/T<X7W> WHEEL BASE 3400MM<34W> POOR QUALITY DIESEL FUEL<KF0> L=1350 SERVICED BY L=3000 THA	0-01558-300-0	01	1	0808-0808
634	HOSE; RUBBER RETURN MLD6S M/T<X7W> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> EXC. POOR QUALITY DIESEL FUEL<KF0> L=1350 SERVICED BY L=3000 THA	0-01558-300-0	01	1	0808-0808
634	HOSE; RUBBER RETURN MLD6S M/T<X7W> WHEEL BASE 3400MM<34W> POOR QUALITY DIESEL FUEL<KF0> L=1250 SERVICED BY L=3000 THA	0-01558-300-0	01	1	0809-0912
634	HOSE; RUBBER RETURN MLD6S M/T<X7W> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> EXC. POOR QUALITY DIESEL FUEL<KF0> L=1250 SERVICED BY L=3000 THA	0-01558-300-0	01	1	0809-0912
634	HOSE; RUBBER RETURN MZW6P M/T<RSZ> EXC. POOR QUALITY DIESEL FUEL<KF0> L=1250 SERVICED BY L=3000 THA	0-01558-300-0	01	1	1001-1102
634	HOSE; RUBBER RETURN MLD6S M/T<X7W> WHEEL BASE 3400MM<34W> POOR QUALITY DIESEL FUEL<KF0> L=1250 SERVICED BY L=3000 THA	0-01558-300-0	01	1	1001-1102
634	HOSE; RUBBER RETURN MLD6S M/T<X7W> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> EXC. POOR QUALITY DIESEL FUEL<KF0> L=1250 SERVICED BY L=3000 THA	0-01558-300-0	01	1	1001-1102
634	HOSE; RUBBER RETURN MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> POOR QUALITY DIESEL FUEL<KF0> L=1250 SERVICED BY L=3000 THA	0-01558-300-0	01	1	1103-
634	HOSE; RUBBER RETURN MZZ6W M/T<RSA> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> EXC. POOR QUALITY DIESEL FUEL<KF0> L=1250 SERVICED BY L=3000 THA	0-01558-300-0	01	1	1103-
634	HOSE; RUBBER RETURN MZW6P M/T<RSZ> EXC. POOR QUALITY DIESEL FUEL<KF0> L=1250 SERVICED BY L=3000 THA	0-01558-300-0	01	1	1103-

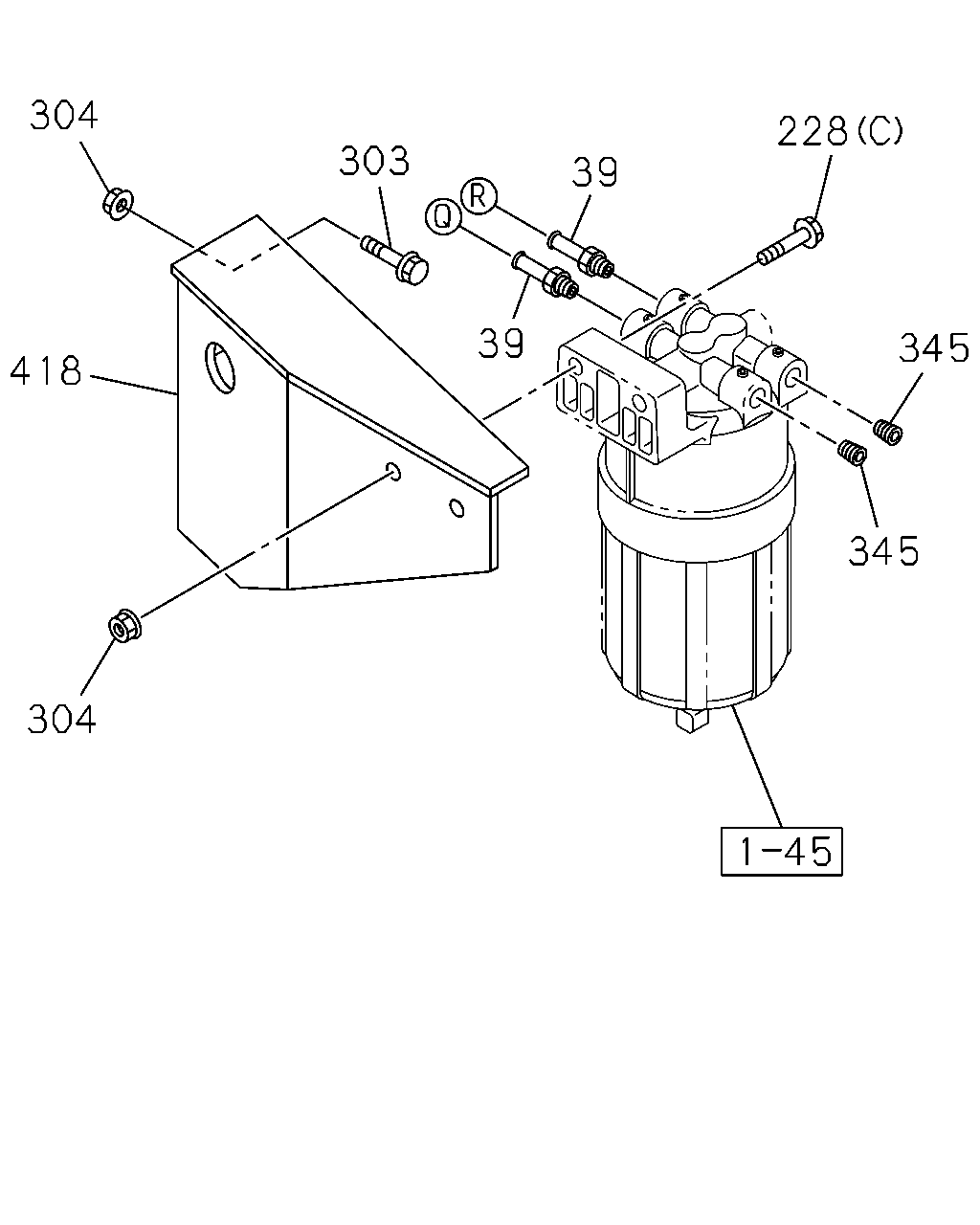

304 228 303 39 39 345 418 345 304

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	PIPE; FUEL POOR QUALITY DIESEL FUEL<KF0> THA	8-97924-295-1	02	1	0808-0902
39	PIPE; FUEL POOR QUALITY DIESEL FUEL<KF0> NPTF3/8-18 OD=10	8-98122-953-0	02	1	0903-
228	BOLT; BRKT,SEDIMENTER (C) M10X50 FLANGE THA	0-28051-050-0	02	1	0809-0809
228	BOLT; BRKT,SEDIMENTER (C) M10X50 FLANGE THA	0-28051-050-0	04	1	0809-0906
228	BOLT; BRKT,SEDIMENTER (C) M10X50 FLANGE THA	0-28051-050-0	02	1	0907-1102
228	BOLT; BRKT,SEDIMENTER POOR QUALITY DIESEL FUEL<KF0> (C) M10X50 FLANGE THA	0-28051-050-0	02	1	0907-1102
228	BOLT; BRKT,SEDIMENTER POOR QUALITY DIESEL FUEL<KF0> (C) M10X50 FLANGE THA	0-28051-050-0	02	1	1103-1212
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 3400MM<34W> POOR QUALITY DIESEL FUEL<KF0> (C) M10X50 FLANGE THA	0-28051-050-0	02	1	1301-1301
228	BOLT; BRKT,SEDIMENTER POOR QUALITY DIESEL FUEL<KF0> (C) M10X50 FLANGE THA	0-28051-050-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER (A) M8X30 FLANGE THA	0-28050-830-0	02	1	0808-
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE THA	0-28650-820-0	02	1	0808-
303	BOLT; BRKT POOR QUALITY DIESEL FUEL<KF0> M10X35 FLANGE THA	0-28651-035-0	02	1	0808-
303	BOLT; BRKT MLD6S M/T<X7W> WHEEL BASE 3400MM<34W> M8X20 FLANGE THA	0-28650-820-0	02	1	0808-1102
303	BOLT; BRKT MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> M8X20 FLANGE THA	0-28650-820-0	02	1	1103-
303	BOLT; BRKT M8X30 FLANGE THA	0-28650-830-0	01	1	0808-
304	NUT; BRKT POOR QUALITY DIESEL FUEL<KF0> M10 FLANGE THA	0-91180-210-0	04	1	0808-1203
304	NUT; BRKT POOR QUALITY DIESEL FUEL<KF0> M10 FLANGE THA	0-91180-210-0	02	1	1204-
304	NUT; BRKT POOR QUALITY DIESEL FUEL<KF0> M10 FLANGE THA	0-91180-210-0	02	1	1204-
304	NUT; BRKT MLD6S M/T<X7W> WHEEL BASE 3400MM<34W> M8 FLANGE THA	0-91180-108-0	02	1	0808-1102
304	NUT; BRKT MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> M8 FLANGE THA	0-91180-108-0	02	1	1103-
304	NUT; BRKT M8 FLANGE THA	0-91180-108-0	03	1	0808-
304	NUT; BRKT POOR QUALITY DIESEL FUEL<KF0> M10 FLANGE THA	0-91180-210-0	02	1	1205-
304	NUT; BRKT POOR QUALITY DIESEL FUEL<KF0> M10 FLANGE THA	0-91180-210-0	02	1	1205-
345	PLUG POOR QUALITY DIESEL FUEL<KF0> NPTF3/8-18	8-97329-623-0	02	1	0808-
418	BRACKET; PRE FUEL FILTER POOR QUALITY DIESEL FUEL<KF0>	8-98091-935-1	01	1	0808-

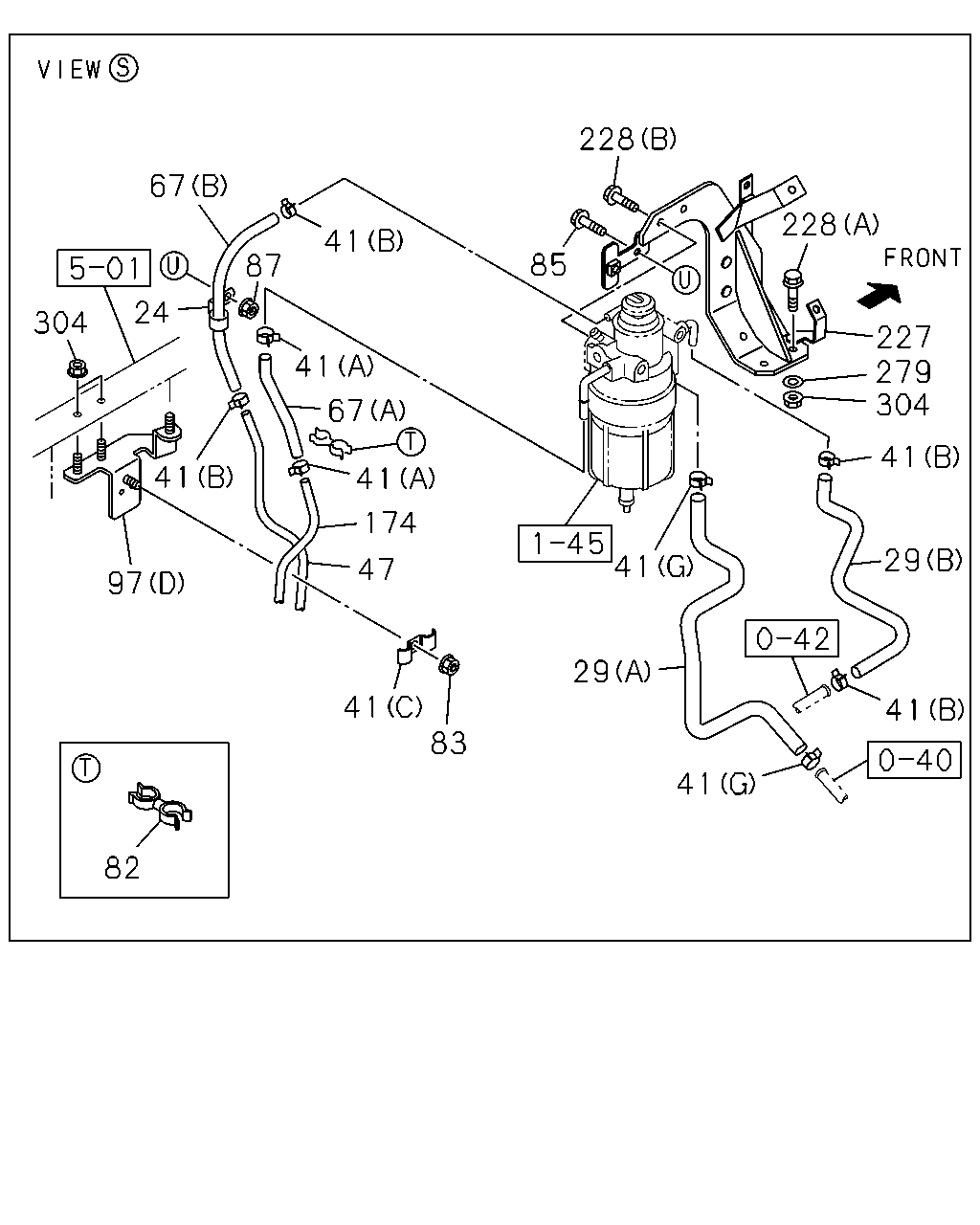

228 228 227 279 304 41 29 41 41 29 41 85 41 67 87 24 304 41 97 82 41 67 41 174 47 41 83

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	CLIP; FUEL HOSE ID=15 H=24 L=20	1-09700-606-0	01	1	0808-
29	HOSE; FUEL (A)	8-98078-194-3	01	1	0808-
29	HOSE; FUEL (B) THA	8-98078-195-1	01	1	0808-
41	CLIP; FUEL PIPE,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> (A) ID=14	1-09704-102-0	08	1	0808-
41	CLIP; FUEL PIPE,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> (D) L=250 THA	5-09707-030-1	04	1	0808-
41	CLIP; FUEL PIPE,FUEL TANK MLD6S M/T<X7W> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> (F) ID=14.5 & 14.5	1-09701-246-1	04	1	0808-0912
41	CLIP; FUEL PIPE,FUEL TANK MZW6P M/T<RSZ> (F) ID=14.5 & 14.5	1-09701-246-1	04	1	1001-1102
41	CLIP; FUEL PIPE,FUEL TANK MLD6S M/T<X7W> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> (F) ID=14.5 & 14.5	1-09701-246-1	04	1	1001-1102
41	CLIP; FUEL PIPE,FUEL TANK MZZ6W M/T<RSA> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> (F) ID=14.5 & 14.5	1-09701-246-1	04	1	1103-
41	CLIP; FUEL PIPE,FUEL TANK MZW6P M/T<RSZ> (F) ID=14.5 & 14.5	1-09701-246-1	04	1	1103-
41	CLIP; FUEL PIPE,FUEL TANK MLD6S M/T<X7W> WHEEL BASE 3400MM<34W> (E) ID=16X2 L=20	0-95325-535-0	02	1	0808-1102
41	CLIP; FUEL PIPE,FUEL TANK MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> (E) ID=16X2 L=20	0-95325-535-0	02	1	1103-
41	CLIP; FUEL PIPE,FUEL TANK MLD6S M/T<X7W> WHEEL BASE 3400MM<34W> (F) ID=14.5 & 14.5	1-09701-246-1	02	1	0808-1102
41	CLIP; FUEL PIPE,FUEL TANK MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> (F) ID=14.5 & 14.5	1-09701-246-1	02	1	1103-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0808-
41	CLIP; FUEL PIPE,FUEL TANK (G) ID=16 THA	8-94238-568-0	02	1	0808-
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=13 THA	8-94238-571-0	08	1	0808-
41	CLIP; FUEL PIPE,FUEL TANK EXC. POOR QUALITY DIESEL FUEL<KF0> (A) ID=14	1-09704-102-0	06	1	0808-
41	CLIP; FUEL PIPE,FUEL TANK EXC. POOR QUALITY DIESEL FUEL<KF0> (D) L=250 THA	5-09707-030-1	01	1	0808-
47	PIPE; FUEL,RETURN L=1496	8-98082-818-0	01	1	0808-
67	HOSE; FUEL,DELIVERY (A) L=140 SERVICED BY L=3000 THA	0-01260-300-0	01	1	0808-
67	HOSE; FUEL,DELIVERY (B) L=210 SERVICED BY L=3000 THA	0-01558-300-0	01	1	0808-
82	CLIP; FUEL HOSE ID=13 & 16.5	8-94169-028-0	01	1	0808-
83	NUT; CLIP,FUEL TANK MLD6S M/T<X7W> WHEEL BASE 3400MM<34W> M8 FLANGE THA	0-91180-108-0	02	1	0808-1102
83	NUT; CLIP,FUEL TANK MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> M8 FLANGE THA	0-91180-108-0	02	1	1103-
83	NUT; CLIP,FUEL TANK M8 FLANGE THA	0-91180-108-0	01	1	0808-
83	NUT; CLIP,FUEL TANK M8 FLANGE THA	0-91180-108-0	03	1	0808-
85	BOLT; CLIP,FUEL HOSE M8X20 FLANGE THA	0-28650-820-0	01	1	0808-
87	NUT; CLIP,FUEL HOSE M8 FLANGE THA	0-91180-108-0	01	1	0808-
97	BRACKET; CLIP MLD6S M/T<X7W> WHEEL BASE 3400MM<34W> (A) L=65	1-47477-713-0	02	1	0808-1102
97	BRACKET; CLIP MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> (A) L=65	1-47477-713-0	02	1	1103-
97	BRACKET; CLIP (B) L=50 THA	1-47475-299-2	01	1	0808-
97	BRACKET; CLIP (C)	8-98078-201-0	01	1	0808-
97	BRACKET; CLIP (D)	8-98083-537-0	01	1	0808-
174	PIPE; FUEL,FEED,FRT	8-98082-817-0	01	1	0808-
227	BRACKET; FUEL SEDIMENTER	8-98044-367-3	01	1	0808-0808
227	BRACKET; FUEL SEDIMENTER	8-98130-667-0	01	1	0809-
228	BOLT; BRKT,SEDIMENTER (C) M10X50 FLANGE THA	0-28051-050-0	02	1	0809-0809
228	BOLT; BRKT,SEDIMENTER (C) M10X50 FLANGE THA	0-28051-050-0	04	1	0809-0906
228	BOLT; BRKT,SEDIMENTER (C) M10X50 FLANGE THA	0-28051-050-0	02	1	0907-1102
228	BOLT; BRKT,SEDIMENTER POOR QUALITY DIESEL FUEL<KF0> (C) M10X50 FLANGE THA	0-28051-050-0	02	1	0907-1102
228	BOLT; BRKT,SEDIMENTER POOR QUALITY DIESEL FUEL<KF0> (C) M10X50 FLANGE THA	0-28051-050-0	02	1	1103-1212
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 3400MM<34W> POOR QUALITY DIESEL FUEL<KF0> (C) M10X50 FLANGE THA	0-28051-050-0	02	1	1301-1301
228	BOLT; BRKT,SEDIMENTER POOR QUALITY DIESEL FUEL<KF0> (C) M10X50 FLANGE THA	0-28051-050-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER (A) M8X30 FLANGE THA	0-28050-830-0	02	1	0808-
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE THA	0-28650-820-0	02	1	0808-
279	WASHER ID=10.5 OD=26	0-91614-710-0	02	1	0808-0906
279	WASHER POOR QUALITY DIESEL FUEL<KF0> ID=10.5 OD=26	0-91614-710-0	02	1	0907-
304	NUT; BRKT POOR QUALITY DIESEL FUEL<KF0> M10 FLANGE THA	0-91180-210-0	04	1	0808-1203
304	NUT; BRKT POOR QUALITY DIESEL FUEL<KF0> M10 FLANGE THA	0-91180-210-0	02	1	1204-
304	NUT; BRKT POOR QUALITY DIESEL FUEL<KF0> M10 FLANGE THA	0-91180-210-0	02	1	1204-
304	NUT; BRKT MLD6S M/T<X7W> WHEEL BASE 3400MM<34W> M8 FLANGE THA	0-91180-108-0	02	1	0808-1102
304	NUT; BRKT MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> M8 FLANGE THA	0-91180-108-0	02	1	1103-
304	NUT; BRKT M8 FLANGE THA	0-91180-108-0	03	1	0808-
304	NUT; BRKT POOR QUALITY DIESEL FUEL<KF0> M10 FLANGE THA	0-91180-210-0	02	1	1205-
304	NUT; BRKT POOR QUALITY DIESEL FUEL<KF0> M10 FLANGE THA	0-91180-210-0	02	1	1205-

41 41 41 55 41 95 41 97 83 303 304 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
41	CLIP; FUEL PIPE,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> (A) ID=14	1-09704-102-0	08	1	0808-
41	CLIP; FUEL PIPE,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> (D) L=250 THA	5-09707-030-1	04	1	0808-
41	CLIP; FUEL PIPE,FUEL TANK MLD6S M/T<X7W> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> (F) ID=14.5 & 14.5	1-09701-246-1	04	1	0808-0912
41	CLIP; FUEL PIPE,FUEL TANK MZW6P M/T<RSZ> (F) ID=14.5 & 14.5	1-09701-246-1	04	1	1001-1102
41	CLIP; FUEL PIPE,FUEL TANK MLD6S M/T<X7W> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> (F) ID=14.5 & 14.5	1-09701-246-1	04	1	1001-1102
41	CLIP; FUEL PIPE,FUEL TANK MZZ6W M/T<RSA> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> (F) ID=14.5 & 14.5	1-09701-246-1	04	1	1103-
41	CLIP; FUEL PIPE,FUEL TANK MZW6P M/T<RSZ> (F) ID=14.5 & 14.5	1-09701-246-1	04	1	1103-
41	CLIP; FUEL PIPE,FUEL TANK MLD6S M/T<X7W> WHEEL BASE 3400MM<34W> (E) ID=16X2 L=20	0-95325-535-0	02	1	0808-1102
41	CLIP; FUEL PIPE,FUEL TANK MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> (E) ID=16X2 L=20	0-95325-535-0	02	1	1103-
41	CLIP; FUEL PIPE,FUEL TANK MLD6S M/T<X7W> WHEEL BASE 3400MM<34W> (F) ID=14.5 & 14.5	1-09701-246-1	02	1	0808-1102
41	CLIP; FUEL PIPE,FUEL TANK MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> (F) ID=14.5 & 14.5	1-09701-246-1	02	1	1103-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0808-
41	CLIP; FUEL PIPE,FUEL TANK (G) ID=16 THA	8-94238-568-0	02	1	0808-
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=13 THA	8-94238-571-0	08	1	0808-
41	CLIP; FUEL PIPE,FUEL TANK EXC. POOR QUALITY DIESEL FUEL<KF0> (A) ID=14	1-09704-102-0	06	1	0808-
41	CLIP; FUEL PIPE,FUEL TANK EXC. POOR QUALITY DIESEL FUEL<KF0> (D) L=250 THA	5-09707-030-1	01	1	0808-
55	COVER; PIPE,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> L=150 SERVICED BY L=1300	1-09360-677-1	04	1	0808-
55	COVER; PIPE,FUEL TANK EXC. POOR QUALITY DIESEL FUEL<KF0> L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0808-
80	BOLT; CLIP,FUEL TANK MLD6S M/T<X7W> WHEEL BASE 3400MM<34W> M8X20 FLANGE THA	0-28650-820-0	02	1	0808-1102
80	BOLT; CLIP,FUEL TANK MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> M8X20 FLANGE THA	0-28650-820-0	02	1	1103-
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE THA	0-28650-820-0	01	1	0808-
83	NUT; CLIP,FUEL TANK MLD6S M/T<X7W> WHEEL BASE 3400MM<34W> M8 FLANGE THA	0-91180-108-0	02	1	0808-1102
83	NUT; CLIP,FUEL TANK MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> M8 FLANGE THA	0-91180-108-0	02	1	1103-
83	NUT; CLIP,FUEL TANK M8 FLANGE THA	0-91180-108-0	01	1	0808-
83	NUT; CLIP,FUEL TANK M8 FLANGE THA	0-91180-108-0	03	1	0808-
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	01	1	0808-
97	BRACKET; CLIP MLD6S M/T<X7W> WHEEL BASE 3400MM<34W> (A) L=65	1-47477-713-0	02	1	0808-1102
97	BRACKET; CLIP MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> (A) L=65	1-47477-713-0	02	1	1103-
97	BRACKET; CLIP (B) L=50 THA	1-47475-299-2	01	1	0808-
97	BRACKET; CLIP (C)	8-98078-201-0	01	1	0808-
97	BRACKET; CLIP (D)	8-98083-537-0	01	1	0808-
303	BOLT; BRKT POOR QUALITY DIESEL FUEL<KF0> M10X35 FLANGE THA	0-28651-035-0	02	1	0808-
303	BOLT; BRKT MLD6S M/T<X7W> WHEEL BASE 3400MM<34W> M8X20 FLANGE THA	0-28650-820-0	02	1	0808-1102
303	BOLT; BRKT MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> M8X20 FLANGE THA	0-28650-820-0	02	1	1103-
303	BOLT; BRKT M8X30 FLANGE THA	0-28650-830-0	01	1	0808-
304	NUT; BRKT POOR QUALITY DIESEL FUEL<KF0> M10 FLANGE THA	0-91180-210-0	04	1	0808-1203
304	NUT; BRKT POOR QUALITY DIESEL FUEL<KF0> M10 FLANGE THA	0-91180-210-0	02	1	1204-
304	NUT; BRKT POOR QUALITY DIESEL FUEL<KF0> M10 FLANGE THA	0-91180-210-0	02	1	1204-
304	NUT; BRKT MLD6S M/T<X7W> WHEEL BASE 3400MM<34W> M8 FLANGE THA	0-91180-108-0	02	1	0808-1102
304	NUT; BRKT MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> M8 FLANGE THA	0-91180-108-0	02	1	1103-
304	NUT; BRKT M8 FLANGE THA	0-91180-108-0	03	1	0808-
304	NUT; BRKT POOR QUALITY DIESEL FUEL<KF0> M10 FLANGE THA	0-91180-210-0	02	1	1205-
304	NUT; BRKT POOR QUALITY DIESEL FUEL<KF0> M10 FLANGE THA	0-91180-210-0	02	1	1205-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
