Sayfa 9-01 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10658 - EXR RHD ▶ 9 - Tools ▶ 9-01 - TOOLS ▶

9-01 — TOOLS (#2573) — 188 parça

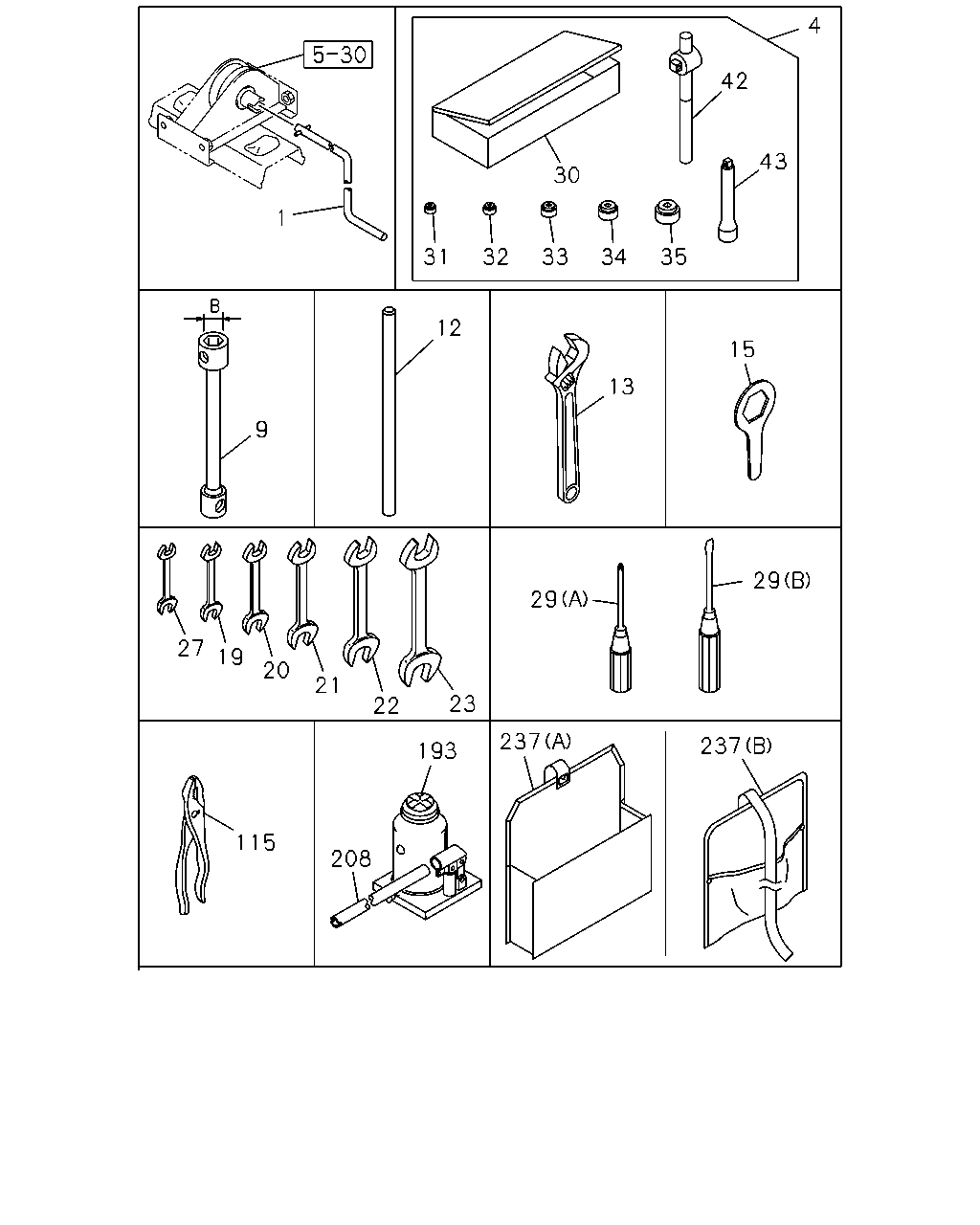

4 42 43 30 1 31 32 33 34 35 12 15 13 9 29 29 27 19 20 21 23 22 237 237 193 115 208

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HANDLE; SPARE TIRE CARRIER SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8>	9-23110-018-0	01	1	9002-
4	WRENCH KIT; SOCKET	9-85110-012-0	01	1	9002-
9	WRENCH; WHEEL PIN INTERNATIONAL STANDARD ISO 10STUD<B3V> B=33X30 L=450	1-85111-033-0	01	1	9002-9111
9	WRENCH; WHEEL PIN B=33X30 L=450	1-85111-033-1	01	1	9112-
9	WRENCH; WHEEL PIN EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> B=30 L=450	1-85111-032-0	01	1	9002-9111
12	HANDLE; WRENCH,WHEEL PIN OD=25 L=480	1-85116-011-0	01	1	9002-
13	WRENCH; MONKEY	1-85117-003-1	01	1	9002-9304
13	WRENCH; MONKEY L=255	1-85117-002-1	01	1	9305-
15	WRENCH; TOP GEAR NUT	9-85111-330-0	01	1	9002-
19	WRENCH; 7X8 7X8	9-09592-107-0	01	1	9002-
20	WRENCH; 10X12 10X12	9-09592-110-0	01	1	9002-
21	WRENCH; 14X17 14X17	9-09592-114-0	01	1	9002-
22	WRENCH; 19X22 19X22	9-99592-119-0	01	1	9002-
23	WRENCH; 24X27 24X27	9-09592-124-0	01	1	9002-
27	WRENCH; OPEN END 5.5X7 5.5X7	9-09592-105-0	01	1	9002-
29	DRIVER; SCREW (A) <+> L=205	9-09595-022-0	01	1	9002-
29	DRIVER; SCREW (A) <+> L=275	9-09595-023-0	01	1	9002-
29	DRIVER; SCREW (B) <-> L=205	9-09595-126-0	01	1	9002-
29	DRIVER; SCREW (B) <-> L=325	9-09595-129-0	01	1	9002-
30	BOX; SOCKET WRENCH	9-85581-260-0	01	1	9002-
31	WRENCH; 12	9-09590-012-0	01	1	9002-
32	WRENCH; 14	9-09590-014-0	01	1	9002-
33	WRENCH; 17	9-09590-017-0	01	1	9002-
34	WRENCH; 19	9-09590-019-0	01	1	9002-
35	WRENCH; 22	9-09590-022-0	01	1	9002-
42	HANDLE; SLIDING	9-09590-512-0	01	1	9002-
43	BAR; EXTENSION,SOCKET WRENCH	9-09590-812-0	01	1	9002-
115	PLIER	5-85171-001-0	01	1	9002-
193	JACK ASM 15TON	1-85510-004-2	01	1	9002-9310
193	JACK ASM 15TON	1-85510-019-0	01	1	9311-
208	HANDLE; JACK L=680	1-85515-004-0	01	1	9002-9405
208	HANDLE; JACK L=600	1-85515-008-0	01	1	9406-
237	BAG; TOOL (A)	8-94367-102-0	01	1	9002-9509
237	BAG; TOOL (B)	8-97130-902-0	01	1	9510-

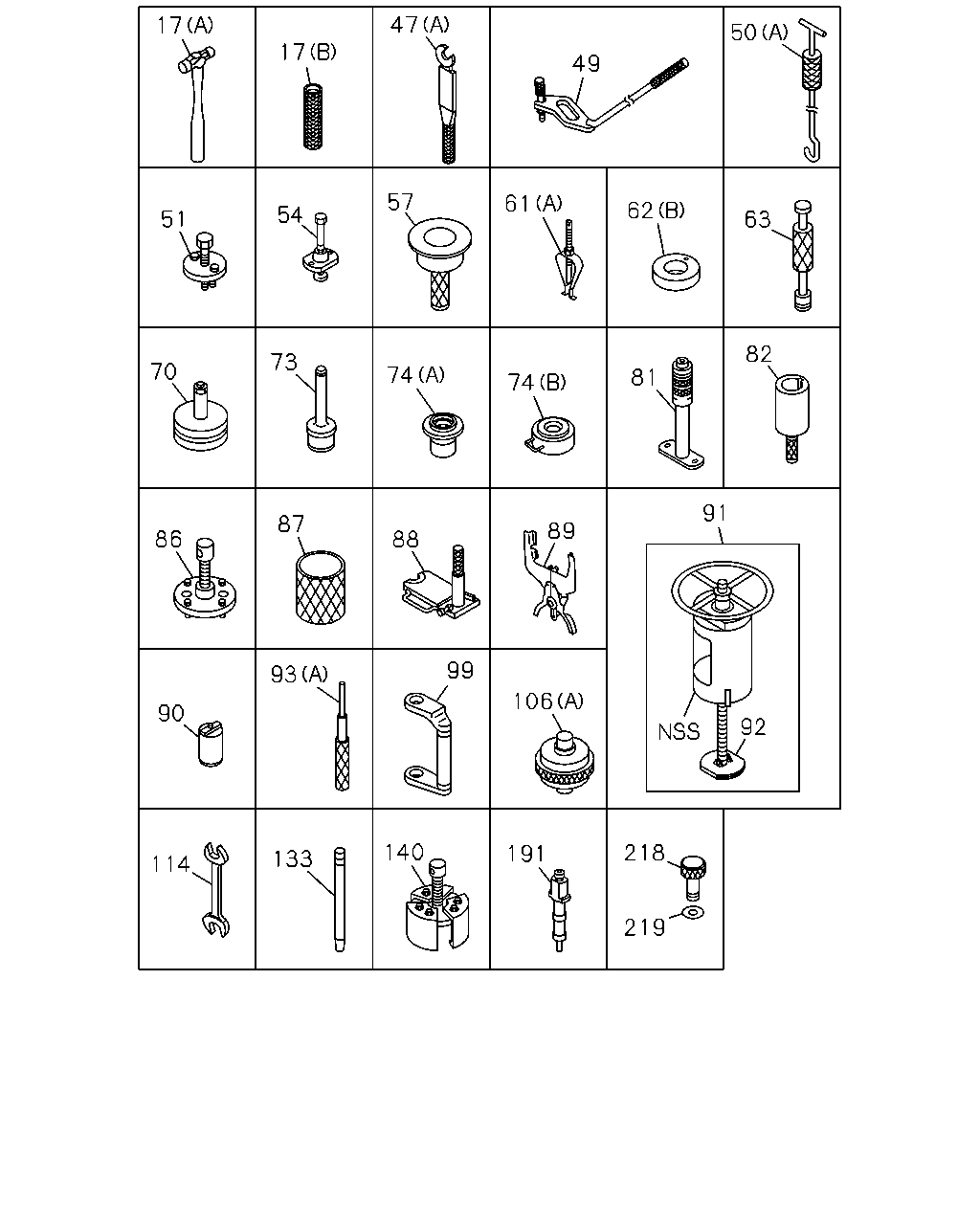

47 17 50 17 49 57 61 62 54 51 63 82 73 70 74 81 74 91 87 89 86 88 99 93 106 90 92 140 218 191 133 114 219

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
17	HAMMER (A)	9-85121-406-0	01	1	9002-
17	HAMMER 10PD1 STD ENG(40L) (B)	1-85220-021-0	01	1	9002-
47	WRENCH ASM; UNIVERSAL,INJ PUMP L TYPE ENG<90L> (B)	9-85113-901-0	01	1	9002-
47	WRENCH ASM; UNIVERSAL,INJ PUMP 10PD1 STD ENG(40L) (A)	1-85220-018-0	01	1	9002-
49	REPLACER ASM; VALVE 10PD1 STD ENG(40L)	1-85235-001-0	01	1	9002-
50	REPLACER; NOZZLE HOLDER L TYPE ENG<90L> (B)	9-85232-001-0	01	1	9002-
50	REPLACER; NOZZLE HOLDER 10PD1 STD ENG(40L) (A) L=500	1-85230-007-0	01	1	9002-
51	PULLER ASM; WATER PUMP 10PD1 STD ENG(40L)	1-85210-028-0	01	1	9002-
54	PULLER; THERMOSTAT SEAL 10PD1 STD ENG(40L)	1-85210-029-0	01	1	9002-
57	TOOL; SETTING CRANK GEAR L TYPE ENG<90L> OD=153	9-85220-025-0	01	1	9002-
57	TOOL; SETTING CRANK GEAR 10PD1 STD ENG(40L) OD=175	1-85221-028-0	01	1	9002-
61	PULLER ASM; PILOT BRG (B)	1-85210-050-0	01	1	9002-
61	PULLER ASM; PILOT BRG (A)	9-85210-157-0	01	1	9002-
62	TOOL ASM; SETTING WEAR RING L TYPE ENG<90L> (A)	1-85220-014-0	01	1	9002-
62	TOOL ASM; SETTING WEAR RING 10PD1 STD ENG(40L) (B)	1-85221-008-0	01	1	9002-
63	PULLER; NOZZLE SLEEVE 10PD1 STD ENG(40L)	1-85210-026-0	01	1	9002-
70	TOOL; SETTING,OIL SEAL 10PD1 STD ENG(40L)	1-85220-008-0	01	1	9002-
73	TOOL; SETTING,THERMOSTAT SEAL 10PD1 STD ENG(40L)	1-85221-034-0	01	1	9002-
74	TOOL; SETTING,INJ PUMP BRG 10PD1 STD ENG(40L) (A)	1-85220-019-0	01	1	9002-
74	TOOL; SETTING,INJ PUMP BRG 10PD1 STD ENG(40L) (B)	1-85220-020-1	01	1	9002-
81	PULLER; BRG CAP 10PD1 STD ENG(40L)	1-85210-015-0	01	1	9002-
82	PULLER ASM; CR/SHF GEAR 10PD1 STD ENG(40L)	9-85211-139-0	01	1	9002-
86	REPLACER; FLYWHEEL 10PD1 STD ENG(40L)	1-85230-006-0	01	1	9002-
87	TOOL; PISTON L TYPE ENG<90L>	9-85221-319-0	01	1	9002-
87	TOOL; PISTON 10PD1 STD ENG(40L)	1-85220-017-0	01	1	9002-
88	TOOL; CONNROD BUSHING L TYPE ENG<90L>	9-85220-042-0	01	1	9002-
88	TOOL; CONNROD BUSHING 10PD1 STD ENG(40L)	1-85220-002-0	01	1	9002-
89	TOOL; PISTON RING L TYPE ENG<90L>	1-85221-025-0	01	1	9002-
89	TOOL; PISTON RING 10PD1 STD ENG(40L)	1-85221-029-0	01	1	9002-
90	PULLER; INJ PUMP BRG 10PD1 STD ENG(40L)	1-85210-039-0	01	1	9002-
91	REPLACER ASM; CYL LINER 10PD1 STD ENG(40L)	1-85230-004-0	01	1	9002-
91	REPLACER ASM; CYL LINER 6RA1TC ENG(19L)	9-85231-186-0	01	1	9002-9306
92	ANKLE; REPLACER,CYL LINER 6RA1TC ENG(19L)	9-85231-180-0	01	1	9002-9306
93	SETTING KIT; VALVE GUIDE L TYPE ENG<90L> (B)	9-85231-222-0	01	1	9002-
93	SETTING KIT; VALVE GUIDE 10PD1 STD ENG(40L) (A) L=260	9-85231-202-0	01	1	9002-
99	WRENCH; CYL HD BOLT 10PD1 STD ENG(40L)	1-85115-013-0	01	1	9002-
106	TOOL; SETTING PILOT BRG (B)	9-85221-247-0	01	1	9002-
106	TOOL; SETTING PILOT BRG (C)	9-85221-249-0	01	1	9002-
106	TOOL; SETTING PILOT BRG L TYPE ENG<90L> (D)	9-85241-409-0	01	1	9002-
106	TOOL; SETTING PILOT BRG 10PD1 STD ENG(40L) (A)	1-85221-057-0	01	1	9002-
114	WRENCH; INJ PUMP 10PD1 STD ENG(40L)	1-85220-027-0	01	1	9002-
133	WRENCH; NUT STARTER 10PD1 STD ENG(40L)	1-85221-030-0	02	1	9002-
140	REMOVER; WEAR RING	1-85210-027-0	01	1	9002-
191	ADAPTER 10PD1 STD ENG(40L)	1-85317-002-0	01	1	9002-
218	PLUG 10PD1 STD ENG(40L)	1-15629-043-0	01	1	9002-
219	GASKET 10PD1 STD ENG(40L)	9-09720-555-0	01	1	9002-

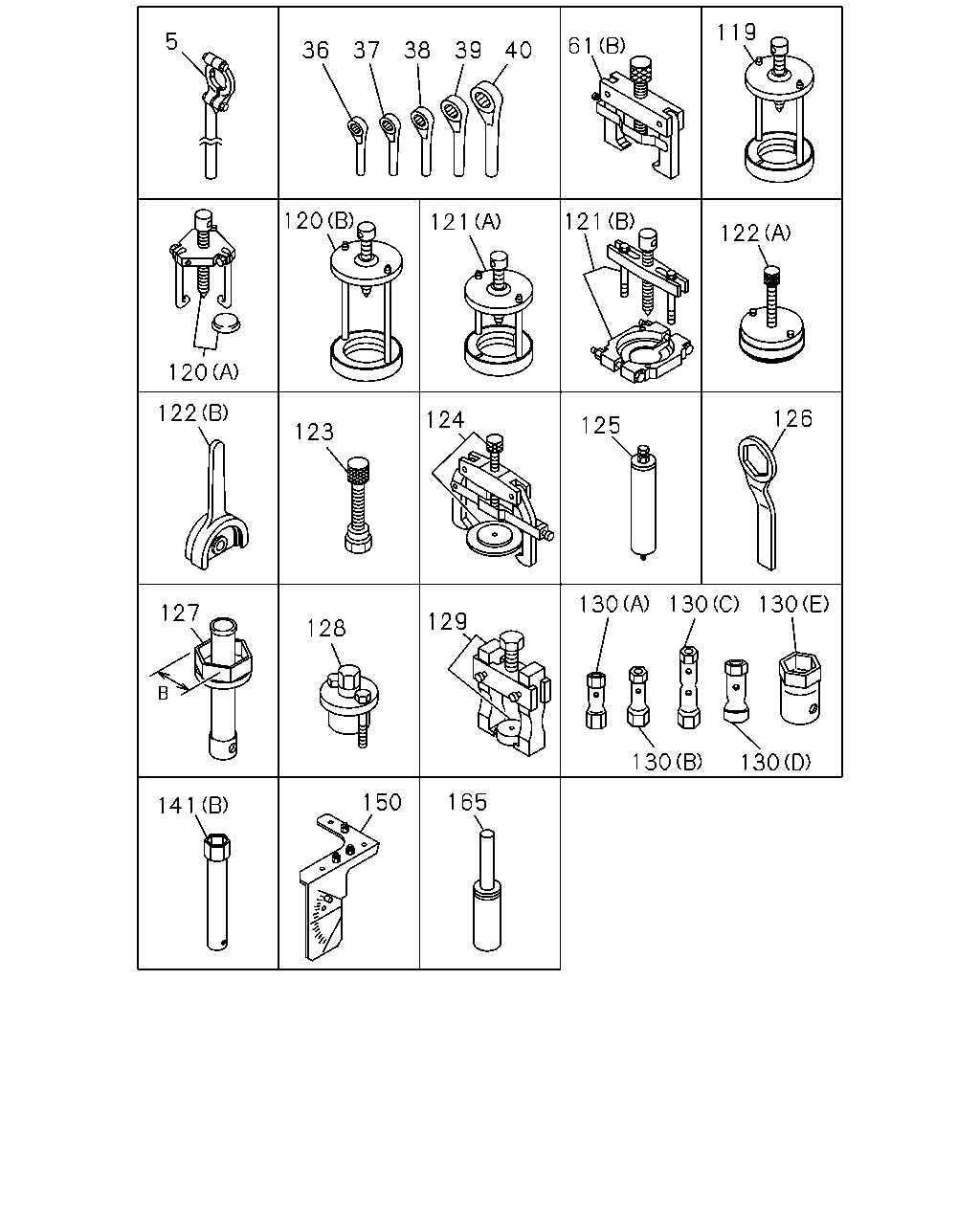

119 5 61 36 37 38 39 40 120 121 121 122 120 122 126 124 125 123 130 130 130 127 129 128 130 130 165 150 141

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	WRENCH ASM; NUT,MAINSHAFT	1-85110-010-0	01	1	9002-
36	WRENCH; 24	9-85111-377-0	01	1	9002-
37	WRENCH; 27	9-85111-375-0	01	1	9002-
38	WRENCH; 32	9-85111-358-0	01	1	9002-
39	WRENCH; 36	9-85111-374-0	01	1	9002-
40	WRENCH; 41	9-85111-356-0	01	1	9002-
61	PULLER ASM; PILOT BRG (B)	1-85210-050-0	01	1	9002-
61	PULLER ASM; PILOT BRG (A)	9-85210-157-0	01	1	9002-
119	PULLER ASM; TOP GEAR BRG L=235	9-85210-190-0	01	1	9002-
120	PULLER ASM; MAIN REAR BRG (A)	9-85210-148-0	01	1	9002-
120	PULLER ASM; MAIN REAR BRG (B) L=285	9-85210-184-0	01	1	9002-
121	PULLER ASM; COUNTER REAR (A)	9-85210-185-0	01	1	9002-
121	PULLER ASM; COUNTER REAR (B)	9-85210-195-0	01	1	9002-
122	PULLER ASM; COUNTER FRT (A)	1-85210-010-0	01	1	9002-
122	PULLER ASM; COUNTER FRT (B)	9-85210-129-1	01	1	9002-
123	PULLER; SPEEDOMETER BUSHING	9-85210-091-0	01	1	9002-
124	PULLER ASM; BRG DIFF	9-85210-131-0	01	1	9002-
125	PULLER ASM; KING PIN L=450	1-85210-009-0	01	1	9002-
126	WRENCH; FRT HUB BRG NUT L=350 B=75	1-85110-002-0	01	1	9002-
127	WRENCH ASM; HUB BRG NUT BOLT HEAD OD=63	9-85113-509-0	01	1	9002-
127	WRENCH ASM; HUB BRG NUT BOLT HEAD OD=67	9-85113-524-0	01	1	9002-
128	PULLER ASM; STRG WHEEL	9-85210-099-0	01	1	9002-
129	PULLER ASM; PITMAN ARM	1-85210-011-0	01	1	9002-
130	WRENCH; BOX (E) B=63	9-85111-368-0	01	1	9002-
130	WRENCH; BOX (D) B=46 & 54 L=165	9-85112-320-0	01	1	9002-
130	WRENCH; BOX (A) B=32 & 41 L=150	9-85112-322-0	01	1	9002-
130	WRENCH; BOX (C) B=36 & 41 L=200	9-85112-330-0	01	1	9307-
130	WRENCH; BOX (B) B=41 & 46 L=165	9-85113-401-0	01	1	9307-
141	HANDLE; WRENCH (A) OD=25 L=480	1-85116-011-0	01	1	9002-
141	HANDLE; WRENCH (B) OD=16 L=200	9-85111-934-0	01	1	9002-
141	HANDLE; WRENCH (A) OD=19 L=400	9-85114-306-0	01	1	9002-
141	HANDLE; WRENCH (A) OD=16 L=300	9-85114-307-0	01	1	9002-
150	TOOL; SETTING,LSPV	1-85220-005-0	01	1	9002-
165	SETTING TOOL; PTO L TYPE ENG<90L>	9-85241-702-0	01	1	9002-

47 62 53 50 52 72 84 85 71 72 93 102 132 106 95 189 230 178 181

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
47	WRENCH ASM; UNIVERSAL,INJ PUMP L TYPE ENG<90L> (B)	9-85113-901-0	01	1	9002-
47	WRENCH ASM; UNIVERSAL,INJ PUMP 10PD1 STD ENG(40L) (A)	1-85220-018-0	01	1	9002-
50	REPLACER; NOZZLE HOLDER L TYPE ENG<90L> (B)	9-85232-001-0	01	1	9002-
50	REPLACER; NOZZLE HOLDER 10PD1 STD ENG(40L) (A) L=500	1-85230-007-0	01	1	9002-
52	REMOVER; WATER PUMP L TYPE ENG<90L>	9-85210-097-0	01	1	9002-
53	PULLER; TAPER BUSHING L TYPE ENG<90L>	9-85210-123-0	01	1	9002-
62	TOOL ASM; SETTING WEAR RING L TYPE ENG<90L> (A)	1-85220-014-0	01	1	9002-
62	TOOL ASM; SETTING WEAR RING 10PD1 STD ENG(40L) (B)	1-85221-008-0	01	1	9002-
71	TOOL; SETTING,OIL SEAL,FRT L TYPE ENG<90L>	1-85220-015-0	01	1	9002-
72	TOOL; SETTING,OIL SEAL,RR L TYPE ENG<90L> (B)	1-85220-013-0	01	1	9002-
72	TOOL; SETTING,OIL SEAL,RR L TYPE ENG<90L> (A)	1-85220-035-0	01	1	9002-
84	REPLACER; VALVE SEAL L TYPE ENG<90L>	9-85221-289-0	01	1	9002-
85	REPLACER ASM; VALVE SPR L TYPE ENG<90L>	9-85231-436-0	01	1	9002-
93	SETTING KIT; VALVE GUIDE L TYPE ENG<90L> (B)	9-85231-222-0	01	1	9002-
93	SETTING KIT; VALVE GUIDE 10PD1 STD ENG(40L) (A) L=260	9-85231-202-0	01	1	9002-
95	SETTING TOOL; BRIDGE GUIDE L TYPE ENG<90L>	9-85221-324-0	01	1	9002-
102	ADAPTER; COMP GAGE L TYPE ENG<90L>	9-85431-505-0	01	1	9002-
106	TOOL; SETTING PILOT BRG (B)	9-85221-247-0	01	1	9002-
106	TOOL; SETTING PILOT BRG (C)	9-85221-249-0	01	1	9002-
106	TOOL; SETTING PILOT BRG L TYPE ENG<90L> (D)	9-85241-409-0	01	1	9002-
106	TOOL; SETTING PILOT BRG 10PD1 STD ENG(40L) (A)	1-85221-057-0	01	1	9002-
132	WRENCH; NUT CR/SHF L TYPE ENG<90L> B=46 & 54 L=165	9-85112-320-0	01	1	9002-
178	BAR; TRANS GUIDE	9-85291-203-0	01	1	9002-
181	PULLER ASM; AIR CMPR L TYPE ENG<90L>	1-85210-036-0	01	1	9002-
189	TUBE; AIR BREATHER L=460	9-85291-414-0	01	1	9002-
230	PUMP; GREASE	1-85556-007-2	01	1	9002-

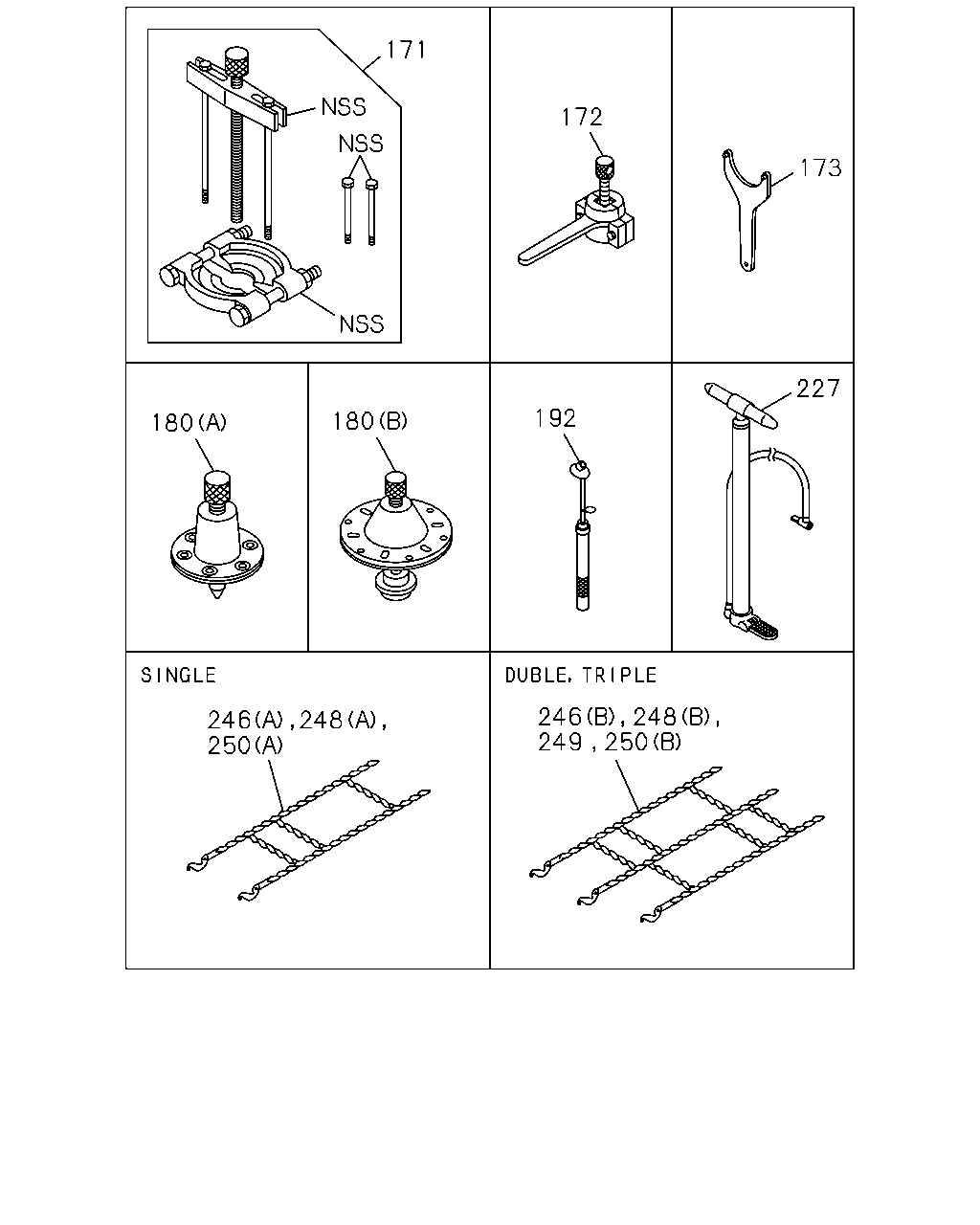

171 172 173 227 192 180 180 246 250 248 246 248 249 250

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
171	PULLER ASM; PINION BRG	9-85210-152-0	01	1	9002-
172	PULLER ASM; BRG DIFF PILOT	9-85210-182-0	01	1	9002-
173	WRENCH; COUPLING DRIVER	9-85111-944-0	01	1	9002-
180	PULLER; FRT & RR HUB (A)	1-85210-002-0	01	1	9002-
180	PULLER; FRT & RR HUB (B)	1-85210-003-0	01	1	9002-
192	GAUGE; TIRE PRESSURE	1-85315-001-0	01	1	9002-
192	GAUGE; TIRE PRESSURE TIRE INFLATOR DEVICE<W47>	1-85315-001-0	01	1	9002-
227	PUMP ASM; TIRE	9-85521-132-0	01	1	9002-
246	CHAIN; TIRE,1000-20,SINGLE (A) 10.00-20 SINGLE TYPE	9-85591-239-0	AR	1	9002-
246	CHAIN; TIRE,1000-20,SINGLE (B) 11.00-20 SINGLE TYPE	9-85591-259-0	AR	1	9002-
248	CHAIN; TIRE,1000-20,DOUBLE (A) SIZE 10.00-20 10.00-20 DOUBLE TYPE	9-85591-240-0	AR	1	9002-
248	CHAIN; TIRE,1000-20,DOUBLE (B) SIZE 11.00-20 11.00-20 DOUBLE TYPE	9-85591-260-0	AR	1	9002-
249	CHAIN; TIRE,TRIPLE 9.00-20 TRIPLE TYPE	9-85591-256-0	AR	1	9002-
250	CHAIN; TIRE,1000-20,TRIPLE (A) 10.00-20 TRIPLE TYPE	9-85591-241-0	AR	1	9002-
250	CHAIN; TIRE,1000-20,TRIPLE (B) 11.00-20 TRIPLE TYPE	9-85591-261-0	AR	1	9002-

141 146 146 135 77 146 153 152 151 154 158 156 166 169 167 106 163 56 232 177 170

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
56	TOOL; SETTING TOP GEAR MAIN L=350	9-85221-310-0	01	1	9002-
77	TOOL; SETTING,CYL LINER L TYPE ENG<90L>	9-85220-043-0	01	1	9002-
106	TOOL; SETTING PILOT BRG (B)	9-85221-247-0	01	1	9002-
106	TOOL; SETTING PILOT BRG (C)	9-85221-249-0	01	1	9002-
106	TOOL; SETTING PILOT BRG L TYPE ENG<90L> (D)	9-85241-409-0	01	1	9002-
106	TOOL; SETTING PILOT BRG 10PD1 STD ENG(40L) (A)	1-85221-057-0	01	1	9002-
135	COVER; ENG MTG,FRT	9-85595-016-0	02	1	9002-
141	HANDLE; WRENCH (A) OD=25 L=480	1-85116-011-0	01	1	9002-
141	HANDLE; WRENCH (B) OD=16 L=200	9-85111-934-0	01	1	9002-
141	HANDLE; WRENCH (A) OD=19 L=400	9-85114-306-0	01	1	9002-
141	HANDLE; WRENCH (A) OD=16 L=300	9-85114-307-0	01	1	9002-
146	REPLACER KIT; LEAF SPR (A)	1-85237-003-0	01	1	9002-9307
146	REPLACER KIT; LEAF SPR (A)	1-85237-016-0	01	1	9308-
146	REPLACER KIT; LEAF SPR (B)	1-85237-007-0	01	1	9002-9307
146	REPLACER KIT; LEAF SPR (B)	1-85237-017-0	01	1	9308-
146	REPLACER KIT; LEAF SPR (C)	9-85231-556-0	01	1	9002-
151	REMOVER; OIL BRK,FRT RETURN SPR	1-85237-002-0	01	1	9002-
152	DRIVER; NEEDLE,KING PIN L=220	1-85238-001-0	01	1	9002-
153	DRIVER; WASHER,THRUST WASHER	1-85238-002-0	01	1	9002-
154	SLEEPER; KING PIN	1-85238-003-0	01	1	9002-
156	PULLER; ANCHOR PIN	1-85210-025-0	01	1	9002-
158	SETTING TOOL; RETURN SPR	9-85221-231-0	01	1	9002-
163	TOOL; SETTING L=150	9-85221-248-0	01	1	9002-
166	ALIGNER; CLU RELEASE LEVER EXC. 14INCH TWO PLATE SPICER CLUTCH(M07) L=550 H=17.5	1-85253-010-0	01	1	9002-
167	ALIGNER; CLU PILOT 14INCH TWO PLATE SPICER CLUTCH(M07) L=300 OD=36.5	1-85253-021-0	01	1	9002-9003
167	ALIGNER; CLU PILOT 14INCH TWO PLATE SPICER CLUTCH(M07) EXC. NEW ZEALAND EQUIPMENT(PK5) L=300 OD=36.5	1-85253-021-0	01	1	9004-
167	ALIGNER; CLU PILOT EXC. 14INCH TWO PLATE SPICER CLUTCH(M07) L=300 OD=41.1	1-85253-020-0	01	1	9002-9003
167	ALIGNER; CLU PILOT 14INCH TWO PLATE SPICER CLUTCH(M07) NEW ZEALAND EQUIPMENT(PK5) L=300 OD=41.1	1-85253-020-0	01	1	9004-
167	ALIGNER; CLU PILOT EXC. 14INCH TWO PLATE SPICER CLUTCH(M07) L=300 OD=41.1	1-85253-020-0	01	1	9004-
169	BRACKET; SPLINE YOKE	9-85221-243-1	01	1	9002-
170	HANDLE; TURNING,FINAL	9-85251-121-0	01	1	9002-
177	SETTING TOOL KIT	1-85220-004-0	01	1	9002-
232	HOSE; AIR,AIR CHARGE TIRE INFLATOR DEVICE<W47>	1-09360-628-1	01	1	9002-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
