1-31 — AIR DUCT (#25728) — 136 parça

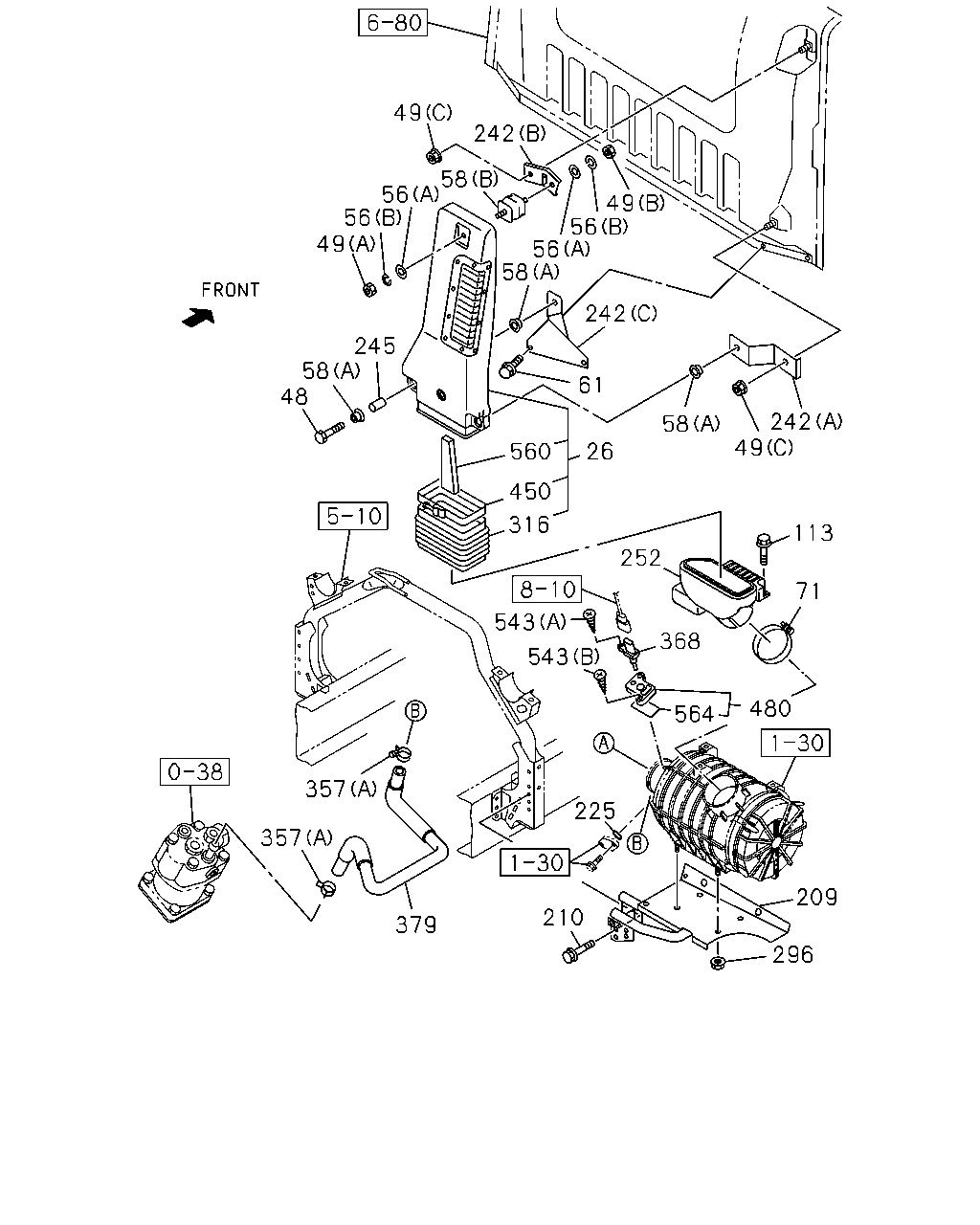

çizim 142766
49 242 58 56 56 49 49 56 56 58 242 245 61 58 48 242 49 58 26 560 450 316 113 252 71 543 368 543 480 564 357 225 357 209 210 379 296
BalonParca AdiParca NoAdetTipApplied Date A B
26 DUCT; AIR INT 8-98010-361-2 01 1 0808-1102 ●
26 DUCT; AIR INT 8-98010-361-2 01 1 1103- ● ●
48 BOLT; AIR DUCT
M10X60 		1-09030-044-1 02 1 0808-1102 ●
48 BOLT; AIR DUCT
M10X60 		1-09030-044-1 02 1 1103- ● ●
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-122-0 01 1 0808-1102 ●
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-122-0 01 1 1103- ● ●
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 0808-1102 ●
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 1103- ● ●
49 NUT; AIR DUCT
(C) M8 FLANGE 		8-94279-517-0 02 1 0808-1102 ●
49 NUT; AIR DUCT
(C) M8 FLANGE 		8-94279-517-0 02 1 1103- ● ●
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 		1-09985-177-0 02 1 0808-1102 ●
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 		1-09985-177-0 02 1 1103- ● ●
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 0808-1102 ●
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 1103- ● ●
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 0808-1102 ●
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 1103- ● ●
58 SUPPORT; AIR INL DUCT
(B) 		1-14119-452-0 01 1 0808-0810 ●
58 SUPPORT; AIR INL DUCT
(B) 		8-98125-944-0 01 1 0811-1102 ●
58 SUPPORT; AIR INL DUCT
(B) 		8-98125-944-1 01 1 1103- ● ●
61 BOLT; BRKT,AIR DUCT
M8X20 FLANGE 		8-98061-920-0 02 1 0808-1102 ●
61 BOLT; BRKT,AIR DUCT
M8X20 FLANGE 		8-98061-920-0 02 1 1103- ● ●
71 CLIP; AIR DUCT
ID=104-139 		1-09707-200-0 01 1 0808-0812 ●
71 CLIP; AIR DUCT
ID=120-140 		8-98133-367-0 01 1 0901-1102 ●
71 CLIP; AIR DUCT
ID=120-140 		8-98133-367-0 01 1 1103-1507 ● ●
71 CLIP; AIR DUCT
ID=120-140 		8-98308-277-0 01 1 1508- ● ●
113 BOLT; RESONATOR
M6X16 W/PL WASHER 		8-98094-071-0 03 1 0808- ●
209 BRACKET; ACL 8-98010-343-4 01 1 0808- ●
210 BOLT; ACL BRKT
M10X25 FLANGE THA 		0-28651-025-0 04 1 0808-1102 ●
210 BOLT; ACL BRKT
M10X25 FLANGE THA 		0-28651-025-0 04 1 1103- ● ●
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 1103- ● ●
242 BRACKET; AIR DUCT
(B) 		8-98019-301-2 01 1 0808-1102 ●
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 1103- ● ●
242 BRACKET; AIR DUCT
(C) 		8-98019-302-1 01 1 0808-1102 ●
242 BRACKET; AIR DUCT
(C) 		8-98019-302-1 01 1 1103- ● ●
242 BRACKET; AIR DUCT
(A) 		8-98019-303-1 01 1 0808- ●
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 0808-1102 ●
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 1103- ● ●
252 DUCT; AIR INT 8-98095-778-0 01 1 0808- ●
296 NUT; ACL
M8 FLANGE THA 		0-91180-108-0 04 1 0808-1102 ●
296 NUT; ACL
M8 FLANGE THA 		0-91180-108-0 04 1 1103- ● ●
316 RUBBER; CUSHION,DUCT 8-98152-269-0 01 1 0908-1102 ●
316 RUBBER; CUSHION,DUCT 8-98152-269-0 01 1 1103- ● ●
357 CLIP; RUBBER HOSE
(B) ID=77-95 		1-09707-198-0 01 1 0808-0810 ●
357 CLIP; RUBBER HOSE
(B) ID=75-95 		8-98133-357-0 01 1 0811-1102 ●
357 CLIP; RUBBER HOSE
(B) ID=75-95 		8-98133-357-0 01 1 1103-1507 ● ●
357 CLIP; RUBBER HOSE
(B) ID=75-95 		8-98308-274-0 01 1 1508- ● ●
357 CLIP; RUBBER HOSE
(C) ID=58-76 THA 		1-09707-203-0 02 1 0808-0811 ●
357 CLIP; RUBBER HOSE
(C) ID=55-75 		8-98133-349-0 02 1 0812-1102 ●
357 CLIP; RUBBER HOSE
(C) ID=55-75 		8-98133-349-0 02 1 1103-1507 ● ●
357 CLIP; RUBBER HOSE
(C) ID=55-75 THA 		8-98141-459-0 02 1 1508- ●
357 CLIP; RUBBER HOSE
(A) ID=24 		8-98025-921-0 02 1 0808-1102 ●
357 CLIP; RUBBER HOSE
(A) ID=24 		8-98025-921-0 02 1 1103- ● ●
368 SENSOR; TEMP 8-98065-377-0 01 1 0808-1102 ●
368 SENSOR; TEMP 8-98065-377-0 01 1 1103- ● ●
379 HOSE; RUBBER 8-98075-713-1 01 1 0808-1102 ●
379 HOSE; RUBBER 8-98075-713-1 01 1 1103- ● ●
450 CLAMP; HOSE 9-09915-504-1 01 1 0808-1102 ●
450 CLAMP; HOSE 9-09915-504-1 01 1 1103- ● ●
480 ADAPTER 8-98086-417-0 01 1 0808-1102 ●
480 ADAPTER 8-98086-417-0 01 1 1103- ● ●
543 SCREW; SENSOR
(A) M5X14 W/LK WASHER 		0-36220-514-0 01 1 0808-0912 ●
543 SCREW; SENSOR
(A) M5X14 W/LK WASHER 		0-36220-514-0 01 1 1001-1102 ●
543 SCREW; SENSOR
(A) M5X14 W/LK WASHER 		0-36220-514-0 01 1 1103- ● ●
543 SCREW; SENSOR
(B) M4X12 W/LK&PL WASHER THA 		0-36230-412-0 04 1 0808-0912 ●
543 SCREW; SENSOR
(B) M4X12 W/LK&PL WASHER THA 		0-36230-412-0 04 1 1001-1102 ●
543 SCREW; SENSOR
(B) M4X12 W/LK&PL WASHER THA 		0-36230-412-0 02 1 1103- ● ●
543 SCREW; SENSOR
(B) M4X12 W/LK&PL WASHER THA 		0-36230-412-0 02 1 1103- ● ●
560 FILTER; VERTICAL DUCT 8-98061-675-0 01 1 1103- ● ●
560 FILTER; VERTICAL DUCT 8-98061-675-0 02 1 0808-1102 ●
564 GASKET; ADAPTER 8-98071-416-0 01 1 0808-1102 ●
564 GASKET; ADAPTER 8-98071-416-0 01 1 1103- ● ●

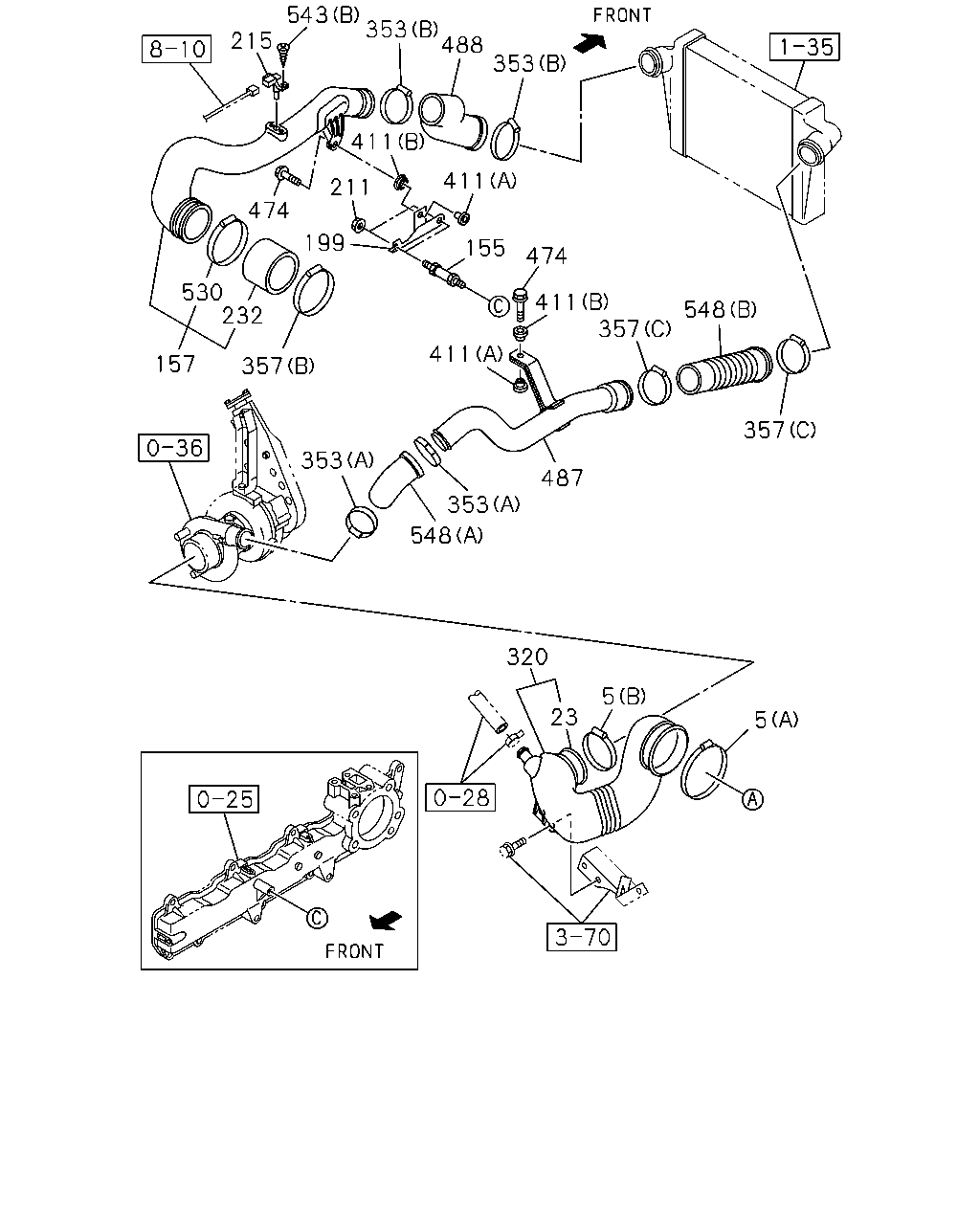

çizim 142767
543 353 488 353 215 411 411 211 474 199 155 474 530 232 411 357 548 411 157 357 357 353 487 353 548 320 5 23 5
BalonParca AdiParca NoAdetTipApplied Date A B
5 CLIP; AIR DUCT
(A) ID=104-139 		1-09707-200-0 01 1 0808-0812 ●
5 CLIP; AIR DUCT
(A) ID=110-130 		8-98133-359-0 01 1 0901-1102 ●
5 CLIP; AIR DUCT
(A) ID=110-130 		8-98133-359-0 01 1 1103-1507 ● ●
5 CLIP; AIR DUCT
(A) ID=110-130 		8-98308-276-0 01 1 1508- ●
5 CLIP; AIR DUCT
(B) ID=58-76 THA 		1-09707-203-0 01 1 0808-0811 ●
5 CLIP; AIR DUCT
(B) ID=55-75 		8-98133-349-0 01 1 0812-1102 ●
5 CLIP; AIR DUCT
(B) ID=55-75 		8-98133-349-0 01 1 1103-1507 ● ●
5 CLIP; AIR DUCT
(B) ID=55-75 THA 		8-98141-459-0 01 1 1508- ● ●
23 CLIP; HOSE
ID=87-116 		1-09707-144-0 01 1 1102-1102 ●
23 CLIP; HOSE
ID=87-116 		1-09707-144-0 01 1 1103- ● ●
155 BOLT; BRKT
M10X17,M10X30 L=105 		8-97233-428-0 02 1 0808-1102 ●
155 BOLT; BRKT
M10X17,M10X30 L=105 		8-97233-428-0 02 1 1103- ● ●
157 PIPE; AIR 8-98010-719-3 01 1 0808-1102 ●
157 PIPE; AIR 8-98010-719-3 01 1 1103- ● ●
199 BRACKET; PIPE 8-97385-293-1 01 1 0808-1102 ●
199 BRACKET; PIPE 8-97385-293-1 01 1 1103- ● ●
211 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 02 1 0808-1102 ●
211 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 02 1 1103- ● ●
215 SENSOR; MAP 8-98009-418-0 01 1 0808-1102 ●
215 SENSOR; MAP 8-98009-418-0 01 1 1103- ● ●
232 HOSE; CONN 8-98067-929-0 01 1 0808-1102 ●
232 HOSE; CONN 8-98067-929-0 01 1 1103- ● ●
320 HOSE; CONN,ACL 8-98073-540-3 01 1 0808-1102 ●
320 HOSE; CONN,ACL 8-98073-540-3 01 1 1103- ● ●
353 CLIP; RUBBER HOSE
(B) ID=58-76 THA 		1-09707-203-0 02 1 0808-0811 ●
353 CLIP; RUBBER HOSE
(B) ID=55-75 		8-98133-349-0 02 1 0812-1102 ●
353 CLIP; RUBBER HOSE
(B) ID=55-75 		8-98133-349-0 02 1 1103-1507 ● ●
353 CLIP; RUBBER HOSE
(B) ID=55-75 THA 		8-98141-459-0 02 1 1508- ●
353 CLIP; RUBBER HOSE
(A) ID=60-65 		8-98096-418-0 02 1 0808-1102 ●
353 CLIP; RUBBER HOSE
(A) ID=60-65 		8-98096-418-0 02 1 1103-1507 ● ●
353 CLIP; RUBBER HOSE
(A) ID=60-65 THA 		8-98194-605-0 02 1 1508- ●
357 CLIP; RUBBER HOSE
(B) ID=77-95 		1-09707-198-0 01 1 0808-0810 ●
357 CLIP; RUBBER HOSE
(B) ID=75-95 		8-98133-357-0 01 1 0811-1102 ●
357 CLIP; RUBBER HOSE
(B) ID=75-95 		8-98133-357-0 01 1 1103-1507 ● ●
357 CLIP; RUBBER HOSE
(B) ID=75-95 		8-98308-274-0 01 1 1508- ● ●
357 CLIP; RUBBER HOSE
(C) ID=58-76 THA 		1-09707-203-0 02 1 0808-0811 ●
357 CLIP; RUBBER HOSE
(C) ID=55-75 		8-98133-349-0 02 1 0812-1102 ●
357 CLIP; RUBBER HOSE
(C) ID=55-75 		8-98133-349-0 02 1 1103-1507 ● ●
357 CLIP; RUBBER HOSE
(C) ID=55-75 THA 		8-98141-459-0 02 1 1508- ●
357 CLIP; RUBBER HOSE
(A) ID=24 		8-98025-921-0 02 1 0808-1102 ●
357 CLIP; RUBBER HOSE
(A) ID=24 		8-98025-921-0 02 1 1103- ● ●
411 RUBBER; CUSHION
(A) OD=32 		8-94395-766-0 02 1 0808-1102 ●
411 RUBBER; CUSHION
(A) OD=32 		8-94395-766-0 02 1 1103- ● ●
411 RUBBER; CUSHION
(B) OD=23 		8-97105-689-6 02 1 0808-1102 ●
411 RUBBER; CUSHION
(B) OD=23 		8-97105-689-6 02 1 1103- ● ●
474 BOLT; PIPE
M8X40 FLANGE THA 		0-28650-840-0 02 1 0808-1102 ●
474 BOLT; PIPE
M8X40 FLANGE THA 		0-28650-840-0 02 1 1103- ● ●
487 PIPE; TURBO TO CHARGE AIR COOLER
THA 		8-98073-592-0 01 1 0808-1102 ●
487 PIPE; TURBO TO CHARGE AIR COOLER
THA 		8-98073-592-0 01 1 1103- ● ●
488 HOSE; RUBBER,PIPE 8-98010-723-0 01 1 0808-1102 ●
488 HOSE; RUBBER,PIPE 8-98010-723-0 01 1 1103- ● ●
530 CLAMP; AIR DUCT
ID=77-95 		1-09707-198-0 01 1 0808-0810 ●
530 CLAMP; AIR DUCT
ID=75-95 		8-98133-357-0 01 1 0811-1102 ●
530 CLAMP; AIR DUCT
ID=75-95 		8-98133-357-0 01 1 1103- ● ●
543 SCREW; SENSOR
(A) M5X14 W/LK WASHER 		0-36220-514-0 01 1 0808-0912 ●
543 SCREW; SENSOR
(A) M5X14 W/LK WASHER 		0-36220-514-0 01 1 1001-1102 ●
543 SCREW; SENSOR
(A) M5X14 W/LK WASHER 		0-36220-514-0 01 1 1103- ● ●
543 SCREW; SENSOR
(B) M4X12 W/LK&PL WASHER THA 		0-36230-412-0 04 1 0808-0912 ●
543 SCREW; SENSOR
(B) M4X12 W/LK&PL WASHER THA 		0-36230-412-0 04 1 1001-1102 ●
543 SCREW; SENSOR
(B) M4X12 W/LK&PL WASHER THA 		0-36230-412-0 02 1 1103- ● ●
543 SCREW; SENSOR
(B) M4X12 W/LK&PL WASHER THA 		0-36230-412-0 02 1 1103- ● ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(A) 		8-98061-809-1 01 1 0808-1102 ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(A) 		8-98061-809-1 01 1 1103- ● ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(B) 		8-98061-810-0 01 1 0808-1102 ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(B) 		8-98061-810-0 01 1 1103- ● ●
